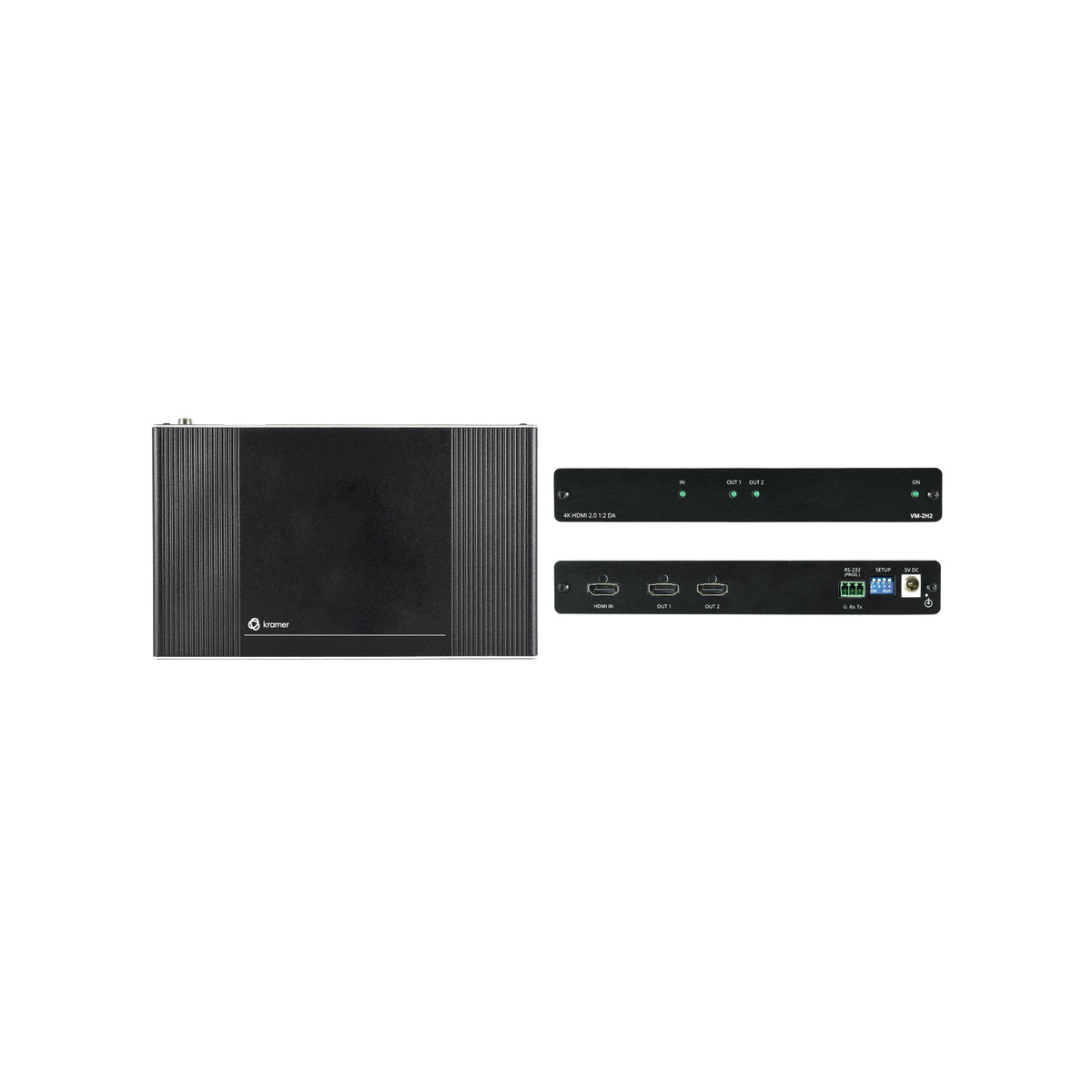

Kramer 4K HDMI Distribution Amplifier with HDCP2.2 and HDMI2.0 support

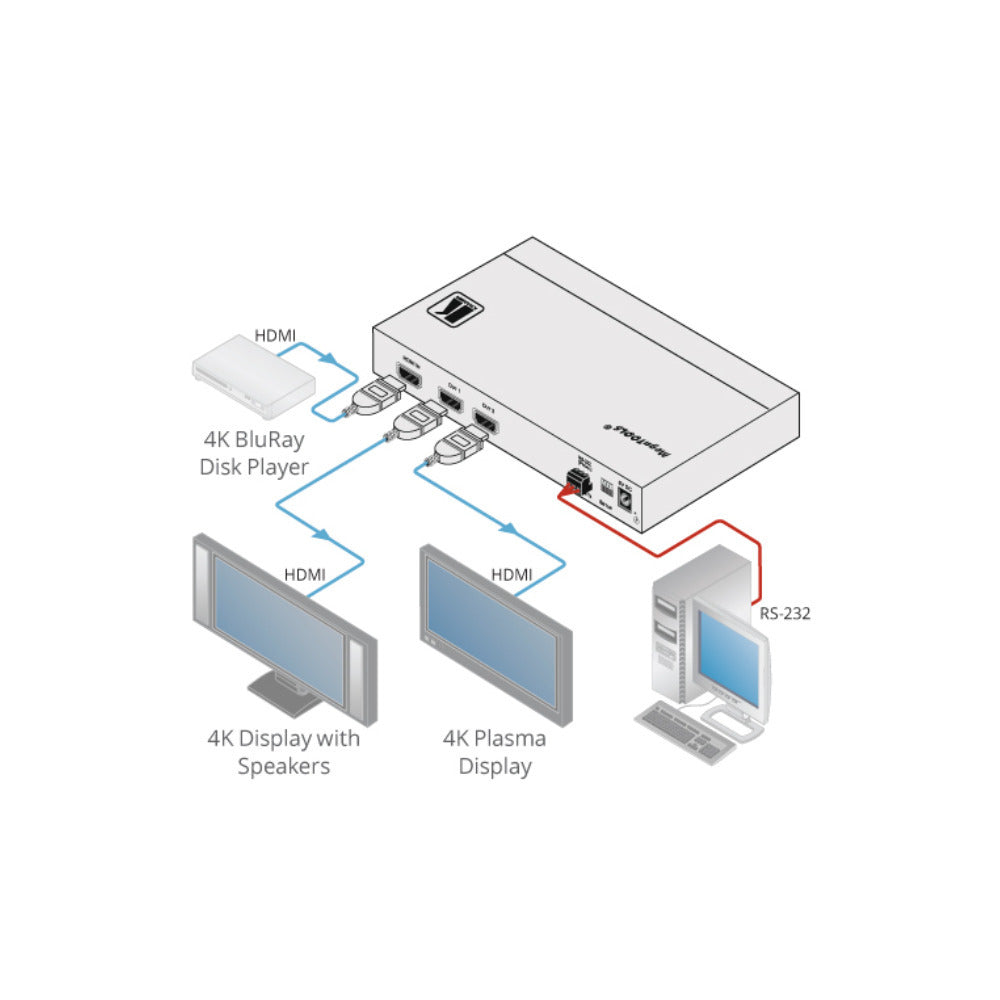

VM−2H2 is a 1:2 distribution amplifier for up to 4K HDR, HDMI signals that comply with HDCP 2.2 content protection standard. The unit takes one HDMI input, equalizes and reclocks the signal, and distributes it to two identical outputs.
Max. Data Rate
17.82Gbps (5.94Gbps per graphic channel).
Max. Resolution
4K@60Hz (4:4:4).
HDMI Signal Transmission
HDR, HDCP 2.2 compliant signal, supporting deep color, x.v.Color, lip sync, 7.1 PCM, Dolby TrueHD, DTS–HD, CEC (OUT 1 only), 2K, 4K, and 3D as specified in HDMI 2.0.
Intelligent EDID Handling
Use connected display EDID or default EDID, with EDID lock and RGB–force options, to ensure proper operation of HDMI source and display systems.
Kramer Equalization & re-Klocking Technology
Rebuilds the digital signal to travel longer distances.
Force RGB
When the display lacks YCbCr capabilities, the user can force native delivery of the RGB color format in HDMI content to improve picture quality.
Selectable HDCP Authorization
Allows the user to control the appearance of an HDCP or non–HDCP input to the source to permit delivery of protection–free content, such as personal clips and charts, without HDCP encryption. HDCP-protected content is not passed in non–HDCP mode.
Field Maintenance
RS–232 connection for simple field firmware upgrade, status indicators for HDMI input and output connected signals, and a power indicator, for ease of maintenance and troubleshooting.
Easy Installation
Compact Mega TOOLS fan–less enclosure for over–ceiling mounting, or side–by–side rack mounting.
Main
| Configuration | Core |
| Data Transfer Rate | 18Gbps |
| Type | Power Cable |
| Color | Black/Black |
Kramer 4K HDMI Distribution Amplifier with HDCP2.2 and HDMI2.0 support
Input
| 1 HDMI connector | |
| 2 HDMI connectors | |
| 1 RS–232 for firmware upgrade | |
| Up to 17.82Gbps bandwidth (5.94Gbps per graphic channel) | |
| Up to 4K@60Hz (4 | 4:4) resolution |
| HDR10, HDCP 2.2 signal compliance | |
| Supports deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0 | |
| ON, IN, OUT 1 to 2 | |
| 0° to +40°C (32° to 104°F) | |
| –40° to +70°C (–40° to 158°F) | |
| 10% to 90%, RHL non-condensing | |
| 5V DC, 730mA | |
| Power supply | |
| 19.00cm x 11.60cm x 2.70cm (7.48in x 4.57in x 1.06in ) W, D, H | |
| 0.4kg (0.9lbs) approx. | |
| 34.50cm x 16.50cm x 5.20cm (13.58in x 6.5 |
