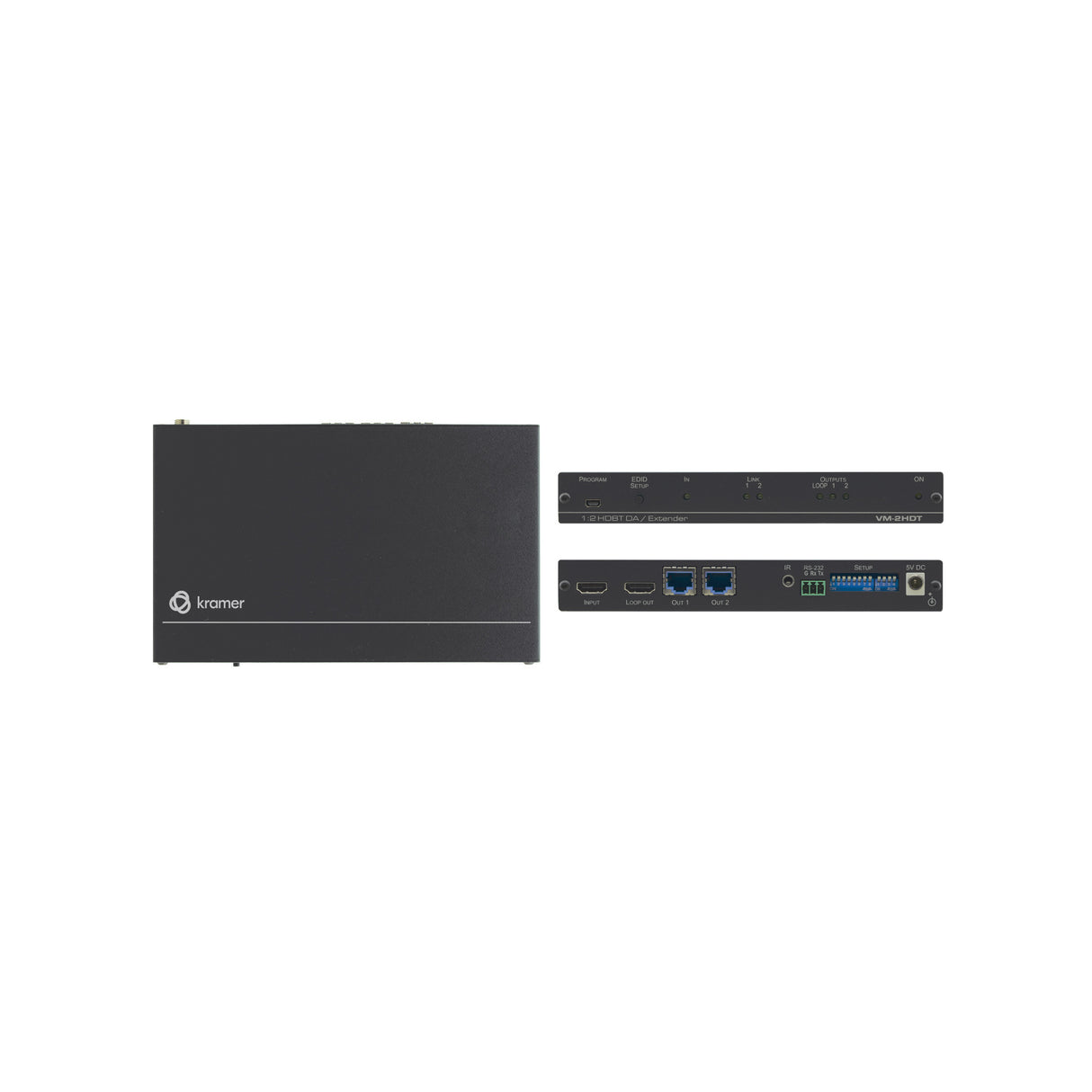

Kramer VM-2HDT 1:2+1 4K60 4:2:0 HDMI to Long-Reach HDBT DA (Black)
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

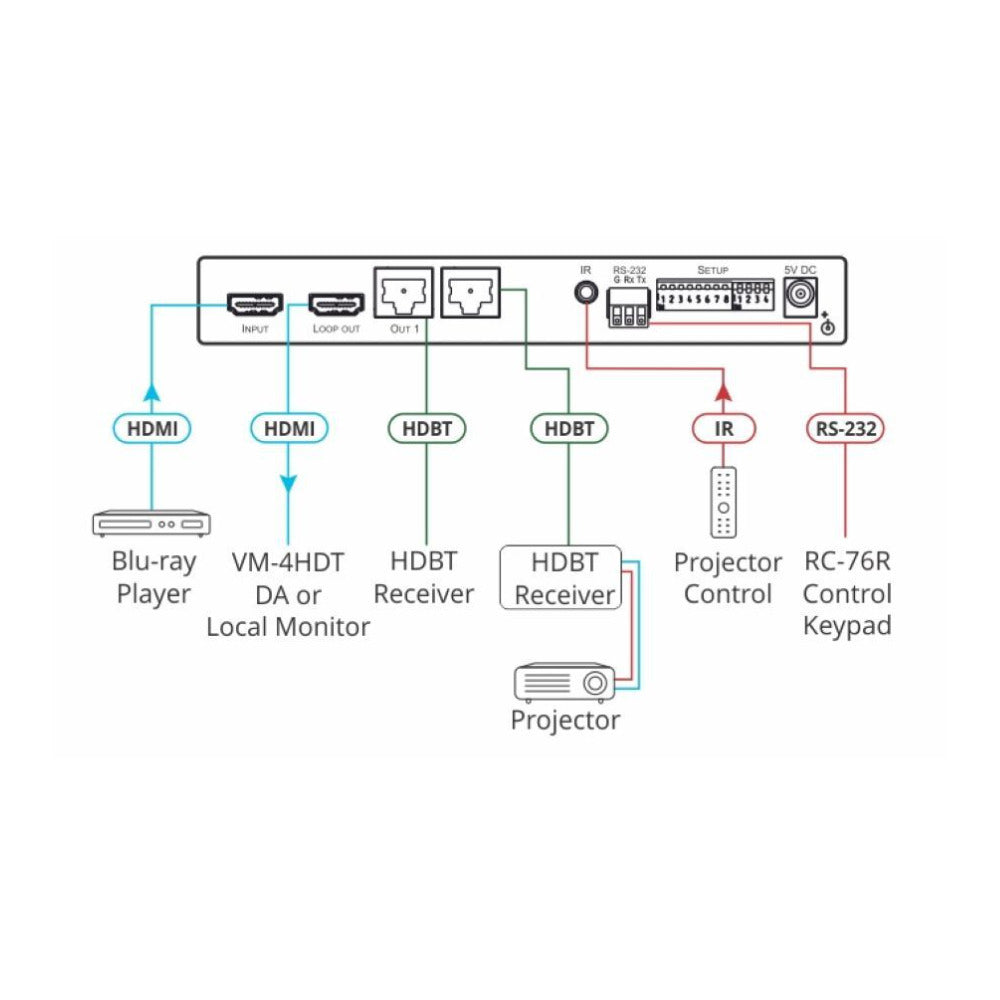

VM−2HDT is a high−quality, long−reach 1:2 HDBaseT extender distributor that takes one HDMI input, with IR and RS−232 control signals, converts it to an HDBaseT extension line signal, and distributes it to 2 HDBaseT outputs that connect to compatible HDBaseT receivers. VM−2HDT includes an HDMI LOOP output for connecting to an additional unit in a daisy chain.
High Performance Distribution
Distributes one HDMI signal to two long–reach HDBaseT extension outputs with up to 4K video resolution, and additional HDMI LOOP output for connecting a local monitor or an additional unit in a daisy chain.
Extension–line Distribution
Distributes a 4K@60Hz (4:2:0) 24bpp (maximum) video signal over HDBaseT extension line to a distance of up to 40m (130ft) long–reach, and even further for lower video resolutions.
Standard Compatibility
Connects to any HDBaseT-compliant extension product on the market.
HDMI Signal Transmission
HDCP 1.4 compliant signal, supporting Deep Color, x.v.Color, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
I–EDIDPro Kramer Intelligent EDID Processing
An intelligent EDID handling, processing, and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
Kramer Equalization & re-Klocking Technology
Rebuilds the digital signal integrity to travel longer distances.
User–Friendly Operation
Status indicators for HDMI and HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.
Easy Installation
Twisted–pair cables for HDBaseT signals wiring. Compact Mega TOOLS fan–less enclosure for over–ceiling mounting, or side–by–side rack mounting.
Main
| Configuration | Core |
| Color | Black/Black |
Kramer VM-2HDT 1:2+1 4K60 4:2:0 HDMI to Long-Reach HDBT DA (Black)
Inputs
| 1 HDMI | On an HDMI female connector |
| 2 HDBT | On RJ–45 female connectors |
| 1 Loop HDMI | On an HDMI female connector |
| 1 IR | On a 3.5mm mini jack for IR link extension |
| 1 RS−232 | On a 3–pin terminal block for serial link extension |
| Max. Data Rate | 10.2Gbps (3.4Gbps per graphic channel) |
| Max. Resolution | Up to 4K@60Hz (4:2:0) 24bpp |
| Standards Compliance | Supports HDCP 1.4 and HDBaseT 1.0 |
| HDMI Support | Deep Color, x.v.Color, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0 |
| Up to 40m (130ft) | At 4K@60Hz (4:2:0) (when using Kramer HDBaseT cables) |
| Up to 70m (230ft) | At full HD (1080p @60Hz 36bpp) (when using Kramer HDBaseT cables) |
| Indicator LEDs | Outputs, inputs, communication link, and power |
| Controls | EDID setup button, 12 setup DIP switches |
| 1 RS-232 | On a Mini–USB female connector for firmware upgrade |
| Source | 5.2V DC, 4A |
| Consumption | 5V DC, 1.6A |
| Size | MegaTool |
| Type | Aluminum |
| Cooling | Convection ventilation |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10% to 90%, RHL non-condensing |
| Included | Power supply |
| 19.00cm x 11.60cm x 2.70cm (7.48in x 4.57in x 1.06in ) W, D, H | |
| 0.5kg (1.0lbs) approx. |
