Leupold 183836 VX-6HD Gen 2 2-12x42mm CDS-SZL2 Illum. FireDot Duplex Riflescope
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The VX-6HD Gen 2 2-12x42mm riflescope takes versatility to the next level. It offers an incredibly wide field of view making it easier to quickly locate and aim at a target, especially if the target is moving. It also gives you the magnification needed for mid to long-range shots. Its rugged, lightweight body is made for hunters and guides not willing to sacrifice performance or weight. Designed around our Professional-Grade Optical System, the VX-6HD Gen 2 2-12x42 offers unmatched light transmission and resolution that’s purpose-built to outperform in the most challenging lighting conditions. The Guard-ion lens coating that sheds water, dirt and fingerprinting is a stand-out feature on all Leupold hunting riflescopes that provides superior glare management for a clear image in harsh, direct light.
The wide zoom range combined with an illuminated reticle and level, integrated throw lever and a fast-focus eyepiece with flip-back lens covers make the VX-6HD Gen 2 an incredibly versatile hunting riflescope.
2-12x Magnification
This wide magnification spread allows you to dial down for fast, close-range target acquisition or zoom in for precise long-range shots, giving one scope exceptional adaptability across multiple shooting environments.
Professional-Grade Optical System with High-Definition Performance
Engineered for elite-level performance, the Professional Grade Optical System maximizes light transmission for superior brightness in low-light conditions, reduces glare in harsh direct sunlight, and delivers industry-leading resolution. Paired with Leupold High-Definition lenses, it provides outstanding clarity, vivid color fidelity, and edge-to-edge sharpness at every magnification level.

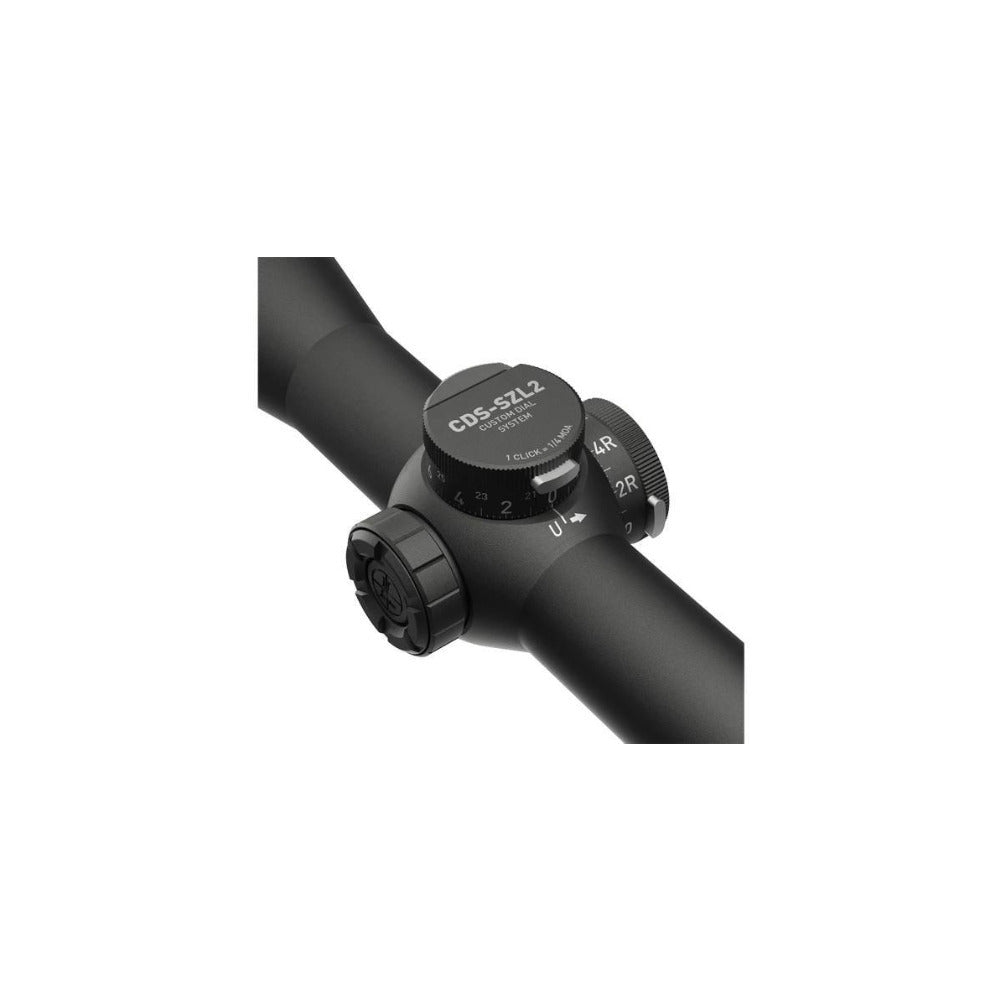

Advanced Precision Turret & Dial Technology
The Custom Dial System (CDS) allows you to order a turret precisely matched to your profile and environmental conditions. Simply range, dial, and aim dead on. The SpeedSet dial enables tool-free zeroing and dial changes, while the ZeroLock system prevents accidental adjustments and ensures reliable, repeatable returns to zero for consistent accuracy.
Enhanced Accuracy & Smart Illumination Features
The illuminated reticle creates a highly visible aiming point in low-light conditions. An integrated Electronic Reticle Level flashes when the scope is canted, promoting more precise long-range shots and simplifying mounting. Motion Sensor Technology (MST) automatically powers down the illuminated reticle after five minutes of inactivity and instantly reactivates with movement to extend battery life.
Rugged Construction with Premium Protection
Built to withstand harsh environments, this scope is waterproof, fogproof, and shockproof using advanced gas sealing technology for lifetime internal clarity. Guard-Ion hydrophobic lens coating repels water, dirt, and debris for a consistently crisp image. The integrated low-profile throw lever allows quick magnification changes, Alumina flip-back lens covers are included for added protection, and it’s backed by the Leupold Lifetime Guarantee for long-term confidence.
Optical & Magnification
| Magnification Type | Variable |
| Magnification Range | 2–12x |
| Magnification Min | 2x |
| Magnification Max | 12x |
| Objective Lens Diameter | 42 mm |
| Linear FOV Low Mag | 56.5 ft @ 100 yds |
| Linear FOV High Mag | 9.6 ft @ 100 yds |
| Angular FOV Low Mag | 10.8° |
| Angular FOV High Mag | 1.8° |
| Eye Relief Low Mag | 3.7 in |
| Eye Relief High Mag | 3.8 in |
Parallax & Focus
| Adjustable Parallax | Side Focus |
| Adjustable Objective | No |
| Precision Side Focus | No |
| Fixed Parallax-Free Distance | 150 yd |
| Minimum Parallax-Free Distance | 50 yd |
Reticle & Illumination
| Reticle | Illumin. FireDot Duplex |
| Reticle Type | Illuminated |
| Reticle Focal Plane | Second Focal Plane |
| Daylight Bright Illumination | Yes |
| Nightvision Compatible Illumination | No |
| Number of Illum Settings | 8 |
| Switch Type | Push Button |
| Battery Type | CR2032 |
| Battery Life (Low Intensity) | 1600 hr |
| Battery Life (Medium Intensity) | 1000 hr |
| Battery Life (High Intensity) | 300 hr |
Elevation Adjustments
| Elevation Adjustment Type | CDS-SZL2 |
| Elevation Adjustment Value per Click | 1/4 MOA |
| Elevation Adjustment Range | 120 MOA |
| Elevation Adjustment Range | 35 MIL |
| Elevation Adjustment Range | 349 cm @ 100 m |
| Elevation Adjustment Per Revolution | 20 MOA |
| Elevation Dial Travel Limit | 38 MOA |
| Locking Dial | Yes |
| Rezero Type | SpeedSet |
| Revolution Indicator | Yes |
| BDC Dial Included | No |
| Custom BDC Dial Compatible | Yes |
Windage Adjustments
| Windage Adjustment Type | Zero-Lock Windage |
| Windage Adjustment Value per Click | 1/4 MOA |
| Windage Adjustment Range | 120 MOA |
| Windage Adjustment Range | 35 MIL |
| Windage Adjustment Range | 349 cm @ 100 m |
| Windage Adjustment Per Revolution | 20 MOA |
Dimensions
| Total Length 12.5 in | |
| Total Mounting Space | 5.6 in |
| Front Mounting Space | 1.6 in |
| Rear Mounting Space | 2.2 in |
| Eyepiece Length | 3.3 in |
| Objective Length | 3.6 in |
| Objective Diameter | 2 in |
| Eyepiece Diameter | 1.8 in |
| Maintube Diameter | 30 mm |
Weight
| Weight | 21 oz |
Additional Feature
| Motion Sensor Technology (MST) | Yes |
