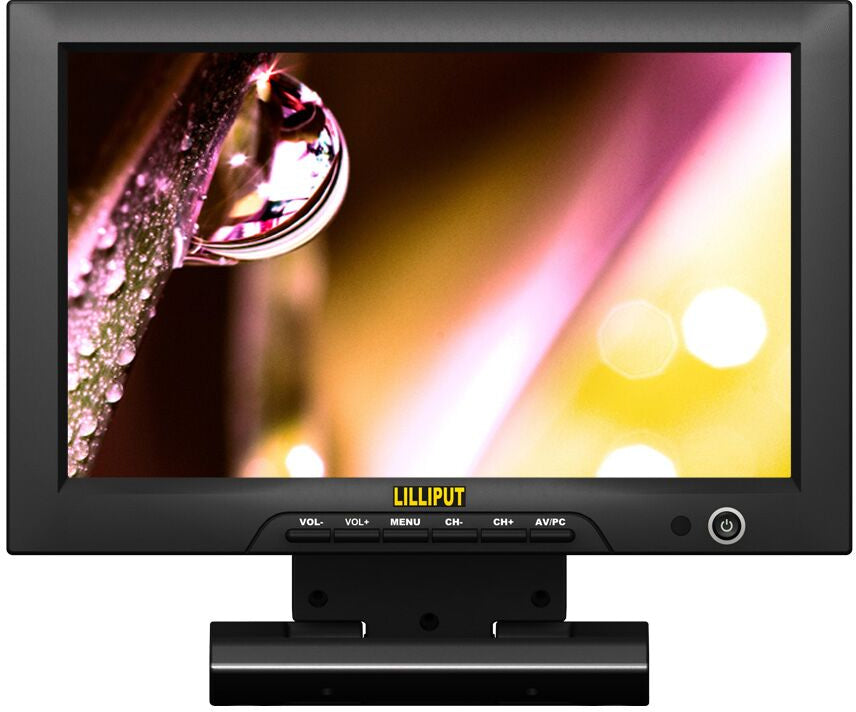

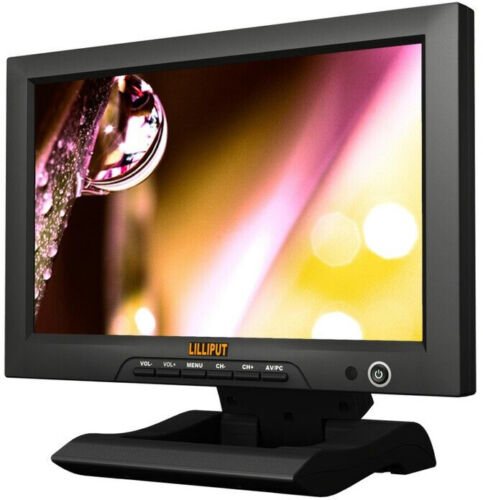

Lilliput FA1013/S 10.1-Inch LED Field Monitor with BlackMagic Compatibility
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Lilliput FA1013/S is a 10.1-inch 16:9 LED monitor with 3G-SDI, HDMI, component and composite video specially designed for pro video customers.It features SDI, HDMI and YPbPr input for connecting with Full HD video camera as sub-monitor when CCTV monitoring or making movies. It offers multiple mounting methods to view under different angles.
10.1-Inch Monitor with Widescreen Aspect Ratio
The FA1013 10.1-inch LCD panel is ideal for users who need a field monitor that is lightweight and easy to carry around. The widescreen aspect ratio lends itself well to all kinds of professional applications.
Enhanced Color Definition
The FA1013 boasts a clear, sharp picture, thanks to a high contrast ratio and LED backlight. The matte display presents accurate colors and leaves no reflection on the screen. What's more, LED technology brings great benefits; low power consumption, instant-on back light, and consistent brightness over many years of use.
Natively High Resolution
Natively 1024x600 pixels, the FA1013 can support video inputs up to 1920x1080 through HDMI. It supports 1080p and 1080i content, making it compatible with most HDMI and HD sources.
Range of Inputs

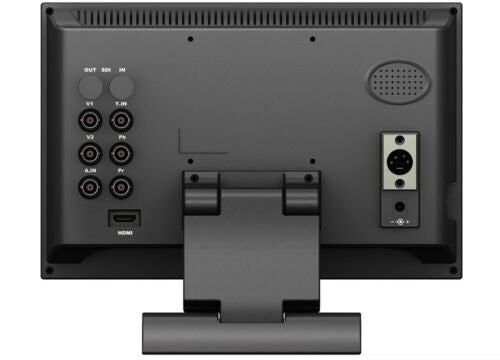

Due to SDI, HDMI, component and composite video inputs on the FA1013/S, it can be found in all kinds of pro-video applications. You can find the FA1013 in TV broadcast rooms, security monitoring rooms, audio visual installations, and camera crews.
Different Mounting Options
Like the FA1011, the FA1013 can also features a desktop stand and VESA 75 mount. However, the FA1013 also has the option of being mounted by 1/4-inch BSW thread. This makes the FA1013 perfect for mounting on cameras and tripods.
Connectivity
| External Ports | HDMI |
General
| AC Input Power | Not Available |
Environmental
| Storage Temperature | -20°C to 60°C |
| Operating Temperature | 0 degree~50 degree Celsius |
Physical
| Weight | 660g |
| Wall Mounting | Not Available |
Display
| Resolution | 1920 x 1080 |
| Brightness | 250 cd/m² |
| TV Screen Size (Diagonal) | 10.1" |
| Variable Frame Rates | Not Available |
| Touch Screen | 42190 |
| Viewing Angle (H x V) | 170 x 170° |
| Dot Pitch | Not Available |
Lilliput FA1013/S 10.1-Inch LED Field Monitor with BlackMagic Compatibility
Display
| Size | 10.1-inch LED backlit |
| Resolution | 1024x600, support up to 1920x1080 |
| Aspect ratio | 16:9-inch |
| Brightness | 250cd/㎡ |
| Contrast | 500:1 |
| Viewing angle | 140 degree/110 degree (H/V) |
Inputs
| 3G-SDI | 1 |
| HDMI | 1 |
| YPbPr | 3 (BNC) |
| VIDEO | 2 |
| AUDIO | 1 |
Outputs
| 3G-SDI | 1 |
Audio
| Speaker | 1 |
| Audio Output | ≤1W |
Power
| Current | 500mA |
| Input Voltage | DC 6-24V (XLR) |
| Power Consumption | ≤6W |
Environment
| Operating Temperature | -4 degree~140 degree Fahrenheit / -20 degree~60 degree Celsius |
| Storage Temperature | -22 degree~158 degree Fahrenheit / -30 degree~70 degree Celsius |
General
| Dimensions (L x W x D) | 259 x 170 x 36.5mm |
| Weight | 1144g |
| Product Code | FA1013-NP/H/Y/S |
