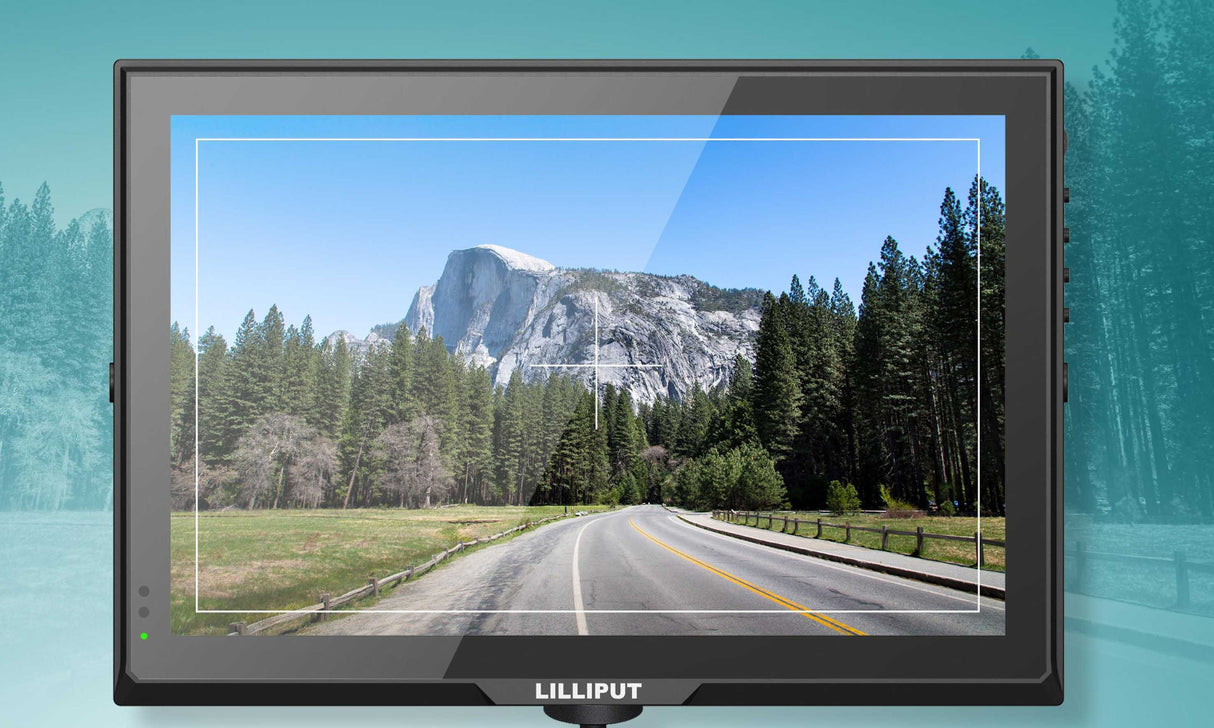

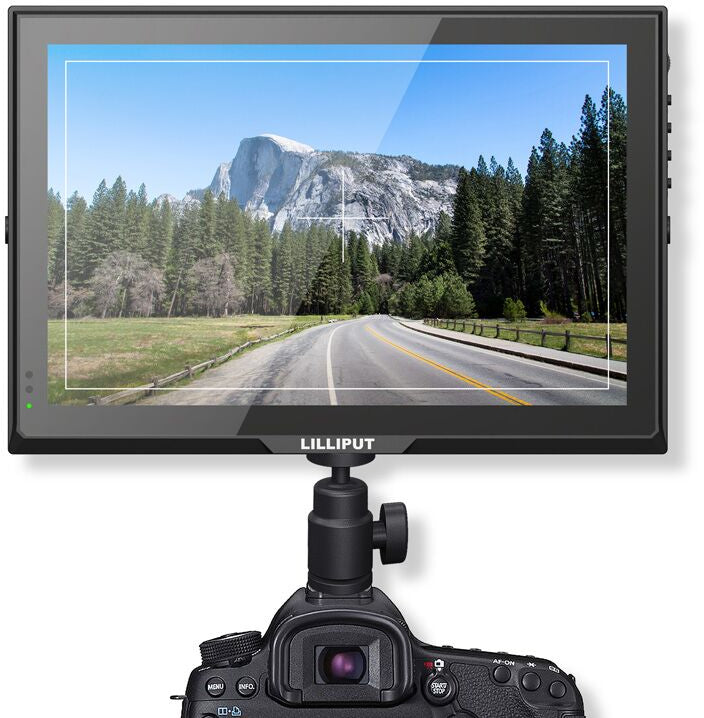

Lilliput FA1014/S 10.1-Inch Touch 3G-SDI Camera Monitor with HDMI and VGA Inputs
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Lilliput FA1014/S is a 10.1-inch 16:9 LCD IPS monitor with SDI, HDMI VGA and Composite inputs. The versatile input types allow for this monitor to be used in any one of a number of scenarios, from Film and Television making, to Press Boxes in Sports Stadiums, to Airport Security stations.
Wide Viewing Angles (IPS Panel)
With 170 degree horizontal and 170 degree vertical wide viewing angles, this monitor is perfect for people viewing from different angles with the same visual effect.
Bigger Size, Larger View
The 10.1-inch IPS display panel with 1280x800 native resolution, twice viewing area than 7-inch display.
Lux Auto Brightness (Optional)
A light sensor designed to detect ambient lighting conditions adjusts the panel's brightness automatically, which makes viewing more conveniently and saves more power.
Integrated Dustproof Front Panel
FA1014-NP/C/T front panel adopts integrated front panel, which can prevent the screen from mild droplets and dust. It also available for outdoor environment.
I/O Control Interface
The interface has functions such as connecting with reverse trigger line in car reversing system, and control computer host to switch on/off, etc. Functions also can be customized to meet different demands.
Connectivity
| External Ports | HDMI |
General
| AC Input Power | Not Available |
Environmental
| Storage Temperature | -20°C to 60°C |
| Operating Temperature | 0 degree～50 degree Celsius |
Physical
| Weight | 660g |
| Wall Mounting | Not Available |
Display
| Resolution | 1280 x 800 |
| Brightness | 350 cd/m² |
| TV Screen Size (Diagonal) | 10.1" |
| Variable Frame Rates | Not Available |
| Touch Screen | 42190 |
| Viewing Angle (H x V) | 170 x 170° |
| Contrast Ratio | 800:1 |
| Dot Pitch | Not Available |
Lilliput FA1014/S 10.1-Inch Touch 3G-SDI Camera Monitor with HDMI and VGA Inputs
Display
| Size | 10.1-inch LED IPS |
| Resolution | 1280 x 800, support up to 1920x1080 |
| Aspect Ratio | 16:9-inch |
| Brightness | 350cd/㎡ |
| Contrast Ratio | 800:1 |
| Viewing Angle | 170 degree/170 degree (H/V) |
Input Signal
| 3G-SDI | 1 |
| HDMI | 1 |
| VGA | 1 |
| AV | 1 |
| DVI | 1 |
Output Signal
| 3G-SDI | 1 |
| HDMI | 1 |
I/O
| I/O Port | 1 |
| Input Voltage | DC 7-24V |
Audio
| Speaker | 1 |
| Audio Output | ≤1W |
Power
| Current | 800mA |
| Input Voltage | DC 6-24V (XLR) |
| Power Consumption | ≤12W |
Environment
| Operating Temperature | 0 degree～50 degree Celsius |
| Storage Temperature | -4 degree~140 degree Fahrenheit / -20 degree～60 degree Celsius |
General
| Dimensions (L x W x D) | 250×170×32.3 mm |
| Weight | 660g |
| Product Code | FA1014/S |
