AV Matrix HVS0401 Mini 4-Channel HDMI/DP Multi-format Video Switcher
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Multiview output makes it easy to monitor 4-channel sources as well as PVW and PGM at the same time on one display. Besides, menu list is located in the bottom of the multiview.
Video Capture Function
Built-in video capture function, with a simple USB type-B high speed transmission port, easily to use PC or Android phone to live streaming to Twitch YouTube OBS Potplayer and VLC and no driver needed Compatible with Linux, macOS, Windows 7/8/10, Android.
Flexible
Flexible to accept 4 input sources with different formats and frame rates The PGM output can be updown cross scaled to between 1080i and 1080p.
Audio Mixer
A built-in audio mixer can mix 2-channel audios from external stereo 3.5 mm input RCA audio input and 4 embedded audios of HDMI/ DP inputs.
Picture-in-Picture Mode
To insert a second picture into the main picture. Simply adjust its size and position then apply to program.
Lilliput AVMatrix HVS0401 Mini 4-Channel HDMI/DP Multi-format Video Switcher

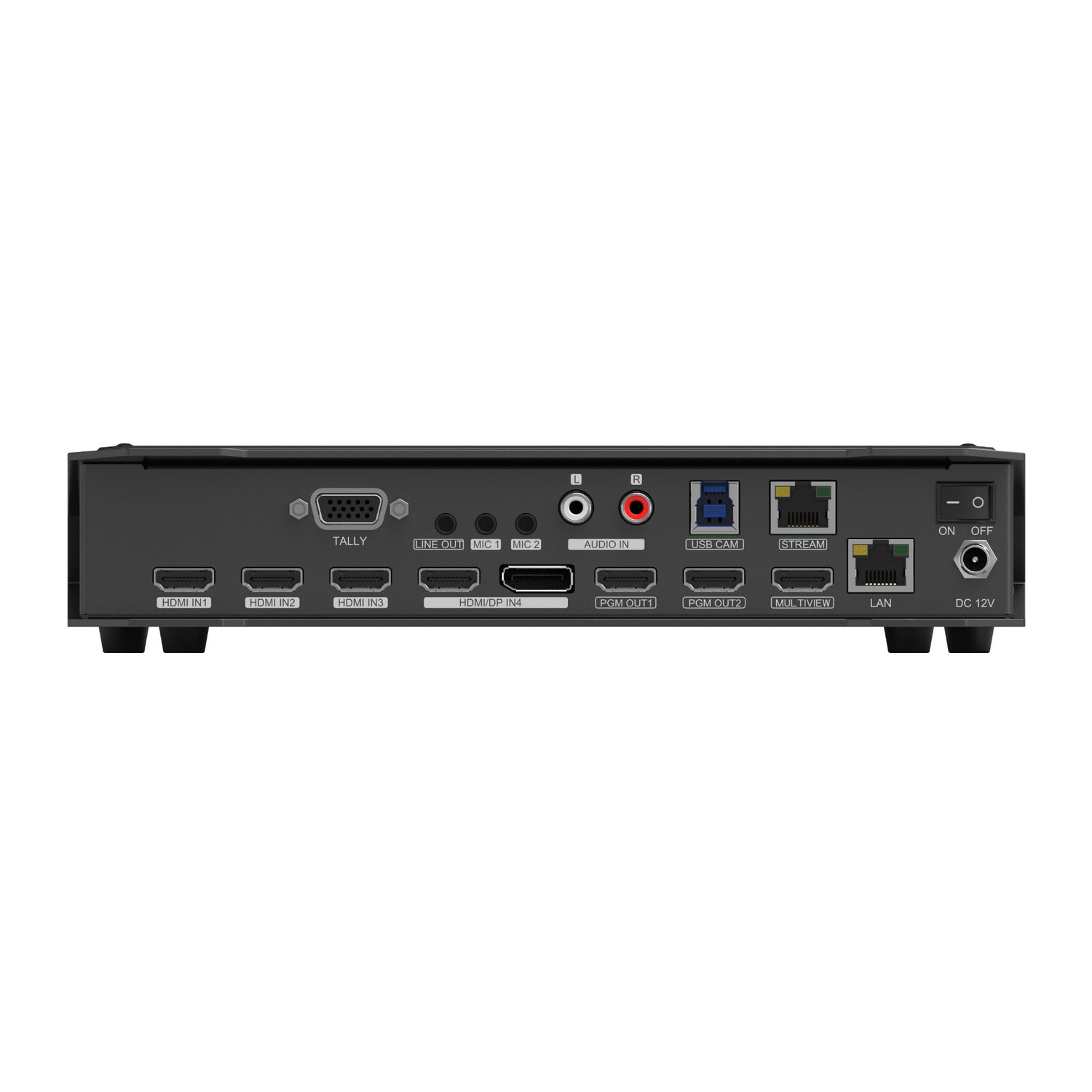

Connection
| Video inputs | CH1-CH3 HDMI type-A 1000 X3; CH4 HDMI type-A 1000 Displayport X1 |
| Video outputs | PGM HDMI type-A 1000X2; Multiview: HDMI type A 1000) usB; CAM: USB type B 1; RJ45 *1 Reserved for live stream |
| Analog audio inputs | 3.5mm stereo audio Line in) x2, RCA RX1 |
| Analog audio output | 3.5mm stereo audio(Line out) |
| PC control port | RJ45x1 |
| Tally | DB-15 portx1 |
Functions
| Transitions | AUTO CUT |
| Functions | Wipel Mid Fadel FTB |
| Layouts | PIP/ Multiview |
Standards
| HDMI input format support | 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976 1080i 50/59.94/60 720p 60/59.94/50/30/29.97/25/24/23.98 57650576 p 50, 480p 59 94/ 604805994 /60 |
| PC HDMI/DP input format support | 1920x1080, 1680x1050, 1600x 9001440 x1050, 1366x 7681360 x768, 1280x 10241280 x960, 1280X 8001280 x768, 1280x720, 1250x 6001152 x864, 1024x768, B00K600 |
| HDMI PGM output format | 1080p 60/50/30/25/ 24108060 /50 |
| USB capture output format | Up to 1920x1080 |
| Multiview output format | 1080p 60 |
| HDMI color space | RGB 444/YUV 444/YUV 422 |
Others
| Current | 12V, 1.5A, 18W |
| Voltage | 12V |
| Dimensions (L x W x D) | 238.5 x 140.5 x 43.5 mm |
| Weight | 925g |
| Working temperature | -20 degree C ~ 60 degree C |
| Storage temperature | -30 degree C ~ 70 degree C |
