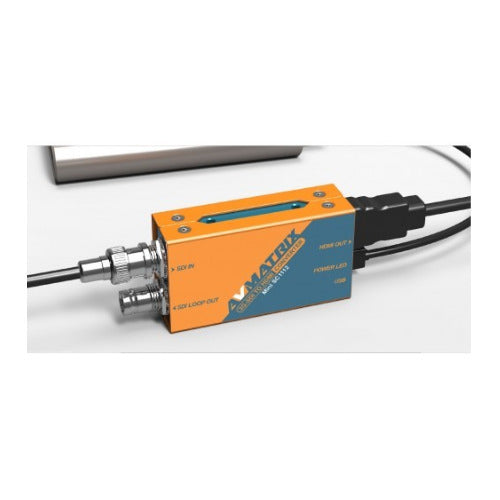

The Mini SC1112 is a Pocket-size broadcast Converter, it converts SDI input signal to HDMI signal and with SDI loop out. It is very convenient for users with the full size SDI and HDMI connectors.
Born for Broadcast
Although it’s a pocket-size converter, it is very convenient for users with the full size SDI and HDMI connectors; SD/HD/3G-SDI formats as well as level A and level B are also supported, up to 1080p 60hz. Complying with EMC test, the steady and reliable performance makes it support 7x24h uninterrupted working without any lag or delay.
Powered Anywhere
Featured with universal USB power solution design, avmatrix mini converter can be powered by Micro USB connection; it can not only connect with DC power plug pack, but also get power from power bank, laptop or computer. The low power consumption is incredible, such as a 5,000mAH power bank can supply a more than 24-hour uninterrupted working time.

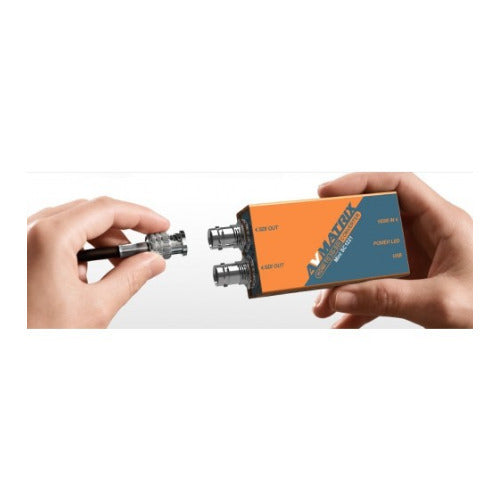

Pocket Size and Easy to Mount

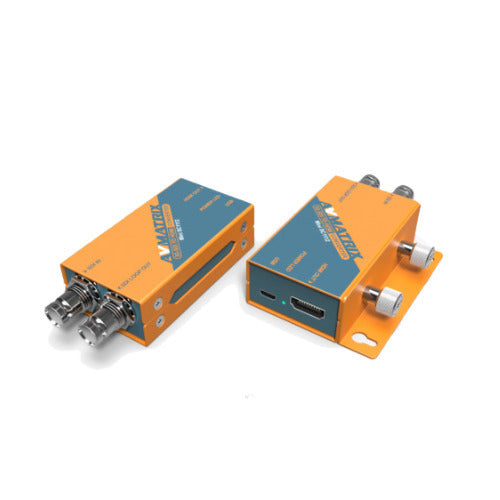

Miniature design makes it portable for indoors and outdoors. It’s possible put into pocket and take to anywhere. With a convenient and detachable mounting bracket, it is also available in different application scenarios.
General
| Weight | Not Available |
| Color | Yellow |
Connections
| HDMI Inputs | 1 |
| External Ports | HDMI |
| Display Ports | 1 x HDMI |
AV Matrix SC1112 3G-SDI to HDMI Mini Converter
HDMI Formats
| HDMI color space and precision | YUV 4:2:2 |
| HDMI format support | 480i - 60 // 576i - 50 // 720p - 24/25/30/59.94/60 // 1080i - 50/59.98/60 // 1080p - 23.98/24/25/29.97/30 // 1080p - 50/59.94/60 |
SDI Formats
| HD format support | 720p - 24/25/30/50/59.94/60 // 1080i - 50/59.94/60 // 1080p - 23.98/24/25/29.97/30 // 1080psf - 23.98/24/25/29.97/30/50/59.94/60 // 1080p 50/59.94/60 |
| SD format support | 525i 59.94 625i 50 |
| SDI auto switching | Auto Selects SD-SDI, HD-SDI, and 3GSDI on Input |
| SDI color space and precision | YUV 4:2:2 |
| SDI compliance | SMPTE 292M / SMPTE 259M / SMPTE 424M |
| SDI video rate | SD/HD/3GSDI |
SDI Input / Output
| SDI video input | SD / HD / 3GSDI x1 |
| SDI video loop output | SD / HD / 3GSDI x1 |
HDMI Output
| HDMI video output | HDMI Type Ax1 |
Common Parameters

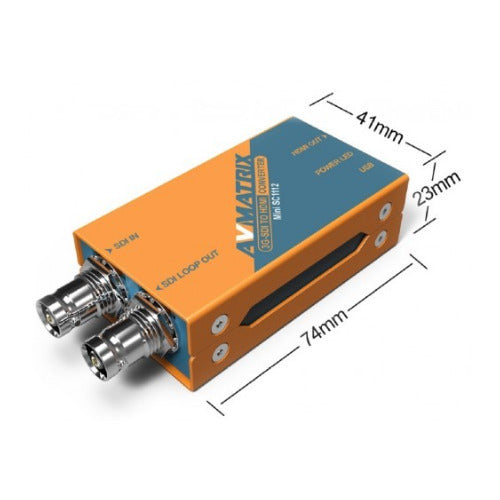

| Dimension | 74mm x 41mm x 23mm |
| Operating temperature | 0 degree c to 60 degree c |
| Power | Micro USB 1.5W 3.3 - 5V |
| Relative humidity | 0% - 90% non condensing |
| Storage temperature | 0 degree c to 60 degree c |
