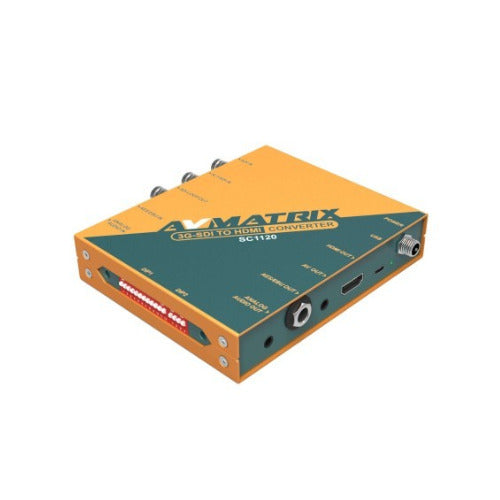

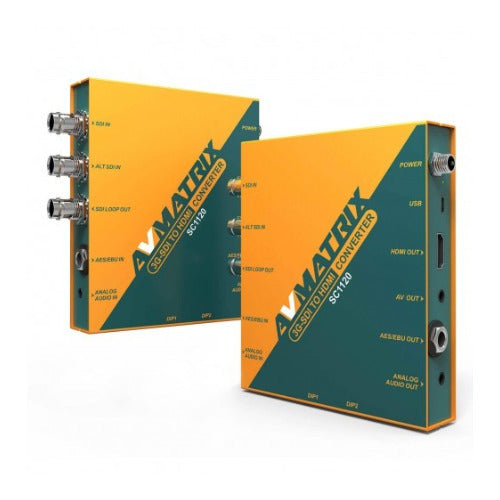

AV Matrix SC1120 3G-SDI to HDMI and AV Scaling Converter
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
SC1120 is an exquisite and professional SDI converter to convert SDI signal to HDMI and AV signals at the same time. The format of the output can realise pass through or up/down scaling and frame rate conversion. De-interlacing function and seamless conversion can also be supported to avoid jitter. It also features AES/EBU or analog audio embedding and de-embedding. All the functions can be easily set by a built-in DIP switchers or PC via USB. SC1120 is your ideal choice for broadcasting and AV post production applications.
Scaling and Seamless
SC1120 features converting SDI signal to HDMI and AV signals at the same time. And the format of output can realize pass through or up/down scaling and frame rate conversion. Besides, it's a real seamless conversion without jitter. It can support up to 1080p 60Hz.
Audio Embedding and De-embedding
It features embedding an external AES/EBU or analog audio or SDI embedded audio to HDMI output. Also it can de-embedding audio from SDI input signal to external AES/EBU and analog audio. There is no need for users to purchase custom cables when adopting standard ¼-inch (6.3mm) TRS audio jack and 1/8-inch (3.5mm) audio jack.

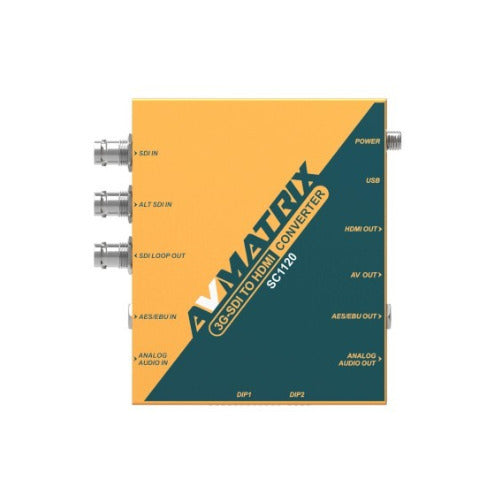

Redundant SDI Input and Re-clocked Output
The Alt SDI In for input redundancy. So that the converter auto switches to the redundant SDI input to avoid a loss of signal in case of an accident from the main signal input. Therefore, it's a significant solution and especially suitable for studio, live show or outdoor live events. Meanwhile, re-clocked SDI output ensure a long distance transmission without loss of signal quality.

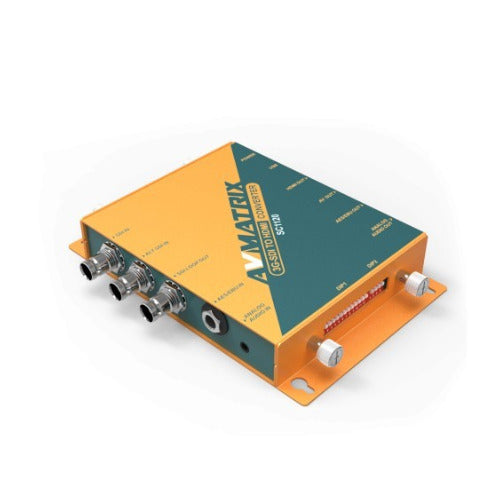

Easy Control over DIP Switches
Adjusting the DIP switches to set the functions by finger, without any tool. It's a smart method to change common settings quickly when outdoor applications. Meanwhile, it also can be remote set by using a software by connecting it with a PC via USB. Besides, the latest software can be upgrades by connecting it with a PC via the USB.
General
| Weight | 465g |
| Color | Yellow |
Connections
| HDMI Inputs | 1 |
| External Ports | HDMI |
AV Matrix SC1120 3G-SDI to HDMI and AV Scaling Converter
Input
| SDI video input | SD/HD/3G-SDI x1, Alternative 3G-SDI x1 |
| AES/EBU digital audio input | ¼-inch (6.35mm) TRS Jack x1 |
| Analog audio input | 1/8-inch (3.5mm) Jack x1 |
Output
| HDMI video output | HDMI Type A x1 |
| A/V output | 1/8-inch (3.5mm) Jack x1 |
| SDI video loop output | SD/HD/3G-SDI x1, |
| AES/EBU digital audio output | ¼-inch (6.35mm) TRS Jack x1 |
| Analog audio output | 1/8-inch (3.5mm) Jack x1 |
Formats
| SDI input format support | 1080p - 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 // 1080PsF - 30 / 29.97 / 25 / 24 / 23.98 // 1080i - 60 / 59.394 / 50 // 720p - 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 // 625i 50 PAL // 525i 59.94 NTSC |
| SDI video rate | SD / HD / 3G-SDI |
| SDI compliance | SMPTE 259M, SMPTE 292M / SMPTE 424M |
| SDI auto switching | Auto Selects SD, HD, and 3G-SDI on input |
| SDI color space and precision | YUV 4:2:2 / YUV 4:4:4 / RGB 4:4:4 |
| HDMI output format support | 1080p - 60 / 50 / 30 / 25 / 24 // 1080i - 60/50 // 720p 60 / 50 / 30 / 25 / 24 // 576i 50 // 480i 60 |
| HDMI color space and precision | YUV 4:2:2 / YUV 4:4:4 / RGB 4:4:4 |
| A/V output format support | NTSC / PAL |
Size
| Dimensions | 125.5mm x 104mm x 24.5mm |
| Weight | 465g |
Power
| Power connector | Threaded Locking Connector |
| Power consumption | 6W |
| Voltage range | DC 12V |
Environment
| Operating temperature | -20 degree C – 60 degree C |
| Storage temperature | -30 degree C – 70 degree C |
