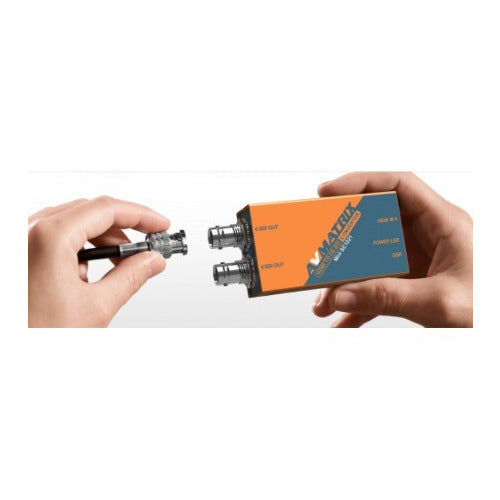

AV Matrix SC1221 HDMI to 3G-SDI Mini Converter
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Mini SC1221 is a pocket-size broadcast Converter, it converts HDMI input signal to dual SDI signal. It is very convenient for users with the full size SDI and HDMI connectors.
Born for Broadcast
Although it’s a pocket-size converter, it is very convenient for users with the full size SDI and HDMI connectors; SD/HD/3G-SDI formats as well as level A and level B are also supported, up to 1080p 60hz. Complying with EMC test, the steady and reliable performance makes it support 7x24h uninterrupted working without any lag or delay.
Powered Anywhere
Featured with universal USB power solution design, this mini converter can be powered by Micro USB connection; it can not only connect with DC power plug pack, but also get power from power bank, laptop or computer. The low power consumption is incredible, such as a 5,000mAH power bank can supply a more than 24-hour uninterrupted working time.

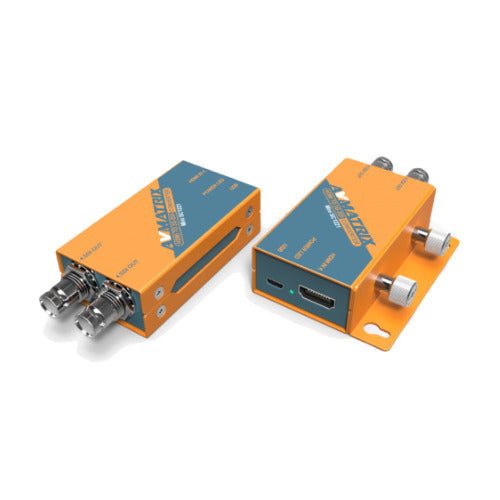

Pocket Size and Easy to Mount
Miniature design makes it portable for indoors and outdoors. It’s possible put into pocket and take to anywhere. With a convenient and detachable mounting bracket, it is also available in different application scenarios.
General
| Weight | Not Available |
| Color | Yellow |
Connections
| HDMI Inputs | 1 |
| External Ports | HDMI |
| Display Ports | 1 x HDMI |
AV Matrix SC1221 HDMI to 3G-SDI Mini Converter
HDMI Formats
| HDMI color space and precision | YUV 4:2:2 |
| HDMI format support | 720p - 24/25/30/50/59.94/60 // 1080i - 50/59.94/60 // 1080p - 23.98/24/25/29.97/30 // 1080psf - 23.98/24/25/29.97/30/50/59.94/60 // 1080p 50/59.94/60 |
HDMI Video Input
| HDMI video input | HDMI Type A x1 |
SDI Formats
| SD format support | 525i 59.94 625i 50 |
| SDI color space and precision | YUV 4:2:2 |
| SDI compliance SMPTE | 292M / SMPTE 259M / SMPTE 424M |
| SDI video rate | SD/HD/3GSDI |
SDI Input / Output
| SDI video output | SD / HD / 3G-SDI X2 |
Common Parameters
| Dimension | 74mm x 41mm x 23mm |
| Operating temperature | 0 degree c to 60 degree c |
| Power Micro USB | 1.5W 3.3 - 5V |
| Relative humidity | 0% - 90% non condensing |
| Storage temperature (c) | 0 degree c to 60 degree c |
