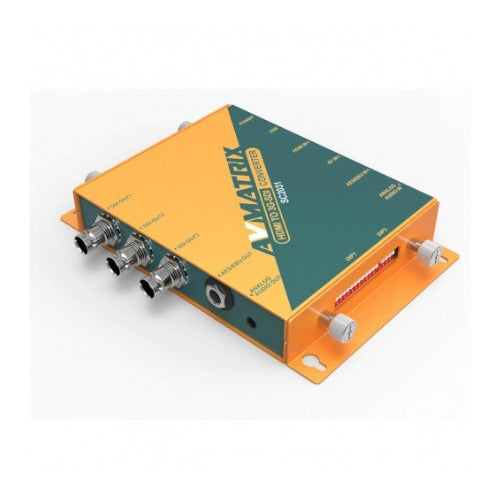

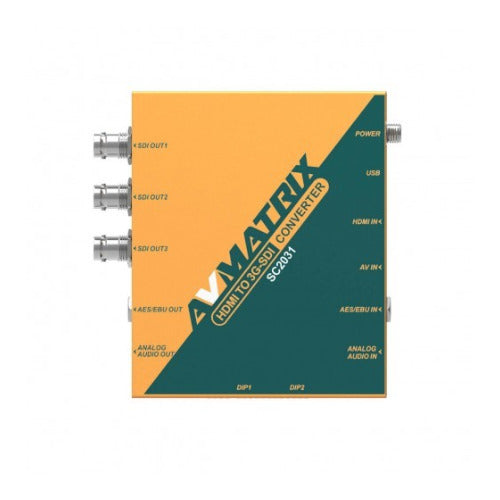

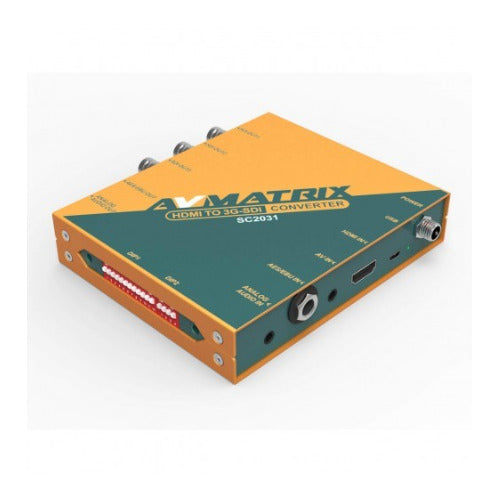

AV Matrix SC2031 HDMI to 3G-SDI Scaling Converter
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
SC2031 is an exquisite and professional HDMI converter to convert HDMI or AV signals to triple SDI signals up to 1080P60Hz. The format of the output can realise pass through or up/down scaling, frame rate conversion and de-interlacing function. It also features AES / EBU or analog audio embedding and de-embedding. All the functions can be easily set by a built-in DIP switchers or PC via USB. SC2031 is your ideal choice for broadcasting and AV post production applications.
Up/down Scaling and Frame Rate Conversion
SC2031 features converting HDMI or AV signals to SDI signal. And the format of output can realize pass through or up/down scaling and frame rate conversion and de-interlacing. It can support up to 1080p 60Hz.
Audio Embedding and De-embedding
It features embedding an external AES/EBU or analog audio or HDMI embedded audio to SDI output. Also it can de-embedding audio from SDI input signal to external AES/EBU and analog audio. There is no need for users to purchase custom cables when adopting standard ¼-inch (6.3mm) TRS audio jack and 1/8-inch (3.5mm) audio jack.
Triple Parallel SDI Outputs
Transmitting and splitting the input signal to triple parallel SDI outputs for three different connecting devices at the same time. It supports a long distance and stable transmission without loss of signal quality.
Easy Control over DIP Switches
Adjusting the DIP switches to set the functions by finger, without any tool. It's a smart method to change common settings quickly when outdoor applications. Meanwhile, it also can be remote set by using a software by connecting it with a PC via USB. Besides, the latest software can be upgrades by connecting it with a PC via the USB.
General
| Weight | Not Available |
| Color | Yellow |
Connections
| HDMI Inputs | 2 |
| External Ports | HDMI |
| Display Ports | 1 x HDMI |

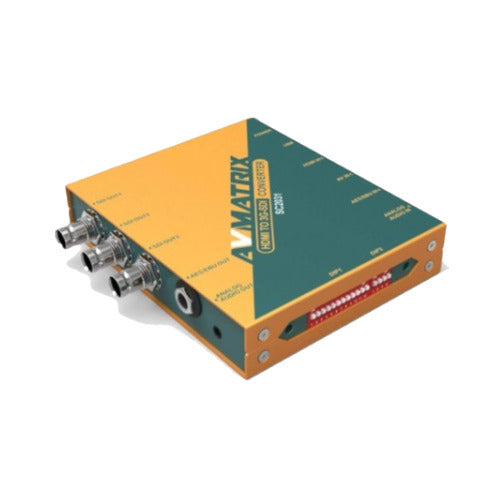

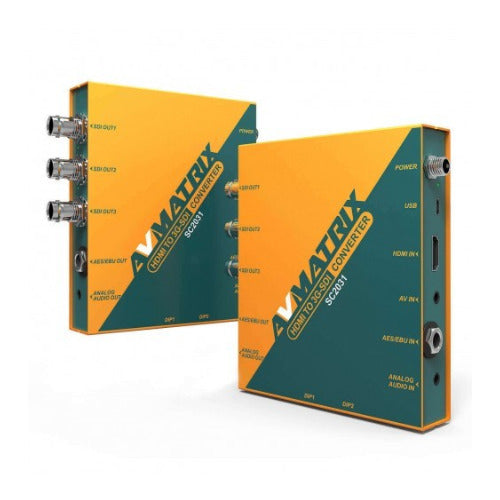

AV Matrix SC2031 HDMI to 3G-SDI Scaling Converter
Inputs
| HDMI video input | 1x HDMI type-A |
| AV input | 1x 1/8-inch (3.5 mm) jack |
| AES/EBU digital audio input | 1x ¼-inch (6.35 mm) TRS jack |
| Analog audio onput | 1 x 1/8-inch (3.5 mm) jack |
Outputs
| SDI video output | 1x SD/HD/3G-SDI, 1 x Alt 3G-SDI |
| AES/EBU digital audio output | 1x ¼-inch (6.35 mm) TRS jack |
| Analog audio output | 1 x 1/8-inch (3.5 mm) jack |
HDMI Format Support
| 1080p 60/59.94/50/30/29.97/25/24/23.98/23.973 | |
| 1080i 60/59.94/50 | |
| 720p 60/59.94/50/30/29.97/25/24/23.98 | |
| 576p 50, 576i 50 | |
| 480p 59.94, 480i 60/59.94 |
HDMI Color Space
| YUV 4 | 2:2, YUV 4:4:4, RGB 4:4:4 |
| CVBS Input | |
| NTSC, PAL |
SDI Format Support
| 1080p 60/50/30/25/24 | |
| 1080i 60/50 | |
| 720p 60/50/30/25/24 | |
| 625i 50, 525i 60 |
SDI Video Rates
| SD/HD/3G-SDI |
SDI Compliance
| SMPTE 292M/SMPTE 259M/SMPTE 424M |
SDI Color Space
| YUV 4 | 2:2 |
Power Connector
| Threaded locking connector |
Power Supply
| 12 VDC |
Power Consumption
| 5 W |
Operating Temperature
| -20 to 60 deg. C (-4 to 140 deg. F) |
Storage Temperature
| -30 to 70 deg. C (-22 to 158 deg. F) |
Relative Humidity
| 0 to 90% non-condensing |
Dimensions
| 4.9 x 4.1 x 1.0 inches (124.46 x 104.14 x 25.40mm) |
