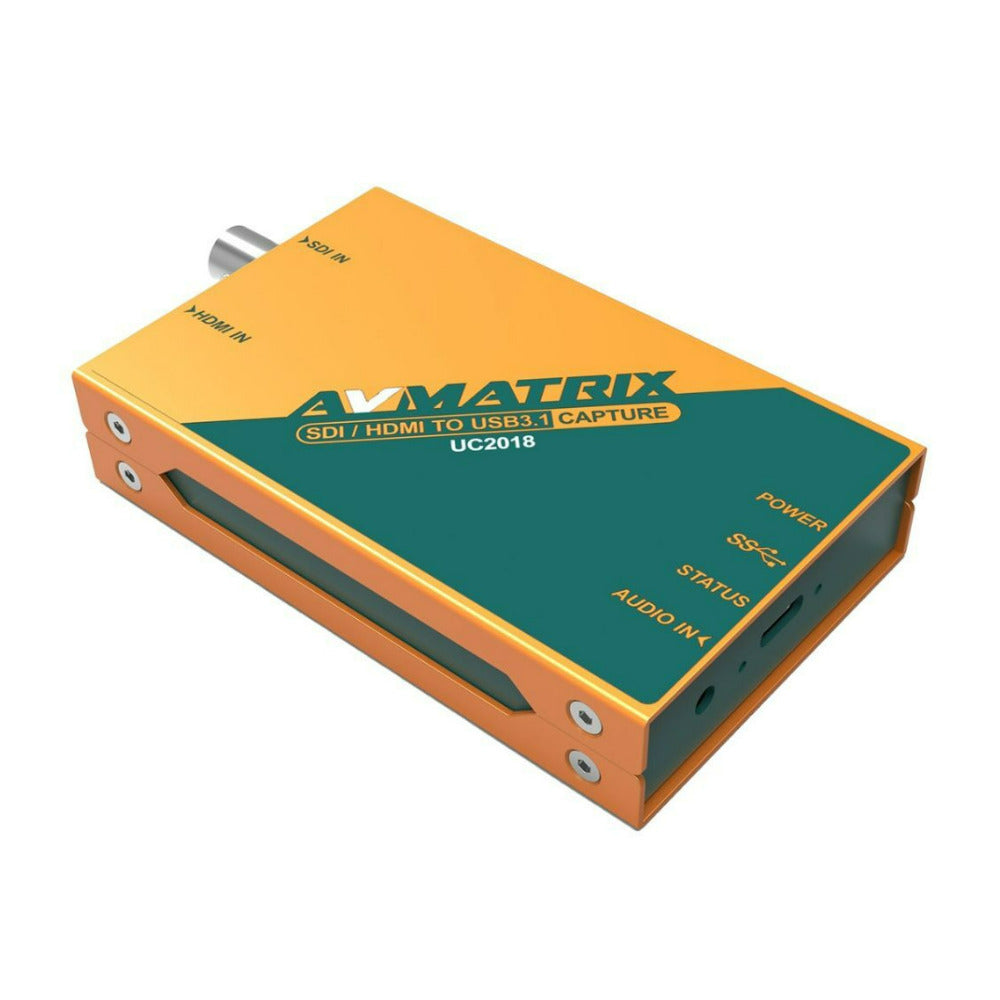

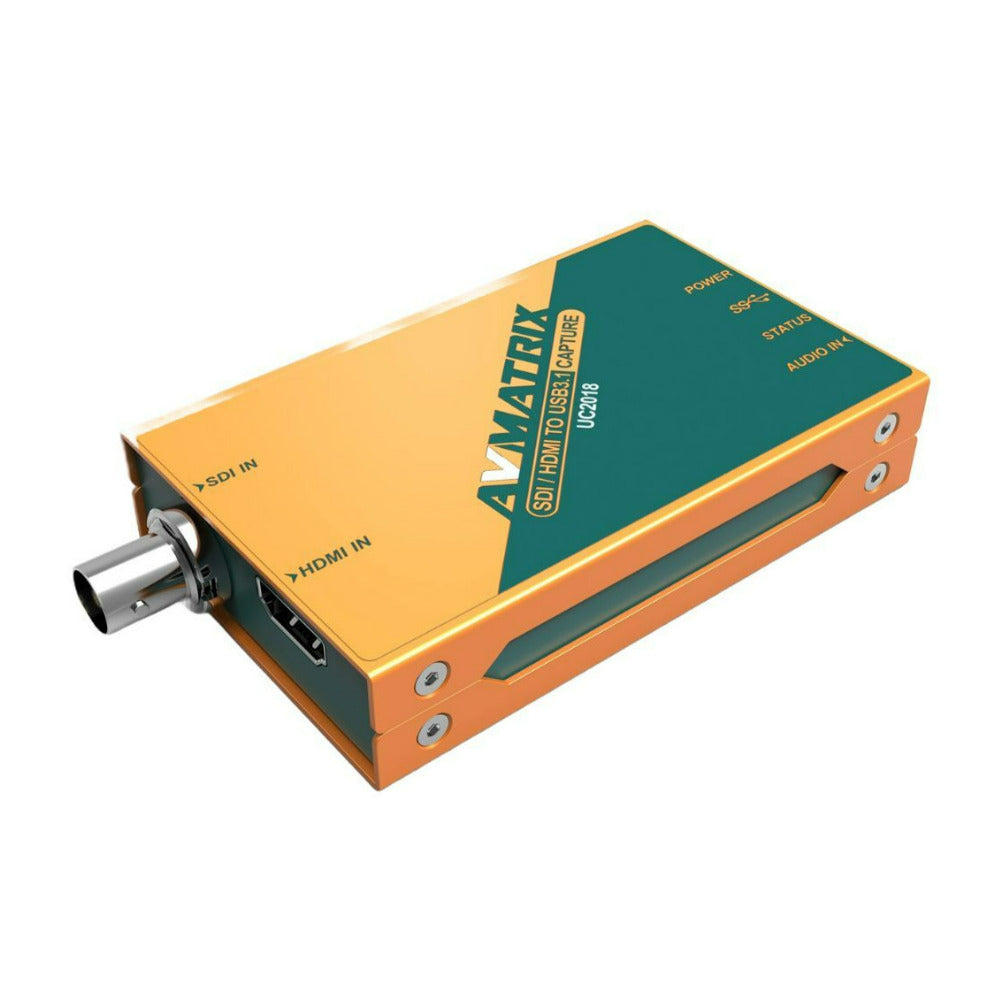

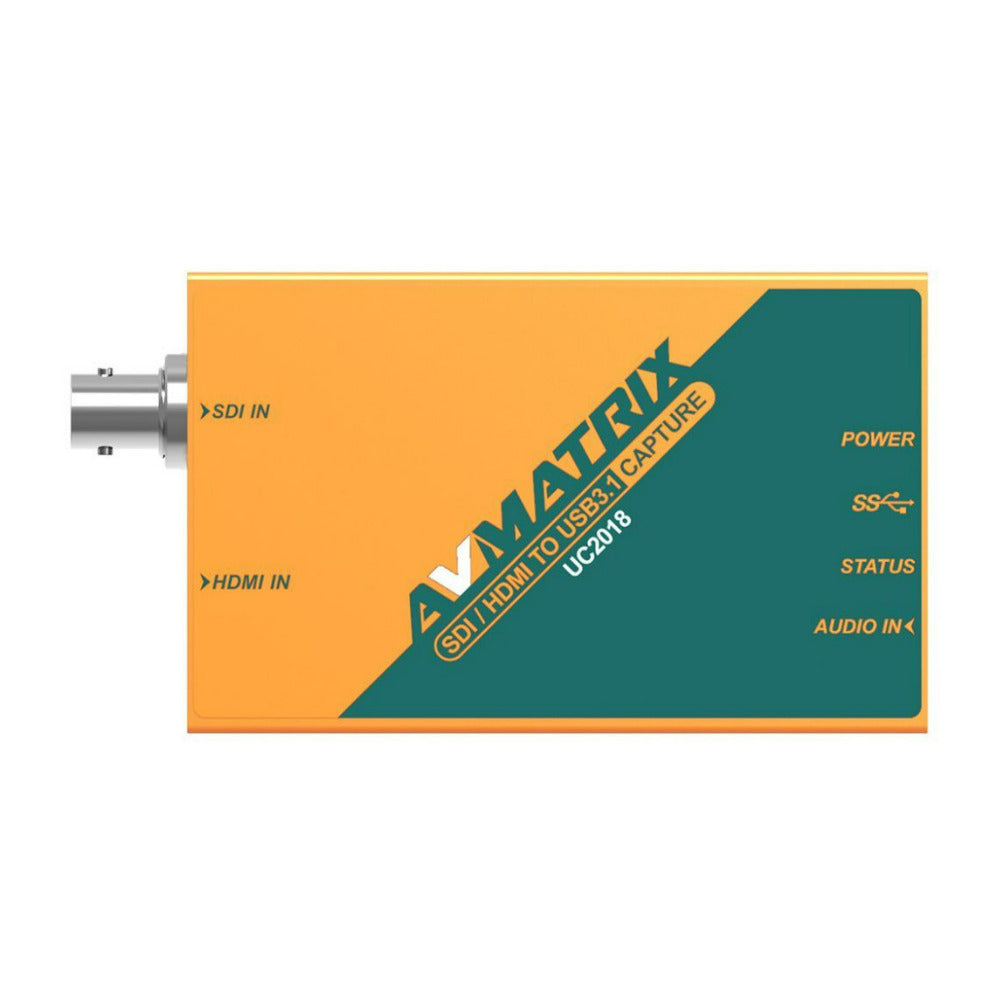

AVMatrix UC2018 HDMI and SDI to USB 3.1 TYPE-C Uncompressed Video Capture
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
AVMatrix UC2018 HDMI and SDI to USB 3.1 TYPE-C Uncompressed Video Capture features plug-and-play, driver free and power free. It features HDMI or SDI in, and USB 3.1 Gen1(USB3.0) out. It offers automatic input signal detection, up to 1080p60. It offers uncompressed transmission rate up to 200MBPS via USB 3.1 Gen 1. Complies with UVC video capture and YUY2 video output, and complies with UAC audio out from SDI or HDMI embedded audio or line in. It is compatible with Windows, Linux, macOS and works with OBS, ZOOM, Teams and Twitch, etc.
General
| Weight | 114g |
| Color | Green/Yellow |
Power
| Operating Temperature | 0~50 degree C |
| Power Source | Phantom |
Input / Output
| HDMI Inputs | 2 |
| Video Input | HDMI |
| Audio Input | HDMI Embedded |

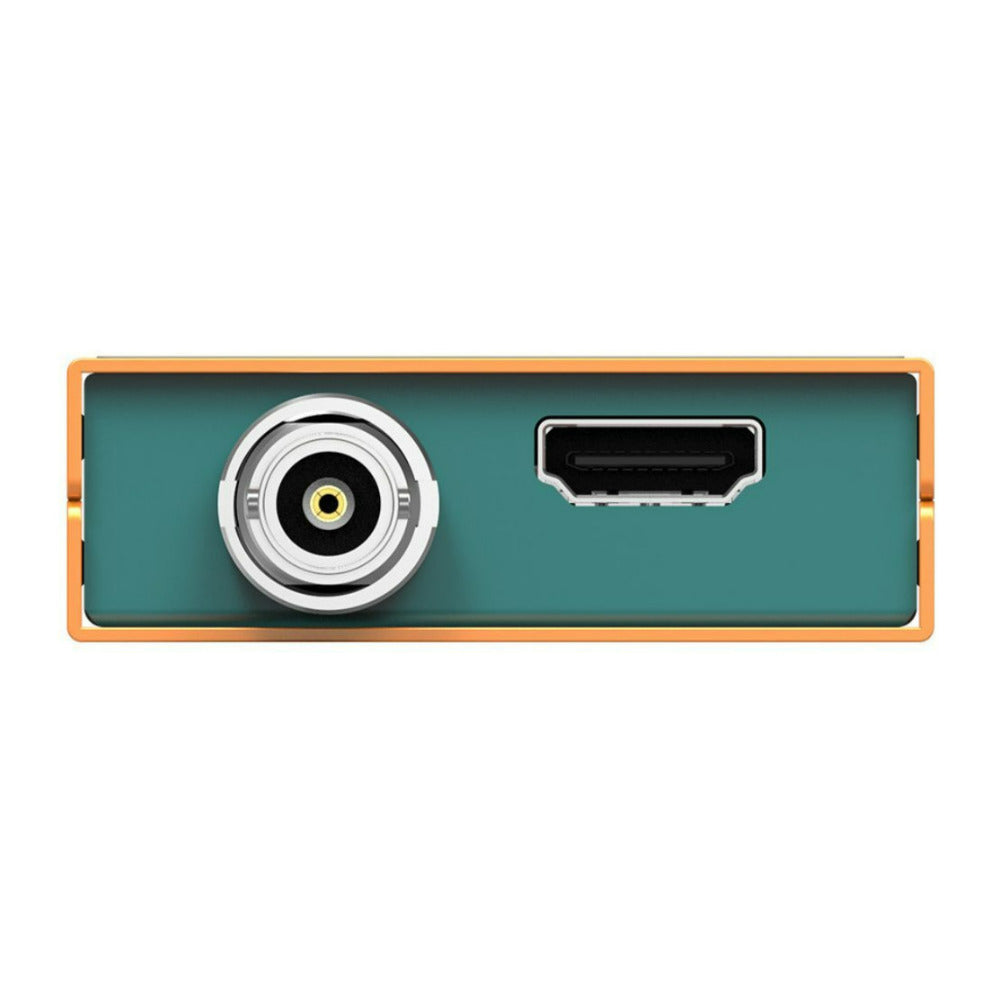

- Input interface: 1 x HDMI 1.4a, 1 x SD/HD/3G-SDI 1 x 3.5mm stereo audio(line in)

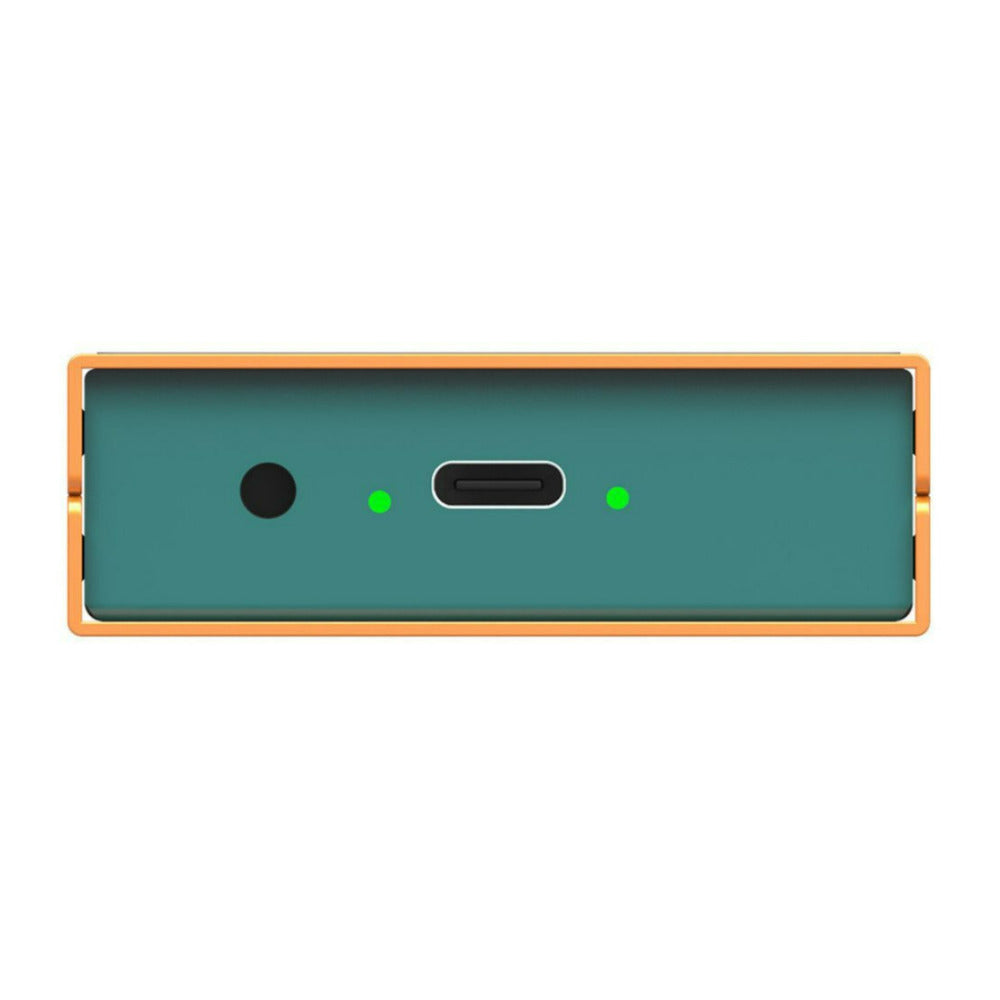

- Output interface 1 x USB3.0 Type C(USB 3.1 Gen1, up to 200MB/s)
- SDI input format: 1080p60/59.94/50/30/29.97/25/24/23.98 1080PsF30/29.97/25/24/23.98 1080i50/59.94/60 720p60/59.94/50/30/29.97/25/24/23.98 625i50/525i59.94
- HDMI input format: 1080p60/59.94/50/30/29.97/25/24/23.98 1080i50/59.94/60 720p60/59.94/50/30/29.97/25/24/23.98 576p50/ 576i50 480i59.94/60 480p59.94/60 USB
- Output Format: 1920 x 1080, 1680 x 1050, 1440 x 900, 1368 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 2 1024 x 768, 1024 x 576, 960 x 540, 856 x 480, 800 x 600, 768 x 576, 720 x 576, 720 x 480, 640 x 480, 640 x 360
- UVC (USB video class) standard
- UAC (USB audio class) standard
- Audio Codec 2-channel, 16 bit PCM, 48kHz, 1536 kbps
- Video color Space YUY2
- Supports OS, Windows 7/8/10, Linux (Kernel version 2.6.38 and above), macOS (10.8 and above)
- Dimensions 92 x 58 x 19mm
- Weight
- Net weight: 205g
- Gross weight: 300g
- Accessory: USB3.0 A-C cable
AVMatrix UC2018 HDMI and SDI to USB 3.1 TYPE-C Uncompressed Video Capture
| Connections | |
| Format | |
| Audio and video capture | |
| OS and software compatibility | |
| Software compatibility | OBS studio, Skype, ZOOM, Teams, Google Meet, Youtube Live, QuikcTime Player, Face time, Wirecast, CAMTASIA, Ecamm.live, Twitch.tv, etc. Compatible SDK DirectShow(Windows), DirectSound (Windows) |
| General | |
| Power consumption | 3.5W (max) |
| Operating temperature | -20 to 60-degree-C |
| Storage temperature | -30 to 70-degree-C |
| Relative humidity | 20 to 90% RH (no condensation) |
| Accessory | |
