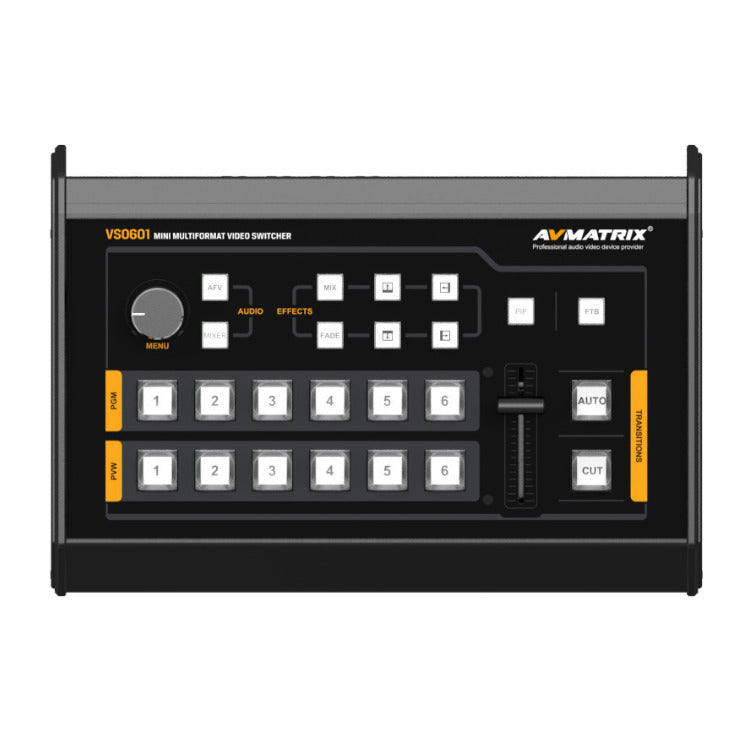

AV Matrix VS0601 Mini 6-Channel SDI/HDMI Multi-Format Video Switcher
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
AV Matrix Multi-Format Video Switcher is flexible to accept six input sources with different format and frame rate, with build-in scaler, PGM output can be scaled to 1080i and 1080p. Multiview output make it easy to monitor six channels sources as well as PVW and PGM simultaneously on one display, besides, a clock and menu list are located in the lower right corner of the unit. The switcher supports transition between PVW and PGM with WIPE, MIX, and FADE effects through T-Bar and Auto functions.
PiP Function
This function lets you insert a second picture inside or outside the main picture. You just simply need to adjust its size and position then apply to program.
Audio Mixer
A built-in audio mixer can mix two external 3.5mm stereo and RCA audio and six channels of embedded audio.
Portable Design
A total of 1.7kg including packing accessories, with a handbag, it is very portable and suitable for various applications.
- 4 x SD/HD/3G-SDI (75 ohms)
- 2 x HDMI type-A (100 ohms)
- 3.5mm stereo audio
- RCA (L/R)
- 2 x SD/HD/3G-SDI (75 ohms)
- HDMI type-A (100 ohms)
- SD/HD/3G-SDI (75 ohms)
- SD/HD/3G-SDI (75 ohms)
- HDMI type-A (100 ohms)
- RJ-45
- Synchronize local time
- 1080p 60/59.94/50/30/29.97/25/24/23.98
- 1080psF 30/29.97/25/24/23.98
- 1080i 60/59.94/50
- 720p 60/59.94/50/30/29.97/25/24/23.98
- 625i 50 PAL, 525i 59.94 NTSC
- 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976
- 1080i 60/59.94/50
- 720p 60/59.94/50/30/29.97/25/24/23.98
- 576i 50, 576p 50
AV Matrix VS0601 Mini 6-Channel SDI/HDMI Multi-Format Video Switcher
Functions
| Transitions | Manual T-bar Auto/Cut |
| Functions | Wipe/Mix/Fade/FTB |
| Layouts | PiP/Multiview |
| Audio mixer | Following/Mixer |
Inputs
| Video inputs | |
| Analog audio inputs |
Outputs
| PGM outputs | |
| AUX output | |
| Multiview outputs |
Data Interface
| LAN | |
| Tally | DB-15 |
Standards
| SDI input format support | |
| HDMI input format support | |
| PGM output format | 1080p 60/50/30/25/24, 1080i 60/50 |
| Mutliview | 1080p 60 |
| SDI compliance | SMPTE 292W/ SMPTE 259W/ SMPTE 424W |
Power
| Current | 12 VDC, 1.2 A |
| Voltage | 6-17 VDC |
| Power supply | 12 VDC, 2 A |
General
| Dimensions (L x W x D) | 249.2 x 172.3 x 55 mm |
| Weight | 1 kg |
| Working temperature | -20 to 60-degree-C |
| Storage temperature | -30 to 70-degree-C |
