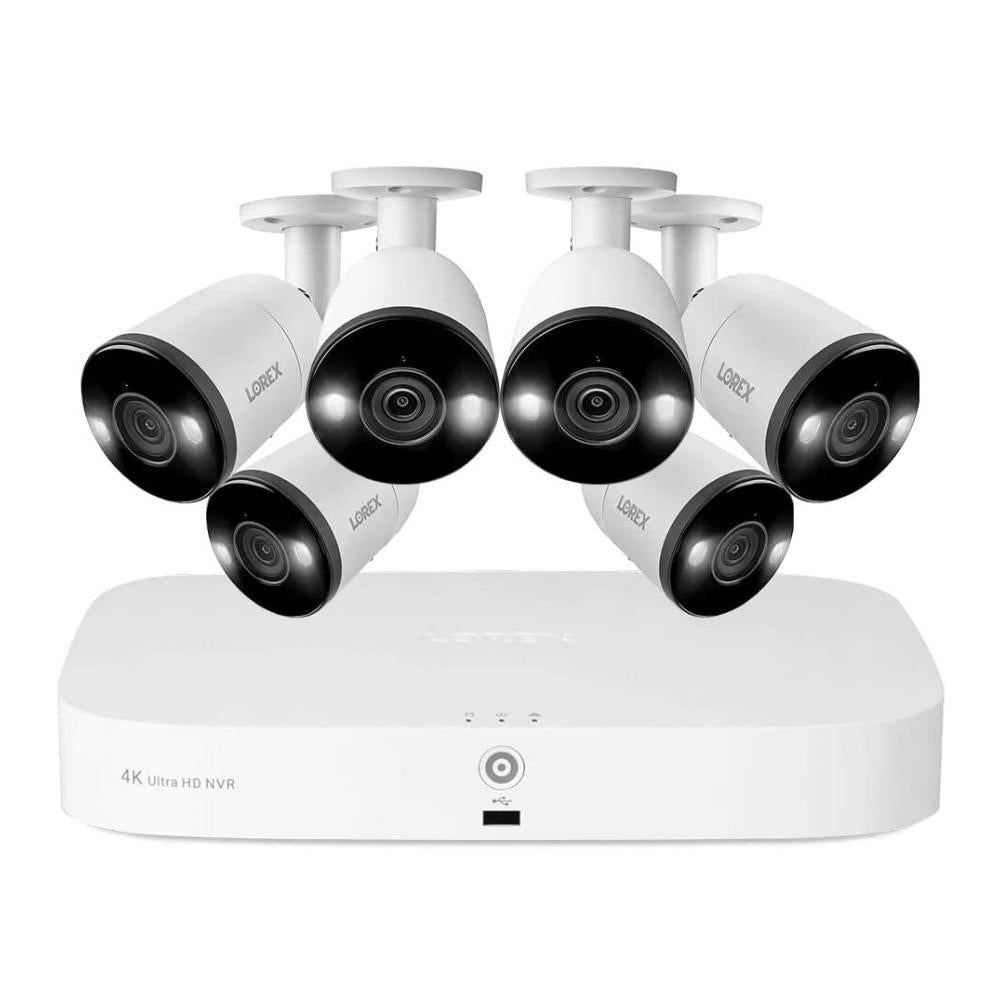

By combining our latest N843 Series NVR and 4K Smart Deterrence cameras, Lorex N84383-8ABF6-E 8-Channel 4K UHD Fusion NVR with 3TB HDD and 6 Smart Deterrence Bullet Cameras will provide you with the highest quality recording and the smartest features to protect your property. Featuring Smart Motion Detection Plus (either Face Detection or Smart Motion Detection), Smart Deterrence LED lights and siren, and 2-way talk audio, this system is designed to stop potential events before happen. The NVR also includes a large hard drive for private local recording with no monthly fees and is easily connected to our Lorex Home App for easy remote viewing and motion notifications. The included cameras are fully weatherproof and can withstand all types of extreme weather, making this a perfect outdoor security camera system for any size of home.
Fusion
The award-winning Fusion NVRs can incorporate two Wi-Fi devices through the Lorex Home App. This allows you to record them continuously for full coverage and secondary data backup.
Experience the Promise of 4K Surveillance
Thanks to the camera's powerful 8MP image sensor, you will experience the difference that 4K resolution makes when it comes to your security. 4K means there are more than 8 million pixels, and that results in sharper video, realistic color representation, and superior digital zoom capabilities.
Smart Motion Detection Plus
Limit motion detection notifications with Smart Motion Detection Plus. This feature offers the option of either Face Detection or Person and Vehicle Detection.
Face and Mask Detection
Face Detection will limit notifications to only when the camera detects a face walking toward it. If Mask Detection is activated, the camera will send a notification that a mask is not detected and automatically ask visitors to Please wear a face mask. You can also review and filter only face-detection events in Smart Search.
Person and Vehicle Detection
Thanks to this innovative feature, you will only get a push notification whenever a person or vehicle is detected on your property. This effectively reduces the number of unwanted false alerts caused by moving branches or animals. Recorded motion alerts can easily be reviewed by using the Smart Search function.
Take an Active Stance Against Uninvited Guests
This camera comes with plenty of features that will help ward off uninvited guests. First, there is a motion-activated warning light that can be customized to only be triggered when a person or vehicle is detected. Second, you can use 1 of 3 selectable sirens that you can control from your Lorex Home app. When the camera sensors detect motion, the system will send a notification directly to your phone, allowing you to remotely access the camera and set off a loud warning alert.
Listen-in Audio and Two-Way Talk
A built-in speaker and microphone allow for crystal-clear audio functionality. Listen-in audio recording will add a whole new dimension to your overall security monitoring, as it can provide additional details (like a voice) should an incident occur. This camera also has enhanced two-way talk with Quick Response Messages that lets you pre-record specific messages with your voice using the Lorex Home app.
Safeguard what Matters Most
Safeguard allows you to set up to 3 areas to help you keep track of items left behind or removed, such as packages or other items of value.

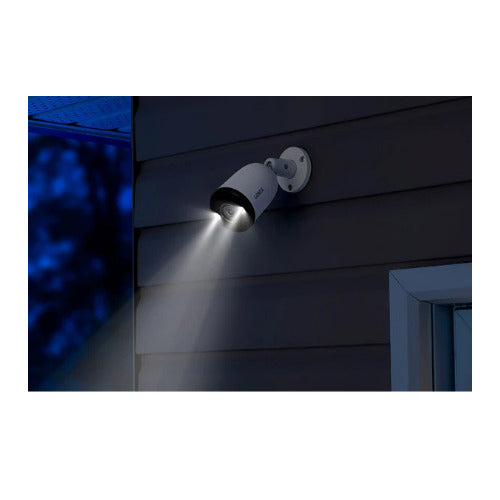

Superior Night Time Clarity with Color Night Vision
This camera features our revolutionary Color Night Vision (CNV) technology, which will produce full-color video with the help of external lighting around the camera.
Camera/Video
| Field of View | 108° |
| Video Resolution | 3840 x 2160 |
| Frame Rates | 8 MP at 15 fps, 5 MP at 30 fps, 4 MP at 30 fps, 1080p at 30 fps, 720p at 30 fps |
| Sensor Resolution | 8 Megapixels |
| Night Vision | Yes |
| Sensor Size | 1/2.8 inch |
Audio
| 2-Way Audio | Yes |
| Built-in Microphone | Yes |
Features
| WiFi | Yes |
| Outdoor Use | Yes |
| Alarm Type | Siren |
| Water-Resistant | Yes |
| Auto-Detection | Yes |
| Motion Detection | Yes |
Power
| Power Source | Plug-in Power |
General
| Color | White |
| Weight | Camera-Weight: 1.10 lb, NVR-Weight: 2.75 lb |
| Storage Type | HDD |
- Video Transmission Technology: IP
- Image Sensor: 8MP/4K 1/2.8” CMOS
- Video Format: NTSC
- Video Compression: H.265/H.264H (Main Stream & Sub Stream)
- Viewing Angle (Horizontal): 108°
- Lens/Lens type: 2.8mm F2.0/ Fixed
- Resolution/Frame rate: 4K(8MP)@15fps, 5MP@30fps, 1080p@30fps, 720p@30fps
- Effective Pixels: H:3840 x V:2160
- HDR: Yes
- Termination: RJ45
- Microphone/Speaker: Yes/Yes
- Siren: Yes (Siren sound options available)
- Two-way Talk: Yes
- IR Night Vision Range: 150 ft (45 m)/ 98 ft (30 m)
- Color Night Vision: Yes
- Smart Motion Detection Plus: Yes Person and Vehicle Detection
- Face Detection: Yes
- Mask Detection: Yes
- Safeguard: Yes - object missing or left behind
- Supports in App Quick Messaging: Yes
- Active Deterrence: Yes - Warning Light + Siren + Two-way Talk
- Camera Housing Material: Aluminum Alloy
- SD Card Slot: Yes
- Power Requirements: PoE (Power over Ethernet Class -802.3af)/12V DC
- Power Consumption (max): 660 mA / 9.5W
- Camera Dimensions (W x D x H): 2.9 x 6.9 x 2.9 Inch (73 x 175 x70 mm)
- Camera Weight: 1.10 lb / 0.49 kg
- Operating Temperature: -22°F ~ 140°F /-30°C ~ 60°C
- Humidity: < 95% RH
- Environmental Rating: IP67 (Indoor/Outdoor)

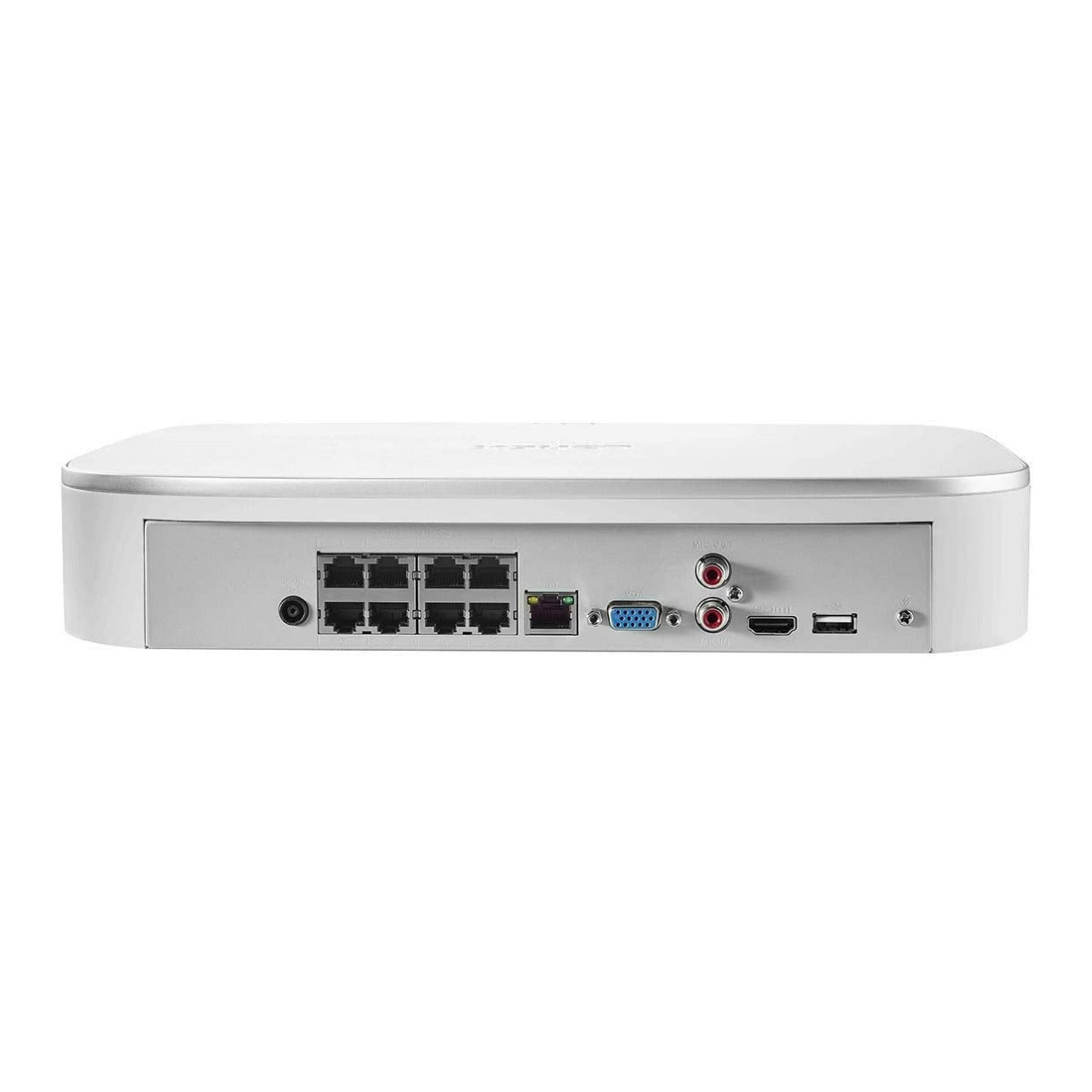

- Video Transmission Technology: IP
- Channels: 8 Channels
- Video Input: 8 x PoE
- Video Outputs: 1 × VGA/1 × HDMI
- Audio Input: 1 x RCA
- Audio Output: 1 x RCA
- Display Output Resolution: Up to 4K UHD
- Live Display: 1,4,8
- Live Display Speed (Max): 240fps NTSC/200fps PAL
- OSD: On/Off
- System Navigation: USB Mouse
- Recording Resolution: 4K (8MP)/5MP/4MP/3MP/1080p/720p
- Recording Frame Rate: 4K (8MP)@15fps/5MP@30fps/4MP@30fps/1080p@30fps/720p@30fps
- Recording Schedule: Schedule recordings through Continuous, Motion, Smart Motion
- (Person, Vehicle and Face), Alarm, Day, Hour per channel
- Back-up File Format: DAV/ASF/AVI/MP4
- Video Compression: H.265/H.264
- Simultaneous Playback: Up to 4 channels, synchronized
- Playback Speed: Variable Max 8×
- Search: By Time/Date, All Motion Events or Smart Motion (Person/Vehicle/Face), Area Search
- Hard Drive Bays: 1 Bay
- Hard Drive Capacity: Up to 8TB (SATA)
- Backup Media: USB Flash Drive & USB HDD
- Smart Motion Detection: Yes for Person and Vehicle detection
- Wired/Wireless Fusion support: Yes
- Lorex Sensor Compatible: Yes
- Face Detection Support: Yes
- Mask Detection Support: Yes
- Lorex Safeguard (Missing Object and Object Left Behind): Yes
- Active Deterrence Support: Yes
- Active View Support: Yes
- Panic Button: Yes
- Smart Search: Yes
- Voice Control: Amazon Alexa, Google Assistant
- Streaming Options: Chromecast, Apple TV, Amazon Echo Show, Google Home Hub
- Mobile Viewing: Android, iOS
- Compatible APP: Lorex Home
- PC/Mac Remote Viewing: Yes/Lorex Cloud client
- Email Notification: Text and Snapshot
- Network Interface: 10/100 Base-TX, RJ45
- Network Bit Rate: 80Mbps total, 48~8192kbps per camera
- DDNS: Yes (Optional)
- USB interface: USB 2.0 × 2
- FW Upgrade: USB/Network
- Watchdog Function: Yes
- Power Consumption: Approx. 8.3W (HDD excl.)
- Supply Voltage: 100VAC-240VAC, 50/60hz, DC 53V/1.8A
- Total PoE Power Output PoE: Max 25.5W for single port, 72W total
- Unit Dimensions (W × D × H): 12.9 x 9.6 x 2.1 Inch / 328 x 245 x 53 mm
- Unit Weight: 2.75 lbs. / 1.26 kg (excl. HDD)
- Operating Temperature: 14° ~ 131°F / -10° ~ 55°C
- Humidity: 10 ~ 90% RH
Lorex 4K 8-channel 3TB Wired NVR System with 6 Smart Deterrence Cameras
E893AB
| General | |
| Optical | |
| Video Output | |
| Audio | |
| Night Vision | |
| Special Features | |
| Additional Specifications | |
N843A83
| General | |
| Inputs/Outputs | |
| Display | |
| Recording | |
| Playback | |
| Storage | |
| Special Features | |
| Smart Home | |
| Connectivity | |
| Additional Specifications | |
