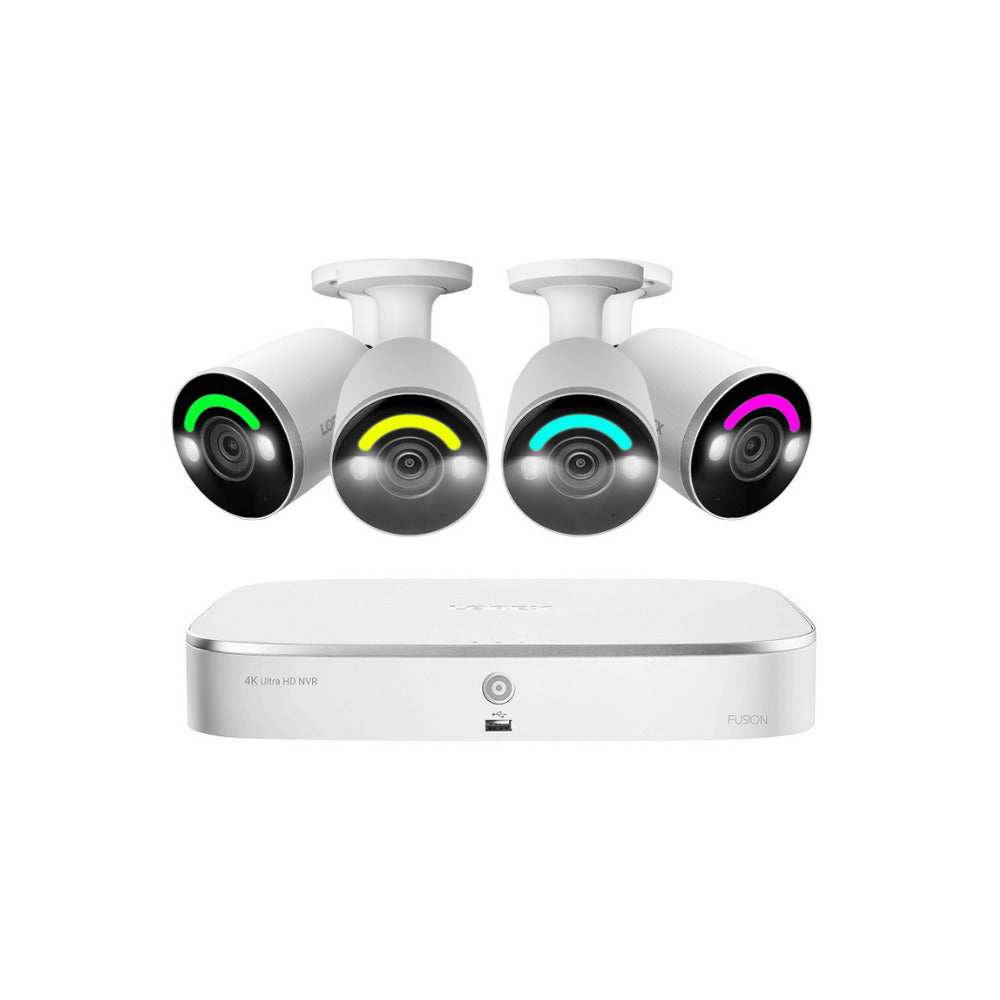

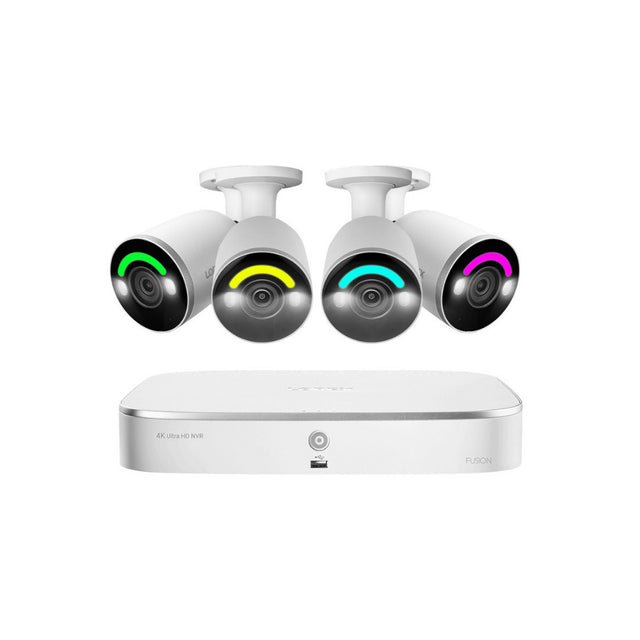

Lorex Fusion 4K 16 Camera Capable (8 Wired and 8 Wi-Fi) 2TB Wired NVR System with 8MP Cameras
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Create a personal security ecosystem like never before starting with this security system that features Lorex Fusion 4K Deterrence Security Cameras with Smart Security Lighting and an NVR that has 8 wired channels and 8 Wi-Fi channels. This means that you can also add up to 8 Smart Home products, such as Wi-Fi cameras, video doorbells, and floodlights, to the reliability and professional performance of the wired security cameras on the same system!

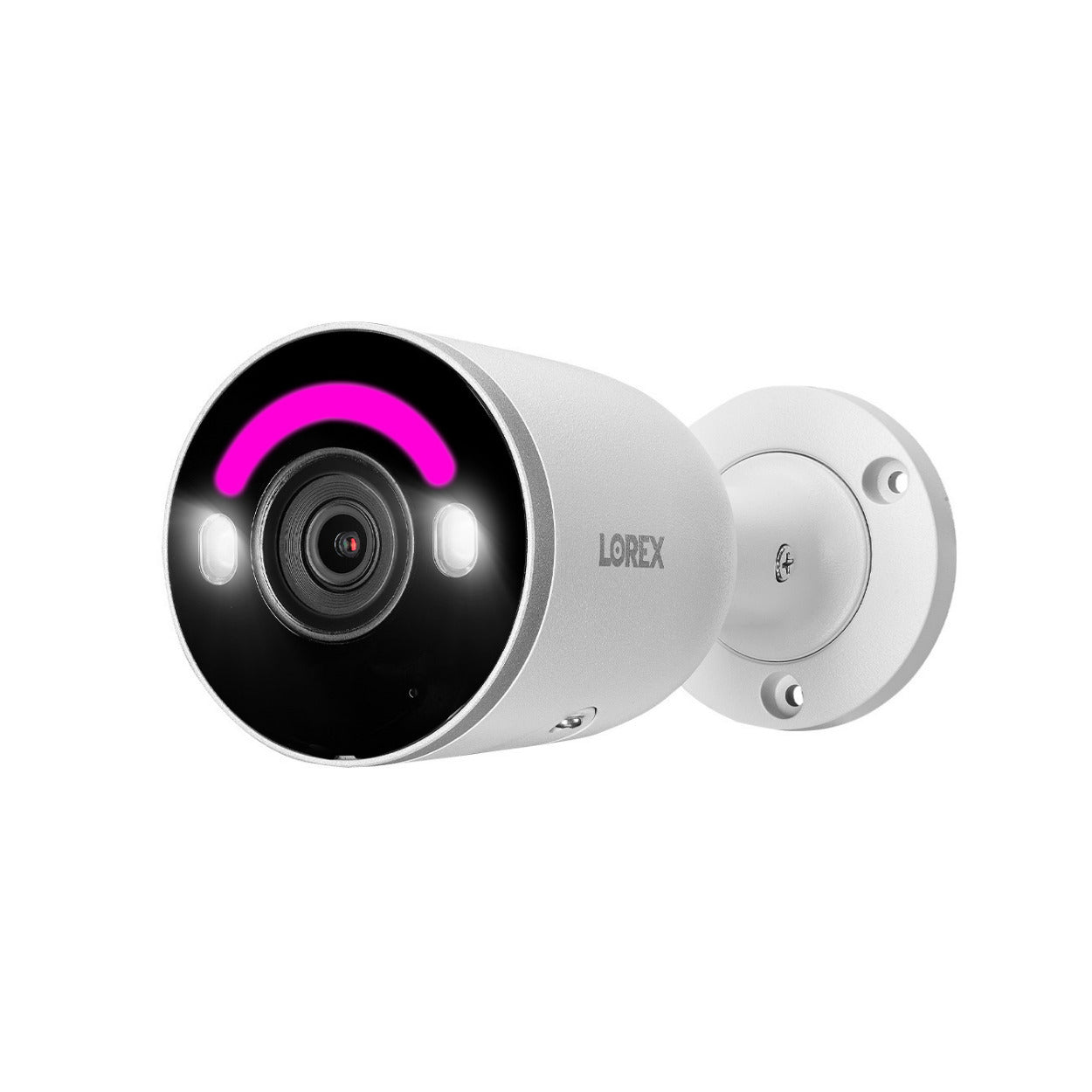

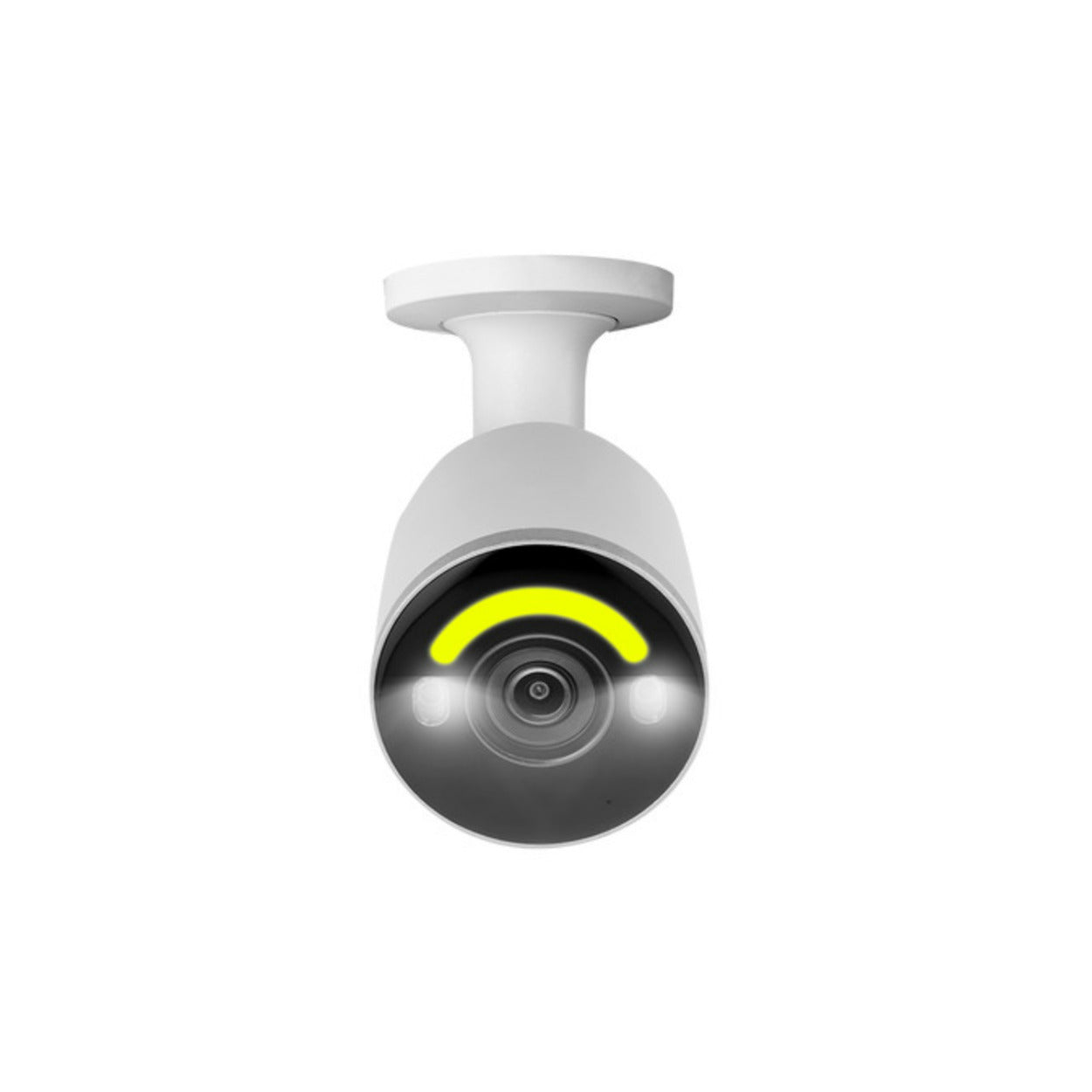

Customize Light Colors with Smart Security Lighting
The customizable smart LED light band comes with 16.7 million color options to choose from. Colors can be assigned to pre-set camera modes, such as Welcome or Panic.
Get Alerts That Matter
Reduce unwanted alerts and only get notifications you care about with key motion detection modes at no extra cost.
Wide Field of View in Full 4K
At the core of this camera is an 8-megapixel image sensor. 8 MP means there are more than 8 million pixels, which results in exceptionally sharp 4K video, realistic color representation, and superior digital zoom capabilities. The 108-degree field of view also allows your camera to monitor a broader area, so you see more and detect motion earlier.

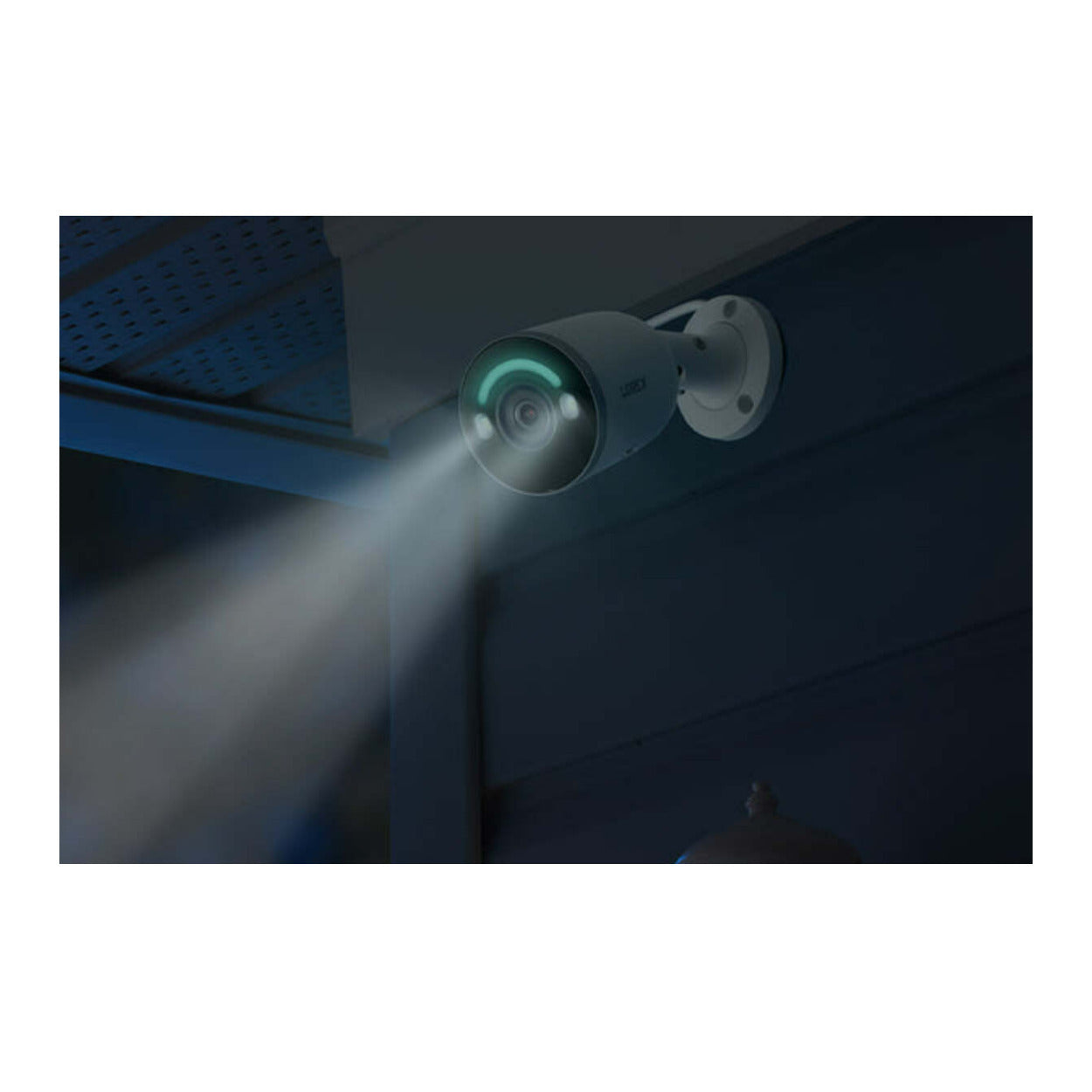

Boost Your Color Night Vision
Experience the best night vision on the market. This camera features our revolutionary Color Night Vision (CNV) Booster, which produces our most vivid and longest-range full-color nighttime video yet. CNV works best with the help of ambient lighting, however, in conditions that are too dark, this camera will use its infrared LEDs to record crisp black-and-white video footage.
Smart Home Compatibility
Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa and Google Assistant; use it with Chromecast or Firestick to monitor your security camera footage on a larger screen, or download the Lorex Home app on your Apple TV to view live video in single or multiple feeds. For more information about current smart home integrations, visit the Smart Home Guide.
Same Look: Home or Away
Enjoy a seamless monitoring experience whether you are accessing your system locally through the recorder or remotely through the app. The Recorder User Interface now uses the same look and feel as the Lorex Home app, making it easier than ever to navigate and find events as you switch platforms.
Customize Your Security with Fusion
Create a personalized Lorex Smart Home ecosystem by pairing your system with up to 8 wired and 8 Wi-Fi devices. This allows you to record continuous video from all Wired and Wi-Fi cameras to the NVR hard drive. This can also provide an invaluable backup of events should a Wi-Fi camera's local storage become disabled.

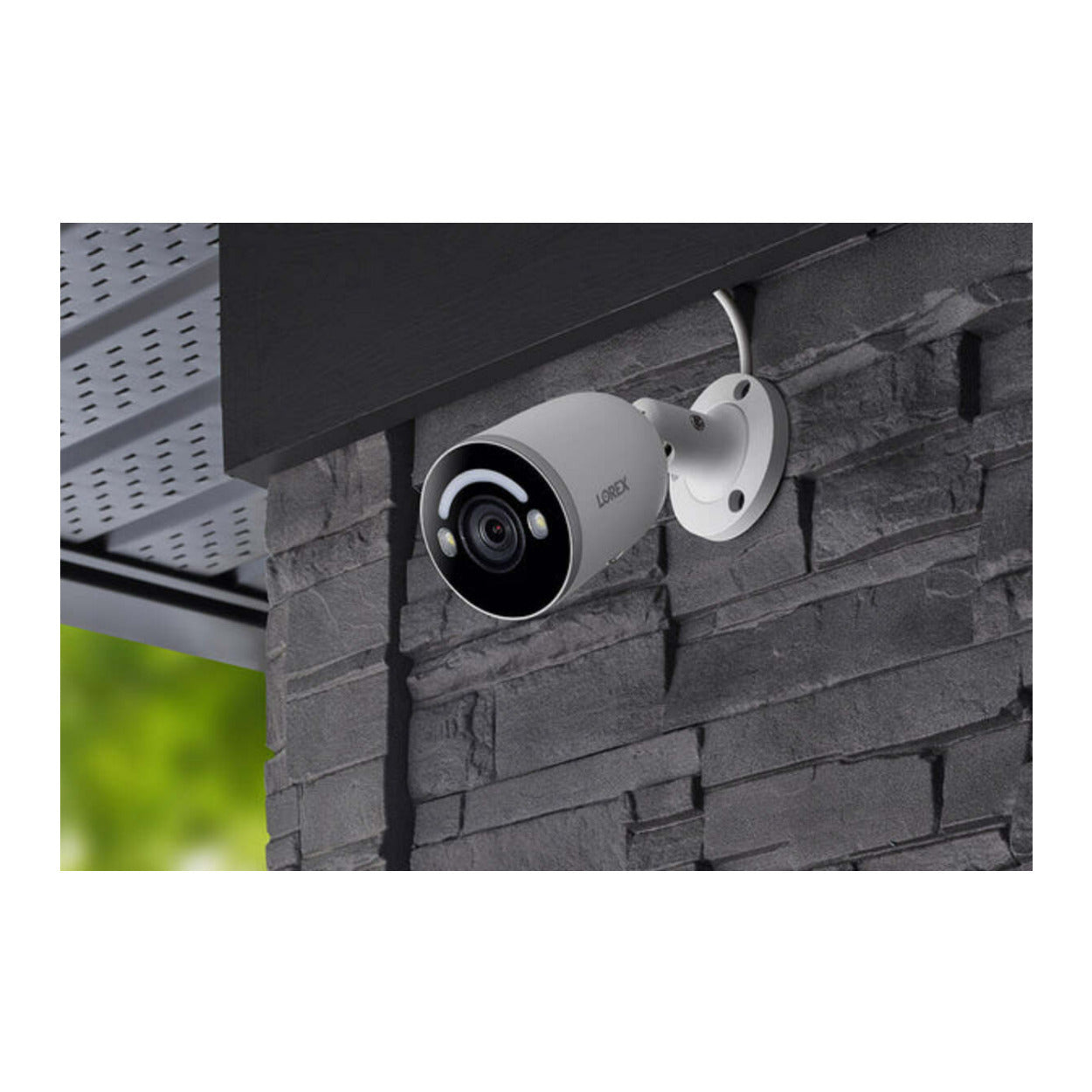

Built for the Outdoors
This camera has been designed to withstand the harsh impacts of nature. This withstands heat ratings of high temperatures up to 60 degrees C and cold ratings of low temperatures up to -30 degrees C. It has an IP67 rating and durable, all-metal housing for added protection.
Speak with Ease
Easily communicate through the camera's built-in microphone and speaker using the Lorex Home App. You can also choose pre-set or personalized voice messages to welcome or instruct visitors.
Proactive Security
Stop events before they happen with two motion-activated LED lights and a remotely triggered siren from the Lorex Home app.
Camera/Video
| Front Camera Resolution | 8 MP |
| Field of View | 108° |
| Video Resolution | 3840 x 2160 |
| Frame Rates | 15fps, 30fps, 30fps, 30fps |
| Sensor Resolution | 8 Megapixels |
| Night Vision | Yes |
| Sensor Size | 1/2.8 inch |
Audio
| 2-Way Audio | Yes |
| Built-in Microphone | Yes |
Features
| Outdoor Use | Yes |
| Alarm Type | Siren |
| Water-Resistant | Yes |
| Auto-Detection | No |
| Motion Detection | Yes |
Power
| Power Source | AC Power Adapter |
General
| Color | White |
| Weight | NVR System: 2.75 lb, Camera: 1.15lb |
| Storage Type | MicroSD Card |
Lorex Fusion 4K 16 Camera Capable (8 Wired and 8 Wi-Fi) 2TB Wired NVR System with 8MP Cameras

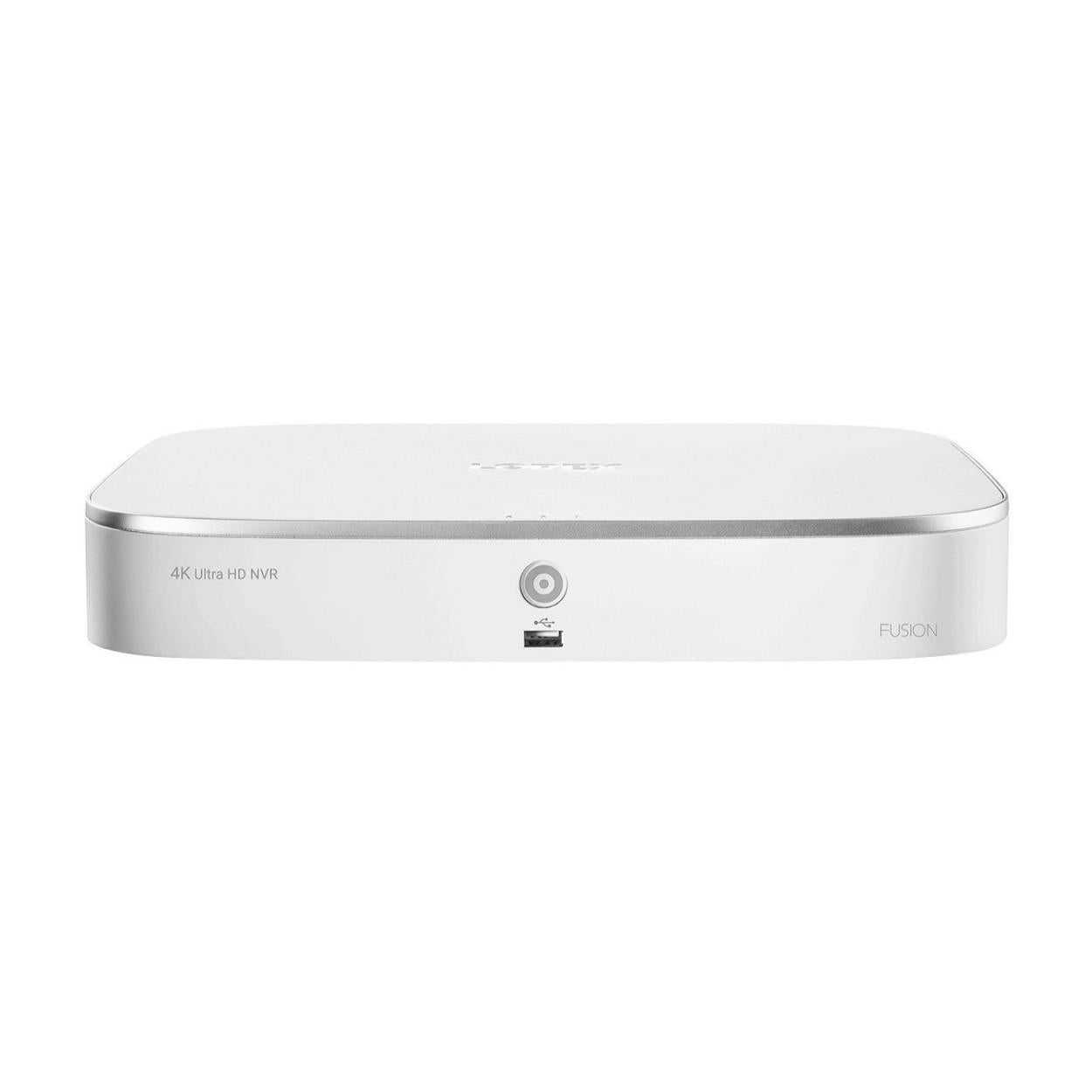

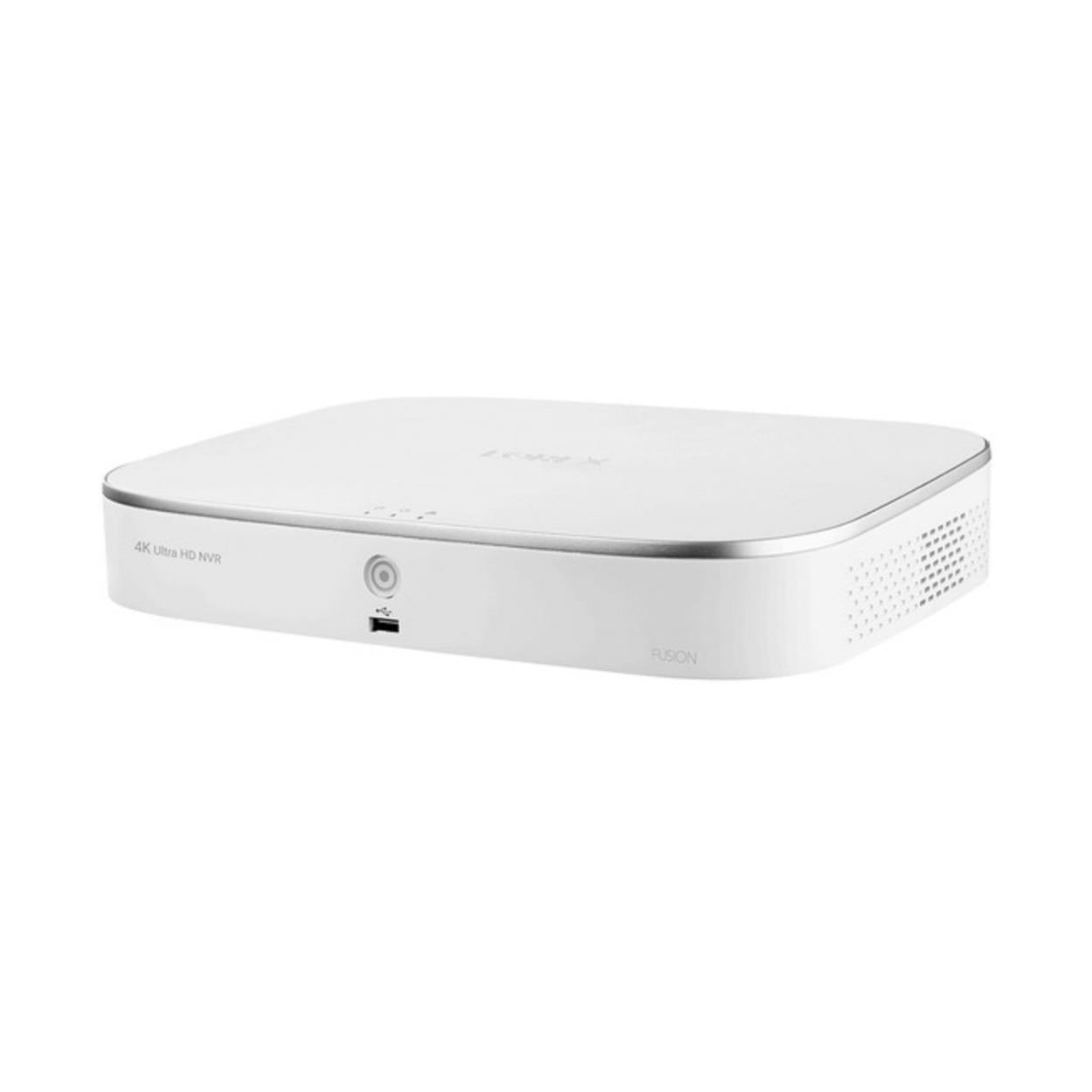

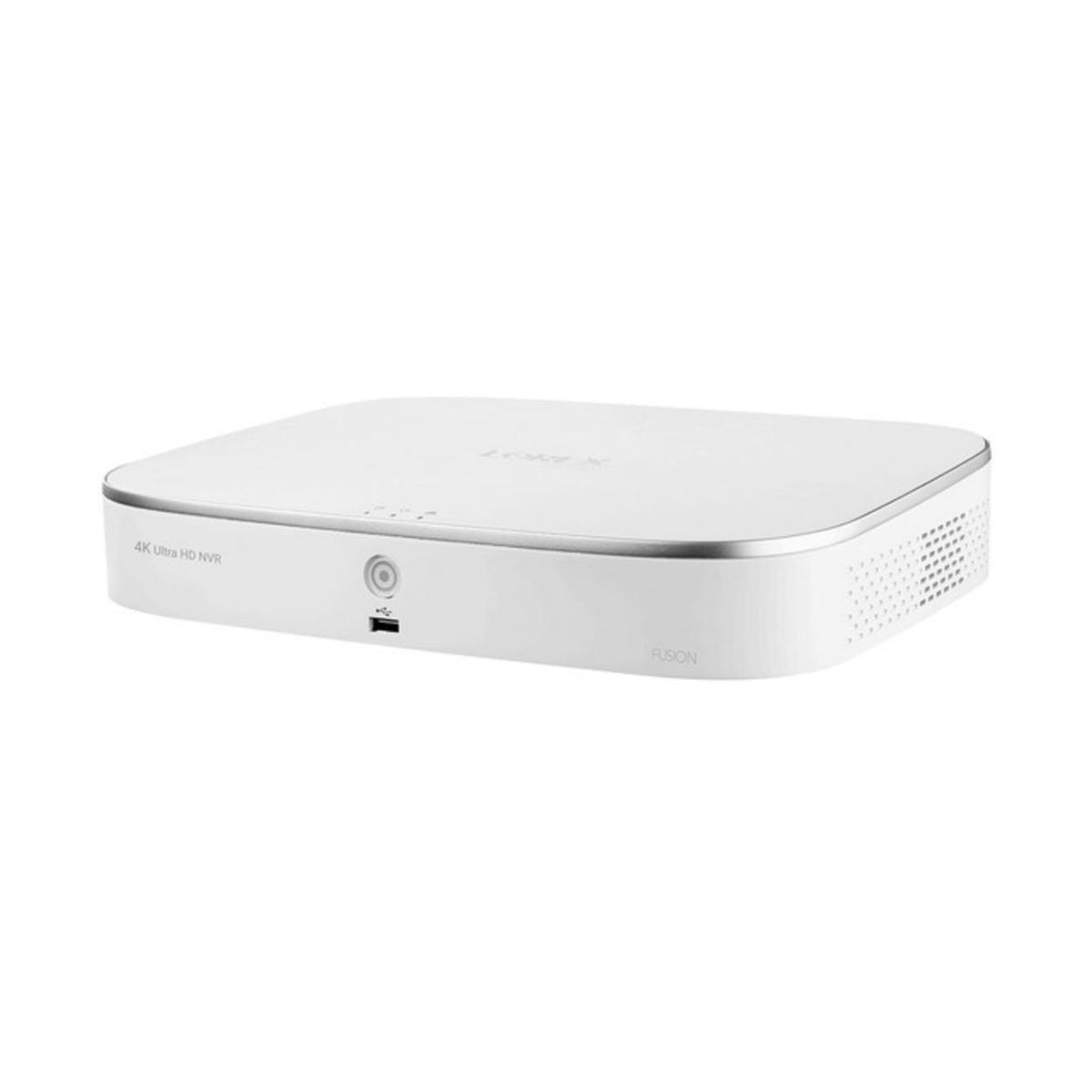

Video Recorder
General
| Video transmission technology | IP |
| Channels | 16 Channels |
Inputs/Outputs

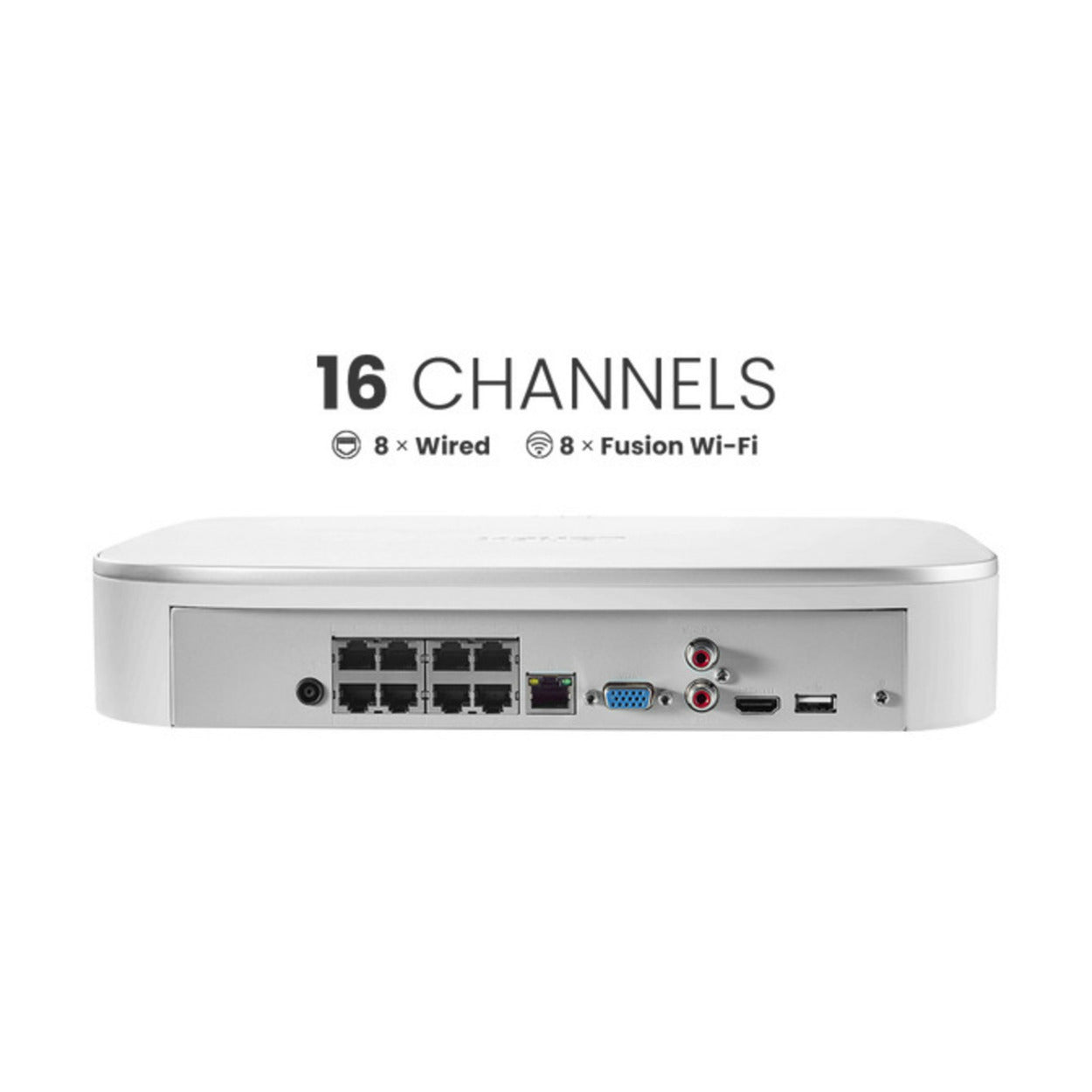

| Video input | 16 ch: 8 x PoE, 8 x Wi-Fi Fusion |
| Video output | 1x VGA/ 1 x HDMI |
| Audio input | 1 ch: RCA type |
| Audio output | 1 ch: RCA type |
Display
| Display output resolution | Up to 4K UHD |
| Live display | 1, 4, 8, 9, 16 |
| OSD | On/Off |
| System navigation | USB mouse |
Recording
| Recording resolution | 4K (8MP)/5MP/4MP/3MP/1080p/720p |
| Recording frame rate | 4K (8MP) at 15fps, 5MP at 30fps, 4MP at 30fps, 1080p at 30fps, 720p at 30fps |
| Recording scheduling per channel | Continuous/Motion/Smart Motion (Person, Vehicle and Face)/Alarm/Day/Hour |
| Backup file format | DAV/ASF/AVI/MP4 |
| Video compression | H.265/H.264 |
Playback
| Simultaneous playback | Up to 4 channels, synchronized |
| Playback speed | Variable max 8x |
| Search | By Time/Date, All Motion Events or Smart Motion (Person, Vehicle and Face), Area Search |
Storage
| Hard disk drive bays | 1 Bay |
| Hard disk drive capacity | Up to 8TB (SATA |
| Backup media | USB Flash Drive and USB HDD |
Special Features
| Smart motion detection support | Person and vehicle motion detection |
| Wired/wireless fusion support | Yes |
| Lorex sensor compatible | Yes |
| Face detection support | Yes |
| Mask detection support | Yes |
| Package detection (missing package and left behind package) | Yes |
| Smart security lighting support | Yes |
| Active deterrence support | Yes |
Technical Specifications
| Active view support | Yes |
| Selectable siren support | Yes |
| Panic button | Yes |
| Smart search | Yes |
| Smart Home | |
| Voice control | Amazon Alexa, Google Assistant |
| Streaming Options | Chromecast, Apple TV, Amazon Echo Show, Google Home Hub |
Connectivity
| Mobile viewing | Android, iOS |
| Compatible app | Lorex Home |
| PC/MAC remote viewing | Yes/Lorex cloud client |
| Email notification | Text and Snapshot |
| Network interface | 10/100 Base-TX, RJ45 |
| Network bit rate | 80Mbps, 48~8192kbps per camera |
| DDNS | Yes (Optional) |
| USB interface | USB 2.0 × 2 |
Additional Specifications
| FW upgrade | USB/Network |
| Watchdog function | Yes |
| Power consumption | Approx. 8.3W (without HDD) |
| Supply voltage | 100VAC-240VAC, 50/60Hz, DC53V/1.8A |
| Total PoE power output | PoE: Max 25.5W for single port, 72W total |
| Unit dimensions (W x D x H) | 12.9 x 9.6 x 2.1-inch |
| Unit weight | 2.75lb (without HDD) |
| Operating temperature | 14 to 131-degree F / -10 to 50-degree C |
| Humidity | 10 to 90 percent RH |

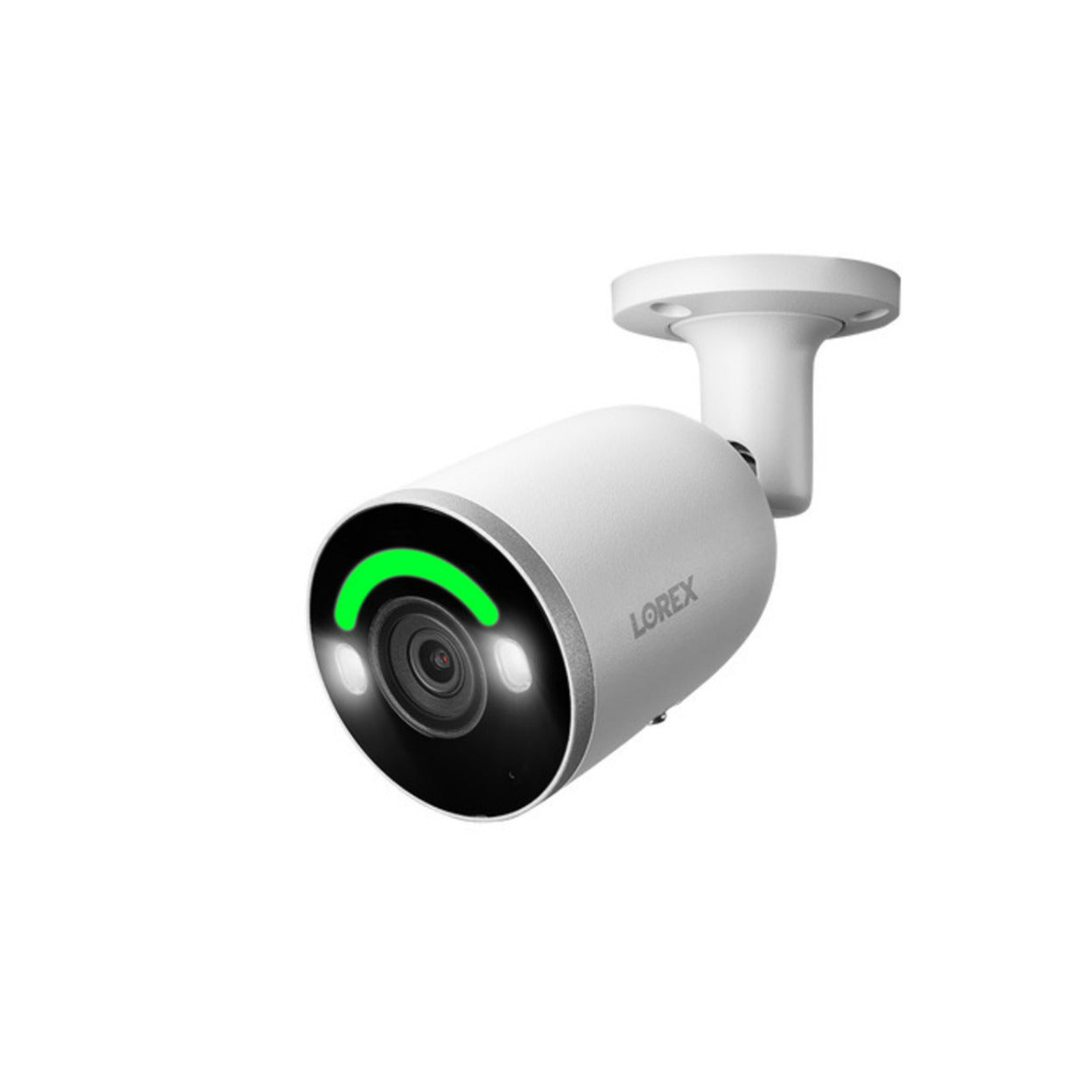

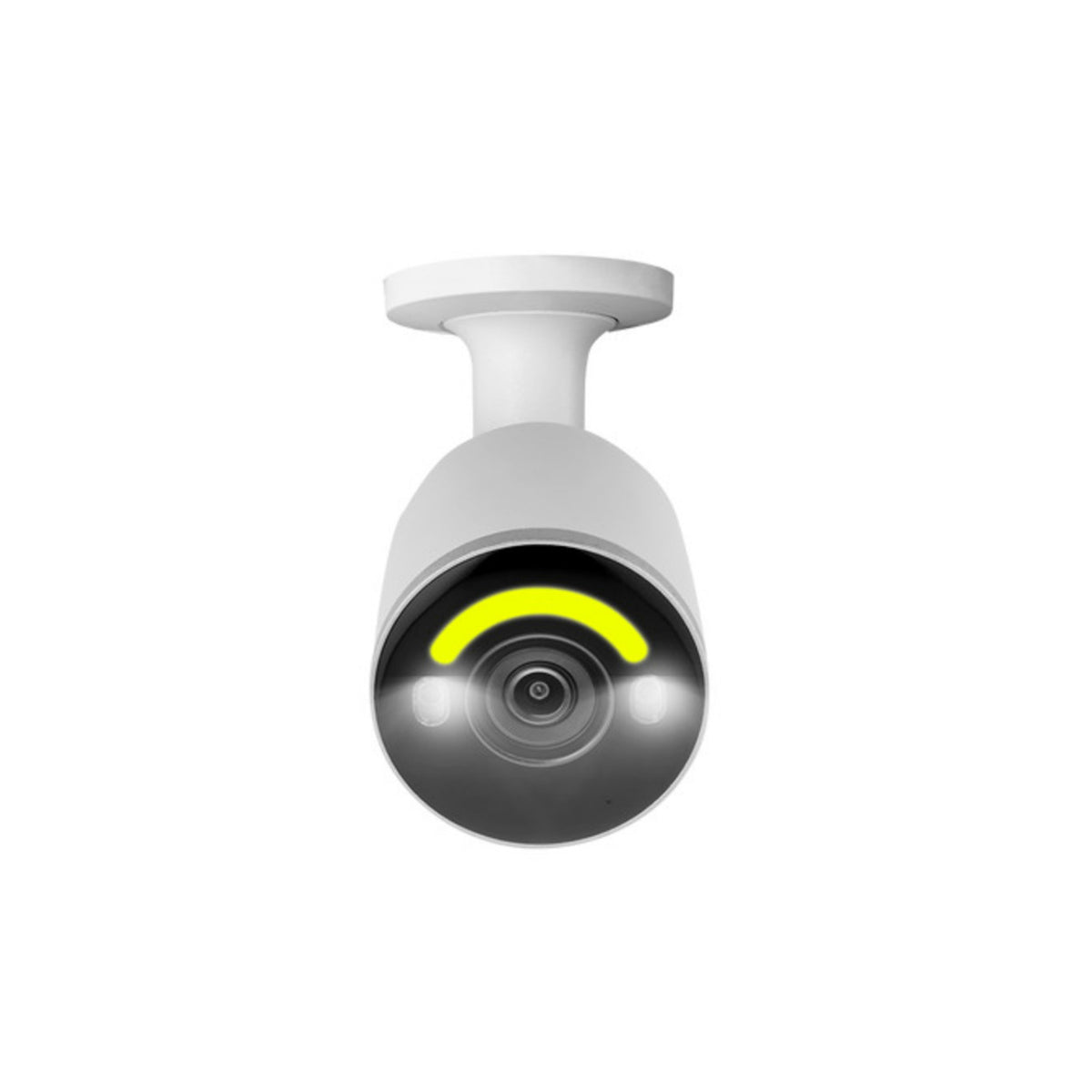

Camera
General
| Video transmission technology | IP |
| Image sensor | 8MP/4K 1/2.8-inch CMOS |
| Video format | NTSC |
| Video compression | H.265/H.264 (mainstream and substream) |
Optical
| Viewing angle (horizontal) | 108-degree |
| Lens | 2.8mm, F1.6 |
| Lens type | Fixed |
Video Output
| Resolution/frame rate | 4K (8 MP) at 15 fps, 5 MP at 30 fps, 1080p at 30 fps, 720p at 30 fps |
| Effective pixels (H x V) | 3840 x 2160 |
| HDR | Yes |
| Termination | RJ45 |
Audio
| Microphone | Yes |
| Speaker | Yes |
| Siren | Yes (siren sound options available) |
| Two-way talk | Yes |
Night Vision
| IR night vision range | 150 feet/98 feet |
| Color night vision | Yes |
Special Features
| Smart motion detection plus | Yes person and vehicle detection |
| Face detection | Yes |
| Mask detection | Yes |
| Package detection | Yes package missing or package left behind |
| Supports in-app quick messaging | Yes |
| Active deterrence | Yes warning light + siren + prerecorded message + smart security lighting |
Additional Specifications
| Camera housing material | Aluminum alloy |
| SD card slot | Yes |
| Power requirements | PoE (Power over Ethernet Class 802.3af)/12V DC |
| Power consumption (maximum) | 660 mA/9.5 watt |
| Camera dimensions (W x D x H) | 2.9 x 6.9 x 2.9-inch |
| Camera weight | 1.15lb |
| Operating temperature | -22 to 140-degree F |
| Humidity | < 95 percent RH |
| Environmental rating | IP67 (indoor/outdoor) |
