Lorex Fusion 4K 16 Camera Capable (8 Wired+8 Fusion Wi-Fi) 2TB Wired NVR System
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Lorex Fusion 4K 16 Camera Capable (8 Wired+8 Fusion Wi-Fi) 2TB Wire...

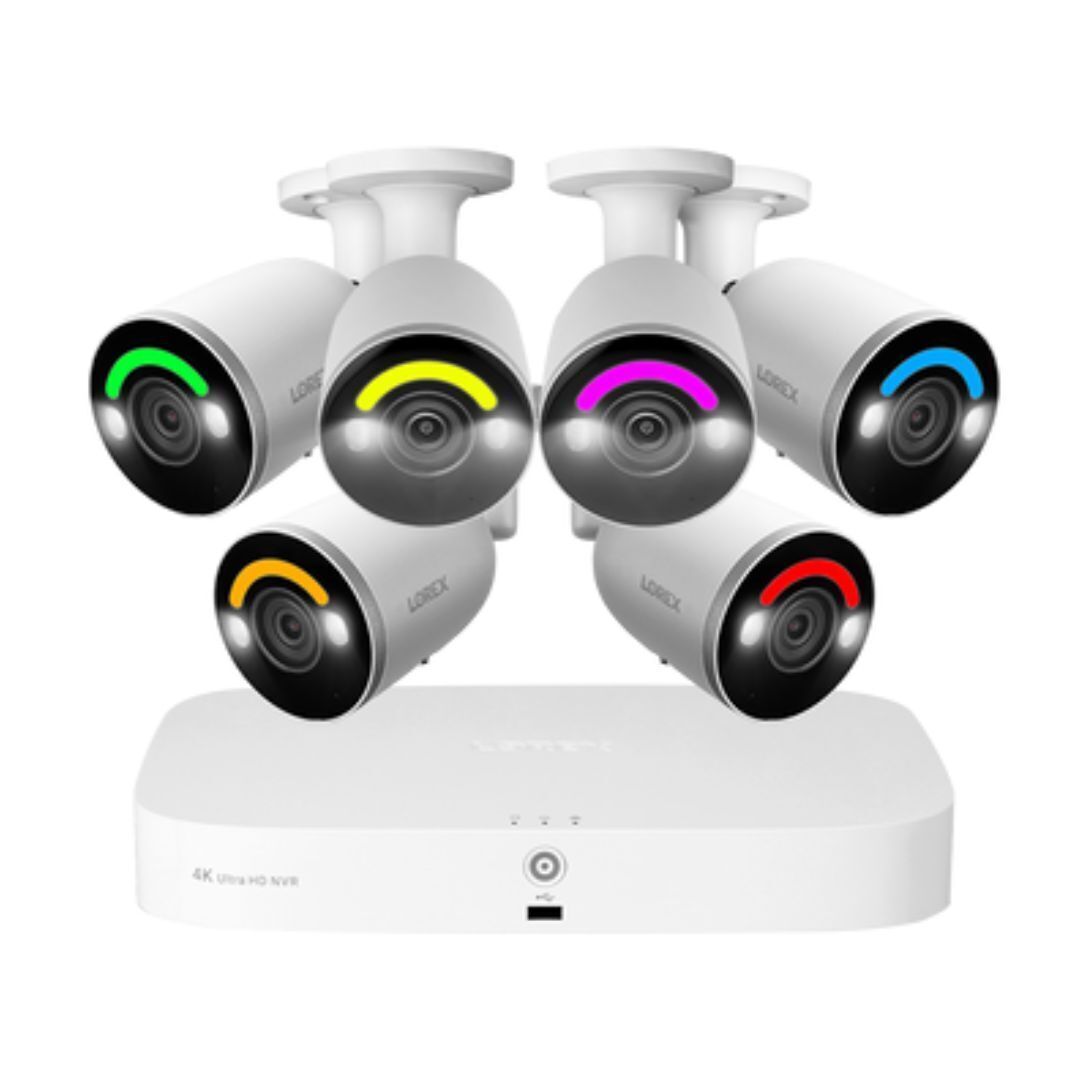

Monitor your property with the Lorex Fusion 4K IP Smart Deterrence System. This 16-channel NVR system combines 8 wired and 8 Fusion Wi-Fi channels and comes with six 4K Smart Deterrence Bullet Cameras. The system is designed for both home and business security, offering clear video, smart detection, and active deterrence features to help you protect your property efficiently.
4K UHD Video Capture
Each bullet camera features a 1/2.8in CMOS sensor that records video in 4K UHD resolution at 15 fps. This ensures clear and detailed footage, helping you identify people, vehicles, and objects with precision.
Night Vision and Color Night Vision
The cameras provide up to 98 feet of night vision in complete darkness and 150 feet in ambient light. Color night vision captures full-color video at night for easier identification and better security monitoring.
Smart Motion Detection
Smart motion detection detects faces, people, animals, vehicles, and packages. Notifications are sent directly to your mobile device via the Lorex Home app, allowing quick responses to potential security events.
Active Deterrence

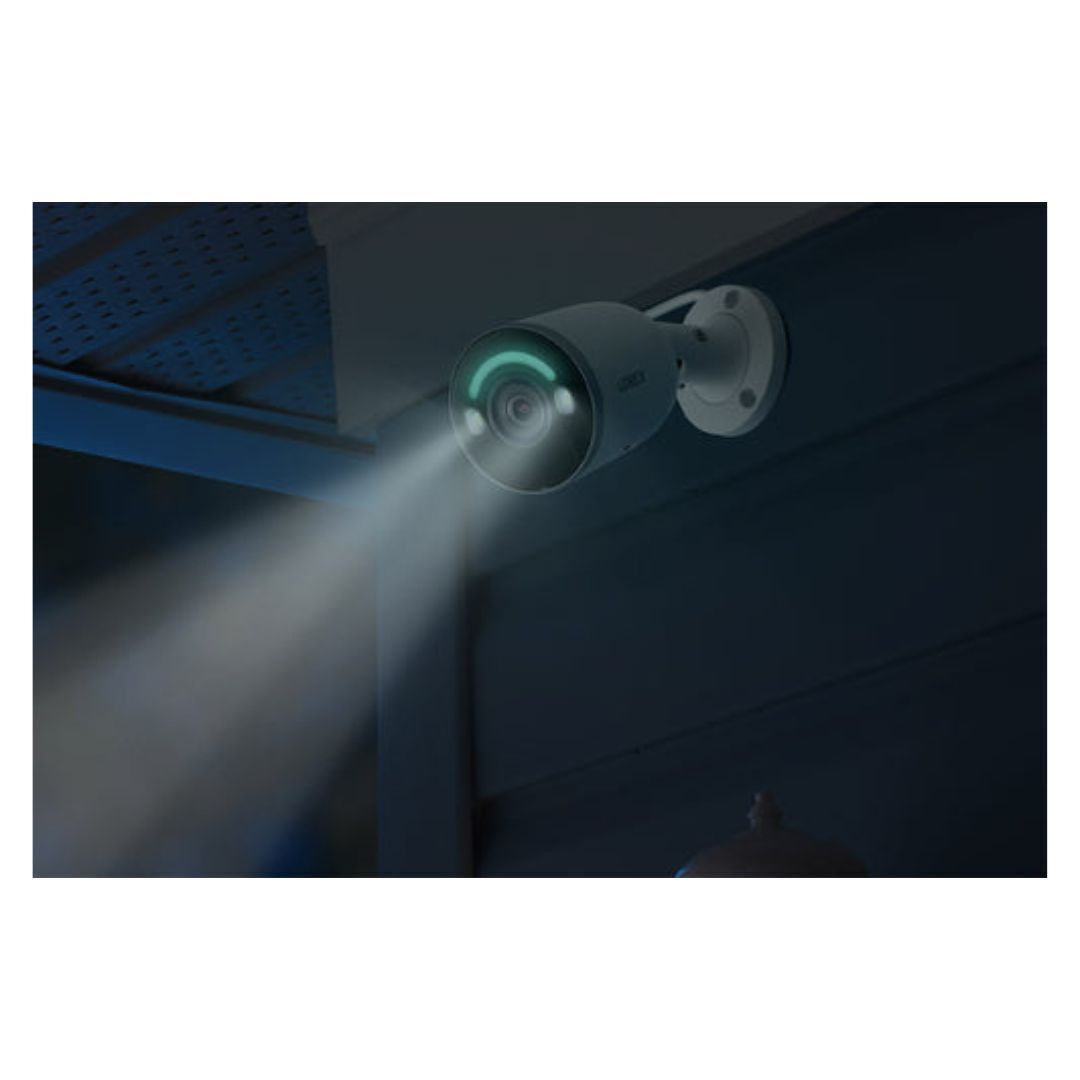

Built-in motion-activated LED warning spotlights and a remote-triggered siren help deter intruders. Smart Security Lighting lets you assign colors for different motion events and preset modes to alert or scare off potential threats.
Flexible Storage and Viewing Options
The included 2TB HDD can be expanded up to 8TB. Video streams are compressed using H.265 and H.264 to save storage space. Remote viewing is available through the Lorex Home app and Lorex Cloud, while HDMI and VGA outputs support live monitoring.
Voice and Streaming Integration
The system works with Alexa and Google Assistant for voice control. It also supports streaming via Chromecast, Apple TV, Amazon Echo Show, and Google Home Hub for flexible monitoring across multiple devices.
Enhanced Smart Features
The system supports face detection, mask detection, missing package alerts, selectable sirens, panic buttons, and smart search. Fusion technology allows wired and wireless camera integration, and the system is compatible with additional Lorex sensors.
NVR
| Video Transmission Technology | IP |
| Channels | 16, Fusion Wi-Fi |

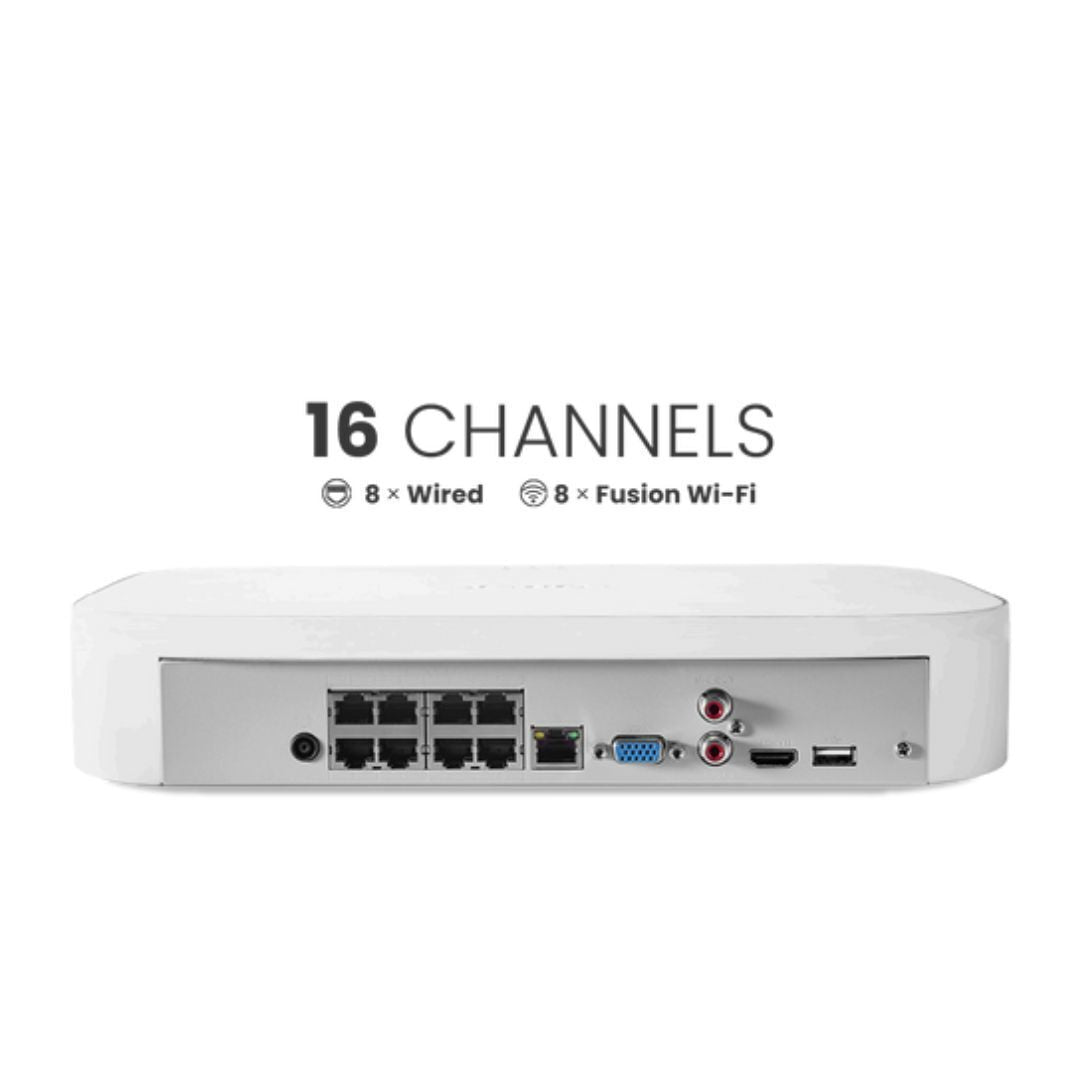

| Video Inputs | 8 x PoE, 8 x Fusion Wi-Fi |
| Video Outputs | 1 x VGA, 1 x HDMI |
| Audio | 1 x RCA Input, 1 x RCA Output |
| Display Output Resolution | Up to 4K UHD |
| Live Display | 1, 4, 8, 9, 16 |
| OSD | On/Off |
| System Navigation | USB Mouse |
| Recording Resolution | 8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p |
| Recording Frame Rate | 8 MP at 15 fps, 5 MP at 30 fps, 4 MP at 30 fps, 1080p at 30 fps, 720p at 30 fps |
| Recording Schedule | Continuous, Motion, Smart Motion (Person, Vehicle, Face), Alarm, Day, Hour per Channel |
| Backup File Format | DAV, ASF, AVI, MP4 |
| Video Compression | H.265, H.264 |
| Simultaneous Playback | Up to 4 Channels, Synchronized |
| Playback Speed | Variable, Maximum 8x |
| Search | By Time/Date, All Motion Events or Smart Motion (Person, Vehicle, Face), Area Search |
| HDD Bay | 1 |
| HDD Capacity | 1 x 8 TB (SATA) |
| HDD Included | 2 TB |
| Backup Media | USB Flash Drive & USB HDD |
| Motion Detection | Support for Person and Vehicle Smart Motion Detection |
| Features | Wired/Wireless Fusion, Sensor Compatible, Face Detection Support, Mask Detection Support, Package Detection (Missing Package & Package Left Behind), Smart Security Lighting Support, Active Deterrence Support, Active View Support, Selectable Siren Support, Panic Button, Smart Search |
| Voice Control | Alexa, Google Assistant |
| Streaming Options | Chromecast, Apple TV, Echo Show, Google Home Hub |
| Mobile App | Home for iOS & Android |
| Remote Viewing Options | Cloud for Windows & Mac PCs |
| Email Notification | Text & Snapshot |
| Network Interface | 100M RJ45 |
| Network Bit Rate | 80 Mb/s Total, 48 to 8192 kb/s per Camera |
| DDNS | Optional |
| USB Interface | 2 x USB 2.0 |
| Firmware Upgrades | USB, Network |
| Watchdog Function | Yes |
| Power Consumption | 8.3 W without HDD |
| Supply Voltage | 100 to 240 VAC, 50/60 Hz, 53 VDC, 1.8 A |
| PoE Power Output | 25.5 W for Single Port, 72 W Total |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Humidity | 10 to 90% RH |
| Dimensions | 12.9 x 9.6 x 2.1in / 328 x 245 x 53 mm |
| Weight | 2.75 lb / 1.26 kg without HDD |

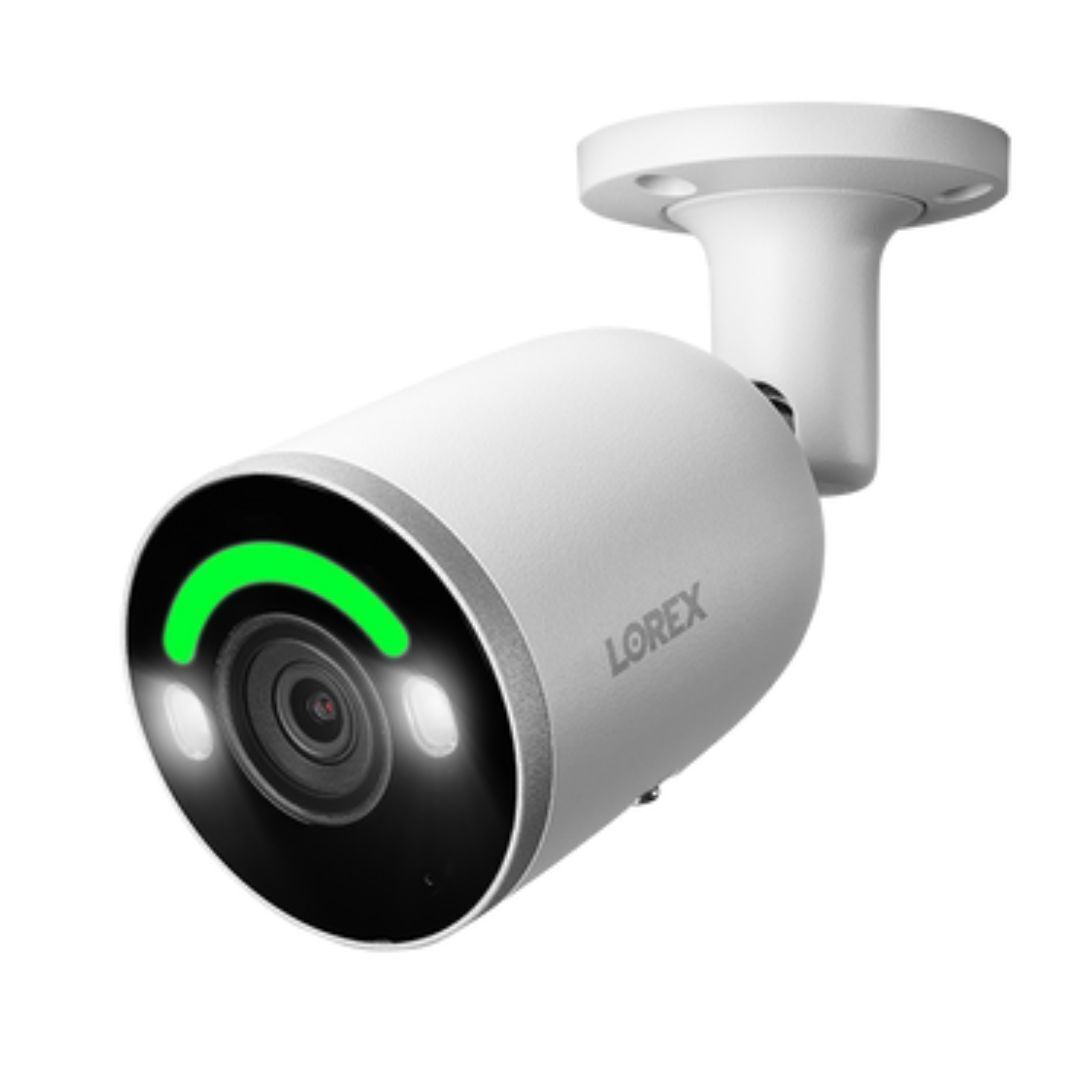

Bullet Camera
| Transmission Technology | IP |
| Image Sensor | 8 MP, 1/2.8in CMOS |
| Video Format | NTSC |
| Video Compression | H.265, H.264 (Main Stream & Sub Stream) |
| Field of View | Horizontal: 108° |
| Lens | 2.8mm Fixed |
| Aperture | f/1.6 |
| Resolution | 8 MP at 15 fps, 5 MP at 30 fps, 1080p at 30 fps, 720p at 30 fps |
| Effective Pixels (H x V) | 3840 x 2160 |
| HDR | Yes |
| Termination | RJ45 |
| Two-Way Audio | Built-In Microphone & Speaker |
| Siren | Yes, Siren Sound Options Available |
| Night Vision Range | Complete Darkness: 98' / 30 m |
| Ambient Lighting (Color Night Vision) | 150' / 45 m |
| Special Features | Smart Motion Detection Plus: Person/Vehicle Detection, Face Detection, Mask Detection, Package Detection (Missing/Left Behind), Supports in App Quick Messaging, Active Deterrence: Warning Light, Siren, Pre-Recorded Message, Smart Security Lighting |
| Power Requirements | PoE Class 802.3af / 12 VDC |
| Power Consumption | Maximum 660 mA / 9.5 W |
| microSD Card Slot | Yes |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Humidity | <95% RH |
| Housing Material | Aluminum Alloy |
| IP Rating | IP67 |
| Dimensions (W x D x H) | 2.9 x 6.9 x 2.9 in / 73 x 175 x 70 mm |
| Weight | 1.15 lb / 0.52 kg |
Packaging Info
| Package Weight | 26.225 lb |
| Box Dimensions (LxWxH) | 17.4 x 16.4 x 15.3 in |
