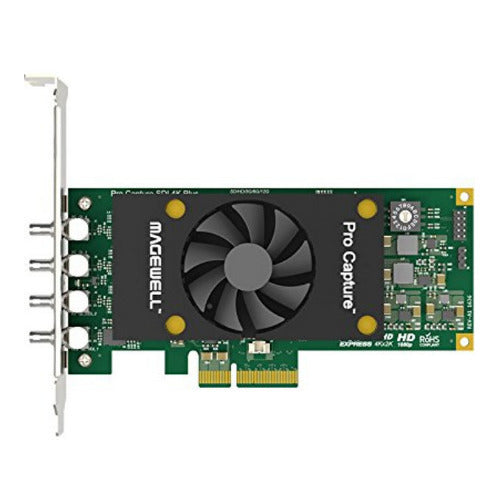

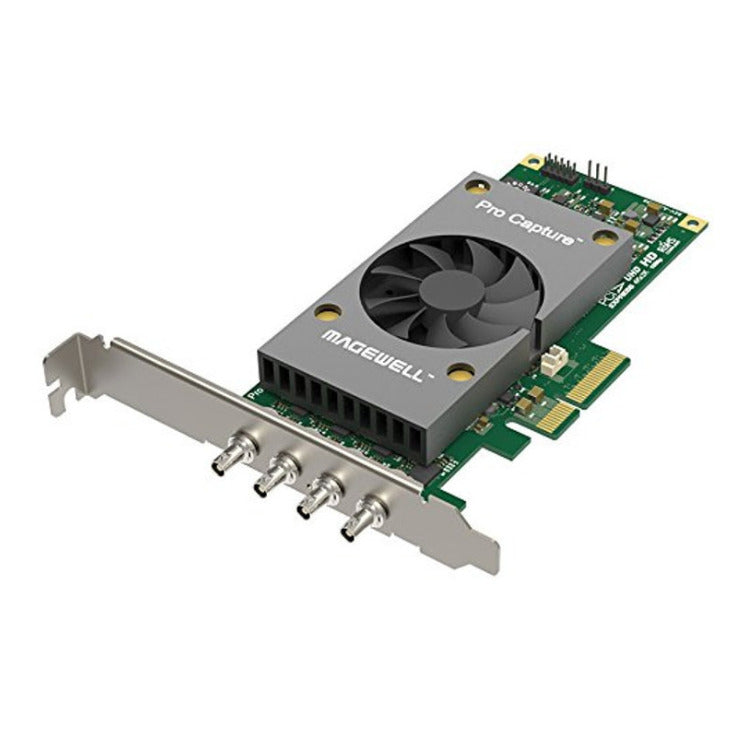

Magewell Pro Capture SDI 4K Plus Video Capture Card
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Magewell Pro Capture SDI 4K Plus Video Capture Card is a combination of quality, performance and value. It is a hardware device that you connect to your computer for converting the video signal from your camera's output into a digital format that your computer can recognize. It captures one 12G-SDI signal in either Single-link 12G-SDI, Dual-link 6G-SDI or Quad-link 3G-SDI or connecting method. The card is compatible with Windows, macOS and Linux so more A/V professionals can experience the incredible cards. Various features are included to improve the user experience so users can start to capture easily, and the cards maintain stable performance after long periods of use. Magewell Pro Capture SDI 4K Plus features low-profile PCIe x4 interface, 1-channel 12G SDI and Ultra HD 4Kp60.
General
| Channels | 8 |
| Weight | Not Available |
| Color | Black/Green |
Power
| Operating Temperature | 0 to 40 deg C |
Input / Output
| HDMI Inputs | 4 |
- Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
- Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64)
- CentOS 6.5/7 (x86 & x64)
- Fedora 25/26/27 (x86 & x64)
- Red hat 6.5 and above (x86 & x64)
- Other Linux OS with kernel version 2.6.35 and above
- OS X 10.9/10.10/10.11
- macOS 10.12 and above
- Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
- Ubuntu 12.04/14.04/16.04 (x86 & x64)
- Ubuntu 17.04/17.10 (x64)
- CentOS 6.5/7.2 (x86 & x64)
- Fedora 25/26 (x64)
- Red hat 6.5 (x86 & x64)
- OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
- macOS 10.12/10.13.2/10.13.3/10.14.3/10.15
- DirectShow
- DirectKS
- Wave API/DirectSound/WASAPI
- V4L2
- ALSA
- AVCaptureSession
- AudioUnit
- Two connectors are compatible with SD/HD/3G SDI
- One connecter is compatible with SD/HD/3G/6G SDI
- One connecter is compatible with SD/HD/3G/6G/12G SDI
- Support for input of Single Link, Dual Link, Quad Link
- Weave
- Blend top & bottom field
- Top field only
- Bottom field only
- Auto or manual selection of input aspect ratio
- Auto or manual selection of capture aspect ratio
- Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
- Auto or manual selection of input color format & quantization range
- Auto or manual selection of capture color format, quantization range & saturation range
- Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
- Support for Limited or Full quantization range
- Support for Limited, Full & ‘Extended gamut’ saturation range
- Support for PNG OSD image (up to 4096x2160)
- Support for dynamic loading of RGBA OSD image via SDK
- Pulsing slowly: idle
- On: input signal locked
- Off: input signal unlocked
- Double blinks: memory failed or FPGA configuration failed
- 4 x 3G SDI: ~ 0.65 A
- 2 x 6G SDI: ~ 0.65 A
- 1 x 12G SDI: ~ 0.66 A
- 4 x 3G SDI: ~ 0.94 A
- 2 x 6G SDI: ~ 0.83 A
- 1 x 12G SDI: ~ 0.75 A
- 4 x 3G SDI: ~ 10.9 W
- 2 x 6G SDI: ~ 10.59 W
- 1 x 12G SDI: ~ 10.39 W
Magewell Pro Capture SDI 4K Plus Video Capture Card
Supported OS
| Windows | |
| Linux | (support x86, x64 & ARM architecture) |
| Mac |
Recommended OS (Tested)
| Windows | |
| Linux | |
| Mac |
Supported APIs
| Windows | |
| Linux | |
| macOS | |
Supported Software
| VLC | |
| VirtualDub | |
| OBS | |
| XSplit | |
| vMix | |
| VidBlaster | |
| Wirecast | |
| Microsoft Media Encoder | |
| Adobe Flash Media Encoder | |
| Any other DirectShow/V4L2 encoding/streaming software |

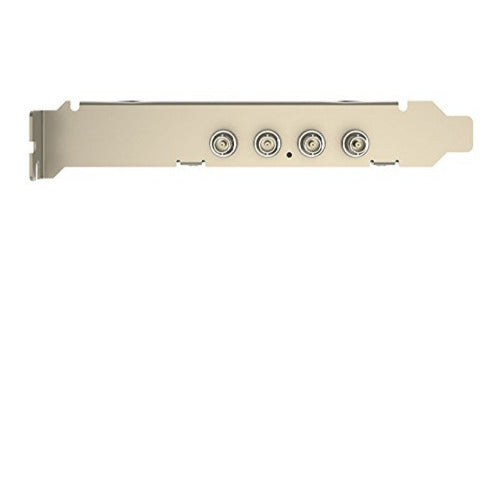

Input Interfaces
| HD-BNC x4 | |
Host Interfaces
| PCIe Gen2 x4 |
Input Features
| Support for input video resolutions up to 4096x2160 pixels | |
| Auto detection of Single Link, Dual Link, Quad Link |
SDI Specific Features
| Integrated cable equalizer supporting cable lengths up to 230M for HD signals | |
| Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS/6G/12G | |
| Support for 2K (2048x1080) & 4K (4096x2160) mode | |
| Support for RGB 4 | 4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling |
| Support for 10/12-bit color depth | |
| Support for extraction of SMPTE 352 payload identifier | |
| Support for up to 8 (mono) audio channels at 48KHz | |
| Support for extraction of audio formation information & channel status data | |
| Support for Closed Caption |
Video Capture Formats
| Support for capture image resolutions up to 4096x2160 pixels | |
| Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth & image resolution) | |
| Support for 4 | 2:0 8-bit capture formats: NV12, I420, YV12 |
| Support for 4 | 2:2 8-bit capture formats: YUY2, YUYV, UYVY |
| Support for 4 | 4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32 |
| Support for 4 | 4:4 10-bit capture formats: V410, Y410 |
| More capture formats are supported via Magewell Capture SDK |
Video Processing Features
| Two video processing pipelines with ~720 Mpixels/s processing bandwidth for each one | |
| Full 10-bit video processing | |
| Video cropping | |
| Video scaling | |
| Video de-interlacing | |
| Video aspect ratio conversion | |
| Video color format conversion | |
| Video frame rate conversion | |
| Video OSD composition | |
Multiple Cards Per System
| Support for multiple cards plugged to one system | |
| On-board rotary switch to set card number, with 16 positions from 0 to F | |
| System hardware device tree will display “01 | Pro Capture SDI 4K+” when rotary switch is set to 1, and so on |
| The video and audio device names displayed in your software will include the card number (set by the rotary switch) |
Multiple Capture Streams
| Unlimited capture streams for any one input channel | |
| Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing, color adjustment and OSD settings for each individual stream |
Ultra Low Latency Support
| Latency of 64 video lines | |
| Partial notification mode in SDK |
Timestamp & A/V Synchronization
| Hardware based 100ns high resolution clock | |
| Audio frames (192 audio samples) & video frames are stamped with hardware clock | |
| Hardware clock can be synchronized across cards (via SDK) |
Video Capture SG-DMA
| ~1600MB/s per channel DMA bandwidth in PCIe 2.x system | |
| ~800MB/s per channel DMA bandwidth in PCIe 1.x system | |
| Support for auto detection of Intel tiled GPU surface | |
| Support for DirectGMA for AMD video adapter chipsets | |
| Support for GPUDirect for Nvidia video adapter chipset |
SDK
| Magewell Capture SDK for easy integration, maximum flexibility and performance |
Windows Driver Tweaks
| All options can be controlled by three levels of registry key | global level, product level and device level |
| Video, Audio, Crossbar filter names can be customized via registry keys |
Firmware Upgrade
| Multiple cards in one system can be upgraded simultaneously | |
| Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed) | |
| Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above. |
LED Indicator
| Status LEDs indicate the working state of each channel |
Form Factor
| Low profile PCIe x4 Add-on Card | |
| 140mm x 68.88mm (without PCI bracket) |
Power Consumption
| Max current at 12V | |
| Max current at 3.3V | |
| Max power consumption |
Working Environment
| Operating temperature | 0 to 40 deg C |
| Storage temperature | –20 to 70 deg C |
| Relative Humidity | 5% to 90% non-condensing |
