- Magewell USB Capture HDMI Plus Dongle
- USB 3.0 Cable
- Manufacturer's 3-Year Limited Warranty
Trusted & Verified

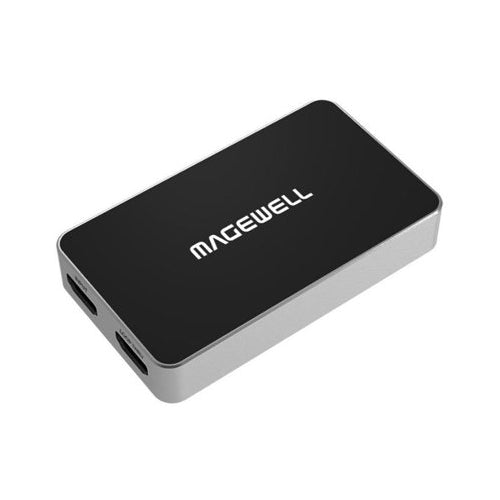

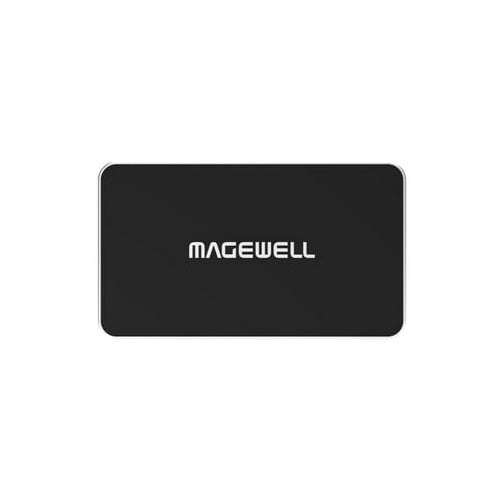

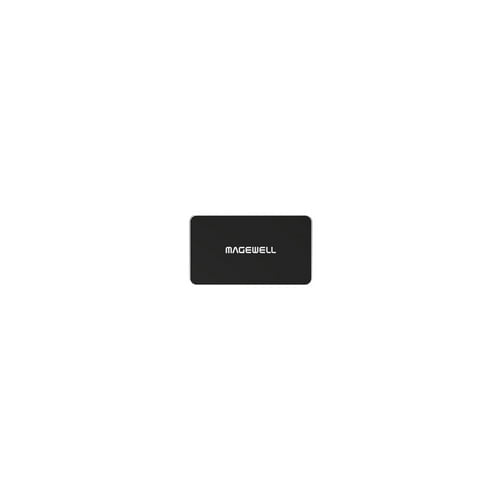

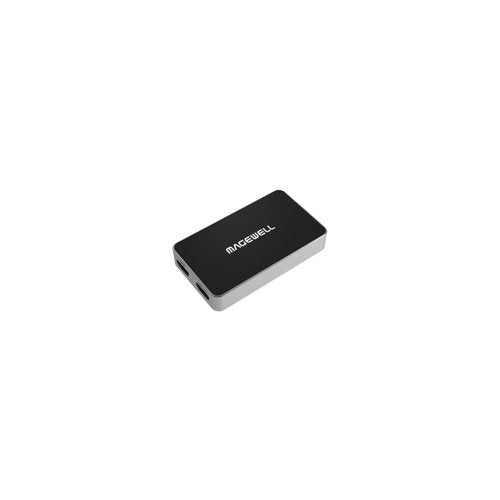

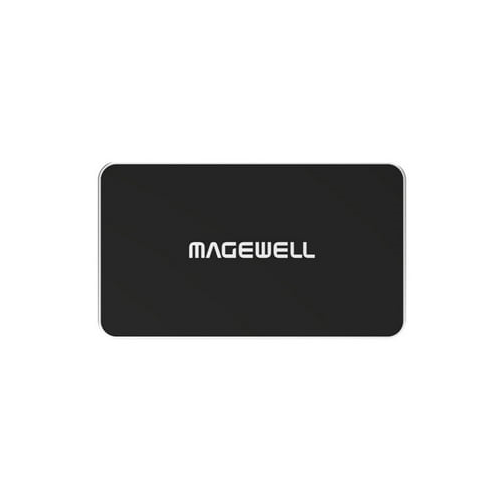

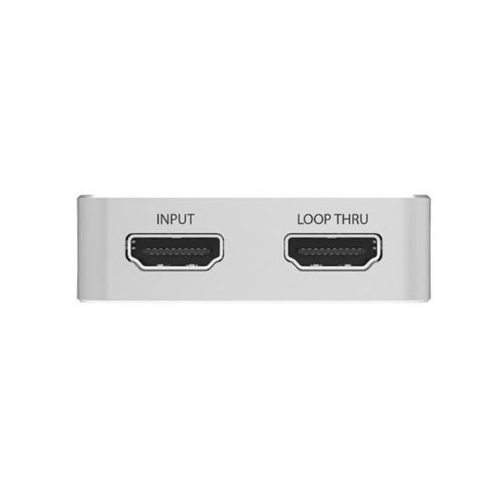

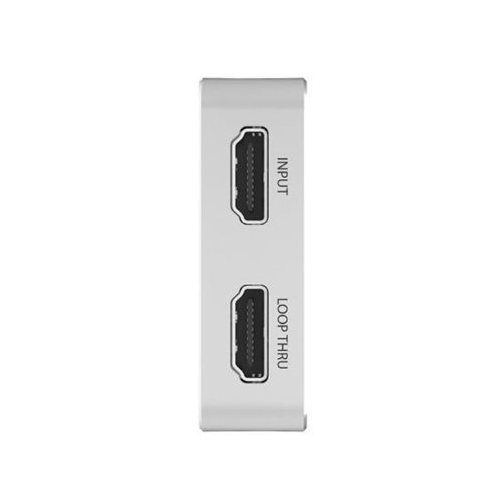

Magewell USB Capture HDMI Plus Dongle
- One-channel, 2K HDMI + embedded audio capture device
- For live streaming, game broadcasting and video stitching

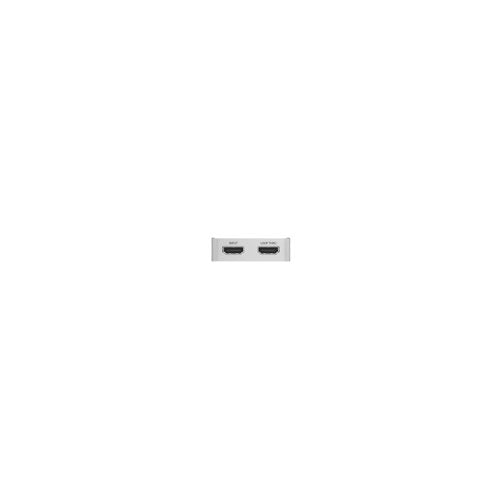

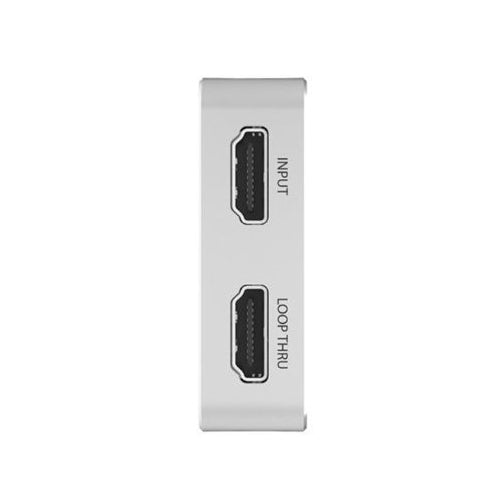

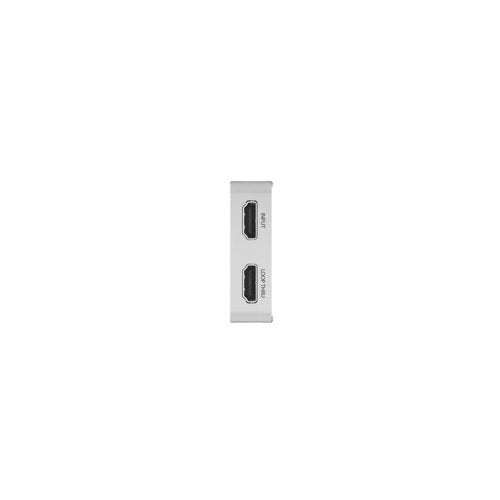

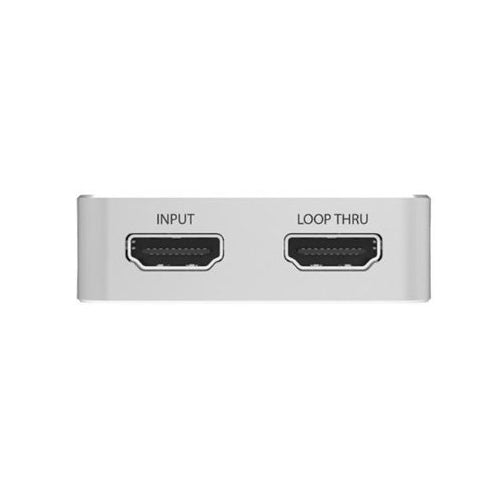

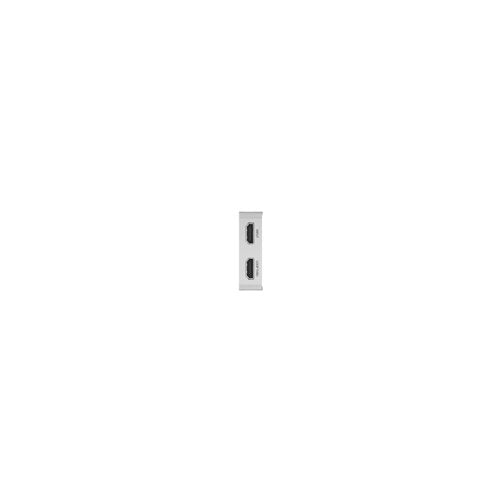

- HDMI, Loop through, mic in and headphones output
- Captures PS4, Xbox One, HD camera etc., signals

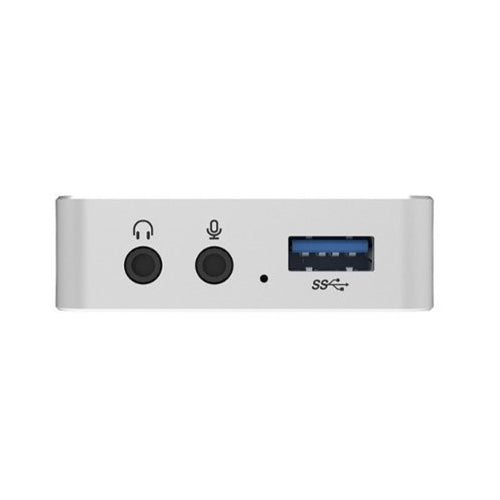

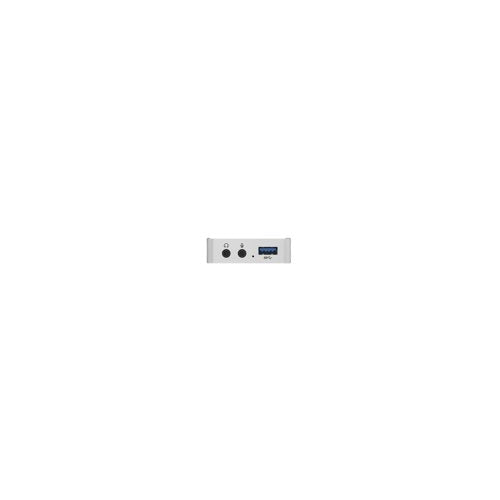

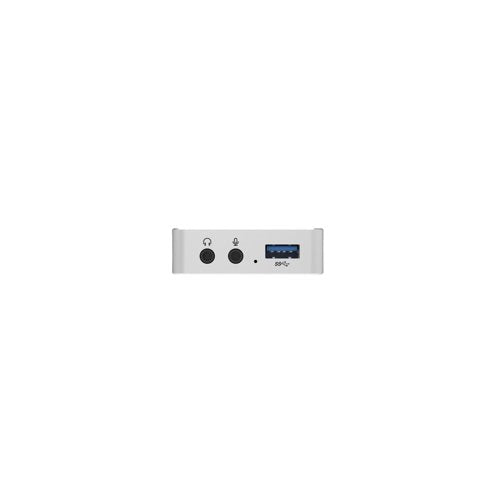

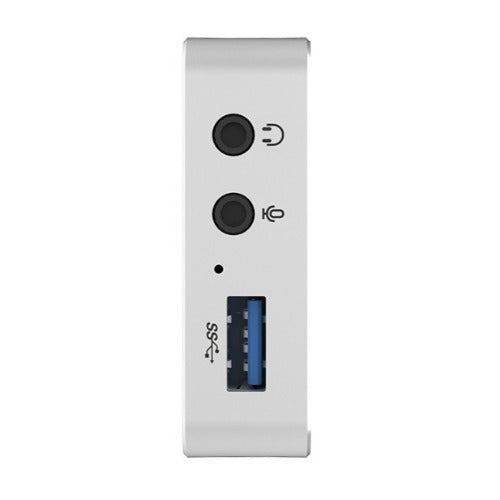

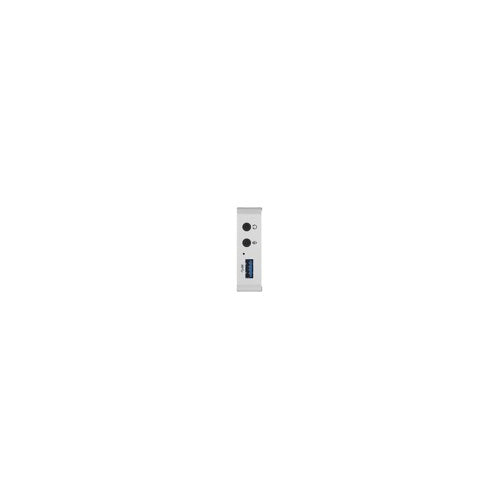

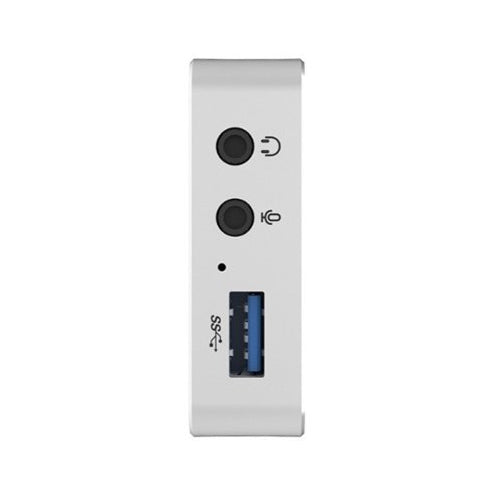

- 3.5 mm audio jacks for microphone and headphones
- Automatically down scales to 2K for recording or streaming
- Support for input video resolutions up to 4096 x 2160 pixels
- USB 3.0 and USB 2.0 - No external power needed
- Compatible with most popular professional software
- Windows, Linux, OS X/macOS and Chrome OS compatible
Stream, record and monitor high-quality video using Magewell USB Capture HDMI Plus Dongle. Whether you're using PS4, Xbox One, graphics cards, HD cameras or another device, the HDMI 1.4 interface can capture the signal, while the loop through enables monitoring the image during streaming or recording. Connect your input device, computer, microphone and headphones and amaze yourself with superb capture experience. Conveniently compatible with most professional third party software, the USB Capture Plus works the Windows Linux, OS X/macOS and Chrome OS and is ideal device for video conferencing, gaming and video stitching.
Magewell USB Capture HDMI Plus Dongle
General
| Support input resolution | Up to 4096 x 2160 pixels |
| Support loop-through resolution | Up to 4096 x 2160 pixels |
| Compatibility | Windows, Linux, Mac, Chrome OS |
| Host interface | USB 3.0 |
| High-speed Memory | |
| LED Status Indicator | Yes |
| Audio Input Interface | 3.5 mm audio jack for microphone |
| Audio Output Interface | 3.5 mm audio jack for headphones |
| Video Engine | 8-bit video processing, Deinterlace, Cropping, Color Adjustment, Color Space Conversion, Up/down Conversion, Aspect Ratio Conversion, Mirror and Flip |
Supported OS
| Windows | |
|
|
| Linux (support x86, x64 & ARM architecture) | |
|
|
| Mac | |
|
|
| Chrome OS |
Recommended OS (tested)
| Windows | |
|
|
| Linux | |
|
|
| Mac | |
|
Supported APIs
| Windows | |
|
|
| Linux | |
|
|
| macOS | |
|
Supported Software
| VLC | |
| VirtualDub | |
| OBS | |
| XSplit | |
| vMix | |
| VidBlaster | |
| Wirecast | |
| Microsoft Media Encoder | |
| Adobe Flash Media Encoder | |
| Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software |
Input Interfaces
| HDMI | |
|
|
| 3.5mm audio jack | |
|
Host Interface
| USB 3.0 | |
|
Output Interface
| 3.5mm audio jack | |
|
Loop-Through Interface
| HDMI | |
|
Input Features
| Support for input video resolutions up to 4096x2160 |
HDMI Specific Features
| 297MHz HDMI receiver | |
| Adaptive HDMI equalizer support for cables lengths up to 30M | |
| Support for customized EDID | |
| Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames | |
| Full colorimetry support | |
| Support for up to 4096x2160 4 | 4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input signals |
| For 4 | 2:0 input signals, the horizontal and vertical resolution will be reduced to 1/2 for capturing |
| For 4 | 4:4/4:2:2 input signal at more than 170MHz, the horizontal resolution will be reduced to 1/2 for capturing |
| Support for 2 channel IEC60958 audio streams | |
| Support for extraction of audio formation information & channel status data | |
| Support for extraction of video timing information | |
| Support for extraction of 3D format information | |
| Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode. |
Analog Audio Features
| Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out | |
| Capture of analog audio via 3.5 mm microphone interface | |
| Integrate the functions of a USB audio card. Playback audio via 3.5 mm headphones interface. Support for recording the playback audio of the computer. |
Video Capture format
| Support for capture resolutions up to 2048x2160 | |
| Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB3.0 controller are as follows.) | |
|
|
| Support for YUY2 & UYVY 4 | 2:2 8-bit |
| Support for RGB24 & RGB32 4 | 4:4 8-bit |
| The default capture format is YUY2. More capture formats can be set using USB Capture Utility. |
Video Processing Features
| Video processing pipelines with 160 Mpixels/s processing bandwidth | |
| Video cropping | |
| Video scaling | |
| Video de-interlacing | |
|
|
| Video aspect ratio conversion | |
|
|
| Video color format conversion | |
|
|
| Video frame rate conversion | |
| Vertical flip and mirror |
Multiple devices on one computer
| Support for connecting multiple USB devices to one system | |
| Support for setting the device serial number as the device name shown in the system using USB Capture Utility |
SDK
| The USB Capture SDK provide functions including signal status extraction, capture configuration, etc. |
Firmware Upgrade
| Multiple devices in one system can be upgraded simultaneously |
LED Indicator
| Status LEDs indicate the working state of each channel |
|
Form Factor
| L x W x H | 98.1 x 56.8 x 17mm |
Power Consumption
| 5V max current | 900mA |
| Max power consumption | ~ 4.5 W |
Working Environment
| Operating temperature | 0 to 50 deg C |
| Storage temperature | –20 to 70 deg C |
| Relative Humidity | 5% to 90% non-condensing |
