- Magewell USB Capture HDMI Gen 2 Dongle
- USB 3.0 Cable
- Manufacturer's 2-Year Limited Warranty
Trusted & Verified

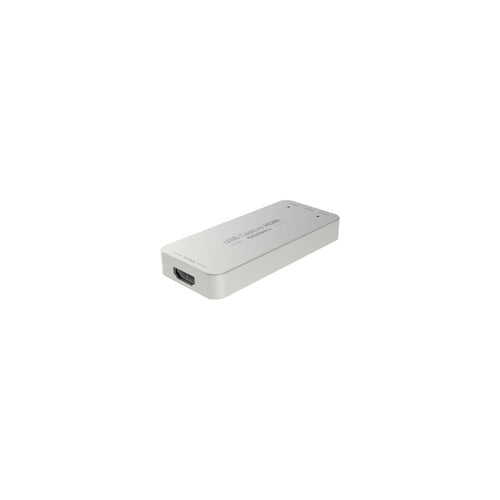

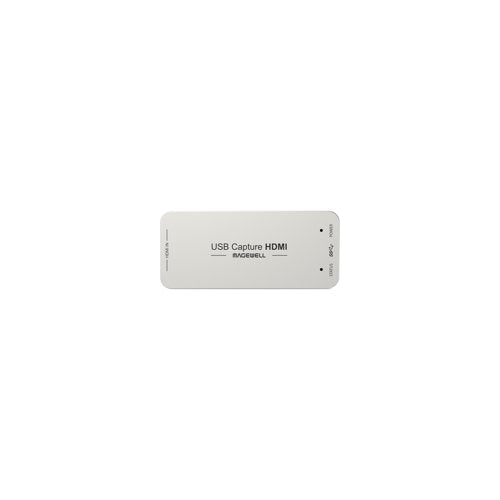

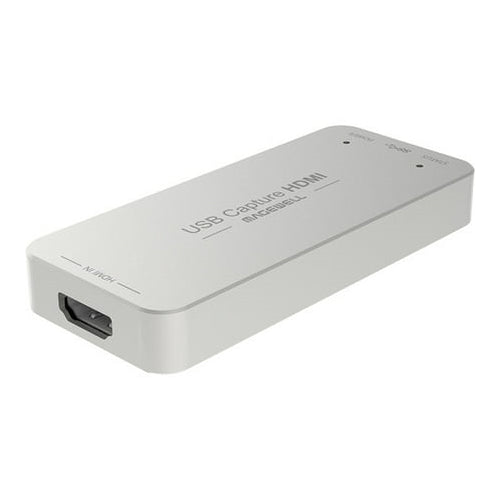

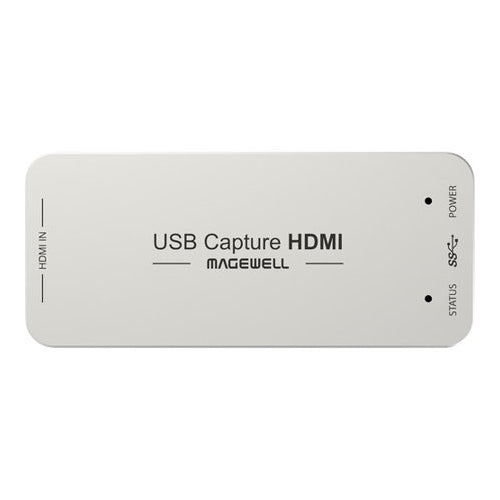

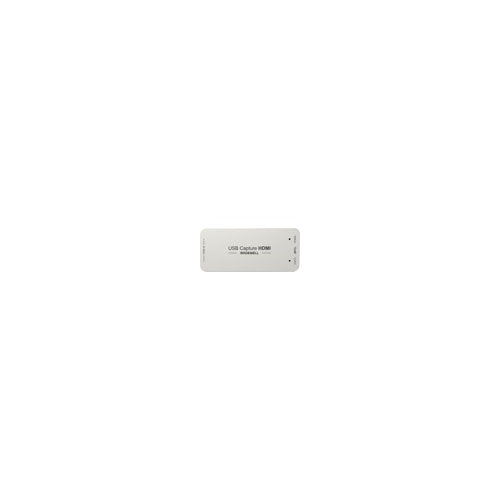

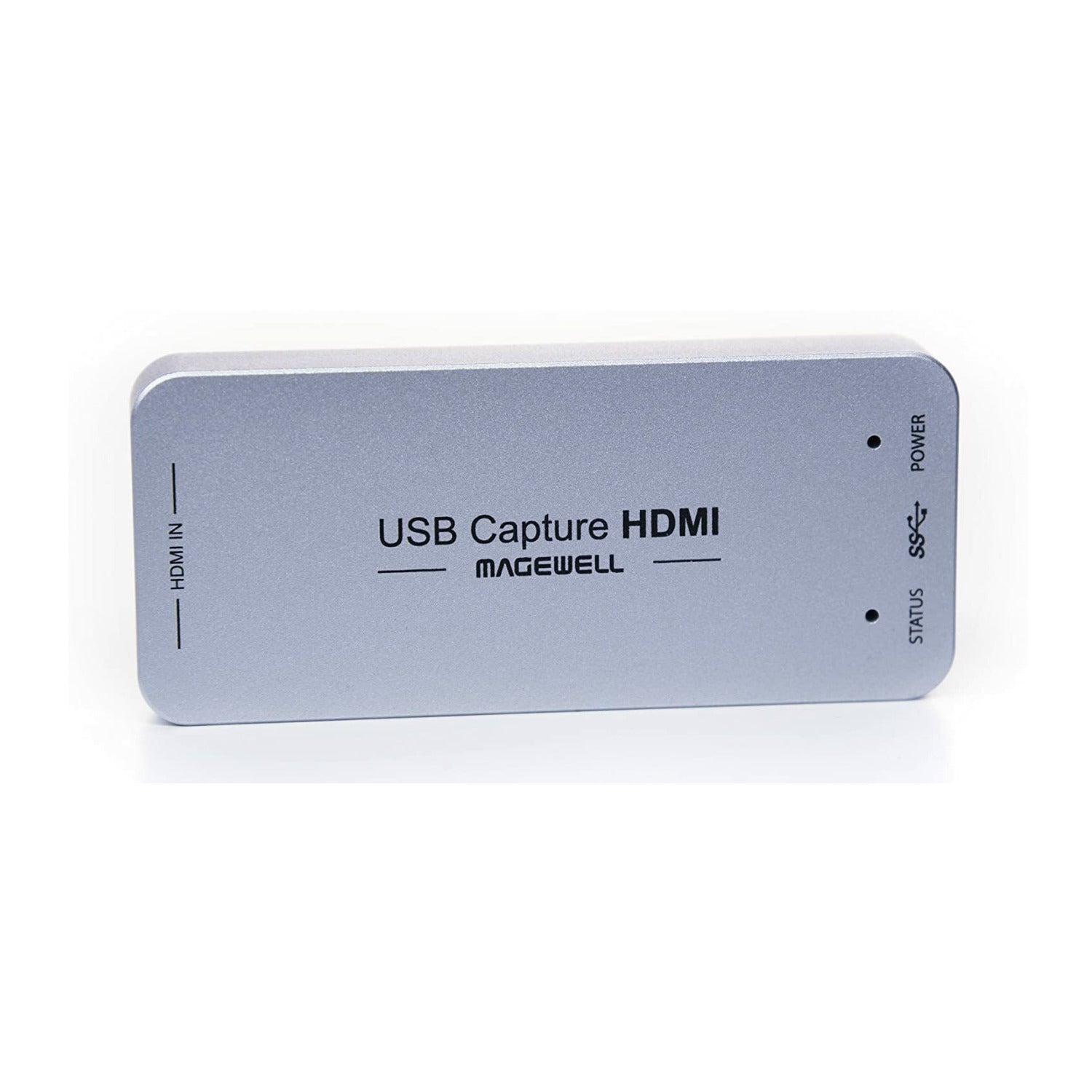

Magewell USB Capture HDMI Gen 2 Dongle
- One-channel HD capture device
- Captures HDMI + embedded audio
- Supports input resolution up to 2048 x 2160 pixels
- USB 3.0 interface backwards compatible with USB 2.0
- Plug-and-Play, driverless design with updatable firmware
- Compatible with Windows, Linux, Mac and Chrome OS
- 8-bit video processing, up/down conversion, Deinterlace
- Auto detection of input signal format, 3D HDMI
- Durable construction and excellent USB 3.0 grip
The Magewell USB Capture HDMI Gen 2 Capture Dongle is an extremely versatile device which connects the broadcasting and surveillance equipment to computer for streaming and recording. Compatible with various software with DirectShow Architecture, the dongle runs stably on Windows, Linux, Mac and Chrome operating systems. Its rugged metal housing, excellent grip USB 3.0 port and high quality chips ensure accurate video capture. What's more the internal structure of the metal housing is specially designed to help in cooling the chip effectively.
Simple to Use
Convenient and simple to use plug-and-play design means that the dongle does its job without driver installation. Video and audio inputs are automatically recognized by this device and converted to specified output size and frame rate. The video and audio processing, including up and down scaling of video resolution, frame rate and audio sampling rate are all done by the dongle and won't occupy the CPU. Additionally, the device supports brightness, contrast, hue, saturation, and other image adjustment functions.
Reliable Device
High quality chips and other components are used to ensure accurate video capture. The dongles pass through 7 x 24h continuous high load tests in high and low temperatures (0-50 degrees). The USB 3.0 port of the dongle has a better grip than Micro USB 3.0 port, so it will not easily come loose after being used for a long time.
Magewell USB Capture HDMI Gen 2 Dongle
Supported OS
| Windows | |
|
|
| Linux (support x86, x64 & ARM architecture) | |
|
|
| Mac | |
|
|
| Chrome OS |
Recommended OS (Tested)
| Windows | |
|
|
| Linux | |
|
|
| Mac | |
|
Supported APIs
| Windows | |
|
|
| Linux | |
|
|
| macOS | |
|
Supported Software
| VLC | |
| VirtualDub | |
| OBS | |
| XSplit | |
| vMix | |
| VidBlaster | |
| Wirecast | |
| Microsoft Media Encoder | |
| Adobe Flash Media Encoder | |
| Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software |
Input Interfaces
| HDMI | |
|
Host Interface
| USB 3.0 | |
|
Input features
| Support for input video resolutions up to 2048 x 2160 |
HDMI Specific Features
| 165MHz HDMI receiver | |
| Adaptive HDMI equalizer support for cables lengths up to 30M | |
| Support for customized EDID | |
| Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames | |
| Full colorimetry support | |
| Support for 8/10/12-bit color depth | |
| Support for RGB 4 | 4:4，YCbCr 4:4:4，YCbCr 4:2:2 color sampling |
| Support for 2 channel IEC60958 audio streams | |
| Support for extraction of audio formation information & channel status data | |
| Support for extraction of video timing information | |
| Support for extraction of 3D format information | |
| Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode. |
Video Capture format
| Support for capture resolutions up to 2048 x 2160 | |
| Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB 3.0 controller are as follows.) | |
|
|
| Support for YUY2 & UYVY 4 | 2:2 8-bit |
| Support for RGB24 & RGB32 4 | 4:4 8-bit |
| The default capture format is YUY2. More capture formats can be set using USB Capture Utility. |
Video Processing Features
| Video processing pipelines with 160 Mpixels/s processing bandwidth | |
| Video cropping | |
| Video scaling | |
| Video de-interlacing | |
|
|
| Video aspect ratio conversion | |
|
|
| Video color format conversion | |
|
|
| Video frame rate conversion | |
| Vertical flip and mirror |
Multiple Devices on One Computer
| Support for connecting multiple USB devices to one system | |
| Support for setting the device serial number as the device name shown in the system using USB Capture Utility |
SDK
| The USB Capture SDK provide functions including signal status extraction, capture configuration, etc |
Firmware Upgrade
| Multiple devices in one system can be upgraded simultaneously |
LED Indicator
| Status LEDs indicate the working state of each channel |
|
Form Factor
| L x W x H | 92.2 x 40.2 x 12.3mm |
Power Consumption
| 5V max current | ~0.5 A |
| Max power consumption | ~2.5 W |
Working Environment
| Operating temperature | 0 to 50 deg C |
| Storage temperature | –20 to 70 deg C |
| Relative Humidity | 5% to 90% non-condensing |
