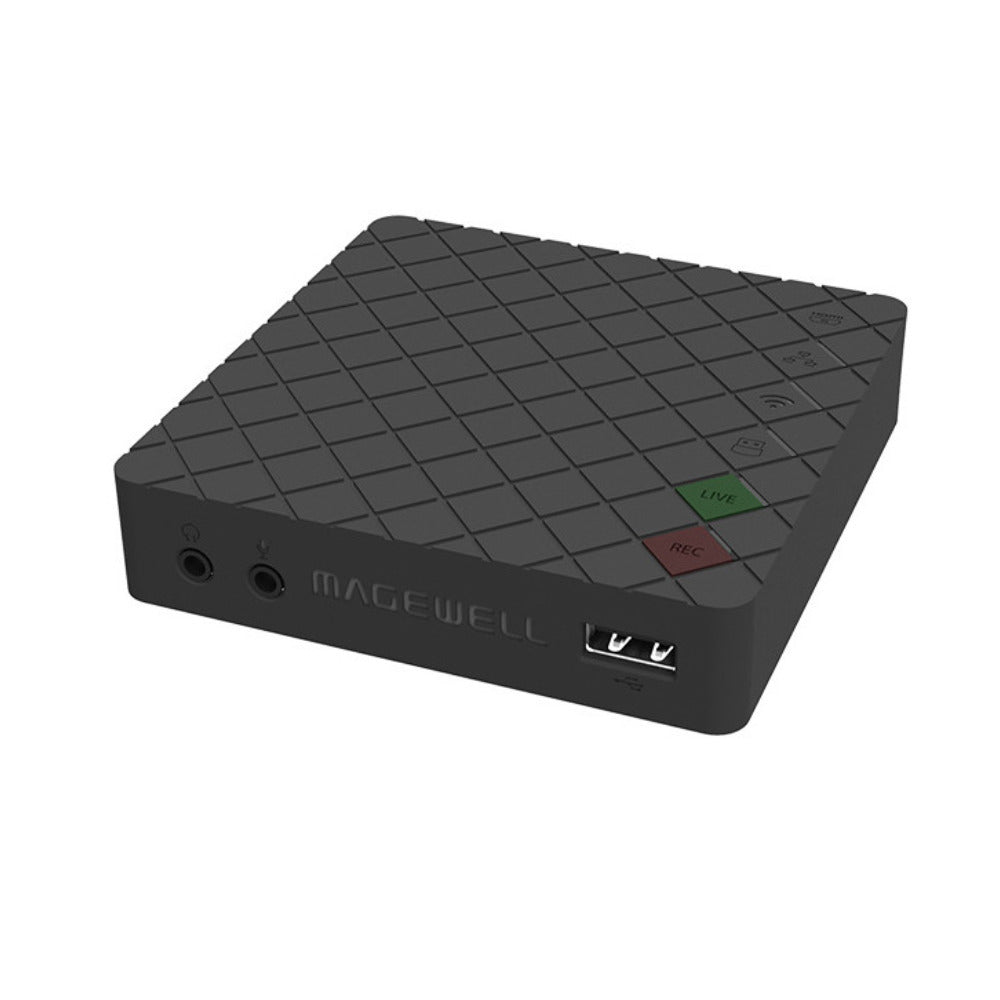

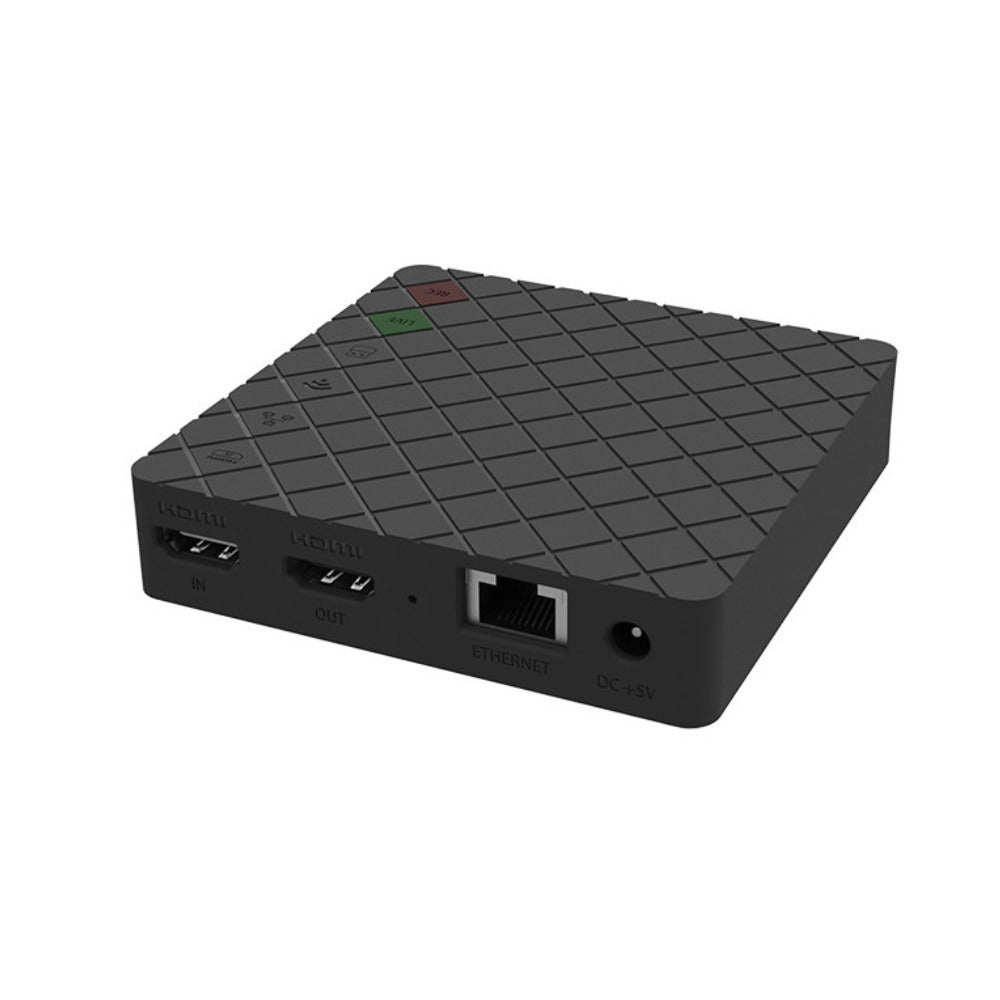

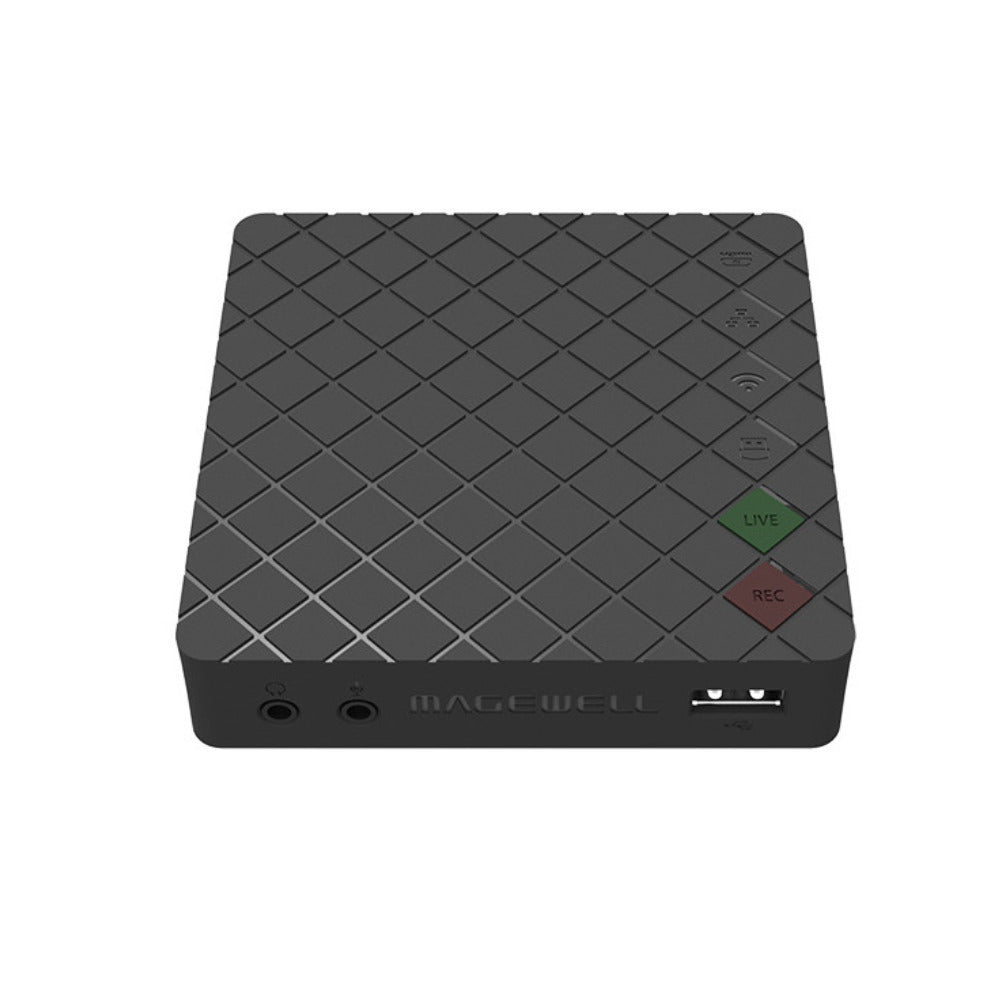

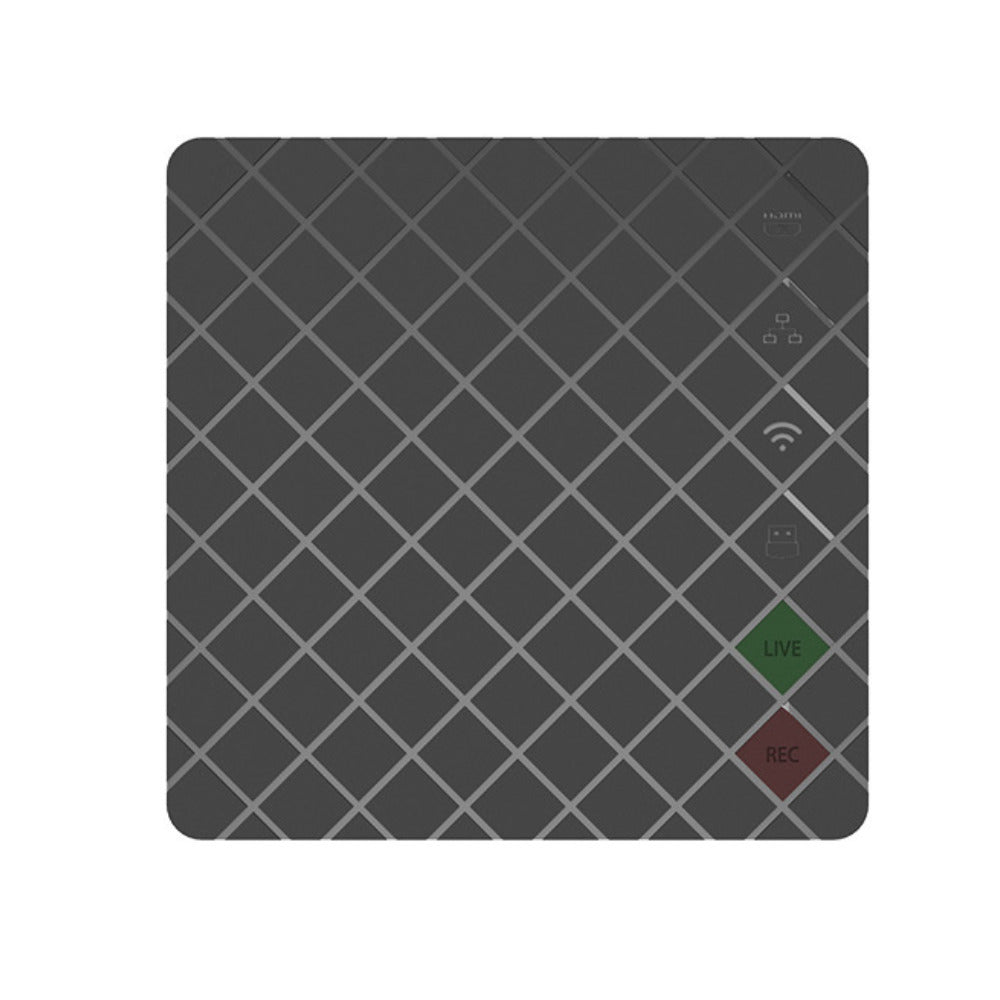

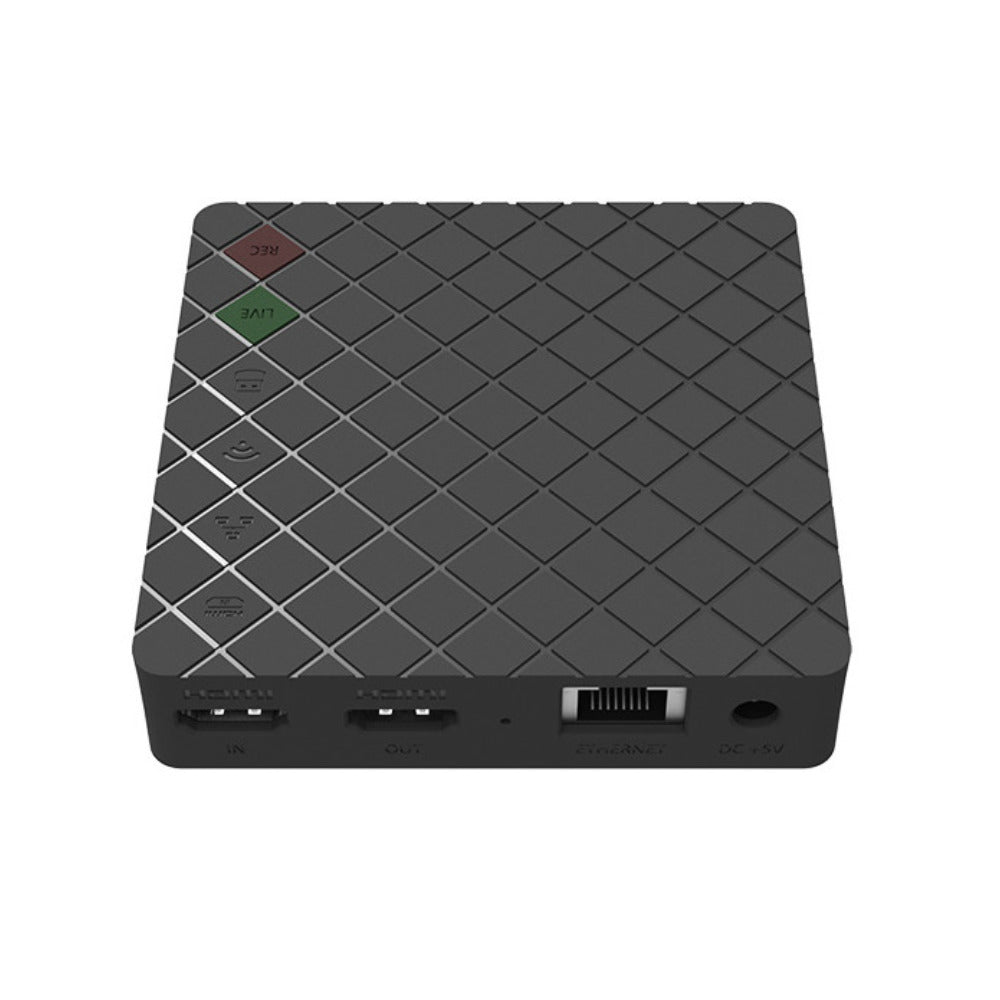

Magewell Ultra Stream HDMI Encoder (US)
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Record events, online tutorials or broadcast games to Youtube Live, Twitch, Facebook Live or a number of other streaming servers using Magewell Ultra Stream HDMI Encoder. With this versatile gadget you can stream to 2 servers simultaneously with customized encoding for each stream, or record to phone or a USB flash drive at 1080p60. The encoder is simple to operate: no computer needed, just press Live or Record button on the encoder and tap the Ultra Stream app icon on your phone. Whether you're using wired or wireless connection expect great results.
- iPhone 5s
- iPhone SE
- iPhone 6 / iPhone 6s / iPhone 6 Plus / iPhone 6s Plus
- iPhone 7 / iPhone 7 Plus
- iPhone 8 / iPhone 8 Plus
- iPhone X
- iPod Touch 5
- iPod Touch
- HDMI 1.4a
- 3.5mm audio jack
- HDMI loop-through
- USB
- USB 2.0
- 3.5mm audio jack
Magewell Ultra Stream HDMI Encoder (US)
Supported Mobile Clients
| Android | Android 5.0 and above |
| iOS | iOS 9.0 and above |
| iPhone | |
| iPod Touch |
Input Interfaces
| HDMI | |
| Microphone interface |
Output Interfaces
| HDMI | |
| Headphone interface |
Network Interfaces
| Wired ethernet | 10/100/1000Mbps Ethernet |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac |
| Bluetooth | 4.0 BLE |
HDMI Specific Features
| Support for up to 4096x2160 4 | 4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input and loopthrough signals |
| Support for 8/10/12-bit color depths | |
| Support for 60p, 60i, 50p, 50i, 30p, 25p signal formats | |
| Analog Audio Features | |
| Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out | |
| Recording and streaming analog audio via 3.5 mm microphone interface |
Streaming Features
| Support for live streaming using RTMP protocol to software including Flash Media Server, Wowza, Red5 and Nginx server | |
| Streaming to Facebook, Twitch and YouTube platforms | |
| Support for streaming to 2 servers simultaneously |
Recording Features (to USB Flash Drive)
| Support for H.264 High Profile (video) and AAC High Quality (audio) encoding | |
| Supports recording at input signal resolution up to 2048x1080 | |
| Support for 1920x1080, 1600x1200, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1200x900, 1024x768, 960x540, 800x600, 768x576, 720x576, 720x480, 640x480, 640x360, 480x360 resolutions | |
| Support for 60fps, 50fps, 30fps, 25fps, 24fps, 15fps frame rates | |
| Support for recording as MP4 files | |
| USB Flash Drive file system format | FAT32, NTFS, exFAT, VFAT |
Recording Features (to Mobile Device)
| Support for recording at up to 1280x720, 30fps | |
| Support for recording as MP4 files | |
| Taking still image snapshots during recording | |
| Save recording files and screenshots to system album | |
| Input signal previewing | |
| Timer recording | 15s, 30s, 1min, 2min, 5min |
LED Indicator
| Indicates the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive | |
| Indicates the working state of the device | startup, recording, streaming, update |
| Form factor | 94.20mm x 94.20mm x 28.50mm |
Power Supply and Consumption
| Power port | 5V/2A |
| Max power consumption | ~6.0 W |
Working Environment
| Operating temperature | 0 to 40 degree C |
| Storage temperature | –20 to 70 degree C |
| Relative humidity | 5 to 90 percent non-condensing |
