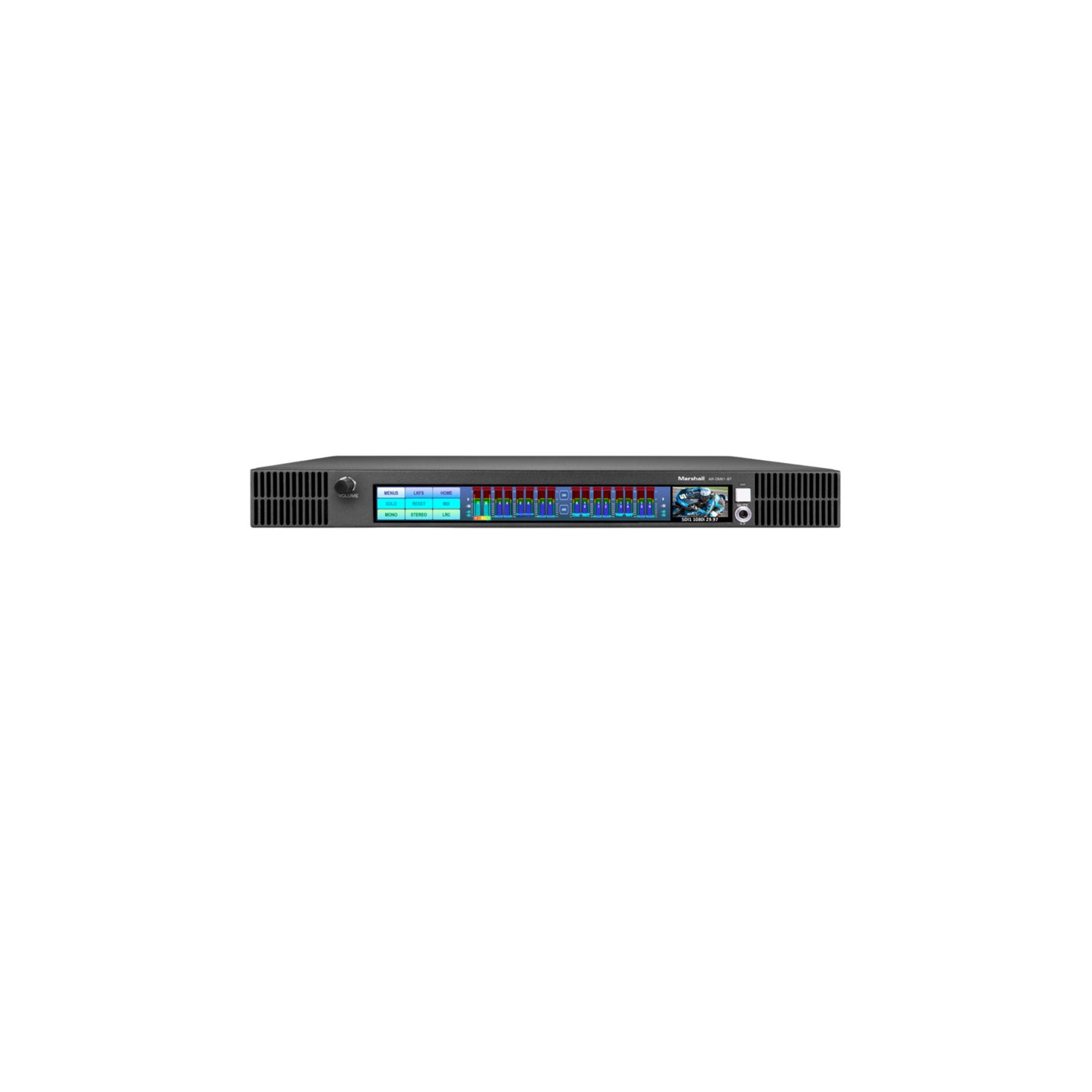

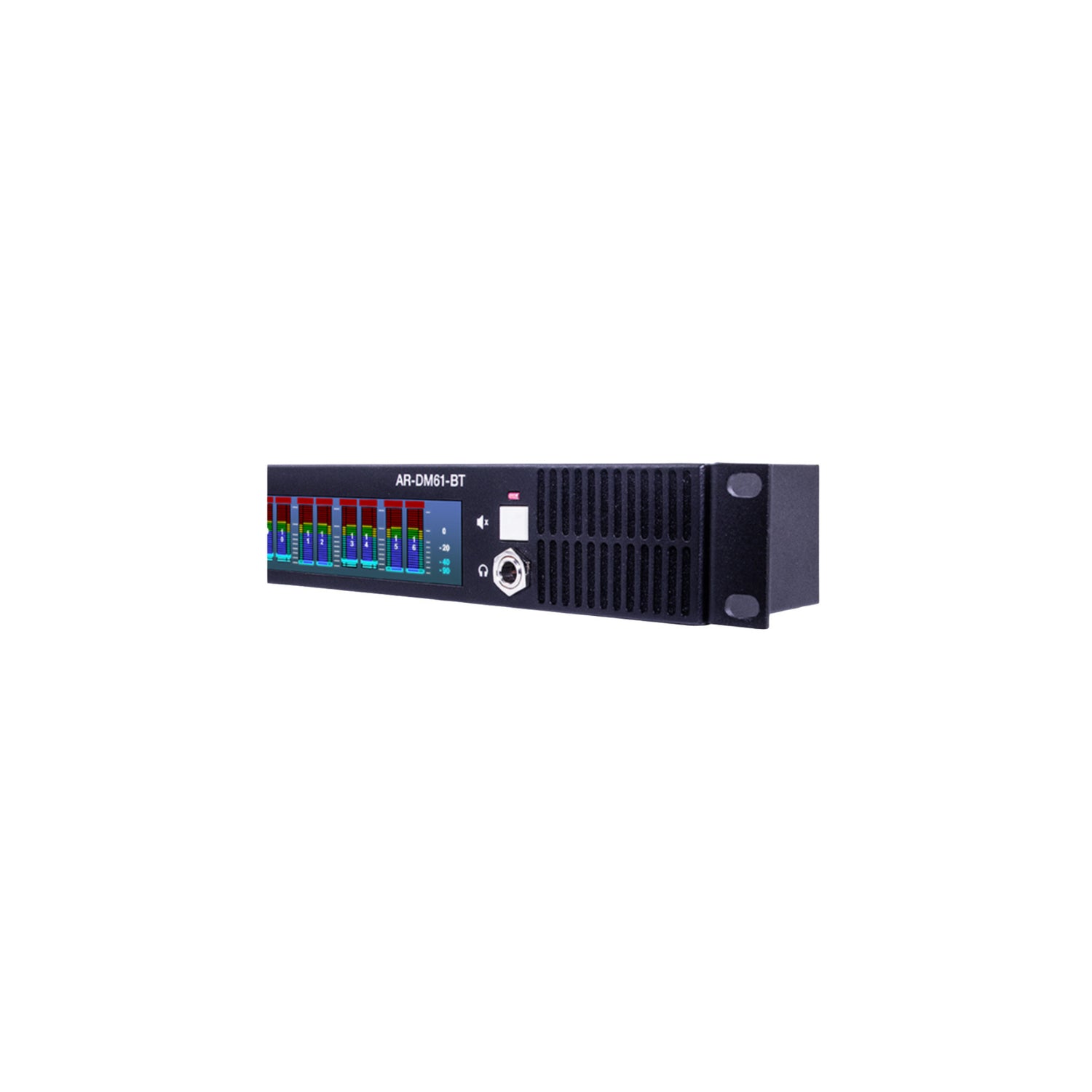

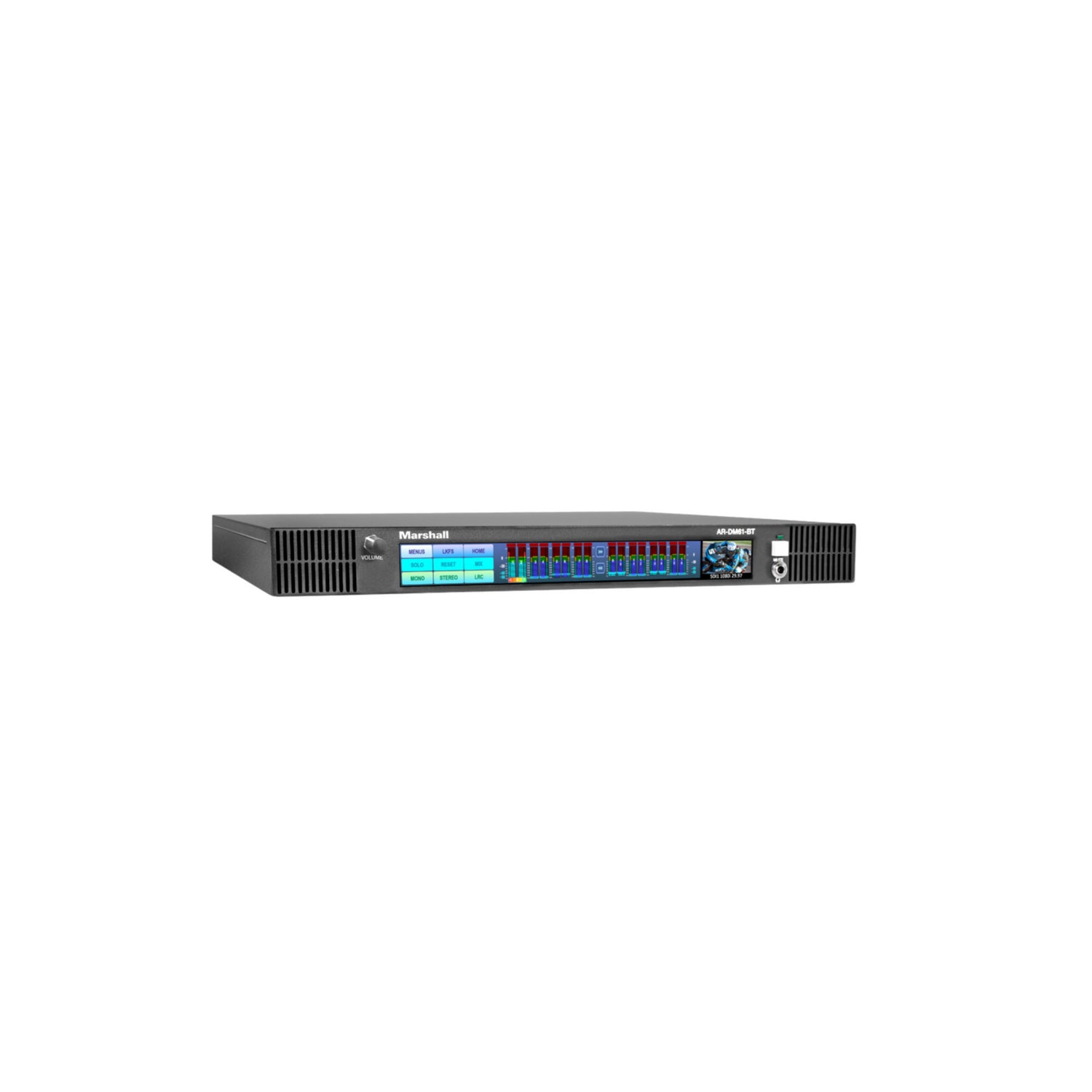

Marshall Electronics ARDM61-BT-64DT Digital Audio Monitor with Dante Module
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Marshall ARDM61-BT-64DT Multichannel Digital Audio Monitor provides versatile audio analysis, and professional QC monitoring of analog, digital, and networked audio sources. The ARDM61-BT-64DT's slim 1RU design includes powerful stereo speakers, an intuitive touchscreen interface, and multiple convenient display modes.
Equally at Home with Analog, Digital, and Networked Formats
The only audio monitor that is equally at home with your existing formats (SDI, AES, Analog, Dolby, and MADI) and modern networked digital formats, including Dante networked audio. Additionally, the ARDM61-BT-64DT includes a built-in web server for saved channel mixes, system settings, and updates.
Convenient and Intuitive Control
Visualize your entire network (64-channel simultaneous display) or zoom in on any pair to examine with 96-step precision bars with a simple touch of the display.
Powerful Output in a Compact Design
Don't be fooled by the ARDM61-64DT's slim design. Cleverly designed stereo speakers deliver enough sonic punch for the noisiest server rooms, with simple push-to-mute control.
Features
- 10-inch LCD Intuitive Touchscreen Panel displays up to 64 channels vertical or switch to 96-step high precision horizontal bars
- Special LKFS bars provide weighted display for a group of channels
- Built-in live video preview monitor
- Accepts multiple signal type input
- High-powered stereo speakers (up to 100 dB output)
- Dedicated push-to-mute button
- Slim 1 RU Design
- Built-in web server makes it convenient to setup and customize
- Software upgradeable 'Future-proof' platform
Main
| Configuration | Core |
| Driver Size | 3.5" |

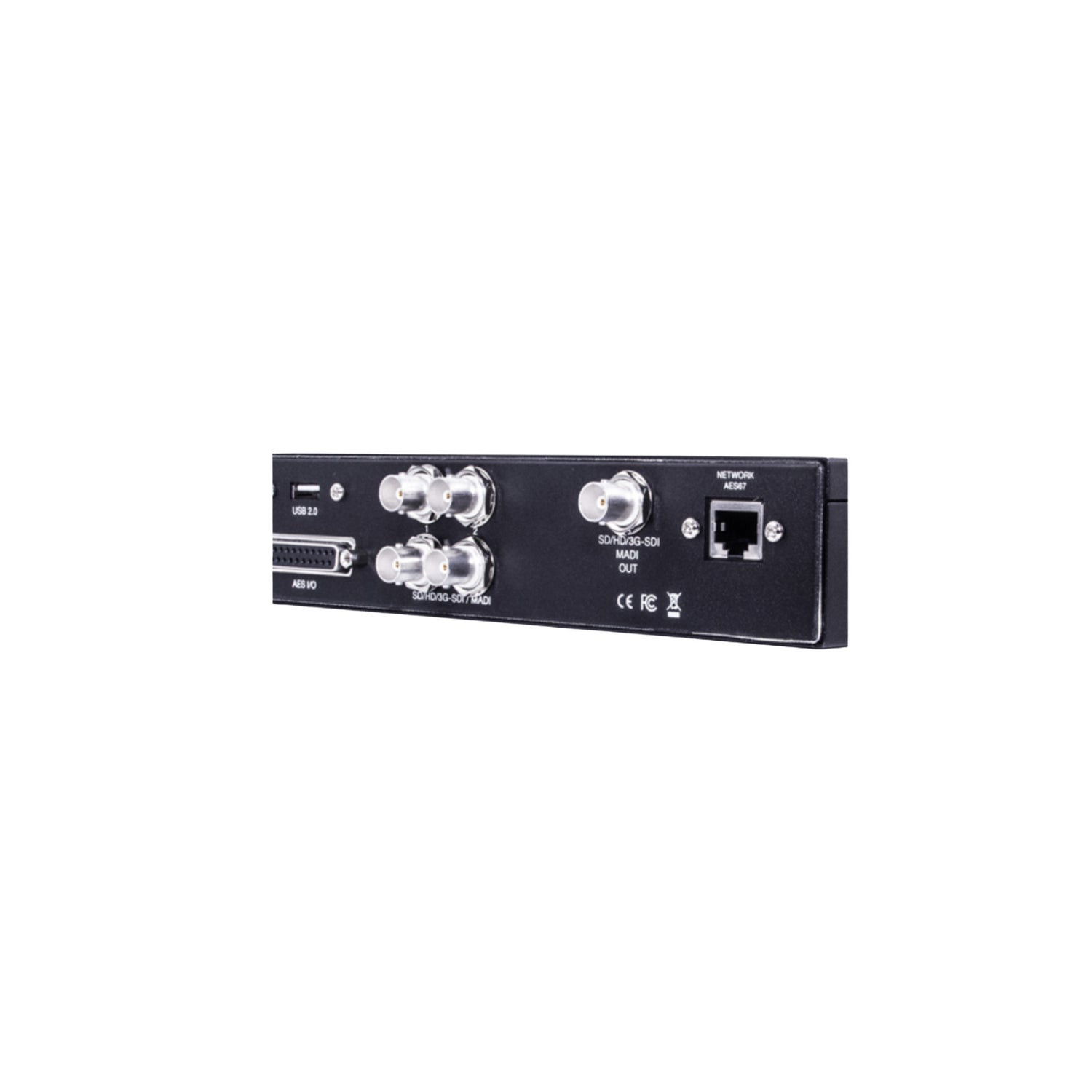

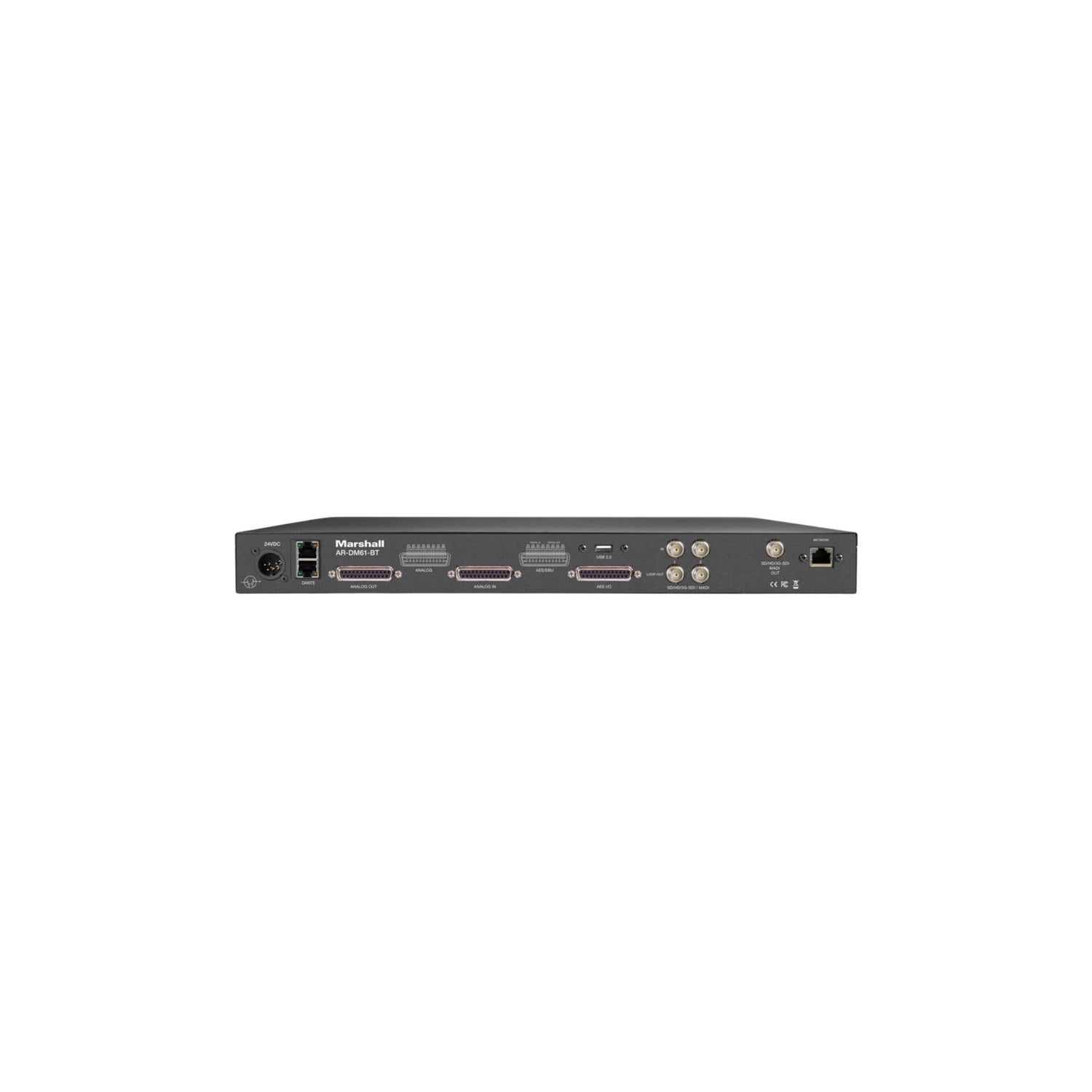

Video Input Connectors
| 2 x 3G-SDI with Looping Outputs |
Video Format Support
| SDI up to 1080p 50, 59.94, 60 |
Audio Input Connectors
| SDI Embedded 16 x Channels (Two Inputs) | |
| 8 x Balanced Analog Channels via 25-Pin DSub (Tascam Format) | |
| 8 x AES/EBU Digital Channels via 25-Pin DSub (Tascam Format) | |
| 64 x Dante Channels via Dual IP | |
| MADI 64 Channels (Auto Selected if Present on Either SDI Input) |
Audio Output Connectors
| AES/EBU 8 x Channels via 25-Pin DSub (Tascam Format) Analog 8 x Channels Balanced via 25-Pin DSub (Tascam Format) |
USB
| 2.0 (for Test/Service) |
Network Connections
| 1 x Ethernet 100 Base-T, Supports DHCP or Fixed Addressing |
Dante Connection
| 2 x 1 Gigabit Ethernet | |
| Supports Dual A/B Network Operation |
Power Consumption
| 20 W (Typical) |
Power Supply
| 24 VDC, 6.25 A, 4-Pin XLR Connector (Included) |
Operating Temperature
| 32 to 104°F / 0 to 40°C |
Storage Temperature
| -4 to 140°F / -20 to 60°C |
Humidity
| 20 to 90% (No Condensation) |
Dimensions
| 1.75 x 17.36 x 14.3 in / 4.45 x 44 x 36.3 cm |
Weight
| 8.8 lb / 4 kg |
