- Marshall CV568 Miniature Camera with Sony Exmor Sensor and Tri-Level Sync (HDMI and 3GSDI, Black)
- 12MP 4.4mm (100-Degree AOV) Lens
- 12V Power Supply
- Limited 2-Year Warranty
Trusted & Verified
Marshall CV568 Miniature Camera with Sony Exmor Sensor and Tri-Level Sync (HDMI and 3GSDI, Black)
- Large 1/1.8-inch global shutter sensor
- 3.2 Megapixels with 25 percent larger pixel size
- Simultaneous 3GSDI and HDMI outputs
- Mic/Line Level (2.5V bias), Audio stereo embedding up to 48kHz
- Tri-Level Sync (Genlock) for faster, accurate camera switching
- Supports flexible mirrorless lenses
- Supports 1920x1080p, 1920x1080i, and 1280x720p formats
- Image Mirror and Flip, Digital Zoom, Digital Image Stabilizer
- Microphone and Line Level input with 2.5V Mic bias
The Marshall CV568
Miniature Global Camera in Black is a miniature HD Camera with Global Shutter
and Genlock Sync features. It is built around an impressive 1/1.8-inch Sony
global sensor with 25 percent larger pixels. The mirrorless M12 lens mount
(comes with a 4.4mm - 84 degrees) makes this the most capable POV camera in the
miniature camera lineup.
New Global Shutter CMOS Technology
Global Shutter camera sensors are nothing new to the broadcast proAV industry.
However, when users are challenged to capture ultra-fast motion within the
field of view, motion anomalies become more challenging. Sony Global Shutter
sensors perform better in these conditions as all pixels are exposed (start to
finish) simultaneously.
Genlock Tri-Level Sync Feature
Tri-level sync allows multiple cameras to be plugged into HD workflows already
in sync (genlock) which allows for seamless transitions between cameras with
minimal amount of delay. Tri-level runs at higher frequency which makes the
HD60 signal sync more accurate and more seamless.
25 Percent Larger Pixel Size
Larger physical pixel sizes allow for greater accuracy of color and clarity
even in low-light applications. The CV568 utilizes a Sony Exmor 1/1.8-inch
sensor with 25 percent larger physical pixels to deliver step-up broadcast
quality images from a miniature camera size.
Durable, Flexible, Powerful

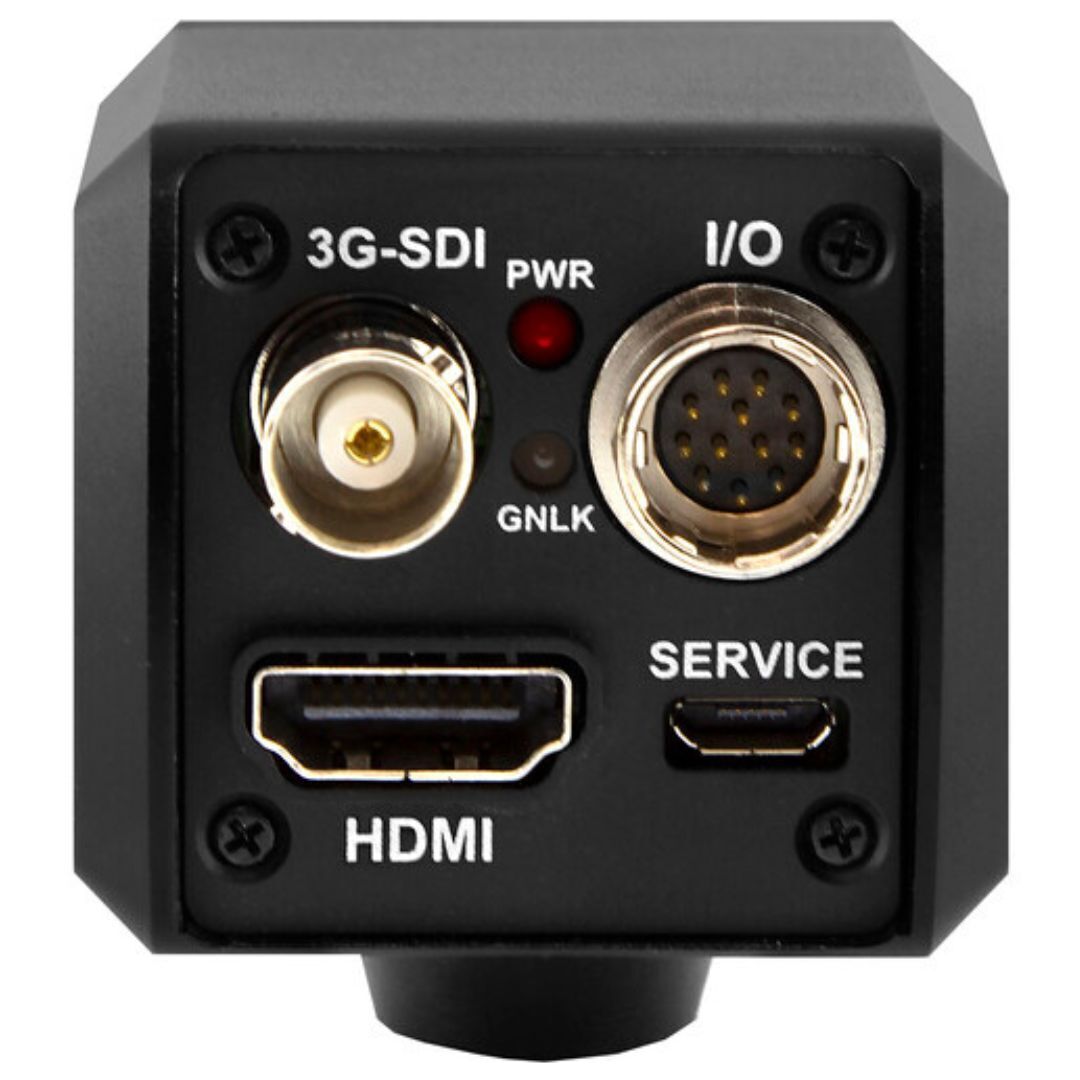

Marshall Miniature Cameras are cut from individual aluminum alloy blocks,
designed with rear In and Out connector protection, solid 1/4-inch-20 mount
type, and flexible mirrorless lenses. The ability to remotely adjust and match
a POV camera from a control room that is installed hundreds or thousands of
feet away is a powerful tool and comes standard with every Marshall camera.
Applications
Applications include broadcast, production, sports,
racing, newscast, weathercast, live events, aerospace, house of worship,
courtroom, government, education, eSports, nature, live concert, podcast,
studio, stage, science, and technology.
