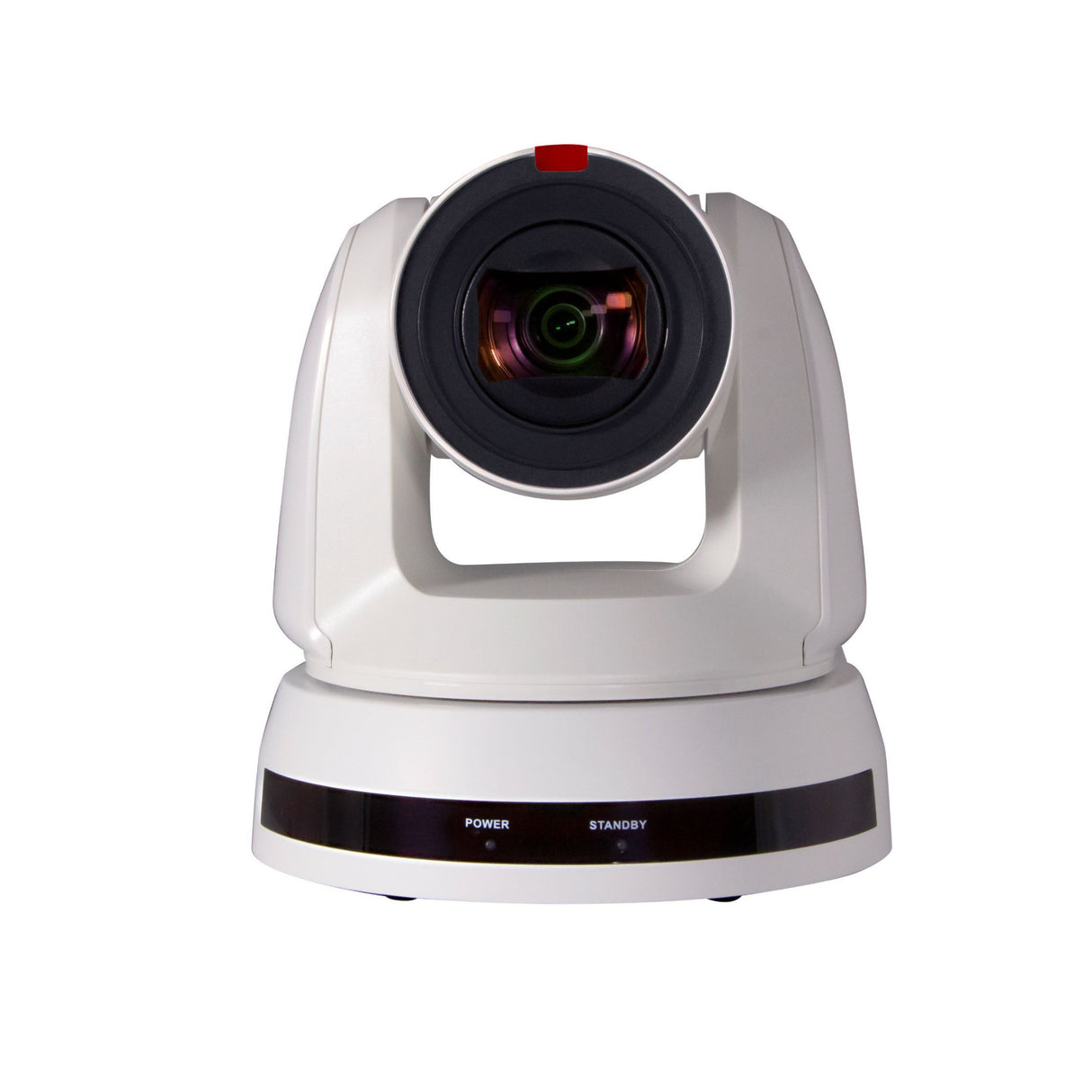

Marshall Electronics CV630-BI UHD 4K IP PTZ Ultra-HD Camera with HEVC and 25x Zoom (White)
High Performance Video Output
At its core, the CV630-BI and CV630-WI both pack a powerful 8-megapixel 1/2.5-inch sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, 1280x720p, and 1920x1080i.
Versatile Camera Positioning
The CV630-BI and CV630-WI are equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 25X optical zoom block provides flexibility from 4.6mm to 120.5mm, with a nearly 68-degree angle-of-view at its widest.
Simultaneous Networked and Streaming Outputs

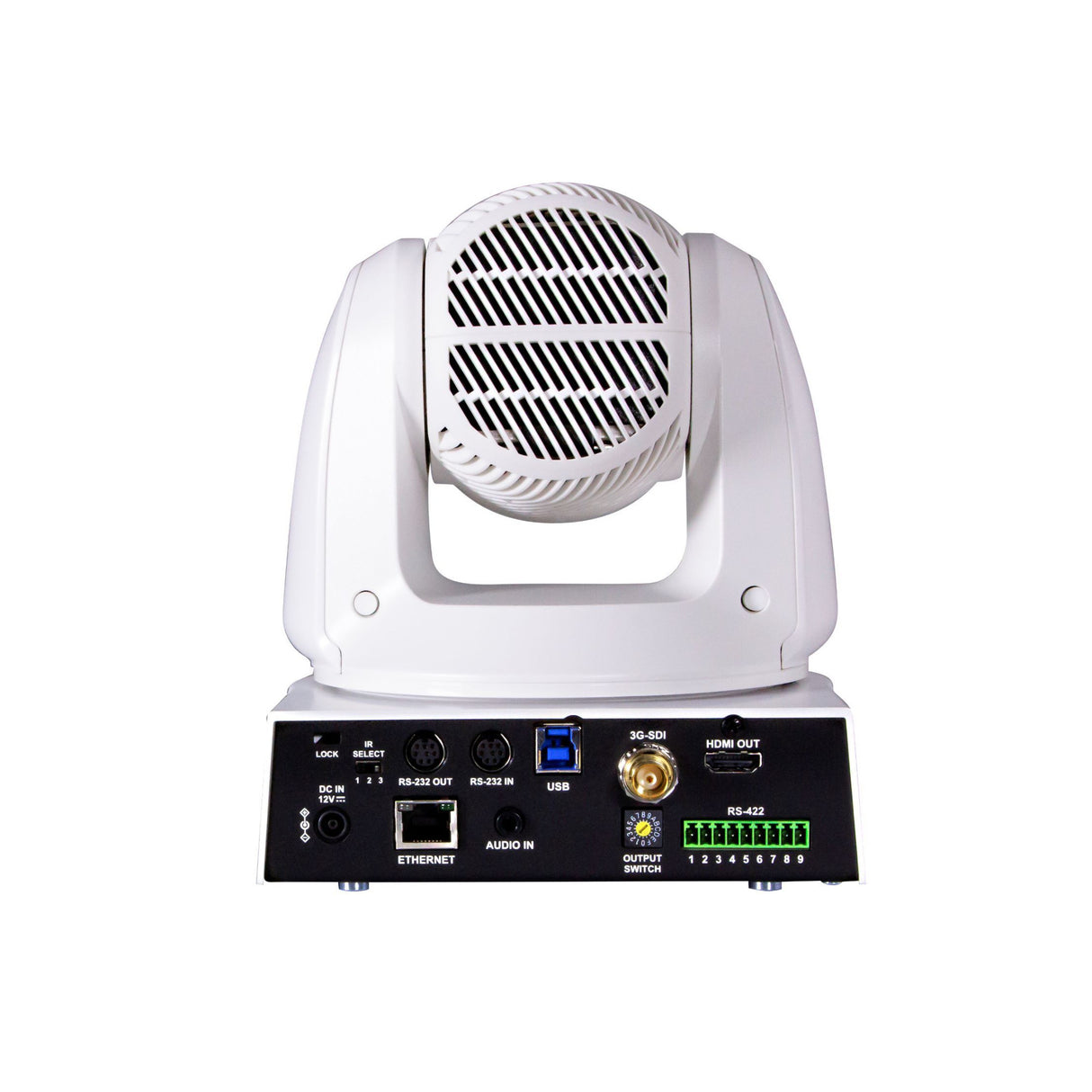

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.
Flexible Control Options
The CV630-BI and CV630-WI offer easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS), or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.
Additionally, the CV630-BI and CV630-WI are compatible with Marshall's VS-PTC-300 PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with one-button dials and rocker control.
Features:
- 8MP 1/2.5-inch sensor
- 25X Optical Zoom (4.6~120.5mm) near 68-degrees AOV at widest
- 3GSDI, HDMI, and IP simultaneous outputs
- Simultaneous pan, tilt, and zoom
- H.265 (HEVC) and H.264 (triple-stream) networked outputs
- IP formats: RTSP, RTMP, RTMPS, MPEG-TS, SRT, Multicast, UDP, DHCP, RTP, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
- 3840x2160p, 1920x1080p, 1280x720p, and 1920x1080i
- Stereo audio input (mic or line level) embedding
- PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
- 340-degree pan, 120-degree tilt, and 25X zoom range
- Front tally light
- Free-D protocol support and CGI protocol commands
Main
| Video Resolution | Ultra HD 4K |
| Configuration | Core |
| Zoom | 25x |
| Color | White |
Marshall Electronics CV630-BI UHD 4K IP PTZ Ultra-HD Camera with HEVC and 25x Zoom (White)
Sensor: 1/2.5-in COMS
Video Format
| 2160p | 59.94 / 50 / 29.97 / 25 |
| 1080p | 59.94 / 50 / 29.97 / 25 |
| 720p | 59.94 / 50 / 29.97 / 25 |
| 1080i | 59.94 / 50 |
