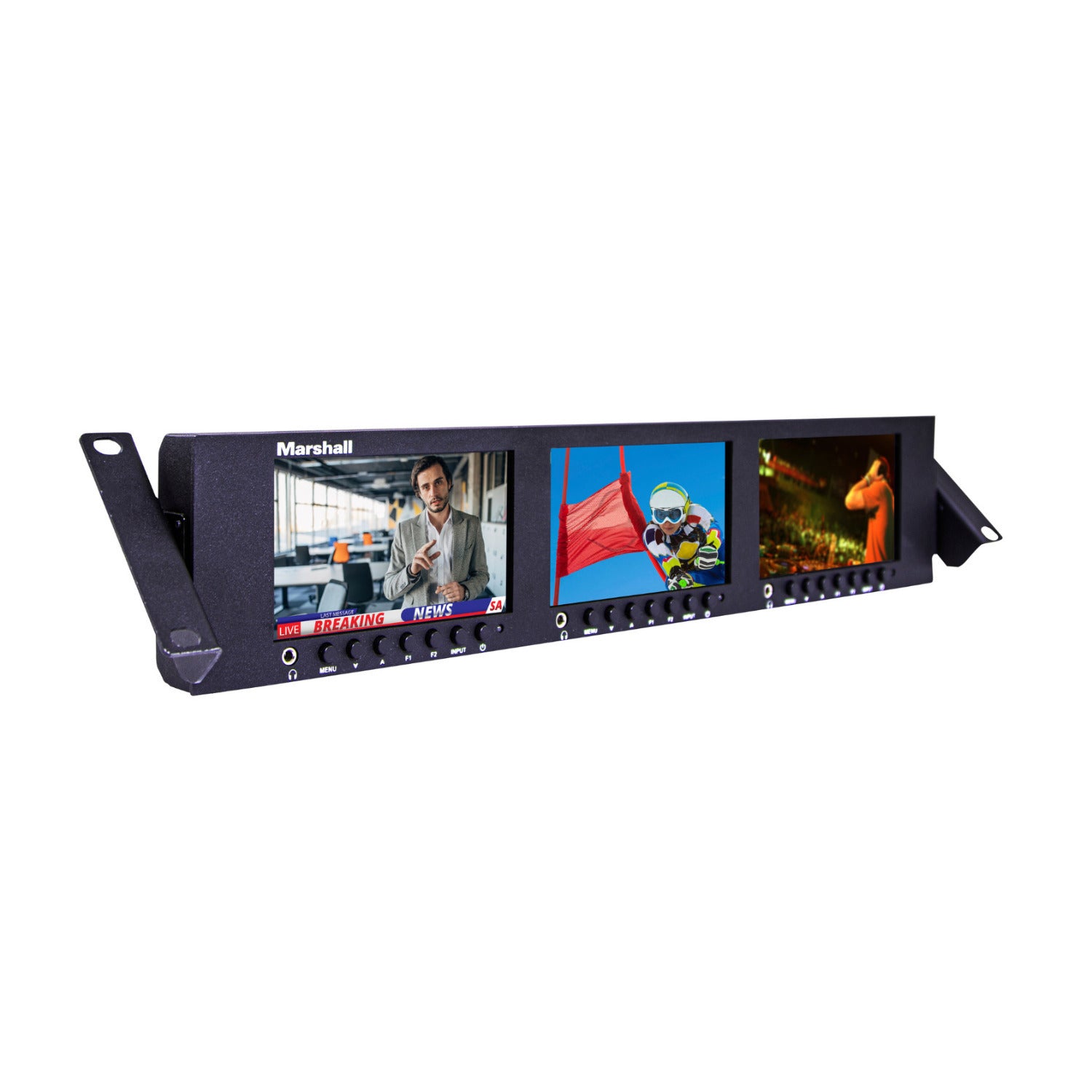

Marshall Electronics ML-503 Rackmount LCD Monitor with Triple 5-Inch Screens (2 RU)
Triple 5-Inch Rackmount Display for Versatile Installations
The Marshall Electronics ML-503 Triple 5-inch Rackmount LCD Monitor (2 RU) is a feature-rich and cost-effective solution ideal for a variety of professional video system setups. Whether you're outfitting fly-packs, control rooms, or routing centers, the ML-503 delivers reliability and performance. Its compact 2 RU form factor houses three high-definition 5-inch screens, offering a streamlined yet powerful monitoring setup in tight spaces.
High-Performance Display with Multiple Inputs
Each of the three LCD panels offers excellent color rendition, stability, and off-axis performance—making it easy to achieve clear visuals from multiple viewing angles. The adjustable backlight allows for customized brightness levels to match different lighting environments. The ML-503 is equipped with a wide array of input options, including 3G-SDI (HDSDI, SDI) and HDMI, with loop-through capabilities for flexible signal management.
Operator-Friendly Interface and Controls
Designed with user efficiency in mind, the ML-503 features front panel controls that grant access to all functions, along with two user-programmable shortcut buttons. On-screen safe area and center markers provide helpful framing guides, while the headphone jack supports embedded stereo audio monitoring. The unit also includes firmware update capabilities via USB port and thumb drive.
Integrated Tally System for Real-Time Feedback
Each screen in the ML-503 includes on-screen three-color tally lights—red, green, and yellow—for instant visual feedback in live production environments. These visible border tallies help operators stay informed about source status and switching cues in real time.
Built for Adaptability and Professional Use
The tilting mount allows users to optimize viewing angles and ensure easy access to the back panel for adjustments or cable management. Compact yet highly capable, the ML-503 is engineered for professionals who need reliable, multi-screen monitoring in demanding production settings.
Features
- Three screens, great picture, great price
- Wide aspect, 5-inch diagonal x 3
- Perfect for flypacks, control rooms, news vans
- Front panel controls give access to all functions
- Three color on-screen tally lights (Red, Green, Yellow)

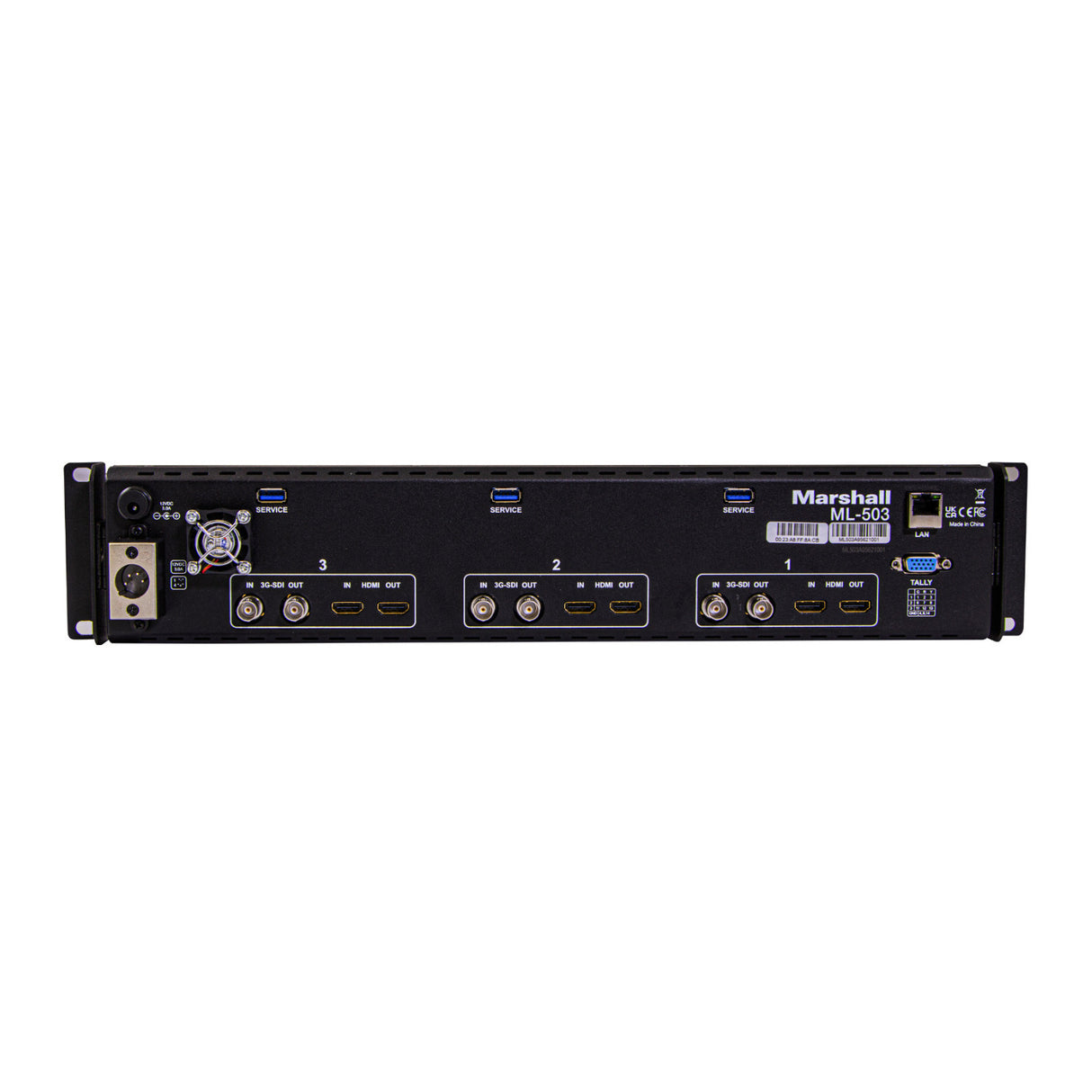

- Multiple inputs, all with loop-through connections: 3GSDI (HDSDI, SDI), HDMI
- Safe area and center markers
- Two user short-cut function buttons

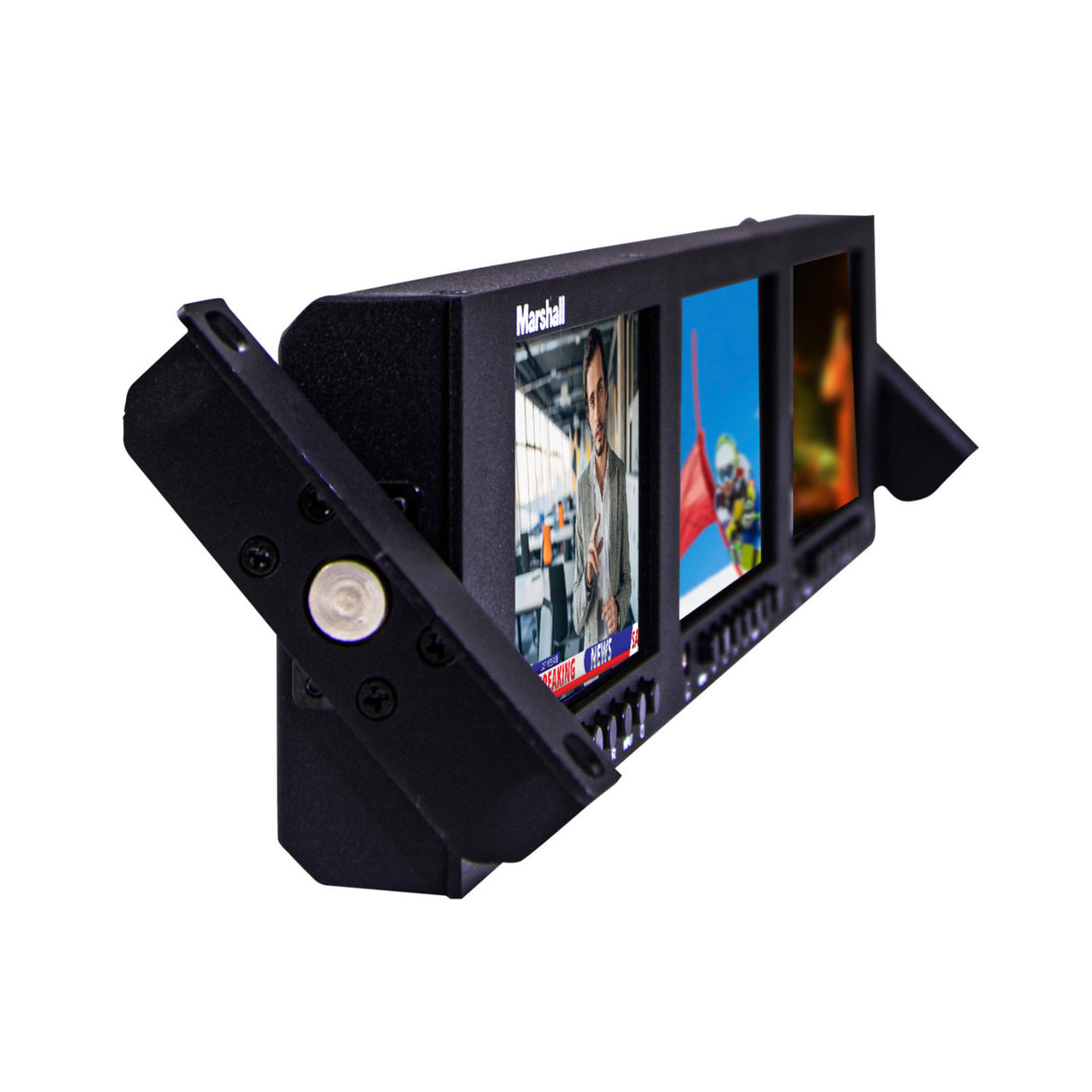

- Tilting mount. Adjust for optimum viewing and back panel access
- Headphone jack to monitor embedded stereo audio
- Firmware update via USB port and thumb drive
Main
| Screen Size | 5" |
| Mount Type | Rackmount |
| Screen Resolution | 1920 x 1080 (Full HD) |
| Supported Resolutions | 1920 x 1080 |
| Screen Technology | LCD Screen |
| Monitor Type | Production Monitors |
| Display Configuration | Triple Display |
| Configuration | Core |
- 1080p 50/59.94/60
- 1080p 29.97/25/24/23.98
- 1080PsF 24/23.98
- 1080i/ 50/59.94/60
- 720p 50/59.94/60
- 576i 50, 480i 59.94
- 1080p 50/59.94/60
- 1080p 29.97/25/24/23.98
- 1080i 50/59.94/60
- 720p 50/59.94
- 576i 50, 480i 59.94
Marshall Electronics ML-503 Rackmount LCD Monitor with Triple 5-Inch Screens (2 RU)
Number of Panels
| 3 |
Panel Size
| Dual 5-inch Diagonal, 2RU high |
Resolution (Pixels)
| 1920 x 1080 |
Aspect Ratio
| 16 | 9 |
Viewing Angle (H/V)
| 170 degrees / 170 degrees |
Brightness (in cd/m2)
| 460 |
Contrast Ratio
| 1100 | 1 |
Compatible Input Formats
| SDI / HDSI / 3G SDI | |
| HDMI | |
Video Inputs
| 3GSDI with non-reclocking loop-through and HDMI with loop-through (Per Panel) |
Audio Outputs
| De-Embedded from SDI, HDMI X3 |
Power Input
| 2 Volts DC less than 1.5 Amp typical | |
| Dual Type | 5.5mm coaxial and 3-pin XLR |
Dimensions (W x H x D)
| 19 in. x 3.5 in. x 1.2 in. (482.6mm x 88.9mm x 30.48mm) |
Weight
| 5.2 lbs (2.32 Kg) |
