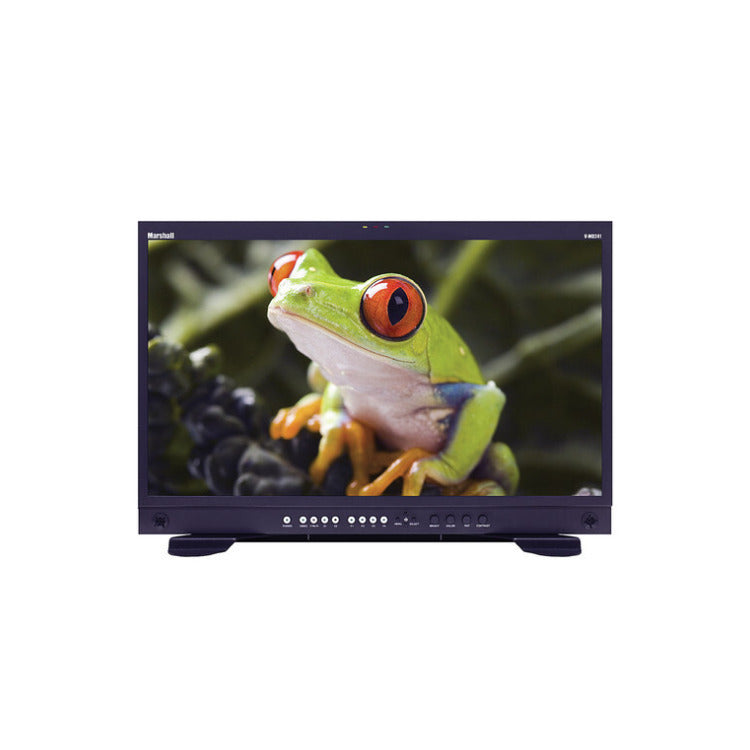

Marshall Electronics V-MD241 24-Inch LED LCD Monitor with 178-Degree Viewing
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

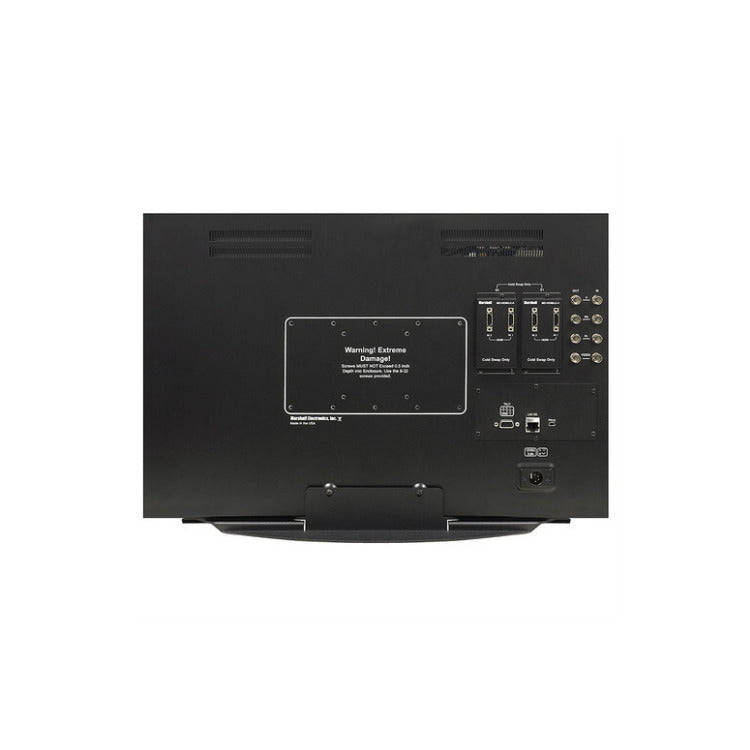

With an LED backlit full HD LCD panel, the V-MD241 24-Inch LED LCD Monitor is fit for professional SD and HD productions. The rear panel of the monitor houses Composite and Component video inputs on BNC terminals. While the Composite input only supports SD signals, the Component input supports both SD and HD resolutions in progressive, interlaced, and PsF. Digital signals from SDI or HDMI can be displayed if connected via separately available expansion modules.
The front panel features menu navigation controls, display adjustments, input selection, and customizable function buttons. Monitoring tools such as false color, underscan, and color temperature can be assigned to the customizable function buttons for quick access without menu diving. Professional integration features include rack-mount compatibility, Ethernet, and front-panel controls via IMD. A tally connection interfaces with illuminated indicators on the front panel above the screen. VESA-mounting can be accomplished by utilizing the 200x100mm mounting points to the rear of the monitor. Otherwise, separately available rack-mount and table stand options can be used.
Expansion Slots
Using the expansion slots, you can customize the V-MD241 to suit your needs and utilize the full display potential of the panel. Various digital input/output modules from HDMI, SDI, DVI, and optical are separately available.
General Features
- Loss of input curtain
- D65, D55, and D93 color temperature selection
- Adjustable H/V delay
- Underscan
- Tally
- False color
- Pixel-to-pixel view
- Self-sensing inputs
- Signal re-clocking
Main
| Configuration | Core |
- Horizontal: 178°
- Vertical: 178°
- 1 x BNC (Composite) Input
- 1 x BNC (Composite) Output
- 1 x 3BNC (Component) Input
- 1 x 3BNC (Component) Output
- Component
- 1080p
- 1080i
- 720p
- 576p
- 576i
- 480i
- Composite
- NTSC
- PAL
Display
| Panel Type | LCD |
| Display Size | 24.00 in / 61.0 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | |
| Touchscreen | No |
| Maximum Brightness | 300 nits / cd/m2 |
| Contrast Ratio | 3000:1 |
| HDR Support | No |
| LUT Support | No |
| Image Controls | False Color |
Inputs/Outputs
| Video I/O | |
| Audio I/O | No |
| Built-In Speaker | No |
| Power I/O | 1x XLR 4-Pin Input |
| Other I/O | 1x DE-15/DB-15 (Tally) |
| Expansion Slots | 2x Proprietary Slot |
| Media/Memory Card Slot | No |
Wireless
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
Format Support
| Video Format | |
Power
| Input Power | 12 VDC at 3.5 A |
| Battery | No |
| Power Consumption | 42 W |
Mounting
| VESA Mounting-Hole Pattern | 100 x 100 mm, 100 x 200 mm, 75 x 75 mm |
General
| Environmental Resistance | No |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Storage Conditions | -4 to 120°F / -20 to 49°C |
| Dimensions | 22 x 14.7 x 1.5 in / 55.88 x 37.34 x 3.81 cm |
| Weight | 11.05 lb / 5.01 kg |
