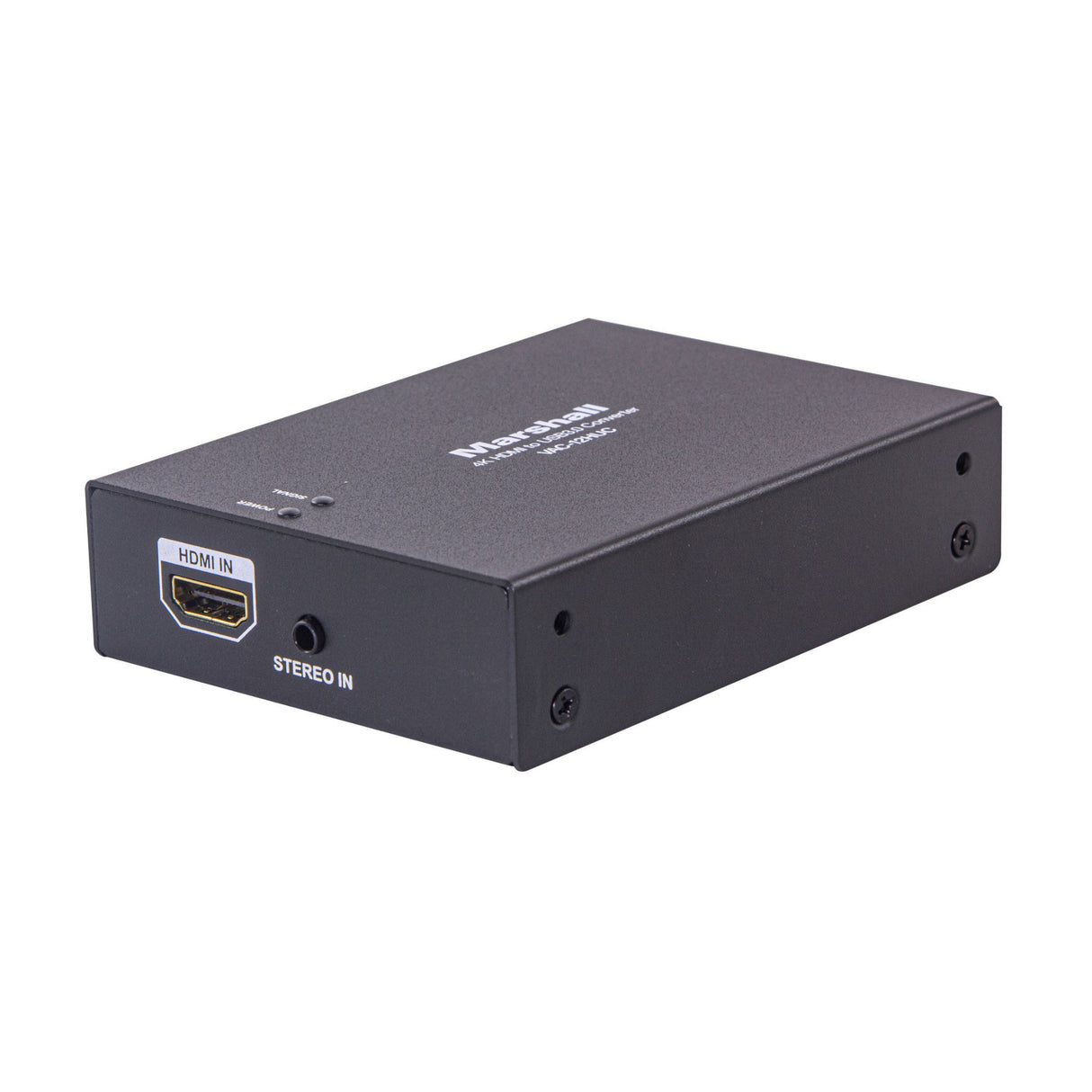

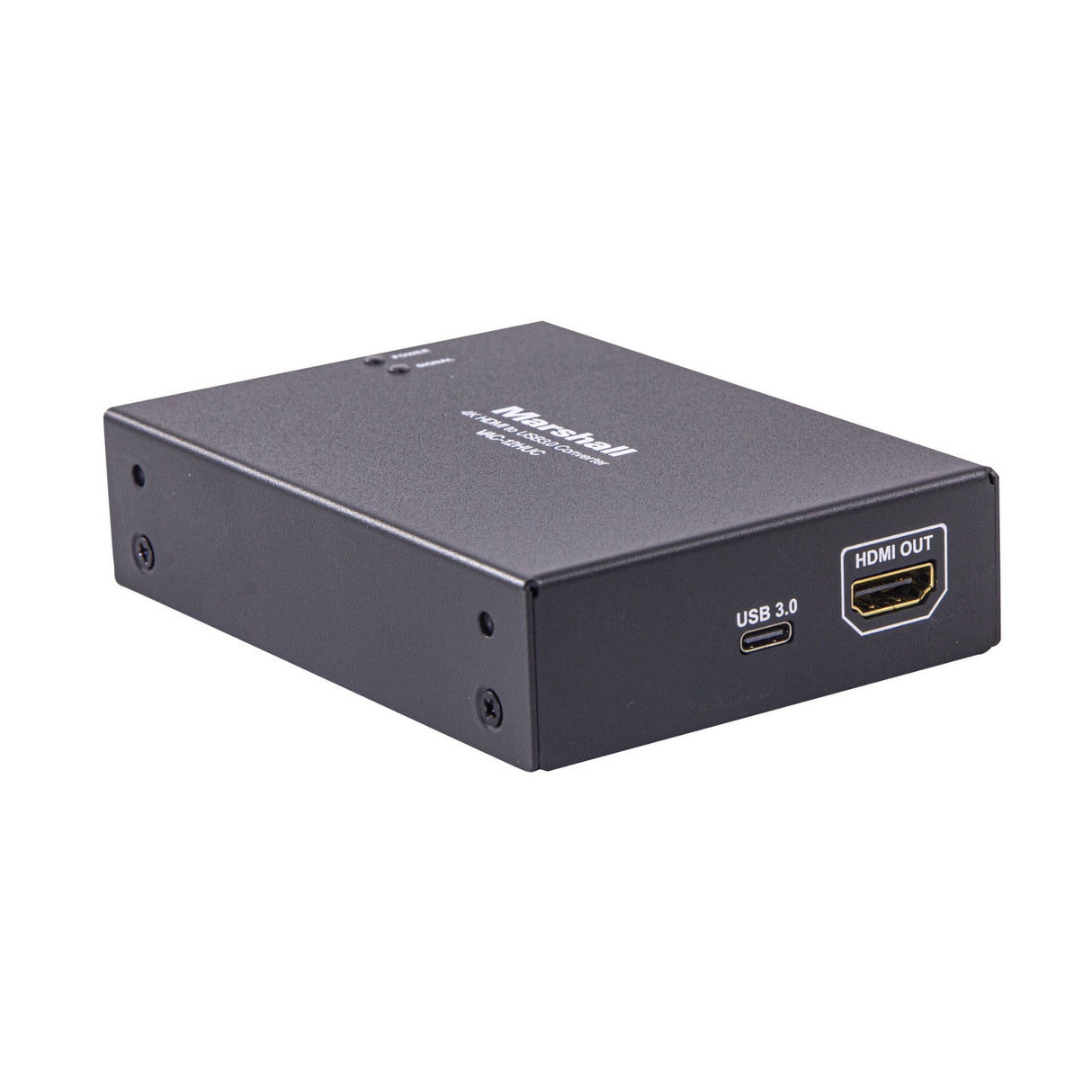

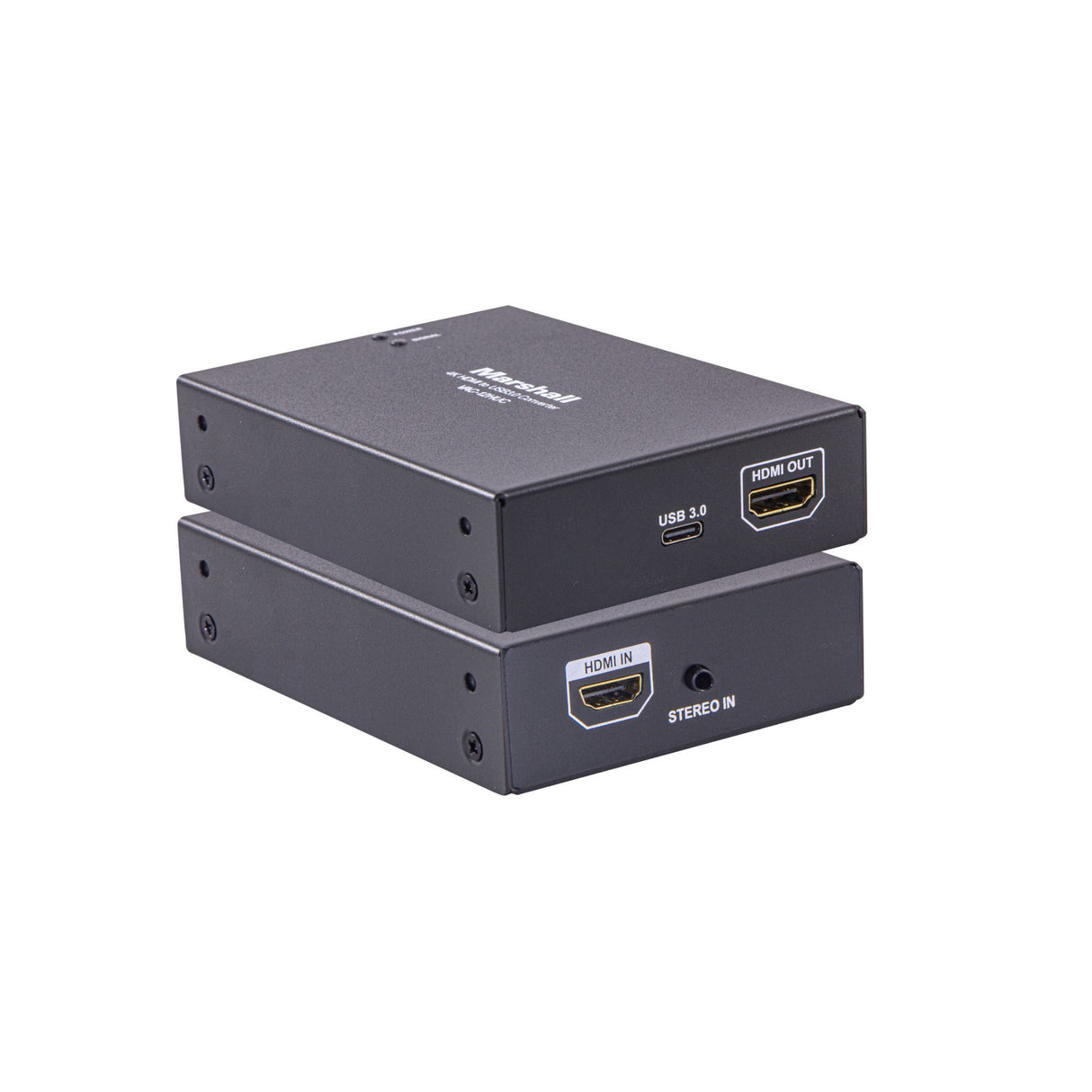

Marshall Electronics VAC-12HUC HDMI to USB-C Converter (USB3.0/USB2.0) up to UHD 3840x2160
The VAC-12HUC converts HDMI 2.0 to USB-C (USB3.0/USB2.0) up to UHD 3840x2160p at 30fps. HDMI input has active loop-thru, allowing the original high-quality source to be routed to monitors or other equipment as a pass-through. Common applications include live streaming, video conferencing, and other PC or Mac-based applications.
Power is supplied by the USB-C connection to the host computer, reducing clutter and eliminating the need for an external power supply. The rugged and compact design makes for easy portability and mobility.
The VAC-12HUC's simple plug-and-play design uses the UVC protocol to enable itself as a Camera Device. UVC protocol allows the host computer to set the parameters for the USB stream, such as resolution, frame rate, and aspect ratio.
HDMI Color Sampling Formats supported:
1080p/720p: YCbCr 4:4:4 8/10/12bits, YCbCr 4:2:2 8bits and RGB 8/10/12bits 2160p: YCbCr 4:4:4 8bits, YCbCr 4:2:0 8/10/12bits, RGB 8bits
- HDMI inputs to USB-C (3.0/2.0) output
- HDMI loop-outs (pass-through) to other workflows
- HDMI input up to 4096 x 2160p at 30fps
- USB-C (3.0) output up to 3840 x 2160p at 30fps
- 3.5mm embedded line-in audio jack to USB (48 KHz)
- Replace the existing HDMI audio track. (Does not add audio where track is missing)
- USB2.0 backward compatible (maximum 1280 x 720 @30 on USB2.0)
- Supported operating systems (Windows 10, Windows 11, and Mac OS)
- All power is derived from the USB port
- Plug and play operation. No special driver required
Main
| Configuration | Core |
| Color | Black/Black |
Marshall Electronics VAC-12HUC HDMI to USB-C Converter (USB3.0/USB2.0) up to UHD 3840x2160
HDMI Input and Output
| HDMI conforms to the HDMI 2.0 standard | |
| HDCP 1.4 and 2.2 compliant | |
| Video Frame Rates from 23.98 to 60.00 | |
| Video Input Formats from 480i/p60, 576i/p50 up to 4096x2160p at 23.98, 24, 25, 30 fps | |
| Actual video format and frame rate are dependent on UVC control commands received from the host computer. | |
| Connected via USB 3.0, transfers formats up to 3840 x 2160p30 sent to the host computer | |
| Connected via USB 2.0, transfers formats up to 1280 x 720p30 sent to the host computer | |
| When connected to a USB 2.0 port, the recommended input video source is 720p or below | |
| Embedded audio from HDMI is passed through to HDMI Out. Channels 1 & 2 are sent to USB | |
| External stereo analog line level input on 3.5mm stereo TRS jack. Switches on when the plug is inserted. Replaces audio to HDMI Out and USB to computer | |
| 0~40 degreeC (32~104 degreeF | |
| 5 Volts 1 Amp supplied via USB |
