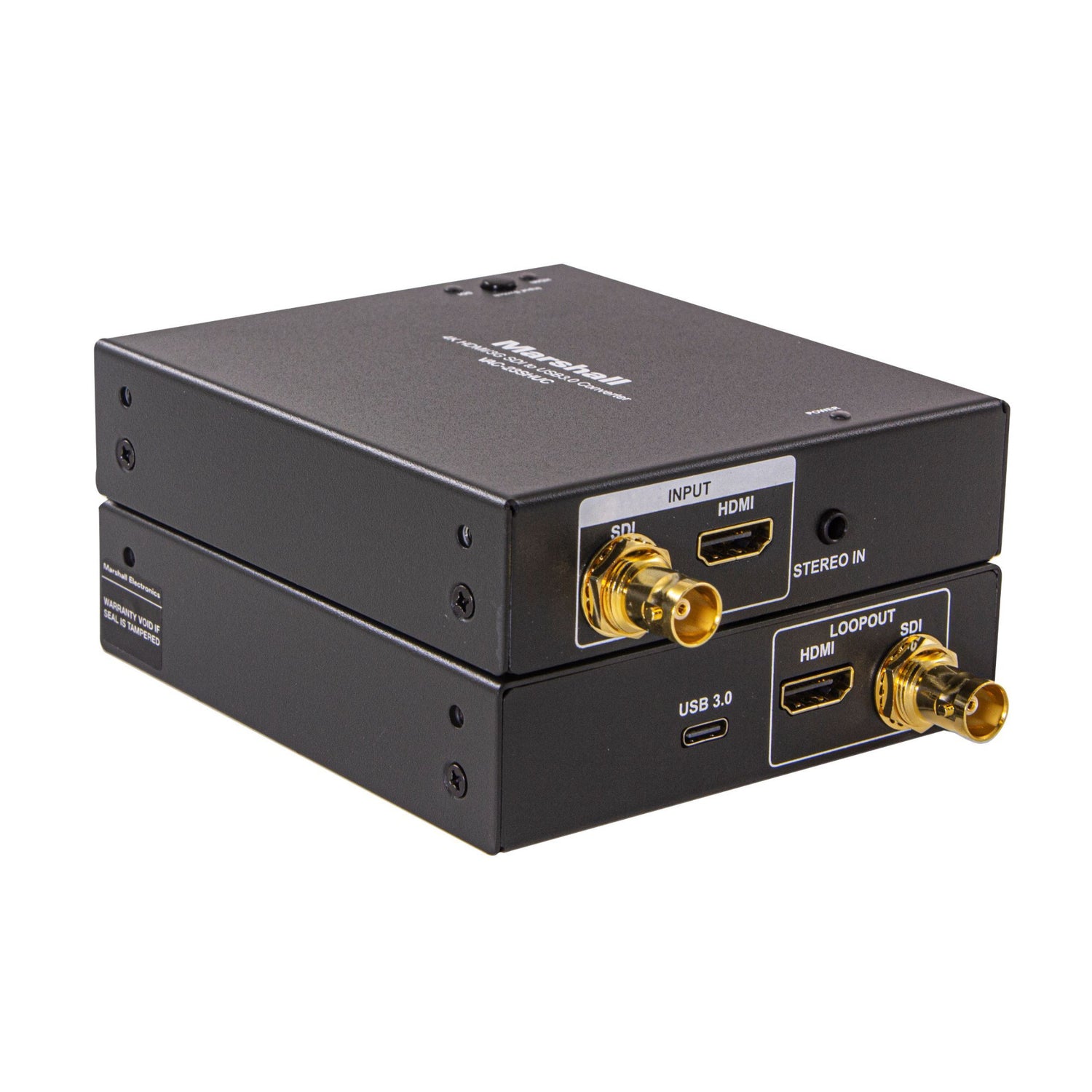

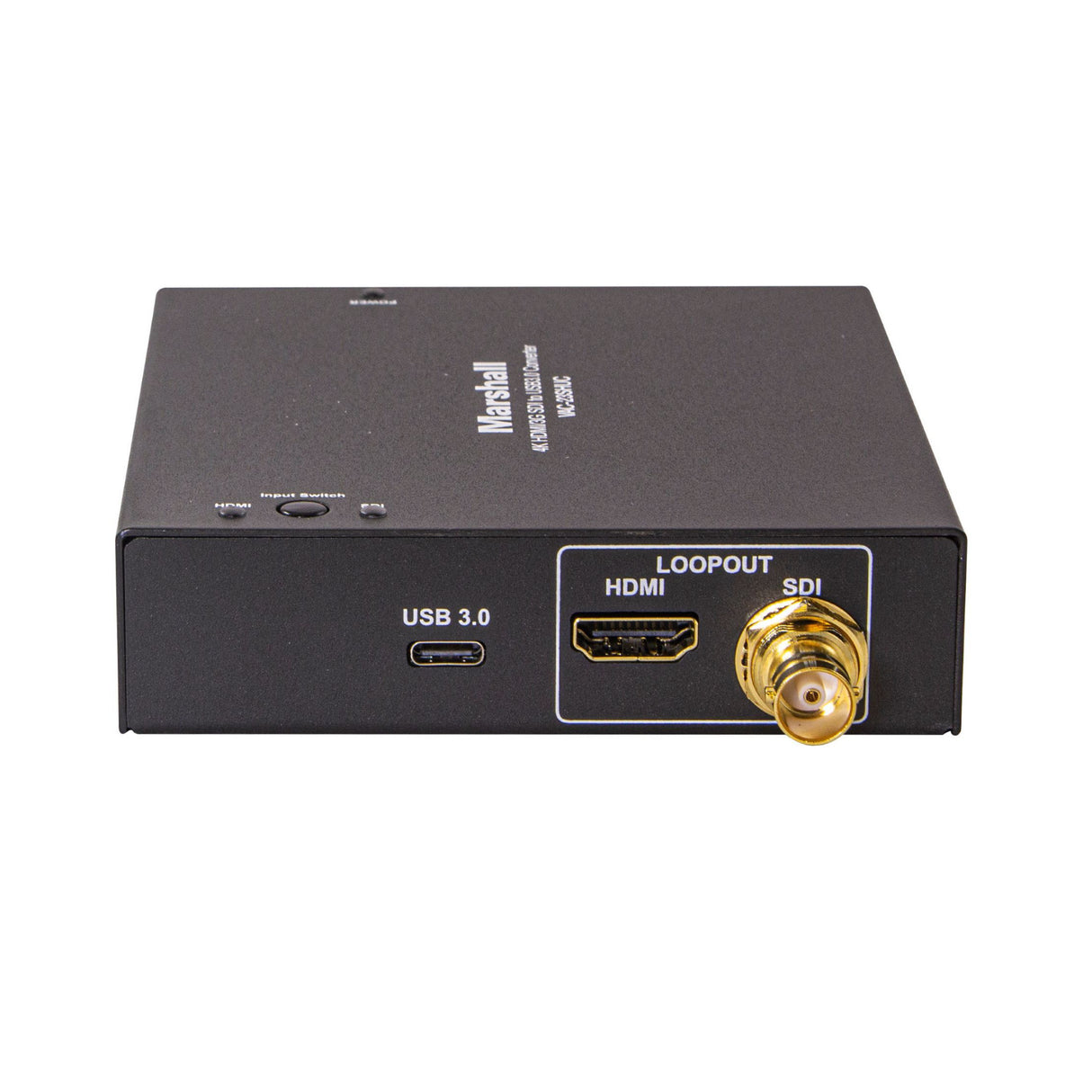

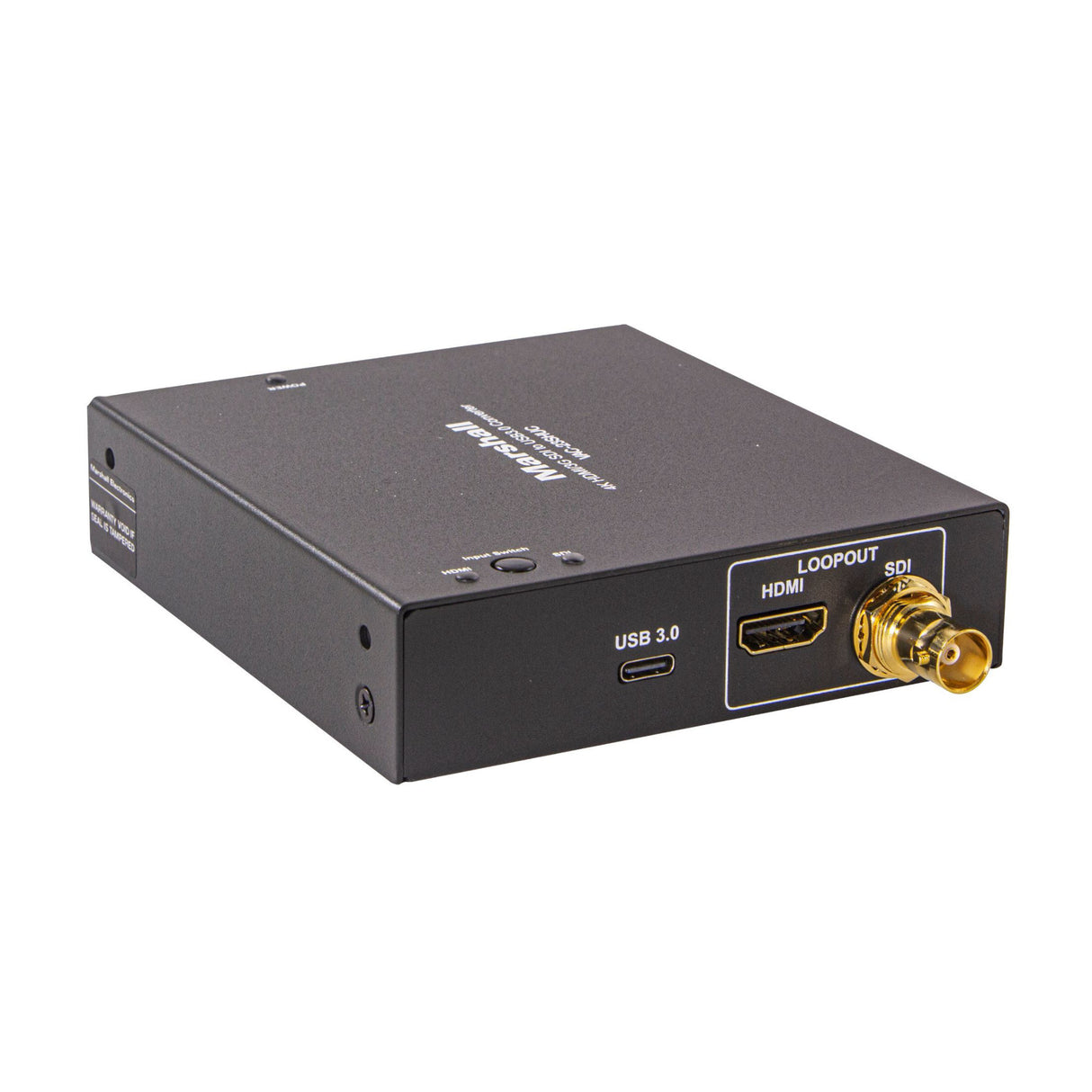

Marshall Electronics VAC-23SHUC 3G-SDI and HDMI to USB-C Converter up to 3840x2160p (UHD)
The VAC-23SHUC converts either 3GSDI or HDMI 2.0 to USB-C (USB3.0/USB2.0) up to UHD 3840x2160p at 30fps. 3GSDI and HDMI inputs have active loop-through, allowing the original high-quality source to be routed to monitors or other equipment as a pass-through. Common applications include live streaming, video conferencing, and other PC or Mac-based applications.
Power is supplied by the USB-C connection to the host computer, reducing clutter and eliminating the need for an external power supply. The rugged and compact design makes for easy portability and mobility.
The VAC-23SHUC's simple plug-and-play design uses the UVC protocol to enable it as a Camera Device. UVC protocol allows the host computer to set the parameters for the USB stream, such as resolution, frame rate, and aspect ratio.
- 3G/HDSDI input with active loop-through output supports formats up to 1080p50/60
- USB 3.0 output is YUY2 format (equivalent to SDI 4:2:2 sampling). USB 2.0 mode is MP4
- HDMI 2.0 input with active loop-through output supports formats up to 4096 x 2160 @ 30fps
- USB output audio sampling rate is 48 KHz
- Audio insert capability via 3.5mm stereo jack.
- Inserting into HDMI requires the existing audio track to be present
- All power is derived from the USB port
- 10-bit input sampling for improved image processing.
- Plug-and-Play operation. No special drivers required
- Compatible with popular applications including Zoom, Skype, OBS Studio, and many more
HDMI Color Sampling Formats supported:
1080p/720p: YCbCr 4:4:4 8/10/12bits, YCbCr 4:2:2 8bits and RGB 8/10/12bits 2160p: YCbCr 4:4:4 8bits, YCbCr 4:2:0 8/10/12bits, RGB 8bits
Main
| Configuration | Core |
| Color | Black/Black |
Marshall Electronics VAC-23SHUC 3G-SDI and HDMI to USB-C Converter up to 3840x2160p (UHD)
HDMI Input and Output
| HDMI conforms to the HDMI 2.0 standard | |
| HDCP 1.4 and 2.2 compliant | |
| Video Frame Rates from 23.98 ~ 60 fps | |
| Video Formats from 480i/p, 576i/p to 4096x2160p (4K) at 30 fps | |
| SMPTE 296M, 274M, 259M, 425M (3G Level A) | |
| Video Frame Rates from 23.98 ~ 60 fps | |
| Video Formats from 480i/p, 576i/p to 1920x1080p @ 50/59.94/60 fp | |
| Connected via USB-C with formats up to 3840x2160p (UHD) at 30 fps, sent to the host computer. | |
| When connecting to a USB 2.0 port, we recommend 1280x720p or below | |
| USB output format is independent of input video format and is controlled by the particular video application running on the host computer | |
| All embedded audio channels (HDMI or SDI) are passed through to the matching output. Only channels 1 and 2 are sent to the USB output. | |
| External audio may be used to replace existing SDI or HDMI audio via the 3.5mm audio jack. Audio cannot be inserted into HDMI sources that do not have an existing audio track. | |
| 0~40 degreeC (32~104 degreeF | |
| Volts 1.3 Amps powered via USB |
