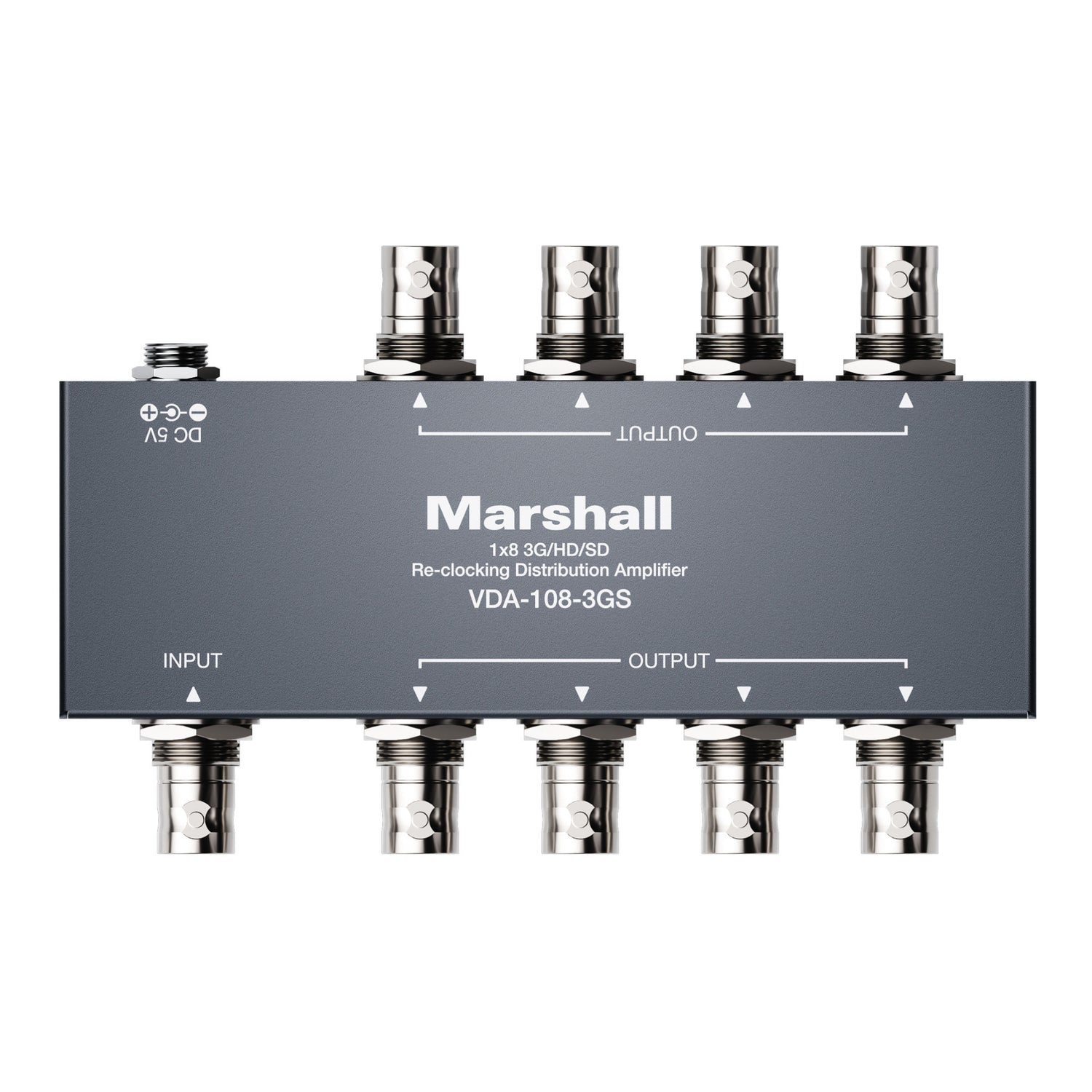

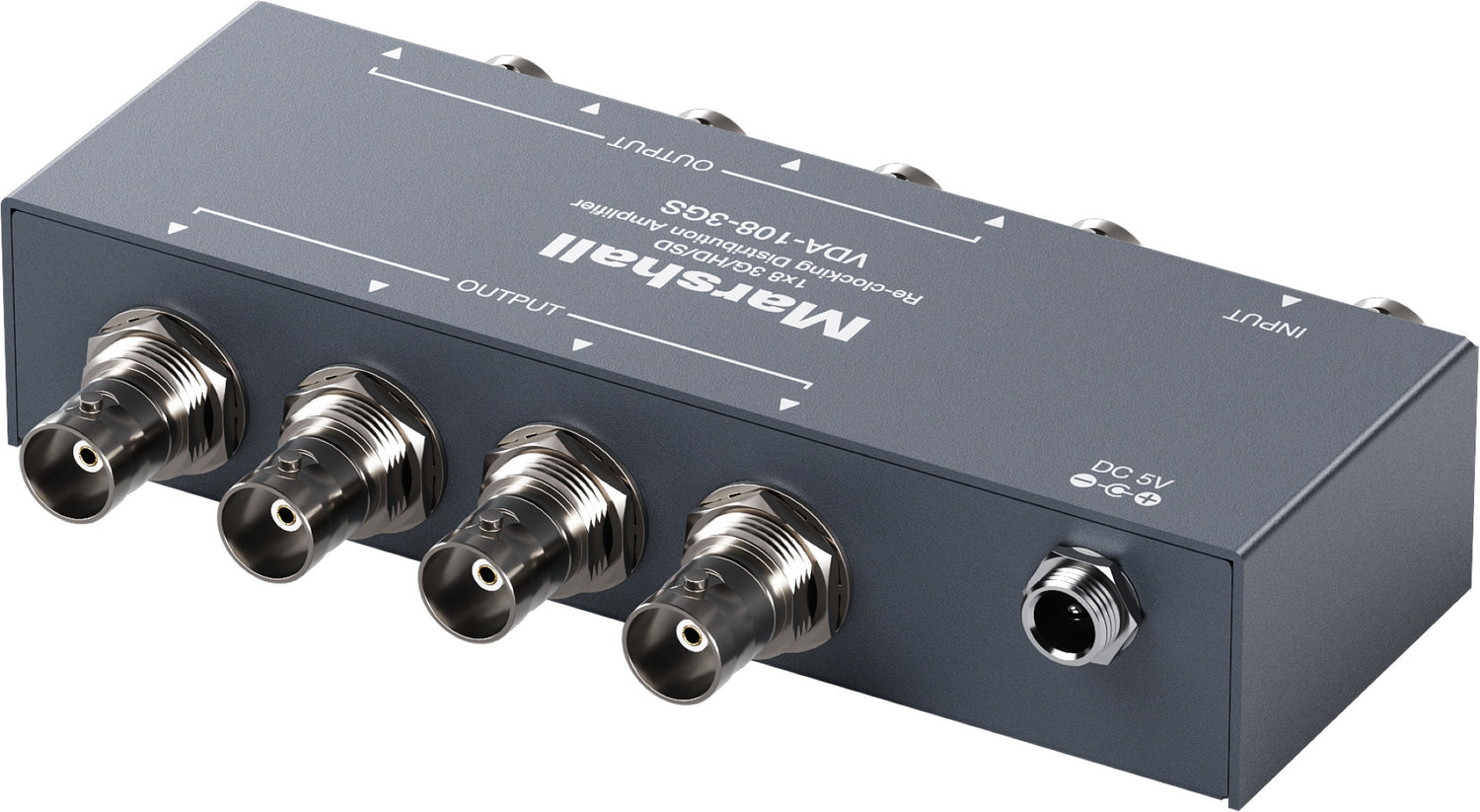

Marshall Electronics 1 x 8 3G/HD/SD-SDI Reclocking Distribution Amplifier
The VDA-108-3GS is a compact, high-performance distribution amplifier designed to deliver a single SDI input signal to eight identical outputs with impeccable reliability. Engineered for professional broadcast and video environments, this device transparently passes all embedded data while ensuring signal integrity through reclocking and cable equalization.
Ideal for distributing video signals to multiple destinations such as recorders, displays, and encoders, the VDA-108-3GS supports a broad range of formats, including 3G, HD, and SD serial digital signals. Its robust design offers automatic cable equalization up to 300 meters for SD signals and 150 meters for HD/3G signals, guaranteeing stable performance even over long cable runs.
Key Features:
- Supports 3G/HD/SD serial digital video formats
- Eight separately buffered and reclocked outputs for consistent signal quality
- Dual-color LED indicators for input lock and signal rate monitoring
- Compatible with a wide range of video formats, including NTSC, PAL, 720p, 1080i/p, and 2K resolutions
- Supports Level A and B formats with full ancillary data pass-through
- Automatic cable equalization for cables up to 1000ft (SD) and 500ft (HD/3G)
- Low power consumption (<1.25W fully loaded) and USB power source compatibility with third-party adapters
- Rugged, compact metal housing for reliable use in various professional settings
Whether you’re expanding your video distribution setup or ensuring clean, stable feeds to multiple endpoints, the VDA-108-3GS offers precision, flexibility, and ease of use in a small footprint.
Main
| Configuration | Core |
| Color | Black/Black |
Marshall Electronics 1 x 8 3G/HD/SD-SDI Reclocking Distribution Amplifier
SDI standards: SD/HD/3G-SDI
Auto 3G/HD/SD detection: Yes
Supported protocols: SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 425 M
Video bandwidth: [2.97Gpbs & 2.97/1.001Gbps]
Data rates: 270 / 1483 / 1485 / 2970 Mbps
Output impedance: 75
Re-clocking function: Yes
Cable equalization: [3G-SDI] >120m (394ft) / [HD-SDI] >200m (656ft) / [SD-SDI] >300m (984ft)
Audio support: Yes
RP-198 pathological patterns: Immune
PCB stack-up: 4-layer board [impedance control — differential 100; single 50 ]
Input: 1x BNC [SDI]
Output: 4x BNC [SDI]
BNC connector: 75 interlocked socket
Power supply: 5V 2A DC
Power consumption: 1.3 Watts [max]
