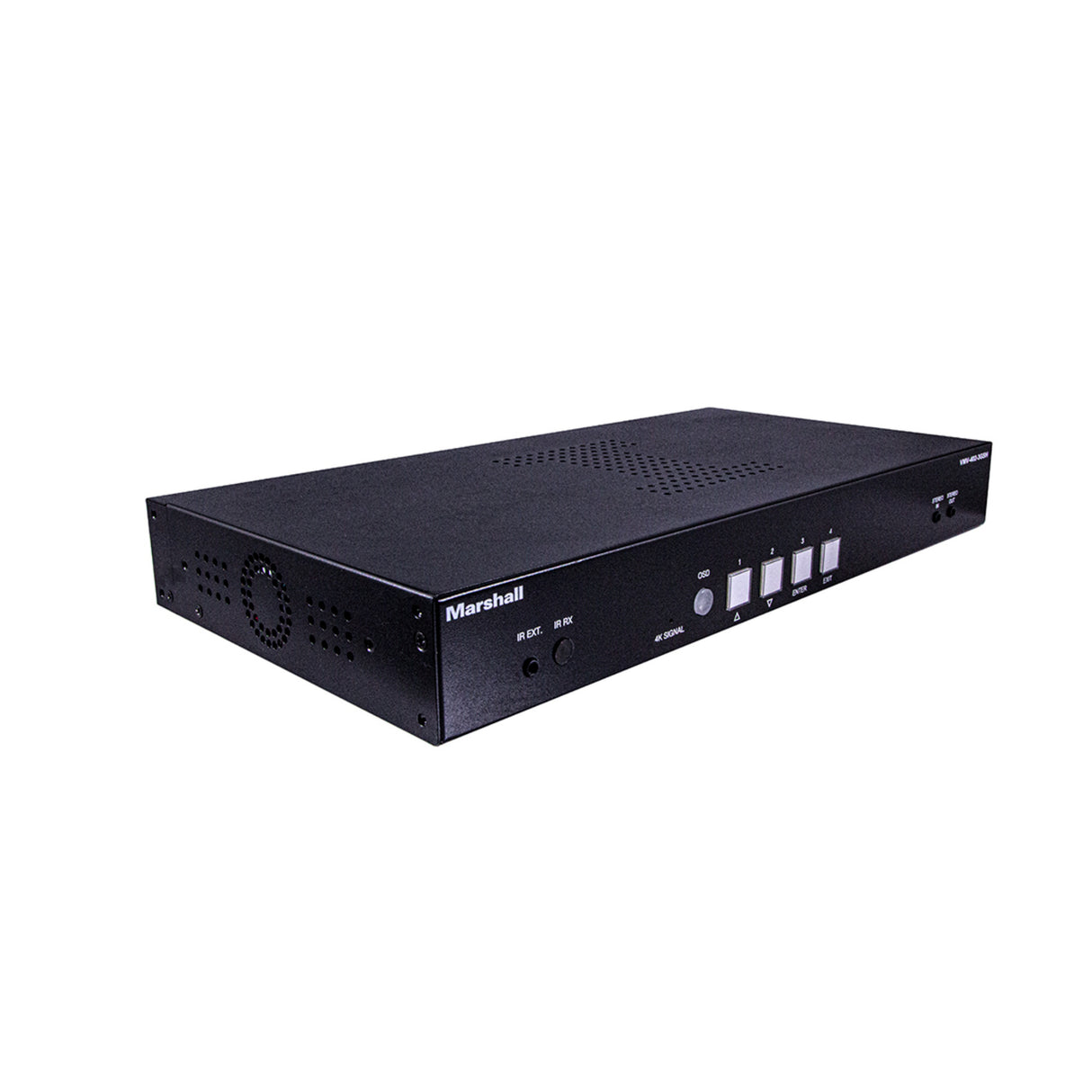

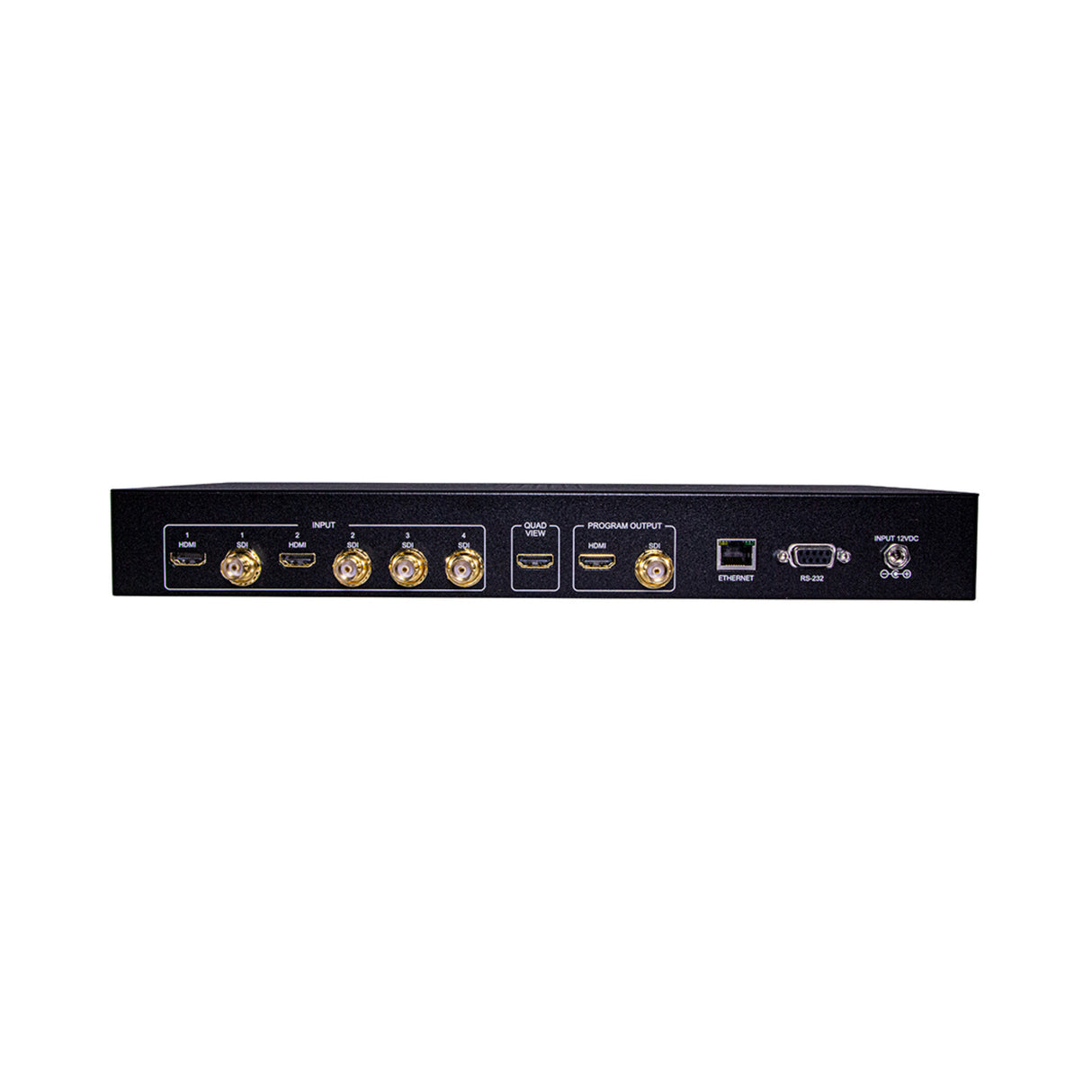

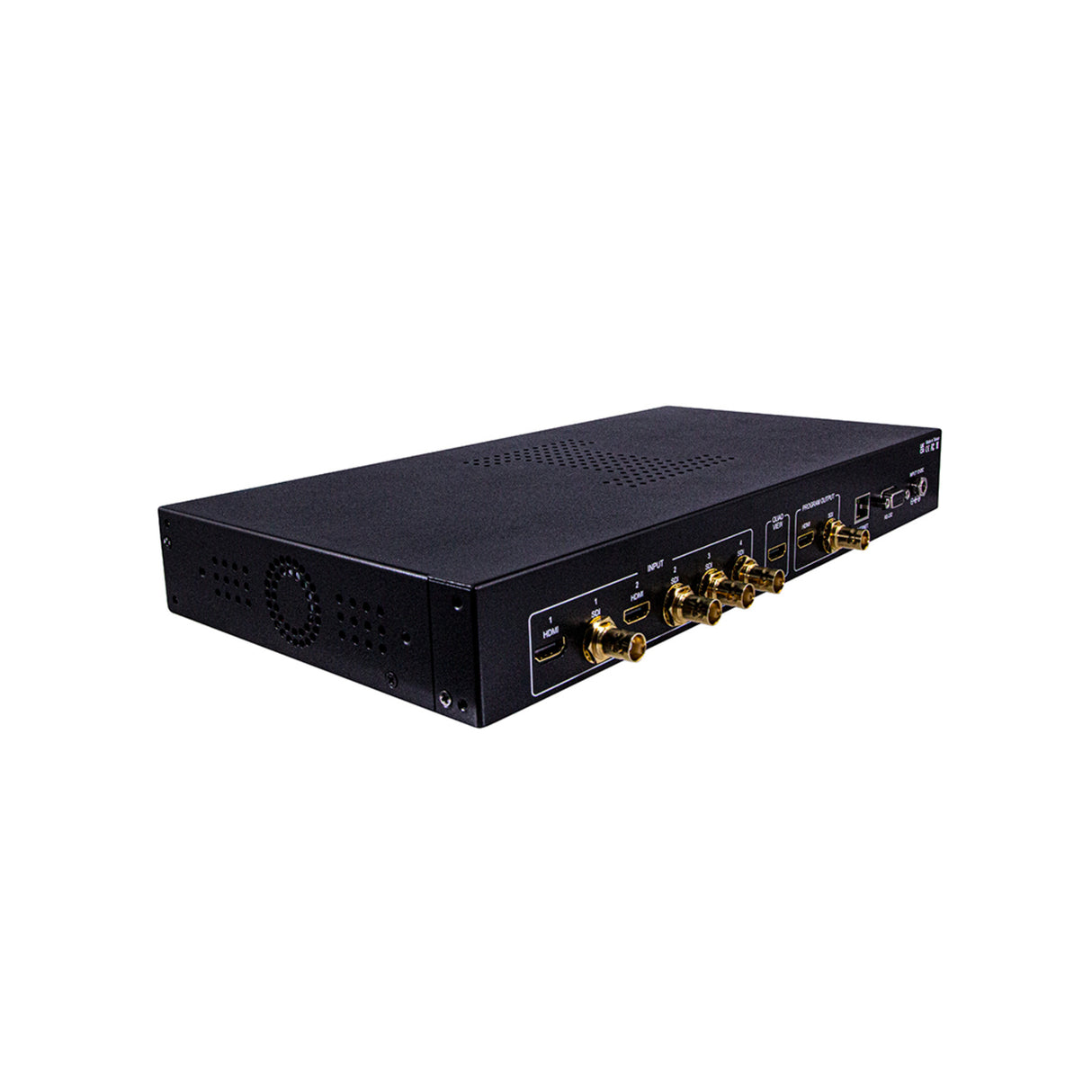

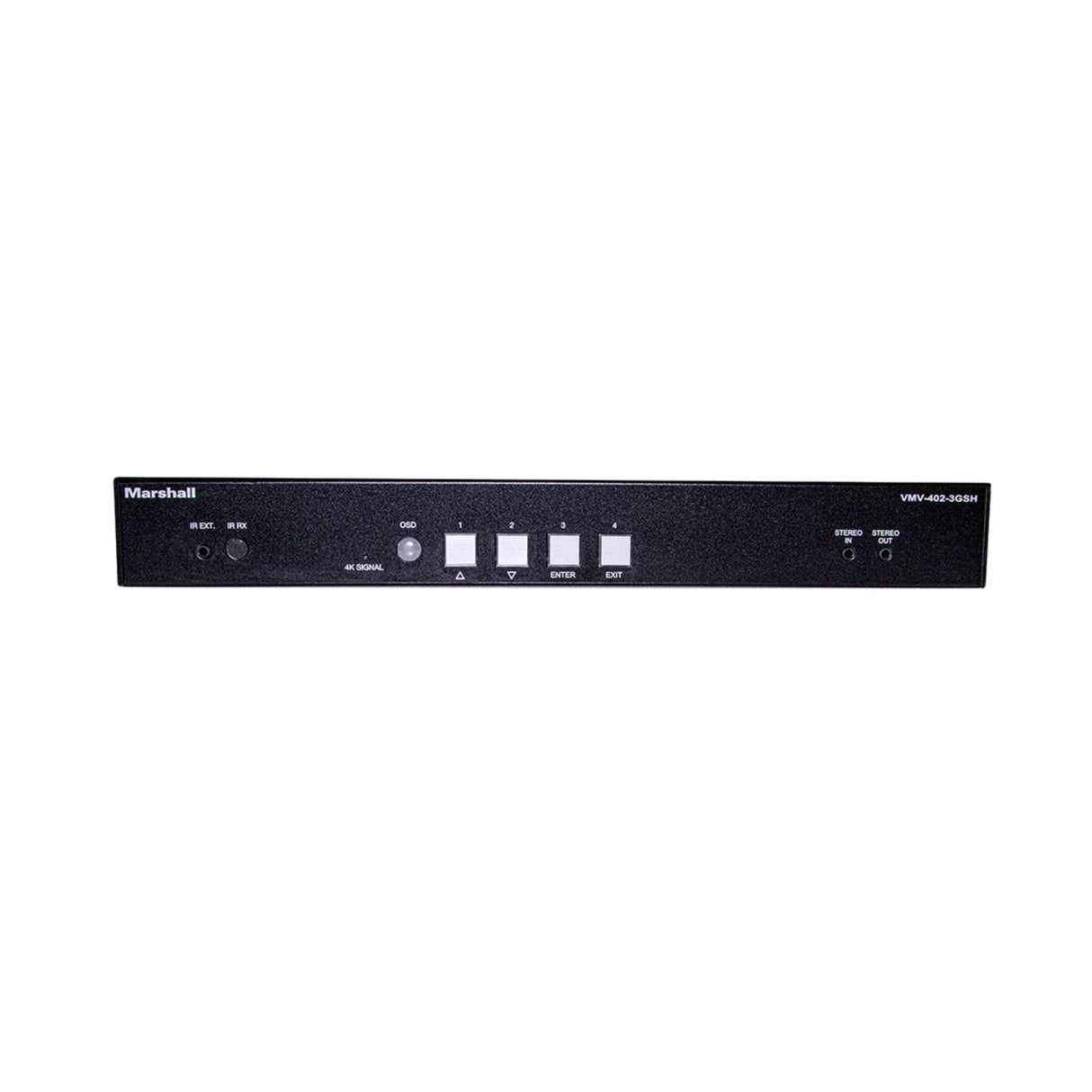

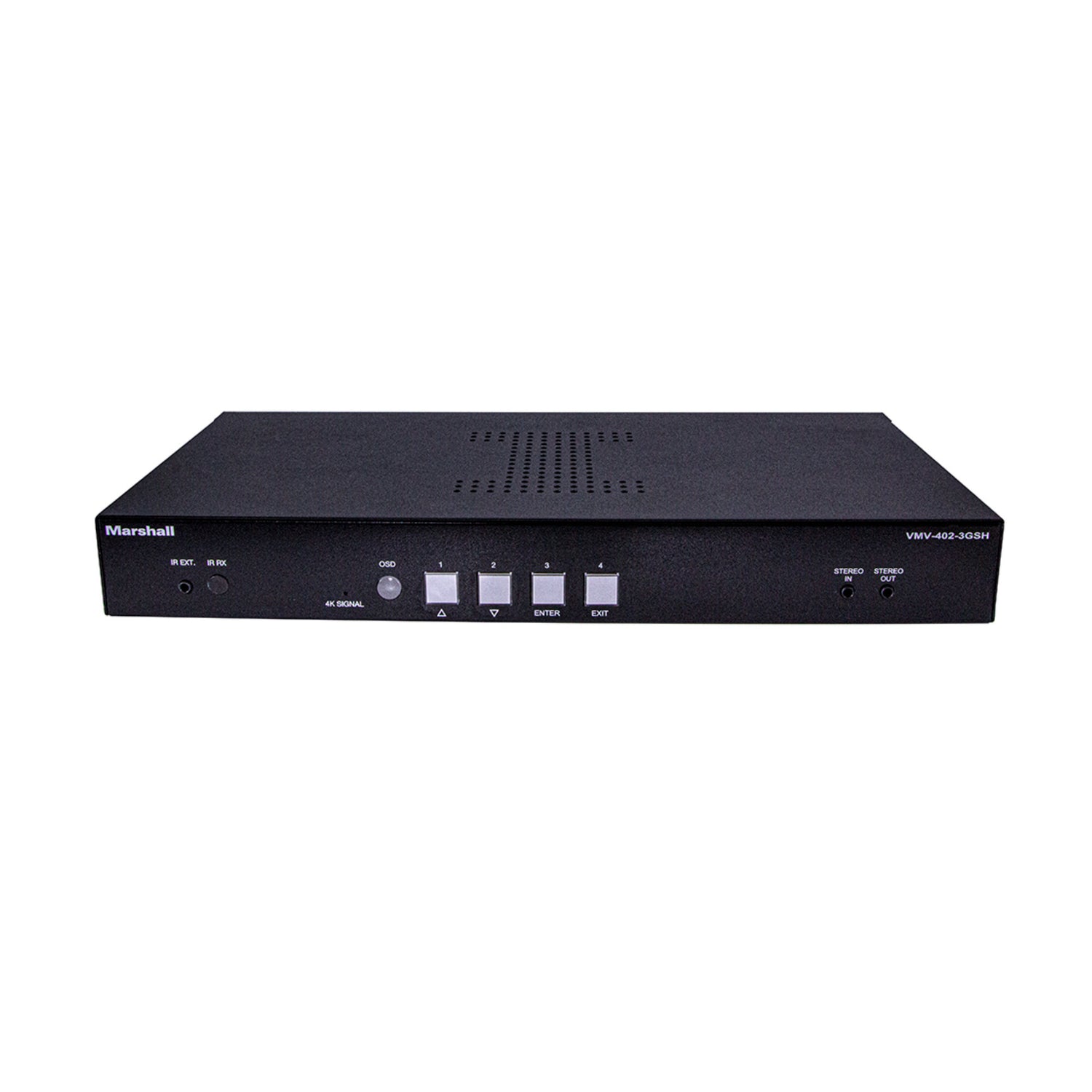

Marshall Electronics VMV-402-3GSH 3G-SDI Seamless 4x Switch with Quadview Mode and Ethernet Control
The Marshall VMV-402-3GSH is a robust, high-performance 4x1 seamless switcher designed to meet the demands of broadcast, presentation, and AV environments. Whether you’re outfitting a control room, flypack, courtroom, or classroom, the VMV-402-3GSH delivers professional-grade functionality in a compact 1RU chassis.
This versatile unit supports mixed-format and mixed-frame rate inputs, offering 4 input channels (3G-SDI and HDMI on inputs 1 and 2), and delivers simultaneous output via 3G-SDI and HDMI. The HDMI output also features built-in scaling up to UHD, while the SDI output supports resolutions up to 1080p, making it ideal for both live production and AV integration.
Key Features:
- 4x1 Seamless Switching – Instantly switch between four sources without interruption, perfect for live events or real-time applications.
- Multi-Format Input Support – Accepts a wide range of video formats and frame rates, automatically scaled to match selected output.
- Simultaneous HDMI and 3G-SDI Output – Send a high-resolution signal to both local displays and long-distance transmission setups (up to 100m via SDI).
- Full-Time Quadview Monitoring – HDMI output supports quad-view monitoring of all four sources, ideal for preview or multi-camera environments.
- Advanced Scaling – Up/down scaling and frame rate conversion ensure consistent output across devices.
- Integrated Scopes – Waveform and vector scope overlays provide real-time signal analysis for professional monitoring.
- Intuitive Control – Configure and control all functions via front panel or Ethernet browser interface, no proprietary app required.
- Remote Control Integration – Supports control via Ethernet or RS232; compatible with Crestron and similar AV systems.
Suggested Applications:
- Seamless source switching in remote production or AV installations
- Format converter for inconsistent input signals
- Quad source monitoring via HDMI
- Dual-program output for simultaneous transmission and local preview
- Courtroom, classroom, and conference environments need professional video management
Main
| Configuration | Core |
| Color | Black/Black |
Marshall Electronics VMV-402-3GSH 3G-SDI Seamless 4x Switch with Quadview Mode and Ethernet Control
| Video Inputs | Default 4 x 3GSDI Inputs 1&2 selectable for HDMI |
| Input Formats Supported | (3G) 1080p at 50/59.94/60Hz (4:2:2), (HD) 720p at 50/59.94/60Hz, 1080i at 50/59.94/60Hz, 1080p at 24/30/60Hz, (SD) NTSC at 59.94Hz, PAL at 50Hz |
| Embedded Audio support | Embedded surround sound (up to 7.1ch) or stereo digital audio |
| Video Outputs (Program) | 1x HDMI + 1x BNC (SDI) |
| Video Output (Preview) | 1 x HDMI |
| Housing | Metal enclosure |
| Dimensions [L x W x H] | 190 x 180 x 44mm [6.5 x 2.8 x 1in] |
| Weight | 1kg [2.2 lbs] |
| Mounting | 1U rack-mounting case with ears |
| Power supply | 24V 5A DC 12V 5A DC |
| Power consumption | 25 Watts, Nominal 36 Watts |
| Operation Temperature | 0~40 degree C [32~104 degree F] |
| Storage Temperature | -20~60 degree C [-4~140* degree F] |
| Relative Humidity | 20~90 percent RH [no condensation] |
