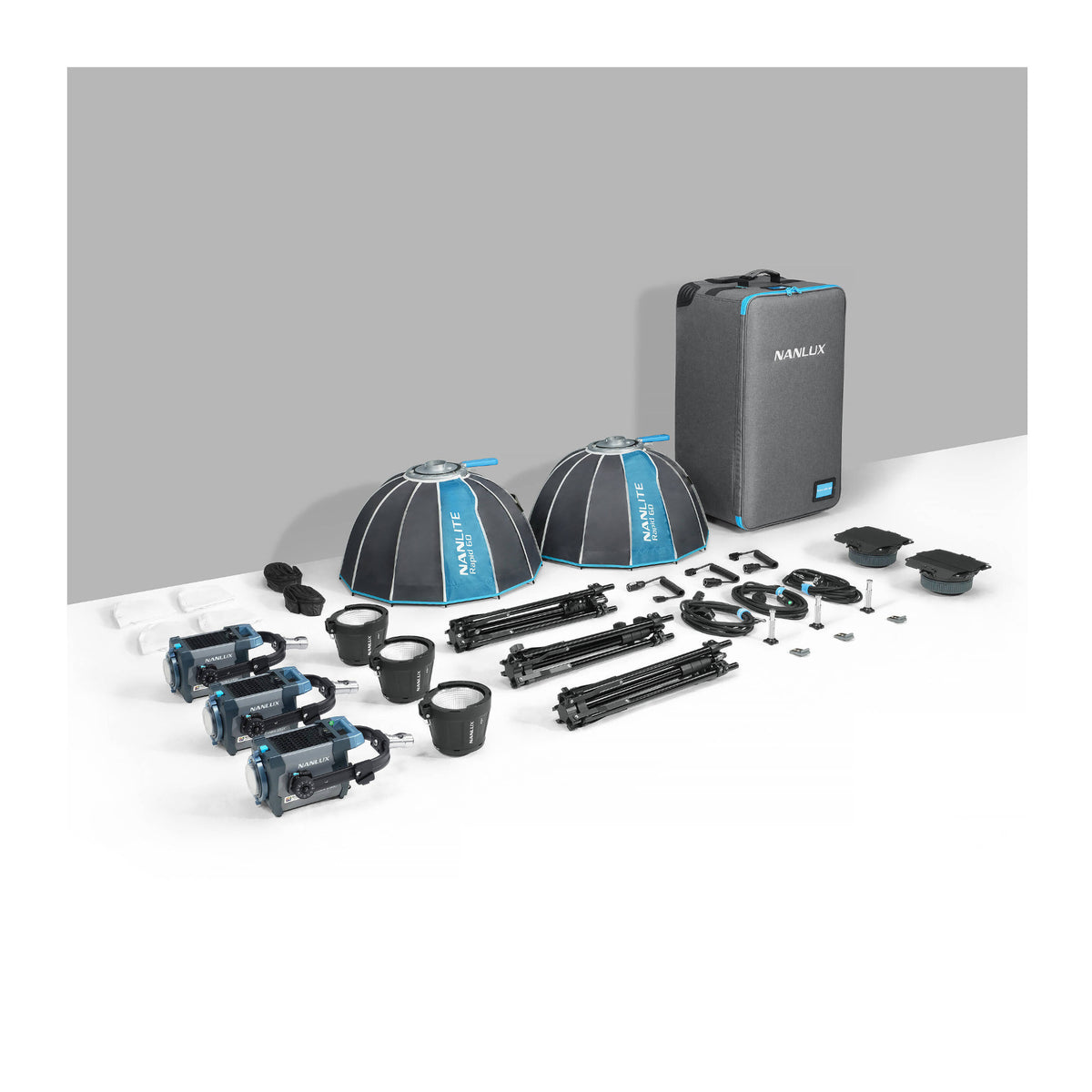

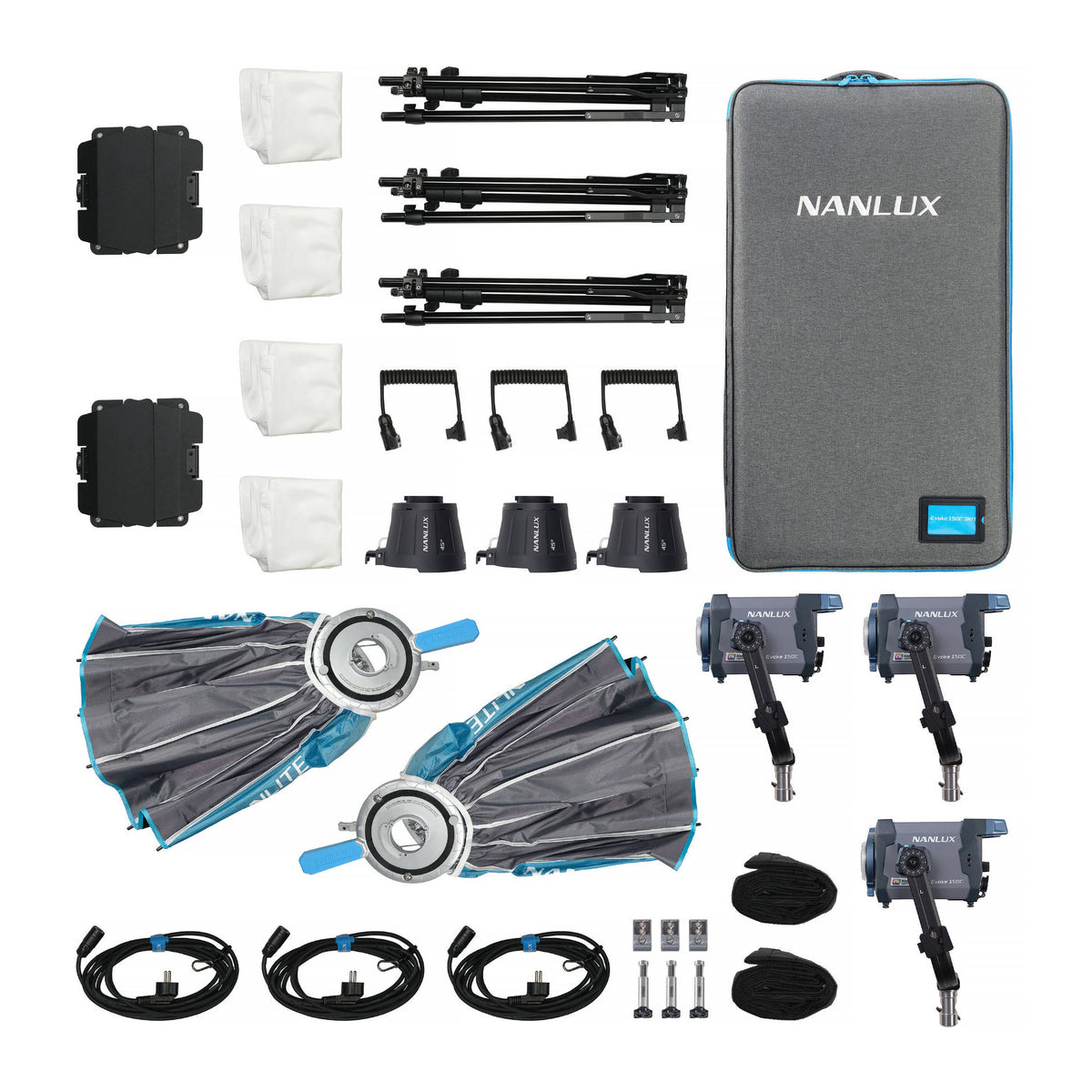

- Nanlux Evoke 150C RGB LED Spotlight (3-Light Kit)
- 3 x Yoke

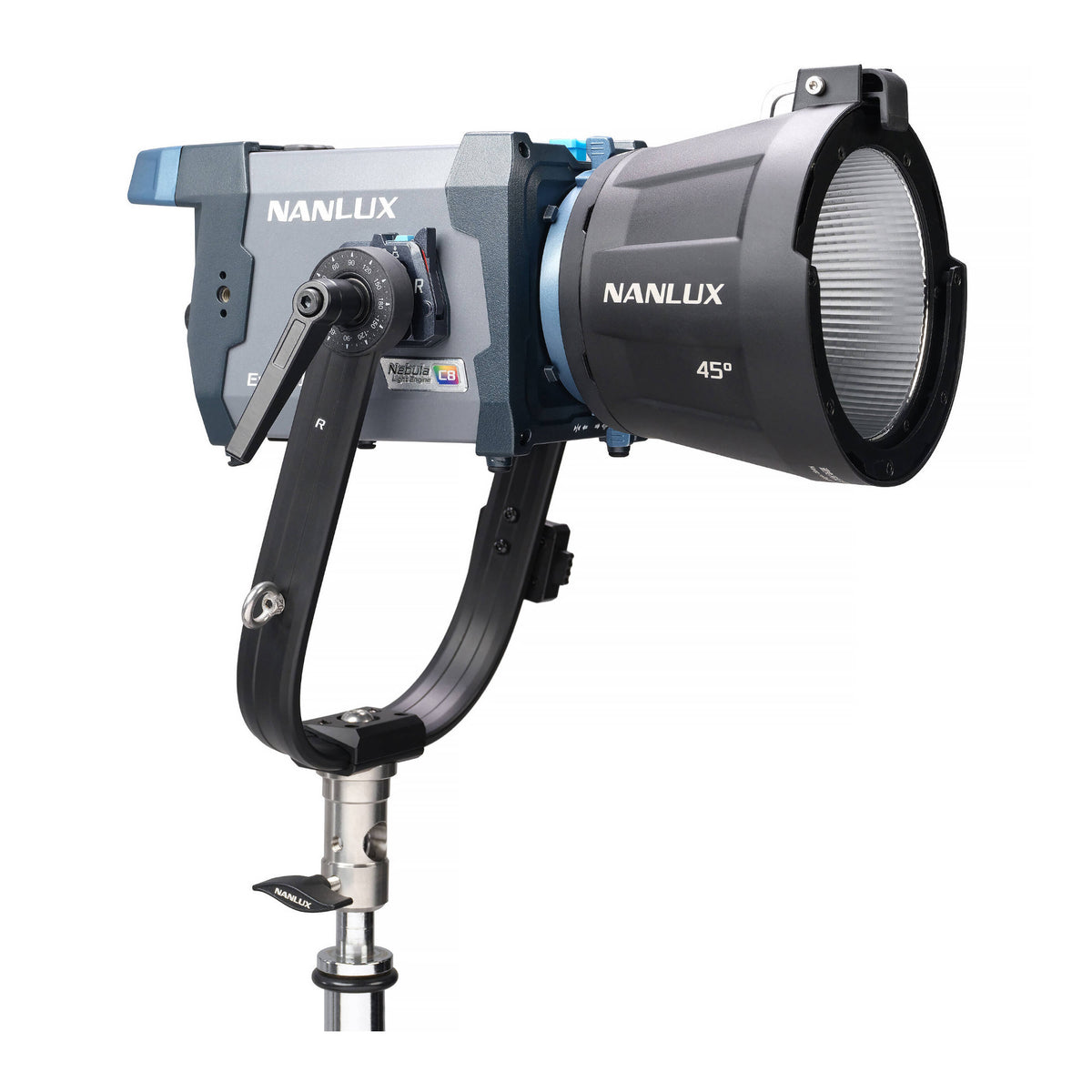

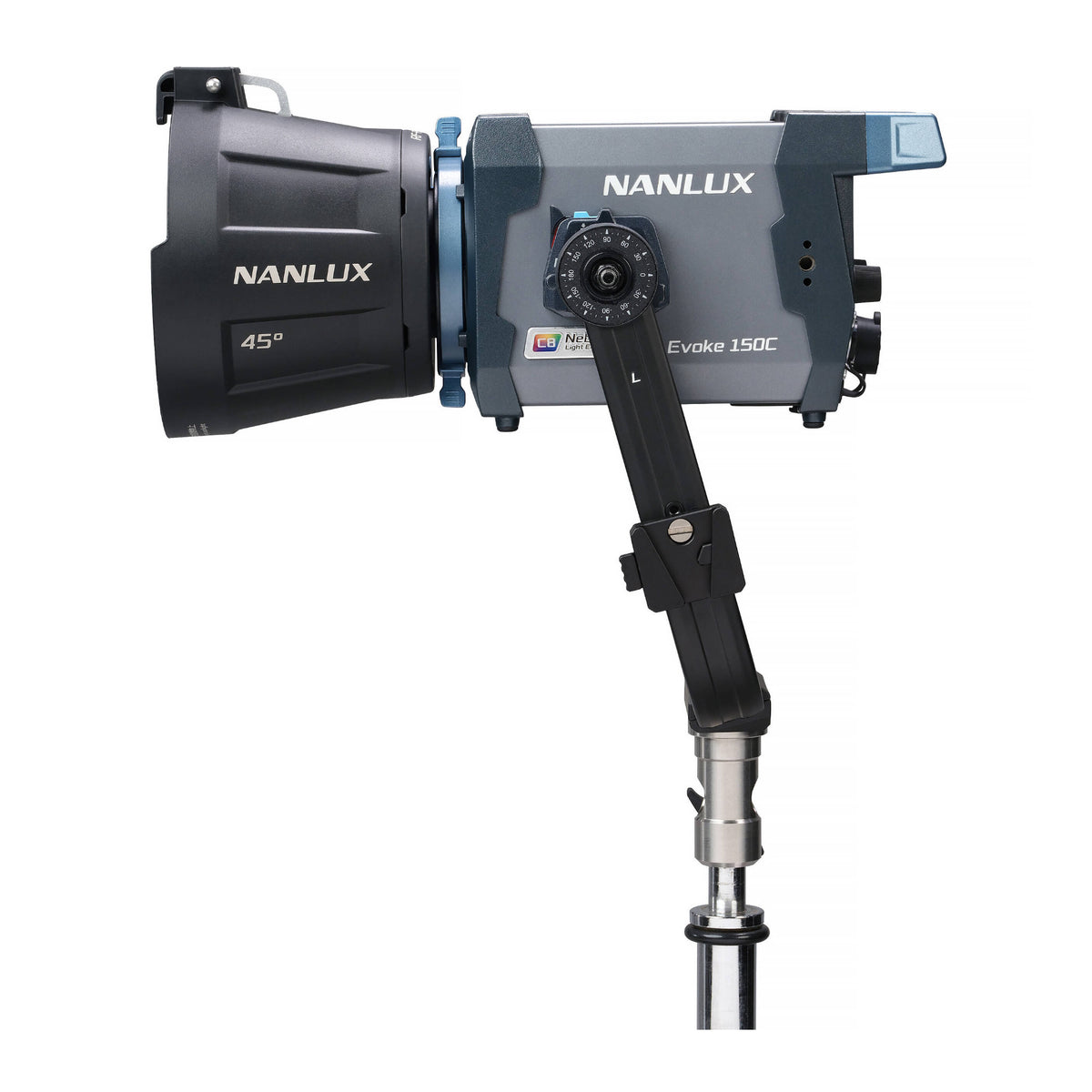

- 3 x Nanlux FE Mount Reflector for the Evoke 150C (45°)
- 3 x AC Power Cable (4.5m)
- 3 x D-Tap Cable
- 3 x USB Flash Drive
- 3 x Magnetic Base
- 3 x Nanlux 5/8 inch Baby Pin with Quick Release Plate
- 2 x Nanlux FL-12 Fresnel Lens
- 2 x Barndoors
- 2 x Nanlite Rapid 60 FM Mount Softbox (23.6 inch)
- 2 x Standard Diffuser
- 2 x Medium Diffuser
- 2 x Eggcrate
- 3 x Light Stand

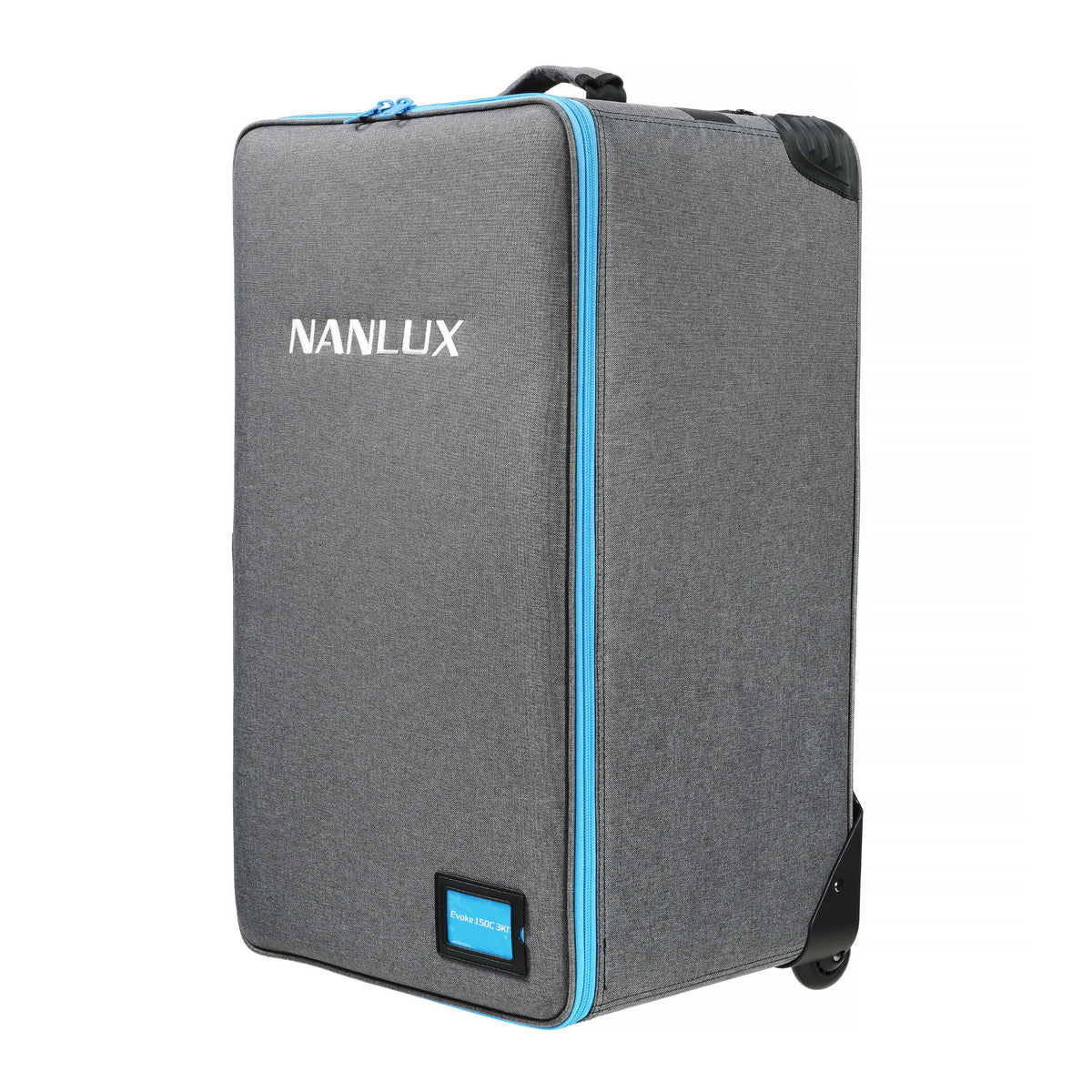

- Rolling Padded Case
Trusted & Verified

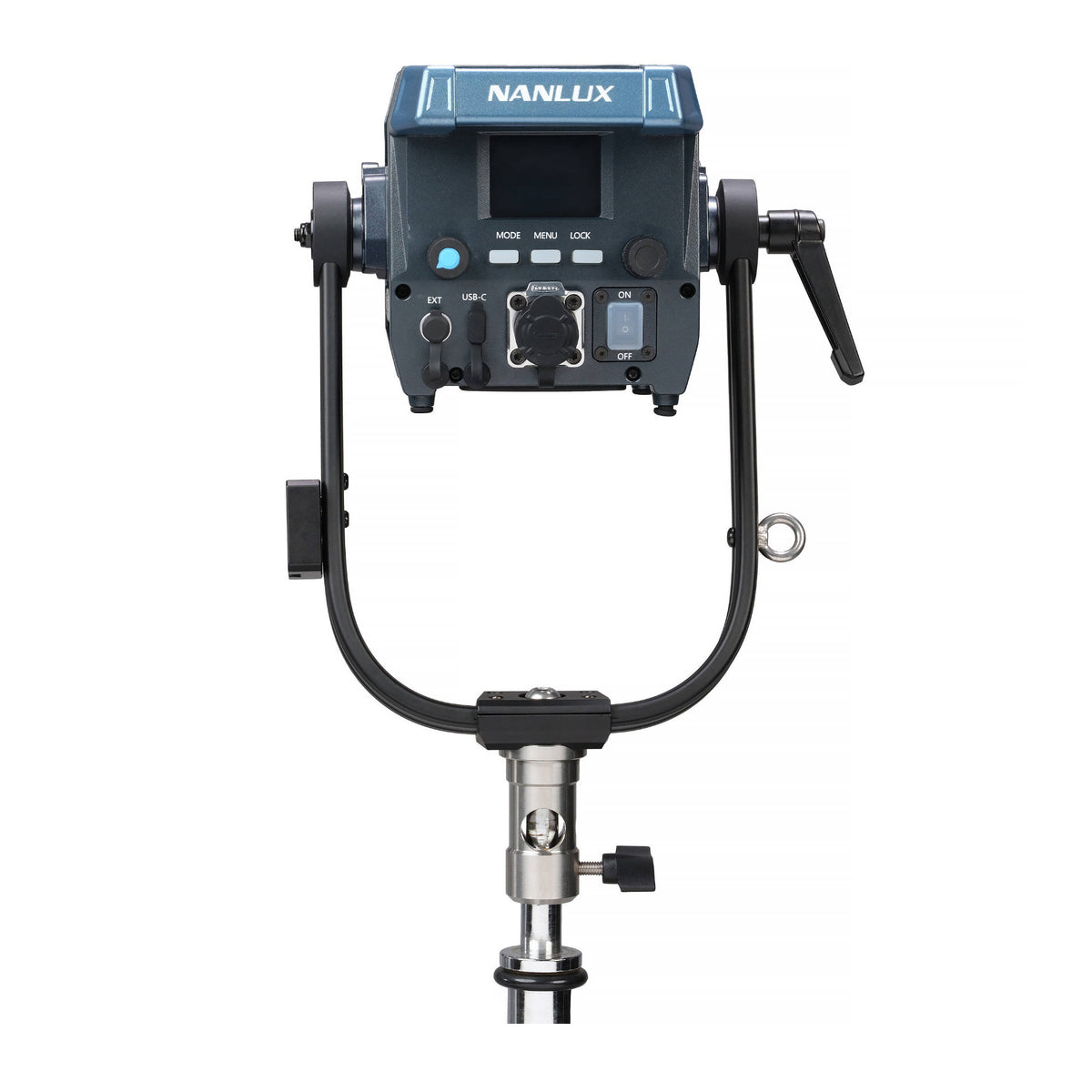

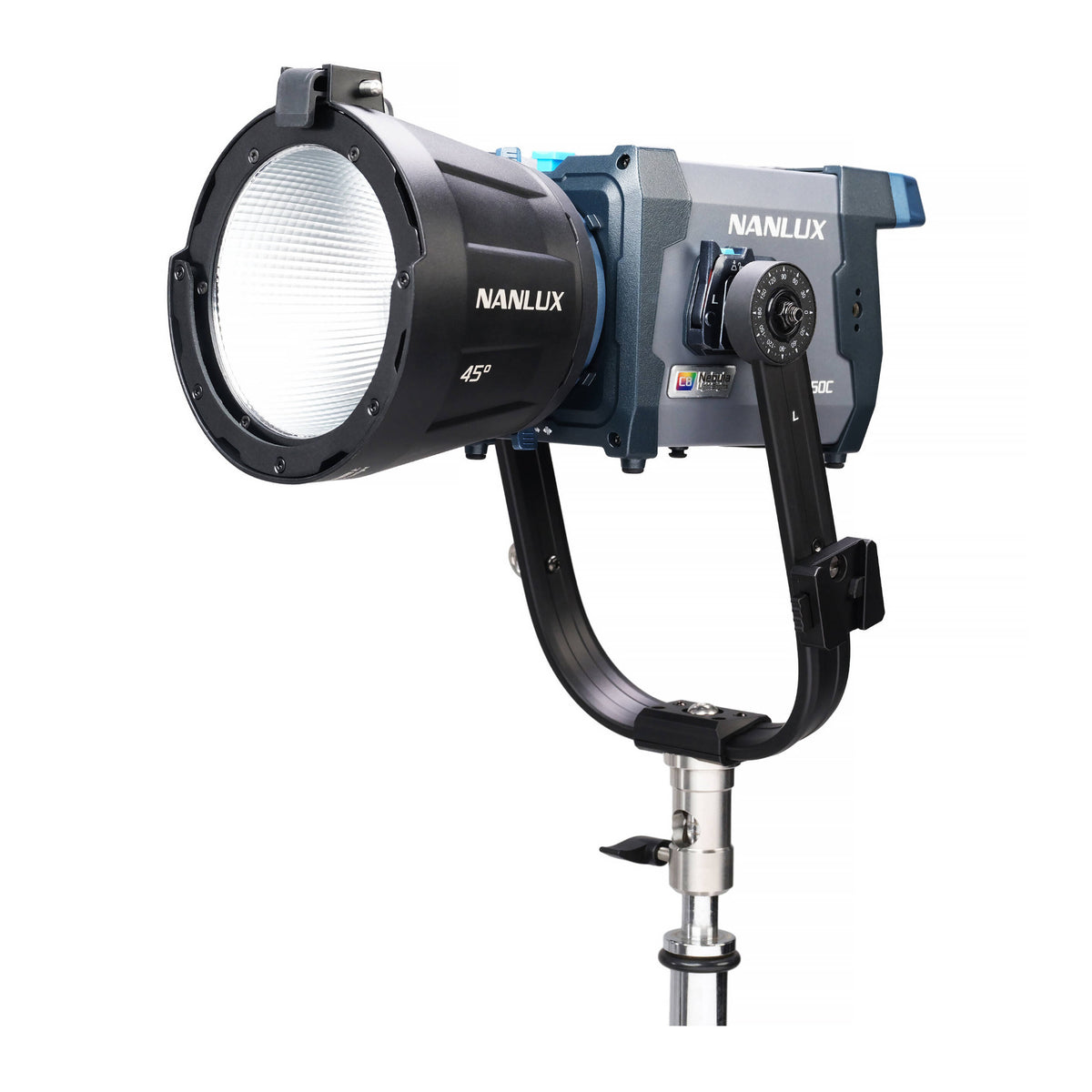

NANLUX Evoke 150C 3-Light Kit with Rolling Padded Case

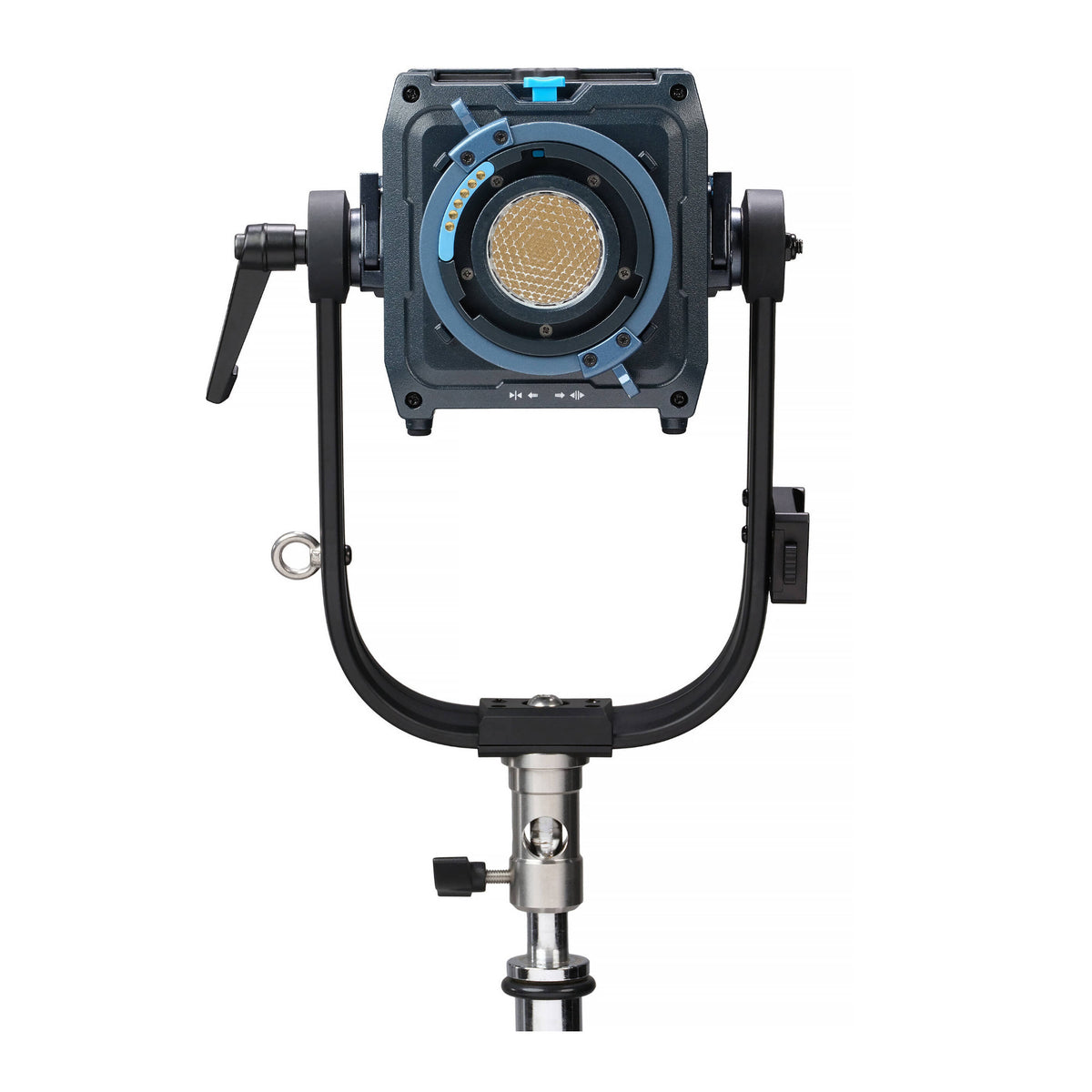

- 150 watt full color LED spotlight with Nebula C8 light engine
- 1000 to 20000 CCT with green and magenta adjustment of ±200
- Average CRI 98 and TLCI 98 for consistent color rendering
- 47 degree beam angle with dimming in 0.1 percent increments
- Onboard, NANLINK App, LumenRadio CRMX, NFC, and wired control options
- AC, DC, and PD3.0 power input options for flexible setup
- IP66 rated fixture for demanding production environments
The NANLUX Evoke 150C 3 Light Kit combines three compact 150 watt full color fixtures for interview lighting, location production, studio work, and multi point setups. Each fixture uses the Nebula C8 light engine with a 1000 to 20000 CCT range, green and magenta adjustment of ±200, average CRI 98, and average TLCI 98 for consistent control across all three sources.
Three Matched Sources for Flexible Lighting
Each Evoke 150C provides a 47 degree beam angle and dimming from 0.0 to 100.0 percent in 0.1 percent increments. Fifteen built in effects cover CCT Loop, INT Loop, HUE Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle and Fire, Disco, Bad Bulb, Firework, Explosion, and Welding. Three fixtures support key, fill, and background lighting from the same full color platform.
Flexible Power and Professional Control
Power options include AC 100 to 240 volts at 50 to 60 hertz, DC 14.4 to 28 volts, and PD3.0 power from 12 to 28 volts with 60 watts minimum input. Control is available onboard, through a wired controller, the NANLINK App, a remote controller, LumenRadio CRMX, and NFC. DMX and RDM plus Art-Net and sACN operation are supported through the Extension Adapter. The fixture is IP66 rated for demanding production environments.
Built for a Three Light Workflow

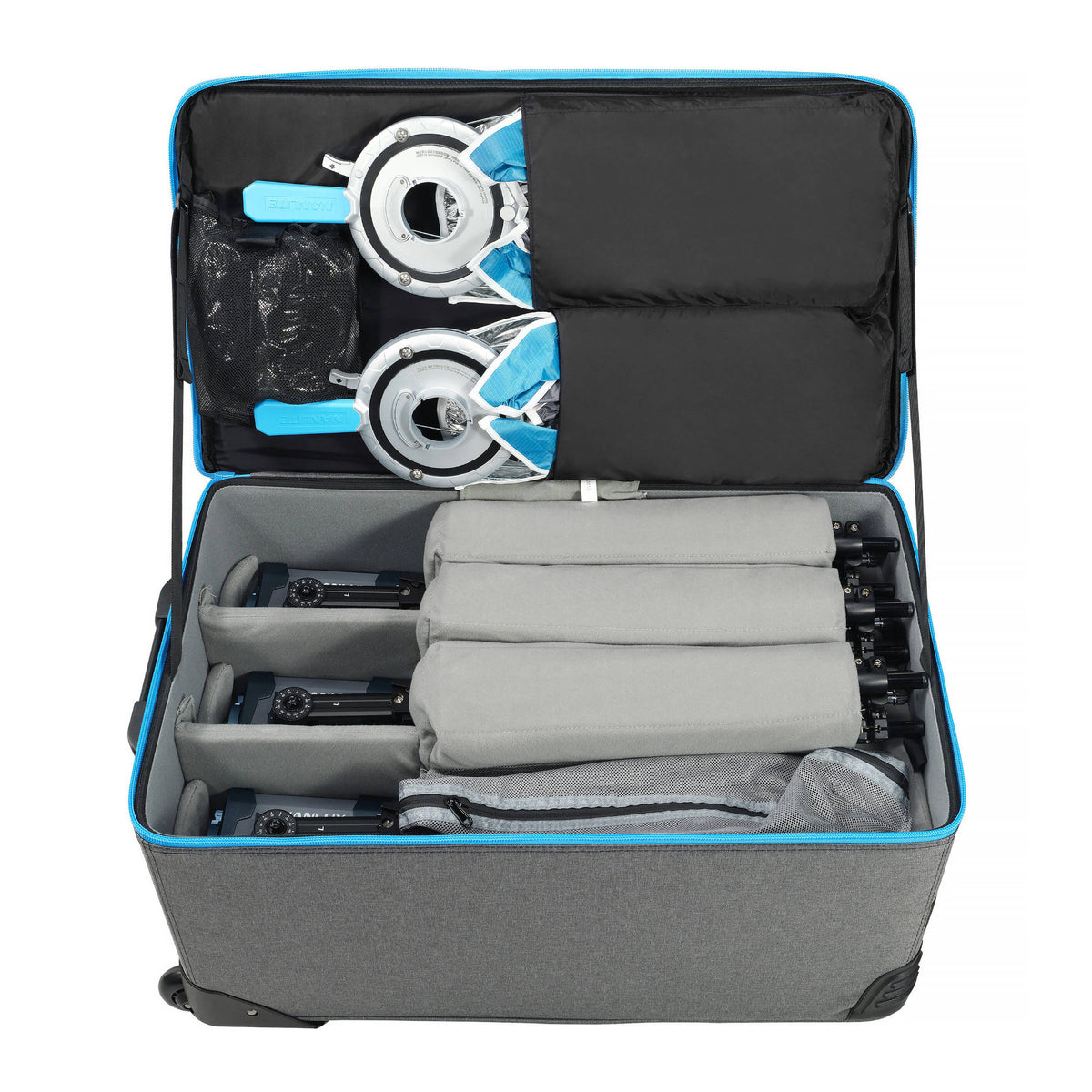

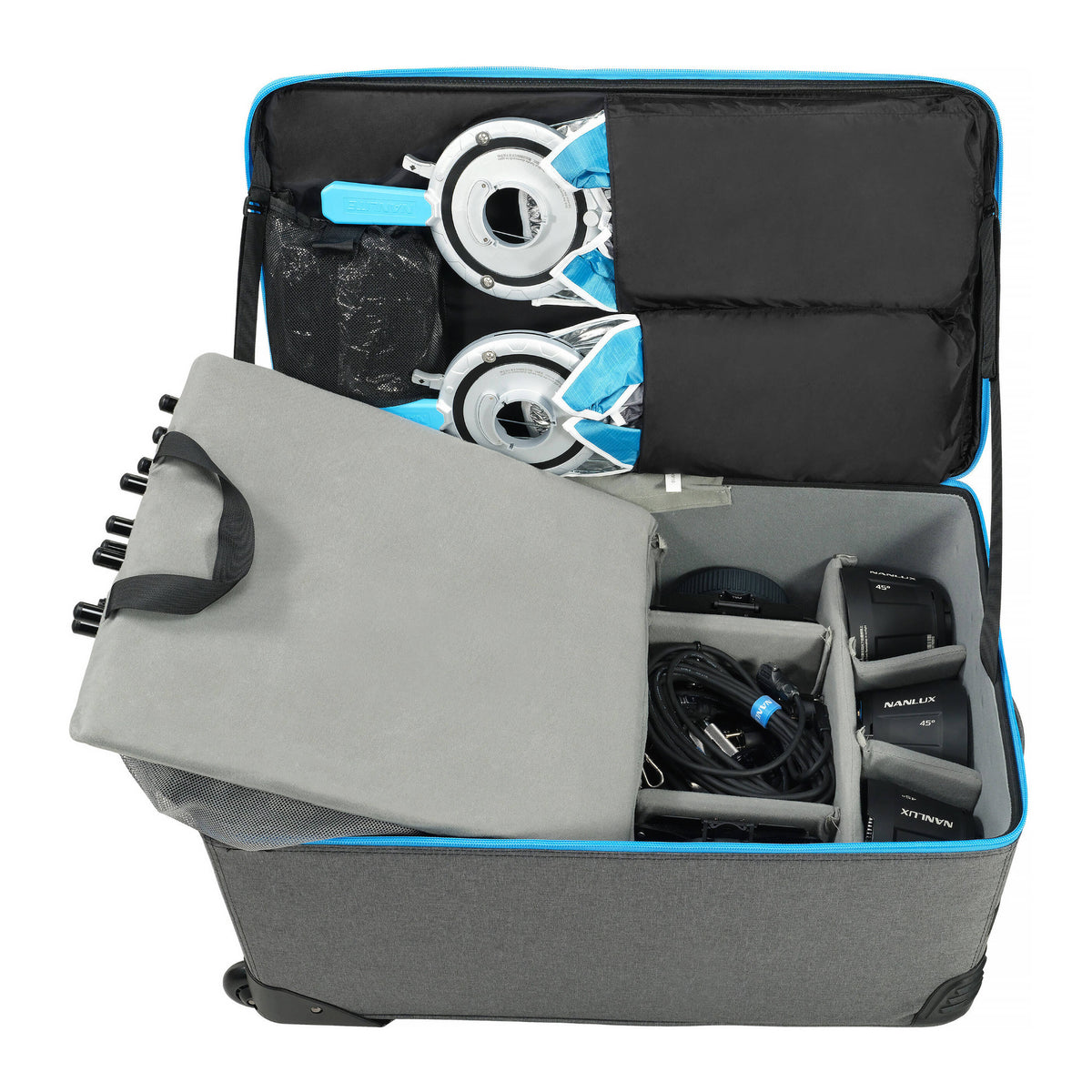

The kit pairs three Evoke 150C fixtures with a rolling padded case, light stands, 45 degree reflectors, and Rapid 60 Softboxes. The coordinated package supports organized transport and setup while keeping three light sources matched in color range, dimming behavior, control methods, and interface.
Bundle Configuration:
| Configuration | 3 Light Kit |
| Main Fixture | NANLUX Evoke 150C |
| Fixture Quantity | 3 |
| Transport Case | Rolling Padded Case |
Light Engine and Color:
| Rated Power | 150 watts per fixture |
| Beam Angle | 47 degrees |
| LED Light Engine | Nebula C8 Light Engine, dRRALGCBI |
| CCT | 1000 to 20000 kelvin |
| Green and Magenta Adjustment | ±200 |
| CRI | Average 98 |
| TLCI | Average 98 |
| TM-30 Rf | Average 96 |
| TM-30 Rg | Average 100 |
| SSI at 3200 kelvin | 86 |
| SSI at 5600 kelvin | 78 |
Dimming and Effects:
| Dimming | 0.0 to 100.0 percent, 0.1 percent increment |
| DMX Dimming Curve | Linear, Exponent, Logarithm, S Curve, Gamma 2.2, Gamma 2.4, Gamma 2.6 |
| Special Effects | CCT Loop, INT Loop, HUE Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion, Welding |
Control:
| Control Methods | Onboard, Wired Controller, NANLINK App, Remote Controller, LumenRadio CRMX, NFC |
| Extension Adapter Control | DMX/RDM, Art-Net/sACN |
Power:
| AC Input | 100 to 240 volts, 50 to 60 hertz, 2 amps maximum |
| DC Input | 14.4 to 28 volts |
| PD3.0 Input | 12 to 28 volts, 60 watts minimum |
Dimensions:
| Light Fixture | 209.14 millimeters x 146.95 millimeters x 127.29 millimeters / 8.23 inches x 5.79 inches x 5.01 inches |
| Yoke | 282.46 millimeters x 226.32 millimeters x 89.21 millimeters / 11.12 inches x 8.91 inches x 3.51 inches |
| RF-FE-45 FE Mount Reflector 45 Degree | 131.8 millimeters diameter x 206 millimeters x 195.5 millimeters / 5.19 inches diameter x 8.11 inches x 7.70 inches |
| AS-BP-QRS 5/8 inch Baby Pin with Quick Release Plate | 87.79 millimeters x 35.26 millimeters x 30.23 millimeters / 3.46 inches x 1.39 inches x 1.19 inches |
Weight:
| Light Fixture | 2.11 kilograms / 4.65 pounds |
| Yoke | 0.54 kilograms / 1.19 pounds |
| RF-FE-45 FE Mount Reflector 45 Degree | 0.34 kilograms / 0.75 pounds |
Protection and Certification:
| IP Rating | IP66 |
| Certifications and Reports | CE, UKCA, RoHS, PSE Circle, KCC, BIS, FCC ID, SAA, C-Tick, RCM, ETL, cETL, NCC, Test Report, IP66, VOC, RG0 |
