- Evoke 5C
- USB-C Cable
- Magnetic Diffuser
- Magnetic Yoke
- Magnetic Thermal Shield
- User Manual
- Carrying Bag
Trusted & Verified

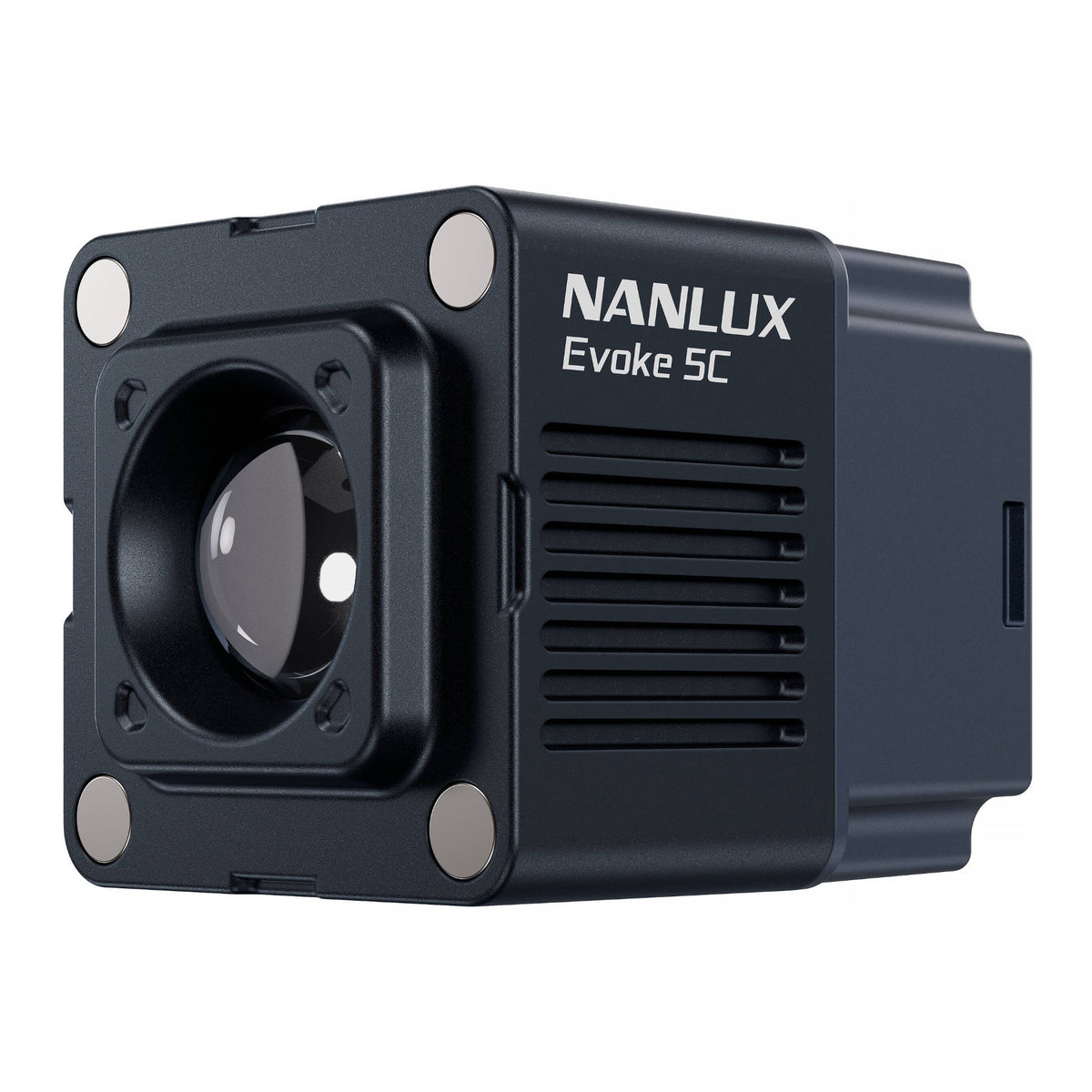

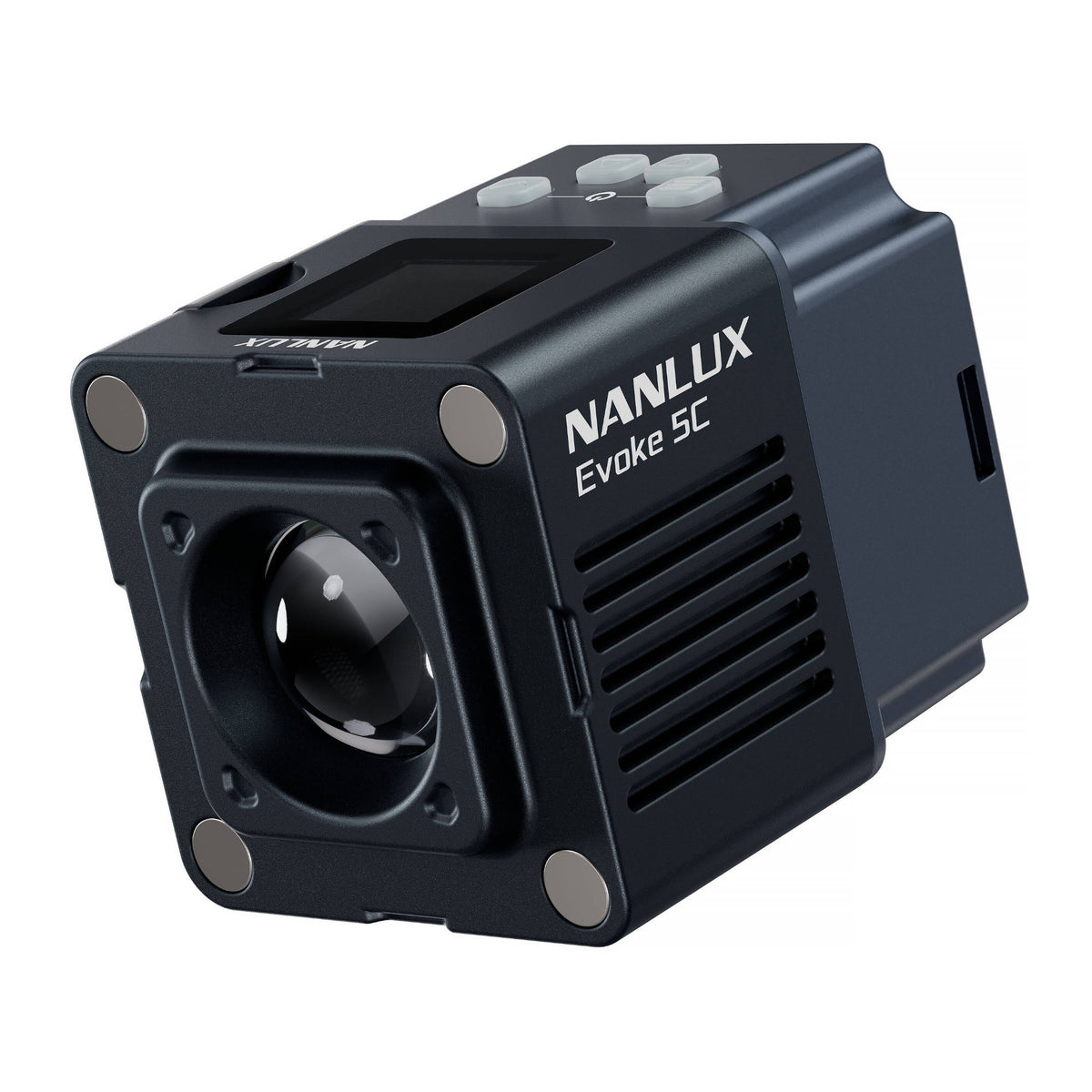

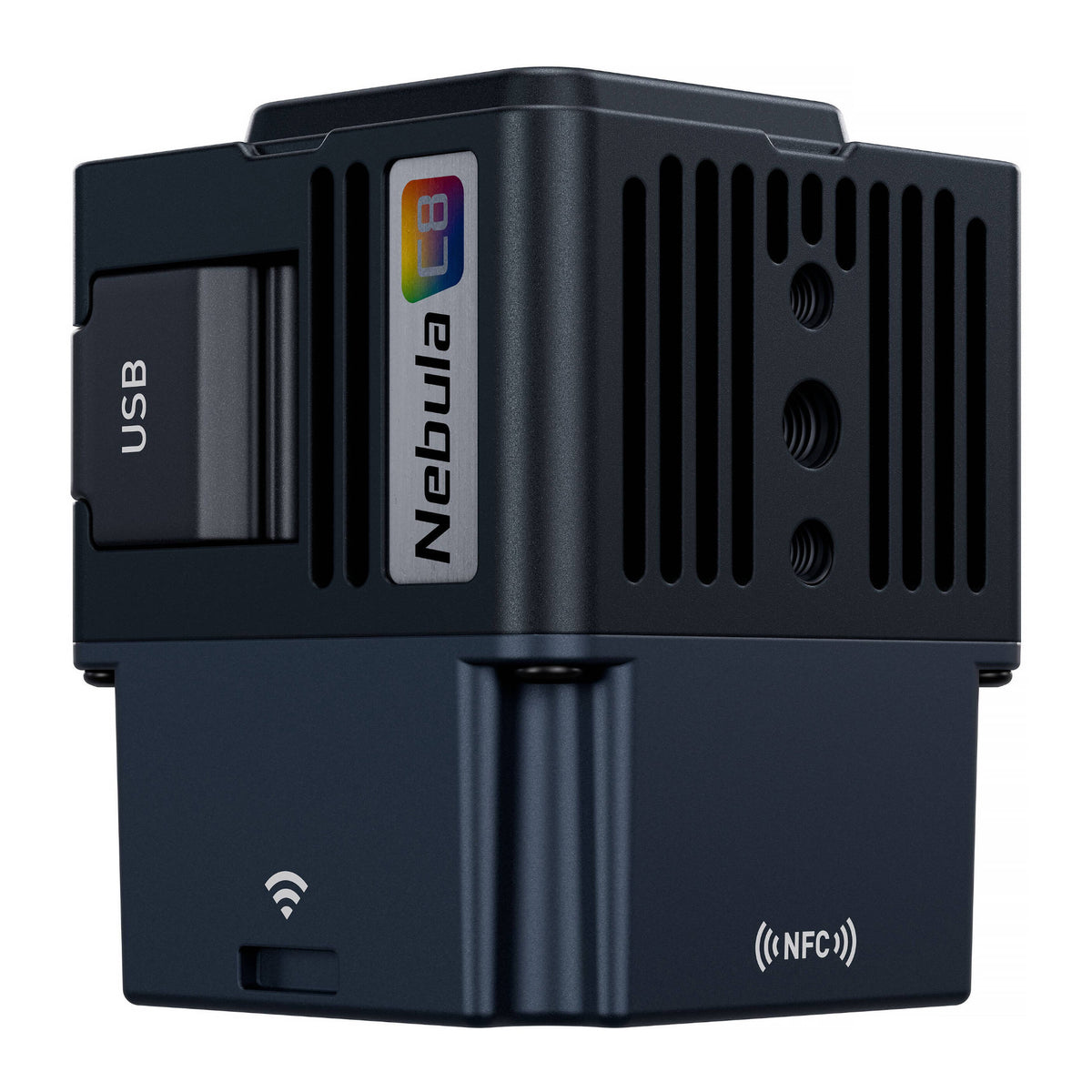

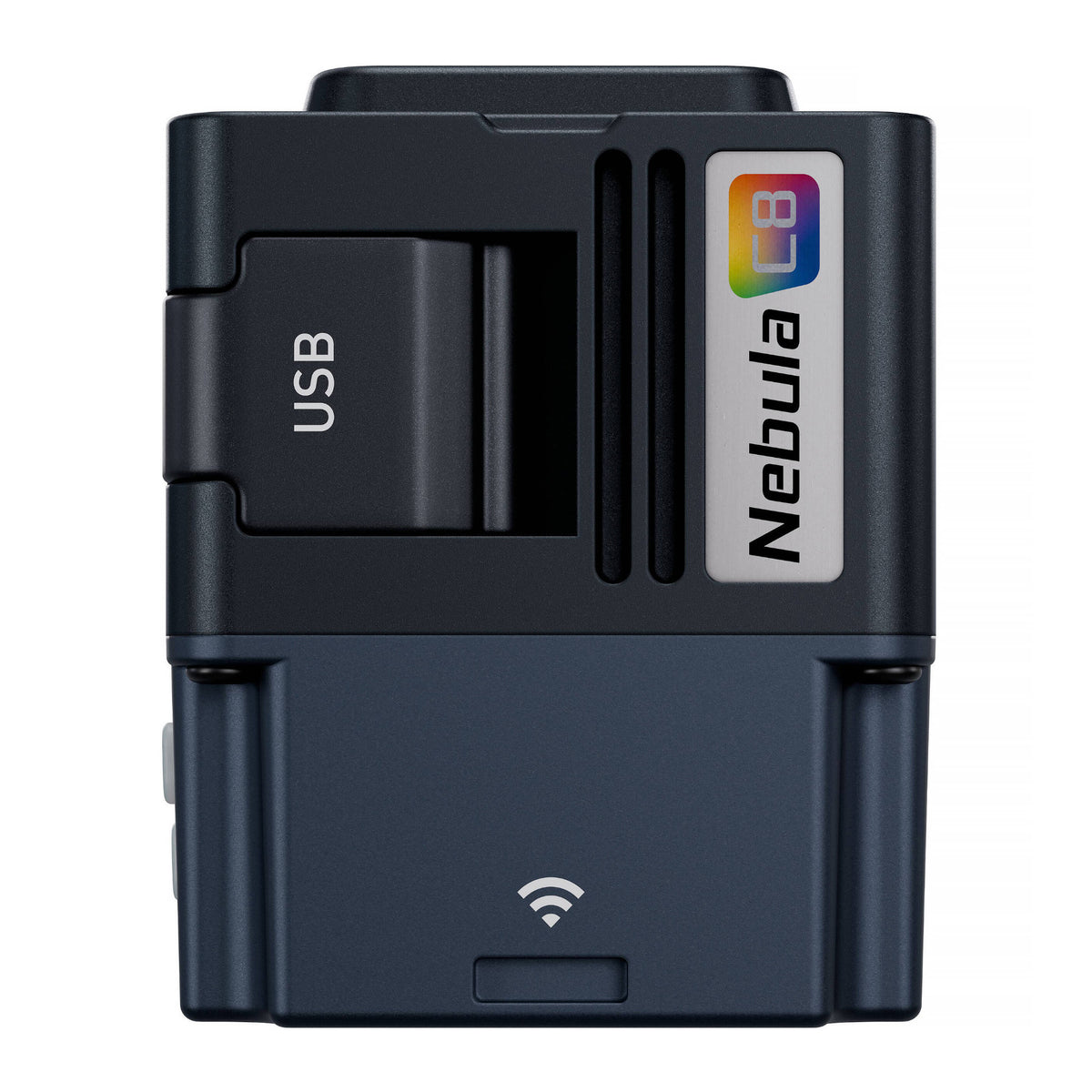

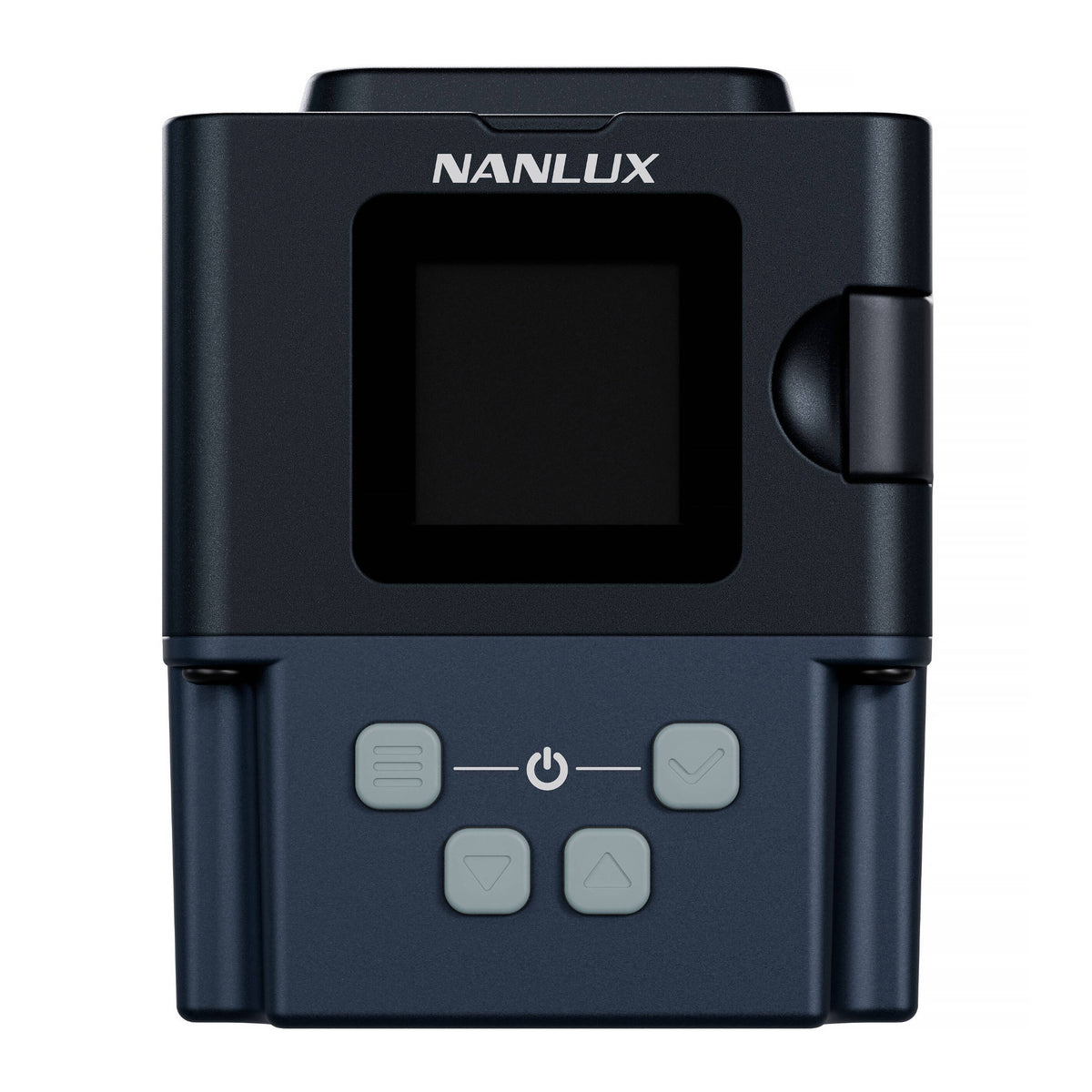

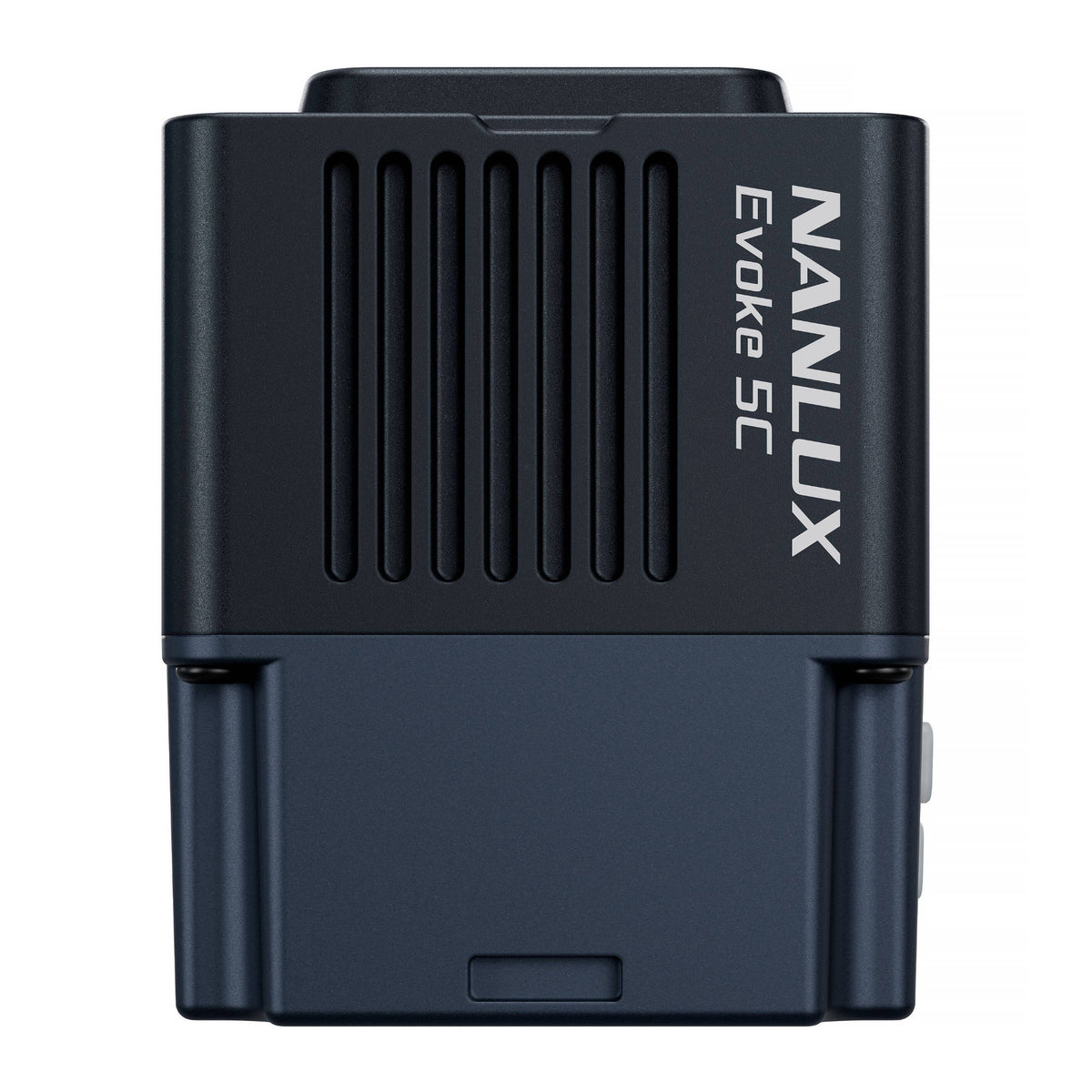

NANLUX Evoke 5C Full-Color LED Spot Light with Yoke, Magnetic Accessories and Case
- Nebula C8 eight color engine spans 1000K to 20000K with green and magenta adjustment
- Average CRI and TLCI ratings of 98 support color critical lighting
- 6 watt output reaches 5970 lux at 5600K from 0.3 meter
- 25 degree beam with 0 to 100% dimming in 1% increments
- Internal 1300 milliamp hour battery runs 50 minutes at full output
- 160 g body measures 2.2 × 1.73 × 1.77 inches for discreet placement
- Front and rear magnetic mounts support dedicated accessory workflows
- IP67 metal body supports water protection for 30 minutes at 1 meter
The NANLUX Evoke 5C is a compact full color LED spotlight built for precise lighting in tight spaces. Its compact design makes it exceptionally portable and quick to set up. Its Nebula C8 light engine combines eight color channels and spans 1000K to 20000K with green and magenta adjustment, giving creators broad control over white light and saturated color.

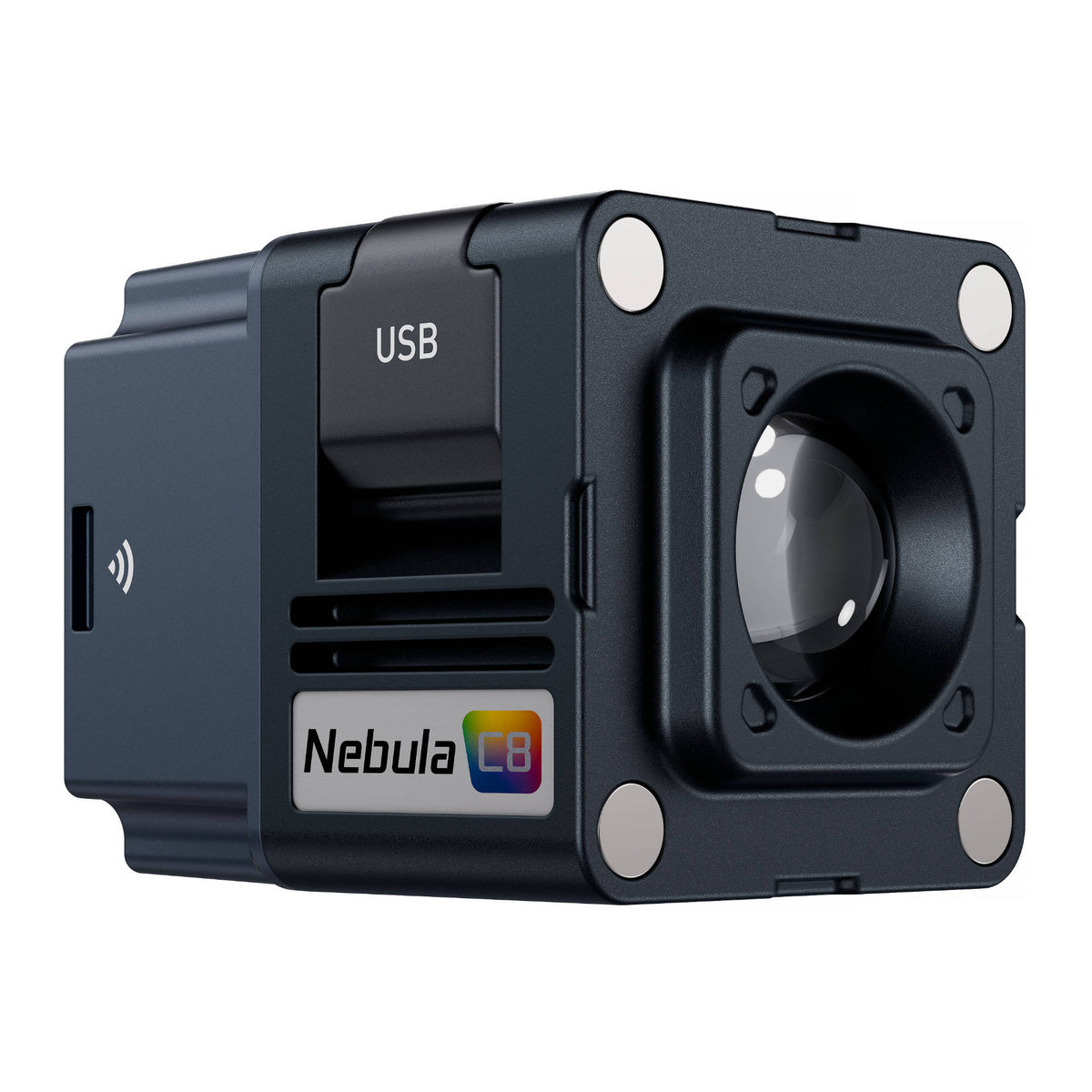

Eight Color Engine and Focused Output
Deep Red, Red, Amber, Lime, Green, Cyan, Blue, and Indigo channels form the Nebula C8 engine. Average CRI and TLCI ratings of 98 support color critical work, while the 25 degree native beam provides a concentrated starting point for fill, accent, practical, macro, and product lighting. At 5600K, the bare fixture produces 5970 lux at 0.3 meter. Dimming runs from 0 to 100% in 1% increments, and the built in effects library adds creative options for motion and atmosphere.
Battery Power, Magnetic Mounting, and Control

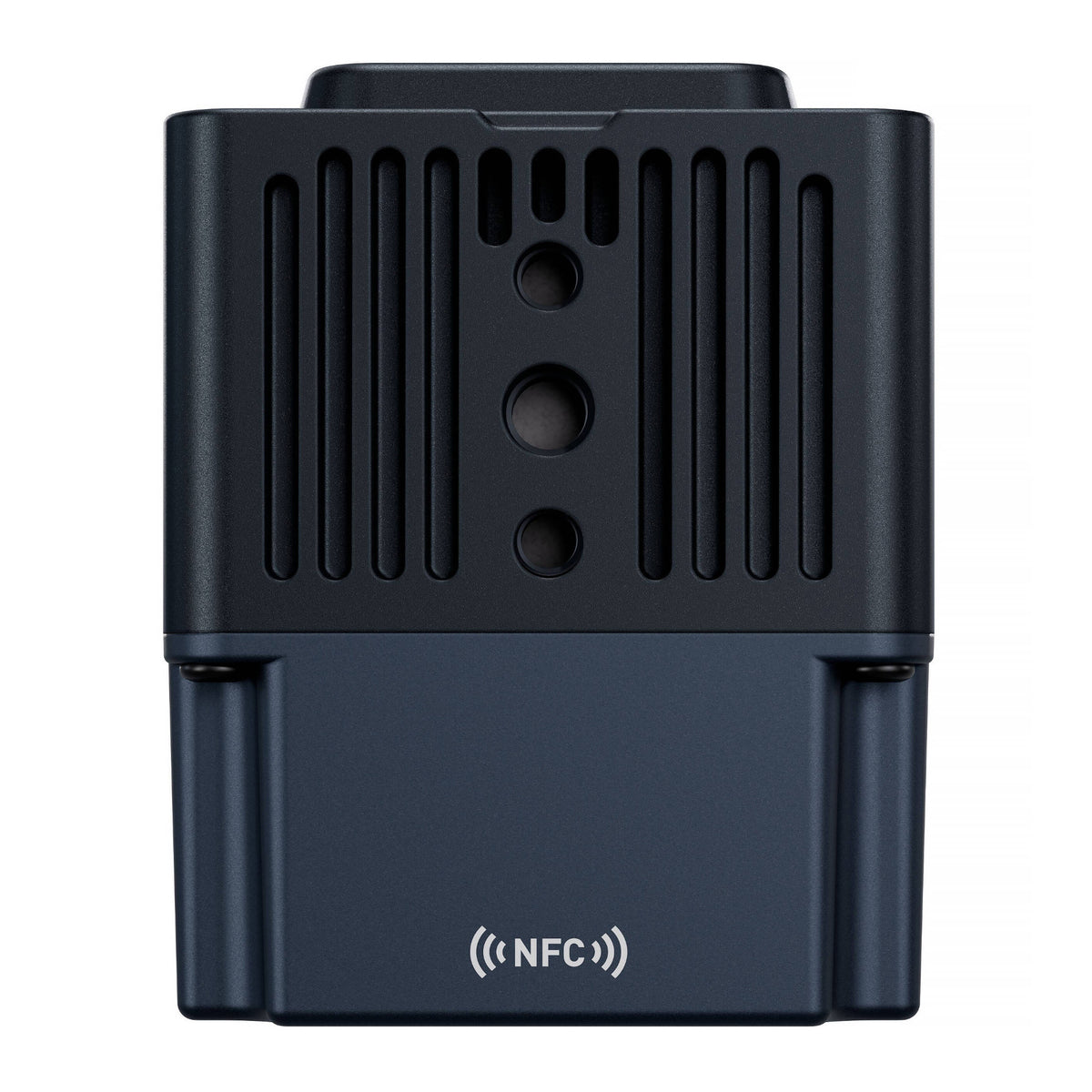

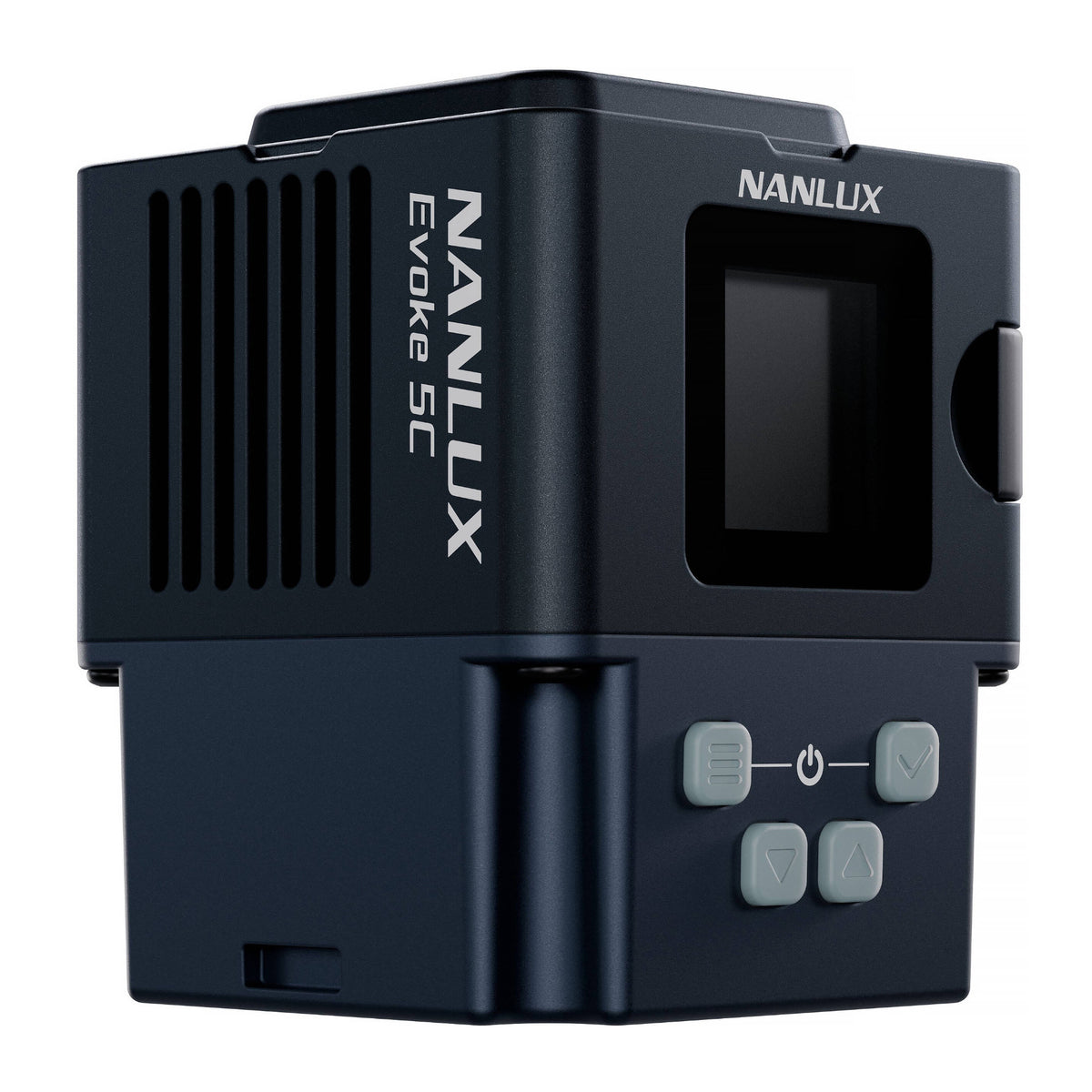

An internal 1300 milliamp hour battery runs for 50 minutes at full output and 2 hours 36 minutes at 1% brightness. USB Type C supports charging and external power. Onboard operation, the NANLINK app, NFC, optional DMX/RDM control, and optional LumenRadio CRMX support different production workflows. Magnetic mounts on the front and rear accept dedicated light shaping, mounting, power, and control accessories, while a 1/4 inch 20 mounting point adds conventional support.
Dustproof and Waterproof, Ready for Underwater
With its IP67 -rated body, the Evoke 5C performs reliably even in challenging environments. For quick underwater shots on set, it delivers consistent lighting for up to 30 minutes at depths of 1 meter without additional protection.

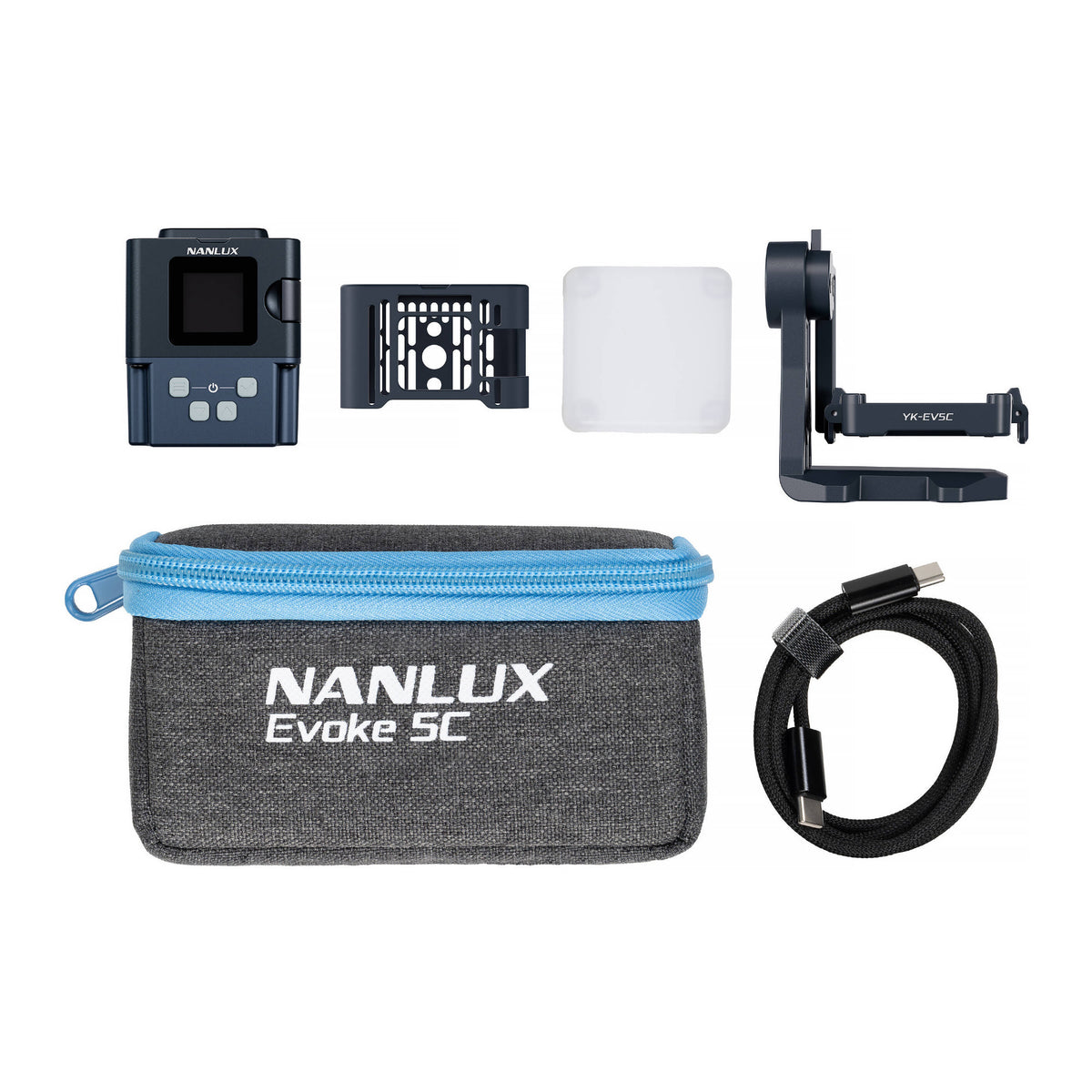

Standard Kit
The standard package includes a yoke, magnetic diffuser, thermal shield, USB Type C cable, and carrying case, giving the Evoke 5C a compact starting setup for location work, tabletop scenes, and discreet in frame lighting.
Model:
| Model | Evoke 5C |
Power:
| Rated Power | 6 watts |
| Input Voltage and Current | DC 5 volts, 2 amperes |
Optical:
| Beam Angle | 25 degrees |
| LED Light Engine | Nebula C8 Light Engine with Deep Red, Red, Amber, Lime, Green, Cyan, Blue, and Indigo |
| CCT | 1000K to 20000K |
| Green and Magenta Adjustment | ±200 |
| CRI | Average 98 |
| TLCI | Average 98 |
| TM-30 Rf | Average 96 |
| TM-30 Rg | Average 100 |
| SSI at 3200K | 86 |
| SSI at 5600K | 78 |
| Dimming | 0% to 100% in 1% increments |
Protection:
| IP Rating | IP67 |
Control:
| Control Methods | Onboard, NANLINK App, DMX/RDM, LumenRadio CRMX, NFC |
| DMX/RDM Control | Via USB Type C to DMX Adapter Cable |
| LumenRadio CRMX Control | Via Magnetic CRMX Module |
Special Effects:
| Special Effects | CCT Loop, INT Loop, HUE Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion, Welding |
Battery:
| Battery Capacity | 3.7 volts, 1300 milliamp hours |
| Battery Runtime at 100% Brightness | 50 minutes |
| Battery Runtime at 1% Brightness | 2 hours 36 minutes |
Dimensions:
| Light Fixture | 56 × 44 × 45 millimeters / 2.2 × 1.73 × 1.77 inches |
| USB Type C Cable Length | 1 meter / 39.37 inches |
| AS-MD-EV5C Magnetic Diffuser | 44 × 44 × 11 millimeters / 1.73 × 1.73 × 0.433 inches |
| YK-EV5C Magnetic Yoke | 67 × 42 × 69 millimeters / 2.64 × 1.65 × 2.72 inches |
| AS-MTS-EV5C Magnetic Thermal Shield | 48 × 48 × 31 millimeters / 1.89 × 1.89 × 1.22 inches |
| Carrying Bag | 135 × 50 × 75 millimeters / 5.31 × 1.97 × 2.95 inches |
Weight:
| Light Fixture | 0.16 kilograms / 0.353 pounds |
| USB Type C Cable | 0.028 kilograms / 0.0617 pounds |
| AS-MD-EV5C Magnetic Diffuser | 0.008 kilograms / 0.0176 pounds |
| YK-EV5C Magnetic Yoke | 0.062 kilograms / 0.137 pounds |
| AS-MTS-EV5C Magnetic Thermal Shield | 0.009 kilograms / 0.002 pounds |
| Carrying Bag | 0.076 kilograms / 0.168 pounds |
