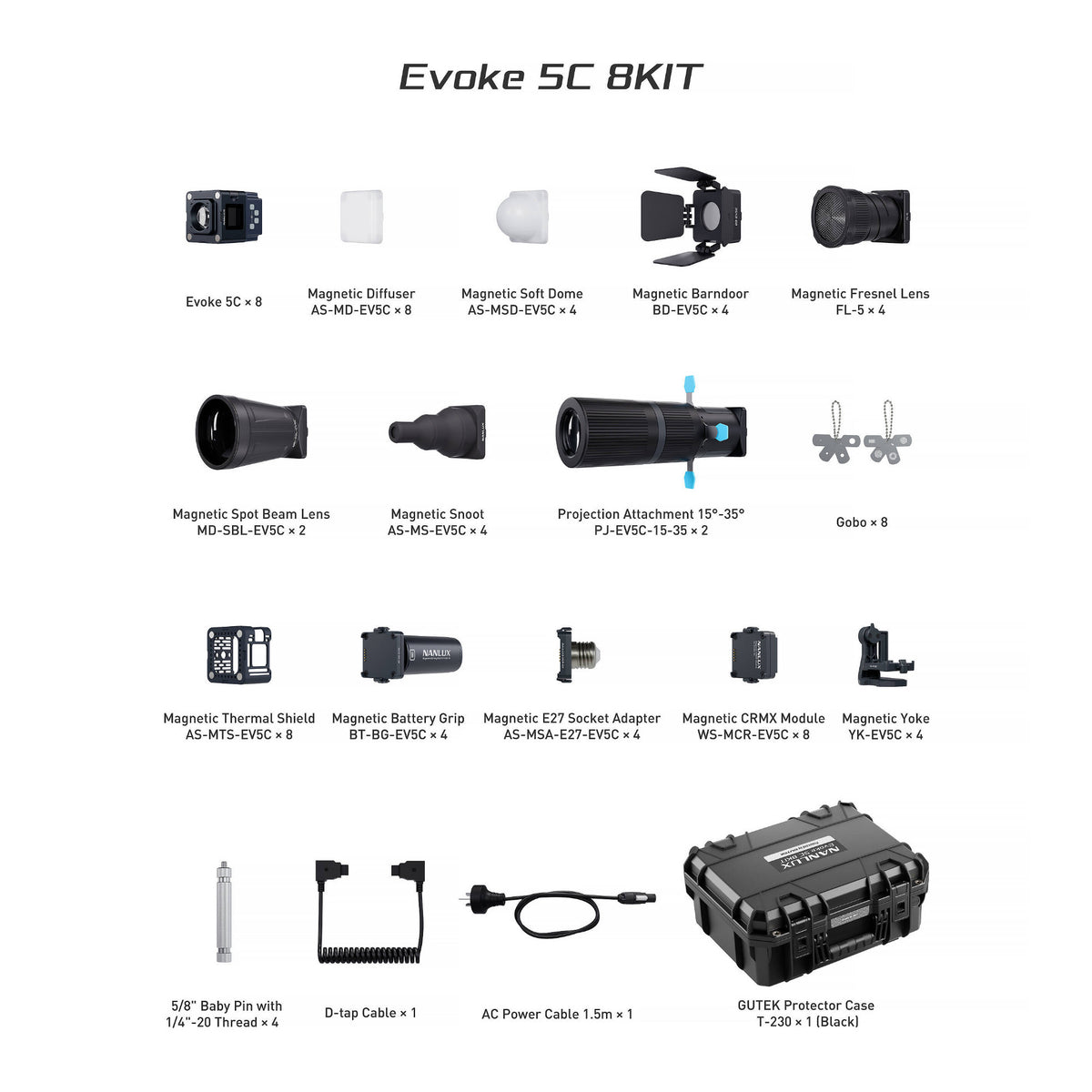

- 8 x Evoke 5C
- 8 x Magnetic Diffuser
- 4 x Magnetic Fresnel Lens
- 4 x Magnetic Soft Dome
- 4 x Magnetic Barndoor
- 4 x Magnetic Snoot
- 2 x Magnetic Spot Beam Lens
- 2 x Projection Attachment 15°-35°
- 8 x Gobo
- 4 x Magnetic Yoke
- 8 x Magnetic Thermal Shield
- 4 x Magnetic Battery Grip
- 4 x Magnetic E27 Socket Adapter
- 8 x Magnetic CRMX Module
- 4 x 5/8 inch Baby Pin with 1/4 inch-20 Thread
- AC Power Cable 1.5m
- D-tap Cable
- User Manual
- GUTEK T-230 Protector Case (Black)
Trusted & Verified

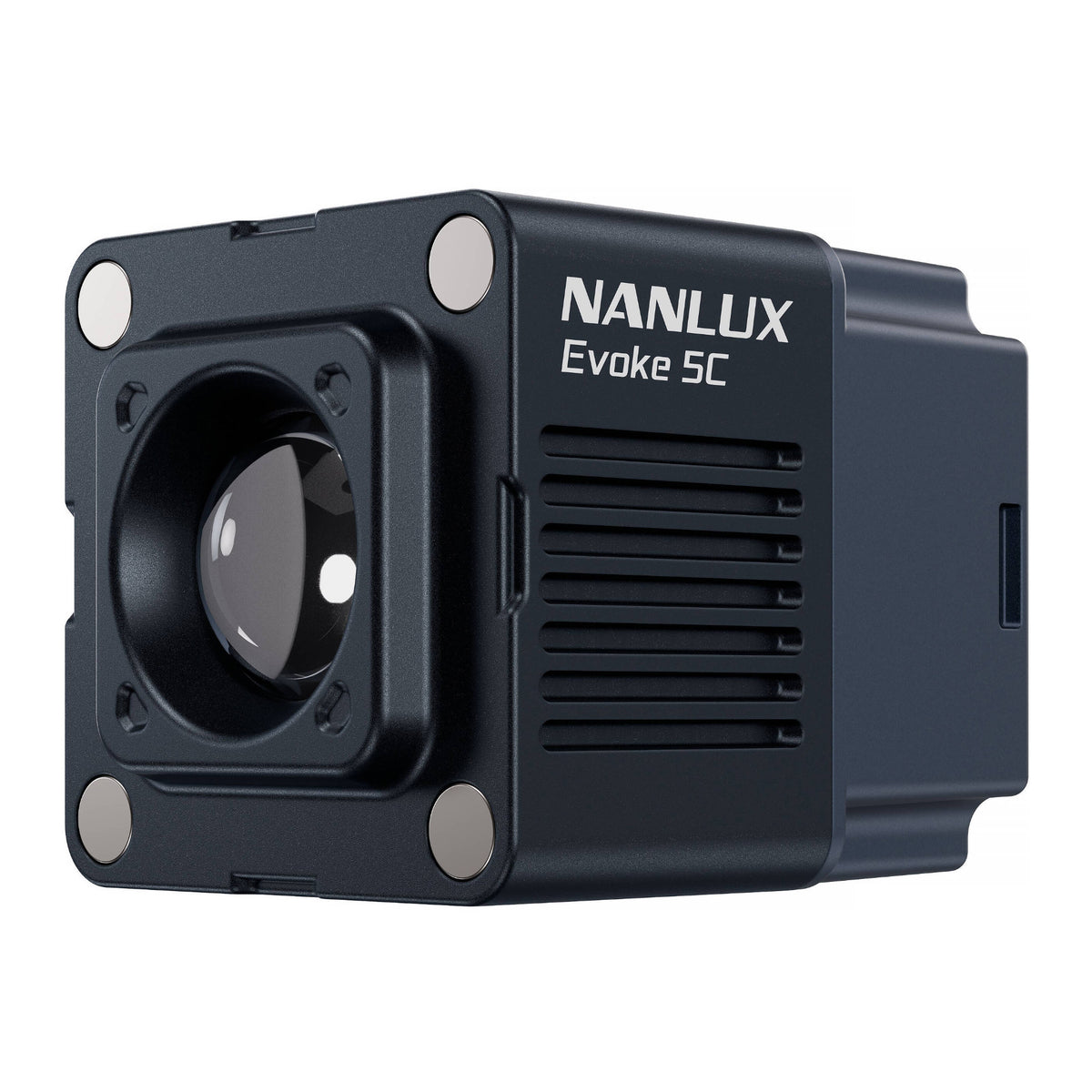

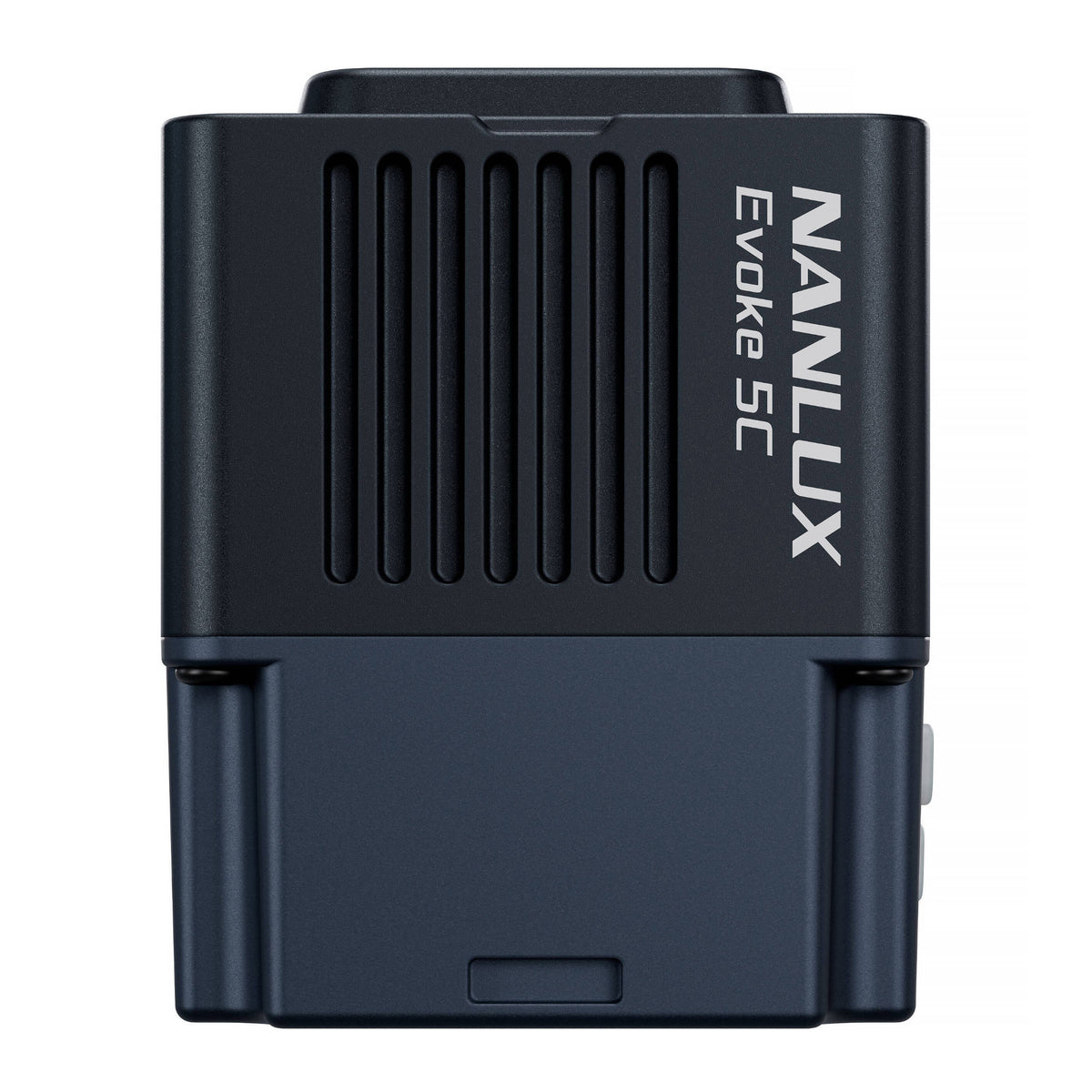

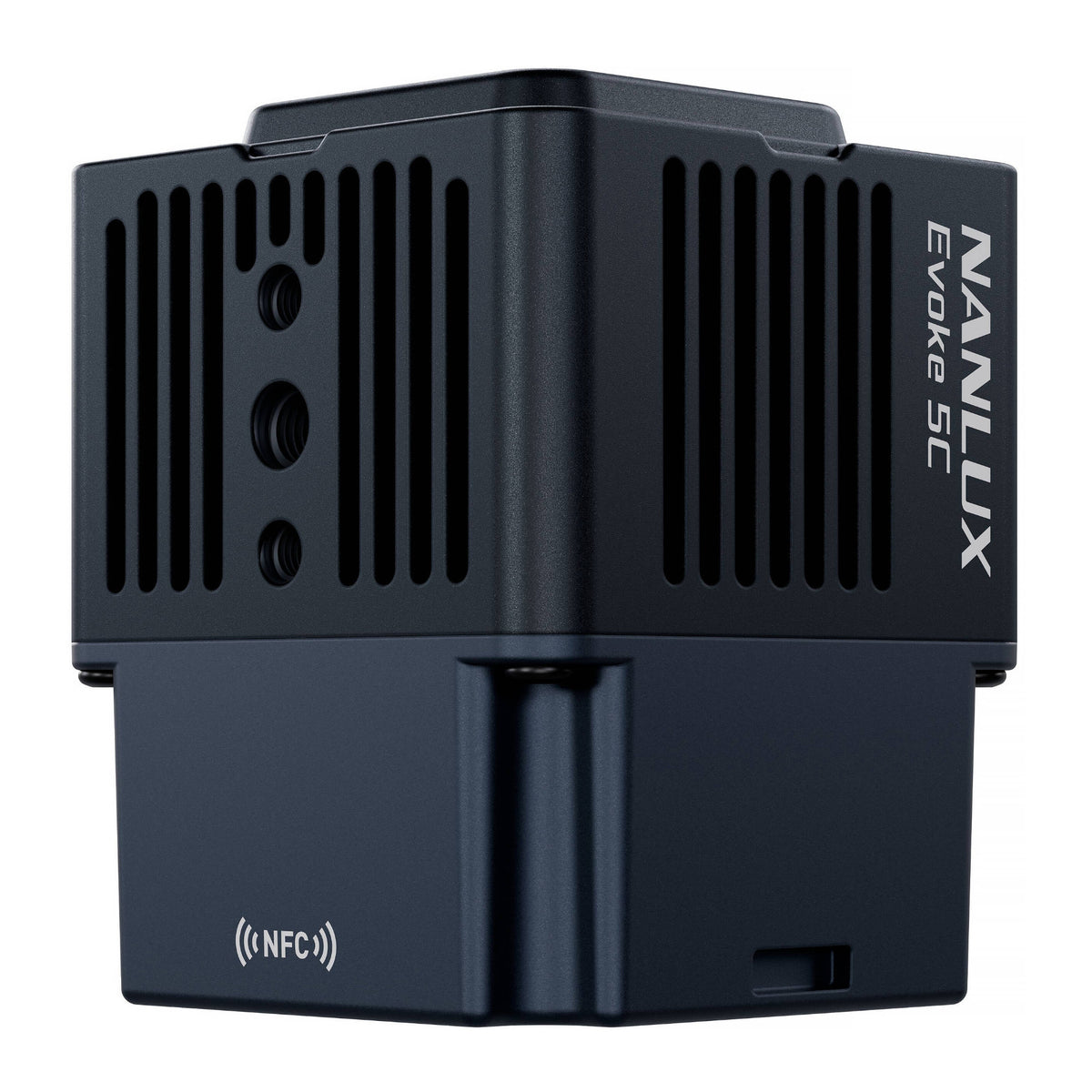

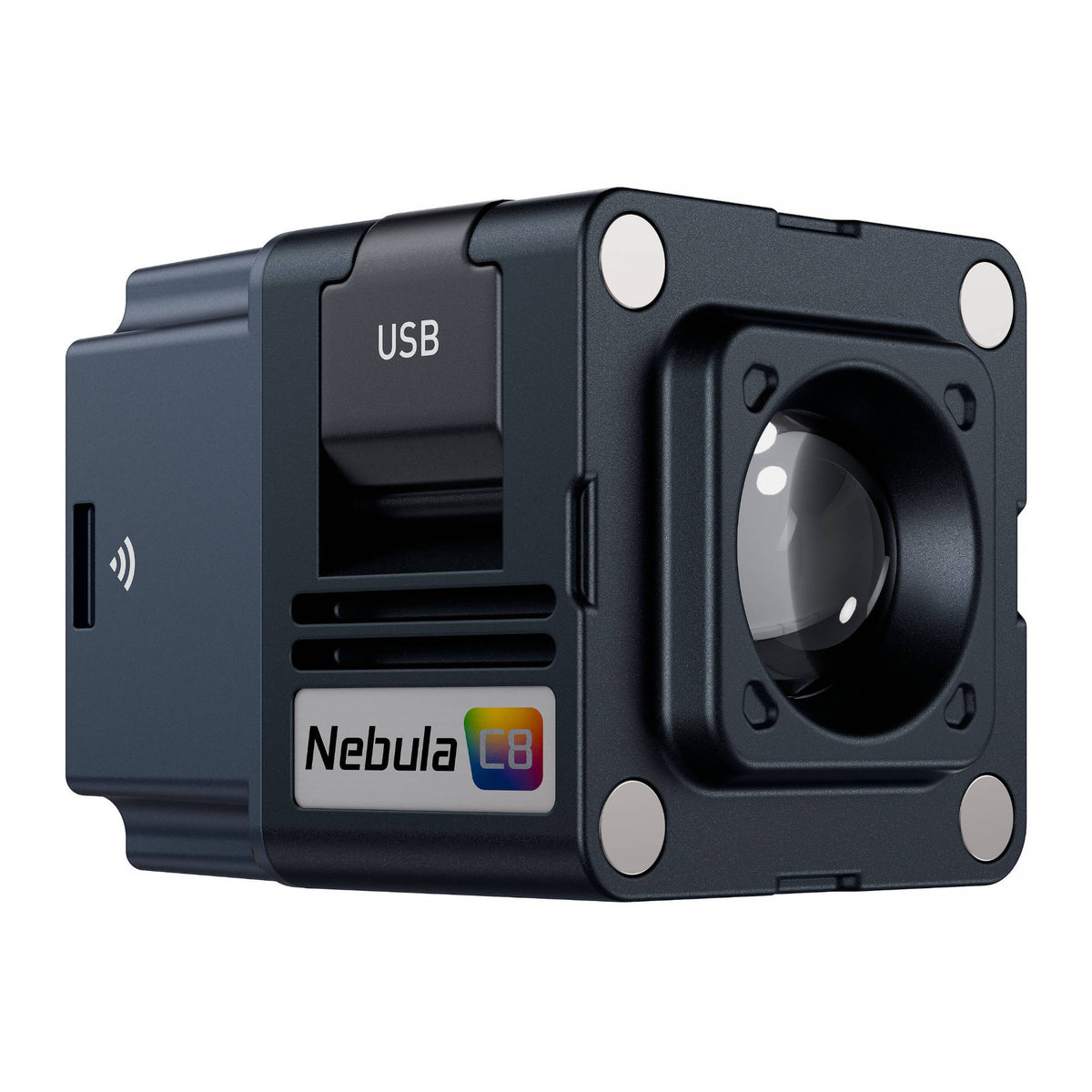

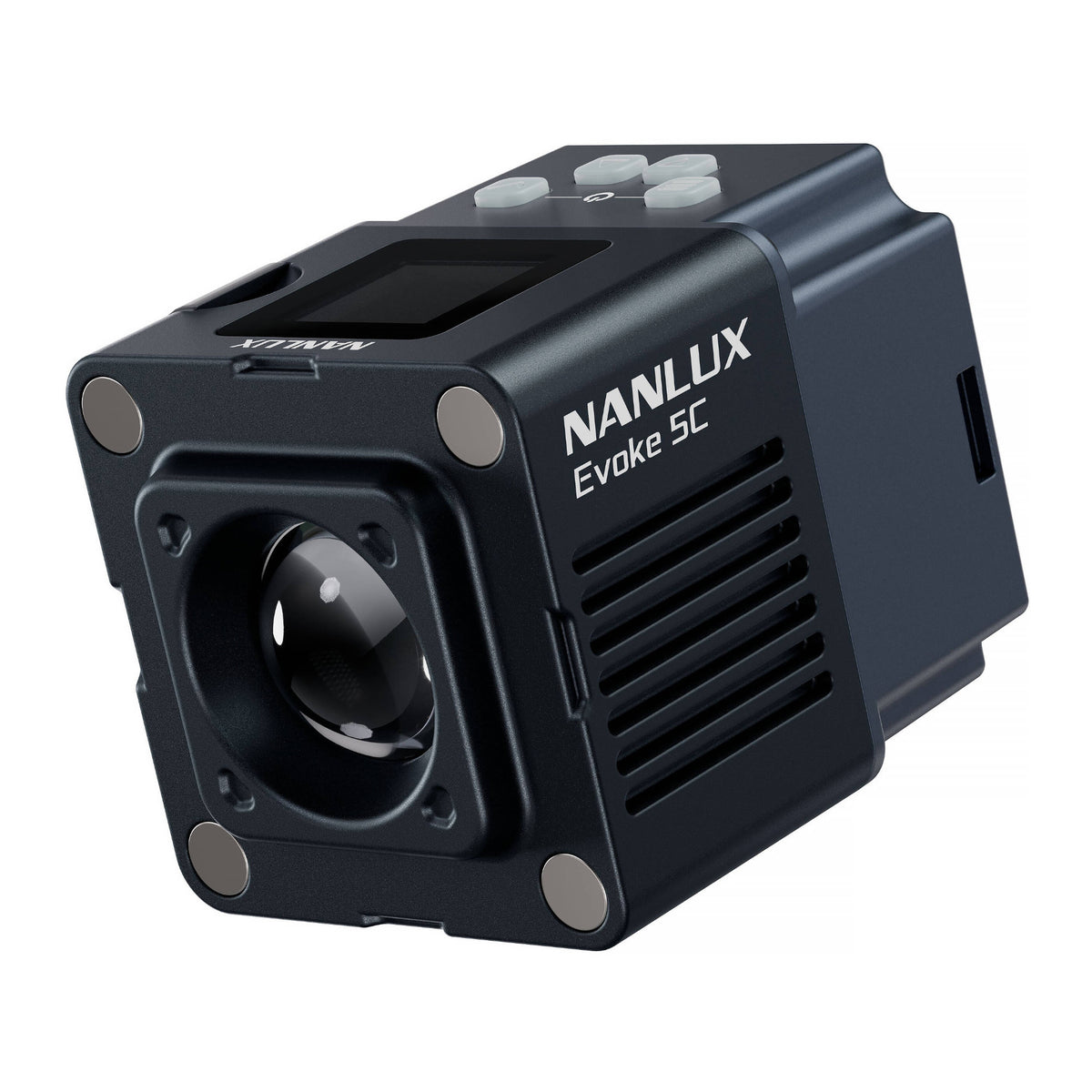

NANLUX Evoke 5C Full-Color LED Spot Light 8-Light Kit with Magnetic Accessories and Protector Case
- Nebula C8 eight color engine spans 1000K to 20000K with green and magenta adjustment
- Average CRI and TLCI ratings of 98 support color critical lighting
- 6 watt output reaches 5970 lux at 5600K from 0.3 meter
- 25 degree beam with 0 to 100% dimming in 1% increments
- Internal 1300 milliamp hour battery runs 50 minutes at full output
- 160 g body measures 2.2 × 1.73 × 1.77 inches for discreet placement
- Front and rear magnetic mounts support dedicated accessory workflows
- IP67 metal body supports water protection for 30 minutes at 1 meter

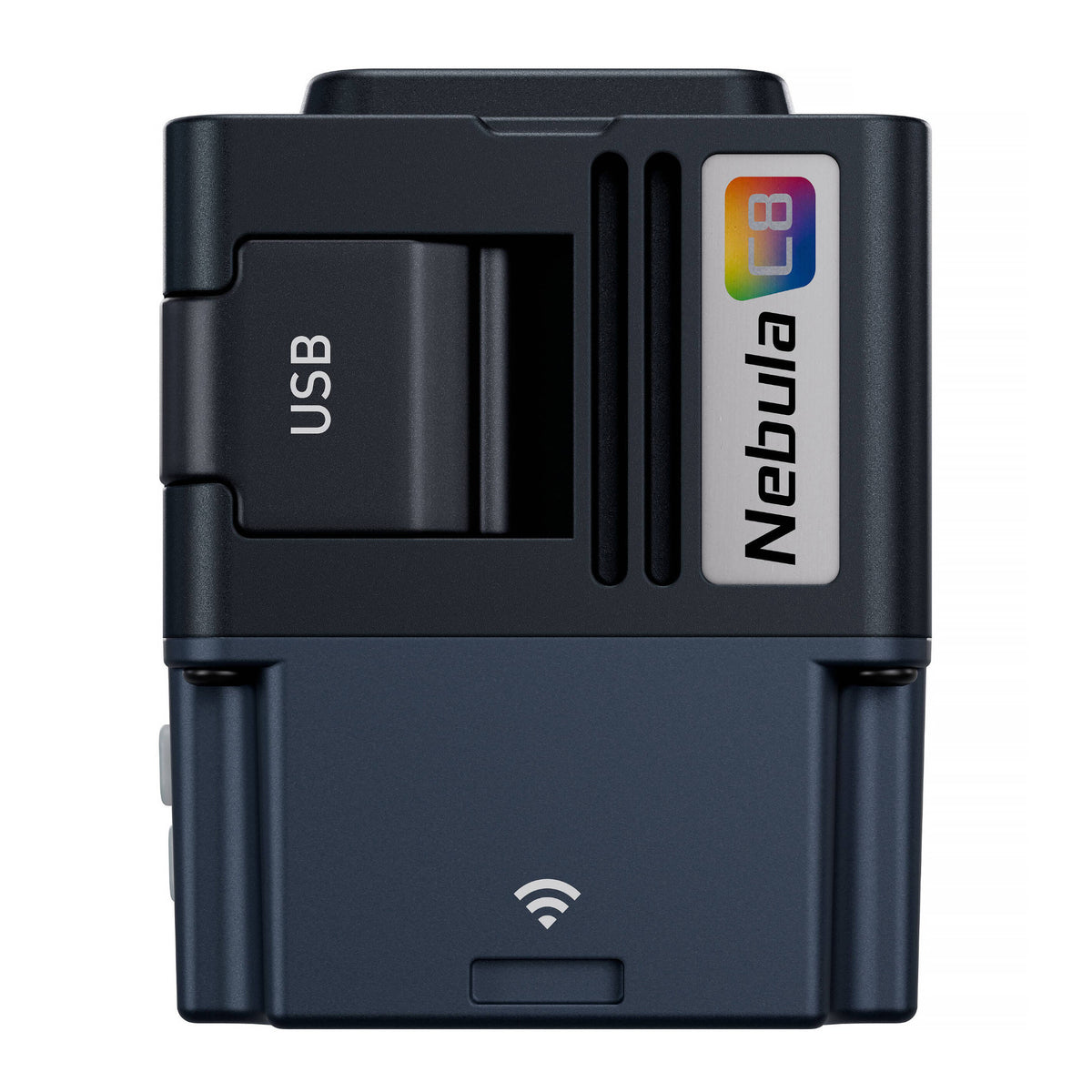

The NANLUX Evoke 5C LED Full Color Spotlight 8 Light Kit scales the compact Evoke 5C into a coordinated multi light package. Its compact design makes it exceptionally portable and quick to set up. The Nebula C8 engine uses eight color channels, spans 1000K to 20000K, and adds green and magenta adjustment for broad white light and saturated color control.
Eight Evoke 5C Fixtures for Distributed Lighting
Each light combines Deep Red, Red, Amber, Lime, Green, Cyan, Blue, and Indigo channels. Average CRI and TLCI ratings of 98 support color critical work, while the 25 degree native beam gives each fixture a focused starting point. At 5600K, the bare light produces 5970 lux at 0.3 meter. Dimming runs from 0 to 100% in 1% increments, and the internal battery provides 50 minutes of runtime at full output.
Expanded Shaping, Wireless Control, and Charging Storage

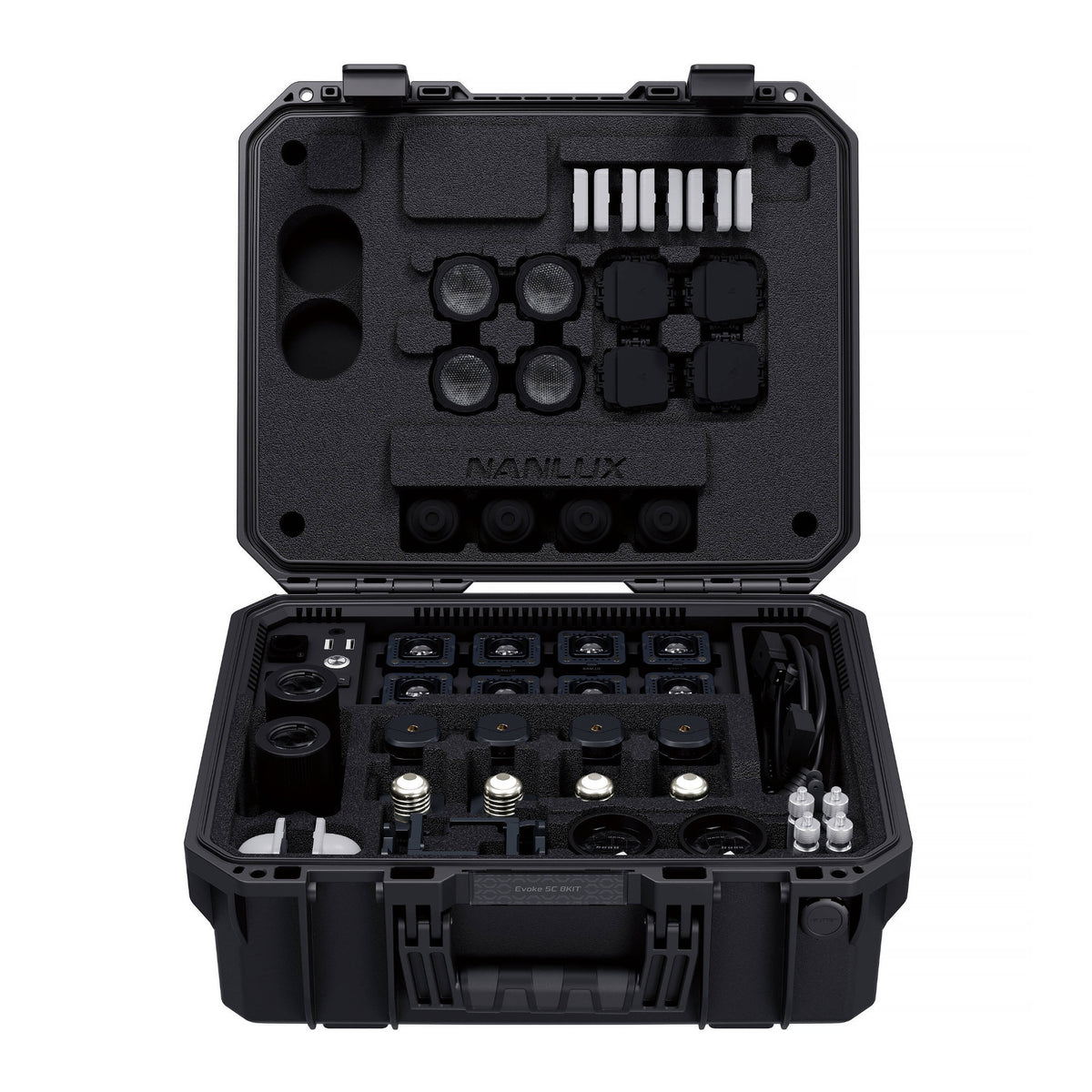

The kit brings together magnetic beam shaping, diffusion, mounting, power, and CRMX control options for multiple fixtures. The protector charging case uses magnetic contact points to charge Evoke 5C fixtures and battery grips when connected to AC, DC, or PD power, and two USB ports can charge external devices. This helps centralize transport, charging, and accessory organization for larger productions.

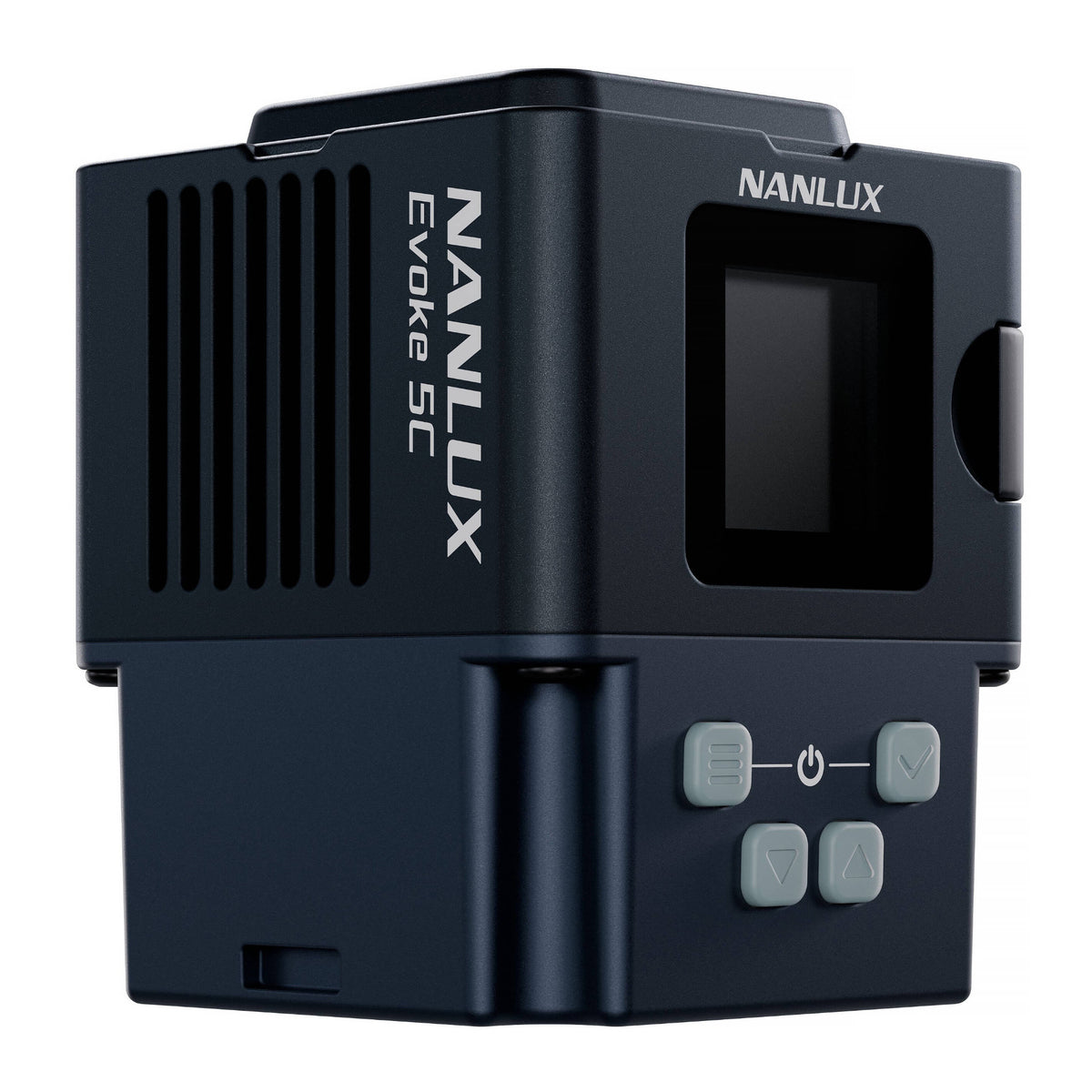

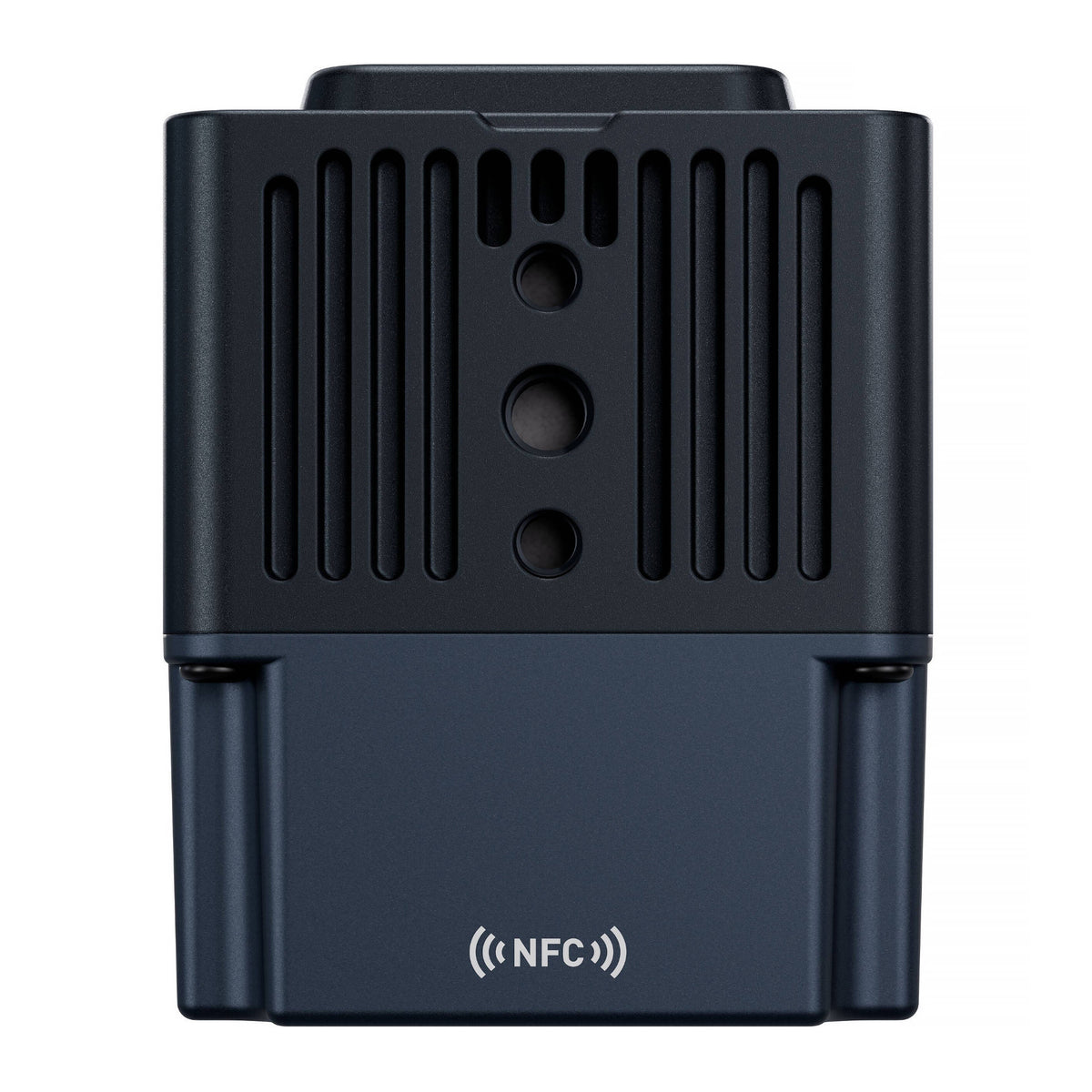

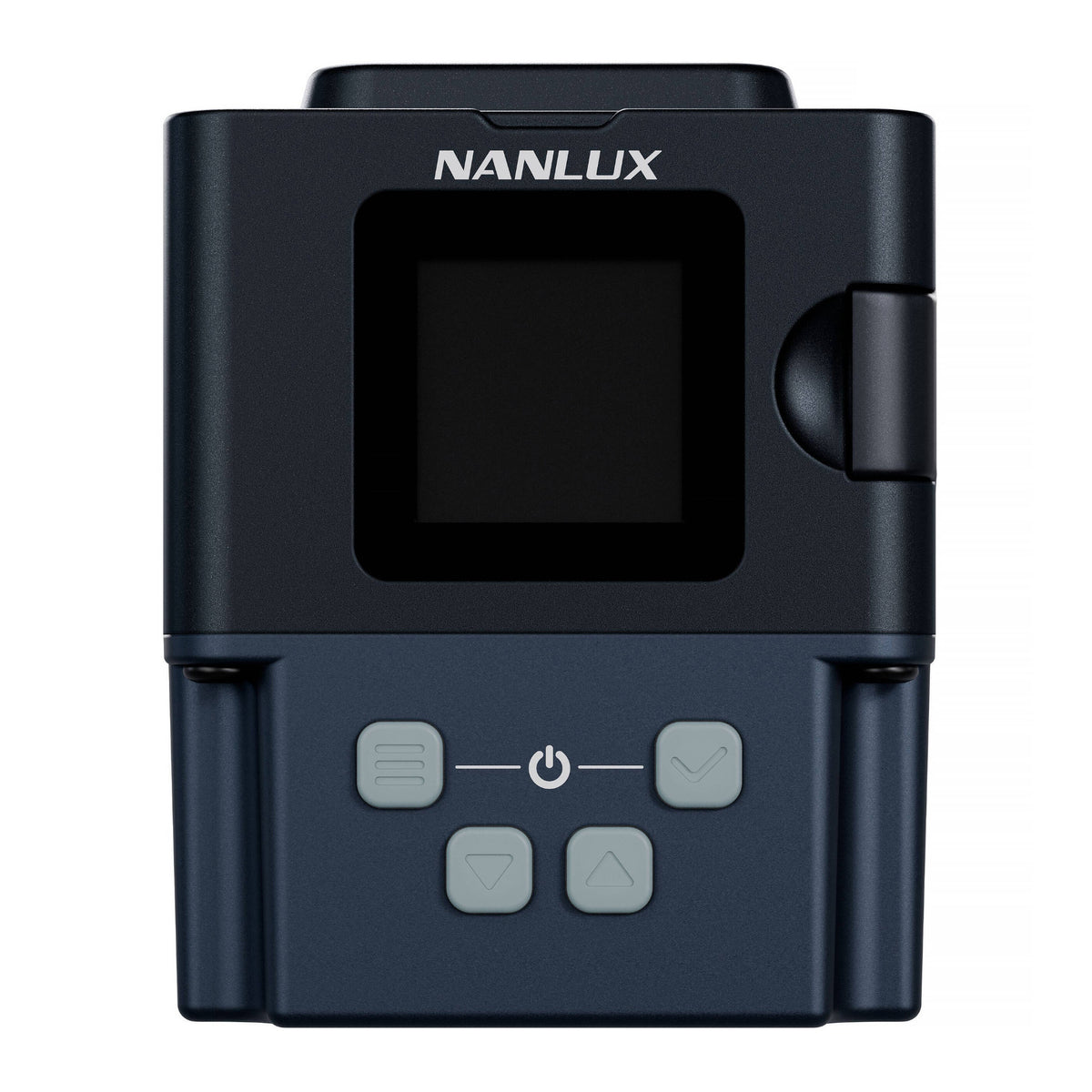

Onboard controls, the NANLINK app, NFC, DMX/RDM, and LumenRadio CRMX support integration into different lighting workflows, while the compact form keeps multi light setups practical for product work, macro scenes, fill, accents, and discreet in frame placement.
Dustproof and Waterproof, Ready for Underwater
With its IP67 -rated body, the Evoke 5C performs reliably even in challenging environments. For quick underwater shots on set, it delivers consistent lighting for up to 30 minutes at depths of 1 meter without additional protection.
Model:
| Model | Evoke 5C |
Power:
| Rated Power | 6 watts |
| Input Voltage and Current | DC 5 volts, 2 amperes |
Optical:
| Beam Angle | 25 degrees |
| LED Light Engine | Nebula C8 Light Engine with Deep Red, Red, Amber, Lime, Green, Cyan, Blue, and Indigo |
| CCT | 1000K to 20000K |
| Green and Magenta Adjustment | ±200 |
| CRI | Average 98 |
| TLCI | Average 98 |
| TM-30 Rf | Average 96 |
| TM-30 Rg | Average 100 |
| SSI at 3200K | 86 |
| SSI at 5600K | 78 |
| Dimming | 0% to 100% in 1% increments |
Protection:
| IP Rating | IP67 |
Control:
| Control Methods | Onboard, NANLINK App, DMX/RDM, LumenRadio CRMX, NFC |
| DMX/RDM Control | Via USB Type C to DMX Adapter Cable |
| LumenRadio CRMX Control | Via Magnetic CRMX Module |
Special Effects:
| Special Effects | CCT Loop, INT Loop, HUE Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion, Welding |
Battery:
| Battery Capacity | 3.7 volts, 1300 milliamp hours |
| Battery Runtime at 100% Brightness | 50 minutes |
| Battery Runtime at 1% Brightness | 2 hours 36 minutes |
Dimensions:
| Light Fixture | 56 × 44 × 45 millimeters / 2.2 × 1.73 × 1.77 inches |
| USB Type C Cable Length | 1 meter / 39.37 inches |
| AS-MD-EV5C Magnetic Diffuser | 44 × 44 × 11 millimeters / 1.73 × 1.73 × 0.433 inches |
| YK-EV5C Magnetic Yoke | 67 × 42 × 69 millimeters / 2.64 × 1.65 × 2.72 inches |
| AS-MTS-EV5C Magnetic Thermal Shield | 48 × 48 × 31 millimeters / 1.89 × 1.89 × 1.22 inches |
| Carrying Bag | 135 × 50 × 75 millimeters / 5.31 × 1.97 × 2.95 inches |
Weight:
| Light Fixture | 0.16 kilograms / 0.353 pounds |
| USB Type C Cable | 0.028 kilograms / 0.0617 pounds |
| AS-MD-EV5C Magnetic Diffuser | 0.008 kilograms / 0.0176 pounds |
| YK-EV5C Magnetic Yoke | 0.062 kilograms / 0.137 pounds |
| AS-MTS-EV5C Magnetic Thermal Shield | 0.009 kilograms / 0.002 pounds |
| Carrying Bag | 0.076 kilograms / 0.168 pounds |
