- Evoke 5C
- USB-C Cable
- Magnetic Diffuser
- Magnetic Fresnel Lens
- Magnetic Soft Dome
- Magnetic Barndoor
- Magnetic Snoot
- Magnetic Thermal Shield
- Magnetic Battery Grip
- User Manual
- Carrying Bag
Trusted & Verified

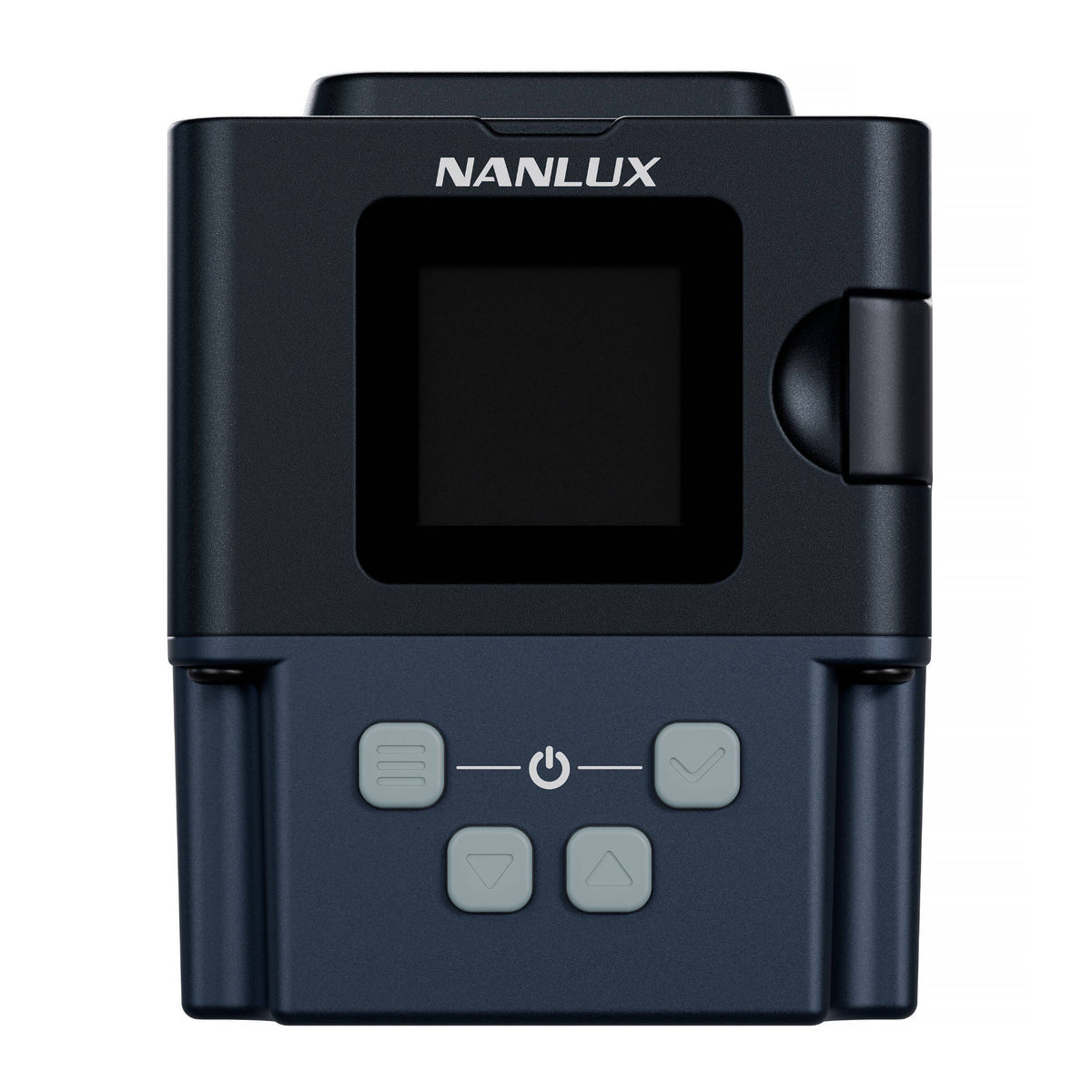

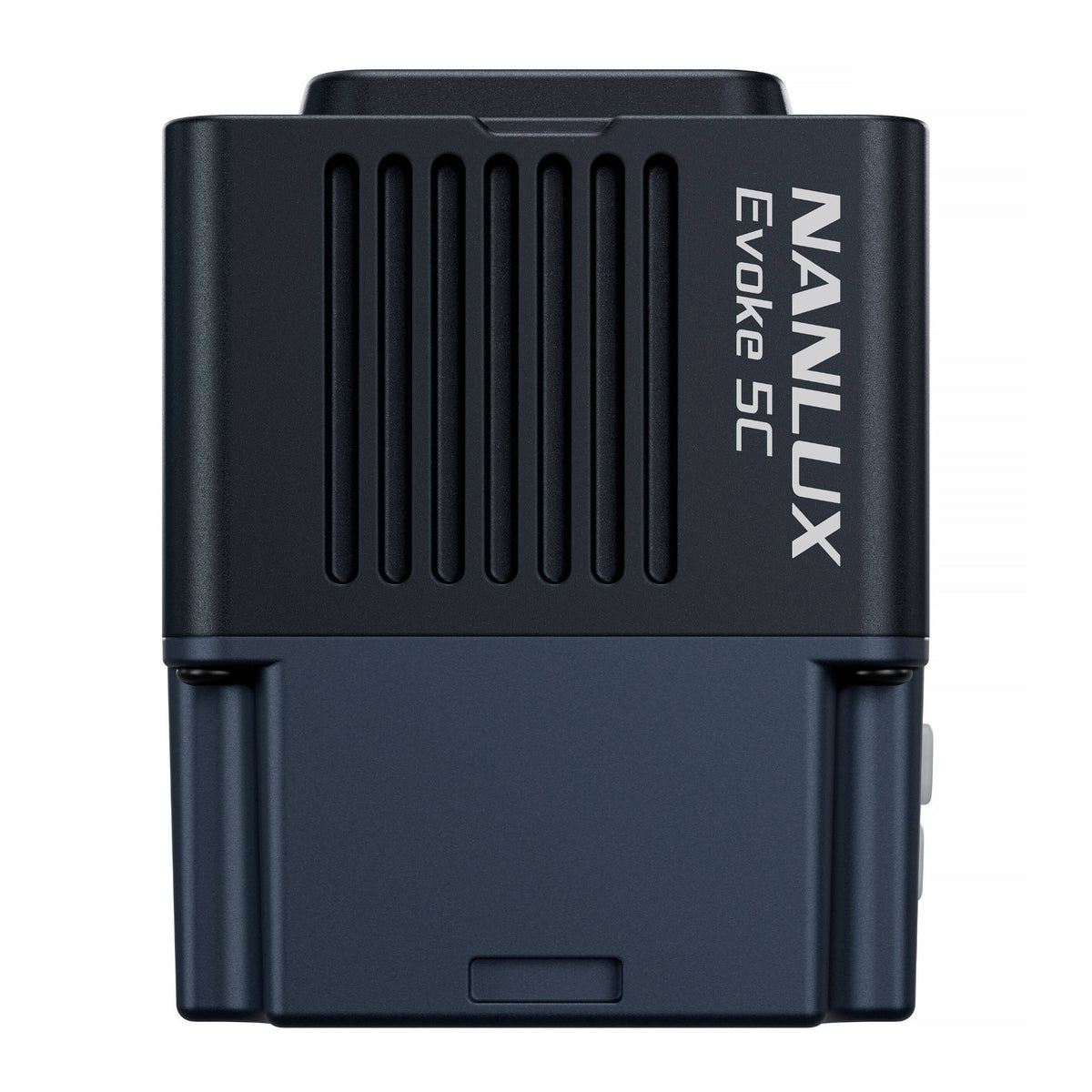

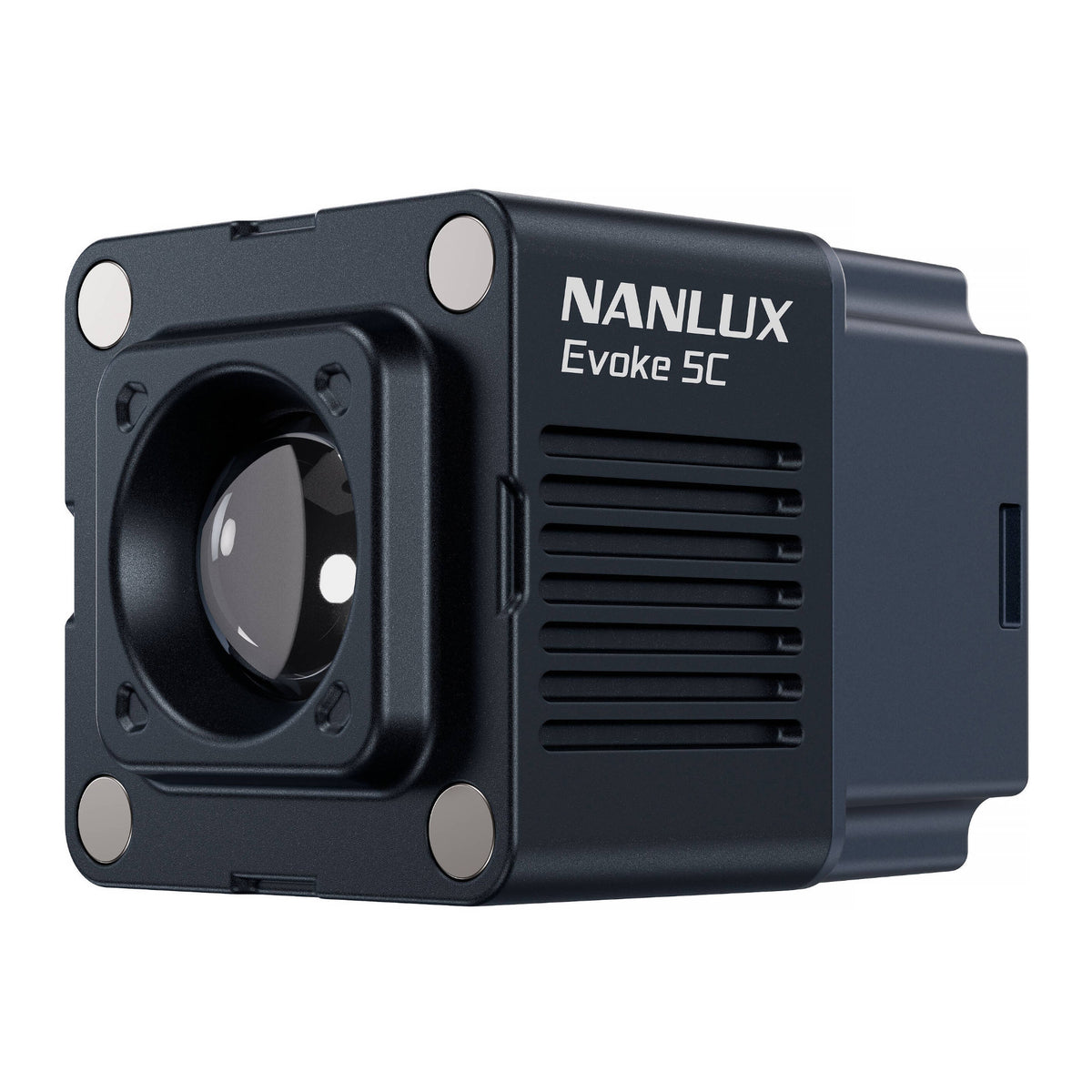

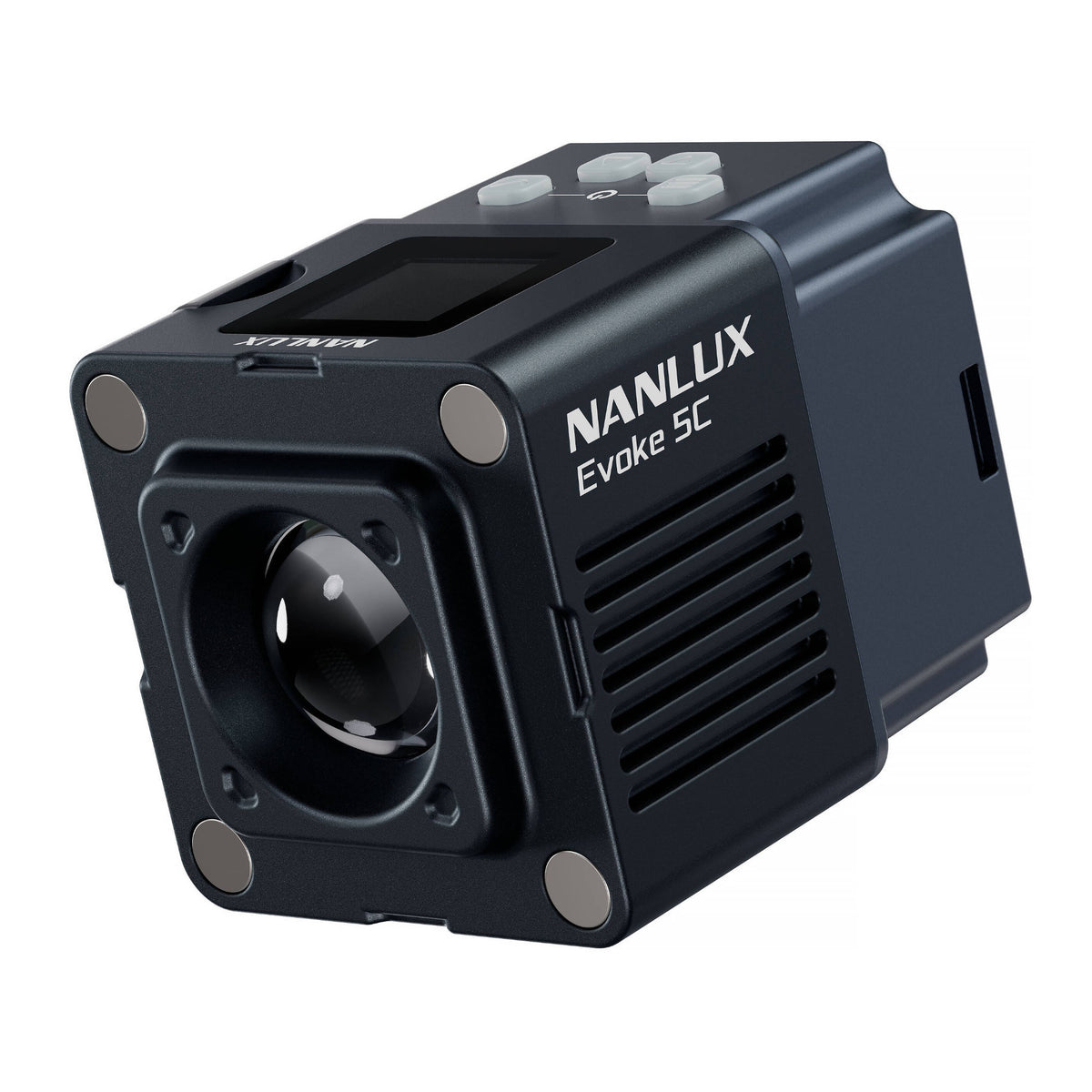

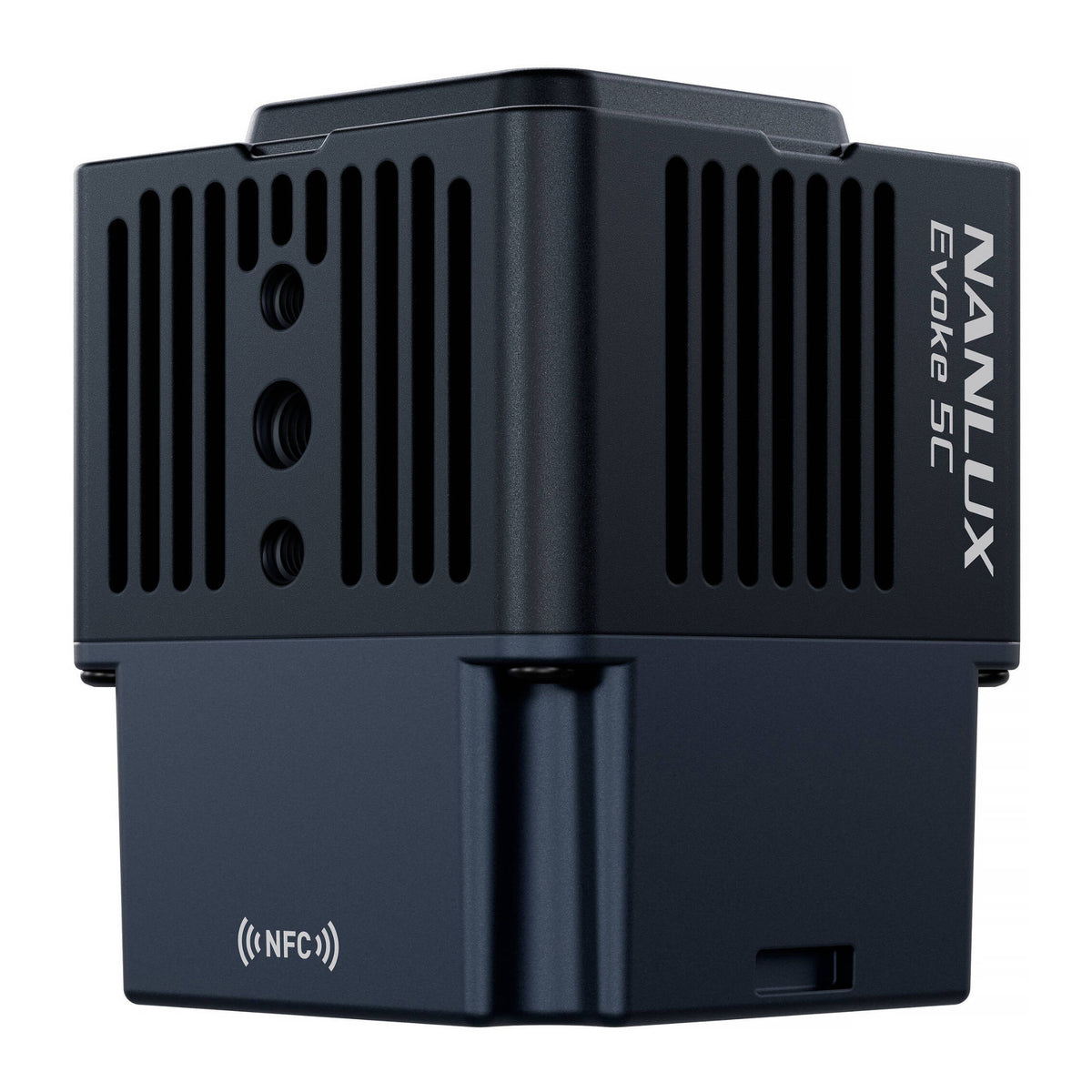

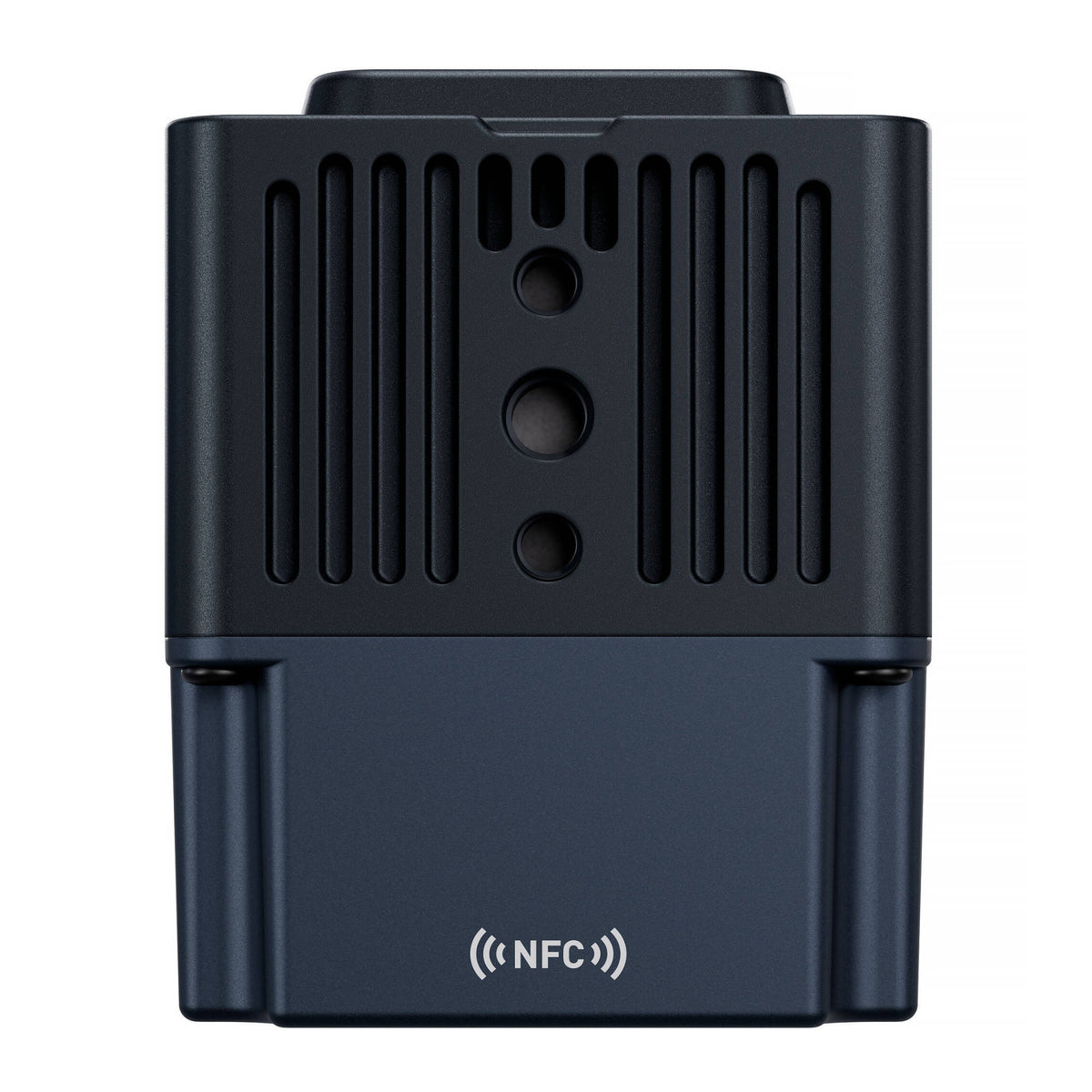

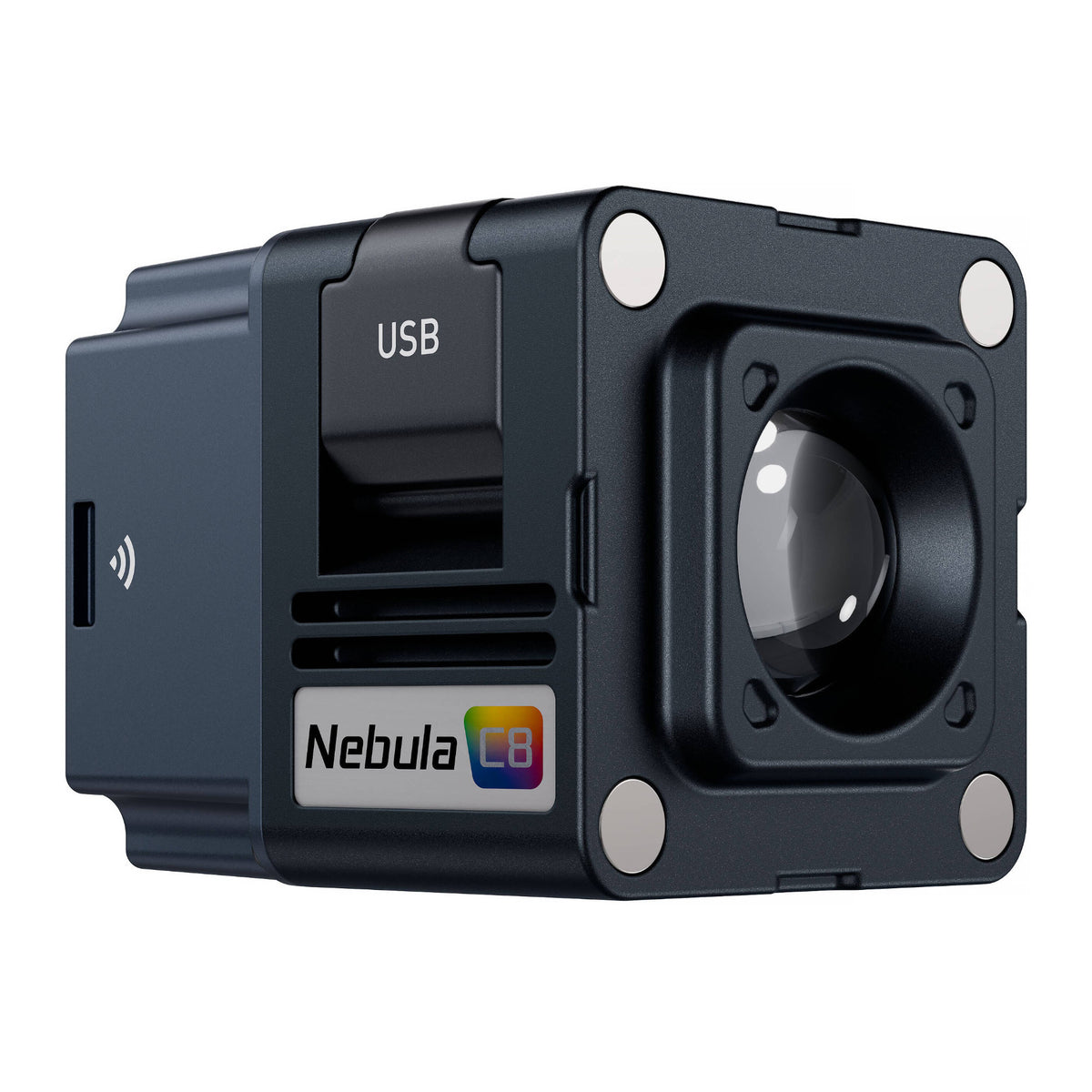

NANLUX Evoke 5C Full-Color LED Spot Light Kit with Fresnel Lens, Battery Grip, and Case
- Nebula C8 eight color engine spans 1000K to 20000K with green and magenta adjustment
- Average CRI and TLCI ratings of 98 support color critical lighting
- 6 watt output reaches 5970 lux at 5600K from 0.3 meter
- 25 degree beam with 0 to 100% dimming in 1% increments
- Internal 1300 milliamp hour battery runs 50 minutes at full output
- 160 g body measures 2.2 × 1.73 × 1.77 inches for discreet placement
- Front and rear magnetic mounts support dedicated accessory workflows
- IP67 metal body supports water protection for 30 minutes at 1 meter
The NANLUX Evoke 5C LED Full Color Spotlight Kit combines the compact Evoke 5C with a broader magnetic shaping and power setup. Its compact design makes it exceptionally portable and quick to set up. Its Nebula C8 engine uses eight color channels, spans 1000K to 20000K, and adds green and magenta adjustment for controlled white light and saturated color work.

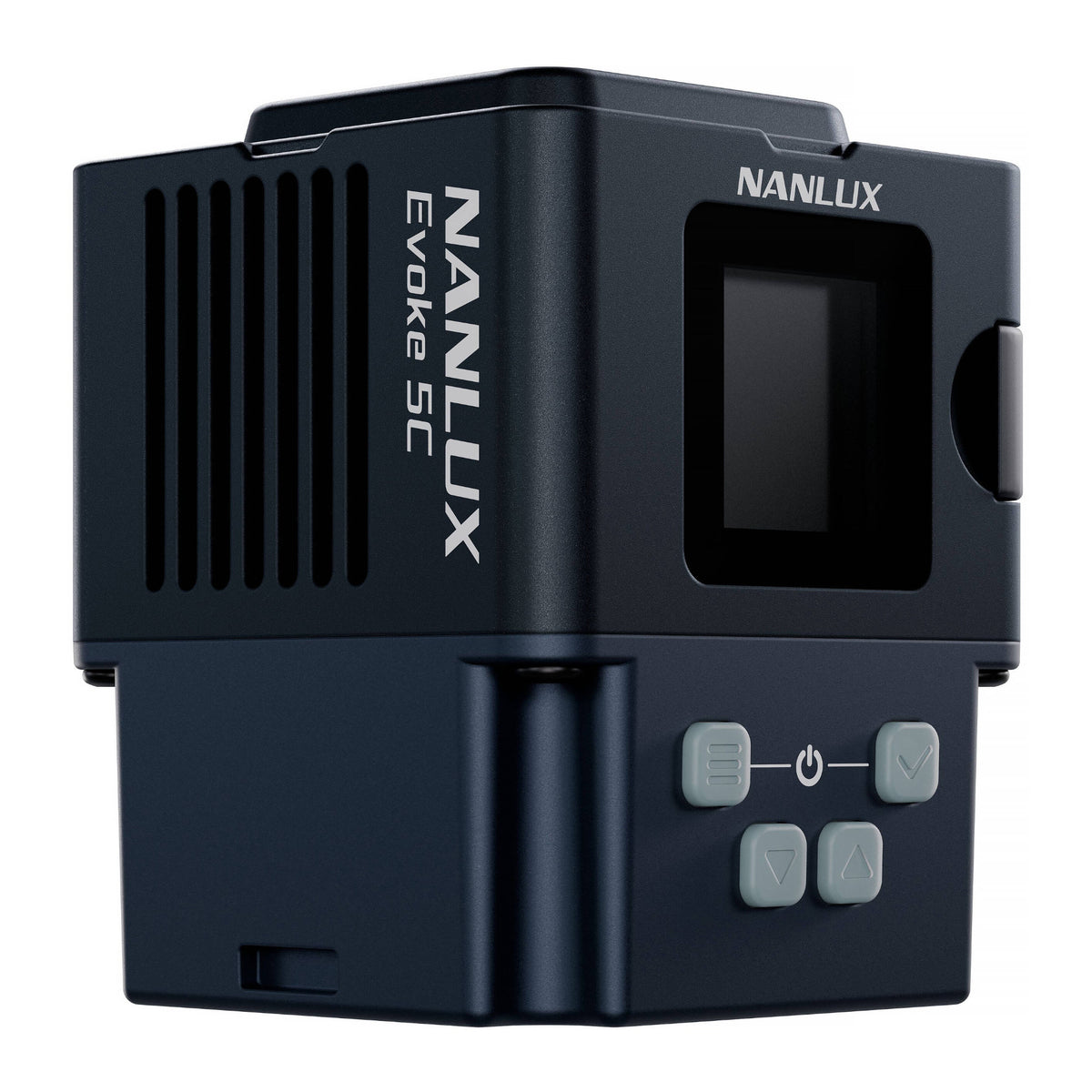

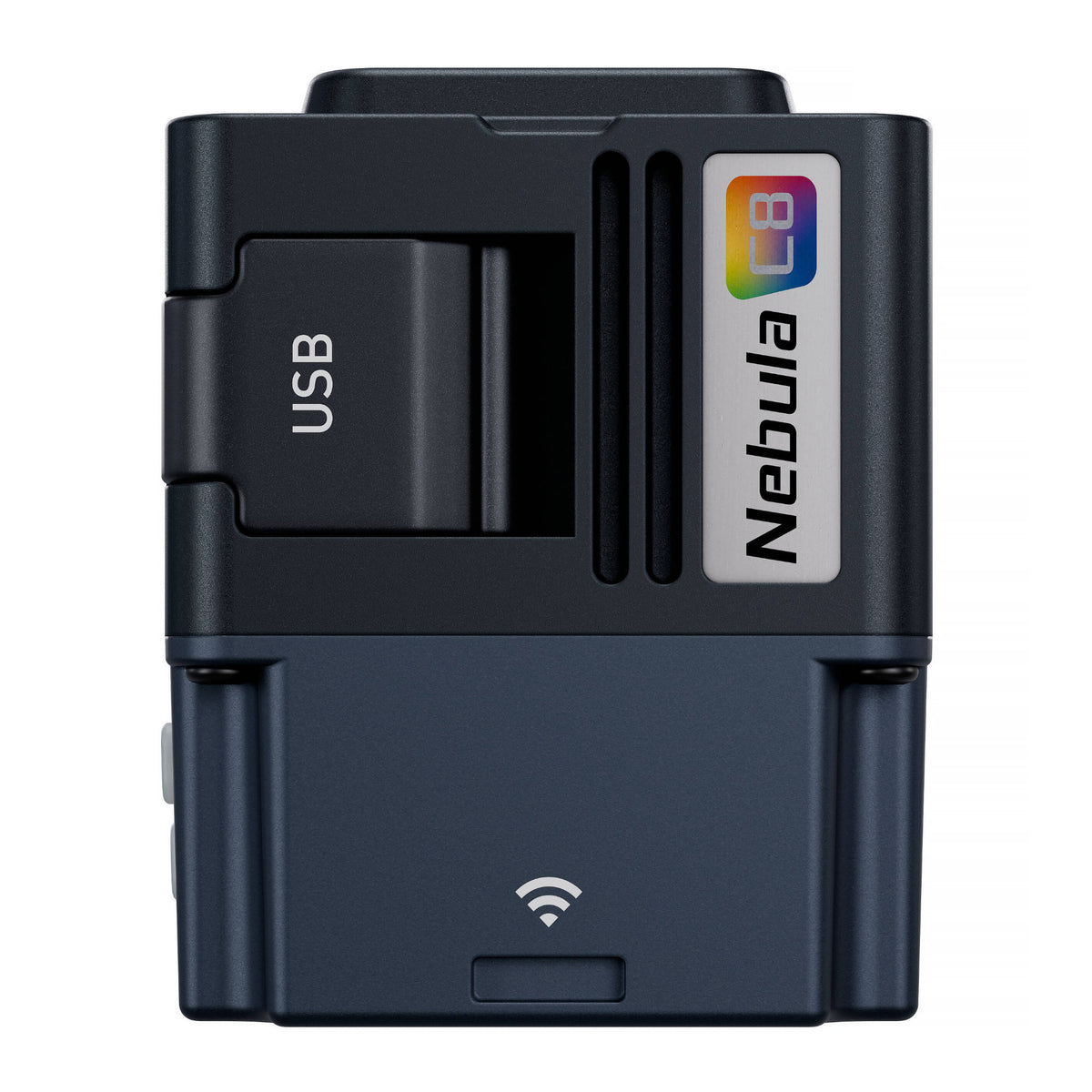

Evoke 5C Full Color Spotlight

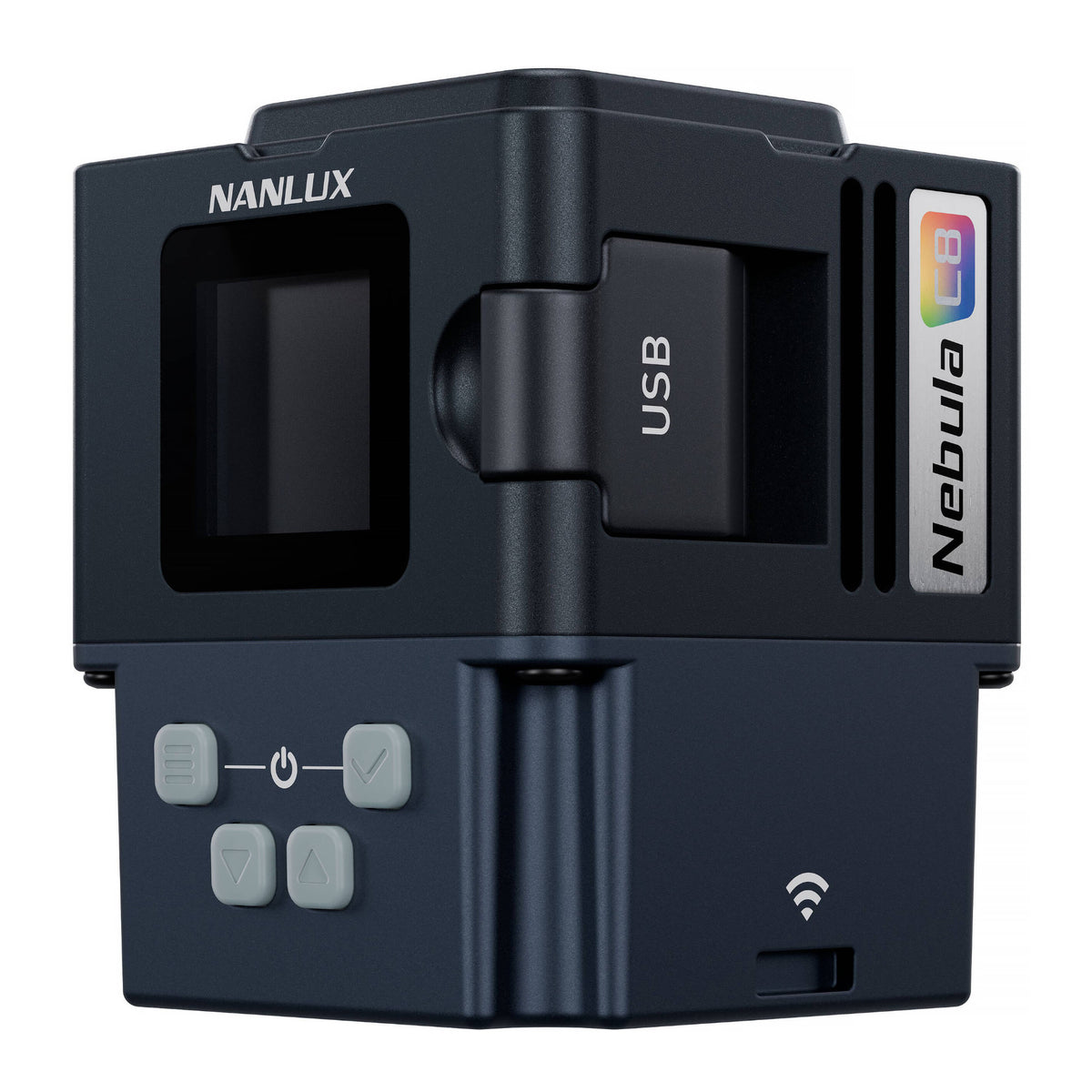

The Nebula C8 engine combines Deep Red, Red, Amber, Lime, Green, Cyan, Blue, and Indigo channels. Average CRI and TLCI ratings of 98 support color critical work. A 25 degree native beam gives the fixture a focused starting point, and the bare light produces 5970 lux at 5600K from 0.3 meter. Dimming runs from 0 to 100% in 1% increments. The built in 1300 milliamp hour battery runs 50 minutes at full output, while USB Type C supports charging and external power.
Magnetic Light Shaping and Mobile Power

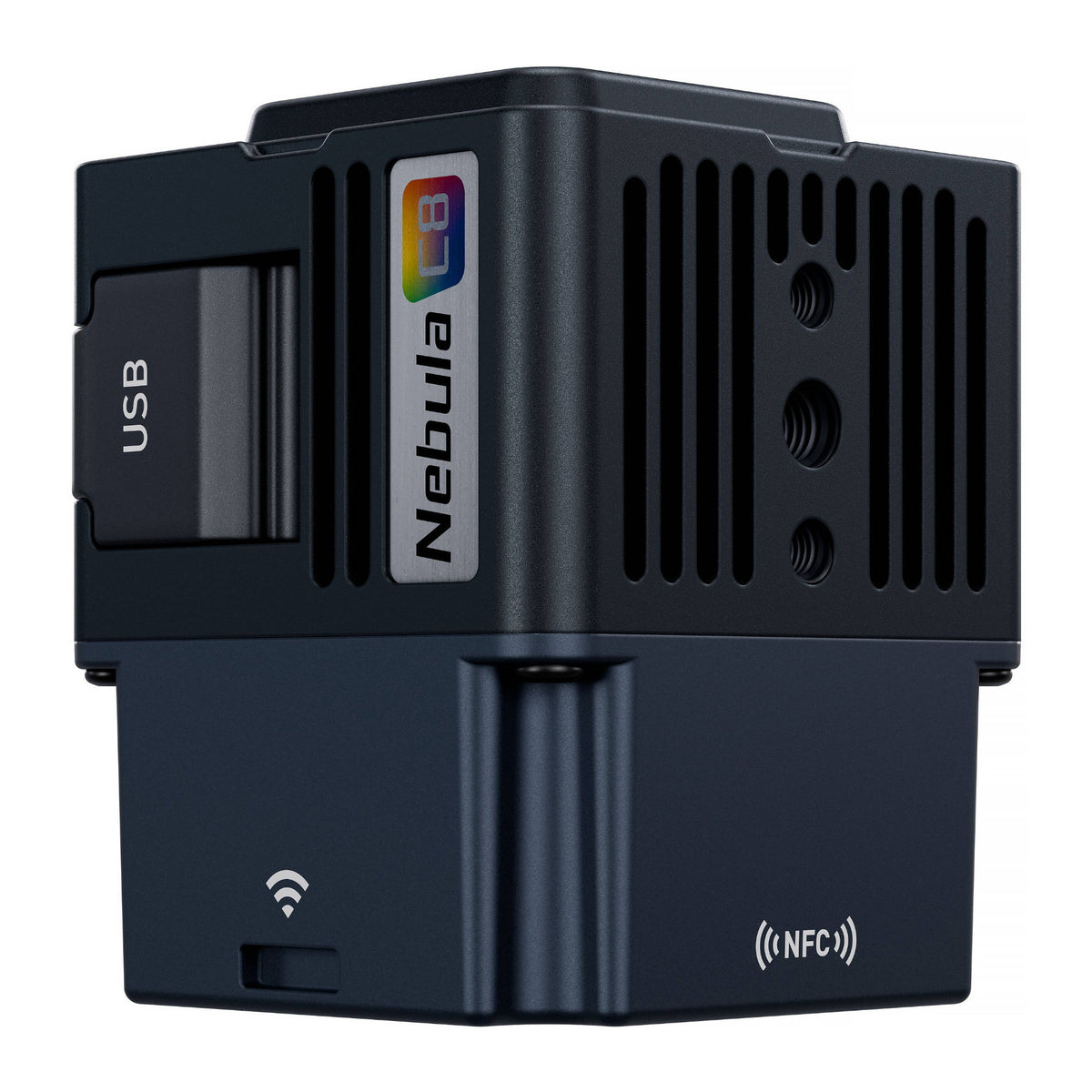

Front and rear magnetic mounts make accessory changes quick and compact. The kit expands the fixture with dedicated beam shaping, diffusion, and battery options, so one small light can move between harder accents, softer practical style illumination, and focused detail work without a large rig. Onboard operation, NANLINK app control, NFC, optional DMX/RDM, and optional LumenRadio CRMX provide several control paths for studio and location use.
Dustproof and Waterproof, Ready for Underwater
With its IP67 -rated body, the Evoke 5C performs reliably even in challenging environments. For quick underwater shots on set, it delivers consistent lighting for up to 30 minutes at depths of 1 meter without additional protection.

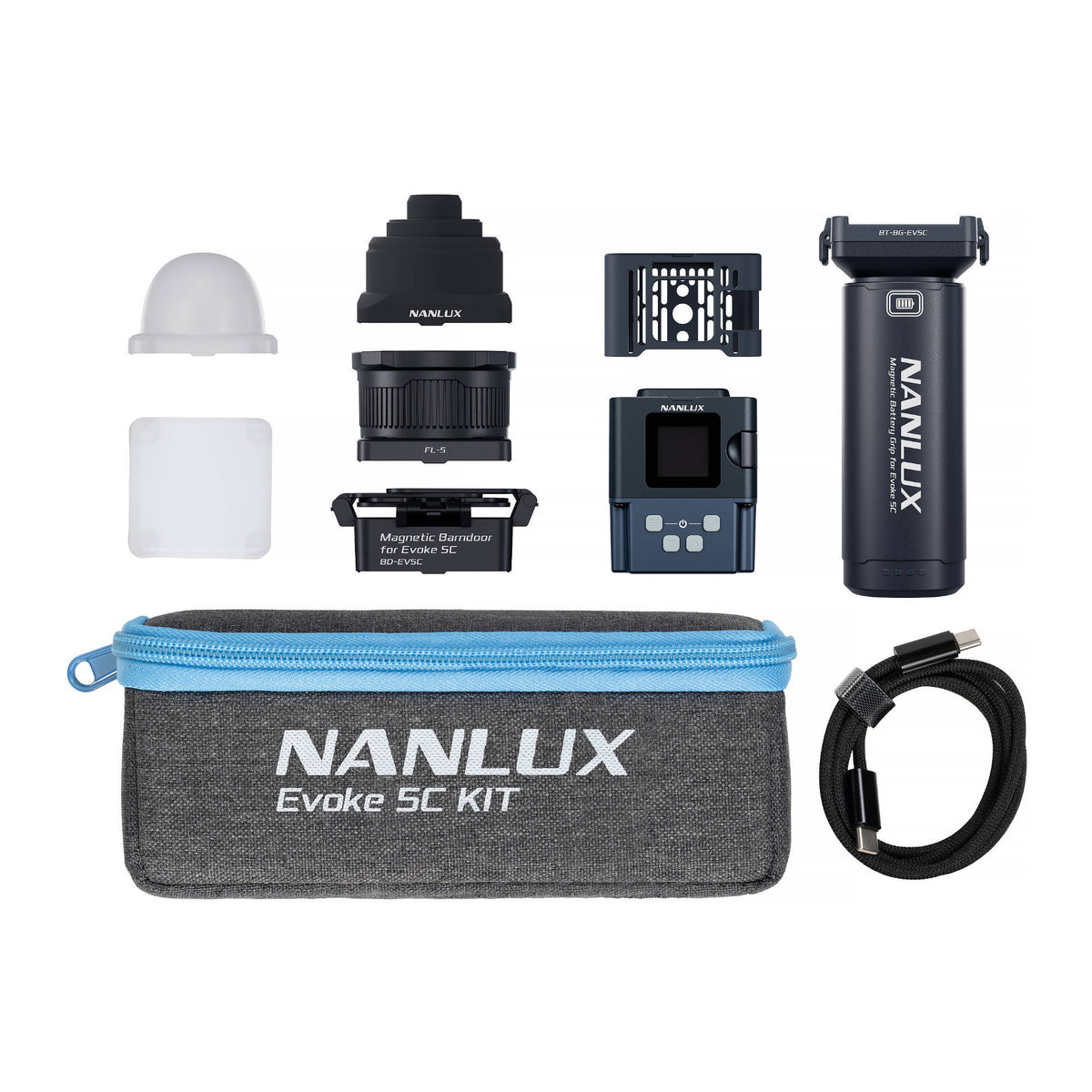

Evoke 5C Kit
This kit includes Evoke 5C, USB Type C Cable, Magnetic Diffuser, Magnetic Fresnel Lens, Magnetic Soft Dome, Magnetic Barndoor, Magnetic Snoot, Magnetic Thermal Shield, Magnetic Battery Grip, User Manual, and Carrying Bag, giving the Evoke 5C a compact starting setup for location work, tabletop scenes, and discreet in frame lighting.
Model:
| Model | Evoke 5C |
Power:
| Rated Power | 6 watts |
| Input Voltage and Current | DC 5 volts, 2 amperes |
Optical:
| Beam Angle | 25 degrees |
| LED Light Engine | Nebula C8 Light Engine with Deep Red, Red, Amber, Lime, Green, Cyan, Blue, and Indigo |
| CCT | 1000K to 20000K |
| Green and Magenta Adjustment | ±200 |
| CRI | Average 98 |
| TLCI | Average 98 |
| TM-30 Rf | Average 96 |
| TM-30 Rg | Average 100 |
| SSI at 3200K | 86 |
| SSI at 5600K | 78 |
| Dimming | 0% to 100% in 1% increments |
Protection:
| IP Rating | IP67 |
Control:
| Control Methods | Onboard, NANLINK App, DMX/RDM, LumenRadio CRMX, NFC |
| DMX/RDM Control | Via USB Type C to DMX Adapter Cable |
| LumenRadio CRMX Control | Via Magnetic CRMX Module |
Special Effects:
| Special Effects | CCT Loop, INT Loop, HUE Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion, Welding |
Battery:
| Battery Capacity | 3.7 volts, 1300 milliamp hours |
| Battery Runtime at 100% Brightness | 50 minutes |
| Battery Runtime at 1% Brightness | 2 hours 36 minutes |
Dimensions:
| Light Fixture | 56 × 44 × 45 millimeters / 2.2 × 1.73 × 1.77 inches |
| USB Type C Cable Length | 1 meter / 39.37 inches |
| AS-MD-EV5C Magnetic Diffuser | 44 × 44 × 11 millimeters / 1.73 × 1.73 × 0.433 inches |
| YK-EV5C Magnetic Yoke | 67 × 42 × 69 millimeters / 2.64 × 1.65 × 2.72 inches |
| AS-MTS-EV5C Magnetic Thermal Shield | 48 × 48 × 31 millimeters / 1.89 × 1.89 × 1.22 inches |
| Carrying Bag | 135 × 50 × 75 millimeters / 5.31 × 1.97 × 2.95 inches |
Weight:
| Light Fixture | 0.16 kilograms / 0.353 pounds |
| USB Type C Cable | 0.028 kilograms / 0.0617 pounds |
| AS-MD-EV5C Magnetic Diffuser | 0.008 kilograms / 0.0176 pounds |
| YK-EV5C Magnetic Yoke | 0.062 kilograms / 0.137 pounds |
| AS-MTS-EV5C Magnetic Thermal Shield | 0.009 kilograms / 0.002 pounds |
| Carrying Bag | 0.076 kilograms / 0.168 pounds |
