Nanlux FR-MT25-4 Four Light Frame (Black) for Matrix 2500B and 2500C Fixtures

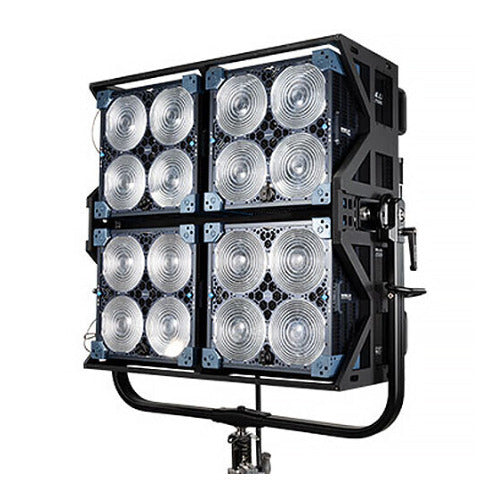

The Nanlux FR-MT25-4 Four Light Frame gives gaffers and cinematographers a dedicated way to combine up to four Matrix 2500B or Matrix 2500C LED fixtures into one organized lighting array. With four 2500 watt fixtures mounted together, the system supports a combined 10,000 watt configuration for large cinema sets, virtual production stages, and sunlight simulation workflows where concentrated output and repeatable rigging matter.

Build a Unified Four Fixture Array

The frame keeps the Matrix fixtures positioned as a coordinated group instead of four separate rigging points. Its aligned layout complements the lamp spacing of the Matrix series, helping the combined fixtures produce a continuous beam across the full array. The structure also supports use with dedicated modifiers such as FL-MT25 Motorized Fresnel Lenses, giving lighting teams a practical path from bare fixture rigging to controlled beam shaping.

Centralized Power and Synchronized Control

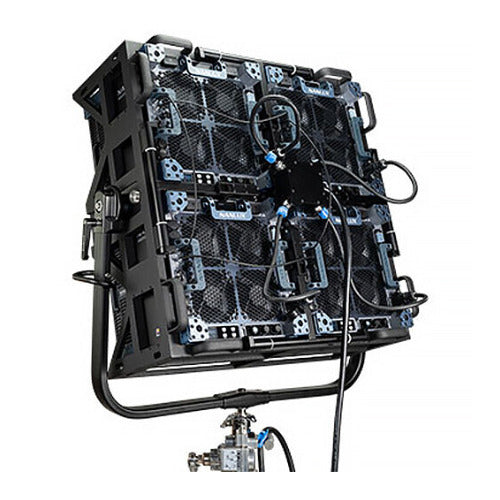

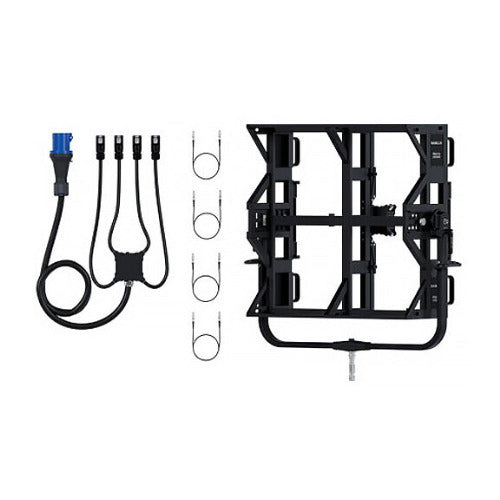

The supplied four way power distribution cable lets all four mounted fixtures operate from one power source. Four EXT port cables connect the fixtures for synchronized control, so lighting adjustments can be coordinated across the array rather than handled fixture by fixture. This setup supports cleaner cable management and faster adjustments during demanding production schedules.

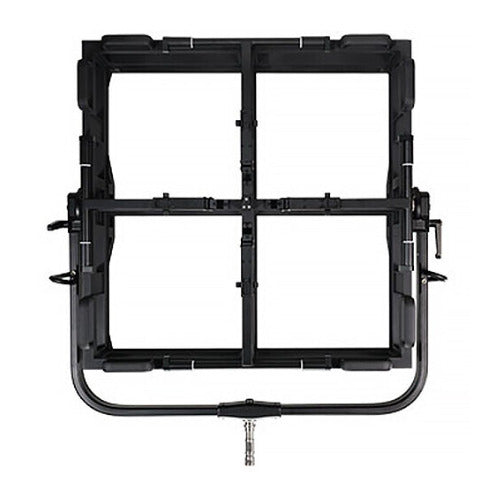

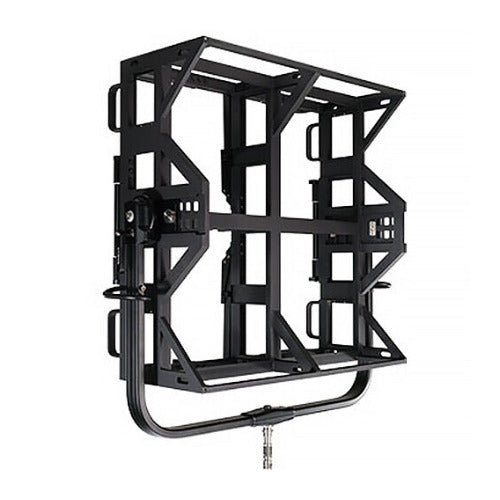

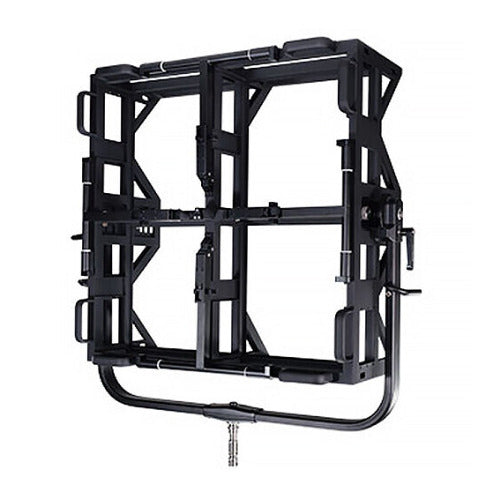

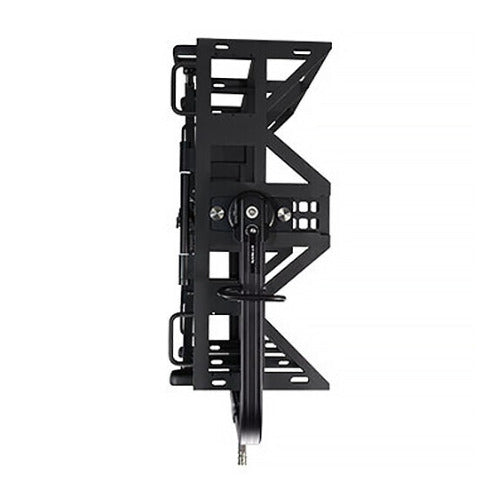

The black frame measures 35.1 inches x 35.1 inches x 16.1 inches and weighs 49.34 pounds. The included yoke measures 44.9 inches x 33.5 inches x 6.5 inches and weighs 15.63 pounds. Together, the frame, yoke, power distribution cable, and EXT cables create a purpose built mounting solution for Matrix 2500B and 2500C multi fixture setups.

General

Compatibility:

Configuration:

Control and Power:

Physical:
