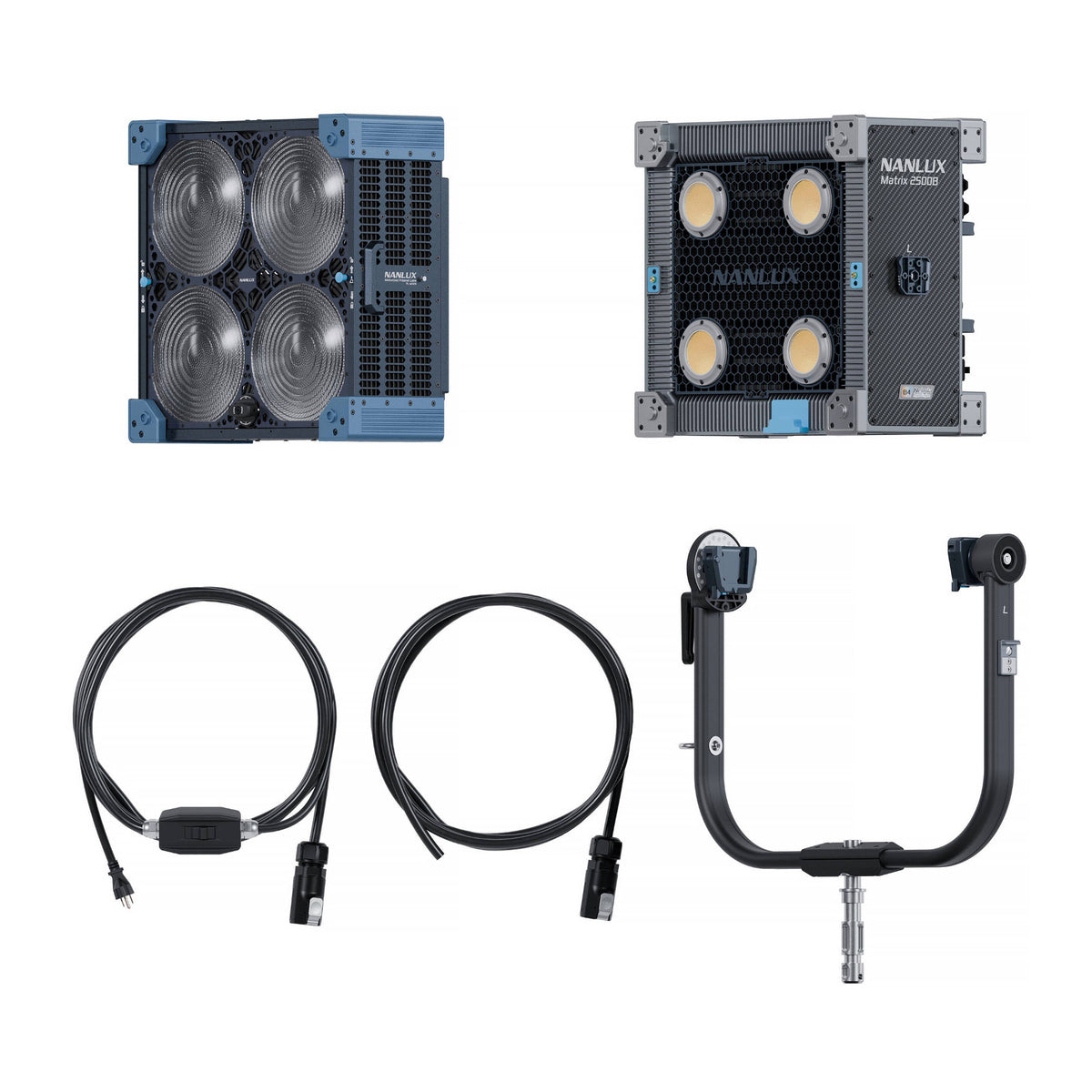

- NANLUX Matrix 2500B
- FL-MT25 Motorized Fresnel Lens
- Yoke
- AC Power Cable (7.5m)
Trusted & Verified

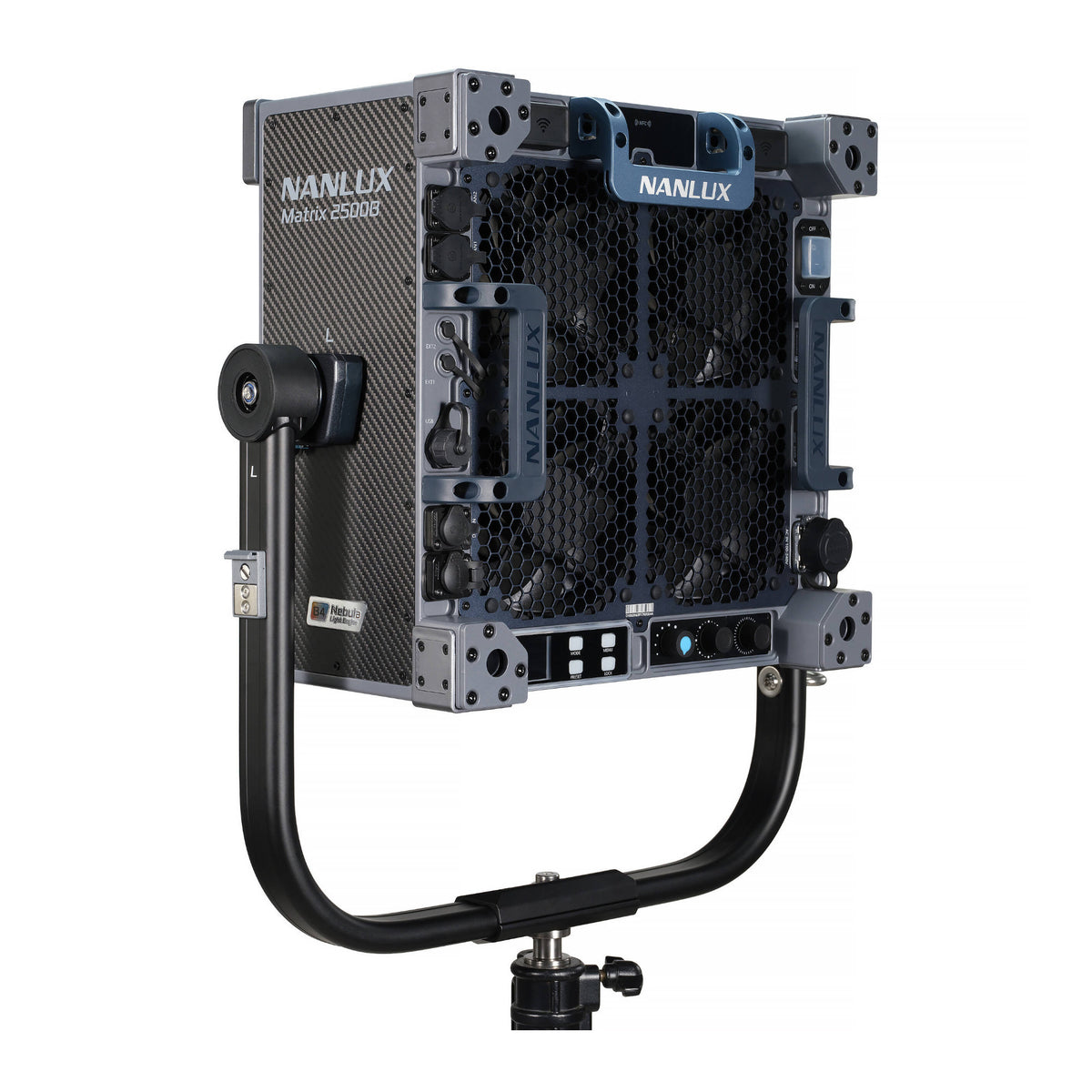

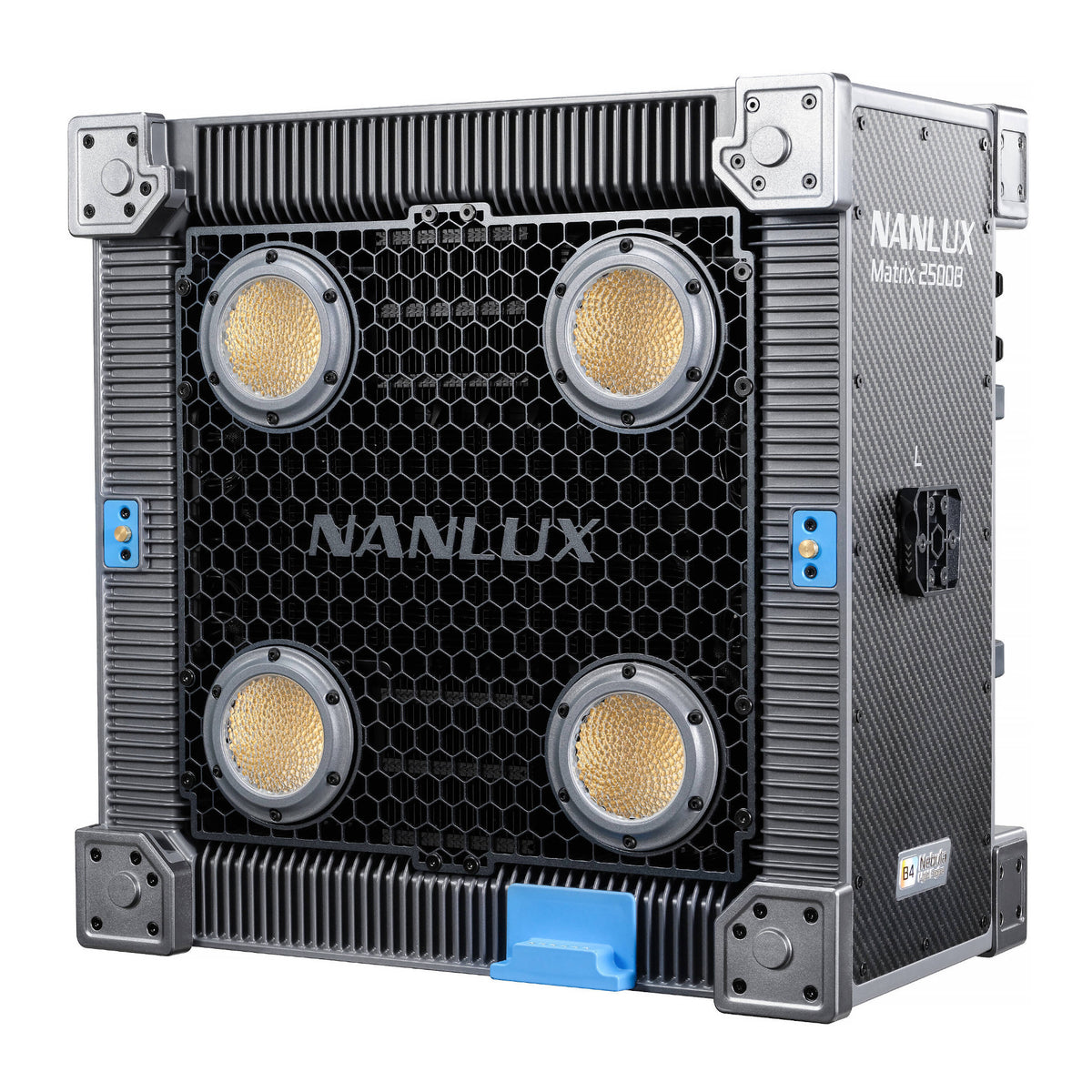

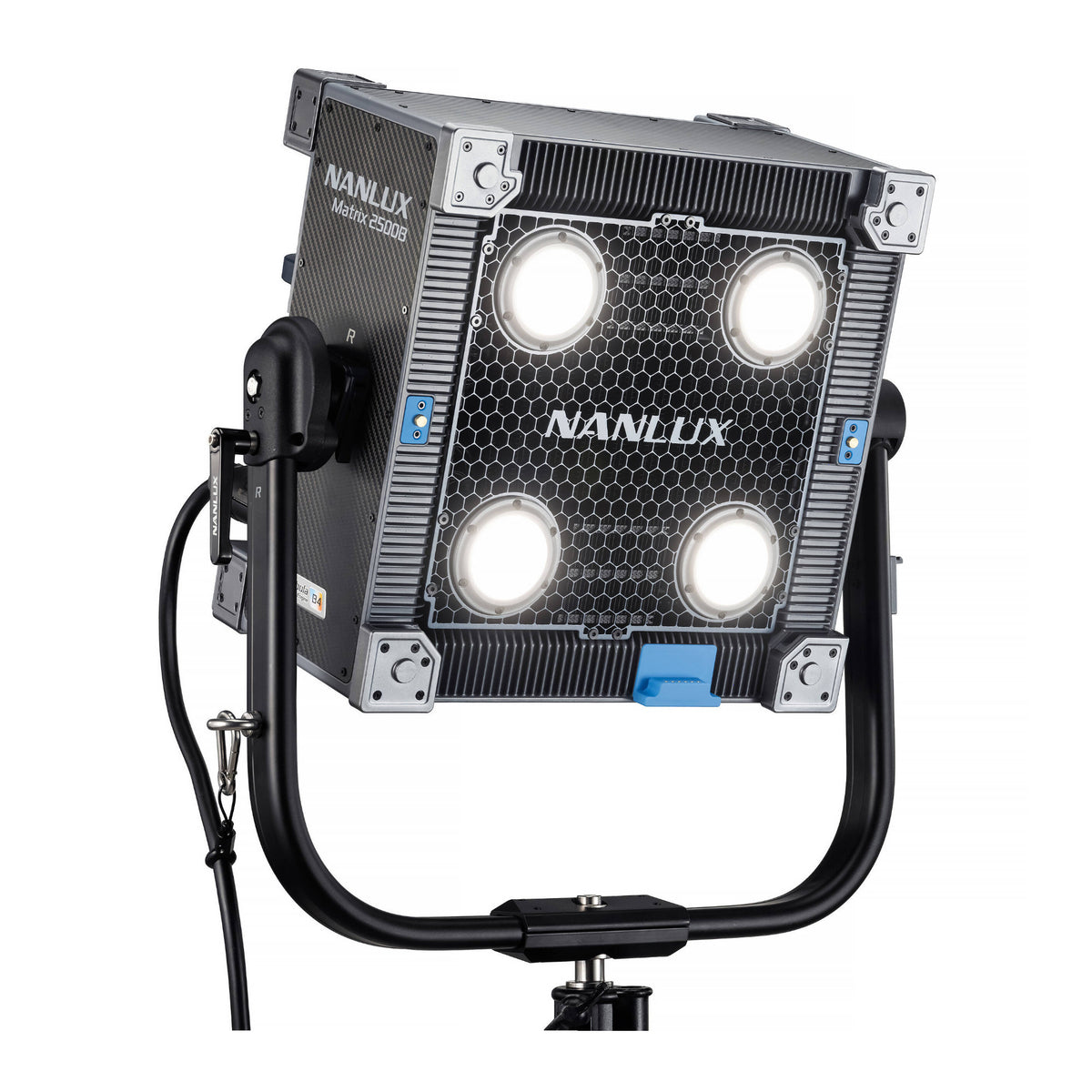

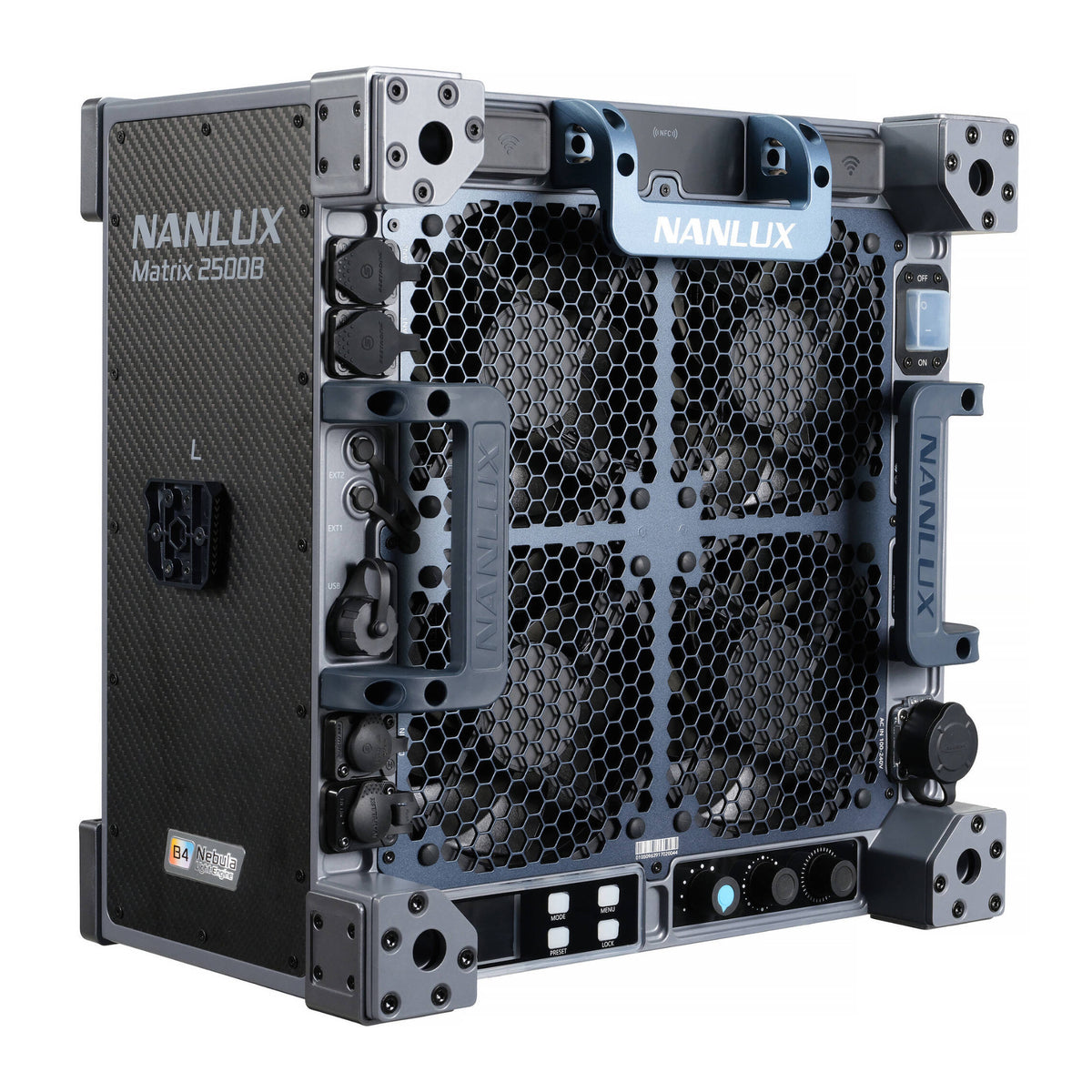

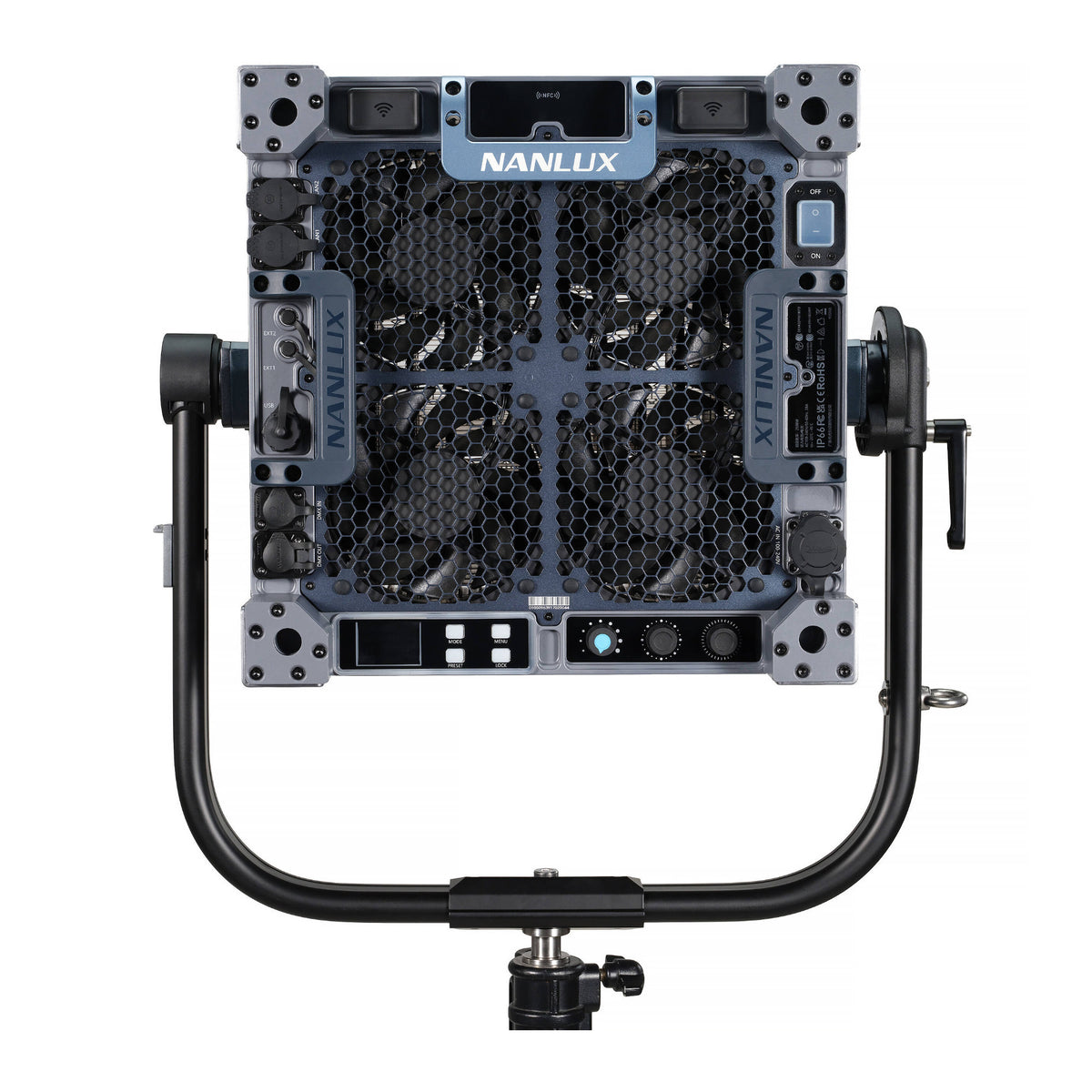

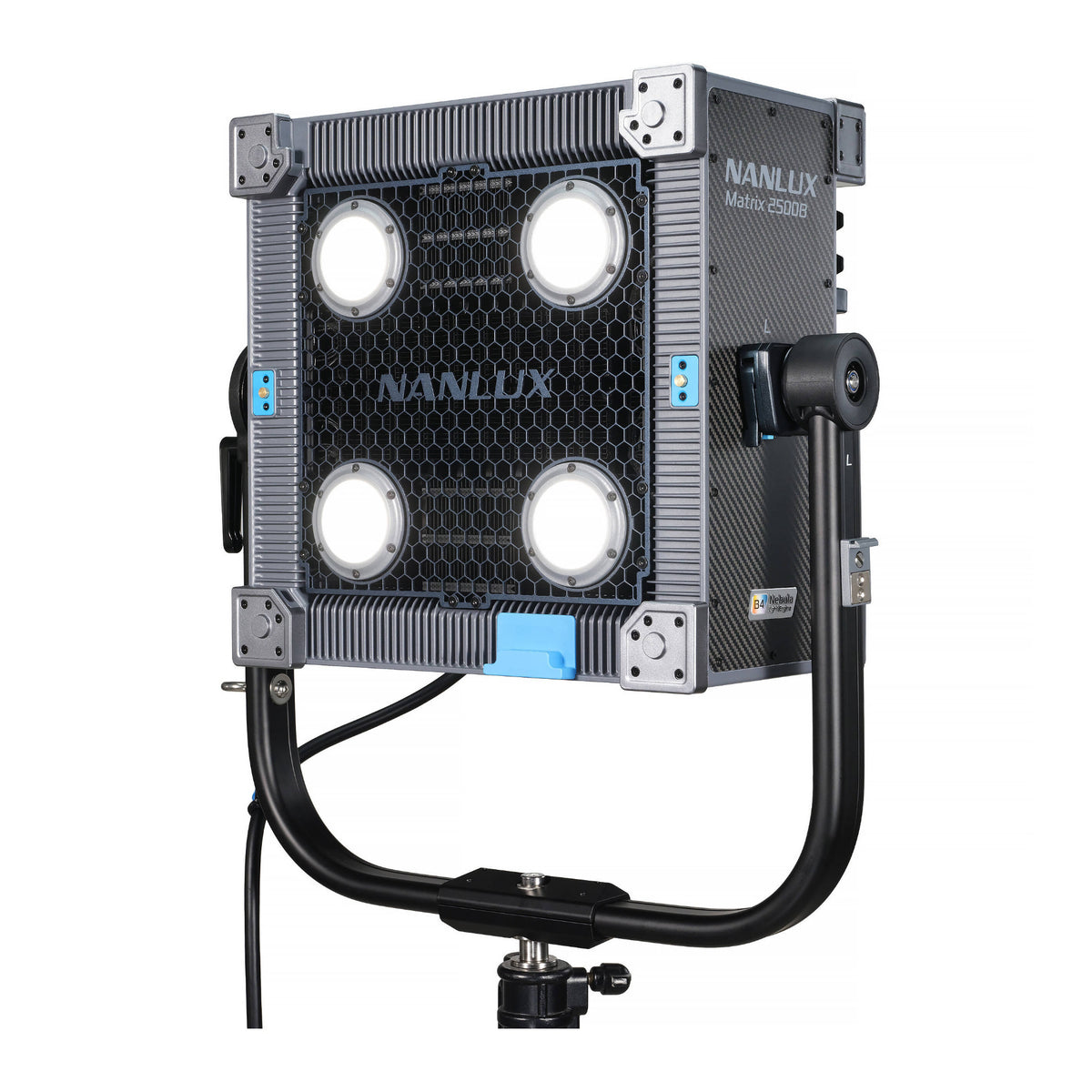

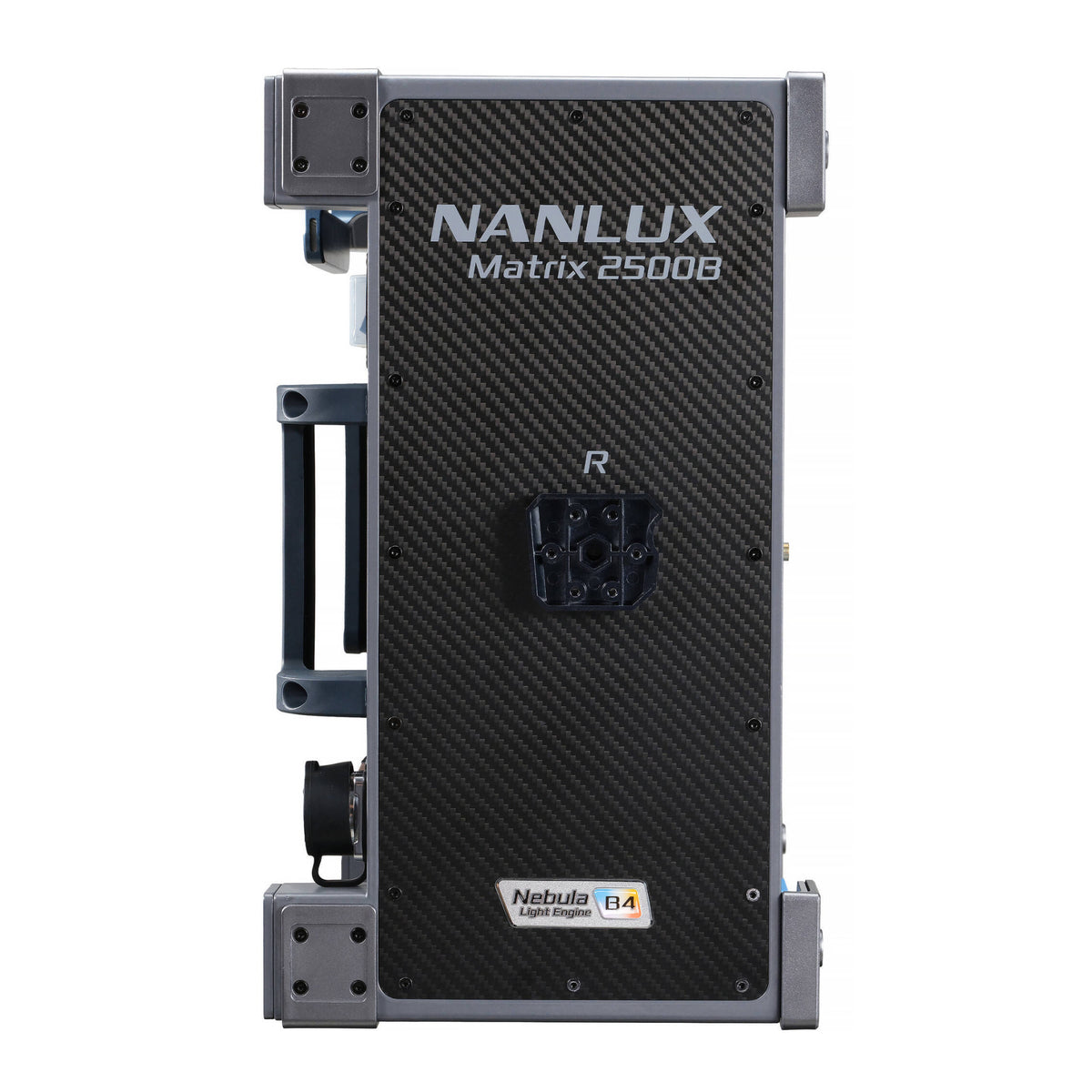

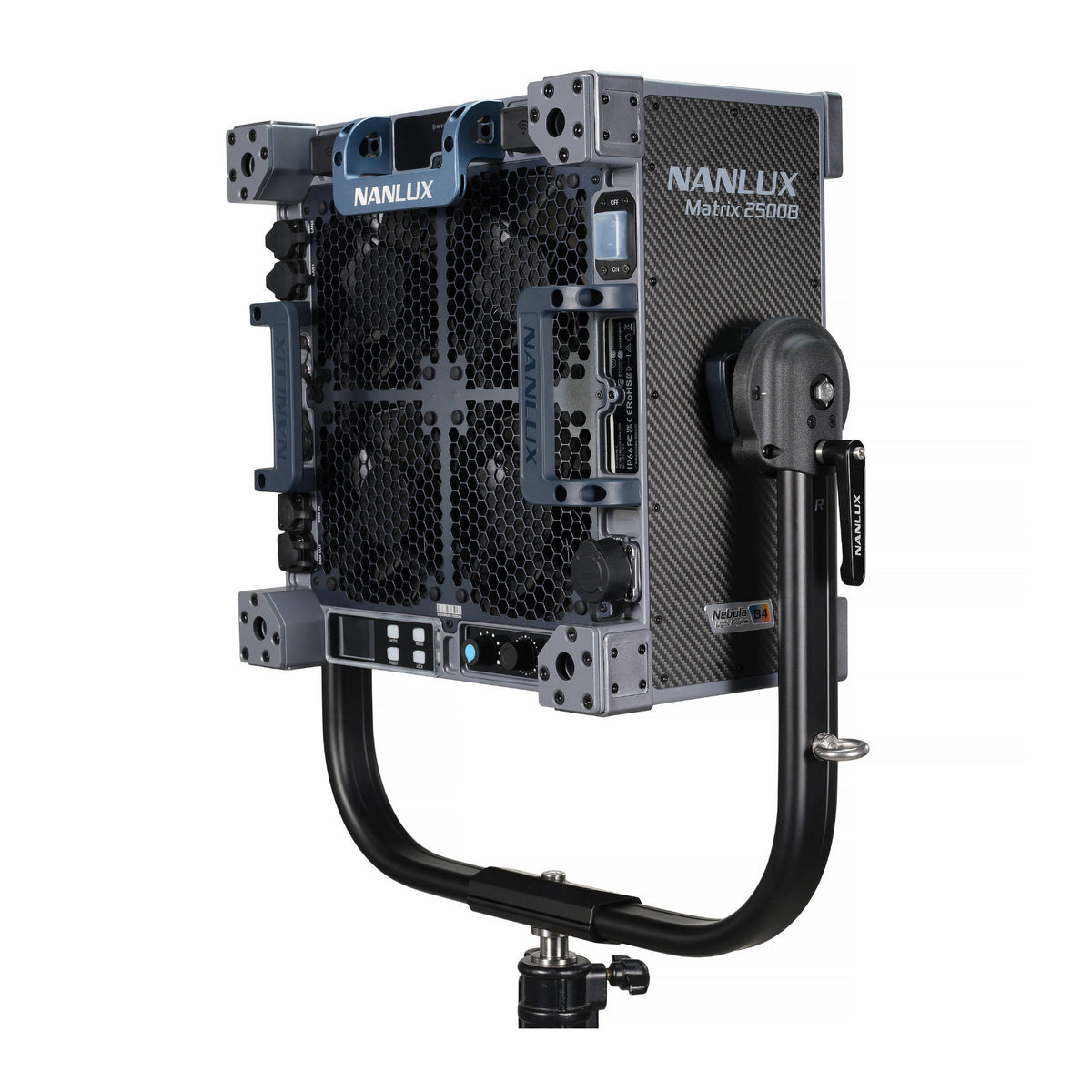

NANLUX Matrix 2500B LED Bi-Color Multi-Source Spot Light
- 2500 watt four head LED fixture built for large lighting arrays
- Nebula B4 Light Engine covers 2700K to 6500K
- Green and magenta adjustment reaches ±80
- FL-MT25 Motorized Fresnel Lens adjusts from 16 to 48 degrees
- Output reaches 103,000 lux at 3 meters, 5600K, and 16 degrees
- Average CRI and TLCI ratings of 98 support accurate color
- 0.1 percent dimming supports smooth output transitions
- IP66 magnesium alloy housing suits demanding production environments
The NANLUX Matrix 2500B brings 2500 watt output to a compact four head lighting platform built for large film, television, commercial, and studio setups. Its integrated design combines the lamp heads, control system, and power section in one fixture, helping crews build dense lighting arrays with less spacing between units. The Nebula B4 Light Engine focuses on high output white light with a 2700K to 6500K CCT range and green and magenta adjustment up to ±80.
High Output for Large Lighting Setups
With the FL-MT25 Motorized Fresnel Lens set to 16 degrees at 5600K, the Matrix 2500B reaches 103,000 lux at 3 meters. The Fresnel lens adjusts from 16 to 48 degrees and changes all four lens positions together, giving crews remote beam control when fixtures are mounted overhead or combined in larger arrays. An optional NANLUX four light frame can group four Matrix fixtures into a 10,000 watt array for broad, concentrated output.
Integrated Control and Cooling
Onboard control, the NANLINK App, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, and NFC pairing support modern production workflows. Front to rear airflow helps move heat through dense fixture layouts, while Smart, Full Speed, Low Speed, and Off fan modes let crews balance cooling and sound requirements. The fixture also supports 0.1 percent dimming control for smooth output changes.
Built for Production Environments
A one piece magnesium alloy housing provides a strong integrated structure, and IP66 protection supports demanding indoor and outdoor production conditions. Average CRI and TLCI ratings of 98 support accurate color reproduction. For productions that need scalable white light output with flexible CCT control, the Matrix 2500B combines a four head architecture, motorized optics, networked control, and array ready operation in one system.
Fixture:
| Product Type | Four Head Integrated Bi Color LED Spot Light |
| Rated Power | 2500 W |
| IP Rating | IP66 |
Power:
| Input Voltage and Current | AC 100 to 240 V, 50 to 60 Hz, 28 A |
Optical Performance:
| Native Beam Angle | 80 degrees |
| Field Angle | 125 degrees |
| FL-MT25 Motorized Fresnel Beam Angle | 16 to 48 degrees |
| Illuminance with FL-MT25 | 103,000 lux at 3 meters, 5600K, and 16 degrees |
Light Engine and Color:
| LED Light Engine | Nebula B4 Light Engine |
| Light Engine Channels | CW+, CW-, WW+, WW- |
| CCT Range | 2700K to 6500K |
| Green and Magenta Adjustment | ±80 |
| CRI | Average 98 |
| TLCI | Average 98 |
| TM-30 Rf | Average 95 |
| TM-30 Rg | Average 100 |
| SSI at 3200K | 85 |
| SSI at 5600K | 74 |
Dimming:
| Dimming Range | 0.0%-100.0% |
| Dimming Increment | 0.1% |
| DMX Dimming Curves | Linear, Exponent, Logarithm, S Curve, Gamma 2.2, Gamma 2.4, Gamma 2.6 |
Control:
| Control Methods | On Board, Remote Controller, Wired Controller, NANLINK App, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, NFC |
Special Effects:
| Effect Modes | CCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework |
Fixture Dimensions:
| Light Fixture | 399 × 399 × 234 mm / 15.71 × 15.71 × 9.21 inches |
| Yoke | 576 × 569 × 98 mm / 22.68 × 22.4 × 3.86 inches |
| FL-MT25 Motorized Fresnel Lens | 400 × 400 × 185 mm / 15.75 × 15.75 × 7.28 inches |
Weight:
| Matrix 2500B Light Fixture | 17 kg / 37.48 pounds |
| Yoke | 2.25 kg / 4.96 pounds |
| FL-MT25 Motorized Fresnel Lens | 4.6 kg / 10.14 pounds |
| 7.5 Meter AC Power Cable | 1.8 kg / 3.97 pounds |
Construction and Cooling:
| Housing | One Piece Magnesium Alloy |
| Cooling | Front to Rear Airflow |
| Fan Modes | Smart, Full Speed, Low Speed, Off |
Array Support:
| Optional Array Frame | Supports four Matrix fixtures in a 10,000 watt configuration |
