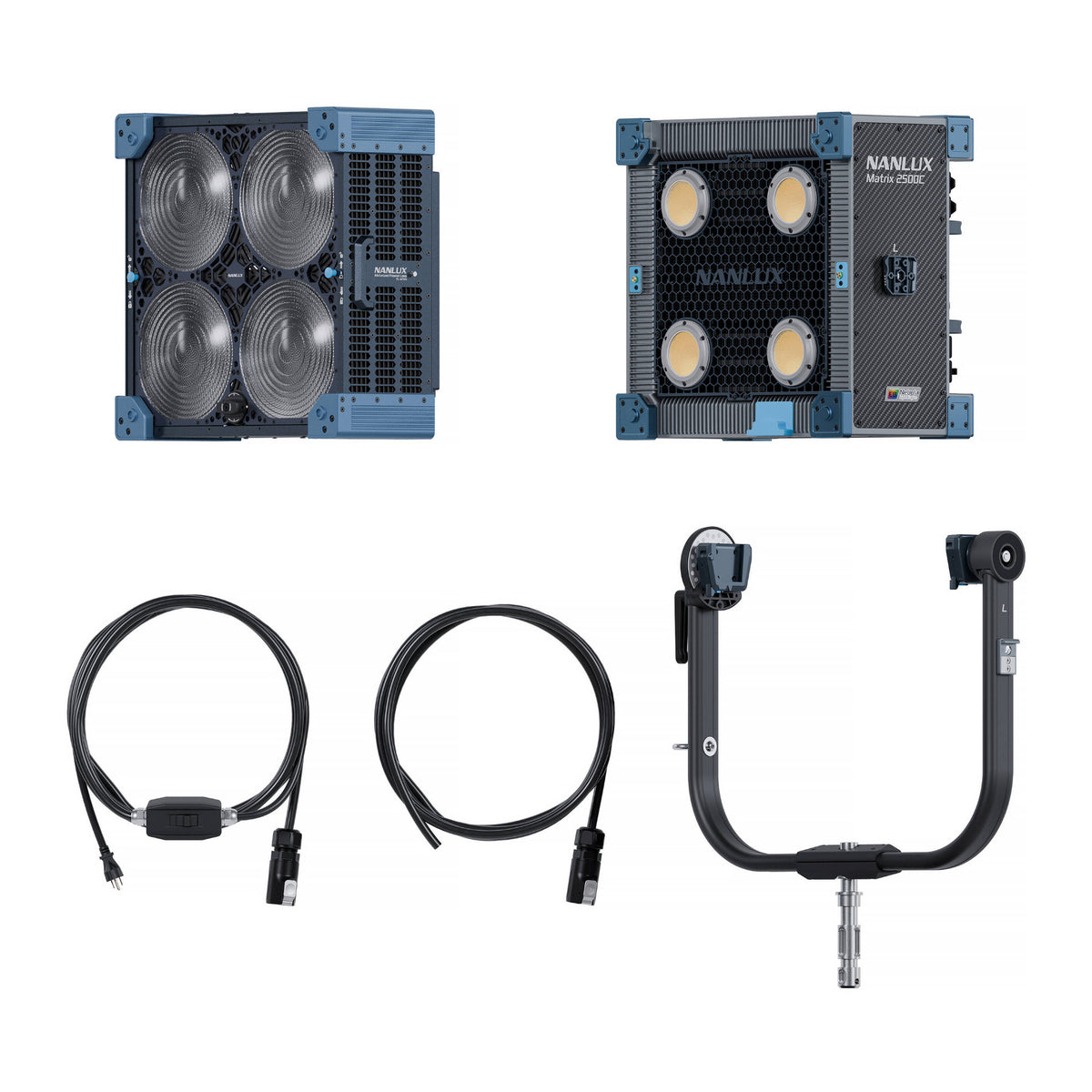

- NANLUX Matrix 2500C
- FL-MT25 Motorized Fresnel Lens
- Yoke
- AC Power Cable (7.5m)
Trusted & Verified

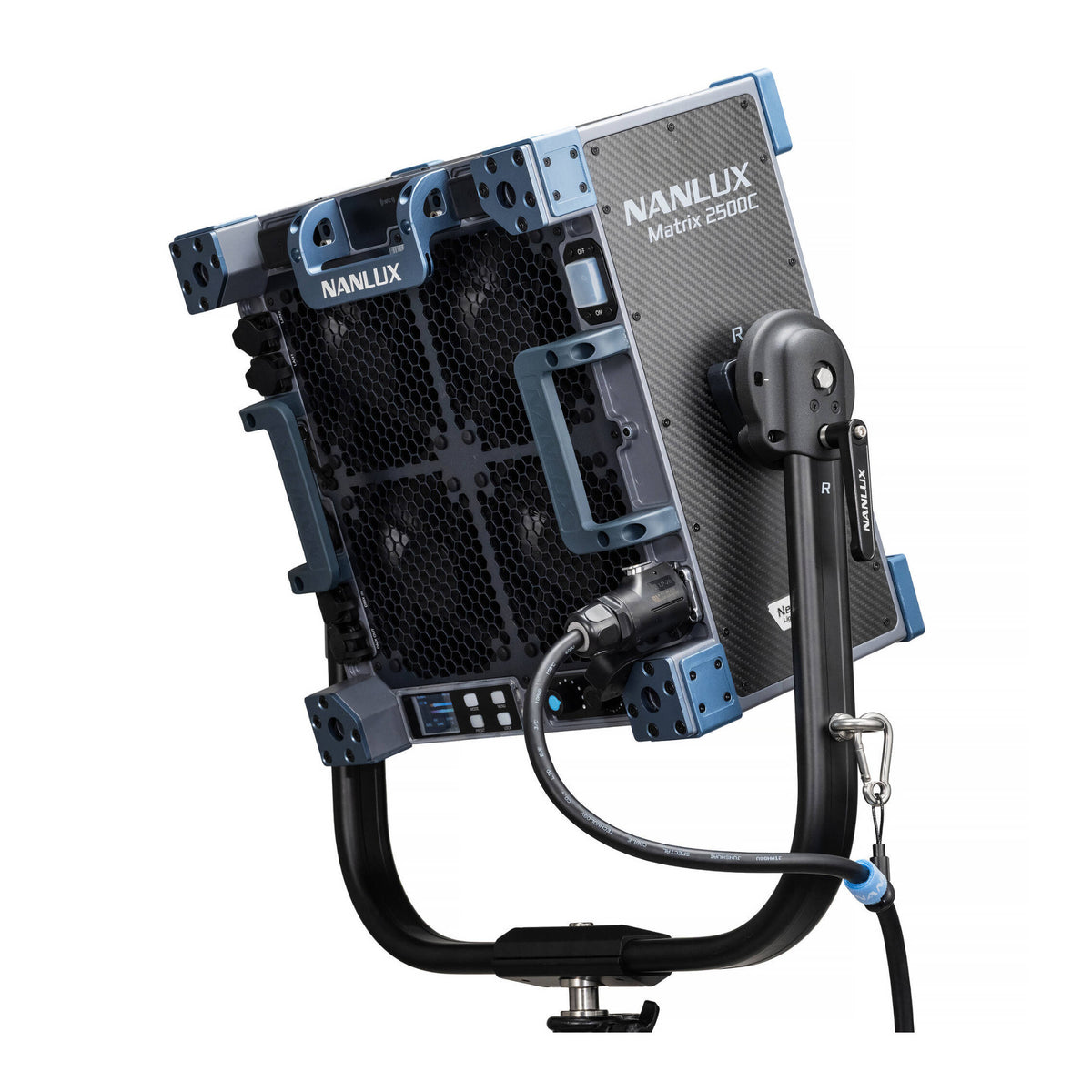

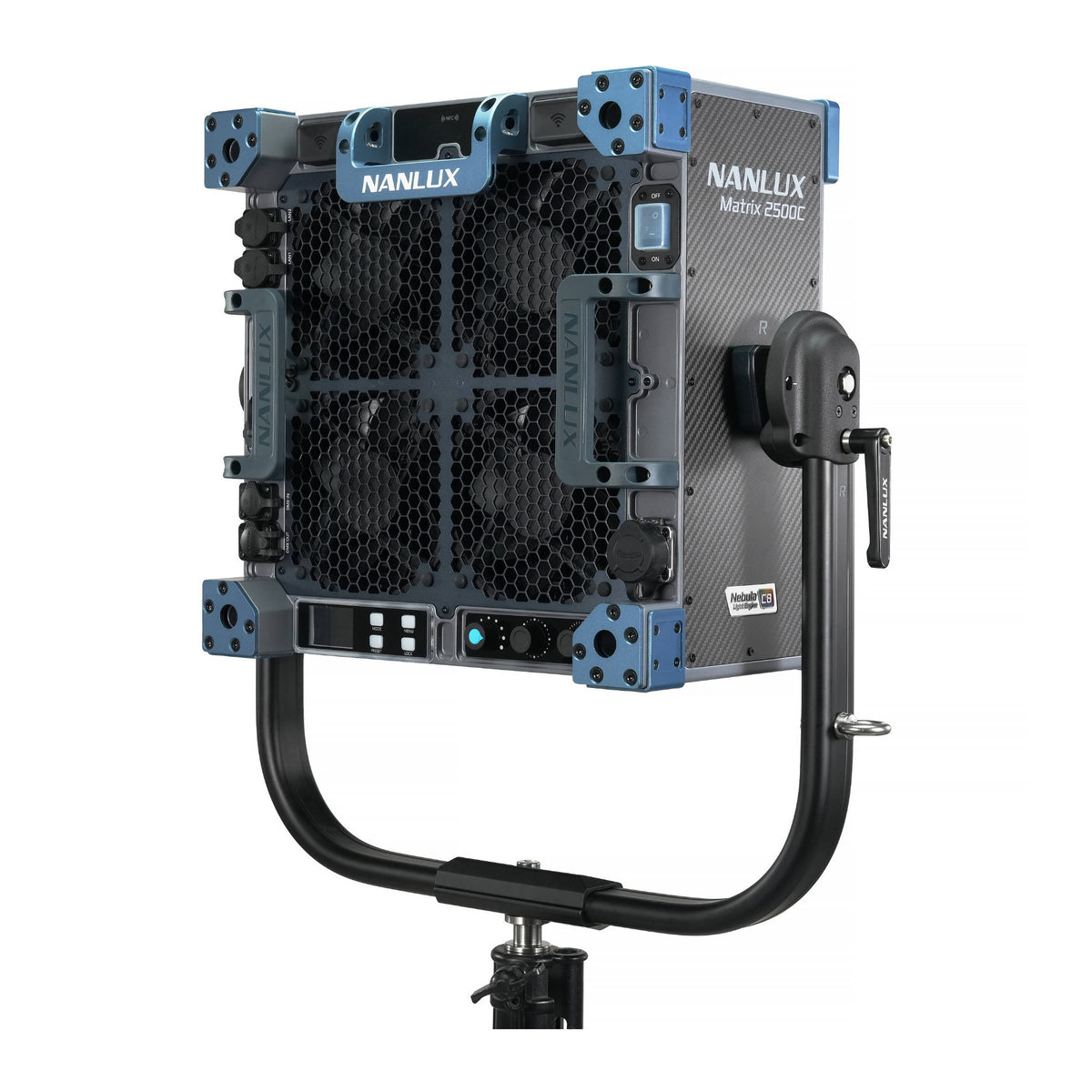

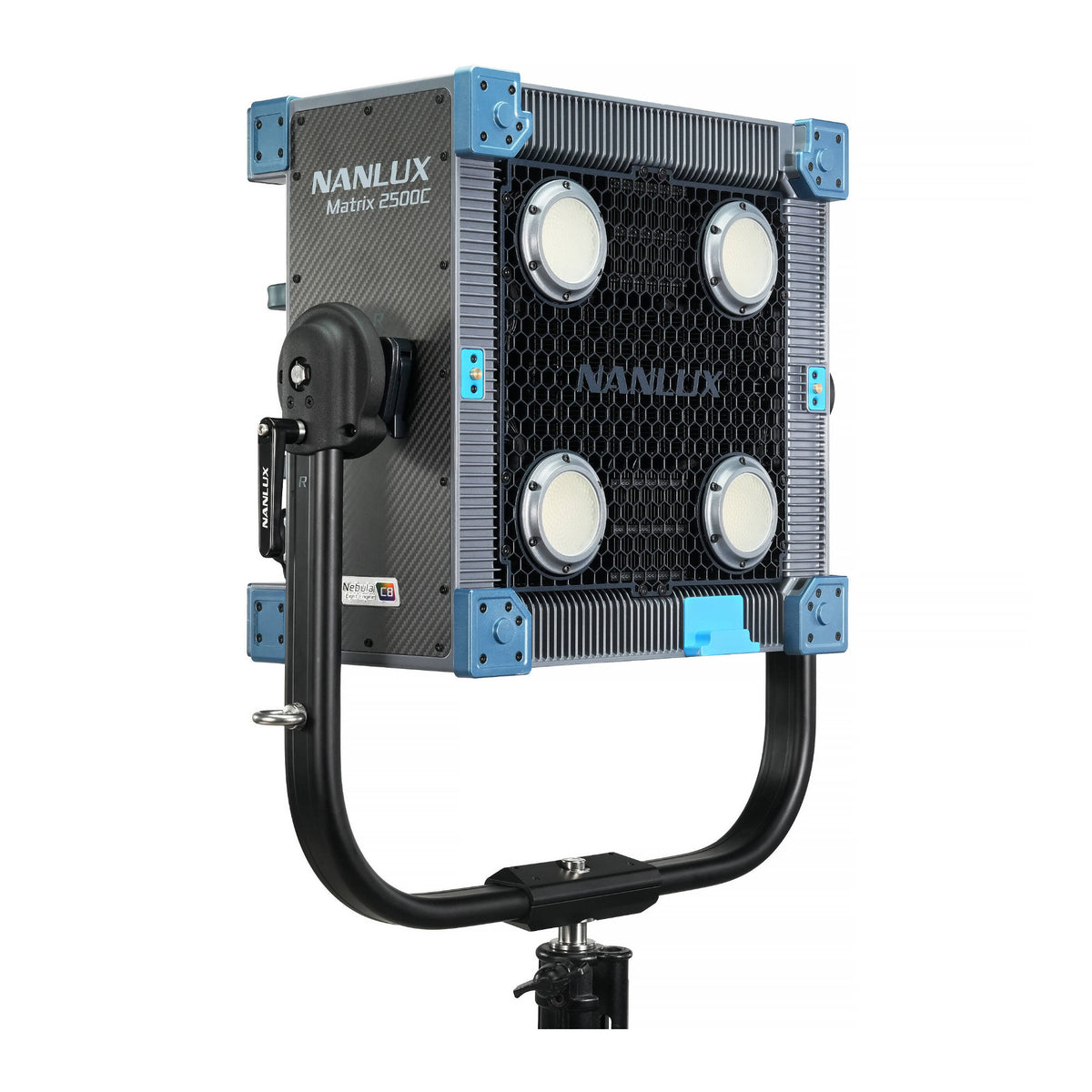

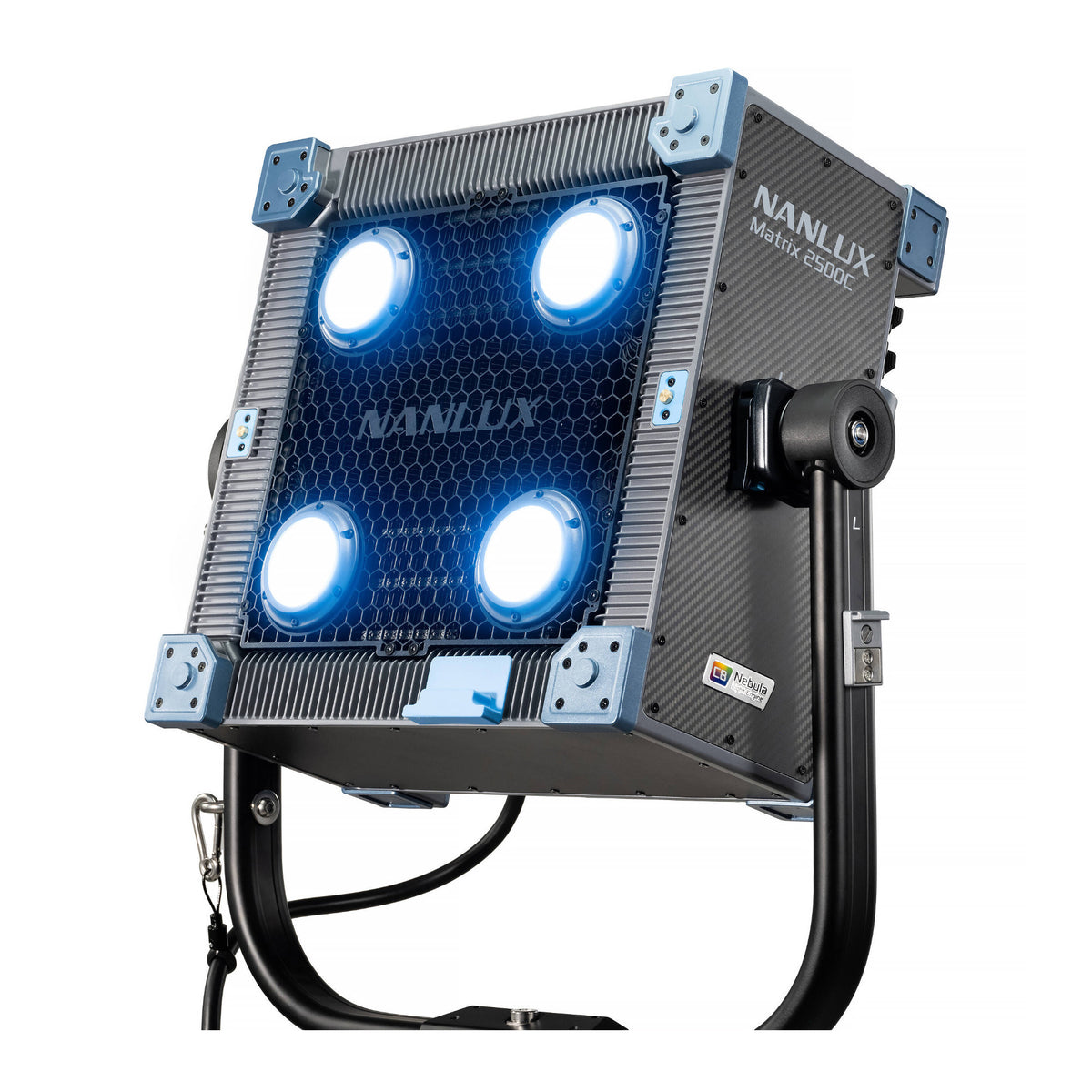

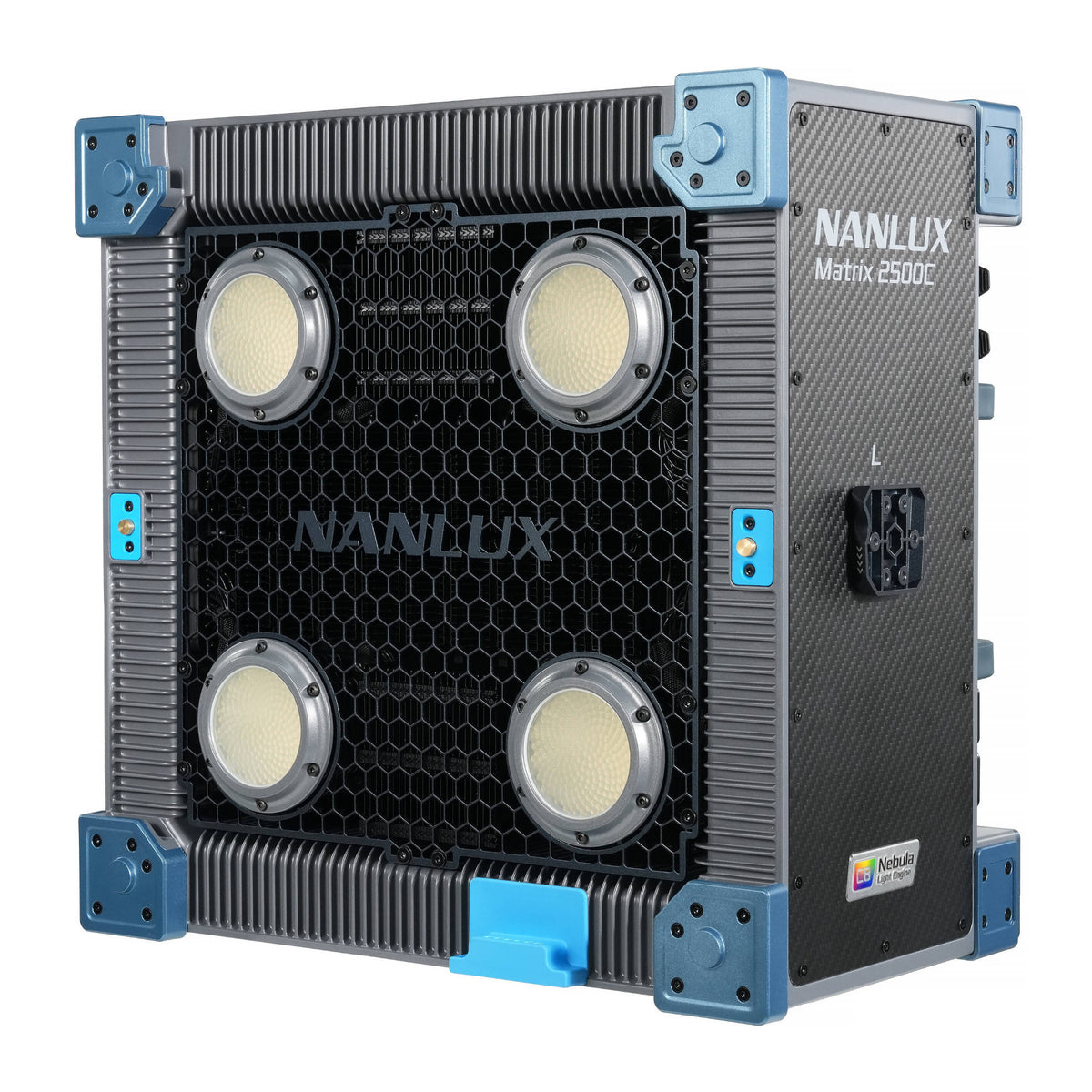

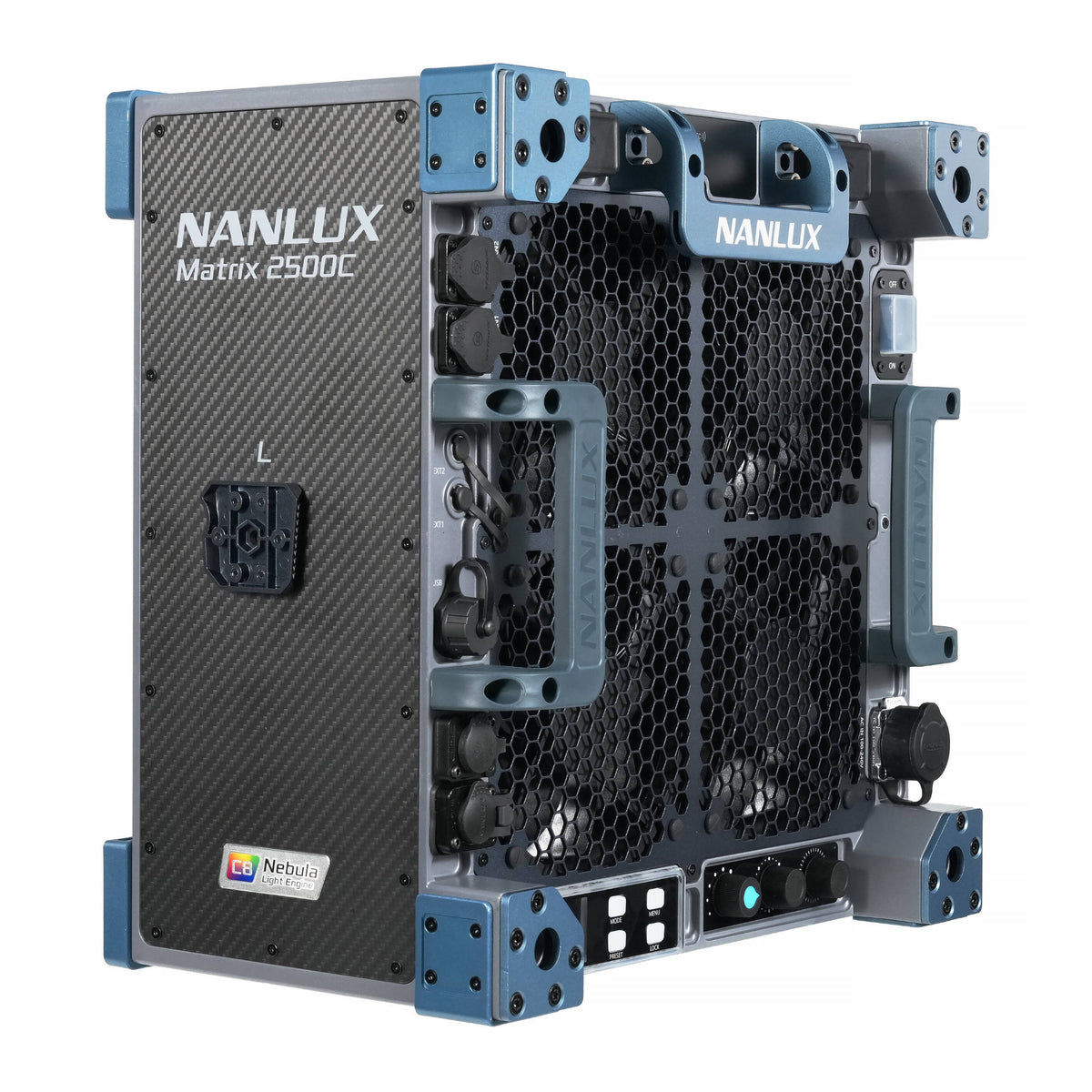

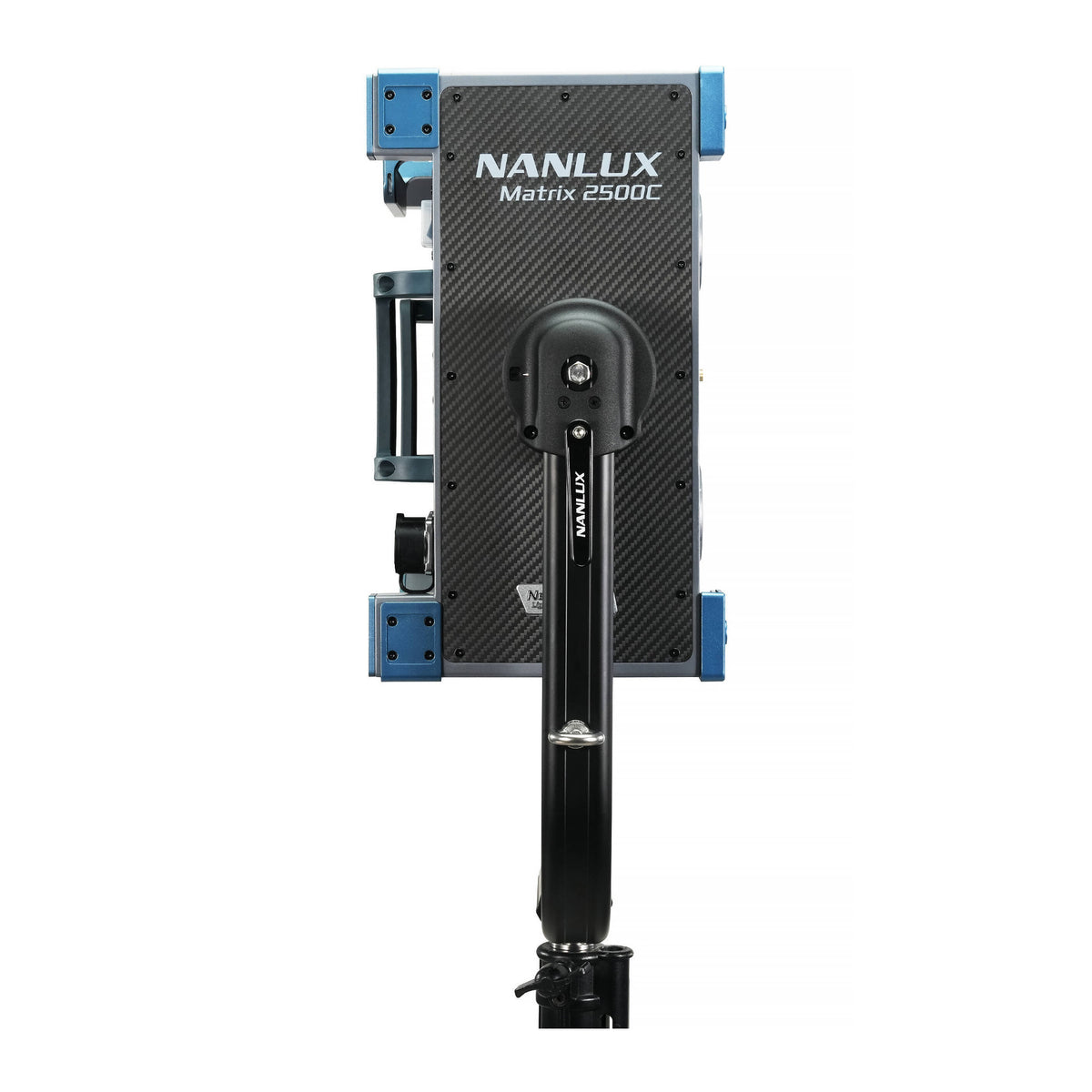

NANLUX Matrix 2500C LED Full-Color Multi-Source Spot Light
- 2500 watt four head LED fixture with Nebula C8 Color Light Engine
- 1000K to 20000K CCT range supports broad white light control
- Green and magenta adjustment reaches ±200
- CCT, HSI, HSIW, RGBW, XY Coordinates, Gel, and Effect modes
- FL-MT25 Motorized Fresnel Lens adjusts from 16 to 48 degrees
- Output reaches 67,900 lux at 3 meters, 5600K, and 16 degrees
- Average CRI and TLCI ratings of 98 support accurate color
- IP66 magnesium alloy housing suits demanding production environments
The NANLUX Matrix 2500C combines 2500 watt output with full color control in a compact four head lighting platform built for large film, television, commercial, virtual production, and studio setups. Its integrated design places the lamp heads, control system, and power section in one fixture to support dense lighting arrays with consistent spacing. The Nebula C8 Color Light Engine expands creative control with a 1000K to 20000K CCT range and green and magenta adjustment up to ±200.
Full Color Control for Complex Productions
The Matrix 2500C supports CCT, HSI, HSIW, RGBW, XY Coordinates, Gel, and Effect modes, giving crews multiple ways to match sources, create saturated color, and build repeatable looks. Average CRI and TLCI ratings of 98 support accurate color reproduction. Dimming adjusts in 0.1 percent increments for smooth transitions from 0.0 percent to full output.
Motorized Optics and Scalable Output
With the FL-MT25 Motorized Fresnel Lens set to 16 degrees at 5600K, the fixture reaches 67,900 lux at 3 meters. The Fresnel adjusts from 16 to 48 degrees and changes all four lens positions together, which simplifies beam control when the light is mounted overhead or combined in an array. An optional NANLUX four light frame can group four Matrix fixtures into a 10,000 watt array.
Integrated Control for Set Workflows
Onboard control, the NANLINK App, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, and NFC pairing provide flexible wired and wireless operation. Front to rear airflow helps manage heat in close fixture layouts, while Smart, Full Speed, Low Speed, and Off fan modes support different production needs. A one piece magnesium alloy housing and IP66 protection support demanding indoor and outdoor environments.
Fixture:
| Product Type | Four Head Integrated Full Color LED Spot Light |
| Rated Power | 2500 W |
| IP Rating | IP66 |
Power:
| Input Voltage and Current | AC 100 to 240 V, 50 to 60 Hz, 28 A |
Optical Performance:
| Native Beam Angle | 70 degrees |
| Field Angle | 125 degrees |
| FL-MT25 Motorized Fresnel Beam Angle | 16 to 48 degrees |
| Illuminance with FL-MT25 | 67,900 lux at 3 meters, 5600K, and 16 degrees |
Light Engine and Color:
| LED Light Engine | Nebula C8 Light Engine |
| Light Engine Channels | Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo |
| CCT Range | 1000K to 20000K |
| Green and Magenta Adjustment | Plus or minus 200 |
| CRI | Average 98 |
| TLCI | Average 98 |
| TM-30 Rf | Average 96 |
| TM-30 Rg | Average 100 |
| SSI at 3200K | 86 |
| SSI at 5600K | 78 |
| Color Modes | CCT, HSI, HSIW, RGBW, XY Coordinates, Gel, Effect |
Dimming:
| Dimming Range | 0.0 percent to 100.0 percent |
| Dimming Increment | 0.1 percent |
| DMX Dimming Curves | Linear, Exponent, Logarithm, S Curve, Gamma 2.2, Gamma 2.4, Gamma 2.6 |
Control:
| Control Methods | On Board, Remote Controller, Wired Controller, NANLINK App, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, NFC |
Special Effects:
| Effect Modes | CCT Loop, INT Loop, HUE Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion, Welding |
Fixture Dimensions:
| Light Fixture | 399 × 399 × 234 mm / 15.71 × 15.71 × 9.21 inches |
| Yoke | 576 × 569 × 98 mm / 22.68 × 22.4 × 3.86 inches |
| FL-MT25 Motorized Fresnel Lens | 400 × 400 × 185 mm / 15.75 × 15.75 × 7.28 inches |
Weight:
| Matrix 2500C Light Fixture | 18.5 kg / 40.79 pounds |
| Yoke | 2.25 kg / 4.96 pounds |
| FL-MT25 Motorized Fresnel Lens | 4.6 kg / 10.14 pounds |
| 7.5 Meter AC Power Cable | 1.8 kg / 3.97 pounds |
Construction and Cooling:
| Housing | One Piece Magnesium Alloy |
| Cooling | Front to Rear Airflow |
| Fan Modes | Smart, Full Speed, Low Speed, Off |
Certifications:
| Certifications | CE, UKCA, RoHS, PSE Circle, KCC, BIS, FCC ID, ETL and cETL, NCC, KUCAS, IP66, TISI, WPC |
Array Support:
| Optional Array Frame | Supports four Matrix fixtures in a 10,000 watt configuration |
