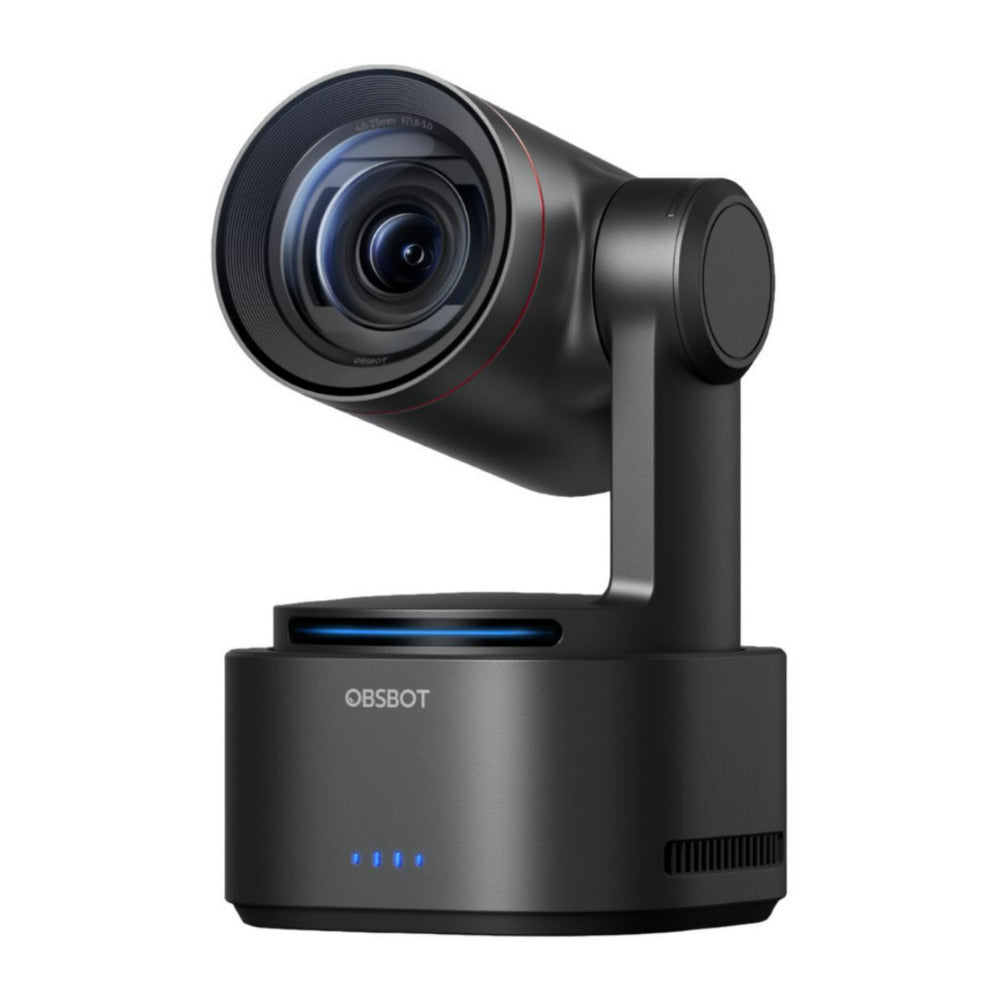

OBSBOT Tail 2 PTZR 4K Live Production Camera with AI Tracking 2.0 and 5x Optical Zoom (Black)
Couldn't load pickup availability
Product highlights
Product highlights

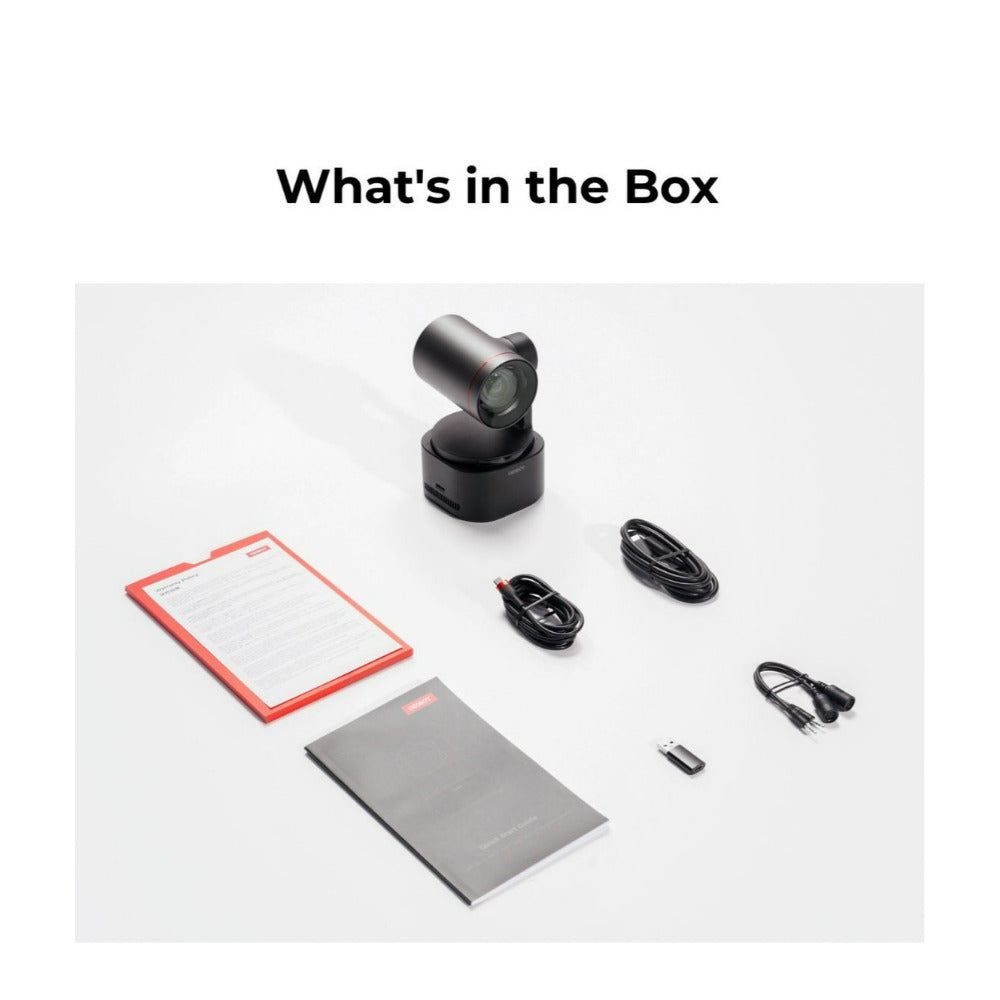

In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

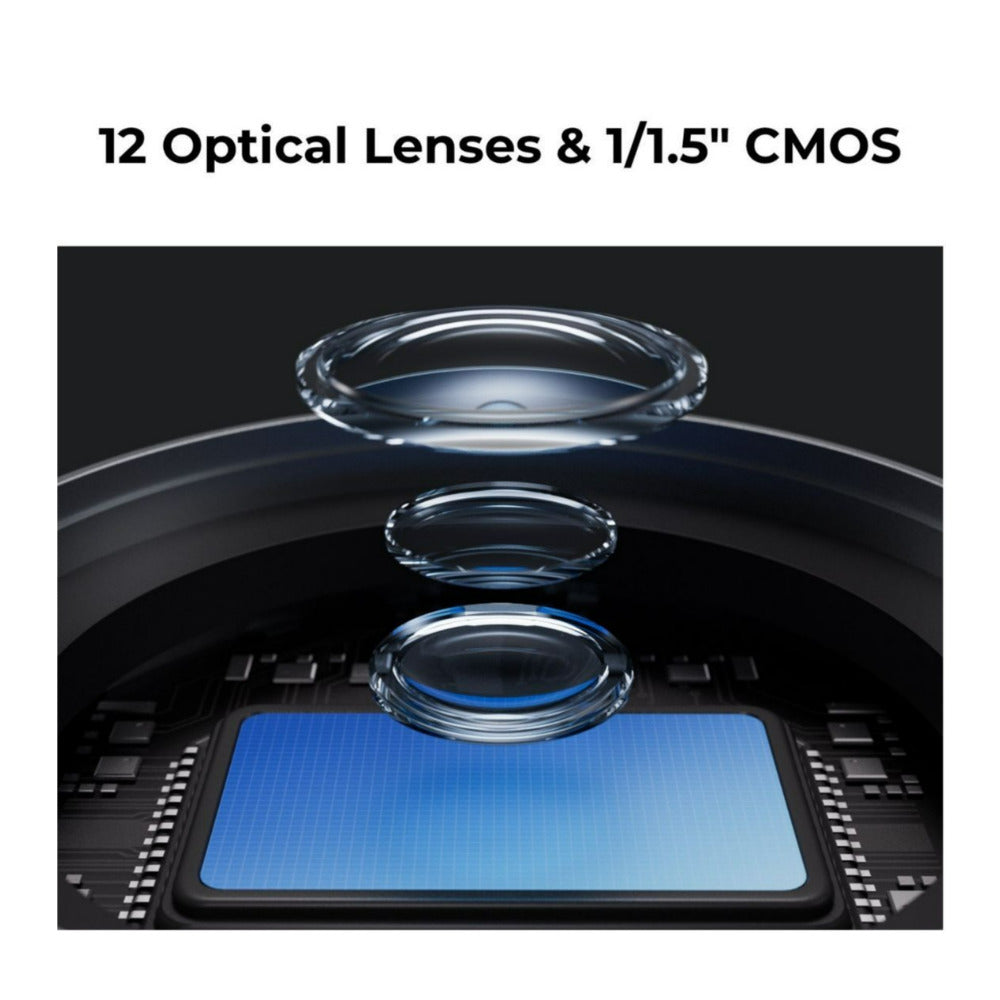

Revolutionize live production with the OBSBOT Tail 2 AI-Powered PTZR 4K Live Production Camera in Black’s innovative PTZR lens design, offering seamless transitions between landscape and portrait modes. Experience unparalleled image quality through the advanced 12-piece optics system, featuring a premium 1/1.5-inch CMOS sensor and versatile 12x Hybrid Zoom. Powered by next-generation AI Tracking 2.0, capture subjects with remarkable precision at extended distances. From SDI to NDI, HDMI to UVC, Tail 2 delivers professional-grade connectivity for every production need.
AI Tracking 2.0
Experience a new realm where years of AI innovation converge to bring your creative vision to life. With enhanced tracking precision, intelligent subject recognition, and boundless customization possibilities, Tail 2 opens the door to a world where your imagination knows no limits. Based on OBSBOT’s human tracking algorithm, they developed the new ‘Only Me’ feature that ensures unwavering focus on your selected subject, unlike OBSBOT’s previous algorithm who will detect a new target instead. Once ‘Only Me’ is activated, Tail 2 maintains exclusive tracking of your chosen target, ignoring other potential subjects. Besides ‘Only Me,’ OBSBOT has enhanced its human tracking algorithm with intelligent Auto Zoom technology, which automatically adjusts framing ratios from close-up to half-body and full-body shots. This advanced system maintains optimal subject proportions during tracking movements, delivering professional-quality results without manual adjustments. When facing scenarios with multiple person tracking, the group tracking feature in Tail 2 can effectively identify, track, and frame multiple human targets simultaneously, maintaining smooth and stable tracking for everyone in the frame.
Expanding Trackability Beyond Human Subjects
An expanded range of subjects, including over 30 types of animals and 200 types of objects, can now be instantly recognized and tracked by Tail 2. Based on its object appearance database, OBSBOT's AI algorithm automatically adjusts the frame to keep different shapes of targets centered. Start instant AI tracking for humans, animals, and objects with Double Click Tracking. Simply locate your desired target in the OBSBOT Start preview interface and click twice. The improved recognition engine and expanded database will recognize it immediately with minimal delay. Adjust the composition lines in real-time to precisely frame your tracking target. Achieve the perfect composition for your creative needs by toggling the crosshair lines on the OBSBOT Start app interface. Control Tail 2 effortlessly from extended distances with intuitive hand gestures. The device enables AI Tracking activation, Zoom Adjustments, and Recording Control through natural hand movements - making solo content creation seamless and highly efficient. With AI Tracking integrated into Tail 2, your virtual production process becomes more hands-free, giving you greater freedom to move around without the limitations of traditional fixed camera positions. You can realize more complex actions in your imaginative world with the combination of AI Tracking 2.0 and FreeD protocol support.
Visionary Imaging System
With 5x optical zoom in the Tail 2, you can capture clear, detailed footage from greater distances. This powerful feature pushes OBSBOT videography to an ultra level, allowing you to completely immerse yourself in creating rich, professional content with versatile framing options during your video shoots. Thanks to the sleek lens module design and OBSBOT's advanced technology, Tail 2's Hybrid Zoom reaches up to 12x while maintaining excellent image quality and enhancing frame details. This provides you with a more stable and smoother zoom experience during operation.
Imaging
| Maximum Resolution | 8192 x 6144 |
| Sensor Type | CMOS |
| Camera Format | CMOS |
| Megapixels | 50.00 |
Exposure Control
| Shutter Speed | 1/8000 s to the limit of frames per second |
| ISO Sensitivity | 100-6400 |
| Exposure Compensation | -3 to +3 EV |
| Continuous Shooting | 4K at 60fps & 1080P at 120fps |
Video
| Video Resolution | 4K |
| Recording Modes | 4K: 3840*2160@60/59.94/50/48/30/29.97/25/23.98 fps 1080p: 1920*1080@120/60/59.94/50/48/30/29.97/25/23.98 fps 720p: 1280*720@120/60/59.94/50/48/30/29.97/25/23.98 fps HDMI 4K: 3840*2160@60/59.94/50/30/29.97/25/24 fps 1080p: 1920*1080@60/59.94/50/30/29.97/25/24 fps 1080p: 1920*1080i@60/59.94/50 fps 720p: 1280*720@60/50 fps SDI 1080p: 1920*1080@60/59.94/50/30/29.97/25/24 fps NDI/RTSP/SRT 4K: 3840*2160@60/59.94/50/48/30/29.97/25/23.98 fps 1080p: 1920*1080@60/59.94/50/48/30/29.97/25/23.98 fps 720p: 1280*720@60/59.94/50/48/30/29.97/25/23.98 fps |
Interface
| Wireless | Wi-Fi |
| Memory Card Slot | Micro SD |
Physical
| Battery | Lithium Polymer(Li-po) |
| Configuration | Core |
| Color | Black |
| Mount Type | 1/4"-20 Female |
Lens
| Optical Zoom | 5x |
| Zoom | 12x |
- W (1x): FOV (D): 89-degree, FOV (H): 81-degree
- T (5x): FOV (D): 21-degree, FOV (H): 18-degree
- Recording
- 4K: 3840 x 2160 at 60, 59.94, 50, 48, 30, 29.97, 25, 23.98 fps
- 1080p: 1920 x 1080 at 120, 60, 59.94, 50, 48, 30, 29.97, 25, 23.98 fps
- 720p: 1280 x 720 at 120, 60, 59.94, 50, 48, 30, 29.97, 25, 23.98 fps
- HDMI
- 4K: 3840 x 2160 at 60, 59.94, 50, 30, 29.97, 25, 24 fps
- 1080p: 1920 x 1080 at 60, 59.94, 50, 30, 29.97, 25, 24 fps
- 1080p: 1920 x 1080i at 60, 59.94, 50 fps
- 720p: 1280 x 720 at 60, 50 fps
- SDI
- 1080p: 1920 x 1080 at 60, 59.94, 50, 30, 29.97, 25, 24 fps
- NDI, RTSP, SRT
- 4K: 3840 x 2160 at 60, 59.94, 50, 48, 30, 29.97, 25, 23.98 fps
- 1080p: 1920 x 1080 at 60, 59.94, 50, 48, 30, 29.97, 25, 23.98 fps
- 720p: 1280 x 720 at 60, 59.94, 50, 48, 30, 29.97, 25, 23.98 fps
- H264:160Mbps
- H265:160Mbps
- Pan: Plus-minus 160-degree
- Tilt: Minus 60 - 32-degree
- Roll: Minus 120 - 120-degree
- Pan: Plus-minus 175-degree
- Tilt: Plus-minus 90-degree
- Roll: Minus 135 - 135-degree
- 1 x 2.5mm RS232 input, Protocol: VISCA, Pelco-D, Pelco-P
- 1 x 2.5mm RS232 output, Protocol: VISCA, Pelco-D, Pelco-P
- 1 x USB-C 3.0, Protocol: UVC
OBSBOT Tail 2 PTZR 4K Live Production Camera with AI Tracking 2.0 and 5x Optical Zoom
Size and Weight
| Working State | 3.838 x 4.074 x 6.102-inch (97.5 x 103.5 x 155mm) |
| Off State | 3.838 x 4.074 x 6.771-inch (97.5 x 103.5 x 172mm) |
| Weight | 2.350 lb (1.066kg) |
AI Chip
| Integrated AI chip, trillions of calculations per second |
Camera
| Image Sensor | 1/1.5-inch CMOS |
| Pixel Size | 2.0-micron x 2.0-micron |
| Effective Pixels | 50 million |
| Effective Pixel Resolution | 8192 x 6144 |
| Lens System | 12x optical lenses |
| Zoom Range | 5x optical zoom, 12x hybrid zoom |
| Aperture | f/1.8-f/3.0 |
| Focus | Auto focus, manual focus |
| Effective Focal Length | 4.6mm - 23mm |
| Equivalent Focal Length | 22mm - 110mm |
| Field of View | |
| ISO Range | 100-6400 |
| Exposure Value | Plus-minus 3EV |
| Electronic Shutter Speed | 1/8000 s to the limit of frames per second |
| White Balance | 2000K-10000K |
| Gyroscope | 6-axis gyroscope |
| Photo Resolution | 4K, 1080p, 720p |
| Resolution and Frame Rate | |
| Max Video Storage Bitrate | |
| Supported File System | FAT32, exFAT (Only exFAT supports segmented video storage) |
| Video Format | MJPEG, H264, H265 |
3-Axis Gimbal
| Gimbal Installation | Non-removable |
| Controllable Range | |
| Mechanical Range | |
| Max Controllable Speed | 120-degree/s |
| Angle Jitter | Plus-minus 0.003-degree |
Wi-Fi
| Standard | Wi-Fi 6 |
| Wi-Fi Operating Frequency | 2.4 G/5.8 GHz |
| Wi-Fi Signal Transmission Range | 2.4G 140m, 5.8G 80m |
| Wi-Fi Protocol | 802.11 a, b, g, n, ac, ax |
Bluetooth
| Bluetooth Protocol | BLE 5.4 |
| Bluetooth Operation Frequency Range | 2.400 GHz to 2.4835 GHz |
| Bluetooth Transmitter Power (EIRP) | Less than 14 dBm |
I/O Interface
| Power Input | |
| USB-C | Default 5V/2A, supports USB PD3.0 fast charging protocol standard |
| Maximum input voltage 20V, maximum input current 2A (recommended to use a charger that supports USB PD3.0 standard to ensure proper charging) | |
| PoE Plus | IEEE 802.3 af/at, maximum supported input power 30W |

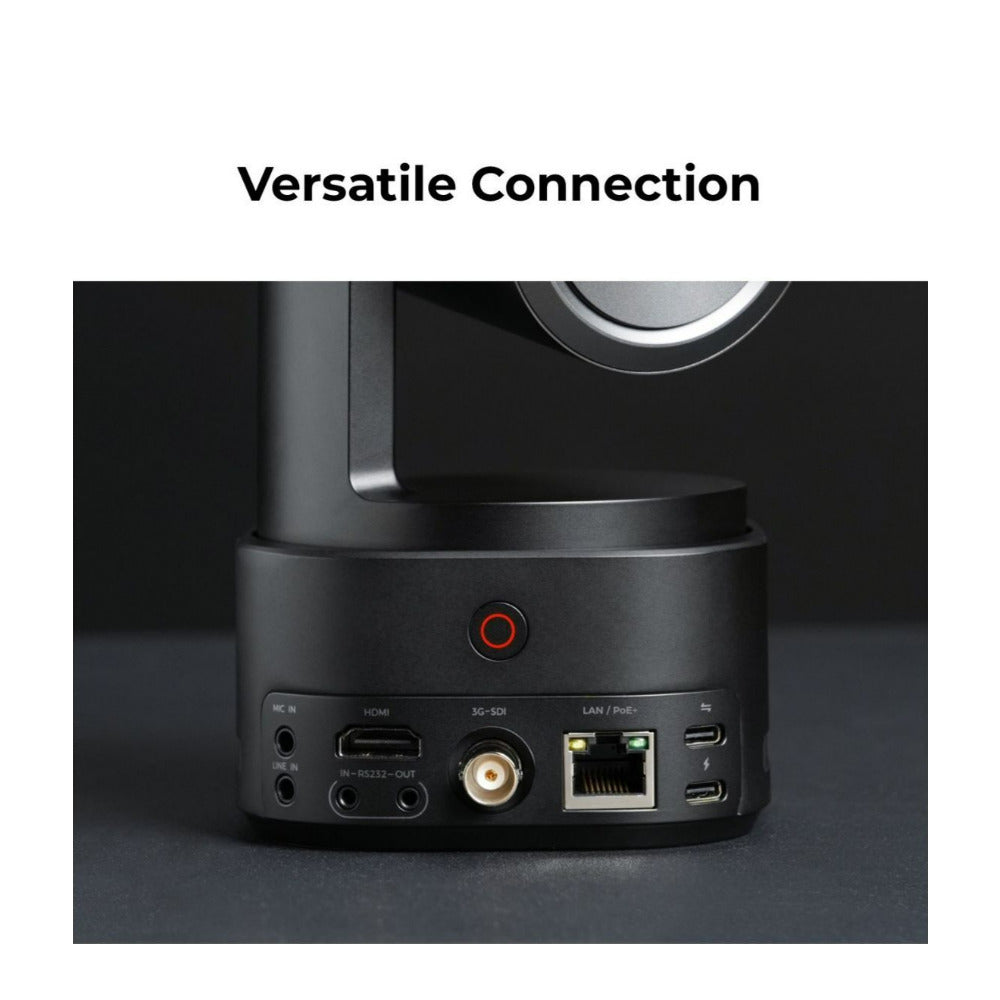

| Video Interface | 1 x HDMI 2.0, 1 x 3G-SDI, 1 x USB-C 3.0 |
| Network Interface | 1 x RJ45 10/100/1000Mbps Ethernet port (with PoE Plus) |
| Audio Interface | 1 x Mic In (3.5mm audio interface), 1 x Line In (3.5mm audio interface) |
| Control Interface | |
Battery
| Battery Type | Lithium Polymer (Li-po) |
| Battery Capacity | 5000mAh |
| Battery Energy | 38Wh |
| Battery Voltage | 7.6V |
| Operating Time | 343 minutes (measured during continuous 1080p/30fps video recording under laboratory conditions, values are for reference only) |
| Charging Time | 150 mins (when powered off) |
Auxiliary Functions
| Gesture Control |
Auxiliary Software
| OBSBOT Start, OBSBOT Center, OBSBOT Live |
Memory Card Type
| MicroSD (maximum support | 1TB) |
Operating Environment
| Camera working environment temperature | 14-104-degree F (Minus 10-40-degree C) |
| Battery charging ambient temperature | 14-104-degree F (Minus 10-40-degree C) |
| Battery operating ambient temperature | 14-104-degree F (Minus 10-40-degree C) |
