- OBSBOT Talent Multi-Cam All-In-One Live Streaming Studio with 5.4-Inch Touchscreen Monitor (Black)
- 2 x Mini Stand
- Sun Hood
- 2 x Thumb Screws
- Power Adapter
- Limited 1-Year Warranty
Trusted & Verified

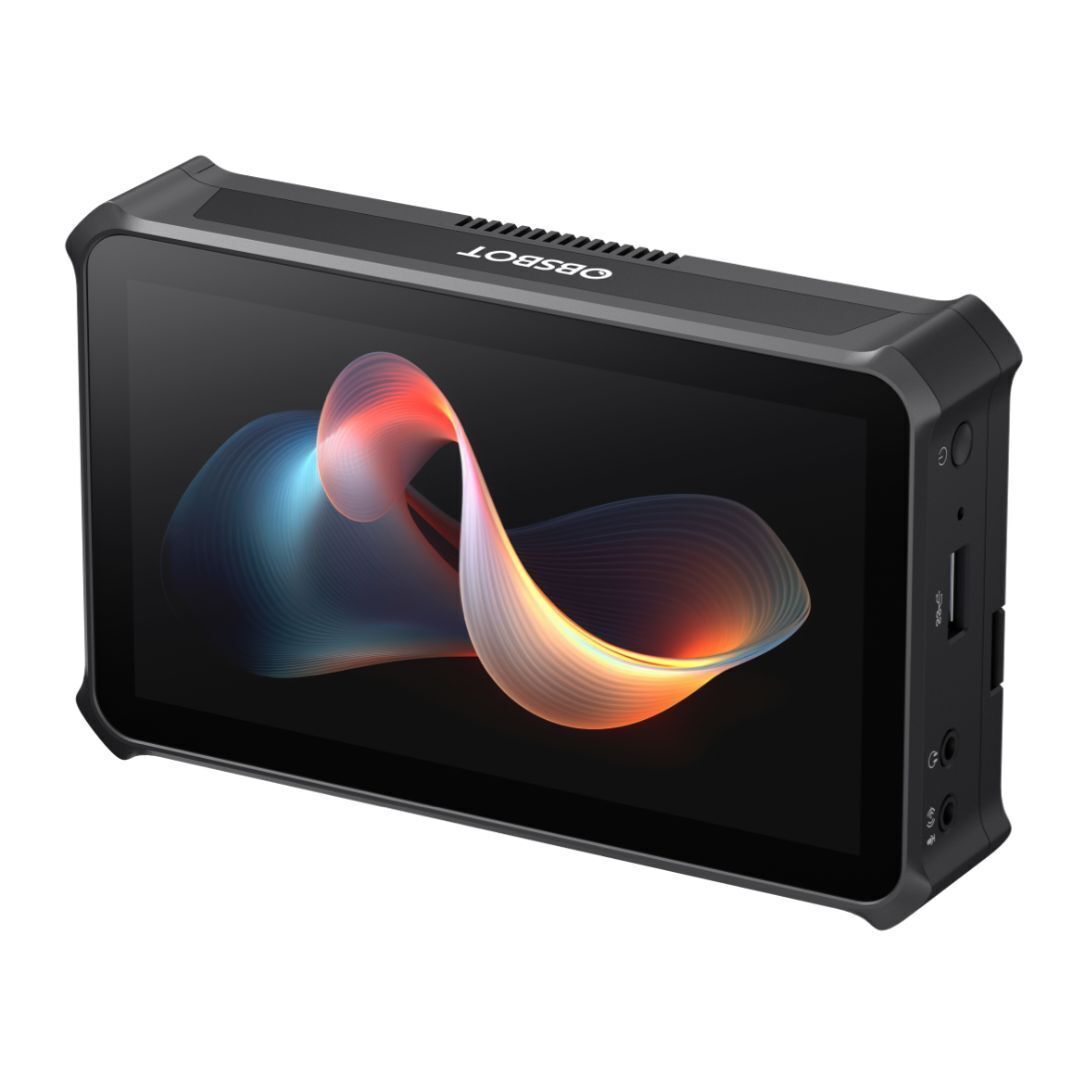

OBSBOT Talent Multi-Cam All-In-One Live Streaming Studio with 5.4-Inch Touchscreen Monitor (Black)

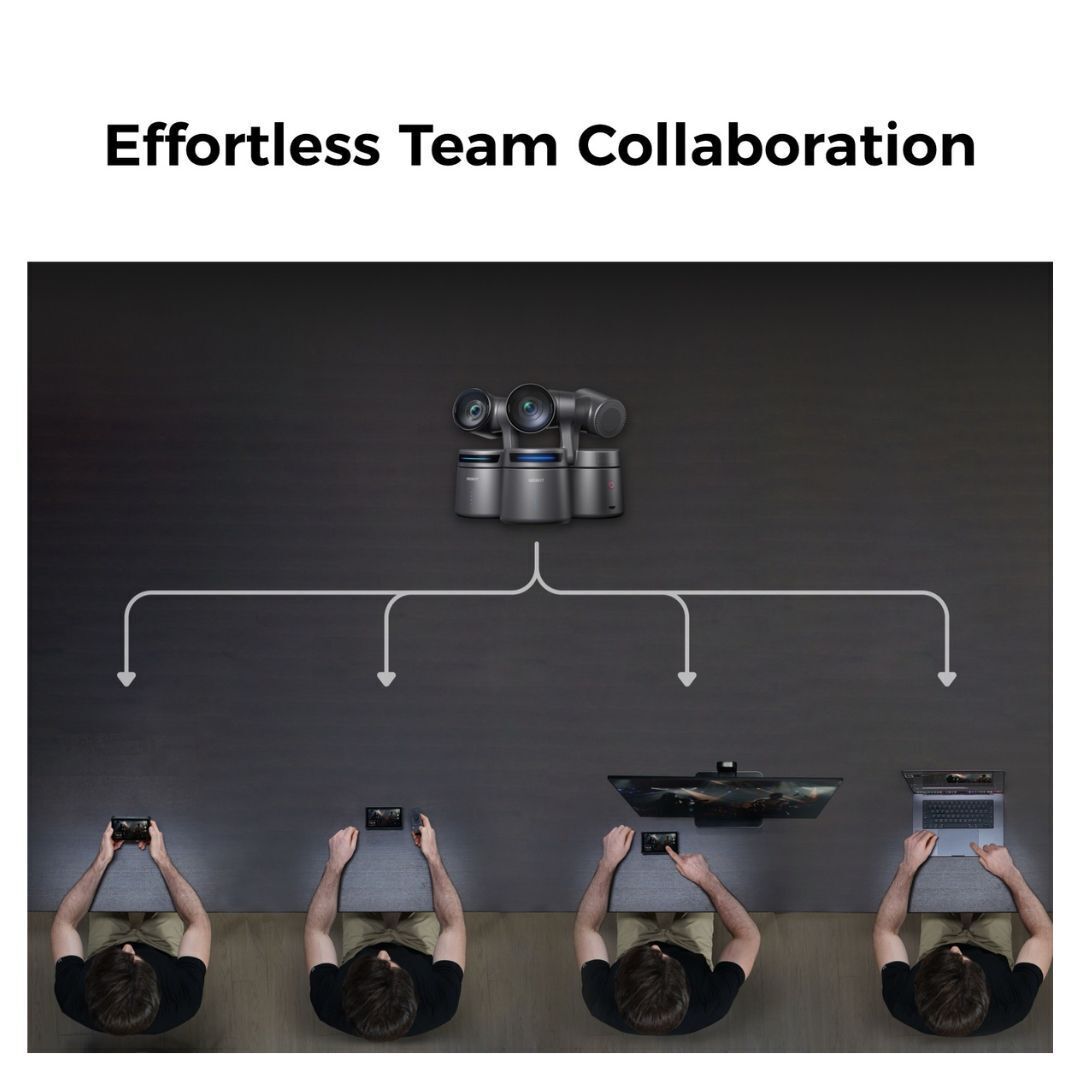

- Perfect teammate for other OBSBOT products

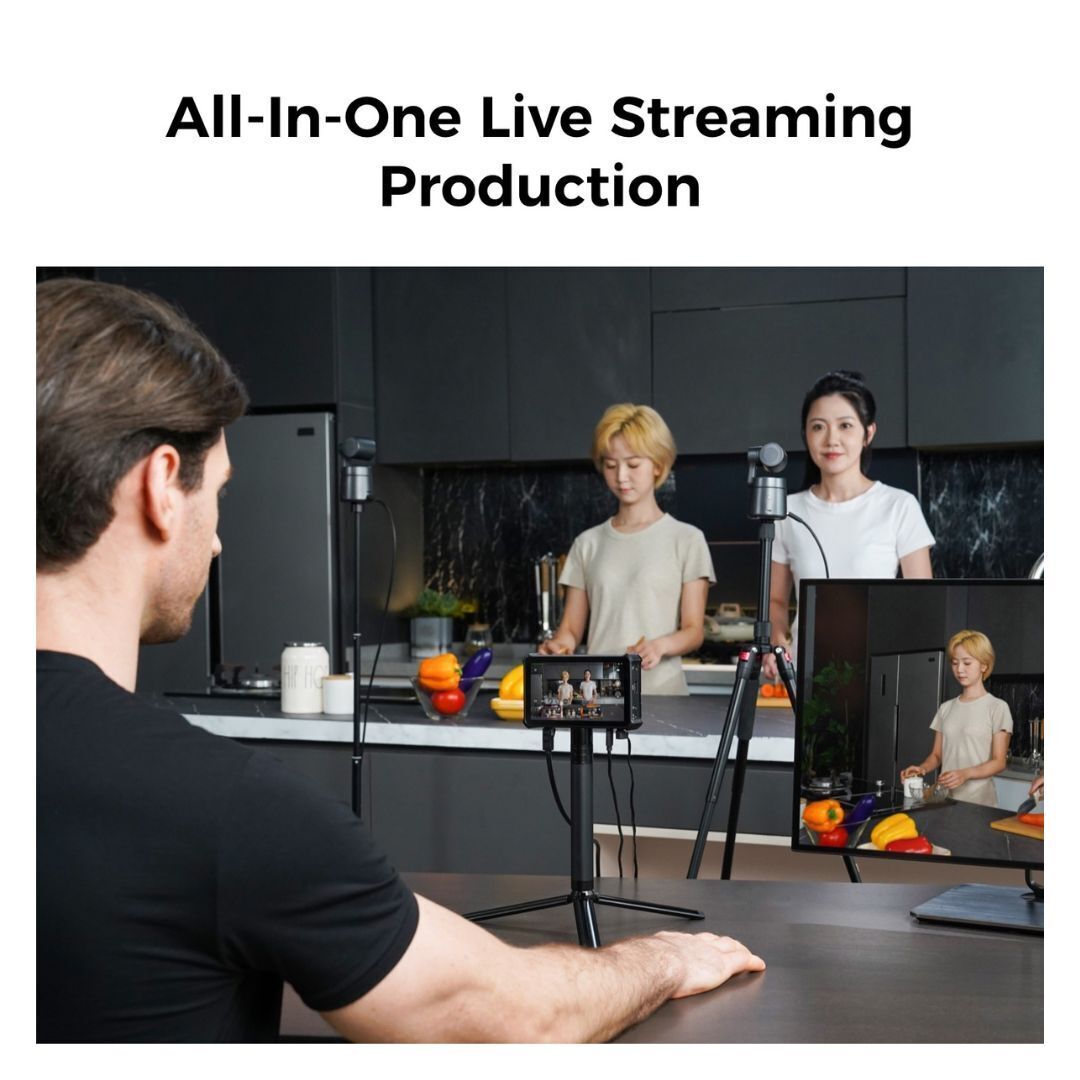

- All-in-one live streaming production

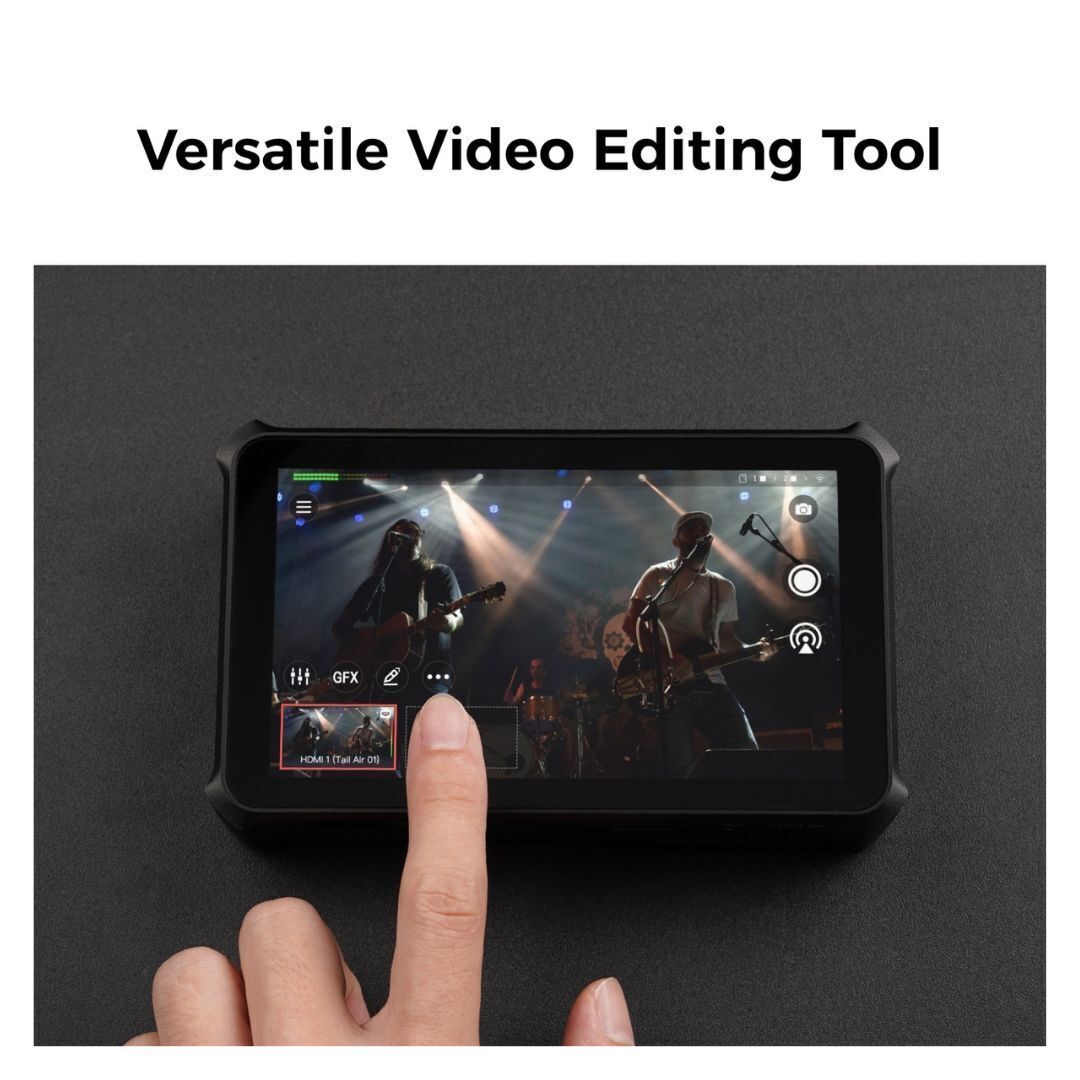

- Versatile video editing tool

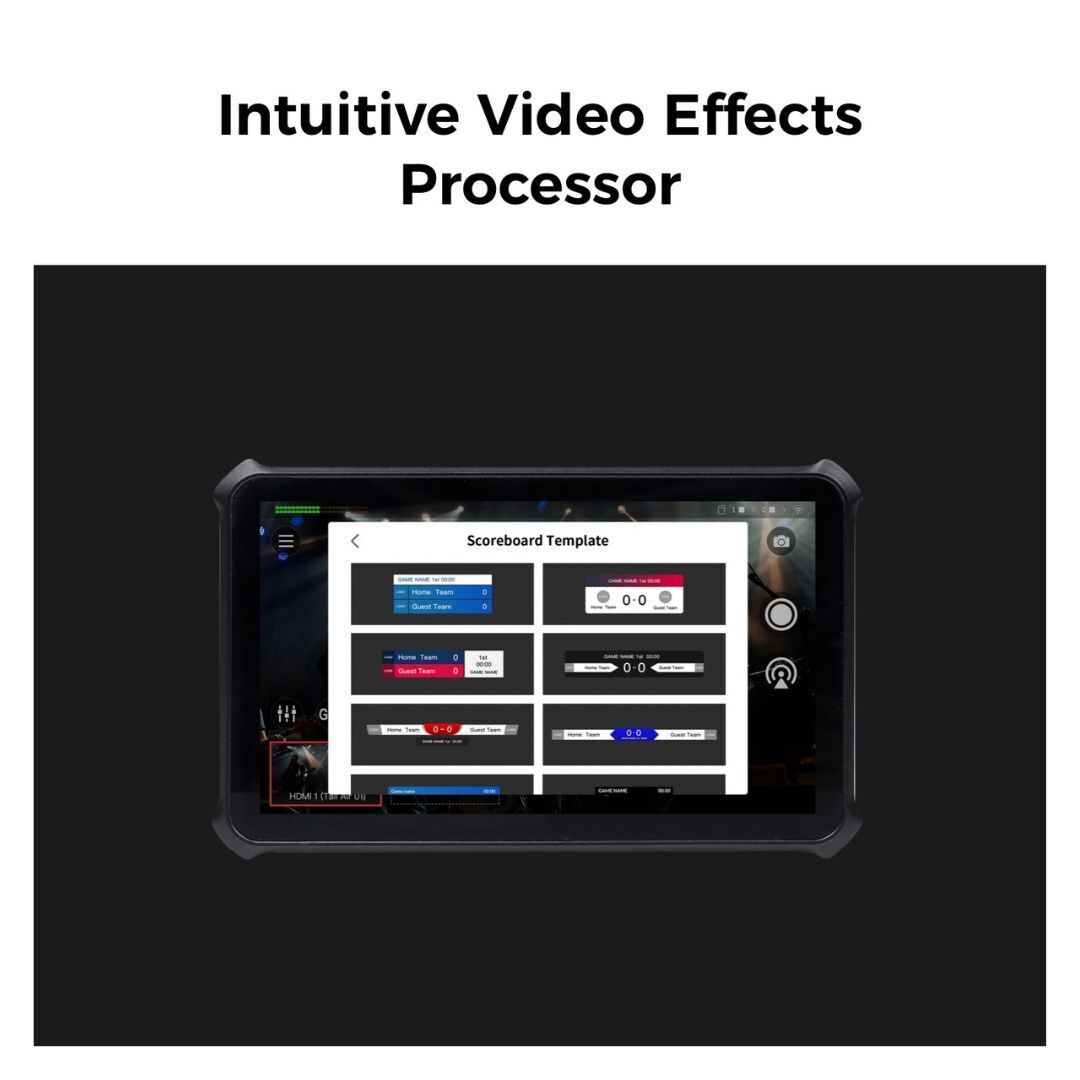

- Intuitive video effects processor

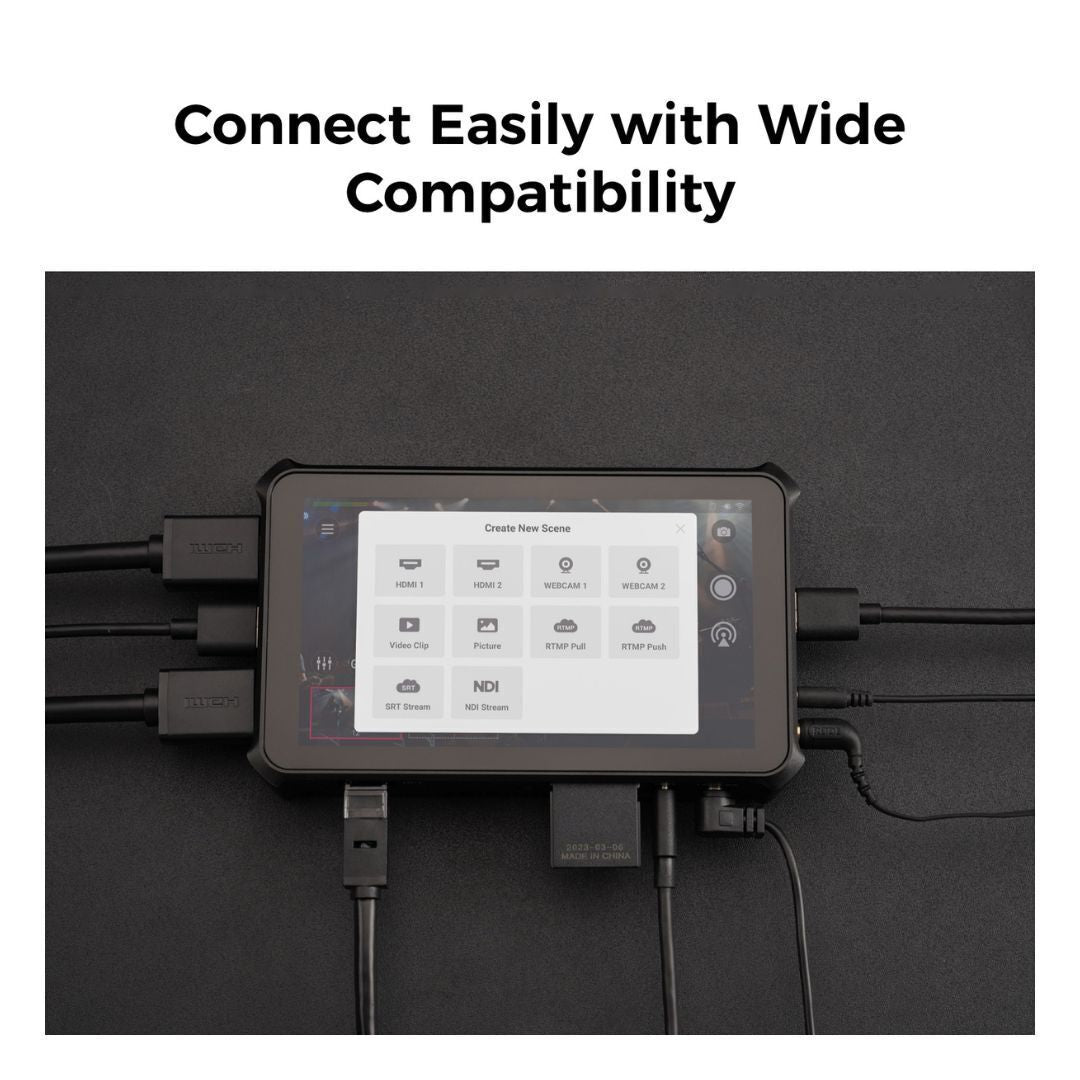

- Connects easily with wide compatibility
- Controls streaming effortlessly
- Hot-swappable NPF battery
- Features AMOLED FHD touchable 5.44-inch screen

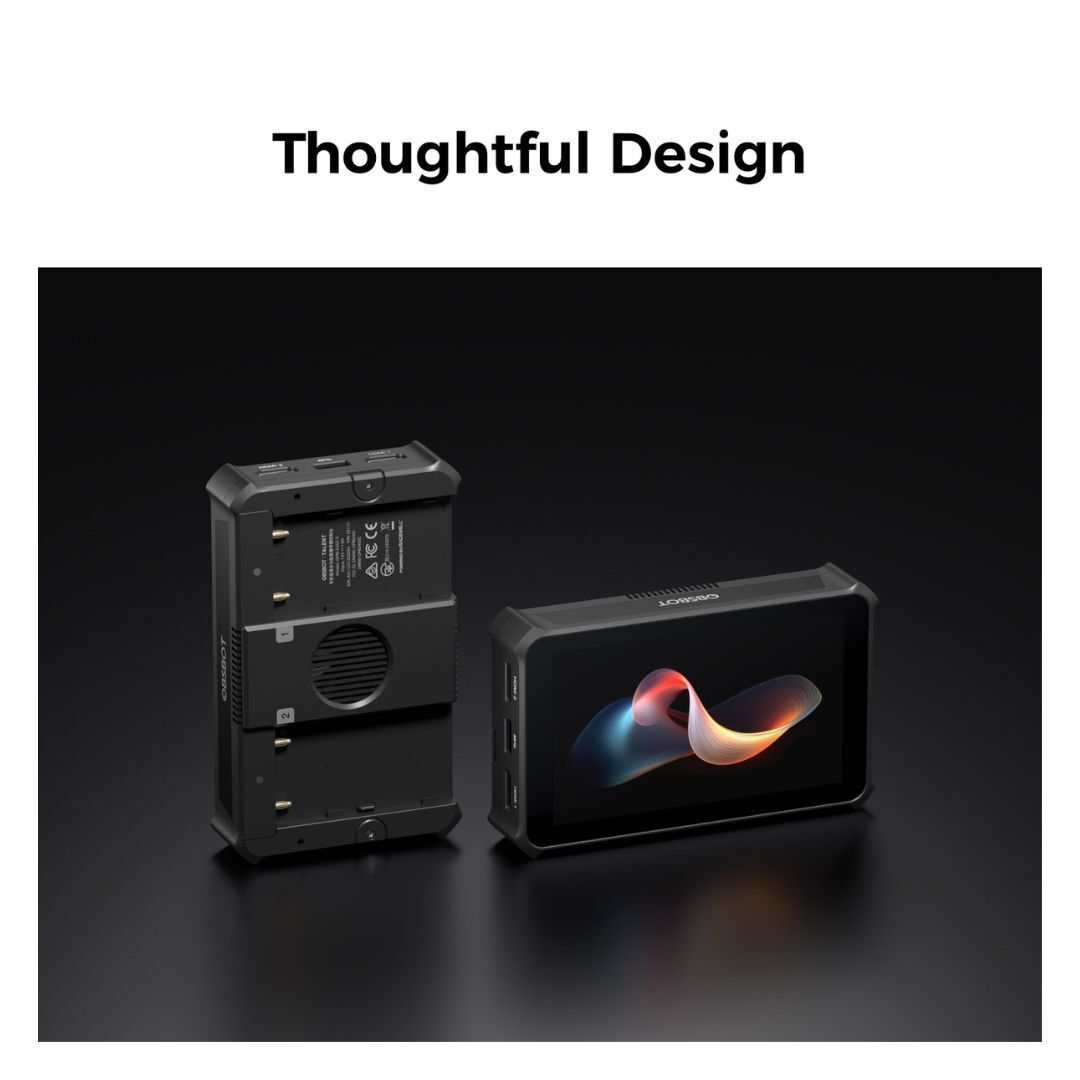

- Aluminum-alloy body
- Built-in cooling fan for better thermal conductivity
Appearance
| Appearance | OBSBOT Talent |
Size and Weight
| Size | 147.2 x 90 x 28.5 mm |
| Weight (with Stand) | 495.2g |
| Weight (without Stand) | 402.9g |
Screen
| Size | 5.44 inches |
| Type | AMOLED |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 |
| Brightness | 350 nits |
| Color Depth | 8-bit |
| Contrast Ratio | 6000:1 |
| Color Gamut | 105% NTSC |
| Refresh Rate | 60Hz |
| Viewing Direction | All |
| PPI | 405 |
| Touchscreen | Capacitive |
| Screen Coating | Anti-fingerprint coating |
Video Input - HDMI
| Port | 2 x HDMI 2.0 Type-A port |
| Typical Resolution / Frame Rate #1 | 4096 x 2160p / 3840 x 2160p - 23.98/24/25/29.97/30/59.94/60 |
| Typical Resolution / Frame Rate #2 | 1920 x 1080p - 23.98/24/25/29.97/30/50/59.94/60 |
| Typical Resolution / Frame Rate #3 | 1920 x 1080i - 25/29.97/30 |
| Typical Resolution / Frame Rate #4 | 1280 x 720p - 23.98/24/25/29.97/30/50/59.94/60 |
| Typical Resolution / Frame Rate #5 | 720 x 576p - 50/100 |
| Typical Resolution / Frame Rate #6 | 720 x 576i - 25/50 |
| Typical Resolution / Frame Rate #7 | 720 x 480p - 59.94/60 |
| Typical Resolution / Frame Rate #8 | 720 x 480i - 29.97/30 |
| Color Depth | 8/10/12-bit |
| Color Sampling | RGB 4:4:4 / YCBCR 4:4:4 / YCBCR 4:2:2 |
Video Input - USB
| Port | 2x USB 3.0 Type-A port, 1x USB 3.0 Type-C port |
| Single USB-A input | Up to 1920 x 1080p, 60fps |
| Single USB-C input | Up to 1920 x 1080p, 60fps |
| Dual USB-A input | Up to 1920 x 1080p, 50fps + 1920 x 1080p, 30fps |
| One USB-A input + one USB-C input | Up to 1920 x 1080p, 60fps + 1920 x 1080p, 60fps |
| Format | YUYV, MJPG, NV12 |
Video Input - SRT Stream
| Codec | H.264, H.265 |
| Resolution / Frame Rate | Up to 1080p, 60fps |
Video Input - RTMP Pull
| Codec | H.264, H.265 |
| Resolution / Frame Rate | Up to 1080p, 60fps |
Video Input - RTMP Push
| Codec | H.264, H.265 |
| Resolution / Frame Rate | Up to 1080p, 60fps |
Video Input - NDI Stream
| NDI HX2 | Yes |
| NDI HX3 | Yes |
| Codec | H.264, H.265 |
| Resolution / Frame Rate | Up to 1080p, 60fps |
Video Input - Video Format
| Resolution | Up to 4K |
| Codec | H.264, H.265 |
| Format | MOV/MP4 |
Video Input - Picture Format
| Format | JPEG/PNG/BMP |
Video Output - For Streaming and Recording
| Codec | H.264, H.265 |
| Resolution | 1080p, 720p, 540p, 360p (only for NDI) |
| Frame Rate | 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 / 15 fps (Encoding options change along with the frame rate of the show) |
| NDI HX3 | Up to 62 Mbps, down to 1.5 Mbps |
| Others | Up to 30 Mbps, down to 256 KPBS |
| Key Frame Interval | Customizable |
| Profile | High profile, Main profile, Baseline profile |
| Bitrate Mode | VBR, CBR |
Video Output - USB-C
| Port | 1 x USB 3.0 Type-C port |
| Output Mode | DP-OUT, UVC/UAC |
| Resolution | 1920 x 1080 |
| Frame Rate | 60fps, 50fps |
| Sampling Format | RGB 4:4:4 |
Audio Output
| Streaming and Recording | 2-channel, 16-bit, 48 KHz, AAC, 64kbps / 96kbps / 128kbps |
| Headphone Output | 1 x 3.5mm jack, 2-channel, 48 KHz, 16-bit |
| Audio Output Via Bluetooth Device | 2-channel, 48 KHz, 16-bit |
| Audio Output Via USB-C Port | 2-channel, 48 KHz, 16-bit |
| Audio Output Via USB-A Port | 2-channel, 48 KHz, 16-bit / 24-bit / 32-bit |
Features of USB-A Port
| Feature #1 | Connect to a USB A/V device, such as webcam, USB microphone, USB speaker, etc. |
| Feature #2 | Connect to a USB modem. |
| Feature #3 | Connect to a USB flash drive. |
| Feature #4 | To transfer video, picture, audio and other media files, firmware update files, log files, etc. |
| Feature #5 | Supported system format: FAT32, exFAT and NTFS. |
| Feature #6 | Connect to a USB keyboard for shortcuts. |
Features of USB-C Out Port
| External Screen | Connect to an external screen. |
| Connection Mode | Connect the device to a monitor with a USB-C to HDMI/VGA/DP adapter. |
| A/V display Mode Options | Clean Program, Preview, Multi-view, Duplicate Screen, Loop HDMI 1, Loop HDMI 2. |
| Image Rotation | Rotate 90-degrees to left, or rotate 90-degrees to right. |
| External Touchscreen | Supports using an external touchscreen to control the device in the Duplicate Screen mode. |
| Connect to a computer | Yes |
| MTP Mode | Transfer video, picture, audio and other media files, firmware update files, log files, etc. |
| UVC/UAC Mode | Output audio and video to streaming software |
Network
| Ethernet | 1 x RJ45 port, 10/100/1000 Mbps Base-T |
| Wi-Fi | 2.4G/5G, Station and Hotspot modes supported |
| Cellular | USB modem supported (not supplied) |
| Bluetooth | BT 5.0 / Supports Bluetooth for audio input or output with Bluetooth devices, and also supports Bluetooth keyboard, etc. |
Storage
| Local Storage | 64GB |
| SD Card (not supplied) | FAT32 (Under 128G), NTFS, exFAT |
Power
| Power Input (AC Power) | 12V / 1.5A |
| Maximum Power Consumption (AC Power) | 15W |
| Battery Pack | 2 x DC 7.4V (NP-F battery packs, not supplied) (Hot swappable) |
LED Light
| Tips | The two back LED lights can be set as battery indicators or NDI tally lights. |
| Battery Indicators (default) | Green (50-100%), Orange (25-50%), Red (Lower than 25%) |
| Off | Depleted |
| NDI Tally Lights | Red (the NDI streaming signal is in PGM view) and Green (the NDI streaming signal is in PVW view) |
Working Environment Temperature
| Operating Temperature | -10 to 50 degrees C (AC power) |
| Storage Temperature | -20 to 70 degrees C |
| Relative Humidity | 5 to 90% non-condensing |
