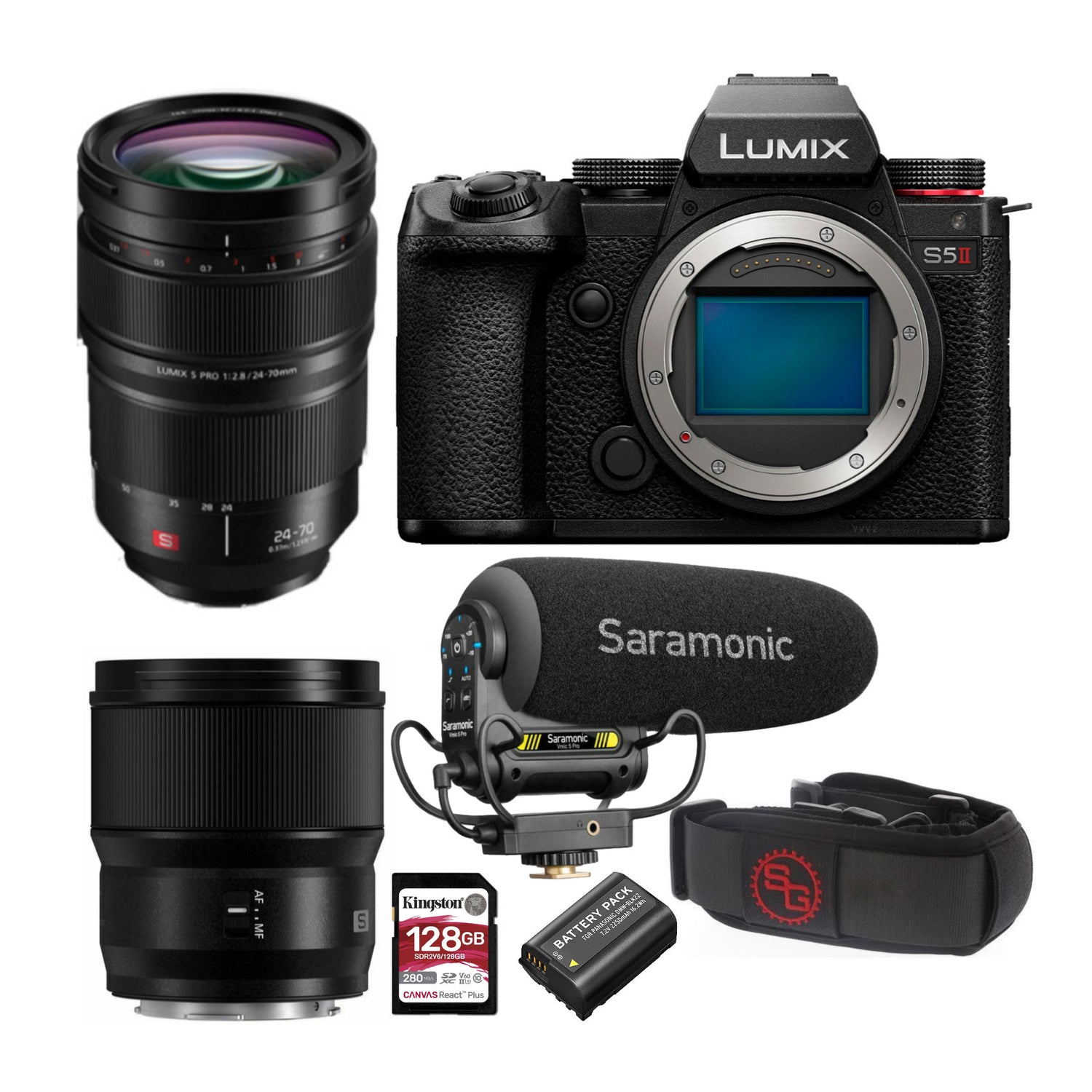

Panasonic Lumix S5II Hybrid Full Frame Mirrorless Camera Body with 24-70mm f/2.8 L-Mount Lens Bundle
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Panasonic LUMIX S Pro 24-70mm f/2.8 L-Mount Interchangeable Lens
The Panasonic LUMIX S Pro 24-70mm f/2.8 is a large-aperture standard zoom lens that boasts high descriptive performance across the entire zoom range. The optical performance of this LUMIX S Pro lens is remarkably high to clear stringent Leica standards. It features stunningly high resolution and high contrast. The full-range high-speed aperture provides smooth defocus gradation, achieving a beautiful bokeh effect with a rich perspective.
Beautiful Bokeh
Ensuring versatile use for landscapes, snaps and portraits with its 24-70mm focal length, the LUMIX S Pro 24-70mm f/2.8 features stunningly high resolution and high contrast at each focal length point. The full-range f/2.8 high-speed aperture provides smooth defocus gradation from the focus peak to the neighboring area of the image to achieve a beautiful bokeh effect as well as a rich perspective.
Video Support
The LUMIX S Pro 24-70mm f/2.8 also excels in video recording performance with a mechanism that suppresses focus breathing.
Rugged Design
The rugged dust/splash-resistant design withstands use under harsh conditions even at 10 degrees below zero for high mobility. Dust and splash resistance does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water. The filter diameter is 82mm, with an 11-blade circular aperture diaphragm.
Panasonic LUMIX Full Frame Camera Firmware Update - S5II Firmware V3.0 and S5IIX Firmware V2.0

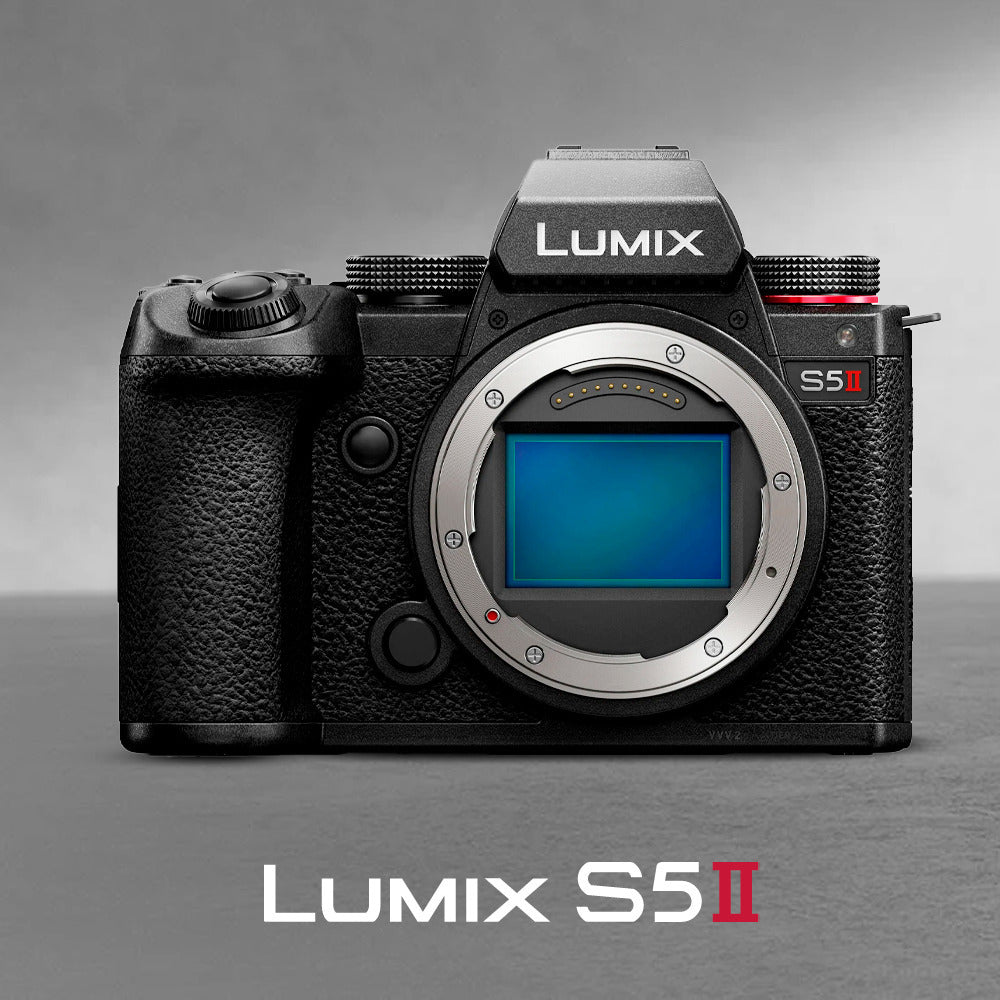

Offering fast, accurate phase hybrid autofocus, the LUMIX S5II mirrorless camera is designed to deliver excellent performance in both photo and video. The 24.2-megapixel 35mm full-frame CMOS sensor complies with PDAF (Phase Detection Auto-Focus) with 5-axis Dual I.S. 2 image stabilization and an imaging engine that's been developed to achieve high resolution, natural description, and approximately 2x higher-speed signal procession for high bit-rate video recording. With the high dynamic range and broad colors of a 14 plus stop V-Log and V-Gamut capture, and an advanced heat dispersion mechanism for unlimited video recording and live streaming, the S5II is developed to meet the demands of ambitious creators with an assertive shooting style.
Firmware Update
Listening to creators’ needs, S5II Firmware V3.0 and S5IIX Firmware V2.0 deliver efficiency in both production and post-production workflows, providing important time (and therefore cost) saving benefits. The firmware updates improve the shooting experience and enhances sharing functionality - compatibility with Adobe Camera to Cloud (Frame.io) and Proxy video recording; improved basic performance with improved real-time AF recognition system (animal eye, car, and motorcycle recognition); enhanced E.I.S. performance by adding HIGH mode in the E-stabilization (video) and a perspective distortion correction.
24.2-Megapixel 35mm Full-Frame CMOS Sensor
Developed to achieve high resolution, natural description, and approximately 2x higher-speed signal processing, powered by L Technology.
Fast, Accurate Phase Hybrid Autofocus
Advanced subject detection and metering technologies capture the target subject in focus even in adverse lighting conditions; once locked on the subject, it keeps tracking even with multiple moving objects.
Powerful Image Stabilization
LUMIX's newly developed Active I.S., which supports walking shots, further enhances image stabilization in video recording.
Expressive Video Functionality
14 plus stop V-Log and V-Gamut capture delivers a high dynamic range and broad colors, plus a REAL TIME LUT function is provided to enable in-camera photo and video color grading, with LUT6K 30p Open Gate unlimited recording.
Imaging
| Maximum Resolution | 8496 x 5664 |
| Megapixels | 24.20 |
Exposure Control
| Shutter Speed | Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60 Motion picture: 1/16,000 - 1/25 Creative Video M mode / MF mode: 1/16,000 - 1/2 |
| ISO Sensitivity | [Normal] Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step), V-Log] Auto / 320* / 640-51200 (1/3 or 1 EV step), [HLG] Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) |
| Exposure Compensation | 1/3 EV step ±5EV (±3EV for motion picture) |
| Metering Range | EV0-18 (F2.0 lens, ISO100 equivalent) |
| Self Timer | 10sec, 3 images / 2sec / 10sec / Custom Time |
| Metering Method | Light metering system: 1,728-zone multi-pattern sensing system, Light metering mode: Multiple / Center Weighted / Spot / Highlight Weighted, |
| Exposure Modes | Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto *The same exposure operations as P/A/S/M mode is available. |
| Continuous Shooting | Mechanical Shutter Up to 9 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) Electronic Shutter Up to 30 fps for up to 200 Frames (Raw) / 200 Frames (JPEG) |
Viewfinder
| Viewfinder Eye Point | Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt) |
| Viewfinder Magnification | Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2 |
| Viewfinder Size | Approx. 3.68 million dots |
Flash
| Flash Sync Speed | Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode. |
| Flash Compensation | 1/3EV step ±3EV |
| Flash Modes | Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off |
| Dedicated Flash System | TTL |
Interface
| Wireless | Bluetooth |
Physical
| Camera Series | Lumix S |
| Battery | Li-ion Battery Pack |
| Camera Model | Panasonic LUMIX S5M2 |
| Configuration | Bundle 1 |
Monitor
| Monitor Size | 3 inch |
- 3 Aspherical lenses
- 4 Extra-Low Dispersion lenses
- 1 Ultra High Refractive Index lens
- When using full-frame lenses:
- 3:2: 6000 x 4000(L)/4272 x 2848(M)/3024 x 2016(S)/12000 x 8000(XL)*/8496 x 5664(LL)* *High Resolution mode.
- 4:3 5328 x 4000(L)/3792x2848(M)/2688x2016(S)/10656 x 8000(XL)*/7552 x 5664(LL)* *High Resolution mode.
- 16:9: 6000 x 3368(L)/4272 x 2400(M)/3024 x 1704(S)/12000 x 6736(XL)*/8496x4784(LL)* *High Resolution mode.
- 1:1: 4000 x 4000(L)/2848 x 2848(M)/2016x2016(S)/8000 x 8000(XL)*/5664x5664(LL)* *High Resolution mode.
- 65:24: 6000 x 2208(L)
- 2:1: 6000 x 3000(L)
- When using APS-C/super 35mm lenses:
- 3:2: 3984 x 2656(L)/2880 x 1920(M)/2064 x 1376(S)
- 4:3: 3536 x 2656(L)/2560 x 1920(M)/1840x1376(S)
- 16:9: 3984 x 2240(L)/2880 x 1624(M)/1920 x 1080(S)
- 1:1: 2656 x 2656(L)/1920 x 1920(M)/1376 x 1376(S)
- MOV: H.264/MPEG-4 AVC, H.265/HEVC
- MP4: H.264/MPEG-4 AVC, H.265/HEVC
- MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
- MP4: AAC (2ch 48kHz/16-bit) When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).
- 59.94Hz full:
- 6K 5952 x 3968 (3:2):
- 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 6K 5952 x 3136 (17:9):
- 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 5.9K 5888 x 3312 (16:9):
- 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- C4K 4096 x 2160:
- 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 4K 3840 x 2160:
- 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- FHD 1920 x 1080:
- 119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- APS-C/pixel/pixel:
- C4K 4096 x 2160:
- 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 4K 3840 x 2160:
- 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 3.3K 3328 x 2496 (4:3):
- 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- FHD 1920 x 1080:
- 100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
- 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
- 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- *When the image area of the video is set to APS-C.
- Auto/50*/100-51200/102400*/204800* (1/3 or 1 EV step) *Extended ISO
- V-Log
- Auto/320*/ 640-51200 (1/3 or 1 EV step) Extended ISO
- HLG
- Auto/400-51200 / 102400/ 204800 (1/3 or 1 EV step) *Extended ISO
- Normal
- Native ISO: 100, 640
- Auto: Auto/ 50/100-51200/102400/ 204800 extended ISO
- Low: Auto/50*/100-800 *extended ISO
- High: Auto / 320/640-51200 / 102400/ 204800* *Extended ISO
- V-Log
- Native ISO: 640, 4000
- Auto: Auto/320/640-51200 extended ISO
- Low: Auto/320/640-5000 extended ISO
- High: Auto/2000/4000-51200 extended ISO
- HLG
- Native ISO: 400, 2500
- Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
- Low: Auto / 400-3200
- High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO
- Cinelike D2/Cinelike V2
- Native ISO: 200, 1250
- Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
- Low: Auto /100* / 200-1600 *Extended ISO
- High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO
- AE lock: Set the Fn button in the custom menu to AE lock
- B.I.S. (5-axis / 5-stop*) *Based on the CIPA standard (Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.)
- Dual I.S. 2 (6.5-stop*) *Based on the CIPA standard (Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.)
- Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
- Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
- Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60
- Motion picture: 1/16,000 - 1/25
- Creative video M mode/MF mode: 1/16,000 - 1/2
- Mechanical shutter/electronic front curtain shutter:
- H: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with live view)
- M: 5 frames/sec (AFS/MF) (with live view), 5 frames/sec (AFC) (with live view)
- L: 2 frames/sec (AFS/AFC/MF) (with live view)
- Electronic shutter:
- SH30: 30 frames/sec (AFS/AFC/MF)
- H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with live view)
- M: 5 frames/sec (AFS/MF) (with live view), 5 frames/sec (AFC) (with live view)
- L: 2 frames/sec (AFS/AFC/MF) (with live view)
- H/M/L*
- RAW+JPEG: More than 200 images
- RAW: More than 200 images
- JPEG: More than 300 images
- *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
- *When using a card with SD speed class with UHS-II UHS speed class 3 (U3).
- SH
- RAW / RAW+JPEG / JPEG: 200 images
- Photo style: Standard/Vivid/Natural/L. Classic Neo/Flat/ Landscape/Portrait/Monochrome/L. Monochrome/L. Monochrome D/L. Monochrome S/Cinelike D2/Cinelike V2/Like709/V-Log/REAL TIME LUT/Like2100 (HLG)/Like2100 (HLG) Full Range*/My Photo Style 1-4 (5-10)*
- *Set to ON from Show/Hide Photo Style to select.
- Picture adjustment: Contrast/Highlight/Shadow/Saturation/Color Tone/Hue/Filter Effect/Grain Effect/Color Noise/Sharpness/Noise Reduction/ISO/WB/LUT
- *Adjustable settings vary depending on the Photo Style mode.
- HDMI TypeA
- Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When 4ch Mic Input) is set to OFF.), 4ch (When 4ch Mic Input) is set to ON.)
- 59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
- 50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
- 24.00Hz: C4K/24p / 4K/24p / 1080p *Only for playback
- Built-in microphone:
- Stereo
- Wind noise canceller: OFF / Standard / High
- Li-ion battery pack (7.2V, 2200mAh, 16Wh) (bundled)
- USB power supply, USB power charging, USB power delivery
- Approx. 5.29 x 4.03 x 3.55 inch ((134.3 x 102.3 x 90.1 mm) (Body only, excluding protrusions)
- Approx. 5.29 x 4.03 x 6.19 inch (134.3 x 102.3 x 157.0 mm) (with S-R2060, excluding protrusions)
- Approx. 5.29 x 4.03 x 5.98 inch (134.3 x 102.3 x 151.8 mm) (with S-S50, excluding protrusions)
- Approx. 1.64 lb (740g) (Body, hot shoe cover, battery, SD memory card x 1) (excluding body cap)
- Approx. 1.45 lb (657g) (Body, hot shoe cover) (excluding body cap)
- Recording: LUMIX Tether. This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software. LUMIX Sync. This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
- Playback and editing: The software to process RAW files on the computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using a computer connected to the Internet.
- High density memory foam, covered by 1 inch polypropylene,
- Anodized rubber carabiner and D ring
Panasonic LUMIX S Pro 24-70mm f/2.8 L-Mount Interchangeable Lens
Panasonic LUMIX S Pro 24-70mm f/2.8 L-Mount Interchangeable Lens
| Focal length | 24-70mm |
| Maximum aperture | f/2.8 |
| Minimum aperture | f/22 |
| Mount | L-Mount |
| Sensor format | Full frame |
| Diagonal angle of view | 84 degrees (Wide) to 34 degrees (Tele) |
| Maximum magnification | Approx. 0.25x |
| Lens construction | 18 elements in 16 groups |
| Elements | |
| Diaphragm blades | 11, circular |
| Closest focusing distance | 1.21 feet / 0.37 m |
| Dust and splash resistant | Yes |
| Filter size | 82 mm |
| Recommended operating temperature | 14 to 104-degree-F (-10 to 40-degree-C) |
| Maximum diameter | 3.58 inches / 90.9 mm |
| Overall length | Approx. 5.51 inches / 140 mm (from the tip of the lens to the base side of the lens mount) |
| Weight | Approx. 32.98 oz / 935 g (excluding lens cap, lens rear cap and lens hood) |
Panasonic LUMIX S5II Hybrid Full Frame Mirrorless Camera Body
Type
| Type | Digital single-lens mirrorless camera |
| Lens mount | L-mount |
| Type 35mm full-frame (35.6mm x 23.8mm) CMOS sensor | |
| Camera effective pixels/total pixels | 24.20 megapixels/25.28 megapixels |
| Anti Reflection coating | Yes |
| Aspect ratio/color filter | 3:2/primary color filter |
| Dust reduction system | Image sensor shift type |
Latitude
| Latitude | 14+ stops (V-log) |
Still Image
| Recording file format | JPEG (DCF, Exif 2.31), RAW |
| Aspect ratio | 4:3/3:2/16:9/1:1/65:24/2:1 |
| File size (pixels) | |
| Image quality | RAW/RAW+fine/RAW+standard/fine/standard (high-resolution mode: combined/RAW/RAW+fine/fine) |
| Color space | sRGB, AdobeRGB |
Motion Picture
| Recording file format | |
| Audio format | |
| System frequency | 59.94Hz/50.00Hz/24.00Hz |
| Image area of video | Full/APS-C/PIXEL/PIXEL |
| MOV |
Viewfinder
| Type | OLED live viewfinder |
| Pixels | Approx. 3.68 million dots |
| Field of view/magnification | Approx. 100%/Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2 |
| Eye point/diopter adjustment | Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt) |
| Eye sensor | Yes |
| Display speed | 120fps/60fps |
Rear Monitor
| Type | TFT LCD monitor with static touch control |
| Monitor size | Free-angle, 3.0-inch (7.6cm), 3:2 aspect |
| Pixels | Approx. 1.84 million dots |
| Field of view | Approx. 100% |
Status LCD
| Status LCD | - |
Focus *3
| Type | Phase detection AF system/Contrast AF system |
| DFD technology Yes | |
| Focus mode | AFS (Single)/AFC (Continuous)/MF |
| AF mode | Tracking/Full Area AF/Zone (Horizontal/Vertical)/Zone/1-Area+/ 1-Area/Pinpoint. *Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set. |
| AF detective range | EV -6 - 18 (F1.4, ISO100 equivalent, AFS) |
| AF custom setting | AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction |
| AF assist light | Yes |
| AF lock | Set the Fn button in the custom menu to AF lock |
| Focus ring control | Nonlinear/Linear (90-degree/ 120-degree/ 150-degree/180-degree/210-degree/240-degree/270-degree/300-degree/330-degree/360-degree/720-degree/1080-degree/maximum) |
| Others | AF-ON, AF-ON: near shift, AF-ON: far shift, focus limiter, focus peaking, 1-area AF moving speed, AF micro adjustment, continuous AF (during motion picture recording), focus/shutter priority, focus switching for vert/hor, AF/AE lock hold, AF+MF, MF assist, MF guide, focus ring lock, show/hide AF mode, shutter AF, half press shutter, quick AF, eye sensor AF, loop focus frame, enlarged live display (video), touch shutter, touch AF/AE function, touchpad AF, lens focus resume |
Exposure Control
| Light metering system | 1,728-zone multi-pattern sensing system |
| Light metering mode | Multiple/center weighted/Spot/Highlight |
| Weighted metering range | EV0-18 (F2.0 lens, ISO100 equivalent) |
| Mode dial | Program AE (P)/aperture priority AE (A)/shutter priority AE (S)/manual exposure (M)/creative video(P/A/S/M)*/slow and quick/custom 1, 2, 3/intelligent auto *The same exposure operations as P/A/S/M mode is available. |
| Exposure compensation | 1/3 EV step ±5EV (±3EV for motion picture) |
| ISO sensitivity (Standard output sensitivity) Normal | |
| Dual native ISO |
Image Stabilization System
| Image stabilization system |
White Balance
| White balance | AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4 |
| White balance adjustment | Blue/amber bias, magenta/green bias |
| Color temperature setting | 2500-10000K in 100K |
Shutter
| Type | Focal-plane shutter |
| Shutter speed | |
| Self timer | 10sec, 3 images/2sec/10sec/custom time |
| Remote control | Remote control by DMW-RS2 (sold separately) |
| Silent mode/shutter type | Yes/Yes (Auto/mechanical/electronic front curtain/electronic/electronic+NR) |
Bracket
| AE bracket | 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst |
| Aperture bracket | 3, 5 or all positions |
| Focus bracket | 1 to 999 images, focus steps can be set in 10 levels |
| White balance bracket | 3 images in blue/amber axis or in magenta/green axis, color temperature setting |
Burst Shooting
| Burst speed | |
| Number of recordable images |
Flash
| Flash type | TTL External Flash (sold separately) |
| Synchronization speed | Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode. |
| Flash mode | Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only. |
| Flash synchronization | 1st Curtain Sync, 2nd Curtain Sync. |
| Flash output adjustment | 1/3EV step ±3EV |
| Wireless control | Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), wireless channel: 1ch/2ch/3ch/4ch |
Extra Tele Conversion
| Extra tele conversion | L 2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording. |
Color Setting
| Photo style | |
| Filter | Expressive/Retro/Old Days/High Key/Low Key/Sepia / Cross Process / Bleach Bypass |
| LUT library | Vlog_709 / Set 1-10 *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings. |
Motion Picture Function
| Time lapse shot | Yes |
| Stop motion animation | Yes |
| Live cropping | Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes) |
| SS/Gain operation | Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB |
| Luminance level | 8-bit: 0-255 / 16-235 / 16-25510-bit: 0‒1023 / 64‒940 / 64‒1023 |
| Synchro scan | Yes Master pedestal level 31 steps Color bars / 1kHz test tone Yes (SMPTE / EBU / ARIB) / Yes |
| LUT view assist | Supported file types- .vlt, .cube |
| Monitor / HDMI | |
| HLG view assist | Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF) |
| Anamorphic de-squeeze display | 2.0x/1.8x/1.5x/1.33x/1.30x/OFF Waveform monitor / Vectorscope Selectable |
| Knee control | Yes (in Like709 mode) |
| Red REC frame indicator | ON / OFF |
Vertical Position Information
| Vertical position information | Still image/motion picture (ON/OFF) |
Level Gauge
| Level gauge | Yes |
Function Button
| REC | Exposure Comp. / Dual Native ISO / Sensitivity / White Balance / Photo Style / Apply LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Color Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Slow and Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default |
| Play | Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic De-squeeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default |
OSD Language
| OSD language | P: Refer to the OSD sheet |
Interface
| USB | USB type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2)) |
| HDMI | |
| Monitor-through | 4:2:2 10bit (When Rec Quality) is set to 4:2:2 10bit) or 4:2:0 10bit.) |
| 4 | 2:2 8bit (When Rec Quality) is set to 4:2:0 8bit.) |
| Playback | |
| Remote input | 2.5mm |
| Audio | |
| External microphone/External audio device input | 3.5mm for external microphone / external audio device |
| MIC (Plug-in Power) / MIC / LINE | |
| Wind Cut | OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately). |
| Special Mic | Stereo / Shotgun *When attaching DMW-MS2 (sold separately). |
| XLR microphone | Yes with DMW-XLR1 (sold separately) |
| 4ch mic input | Yes with DMW-XLR1 (sold separately) |
| Speaker | Monaural |
| Headphone output | 3.5mm |
| SD card slot | Slot 1, Slot 2 SD Memory Card / SDHC Memory Card* / SDXC Memory Card* *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards. |
TC IN /OUT
| Count up | Rec run/free run |
| Time code mode | Drop frame/non-drop frame (When system frequency 59.94Hz is selected.) |
| HDMI time code output | ON / OFF |

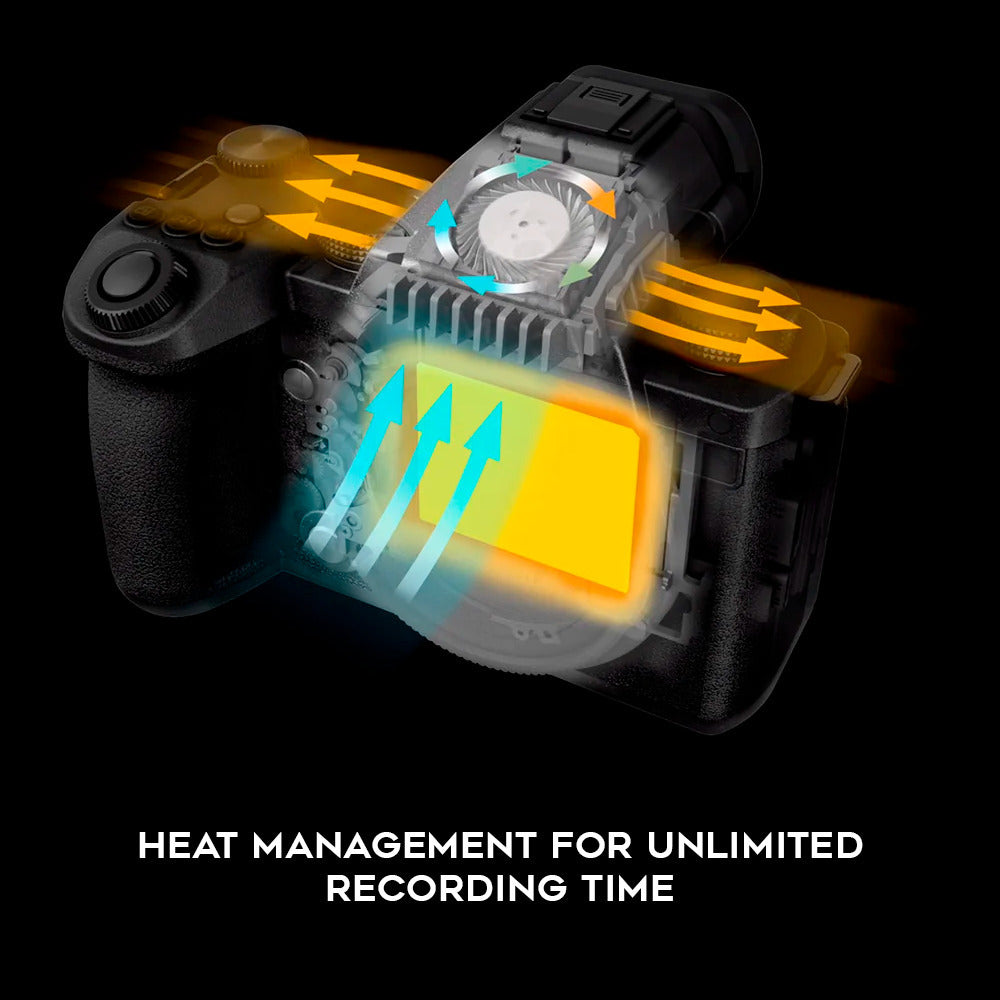

Fan
| Fan | Auto1 / Auto2 / Fast / Normal / Slow* / OFF***Not selectable when the resolution is higher than C4K, or the frame rate is higher than 60p. **OFF can be set when in iA/P/A/S/M mode. |
Wireless
| 2.4GHz bands (STA/AP) (IEEE802.11b/g/n) | |
| 5GHz bands (STA) (IEEE 802.11a/n/ac) | |
| Security | WPA/WPA2/WPA3 Please refer to Wi-Fi sheet |
| Bluetooth | Bluetooth v5.0 (Bluetooth Low Energy (BLE)) |
| Wi-Fi |
Dust and Splash Resistant
| Dust and splash resistant | Yes. *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water. |
Power
| Battery | |
| Battery life (CIPA standard) | Approx. 370 images, 1,250 images (Power Save LVF mode*) with S-R2060 |
| Approx. 370 images, 1,200 images (Power Save LVF mode*) with S-S50 | |
| *Under the test conditions specified by Panasonic based on CIPA standards. When the time to get in the sleep mode is set to 1 sec. | |
| Continuous recordable time (Motion picture) (*1) MP4 4K/60p | Approx. 90 min (APS-C), MP4 FHD/60p: Approx. 130 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged. |
| Actual recordable time (Motion picture) (*1) MP4 4K/60p | Approx. 45 min (APS-C), MP4 FHD/60p: Approx. 65 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged. |
| Battery grip DMW-BGS5 (sold separately) |
Dimensions and Weight
| Dimensions | |
| Weight |
Operating Environment
| Operating temperature | 0 to 40-degree-C (32 to 104-degree-F) |
| Operating humidity | 10%RH to 80％RH |
Standard Accessories
| Software | |
| Lens Construction | 9 elements in 8 groups (3 aspherical lenses, 1 ED lens, 1 UHR lens) |
| Mount | L-Mount |
| Optical Image Stabilizer | No |
| Focal Length | f=50mm |
| Aperture Type | 9 diaphragm blades / Circular aperture diaphragm |
| Maximum Aperture | F1.8 |
| Minimum Aperture | F22 |
| Closest Focusing Distance | 0.45m/1.48ft |
| Maximum Magnification | 0.14x |
| Diagonal Angle of View | 47° |
| Dust and Splash Resistant | Yes* |
| Recommended Operating Temperature | -10℃ to 40℃ (14℉ to 104℉) |
| Filter Size | φ67mm |
| Max. Diameter | φ73.6mm / 2.90inch |
| Overall Length | Approx. 82.0mm / 3.23inch (from the tip of the lens to the base side of the lens mount) |
| Weight | Approx. 300g / 0.66lb (excluding lens cap, lens rear cap and lens hood) |
| Standard Accessories | Lens cap, Lens rear cap, Lens hood |
Saramonic VMIC5 Pro Camera-Mount Shotgun Microphone
| Acoustic Principle | Condenser |
| Polar Pattern | Supercardioid |
| Frequency Response | 20Hz to 20kHz |
| Maximum SPL | 130dBu |
| Sensitivity | -14±3dB (0dB=1V/Pa @ 1KHz) |
| Signal-to-Noise Ratio | 85dB |
| Output Impedance | 200Ω |
| Gain | -10d / 0dB / 20dB |
| High-pass Filter | 0Hz / 75Hz / 150Hz |
| Maximum Output Level | 7.5dBu (@1kHz,1%THD into 1kΩ) |
| Output | Female 3.5mm TRS |
| Power Consumption | 3.7V/2000mAh (Built-in Battery) |
| Battery Life | 120-hours |
| Other Functions | High-Frequency Boost & Auto Power |
| Dimensions | 7.3 x 4.3 x 2.6″ (185 x 109 x 66mm) |
| Weight | 6.5oz (185.5g) |
Koah DMW-BLK22 Lithium-Ion Battery Pack (7.2V, 2250mAh)
| Compatibility | Panasonic LUMIX S5, GH5, G9, GH5s |
| Type | Lithium-ion |
| Voltage | 7.2V |
| Capacity | 2250mAh |
| Energy | 16.2Wh |
| Color | Black |
| Country of Origin | Made in China |
| Warranty | 3-year limited warranty |
StatGear BOOMR Bungee Camera Strap (Red Logo)
| Color | Red |
| Materials |
Shipping & Returns
Frequently Asked Questions
How do I return an item?
How do I return an item?
Returns are incredibly simple. Please log into your account, find your item you wish to return and follow the prompts to make a return. If you do not have an account, click here to find your order and make a return.
Will I receive a full refund when I return an item?
Will I receive a full refund when I return an item?
You will receive a full refund when you return an item in its original manufacturer’s packaging, undamaged and unmarked. If the item you are returning is priced at less than $35, you will be charged a 15% restocking fee. Please note you will not be refunded any shipping charges.
How many days do I have to make a return?
How many days do I have to make a return?
You have 30 days to make a return. During the holiday season, from November 1 to December 31, we extend the return window to 60 days.
My item was damaged in transit. How do I place a return?
My item was damaged in transit. How do I place a return?
If your order has been noticeably damaged in transit, we strongly recommend that you refuse delivery and notify us immediately. Claims for missing items or items damaged in transit must be made within 48 hours of delivery. If there is carrier damage, please contact support@focuscamera.com with your order number and a description of the damage.
There’s an issue with my order, what should I do?
There’s an issue with my order, what should I do?
Oh no! Please contact our customer service team so we can resolve the issue immediately. You can call us on 1.800.221.0828, email us at support@focuscamera.com, or send us a message here.
Can I exchange an item?
Can I exchange an item?
We do not currently offer exchanges. Please return the item you purchased within 30 days and order what you’d like instead.
If I ordered a kit, do I have to return all the items?
If I ordered a kit, do I have to return all the items?
If you ordered a kit, you must return all components and accessories to receive a full refund.
I ordered a product that included a free item. I’d like to return it, do I need to return the free item as well?
I ordered a product that included a free item. I’d like to return it, do I need to return the free item as well?
If you ordered a product that included a free item, you must include the free item with your return. If not, your return will not be accepted and you will not receive a full refund.
Do you offer repairs?
Do you offer repairs?
We currently only offer camera repairs at our Brooklyn store. The item must be dropped off and collected in person as we do not accept shipped items for repair. For more information, please call our Brooklyn store on 1.718.431.7900.
What is your return policy?
What is your return policy?
Most items can be returned within 30 days for a full refund. Click here to read our full return policy.
