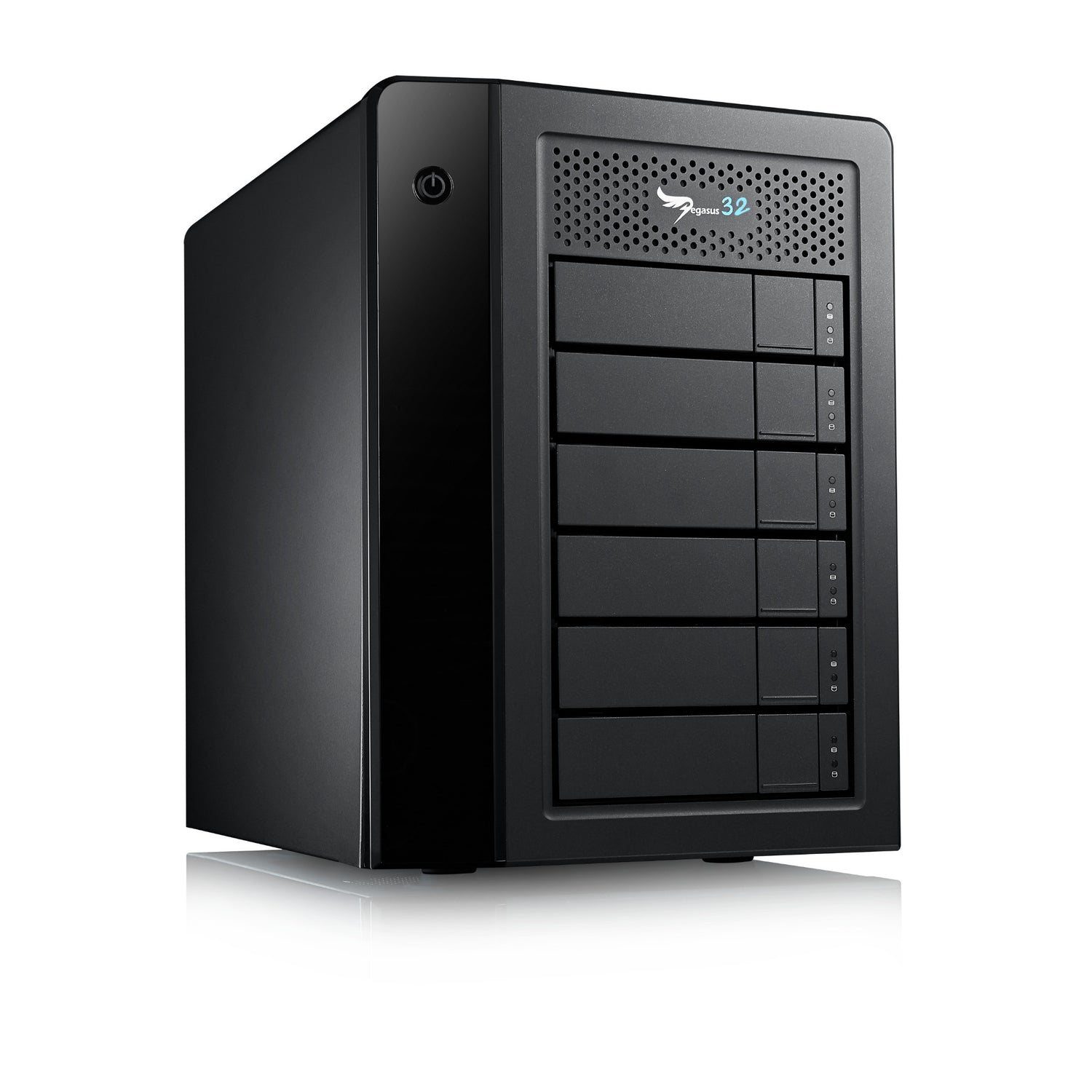

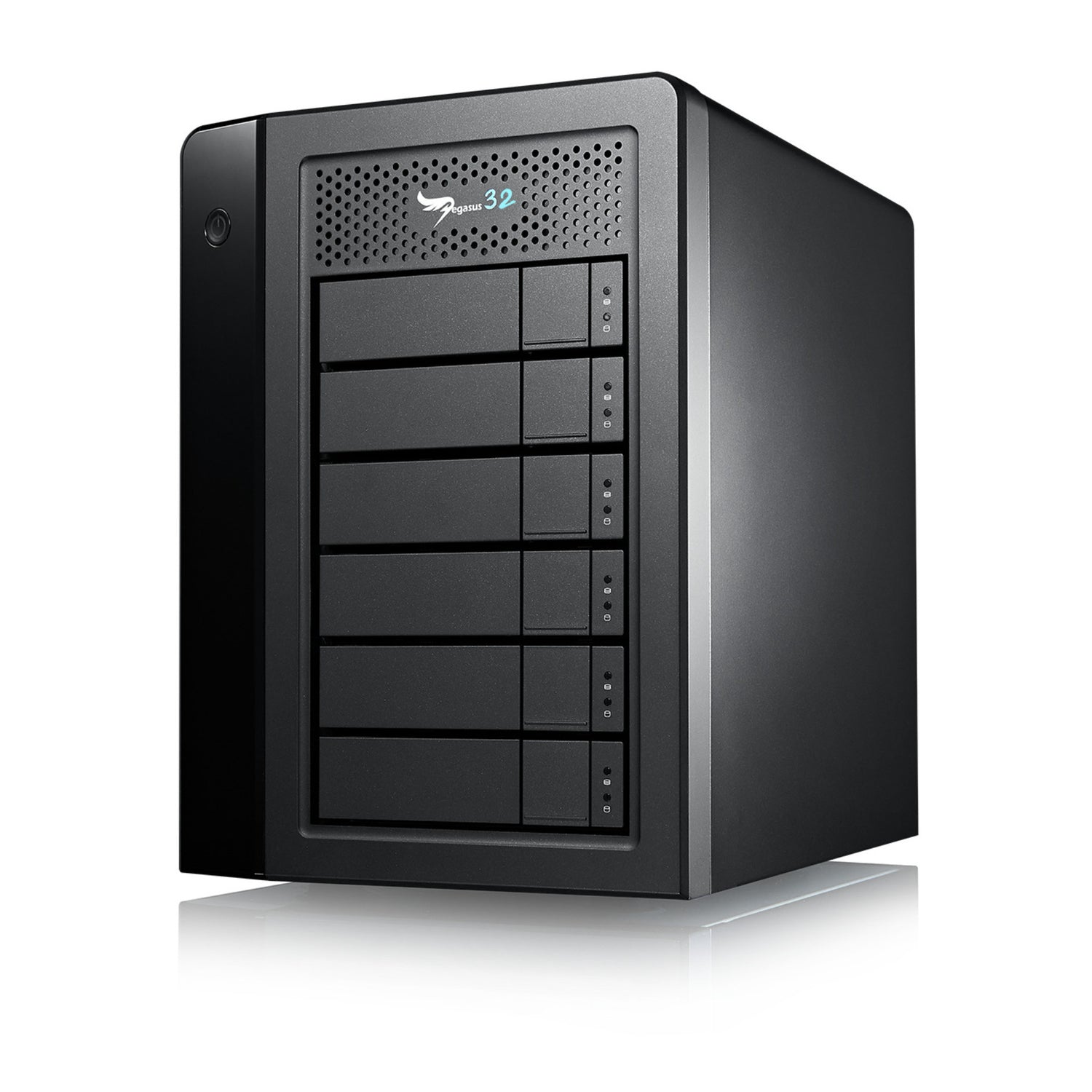

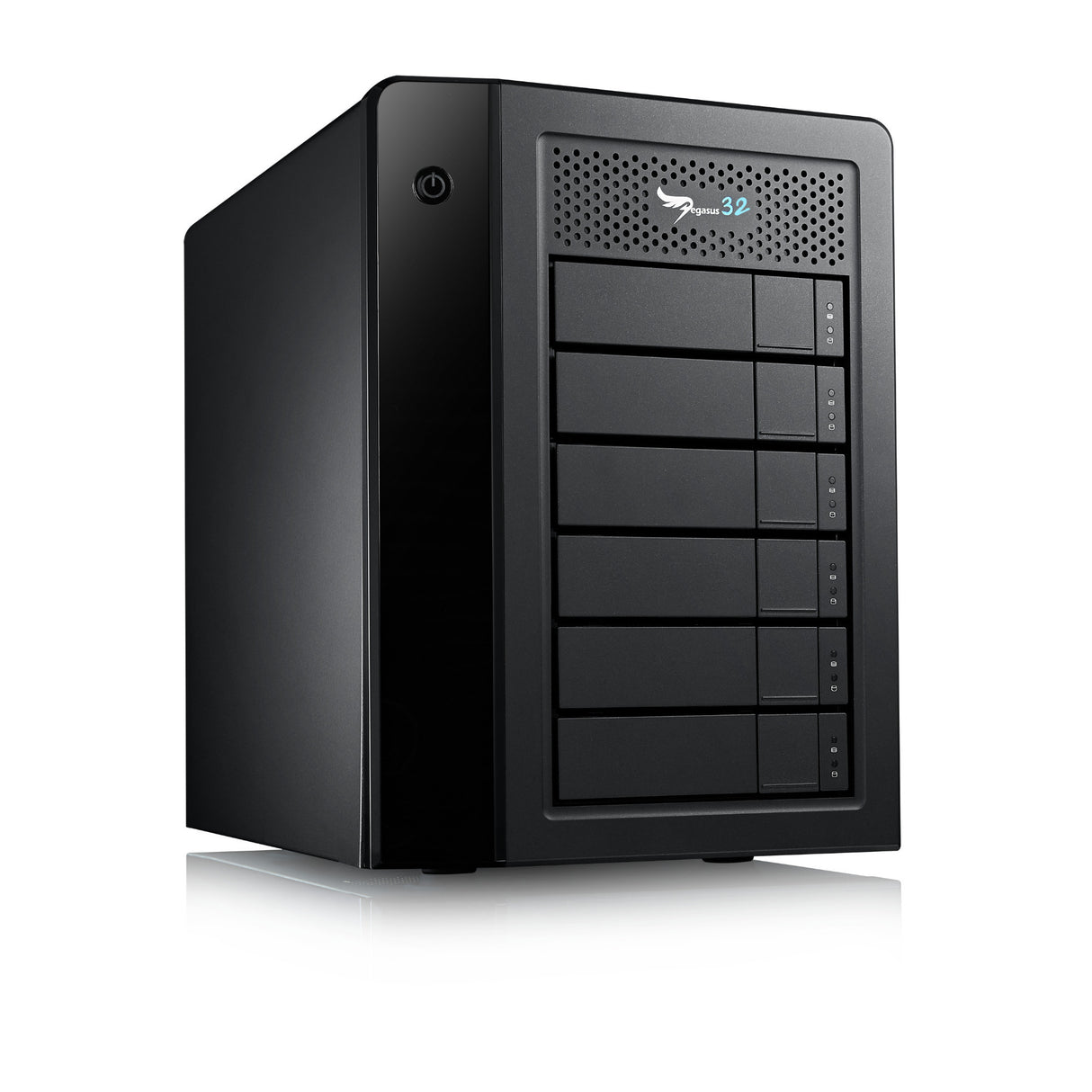

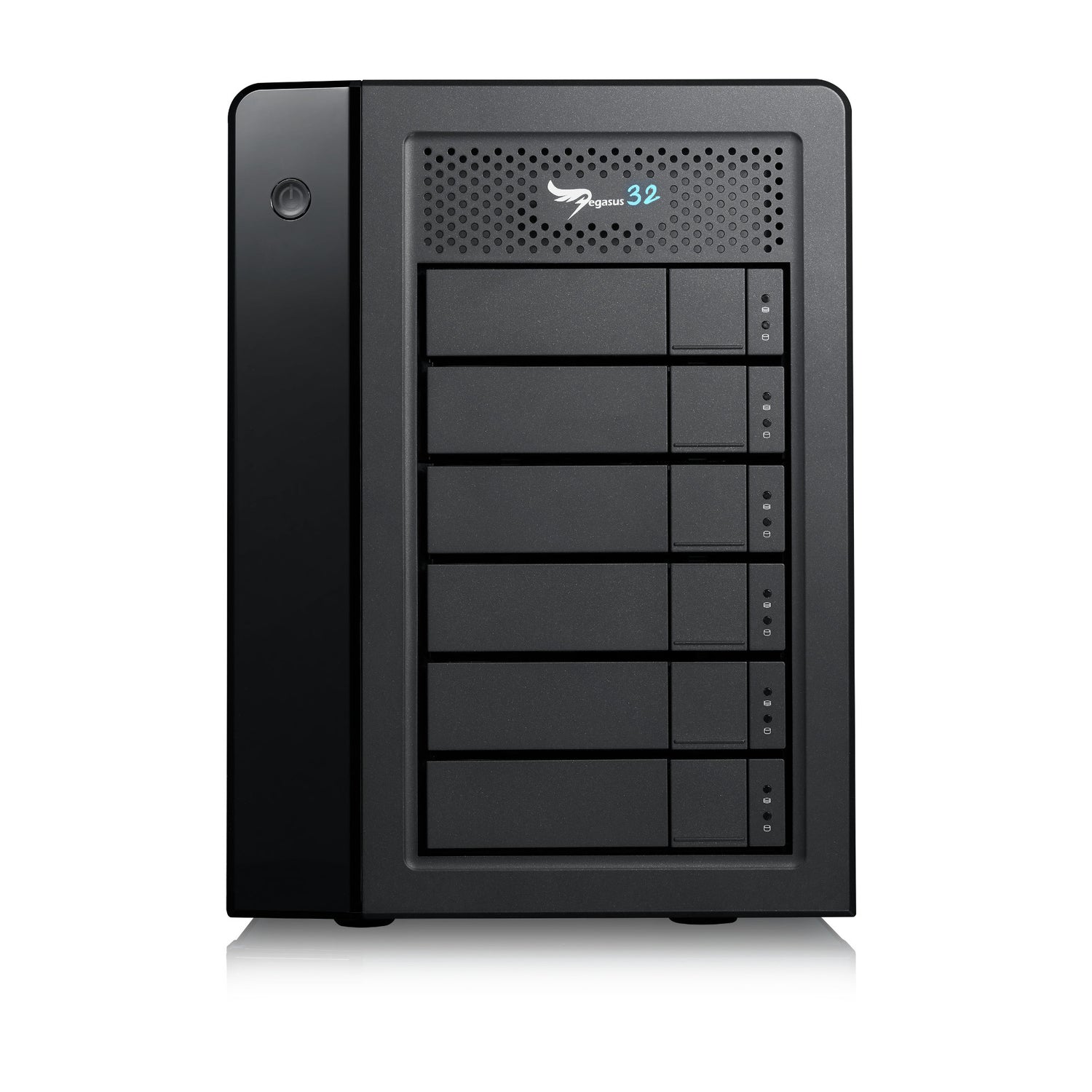

Promise Technology Pegasus32 R6 60TB 6-Bay Thunderbolt 3 RAID Arra...
The Pegasus32 R6 60TB 6-Bay RAID Array delivers high-speed, high-capacity storage for creative professionals. Equipped with six hot-swappable 10TB 7200 RPM SATA III drives, it offers up to 2800 MB/s throughput. Its hardware RAID controller supports RAID 0, 1, 1E, 5, 6, 10, and 50, with drives pre-configured for RAID 5. Connect via Thunderbolt 3 for 40 Gb/s data transfer and up to 85W charging, with daisy-chaining support and backward compatibility to USB 3.2 Gen 2. Includes DisplayPort 1.4 for 8K displays and ChronoSync Pegasus Edition for backup, syncing, and cloud storage. Pre-formatted for macOS 10.14+, reformat for Windows 10 as needed.
60TB Total Capacity
Six hot-swappable 10TB SATA III 3.5-inch drives provide massive storage for large projects, backups, and media libraries.
Hot-Swappable Drives
Easily replace or upgrade drives without powering down, ensuring uninterrupted workflow.
High-Speed Performance
Hardware RAID and 7200 RPM drives deliver up to 2800 MB/s data throughput for fast file transfers and project handling.
Multiple RAID Configurations
Supports RAID 0, 1, 1E, 5, 6, 10, and 50 to optimize for speed, redundancy, or a balance of both; pre-configured for RAID 5.
Thunderbolt 3 Connectivity
Provides 40 Gb/s data transfer and up to 85W charging, plus daisy-chaining capability for multiple devices.
USB 3.2 Gen 2 Compatibility
Backward-compatible with USB 3.2 Gen 2 for up to 10 Gb/s transfer speeds if Thunderbolt 3 is unavailable.
DisplayPort 1.4 Output
Supports 8K displays, allowing users to connect high-resolution monitors for detailed creative work.
Fan-Cooled Design
Ensures drives remain at optimal temperatures during heavy workloads, improving reliability and lifespan.
ChronoSync Pegasus Edition
Bundled software for backups, drive cloning, file syncing, and redundant cloud storage to protect critical data.
Pre-Formatted for macOS / Reformat for Windows
Ready for use with macOS 10.14 or later, but can be reformatted for Windows 10, offering versatile system compatibility.
Main
| Capacity | 60 TB |
| Interface | Thunderbolt |
| Configuration | Core |
| Storage Type | HDD |
| Connection | 2x Thunderbolt 3 (40Gb/s) |
| Hard Drive Type | Portable |
| Drive Speed/Type | 7200 rpm |
| Pre-Format | Mac (HFS+) |
| Raid | RAID 5 |
| Color | Black |
Key Features
| 60TB total storage with 6 × 10TB SATA III 3.5" HDDs (7200 RPM) | |
| Preconfigured in RAID 5, supports RAID 0/1/5/6/10/50/JBOD | |
| Transfer speeds up to 2800 MB/s | |
| 6 × hot-swappable 3.5" SATA III drive bays | |
| Dual Thunderbolt 3 ports (40 Gb/s) and DisplayPort 1.4 | |
| PMC Sierra 8067 processor with 1 GB DDR3 memory | |
| Compatible with macOS 10.14 or later and Windows 10 | |
| Kensington Security Slot for physical security | |
| Efficient cooling with 92 mm fan | |
| Certified for BIS, BSMI, CE, FCC, RCM, TUV, VCCI, cTUVus |
Storage
| Total Capacity | 60 TB |
| Included Drives | 6 × 10 TB SATA III 3.5" HDDs (7200 RPM) |
| RAID Support | 0, 1, 5, 6, 10, 50, JBOD |
| Transfer Rate | Up to 2800 MB/s |
| Drive Bays | 6 × 3.5" SATA III (Hot-Swap) |
Connectivity

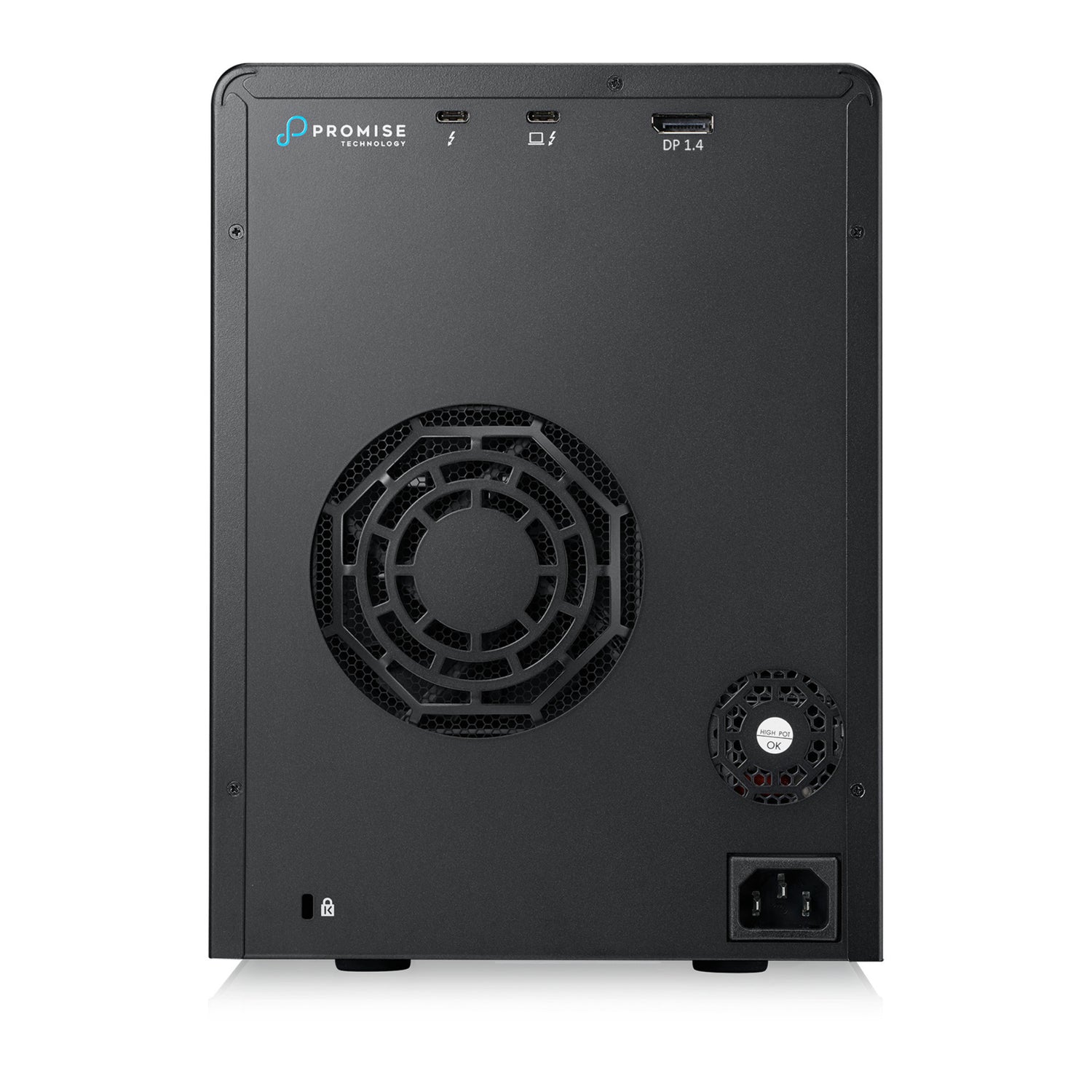

| Ports | • 2 × USB-C Thunderbolt 3 (40 Gb/s) • 1 × DisplayPort 1.4 |
Computing
| Processor | PMC Sierra 8067 |
| Memory | 1 GB DDR3 @ 1866 MT/s |
Software & Compatibility
| OS Compatibility | macOS 10.14 or later, Windows 10 |
| Installed OS | None |
| Mobile App | Not supported |
Security
| Encryption | None |
| Security Features | Kensington Security Slot |
Power & Electrical
| Input Power | 100–230 VAC, 50/60 Hz |
| Power Supply | 1 × 250 W |
Physical & Environmental
| Dimensions | 9.8 × 9.3 × 7.4 in / 248.9 × 236.2 × 188 mm |
| Weight | 20.1 lb / 9.1 kg (with drives) |
| Cooling | 1 × 92 mm fan |
| Operating Temp | 41–95°F / 5–35°C, 10–95% humidity |
| Storage Temp | -40–158°F / -40–70°C, 5–95% humidity |
| Certifications | BIS, BSMI, CE, FCC, RCM, TUV, VCCI, cTUVus |
Packaging
| Package Weight | 26.7 lb |
| Box Dimensions (L×W×H) | 15.6 × 14.8 × 11.35 in |
