Proton PCI-CAM-02 Full HD Mini Broadcast Camera with Cable Brackets
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

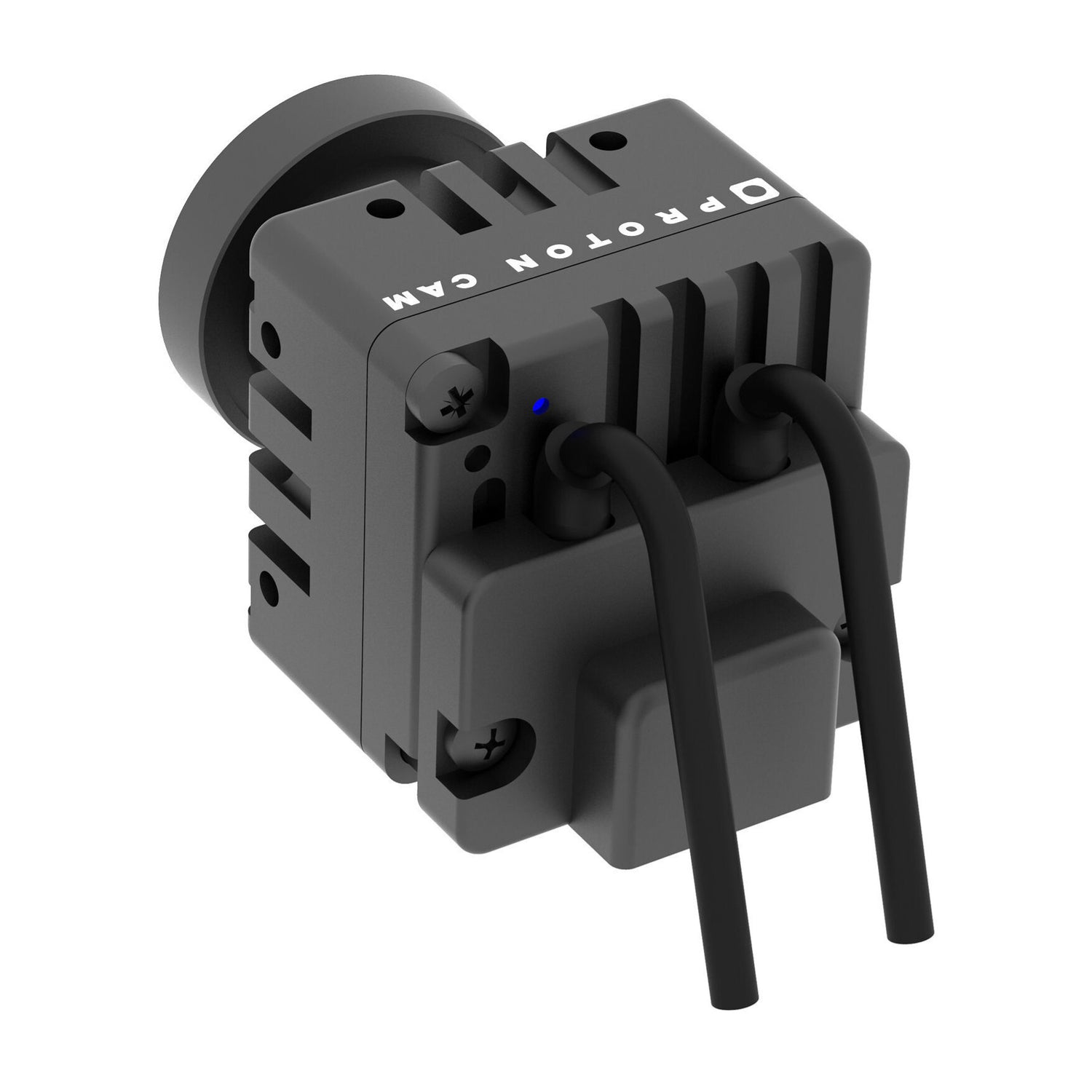

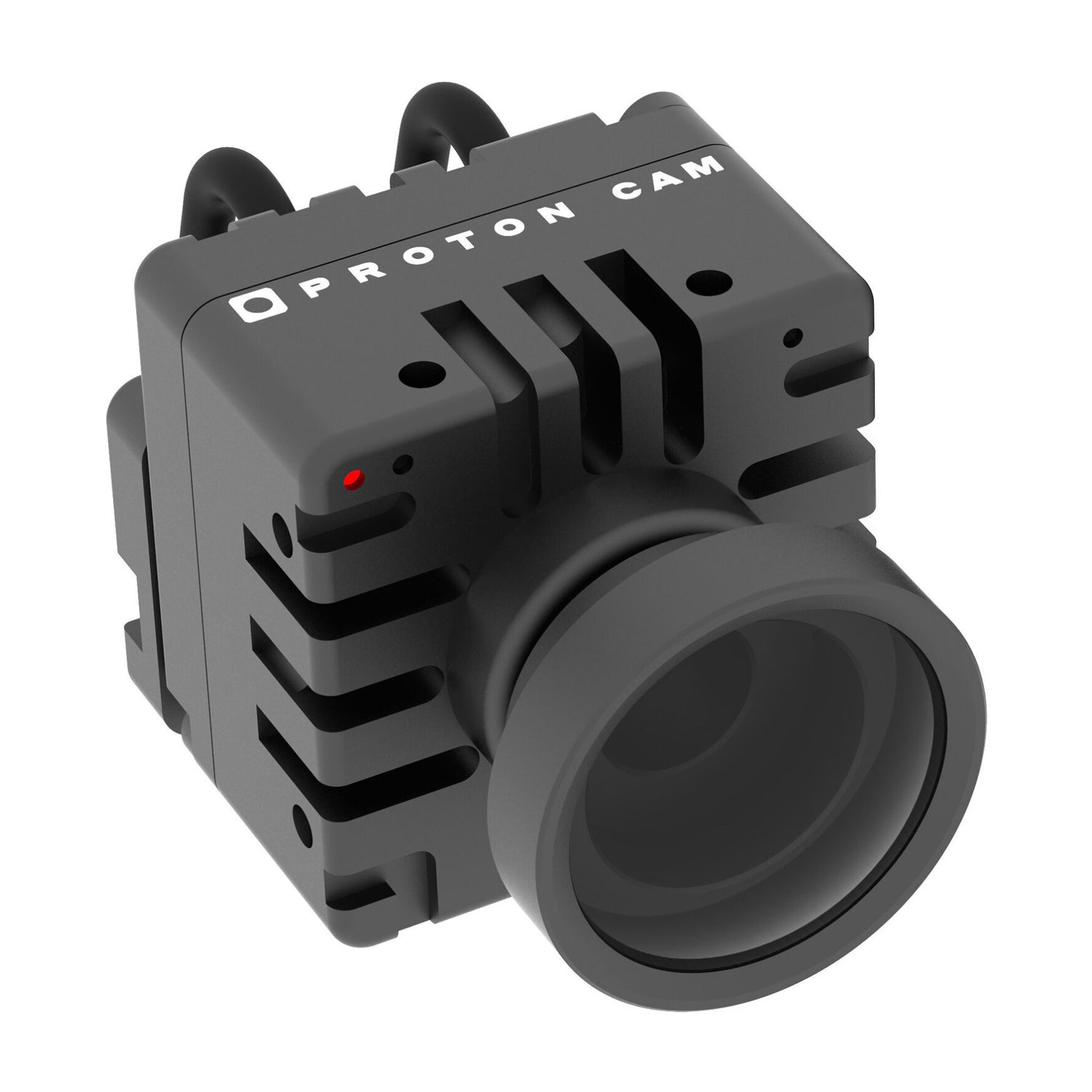

The PROTON CAM is the world’s smallest broadcast camera. Measuring 28 x 28mm and weighing 24 grams, it features advanced 12-bit sensor technology, low power consumption, wide-angle lenses, and stereo audio, making it perfect for sports, live events, and creative cinematography. Its compact design, versatility, and high-quality performance have made it a popular choice for a range of applications, including drone integration and immersive sports coverage.
Full HD HDR Broadcast Quality
Capture crisp 1080p video at up to 60 fps with advanced 12-bit sensor technology and HDR support for vibrant color, enhanced detail, and excellent performance in bright or low-light environments.
Ultra-Compact & Flexible Design
Cube-sized camera fits easily into tight production spaces while offering multiple mounting options with eight 2.5mm mounting holes, a reversible bracket, and a standard 1/4 inch-20 thread for tripods, stands, or trusses.
Wide-Angle Interchangeable Lens System
Includes a pre-mounted 3.2mm f/2.3 M12/S lens with a 97 degrees distortion-free field of view, and supports optional lenses for wider coverage up to 124 degrees or customized shooting applications.
Professional Connectivity & Control
Features an integrated 6 ft. BNC/SDI cable for reliable Full HD signal transmission, supports RS-485 camera control, and includes front and rear status LEDs with a built-in tally light for live production workflows.
Enhanced Cable Management
Newly redesigned cable brackets help protect and organize connected cables, improving durability while keeping installations neat and secure for broadcast, live events, houses of worship, studios, and professional AV setups.
- 1920 x 1080p: 23.98 / 24.00 / 25 / 29.97 / 30.00 / 50 / 59.94 / 60.00 fps
- 1920 x 1080i: 50 / 59.94 / 60.00 fps
Image Sensor
| Type | CMOS |
Lens
| Lens Mount | S-Mount (M12) |
| Focal Length | 3.2mm |
| Aperture | f/2.3 |
| Focus Mode | Automatic |
| Still Image Support | No |
Video
| Video Output | SDI / BNC (3G-SDI via Micro BNC) |
| Resolution / Frame Rates |
Exposure
| Shutter Type | Mechanical focal plane shutter |
| Exposure Compensation | No |
Interfaces
| Video Output | 1x Micro BNC (3G-SDI) |
| Control / Data | 1x Hirose 6-Pin (RS-485) |
| Adapter/Cable | Integrated cable system |
Control & Protocols
| Supported Protocol | RS-485 camera control |
| Remote Control | No |
| Mobile App Support | No |
Power
| Voltage | 4.5 – 25.0 VDC |
| Power Consumption | 2.5 W |
General
| Type | Fixed Mini Broadcast Camera |
| Output Format | Live SDI video feed only |
