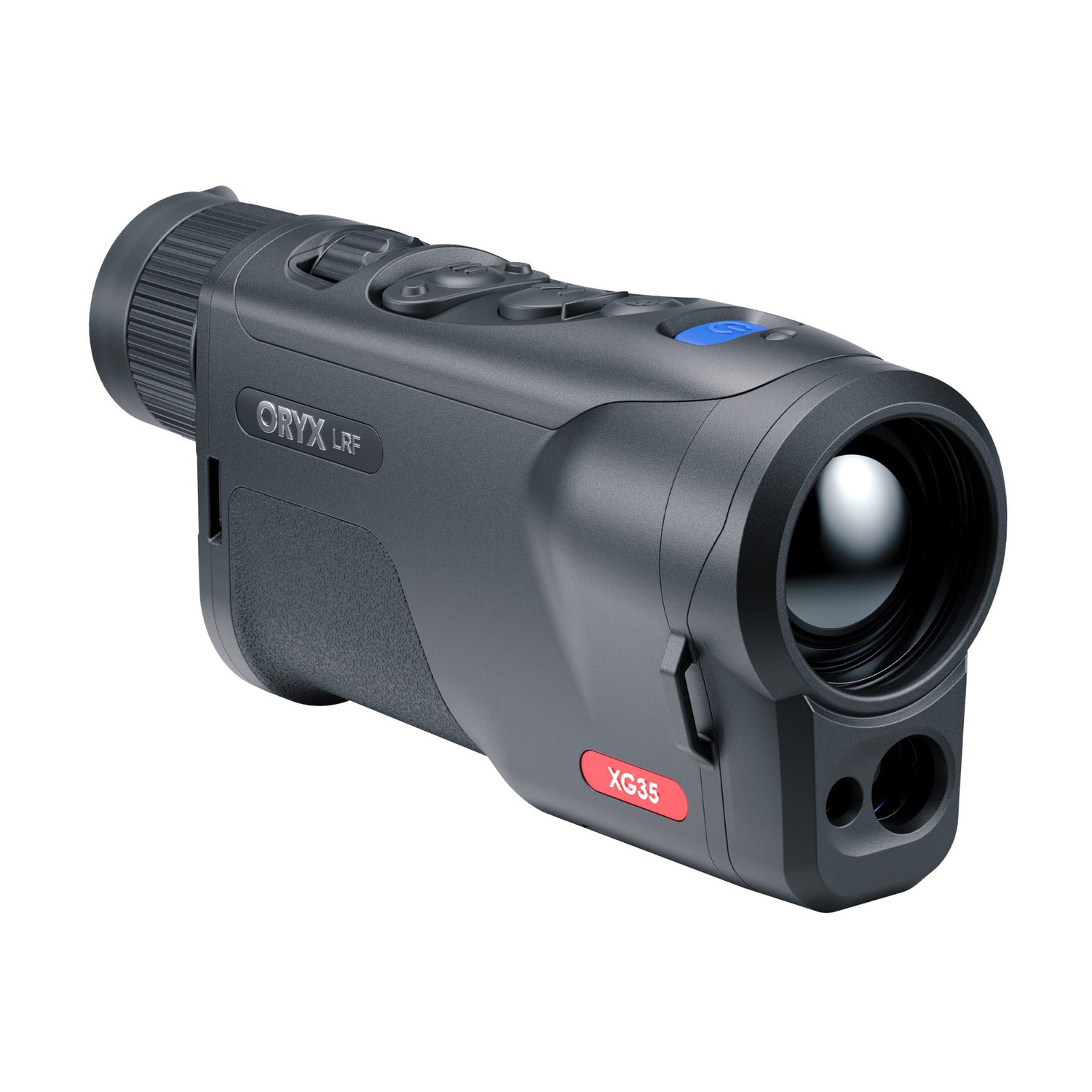

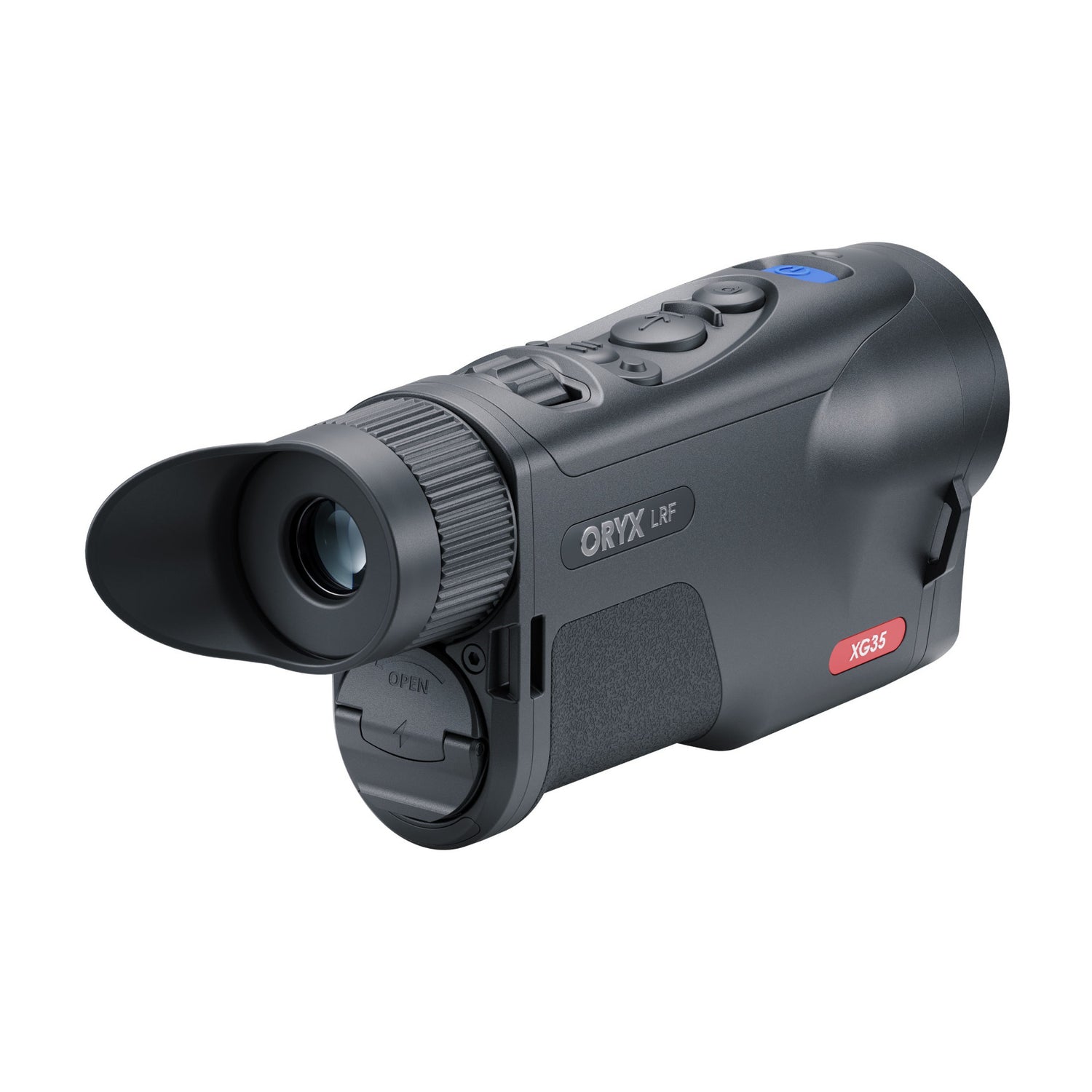

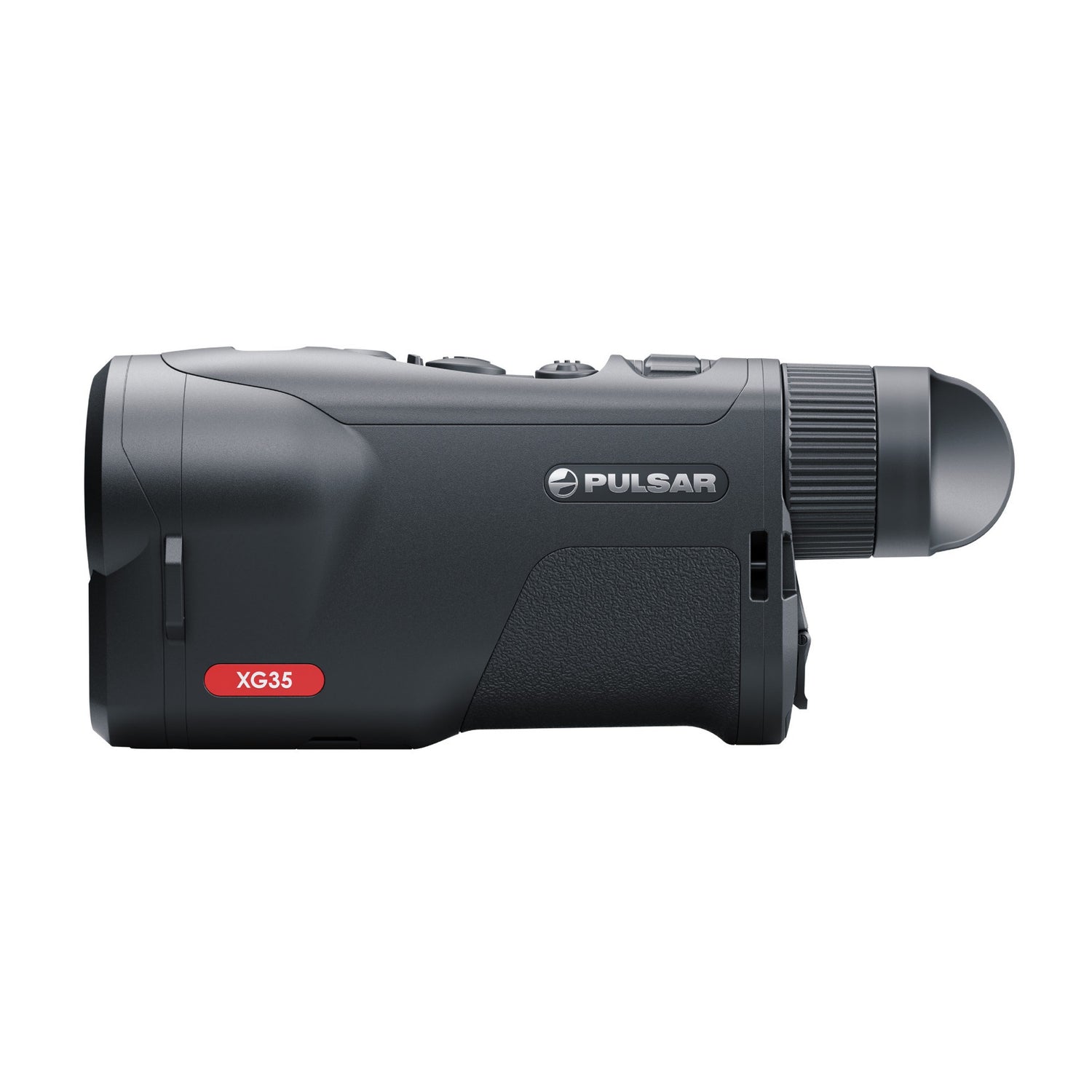

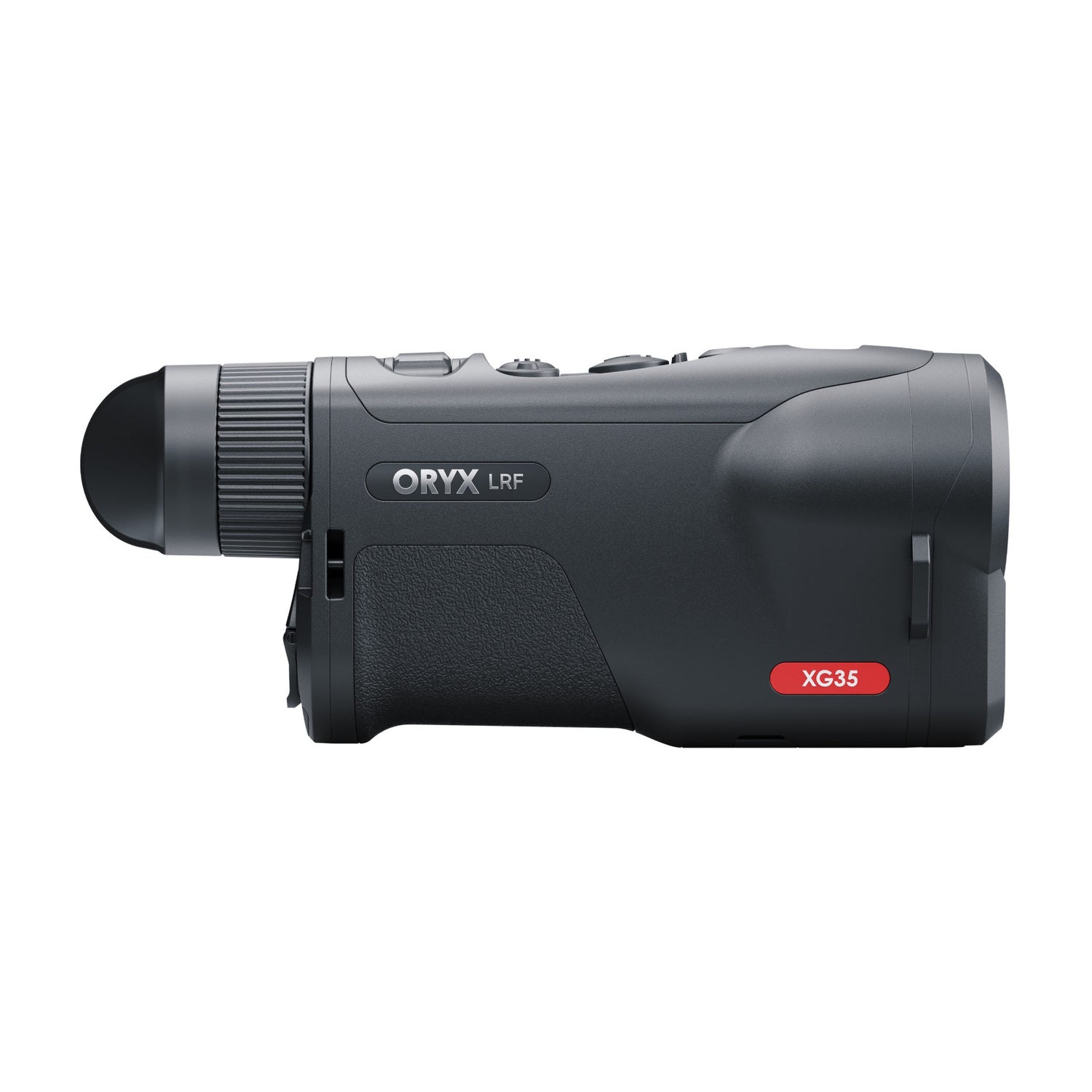

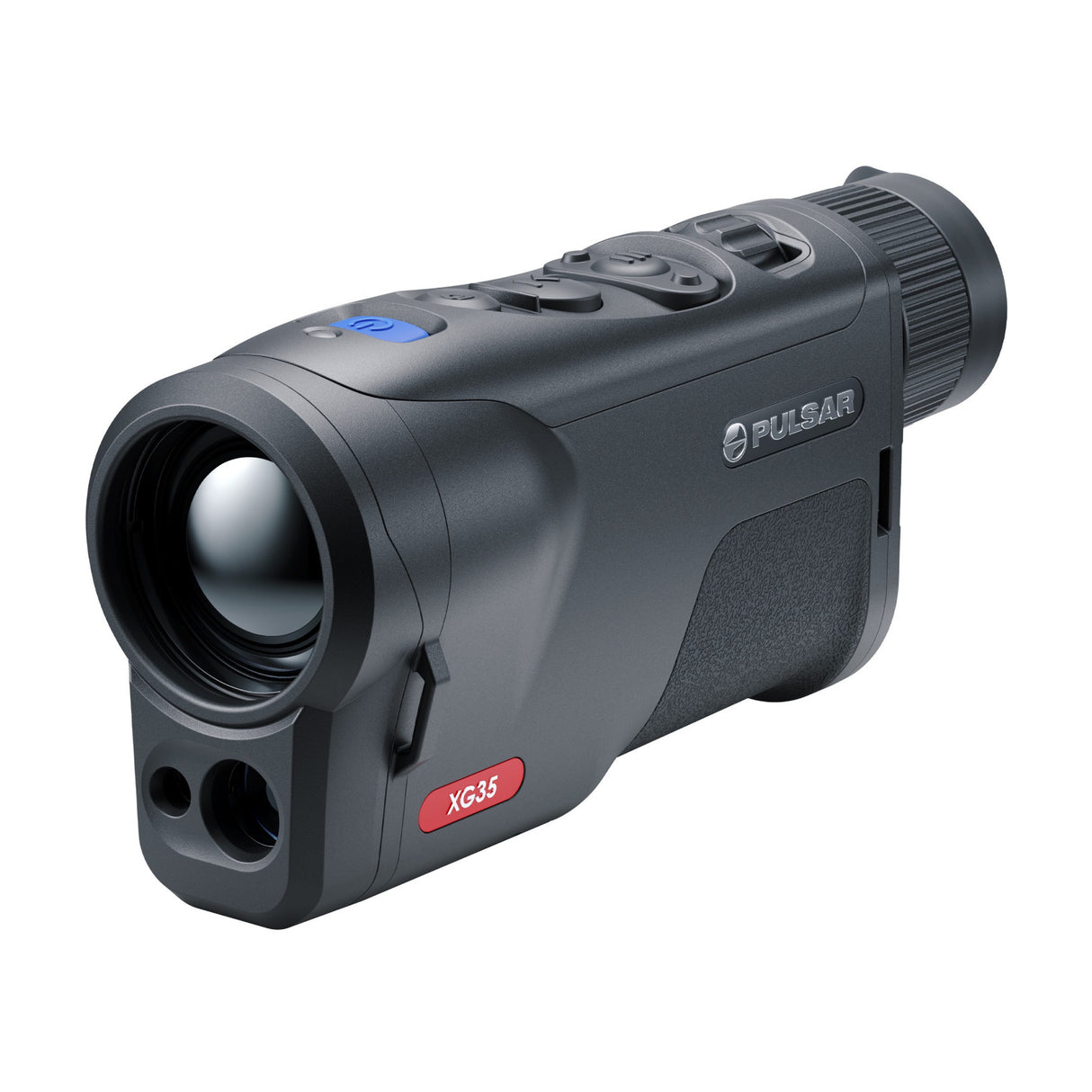

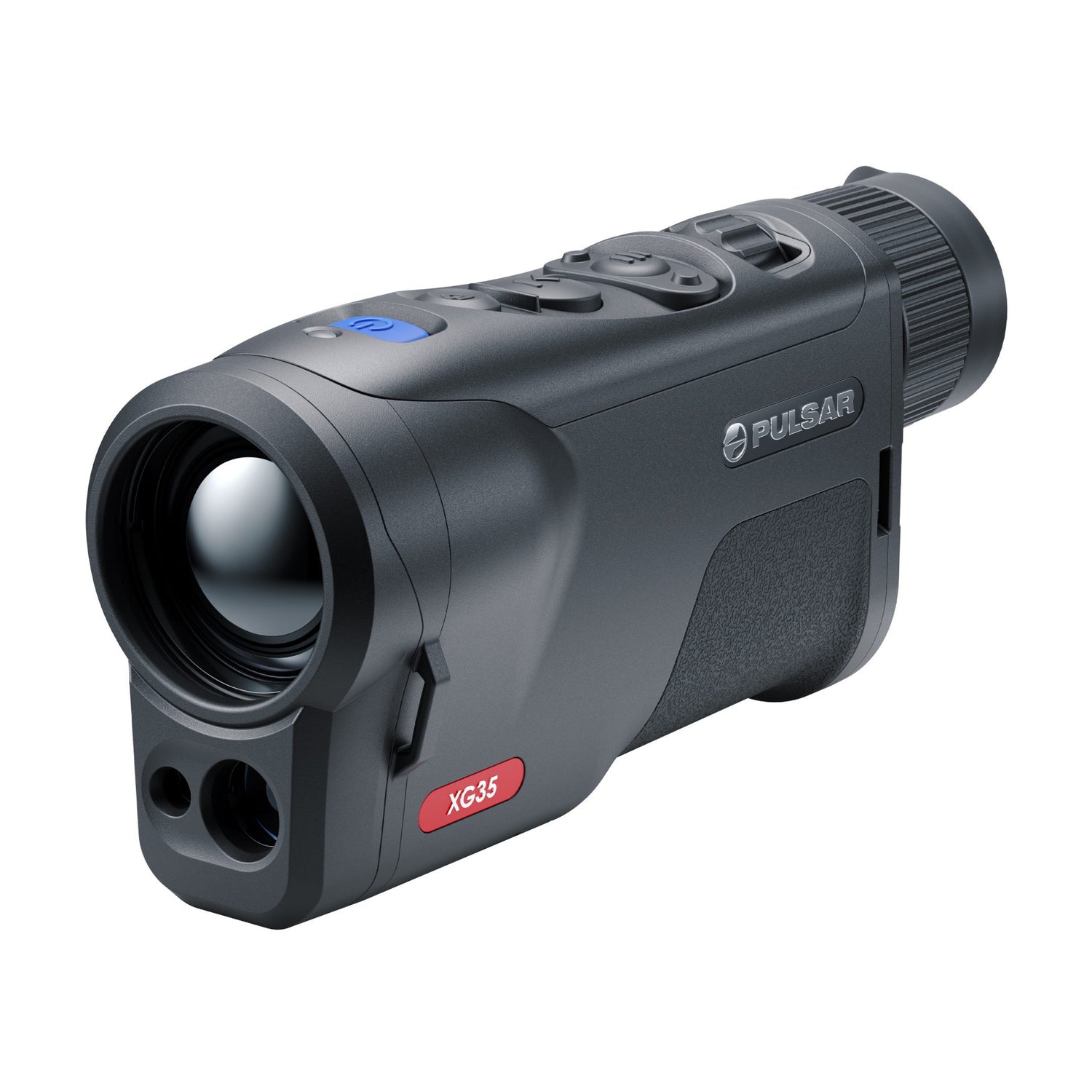

Pulsar Oryx LRF XG35 2.520x f35/1.0 Thermal Imaging Monocular
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Pulsar Oryx LRF XG35 monocular is built to withstand the toughest and longest hunts. Compact and optimized for one-handed use, it is built for more than performance. The Oryx LRF XG35 features a rugged magnesium alloy housing designed to withstand water, dust, impacts and harsh conditions — it’s as tough on the outside as it is advanced on the inside.
Powerful 1500m Laser Rangefinder
The Oryx LRF is equipped with a powerful and precise built-in laser rangefinder capable of delivering accurate range measurements up to 1500 meters, even in complete darkness.
Dual Battery System: Up To 12 h. Of Operating Time

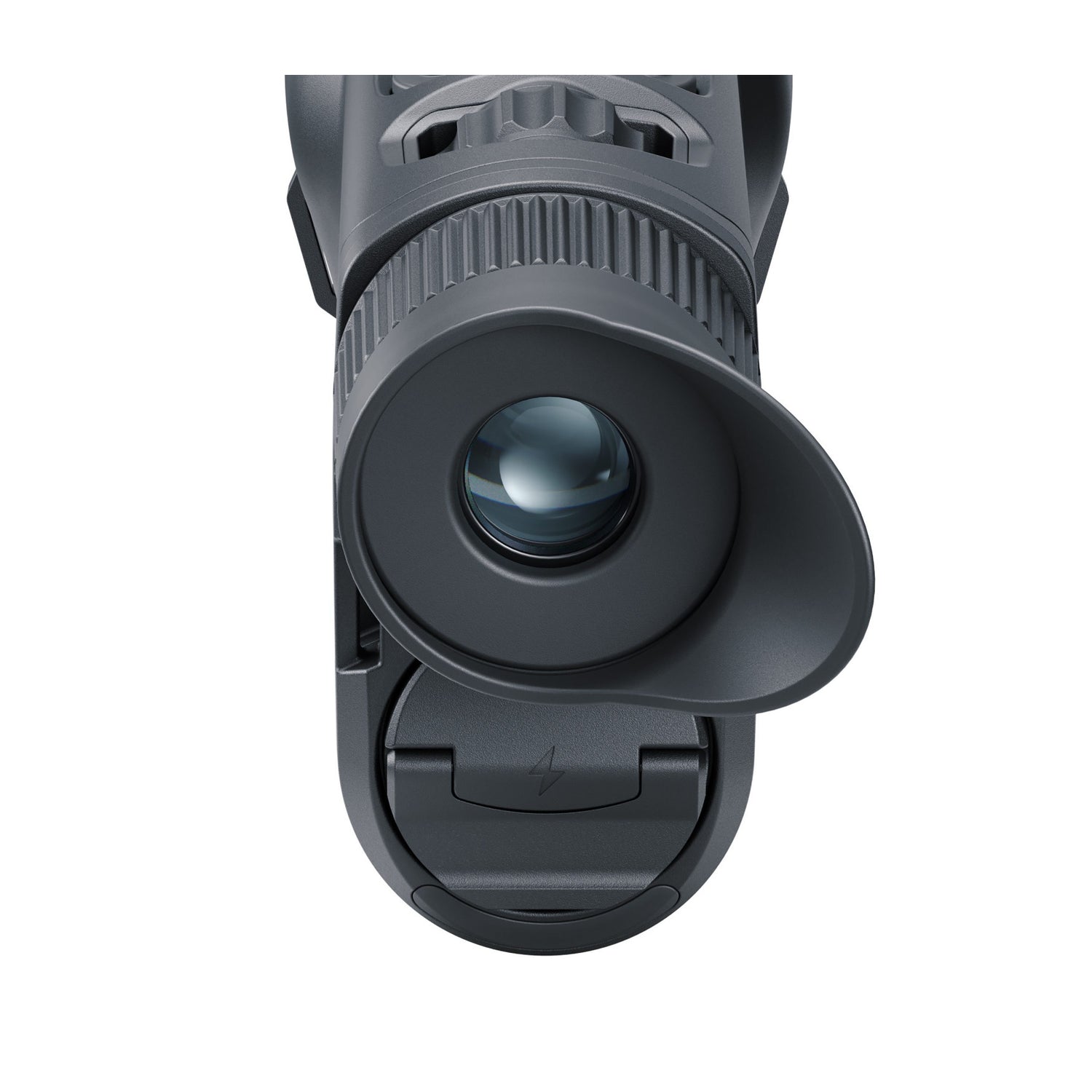

Oryx LRF monocular is equipped with a dual battery system, combining an integrated internal battery and a removable external battery for uninterrupted power. Both batteries support power delivery and can be quickly recharged via a USB-C port for maximum convenience.
Built for Tough Conditions
The Oryx LRF is designed to meet the rigors of long, challenging hunts. Its magnesium alloy housing offers outstanding durability — it withstands impacts, moisture, mud and extreme temperatures while delivering smooth and reliable performance. Lightweight yet resilient, this material enhances portability and ensures efficient heat dissipation, while optimizing the device’s performance during extended observation sessions.
Optimized for Both Left and Right-Hand Use
The Oryx line features an ambidextrous, symmetrical housing design, ensuring comfortable handling with either hand. The belt-clip and hand strap can be attached to either side of the housing allowing users to customize the device to their preferences for added versatility.
IP67 Protection Rating
The Oryx LRF is the first Pulsar device with an IP67 protection rating, offering outstanding durability. Engineered to perform flawlessly, it can withstand submersion in up to 1 meter of water for up to 30 minutes and is fully protected against dust and contact with objects larger than 1 mm, ensuring reliable performance in the harshest conditions.
Extra-High Detail Thermal Image
The Oryx LRF delivers high-quality thermal imaging with multiple color palettes and remarkable detail. Its advanced video processing platform ensures precise object rendering, capturing even the finest nuances. Paired with optimized brightness and contrast settings, the device offers exceptional clarity and sharpness for an unparalleled viewing experience.
Haptic Feedback

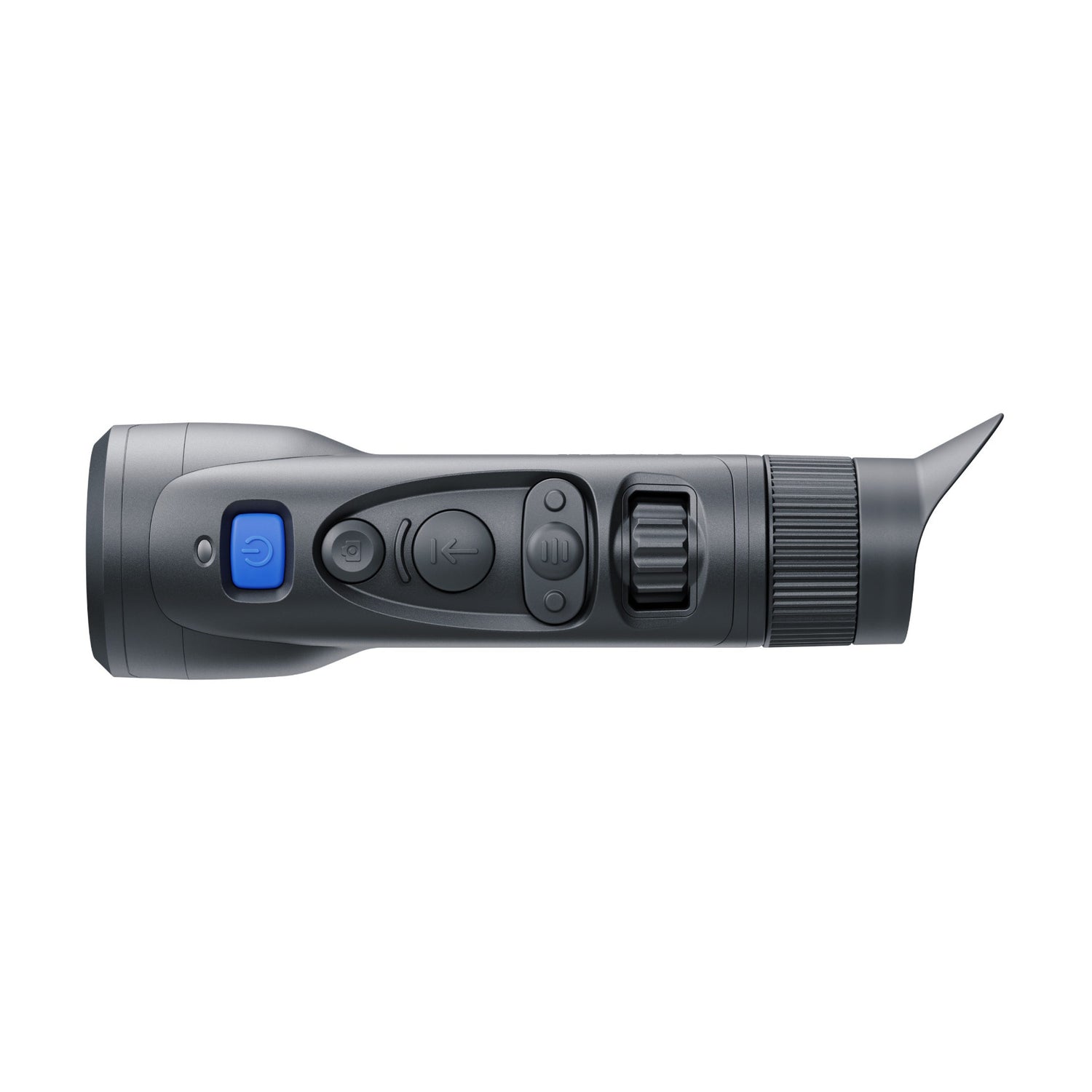

For a more intuitive and tactile experience of the Oryx LRF, activate the haptic feedback function in the device’s short menu. The unit responds with short vibrations when pressing the control buttons.
Image Stabilization
Oryx LRF features electronic image stabilization, enhancing image sharpness and reducing artefacts caused by shaking hands. It minimizes motion blur, ensuring more comfortable observation of distant objects.
Stream Vision Ballistics App Support
For the first time, Oryx LRF users can pair their device with the Stream Vision Ballistics app via Bluetooth. Once connected, users can activate ballistics, select profiles, and choose preferred calculator units – all from their smartphone.
- Removable: APS 5 Li-ion, 4900 mAh, DC 3.7 V
- Built-In: Li-Ion, 3200 mAh, DC 3.7 V
Sensor
| Type | Uncooled |
| Resolution | 640×480 |
| Pixel Pitch | 12 μm |
| Sensor NETD | < 40 mK |
| System NETD | < 20 mK |
| Frame Rate | 50 Hz |
Optics
| Objective Lens | F35 / 1.0 |
| Magnification | 2.5–20× (8× Digital Zoom) |
| Field of View (HxV), Degrees | 12.5 × 9.4 |
| Field of View (HxV), m @ 100 m | 21.9 × 12.5 |
| FOV Linear (Degrees / m @ 100m) | 10.4 |
| Eye Relief | 14 mm |
Display
| Type | AMOLED HD |
| Resolution | 1024×768 |
Range Performance
| Detection Range | 1800 m |
Laser Rangefinder
| Maximum Measuring Range | 1500 m |
| Measurement Accuracy | ±1 m |
| Laser Safety Class (IEC 60825-1 | 2014): Class 1 |
| Wavelength | 905 nm |
Video Recorder
| Video/Photo Resolution | 1024×768 |
| Video/Photo Format | .mp4 / .jpg |
| Built-In Memory | 64 GB |
Wi-Fi
| Wireless Protocol | Wi-Fi |
| Standard | IEEE 802.11 b/g/n/ac (WPA) |
| Frequency | 2.4 / 5 GHz |
Environmental Characteristics
| Protection Rating | IP67 |
| Operating Temperature Range | –25°C to +40°C |
Connections & Compatibility
| Mount Type | 1/4 inch Socket |
| Supported App | Stream Vision 2 |
Power Supply
| Output Voltage | 3.0–4.2 V |
| Battery Type | |
| Operating Time (at +22°C) | 12 hours (Built-In + Removable) |
| External Power Support | 5V / 9V (USB-C Power Delivery) |
Weight & Dimensions
| Body Material | Magnesium Alloy |
| Dimensions | 179 × 52 × 77 mm |
| Weight | 0.5 kg |
