- RED Digital Cinema V-RAPTOR 8K S35 Camera Body
- DSMC AC Power Adaptor 150W
- RED Logo Sticker
- V-RAPTOR Information Card
- 2 Year Standard Warranty
Trusted & Verified

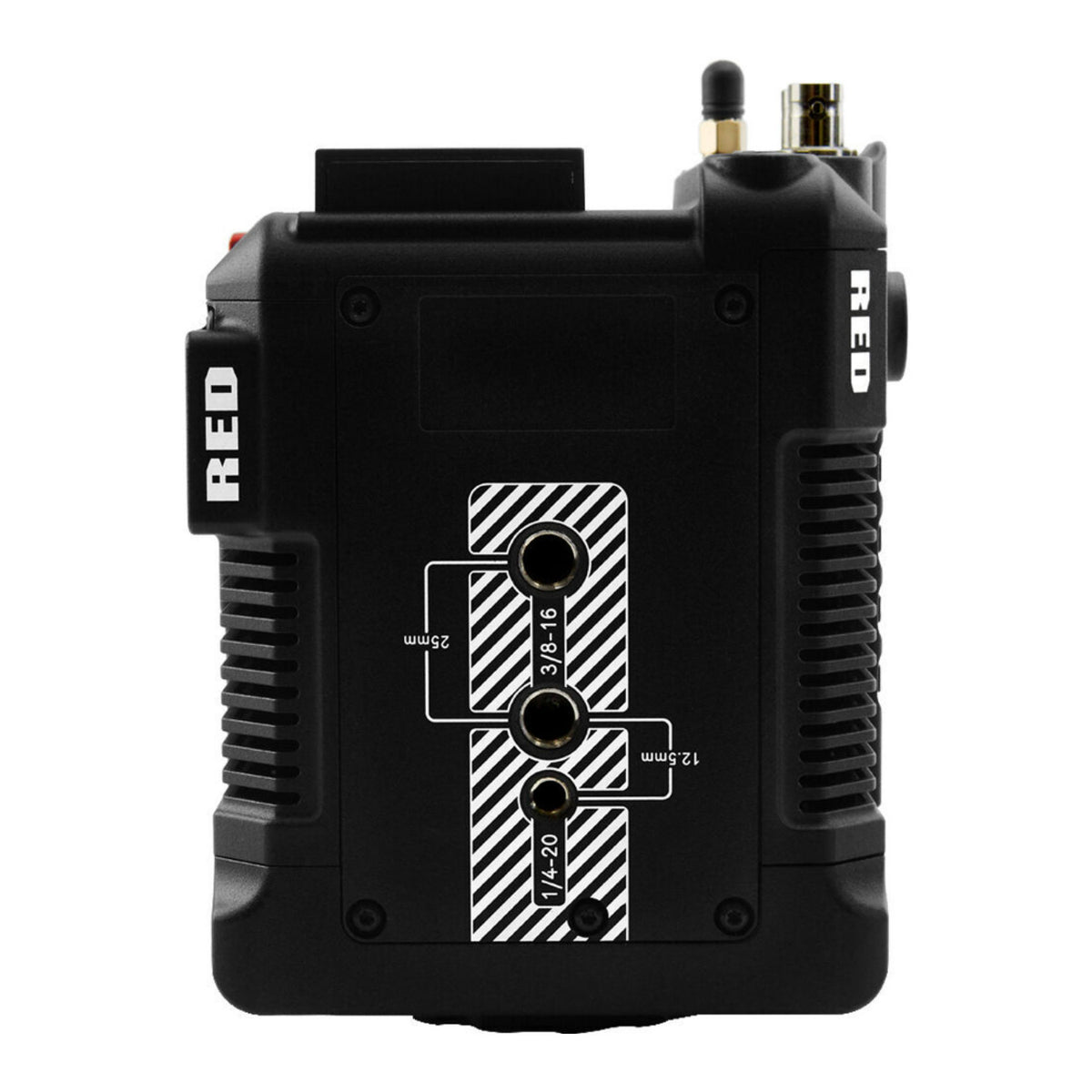

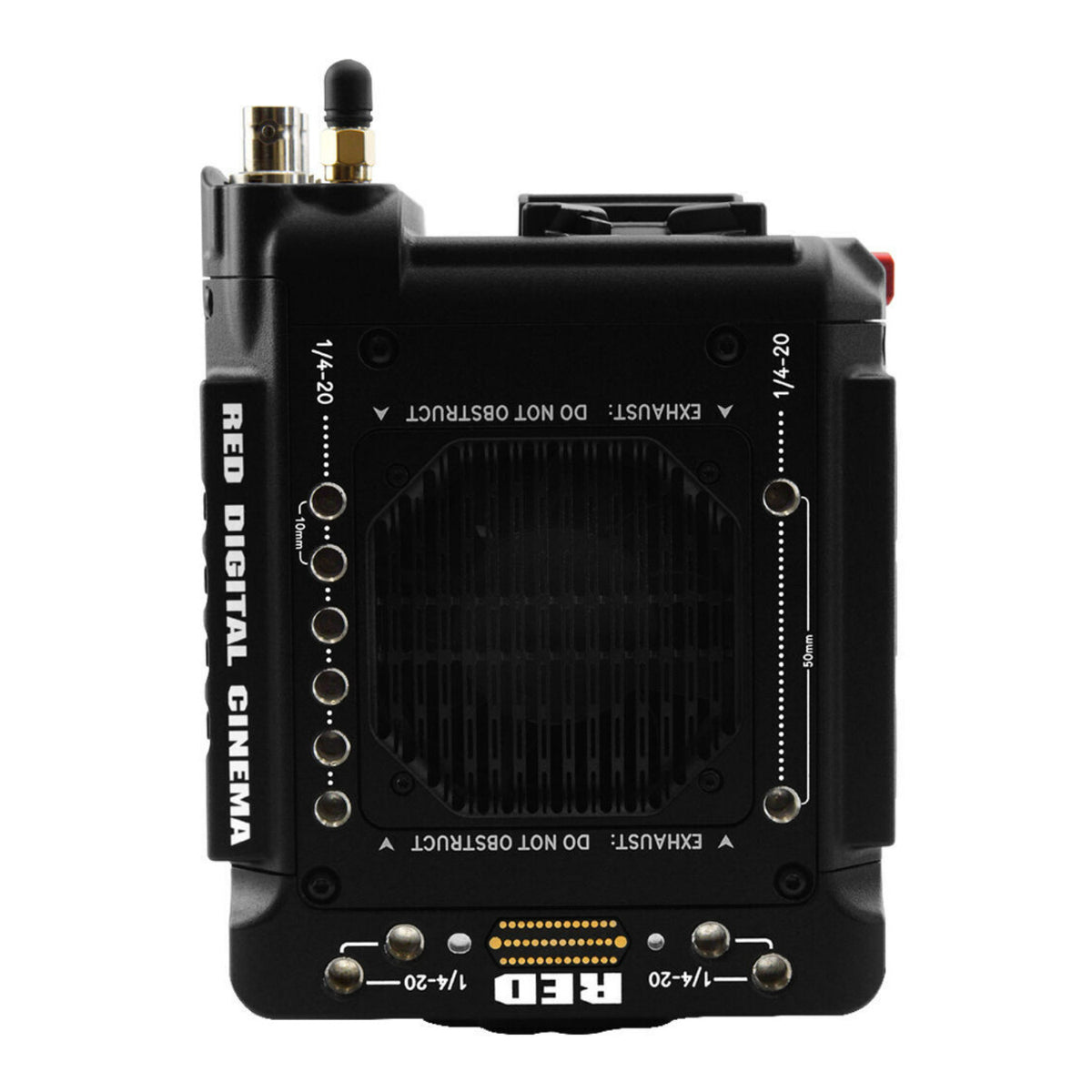

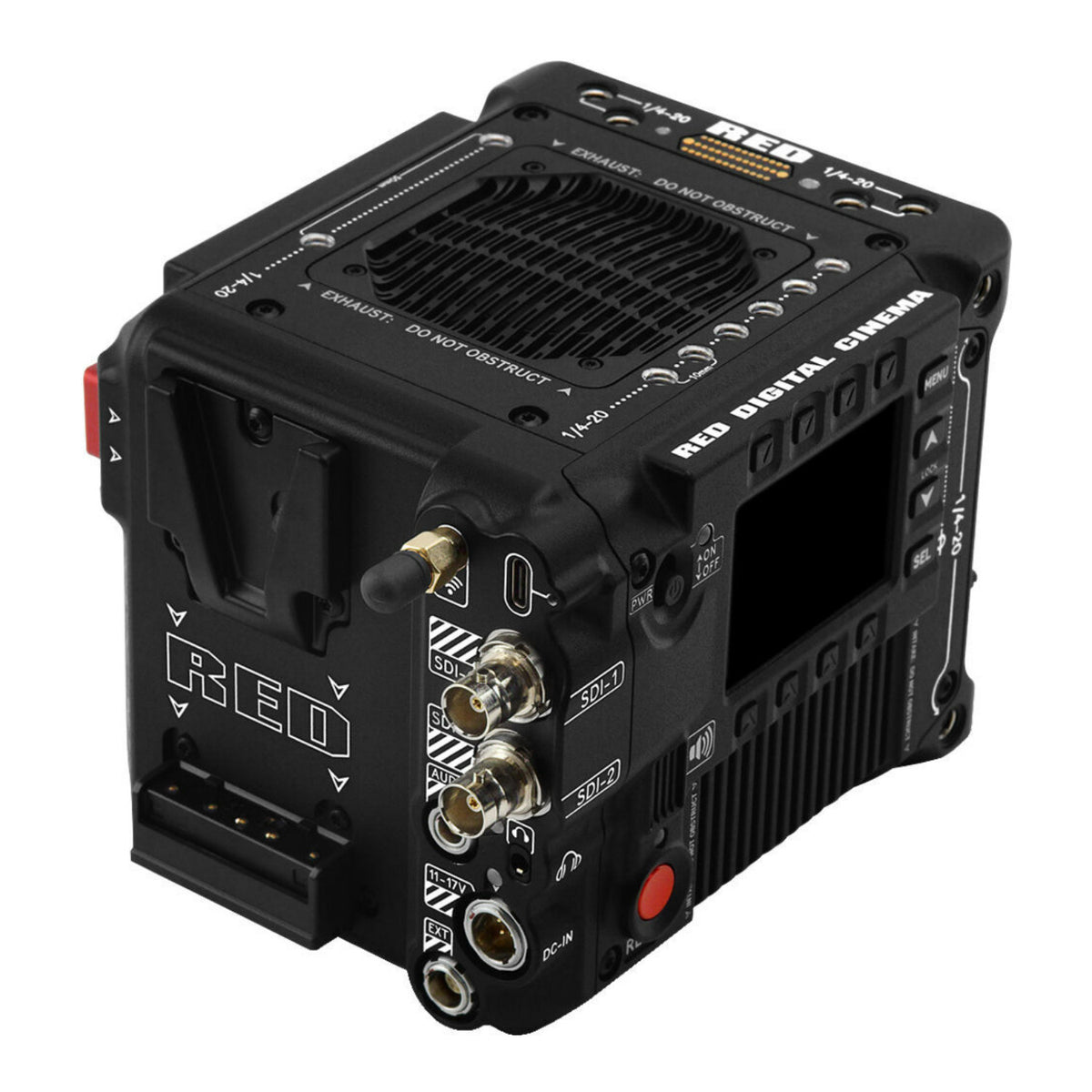

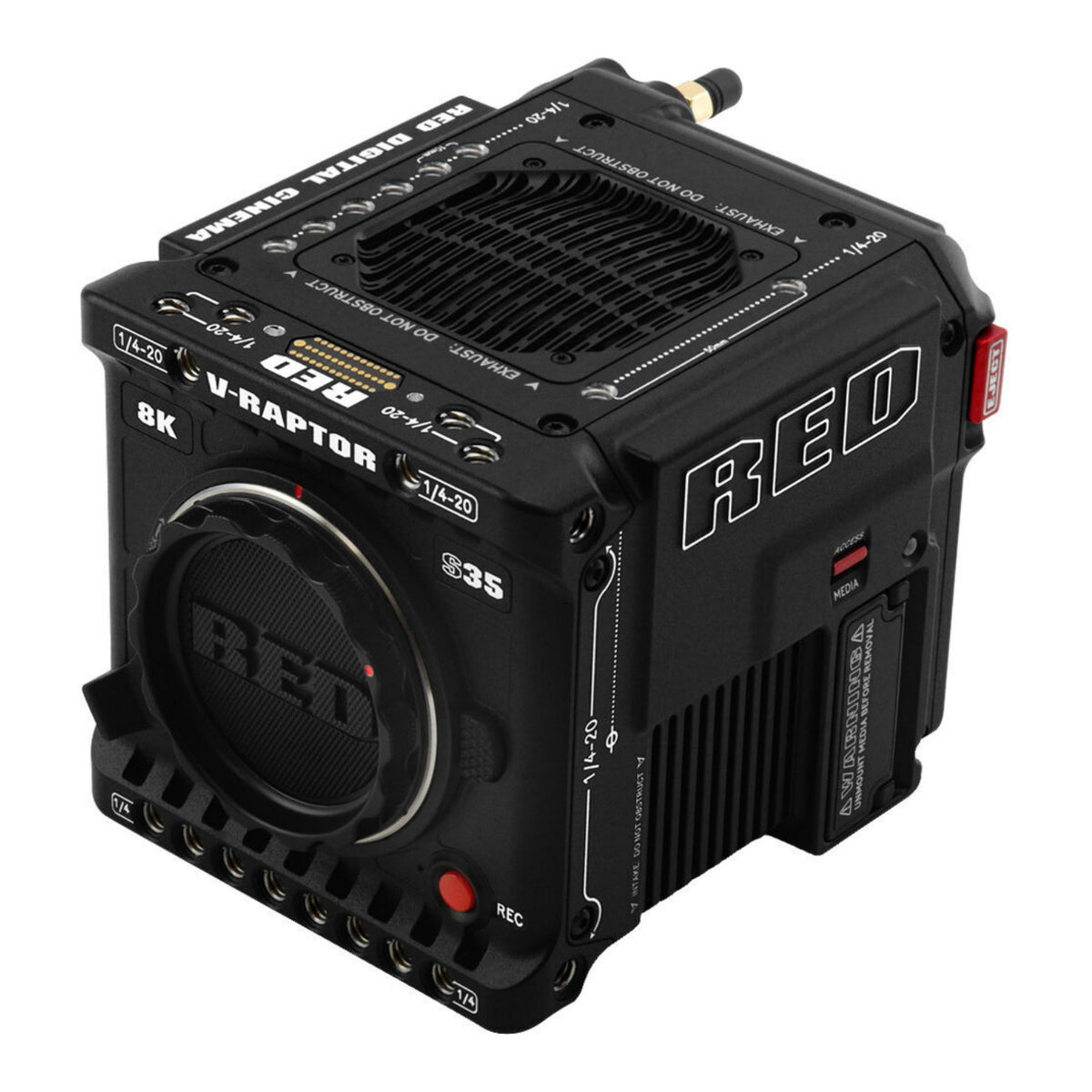

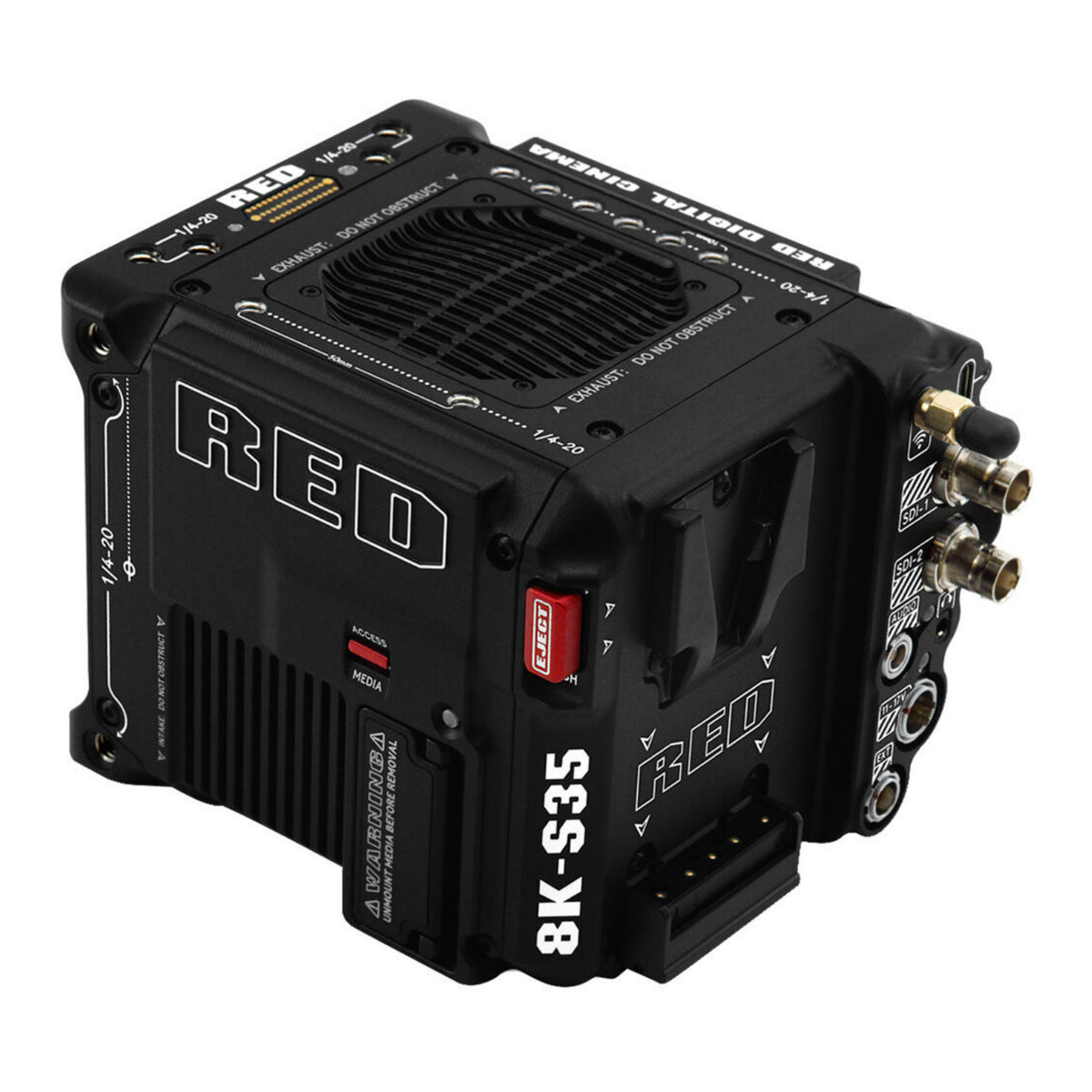

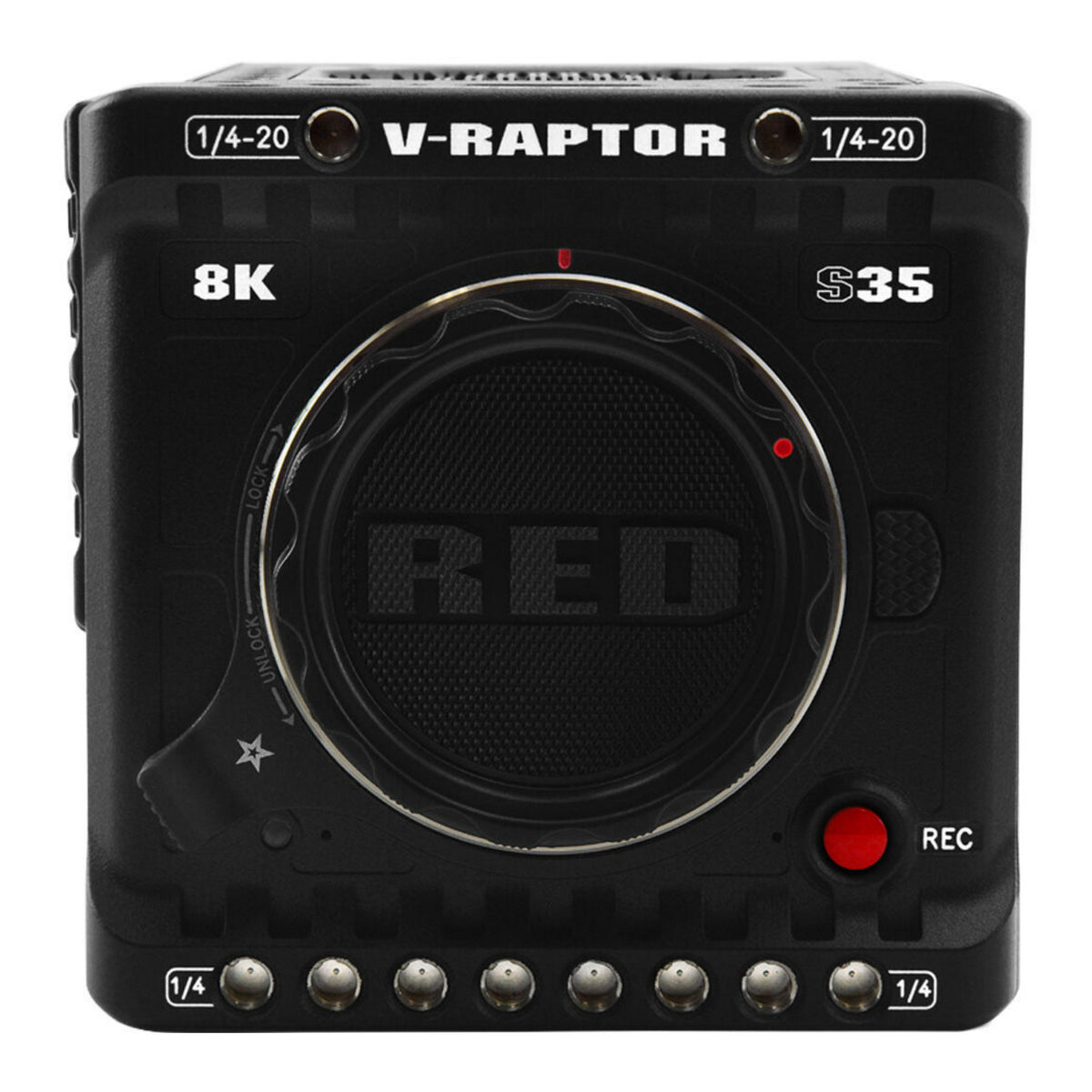

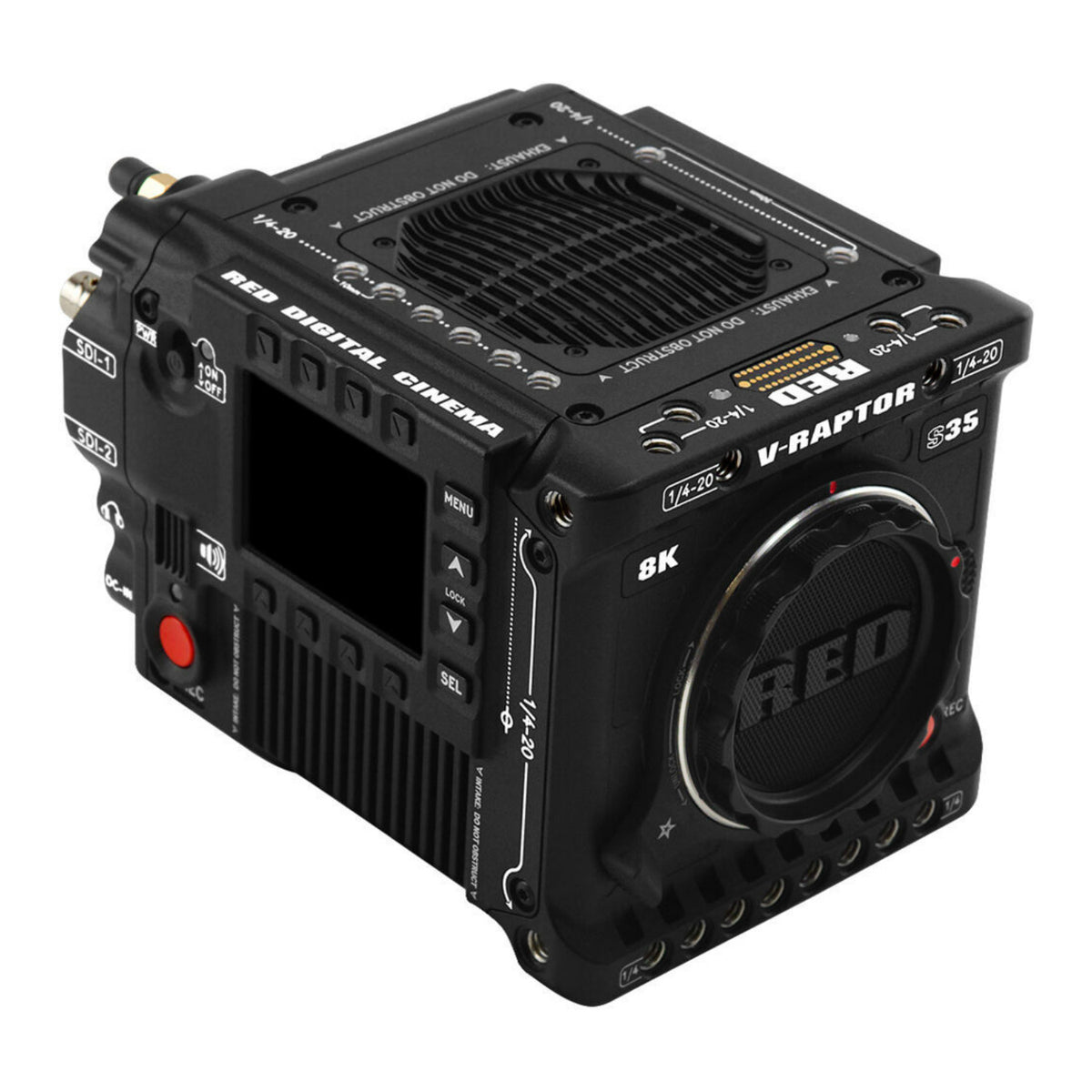

RED Digital Cinema V-RAPTOR 8K S35 Cinema Camera (RF Mount)
- 35.4 MP Super 35 CMOS sensor records up to 8192 x 4320 pixels
- Captures up to 120 fps at 8K 17:9
- High frame rate modes reach up to 600 fps at 2K 2.4:1
- 16.5+ stops of dynamic range support demanding lighting conditions
- Integrated RF mount supports RF lenses
- Compatible RF to EF adapters enable use with Canon EF lenses
- REDCODE RAW provides a flexible 16-bit RAW workflow
- Compact aluminum alloy body weighs 4.0 lb without body cap and media
The RED Digital Cinema V-RAPTOR 8K S35 brings RED's DSMC3 architecture to a Super 35 format built around an 8192 x 4320, 35.4 MP CMOS sensor. It pairs 8K capture with a compact aluminum alloy body, giving cinematographers a high-resolution platform that can move from studio builds to mobile production rigs.
High Resolution and High Frame Rate Capture
Record REDCODE RAW at up to 120 fps in 8K 17:9 or 150 fps in 8K 2.4:1. Lower resolution modes extend frame rate flexibility to 600 fps at 2K 2.4:1. The sensor delivers 16.5+ stops of dynamic range, while IPP2 color management supports 33x33x33 3D LUTs and CDL imports for a controlled post-production workflow.
Flexible Lens and Monitoring Options
The integrated RF mount supports RF lenses and can work with Canon EF lenses through compatible RF to EF mount adapters. Dual 12G-SDI monitor outputs support up to 4096 x 2160 4:2:2 at 60p. Wi-Fi, USB-C, Gigabit Ethernet through a compatible adapter, Genlock, Timecode In, GPIO, and RS-232 control options help the camera fit professional sets and remote workflows.
Compact DSMC3 Camera Body
The aluminum alloy body measures 6 inches long, 4.25 inches wide, and 4.25 inches high, with a listed weight of 4.0 lb without the body cap and CFexpress card. An integrated V-Lock battery interface supports Micro V-Lock power options, while the 6-Pin DC-IN accepts +11 to +17 volts DC.
General
Imaging:
| Sensor Type | V-RAPTOR 8K S35 35.4 Megapixel CMOS |
| Effective Pixels | 8192 x 4320 pixels |
| Sensor Size | 26.21 mm x 13.82 mm, diagonal 29.63 mm |
| Dynamic Range | 16.5+ stops |
Lens Mount:
| Mount Type | Integrated RF mount with RF lens support |
| EF Lens Support | Compatible through Canon RF to EF mount adapters |
Recording:
| Maximum Data Rate | Up to 800 MB/s using RED branded or other qualified CFexpress media cards |
| 8K 17 | 9 Maximum Frame Rate: 120 fps at 8192 x 4320 |
| 8K 2.4 | 1 Maximum Frame Rate: 150 fps at 8192 x 3456 |
| 7K 17 | 9 Maximum Frame Rate: 140 fps at 7168 x 3780 |
| 7K 2.4 | 1 Maximum Frame Rate: 175 fps at 7168 x 3024 |
| 6K 17 | 9 Maximum Frame Rate: 160 fps at 6144 x 3240 |
| 6K 2.4 | 1 Maximum Frame Rate: 200 fps at 6144 x 2592 |
| 5K 17 | 9 Maximum Frame Rate: 192 fps at 5120 x 2700 |
| 5K 2.4 | 1 Maximum Frame Rate: 240 fps at 5120 x 2160 |
| 4K 17 | 9 Maximum Frame Rate: 240 fps at 4096 x 2160 |
| 4K 2.4 | 1 Maximum Frame Rate: 300 fps at 4096 x 1728 |
| 3K 17 | 9 Maximum Frame Rate: 320 fps at 3072 x 1620 |
| 3K 2.4 | 1 Maximum Frame Rate: 400 fps at 3072 x 1296 |
| 2K 17 | 9 Maximum Frame Rate: 480 fps at 2048 x 1080 |
| 2K 2.4 | 1 Maximum Frame Rate: 600 fps at 2048 x 864 |
| Playback Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps |
| REDCODE Settings | HQ, MQ, and LQ options vary by resolution and frame rate |
| ProRes Recording | ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT up to 4K 120P |
| Proxy Recording | Up to ProRes 422 HQ in 2K at 60P |
Physical:
| Construction | Aluminum Alloy |
| Dimensions | 6 inches long x 4.25 inches wide x 4.25 inches high |
| Weight | 4.0 lb without the body cap and CFexpress card |
Power:

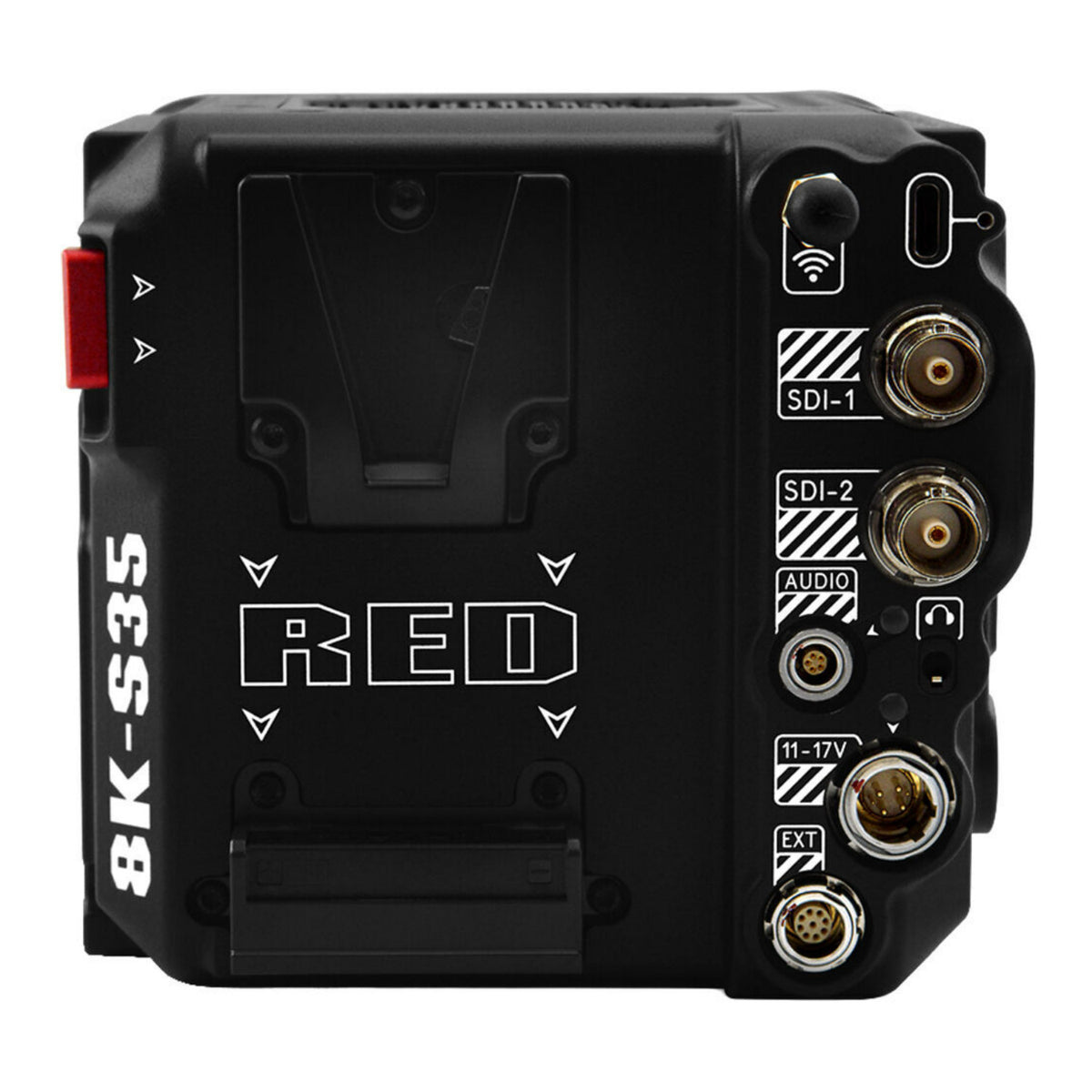

| Battery Interface | Integrated V-Lock interface optimized for Micro V-Lock batteries |
| DC Power | +11 to +17 volts DC through integrated 6-Pin DC-IN port |
Environment:
| Operating Temperature | 32 degrees F to 104 degrees F, 0 degrees C to 40 degrees C |
| Storage Temperature | Negative 4 degrees F to 122 degrees F, negative 20 degrees C to 50 degrees C |
| Relative Humidity | 0% to 85% non condensing |
Color Management:
| Image Processing | Image Processing Pipeline 2, IPP2 |
| 3D LUT Support | 33x33x33 |
| CDL Support | Import supported |
Audio:
| Internal Audio | Integrated dual channel digital mono scratch microphones, uncompressed, 24 bit 48 kHz |
| Audio Input | Integrated dual channel mic, line, and +48 V input through the 5-Pin Audio Port, uncompressed, 24 bit 48 kHz |
Focus:
| Autofocus | Phase detection and contrast |
Control and Connectivity:
| Wireless Control | Wi-Fi |
| Extension Control | Genlock, Timecode In, GPIO, and Ctrl through integrated 9-Pin EXT Port |
| Wired Control | USB-C or Gigabit Ethernet through a compatible USB-C to Ethernet adapter |
| Monitor Outputs | Dual 12G-SDI with 6G-SDI, 3G-SDI, and 1.5G-SDI modes |
| 12G-SDI Output | Up to 4096 x 2160 4:2:2 at 60p |
| 6G-SDI Output | Up to 4096 x 2160 4:2:2 at 30p, 25p, and 24p |
| 3G-SDI Output | Up to 2048 x 1080 4:2:2 at 60p |
| 1.5G-SDI Output | Up to 2048 x 1080 4:2:2 at 30p, 25p, and 24p |
| Integrated Camera Display | 2.4 inch LCD for camera control |
| Wireless Preview | 1080p through 2.4 GHz or 5 GHz Wi-Fi |
