- V-RAPTOR XL 8K S35 Body
- V-RAPTOR XL PL Mount
- RED PL Mount Shim Pack
- RED AC Power Adaptor 270W (NOTE: POWER CORD NOT INCLUDED, SOLD SEPARATELY.)
- 3-Pin XLR-to-4-Pin 2B Power Cable (10')
- RED Logo Sticker
- V-RAPTOR XL Information Card (incl. registration and support info)
Trusted & Verified

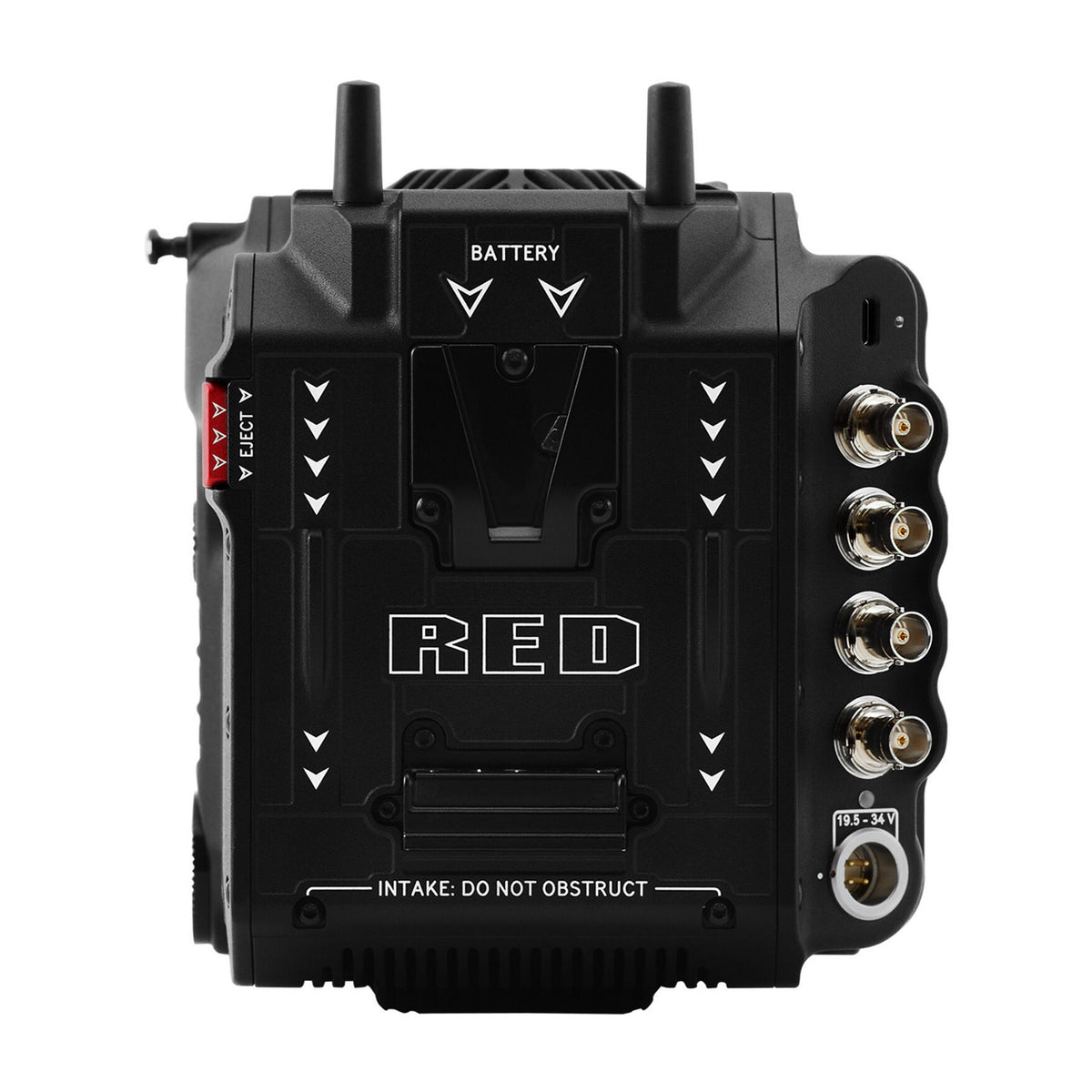

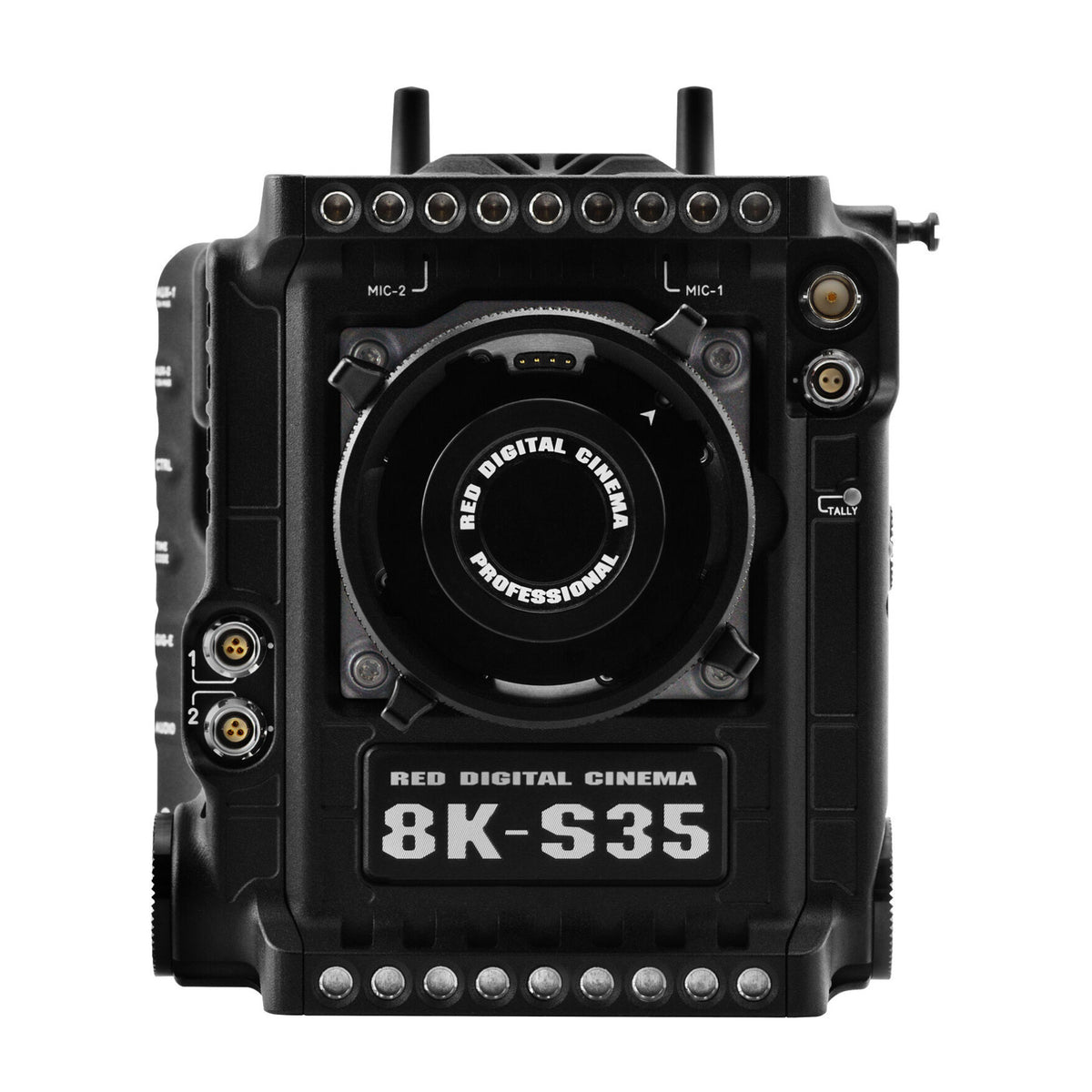

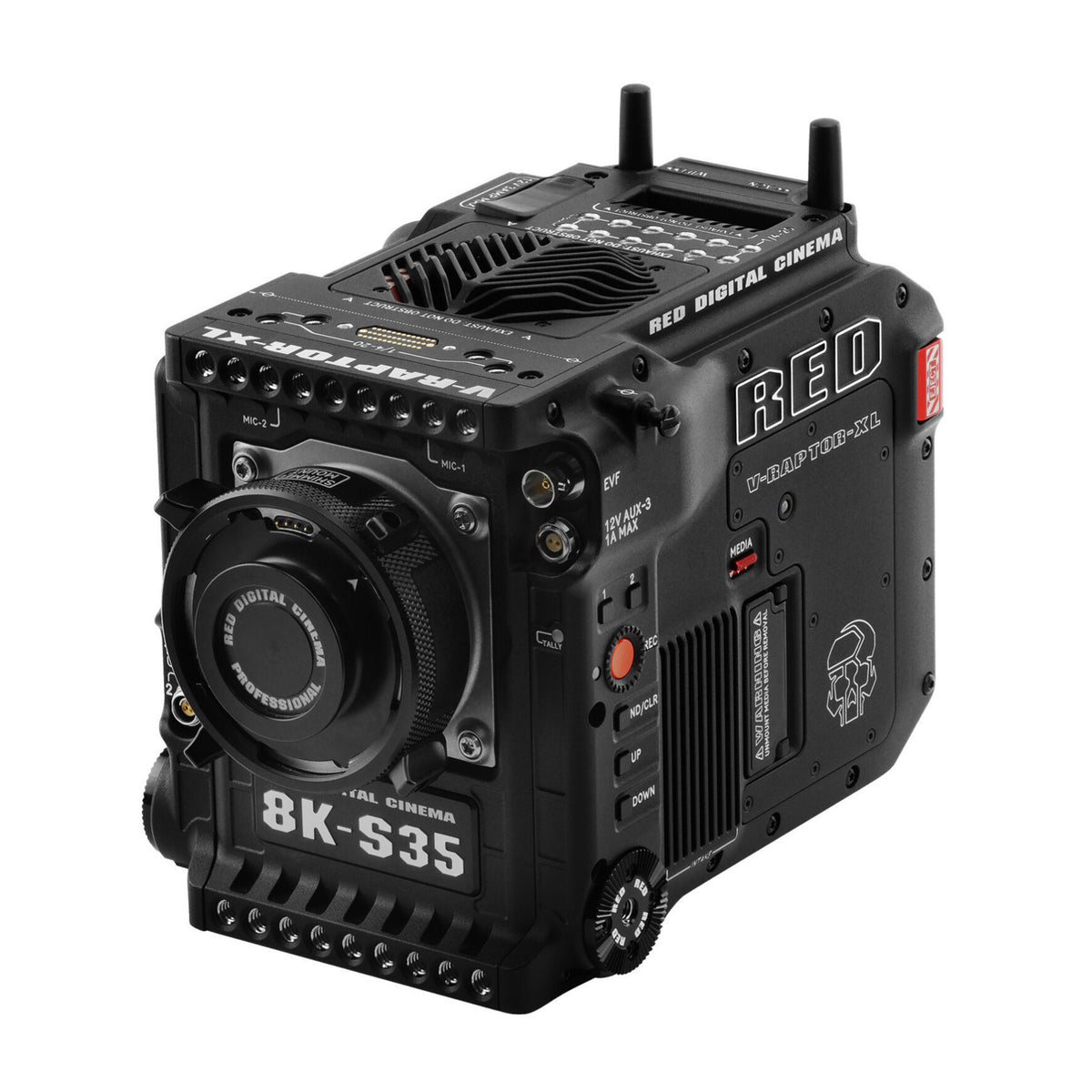

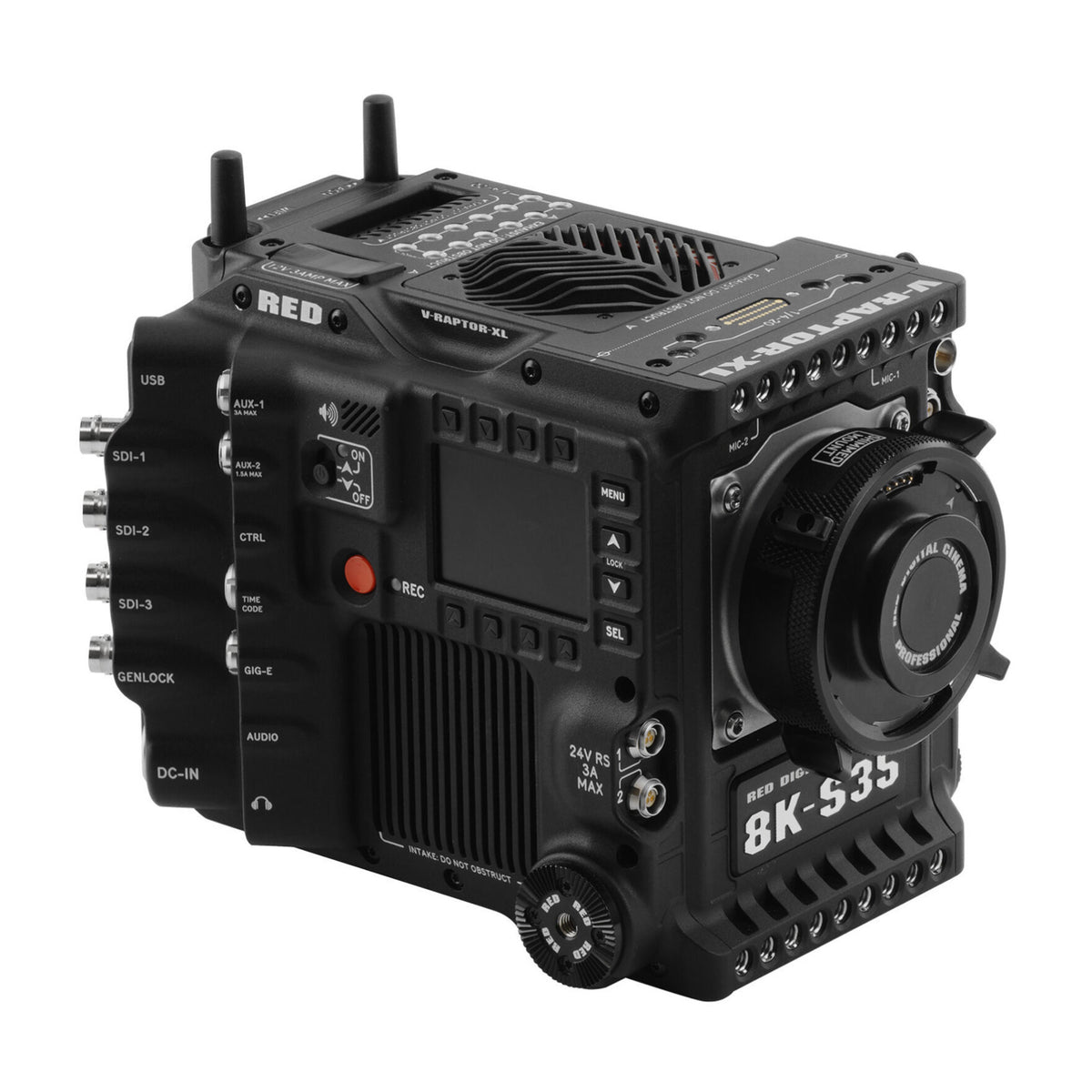

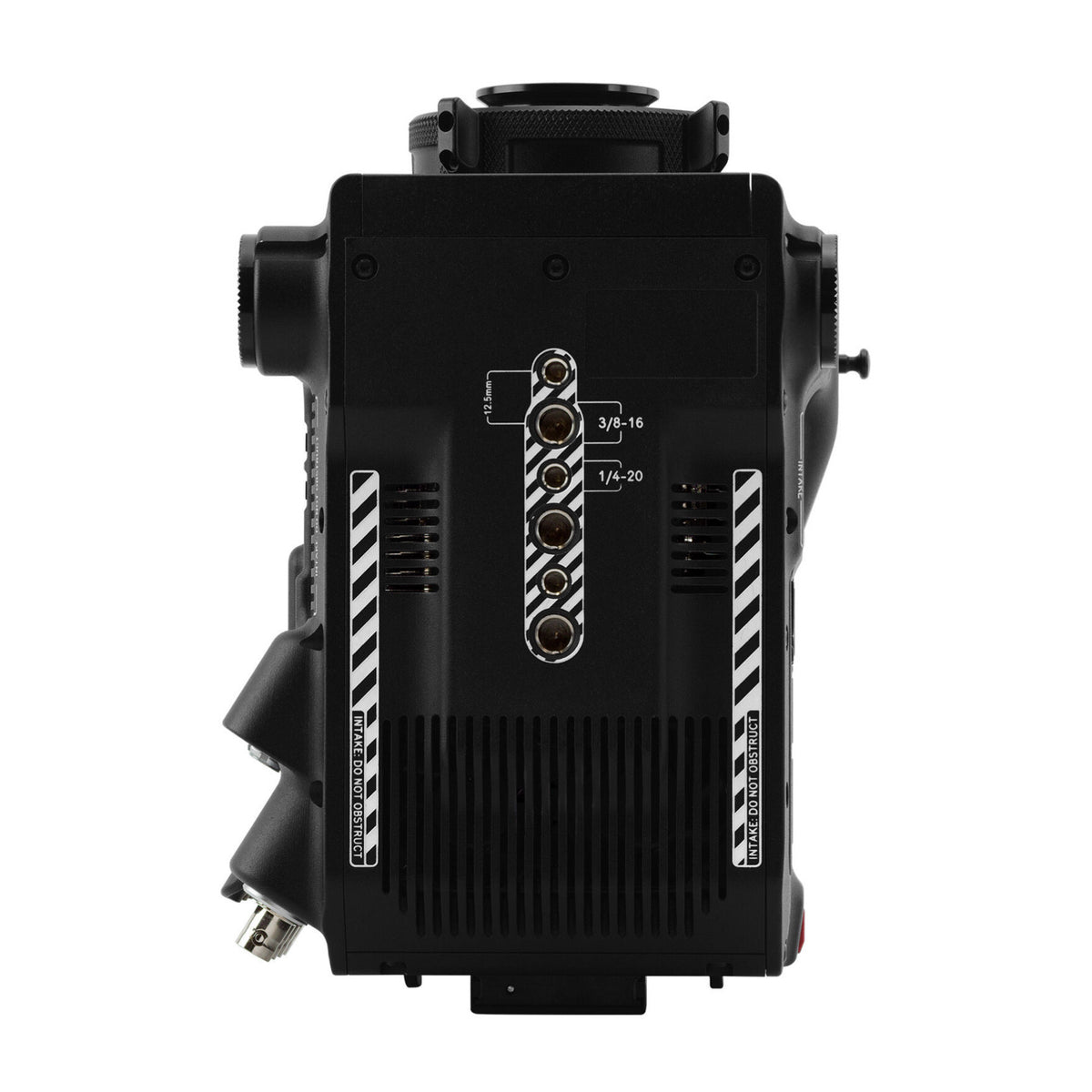

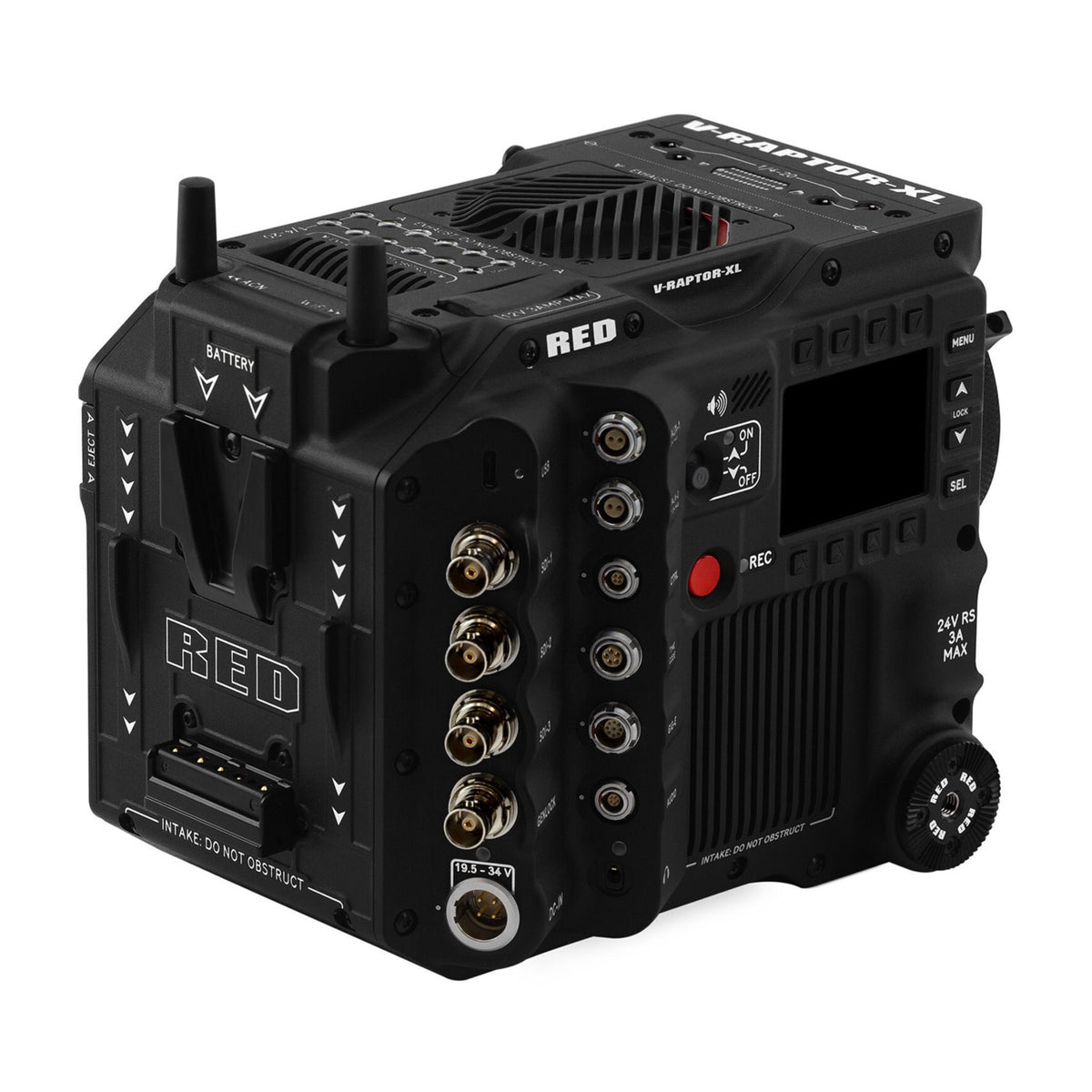

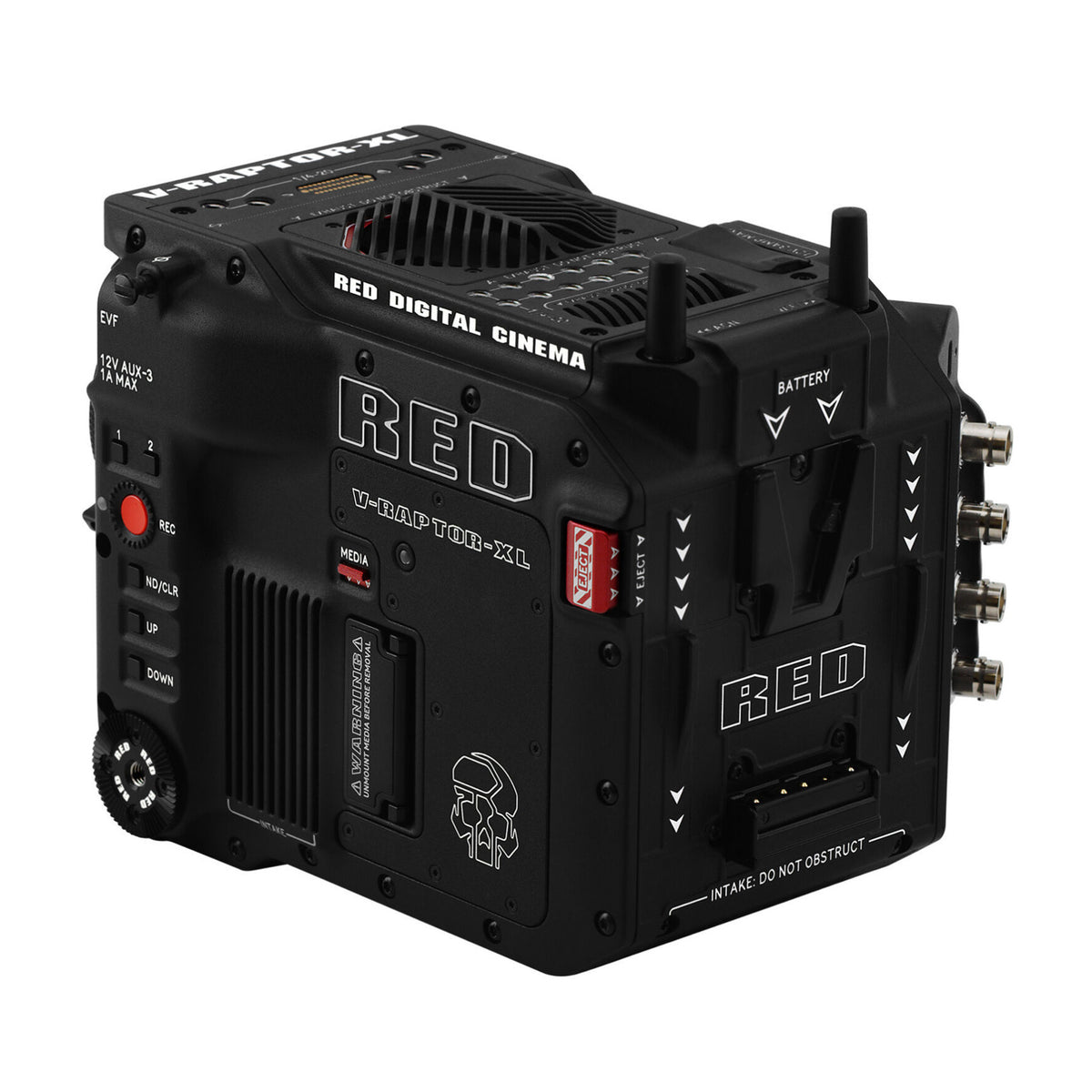

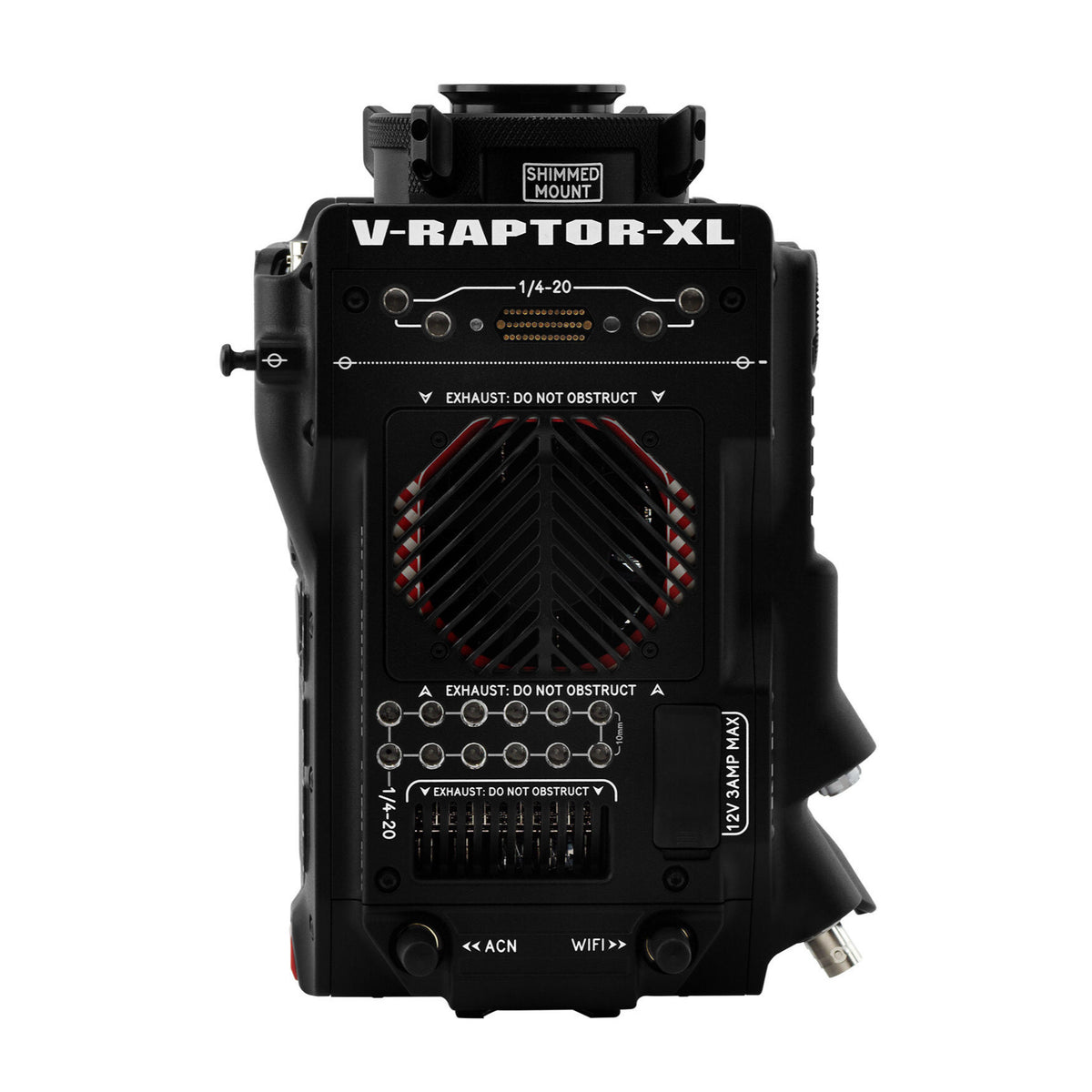

Red Digital Cinema V-RAPTOR XL 8K S35 35.4MP Professional Cine Camera V-Lock with PL Mount
- 35.4 megapixel 8K S35 CMOS sensor captures 8192 x 4320 imagery
- 16.5+ stops of dynamic range supports demanding cinema and broadcast workflows
- Records up to 120 fps at 8K 17:9 and up to 600 fps at 2K 2.4:1
- Electronic ND provides 2 to 7 stops with three selectable adjustment increments
- REDCODE RAW and Apple ProRes recording support flexible production workflows
- Dual voltage 14 and 26 V V-Lock interface supports professional power setups
- Wi-Fi, USB-C, Gigabit Ethernet, timecode, and genlock support remote operation
- CFexpress Type B recording supports data rates up to 800 MB/s with qualified media
Same Amazing Image, Enhanced On-Set Experience
V-RAPTOR XL 8K S35 expands upon the most powerful and advanced RED camera platform ever. Using RED’s newest 8K S35 sensor, V-RAPTOR XL leverages the convenience and lens selection of the Super35mm format, with the benefits and flexibility of 8K acquisition, all inside of a large-scale-production ready XL camera body. It is designed to support high-end television, natural history, broadcast, and motion picture productions as well as any filmmaker who requires an all-in-one solution.
V-Lock Mount
V-RAPTOR XL is a dual voltage camera system, supporting both low voltage 14V batteries as well as high voltage batteries in V-Lock Mount. V-RAPTOR XL features the most flexible power ecosystem available in the market today.
V-RAPTOR 8K S35 Sensor
Featuring the same 8K S35 sensor found inside the V-RAPTOR 8K S35, this format is ideal for any project where both Super35mm lensing and 8K acquisition is required. Leverage lightweight zooms or vintage primes while still capturing at 8K 120P for stunning high resolution slow motion. In addition, the V-RAPTOR sensor scan time is 2x faster than any previous RED camera and it allows users to capture up to 600 fps at 2K. V-RAPTOR XL will also continue to feature RED’s proprietary REDCODE RAW codec, allowing users to capture 16-bit RAW, and leverage RED’s latest IPP2 workflow and color management.
Built-In Pro Interfaces
12V and 24V auxiliary power outputs support the camera assistants, allowing them to power all the peripherals needed to do their job well, from one centralized place. Front facing 3G-SDI and 2-Pin 12V power, as well as compatibility with the DSMC3 RED Touch 7.0 inch LCD, supports any camera operators viewing preference.
All In One Production Control
Wireless timecode, genlock, and camera control, as well as four SDI outputs support the DIT or camera shader, giving them access to everything they need at their cart or truck.
Internal ND Filters
Built-in electronic ND allows cinematographers or camera shaders to precisely select their density in up to 1/4 stop increments, providing never before seen exposure and depth of field control inside a cinema camera of this level.
Advanced Connectivity
Additionally, the V-RAPTOR/V-RAPTOR XL and the DSMC3 platform features advanced connectivity solutions which enable applications such as RED Connect for 8K R3D cinematic live streaming and remote record, remote control and monitoring, in-camera Frame.io integration, AWS direct upload, and more.
Imaging:
| Sensor Type | V-RAPTOR 8K S35 35.4 Megapixel CMOS |
| Effective Pixels | 8192 x 4320 |
| Sensor Size | 26.21 mm x 13.82 mm, diagonal 29.63 mm |
| Dynamic Range | 16.5+ stops |
| Sensor Scan Time | 2x faster than any previous RED camera |
| Built In ND | Motorized clear filter and precision controlled electronic ND filter |
| Electronic ND Density | Minimum 2 stops, maximum 7 stops |
| Electronic ND Increments | 1/3 stop, 1/4 stop, and 1 stop |
| Autofocus | Phase detect and contrast |
Lens Mount:
| Mount Type | Interchangeable lens mount |
| Included Mount | V-RAPTOR XL PL Mount, shimmable |
| Optional Mount | V-RAPTOR XL Locking Canon EF Mount |
| DSMC Lens Mount Compatibility | Physically compatible with DSMC lens mounts without electronic communication or control |
Recording and Media:
| Media Type | CFexpress Type B |
| Maximum Data Rate | Up to 800 MB/s using RED branded or other qualified CFexpress media cards |
| RAW Codec | REDCODE RAW |
| RAW Bit Depth | 16 bit |
| Maximum Frame Rate at 8K | 120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456) |
| Maximum Frame Rate at 7K | 140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024) |
| Maximum Frame Rate at 6K | 160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592) |
| Maximum Frame Rate at 5K | 192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160) |
| Maximum Frame Rate at 4K | 240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728) |
| Maximum Frame Rate at 3K | 320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296) |
| Maximum Frame Rate at 2K | 480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864) |
| Playback Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps at all resolutions |
REDCODE Settings:
| 8K 17 | 9: REDCODE HQ, MQ, and LQ at 8192 x 4320 up to 60 fps |
| 8K 17 | 9 High Frame Rate: REDCODE LQ at 8192 x 4320 up to 120 fps |
| 6K 17 | 9: REDCODE HQ, MQ, and LQ at 6144 x 3240 up to 96 fps |
| 6K 17 | 9 High Frame Rate: REDCODE MQ and LQ at 6144 x 3240 up to 160 fps |
| 4K 17 | 9: REDCODE HQ, MQ, and LQ at 4096 x 2160 up to 240 fps |
| 2K 17 | 9: REDCODE HQ, MQ, and LQ at 2048 x 1080 up to 480 fps |
REDCODE RAW Acquisition Formats:
| 8K | 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1, and anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, and 1.25x |
| 7K | 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, and 1:1 |
| 6K | 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, and 1:1 |
| 5K | 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, and 1:1 |
| 4K | 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, and 1:1 |
| 3K | 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, and 1:1 |
| 2K | 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, and 1:1 |
Apple ProRes Recording:
| Dedicated Recording | ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096 x 2160) 120P |
| Proxy Recording | Up to ProRes 422 HQ at 2K (2048 x 1080) up to 60P |
Construction and Dimensions:
| Construction | Aluminum Alloy |
| Dimensions | 7.91 inches long x 6.29 inches wide x 7.22 inches high without a lens mount |
| Weight with V-Lock and PL Mount | 7.99 pounds / 3.624 kilograms |
| Weight with Gold Mount and PL Mount | 8.08 pounds / 3.665 kilograms |
Power:
| Battery Type | Integrated dual voltage 14/26 V V-Lock battery interface |
| DC Power Input | 19.5 to 34 V through 4 pin 2B DC-IN |
| Regulated 12 V Outputs | 2 P-TAP connectors, 3 amp combined |
| Rear 12 V Output | 1 rear 2 pin 0B connector rated at 3 amp |
| Rear 12 V Output | 1 rear 2 pin 0B connector rated at 1.5 amp |
| Front 12 V Output | 1 front 2 pin 0B connector rated at 1 amp |
| Regulated 24 V Outputs | 2 front 3 pin Fischer connectors, 3 amp combined |
Environmental:
| Operating Temperature | 0 degrees C to 40 degrees C (32 degrees F to 104 degrees F) |
| Storage Temperature | 20 degrees C below zero to 50 degrees C (4 degrees F below zero to 122 degrees F) |
| Storage Relative Humidity | 0% to 85% noncondensing |
Color Management:
| Image Processing Pipeline | IPP2 |
| 3D LUT Support | 33 x 33 x 33 3D LUTs |
| CDL Support | Supports import of CDLs |
Audio:
| Integrated Microphones | Dual channel digital mono microphones, uncompressed, 24 bit 48 kHz |
| Audio Input | Integrated dual channel mic/line/+48 V input through 5 pin 00B Audio Port, uncompressed, 24 bit 48 kHz |
Remote Control and Connectivity:
| Wireless Control | Wi-Fi through an interchangeable dual band 2.4 GHz and 5 GHz antenna mounted to a female RP-SMA connector |
| Wired Control | USB-C with a compatible USB-C to Ethernet adapter or Gigabit Ethernet |
| Wired Functions | Remote camera control, live MJPEG preview video feed, and remote media offload |
| Gigabit Ethernet | 9 pin 0B GIG-E, 1000BASE-T |
| Control Port | 4 pin 00B CTRL with RS-232 |
| Advanced Connectivity | Supports RED Connect for 8K R3D cinematic live streaming and remote record, remote control and monitoring, in camera Frame.io integration, and AWS direct upload |
Monitor Outputs:
| Top Accessory Port | Proprietary Top Accessory Port for monitoring and control |
| Primary SDI Outputs | 3 x 12G-SDI with 6G-SDI, 3G-SDI, and 1.5G-SDI modes |
| EVF Output | 1 x 3G-SDI with 3G-SDI and 1.5G-SDI modes |
| 12G-SDI Output | Up to 4096 x 2160 4:2:2 at 60p |
| 6G-SDI Output | Up to 4096 x 2160 4:2:2 at 30p, 25p, and 24p |
| 3G-SDI Output | Up to 2048 x 1080 4:2:2 at 60p |
| 1.5G-SDI Output | Up to 2048 x 1080 4:2:2 at 30p, 25p, and 24p |
| Output Metadata and Audio | SMPTE Timecode, HANC Metadata, and 24 bit 48 kHz audio |
Monitor Options:
| External Monitor | DSMC3 RED Touch 7.0 inch LCD |
| Live Preview | IP streamed 1080p live preview wirelessly or wired through USB-C or Ethernet |
| Integrated Display | 2.4 inch LCD for camera control without preview video |
Camera Synchronization:
| Genlock | Tri Level Genlock through BNC |
| Linear Timecode | LTC through 5 pin 0B |
| PTP | Through 9 pin 0B GIG-E |
| Wireless Synchronization | Genlock and timecode through the integrated Ambient Communication Network |
RED Control and RED Control Pro:
| RED Control | Full camera controls and live preview from compatible iOS or Android devices |
| RED Control Connectivity | Wireless operation or wired operation through USB-C |
| RED Control Pro | Control one or multiple cameras over an IP connection |
| RED Control Pro Functions | Synchronize settings, manage media files locally, upload directly to Frame.io, and develop custom looks using CDL and LUT controls |
| RED Control Availability | Available through the Apple App Store and Google Play Store |
| RED Control Pro Availability | Available through the Apple App Store and requires an additional purchase |
