- V-RAPTOR XL 8K S35 Body
- V-RAPTOR XL PL Mount
- RED PL Mount Shim Pack
- RED AC Power Adaptor 270W
- 3-Pin XLR-to-4-Pin 2B Power Cable (10 ft)
- RED Logo Sticker
- V-RAPTOR XL Information Card (incl. registration and support info)
NOTE: Power cord not included – must purchase separately.
Trusted & Verified

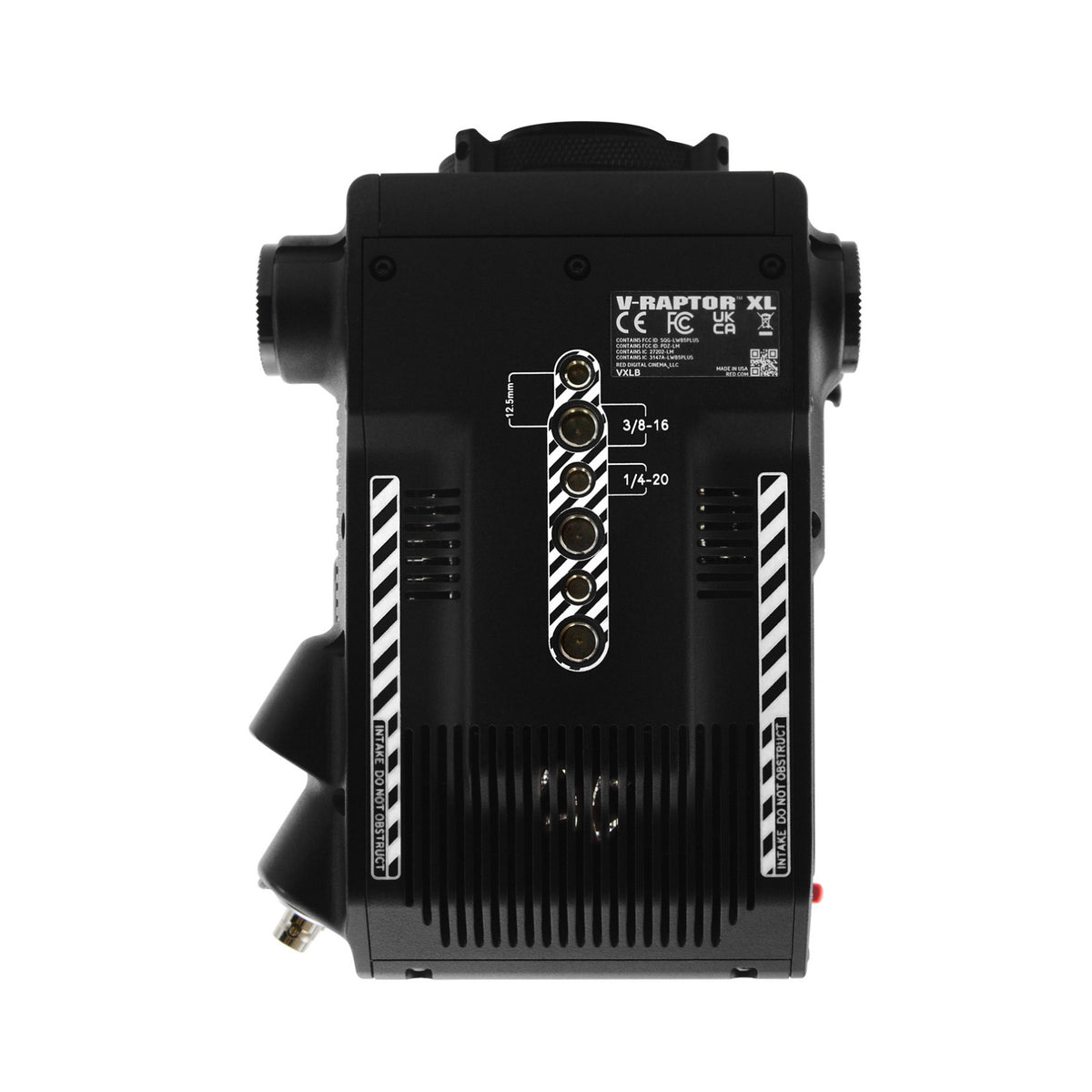

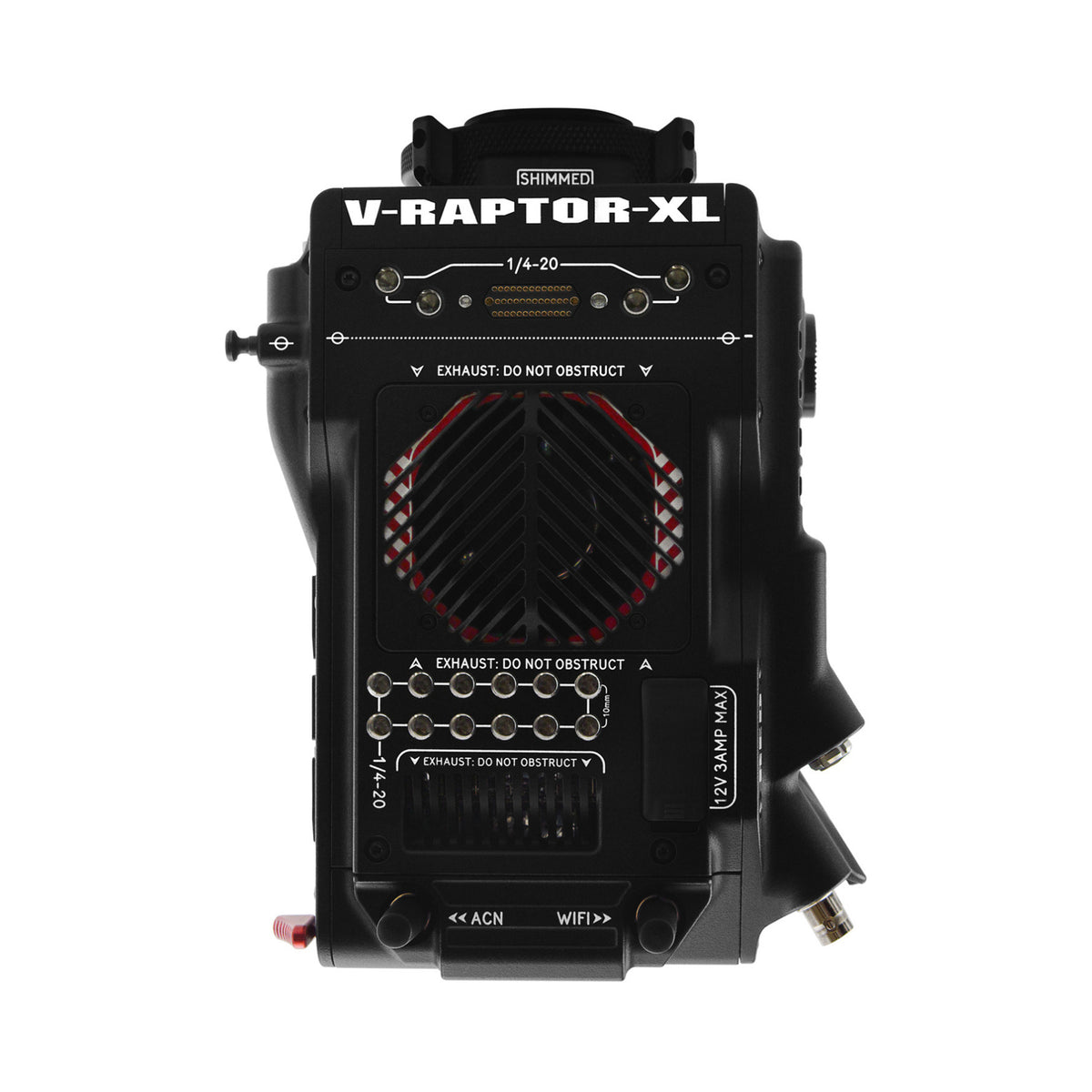

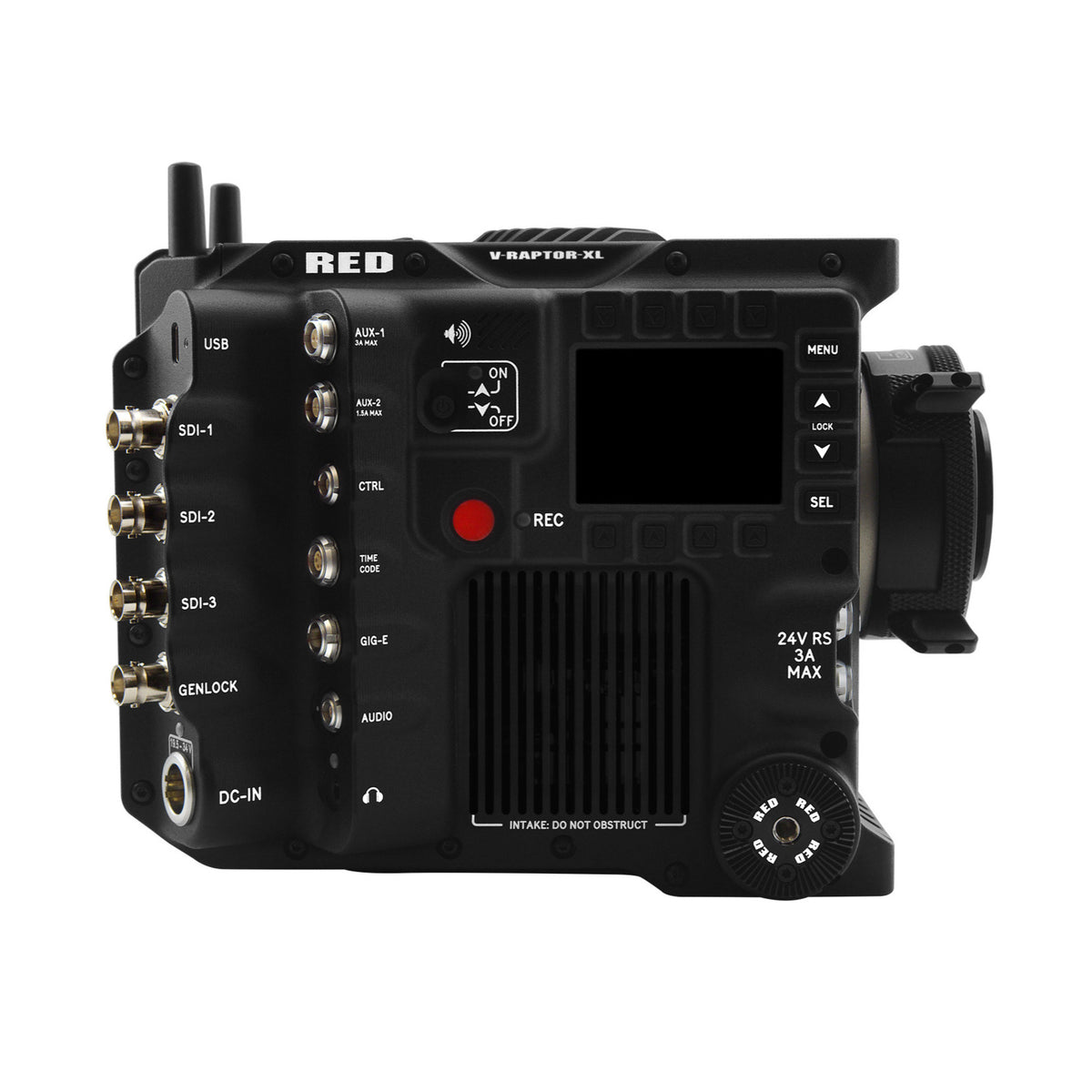

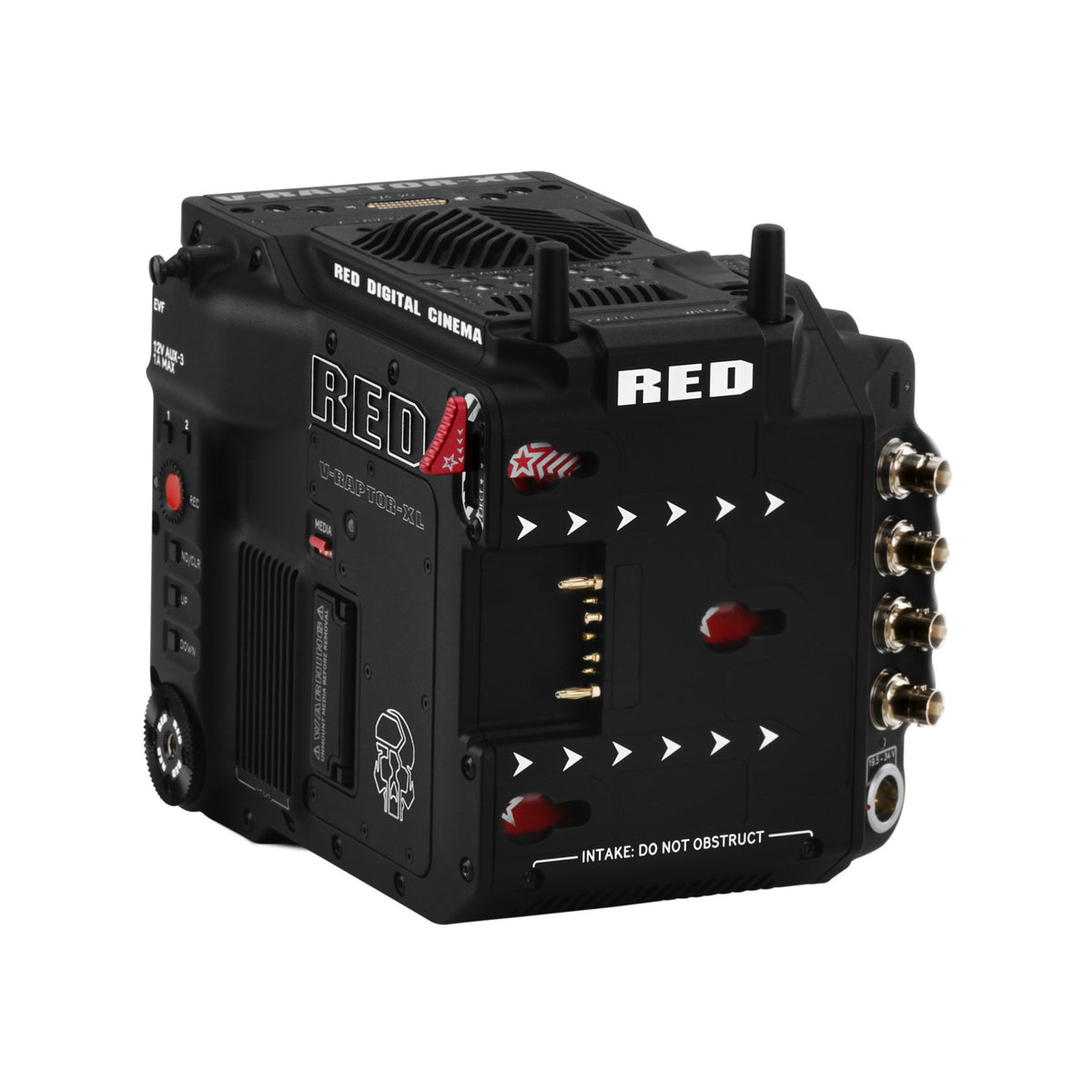

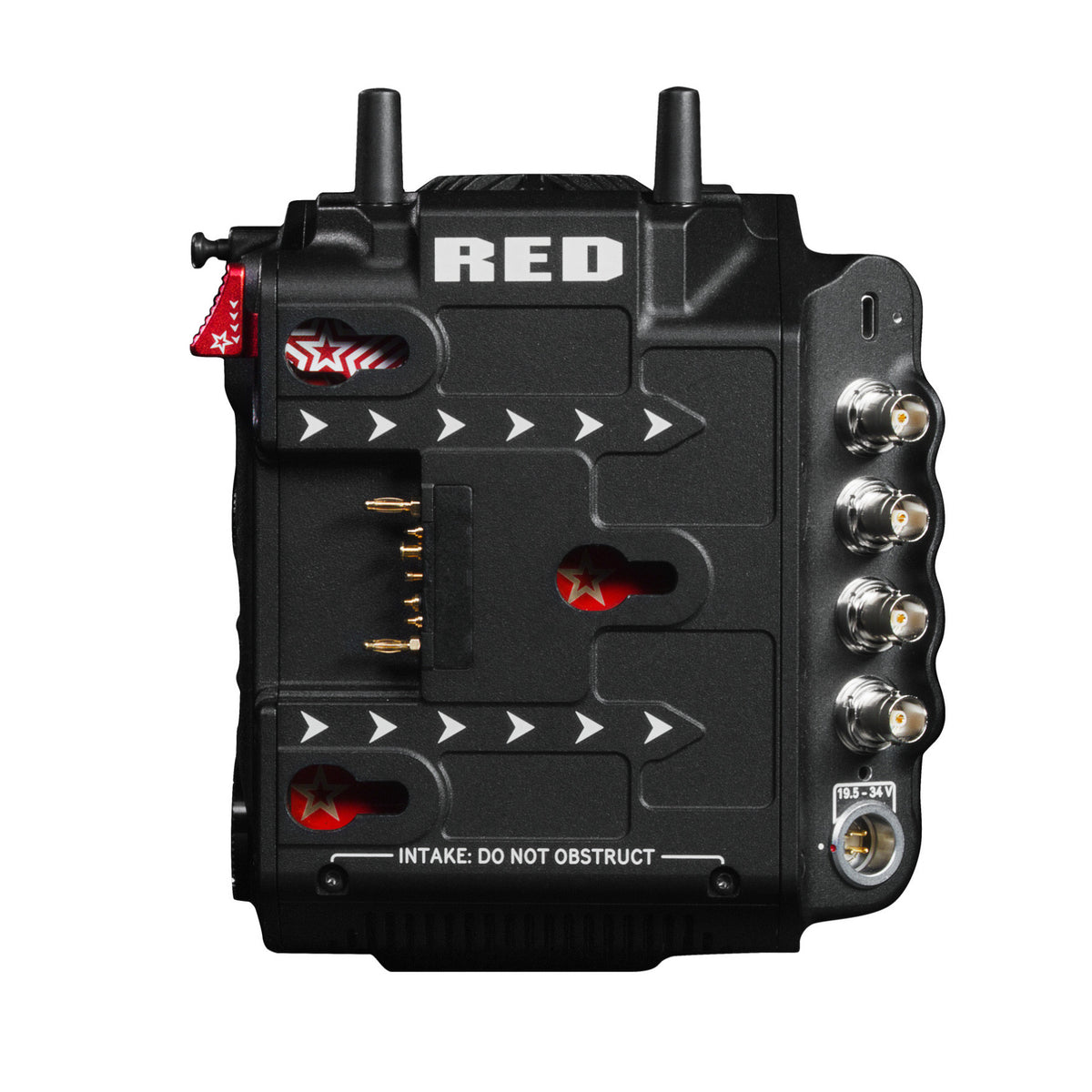

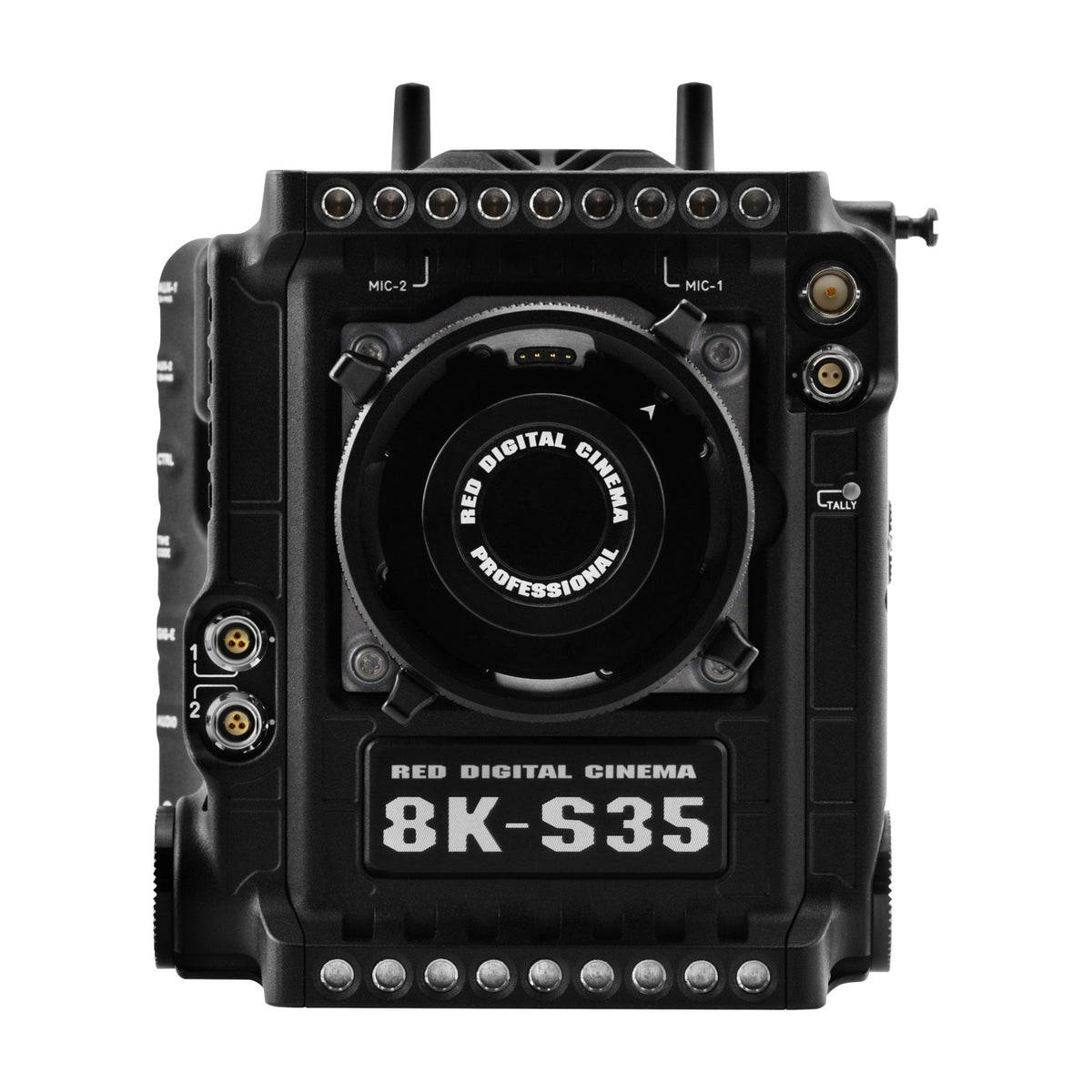

RED Digital Cinema V-RAPTOR XL 8K S35 35.4MP Camera (Gold Mount)
- 35.4 megapixel Super 35 CMOS sensor captures 8192 x 4320 images
- Records REDCODE RAW up to 120 fps at 8K 17:9
- Reaches up to 600 fps at 2K 2.4:1 for high frame rate capture
- Electronic ND covers 2 to 7 stops with three selectable increment options
- Gold Mount interface supports dual voltage 14 V and 26 V operation
- Four SDI outputs support flexible operator and crew monitoring
- CFexpress Type B media supports data rates up to 800 MB/s
- IPP2 color management supports 3D LUTs and CDL import
The RED Digital Cinema V-RAPTOR XL 8K S35 combines 8K Super 35 acquisition, high frame rate REDCODE RAW recording, integrated electronic ND, and production focused power and connectivity in an XL cinema camera body. Its 35.4 MP CMOS sensor captures 8192 x 4320 pixels across a 26.21 mm x 13.82 mm imaging area and delivers 16.5 plus stops of dynamic range. The Super 35 format supports a broad range of cinema lenses while preserving the resolution needed for reframing, stabilization, visual effects, and high resolution finishing.
8K REDCODE RAW and High Frame Rate Capture
V-RAPTOR XL records REDCODE RAW at up to 120 fps in 8K 17:9 and up to 150 fps in 8K 2.4:1. Lower resolution formats extend capture to 240 fps at 4K 17:9, 320 fps at 3K 17:9, and 600 fps at 2K 2.4:1. R3D files store 16 bit RAW sensor data while keeping ISO, white balance, and other color processing choices as metadata for post production flexibility. Qualified CFexpress Type B media supports data rates up to 800 MB/s, while dedicated Apple ProRes recording is available at resolutions up to 4096 x 2160.
PL Mount and Integrated Electronic ND
The interchangeable lens mount system includes a shimmable V-RAPTOR XL PL Mount with support for Cooke /i and Zeiss eXtended lens data. An optional locking EF mount adds electronic focus and iris control for supported EF lenses. The built in electronic ND system provides 2 to 7 stops of density with selectable 1/4, 1/3, and full stop increments, allowing exposure to be adjusted while maintaining the intended aperture and depth of field.
Production Power, Monitoring, and Connectivity
The Gold Mount configuration uses an integrated dual voltage 14/26 V battery interface and provides regulated 12 V and 24 V auxiliary outputs for production accessories. Three 12G SDI outputs support independent professional monitoring, while a dedicated 3G SDI output supports EVF workflows. Tri level genlock, LTC timecode, PTP synchronization, wireless timecode and genlock, Wi-Fi, USB C, and Gigabit Ethernet support synchronized, remotely operated, and networked productions. RED Control provides camera operation and live preview, with wired connections also supporting remote media offload.
XL Body for Crew Operated Production
The aluminum alloy camera body measures 7.91 inches long by 6.29 inches wide by 7.22 inches high without a lens mount and weighs approximately 8.05 lb with the PL Mount and Gold Mount configuration. The DSMC3 RED Touch 7.0 inch LCD can be mounted through the proprietary top accessory port, while the integrated 2.4 inch LCD provides direct camera control without preview video. IPP2 color management supports 33 x 33 x 33 3D LUTs and CDL import, giving production and post teams a controlled color workflow for narrative, broadcast, natural history, commercial, and studio environments.
Imaging:
| Sensor Type | V-RAPTOR 8K S35 35.4 Megapixel CMOS |
| Effective Pixels | 8192 x 4320 |
| Sensor Size | 26.21 mm x 13.82 mm, diagonal 29.63 mm |
| Dynamic Range | 16.5+ stops |
| Built In ND | Motorized clear filter and precision controlled electronic ND filter |
| Electronic ND Density | 2 to 7 stops |
| Electronic ND Increments | 1/3 stop, 1/4 stop, and 1 stop |
| Mount Type | Interchangeable lens mount with included V-RAPTOR XL PL Mount, shimmable |
| Optional Mount | V-RAPTOR XL Locking Canon EF Mount |
| DSMC Lens Mount Compatibility | Physically compatible without electronic communication or control |
| Autofocus | Phase Detect and Contrast |
Recording:
| Media Type | CFexpress Type B |
| Maximum Data Rate | Up to 800 MB/s using RED branded or other qualified CFexpress media cards |
| REDCODE RAW Maximum Frame Rates at 8K | 120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456) |
| REDCODE RAW Maximum Frame Rates at 7K | 140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024) |
| REDCODE RAW Maximum Frame Rates at 6K | 160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592) |
| REDCODE RAW Maximum Frame Rates at 5K | 192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160) |
| REDCODE RAW Maximum Frame Rates at 4K | 240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728) |
| REDCODE RAW Maximum Frame Rates at 3K | 320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296) |
| REDCODE RAW Maximum Frame Rates at 2K | 480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864) |
| Playback Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps at all resolutions |
| REDCODE Settings at 8K 17 | 9: HQ, MQ, and LQ up to 60 fps; LQ up to 120 fps |
| REDCODE Settings at 6K 17 | 9: HQ, MQ, and LQ up to 96 fps; MQ and LQ up to 160 fps |
| REDCODE Settings at 4K 17 | 9: HQ, MQ, and LQ up to 240 fps |
| REDCODE Settings at 2K 17 | 9: HQ, MQ, and LQ up to 480 fps |
| 8K REDCODE RAW Acquisition Formats | 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1, and anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x |
| 7K REDCODE RAW Acquisition Formats | 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 |
| 6K REDCODE RAW Acquisition Formats | 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 |
| 5K REDCODE RAW Acquisition Formats | 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1 |
| 4K REDCODE RAW Acquisition Formats | 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1 |
| 3K REDCODE RAW Acquisition Formats | 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1 |
| 2K REDCODE RAW Acquisition Formats | 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1 |
| Apple ProRes Recording | ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096 x 2160) 120P |
| Proxy Recording | Up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P |
Construction and Power:
| Construction | Aluminum Alloy |
| Dimensions | 7.91 inches long x 6.29 inches wide x 7.22 inches high without lens mount |
| Weight | 8.08 pounds / 3.665 kilograms with Gold Mount and PL Mount |
| Battery Type | Integrated dual voltage 14/26 V Gold Mount battery interface |
| DC Power Input | 19.5 to 34 V via 4 pin 2B DC IN |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | –20°C to 50°C (–4°F to 122°F) |
| Storage Relative Humidity | 0% to 85% non-condensing |
| Regulated 12 V Outputs | 2 x P TAP connectors, 3 amp combined; 1 x rear 2 pin 0B, 3 amp; 1 x rear 2 pin 0B, 1.5 amp; 1 x front 2 pin 0B, 1 amp |
| Regulated 24 V Outputs | 2 x front 3 pin Fischer connectors, 3 amp combined |
Color Management and Audio:
| Color Management | Image Processing Pipeline 2 (IPP2) |
| 3D LUT Support | 33 x 33 x 33 3D LUTs |
| CDL Support | Import supported |
| Integrated Audio | Dual channel digital mono microphones, uncompressed, 24 bit 48 kHz |
| Audio Input | Dual channel mic, line, and +48 V input via 5 pin 00B Audio Port, uncompressed, 24 bit 48 kHz |
Remote Control and Connectivity:
| Wireless Camera Control | Wi-Fi via interchangeable dual band 2.4 GHz and 5 GHz antenna mounted to a female RP SMA connector |
| Wired Camera Control | USB Type C with compatible Ethernet adapter, or Gigabit Ethernet, for remote control, live MJPEG preview, and media offload |
| Ethernet Port | 9 pin 0B GIG E, 1000BASE-T |
| Control Port | 4 pin 00B CTRL, RS-232 |
Monitoring:
| Top Accessory Port | Proprietary port for monitoring and control |
| SDI Outputs | 3 x 12G SDI with 6G SDI, 3G SDI, and 1.5G SDI modes, plus 1 x 3G SDI with 3G SDI and 1.5G SDI modes for EVF |
| 12G SDI Output | Up to 4096 x 2160 4:2:2 for 60p |
| 6G SDI Output | Up to 4096 x 2160 4:2:2 for 30p, 25p, and 24p |
| 3G SDI Output | Up to 2048 x 1080 4:2:2 for 60p |
| 1.5G SDI Output | Up to 2048 x 1080 4:2:2 for 30p, 25p, and 24p |
| SDI Metadata and Audio | SMPTE Timecode, HANC Metadata, 24 bit 48 kHz Audio |
| Monitor Option | DSMC3 RED Touch 7.0 inch LCD |
| IP Preview | 1080p live preview wirelessly or wired via USB Type C or Ethernet |
| Integrated Display | 2.4 inch LCD for camera control without preview video |
Camera Sync:
| Genlock | Tri Level Genlock through BNC |
| Linear Timecode | LTC through 5 pin 0B |
| PTP | Through 9 pin 0B GIG E |
| Wireless Genlock and Timecode | Integrated Ambient Communication Network |
RED Control and RED Control Pro:
| RED Control | Full camera controls and live preview from iOS or Android devices |
| RED Control Availability | Apple App Store and Google Play Store |
| RED Control Connectivity | Wireless or wired via USB Type C |
| RED Control Pro | Operates one or multiple cameras over an IP connection, synchronizes settings, manages media files, supports direct Frame.io upload, and provides CDL and LUT controls |
