- 1 x RED DIGITAL CINEMA KOMODO-X 6K Digital Cinema Camera, RF Mount, Black
- 1 x RED DIGITAL CINEMA 1TB PRO CFexpress 2.0 Type B Memory Card
- 1 x RED DIGITAL CINEMA CFexpress Card Reader
- 1 x RED DIGITAL CINEMA REDVOLT NANO-V 49 Wh Battery
- 1 x RED DIGITAL CINEMA Wing Grip
- 1 x RED DIGITAL CINEMA KOMODO Outrigger Handle
- 1 x RED DIGITAL CINEMA DSMC3 RED 5-Pin to 3.5 mm Female Audio Adapter
- 1 x RED DIGITAL CINEMA EXT-to-Timecode Cable, 3 Feet
Trusted & Verified

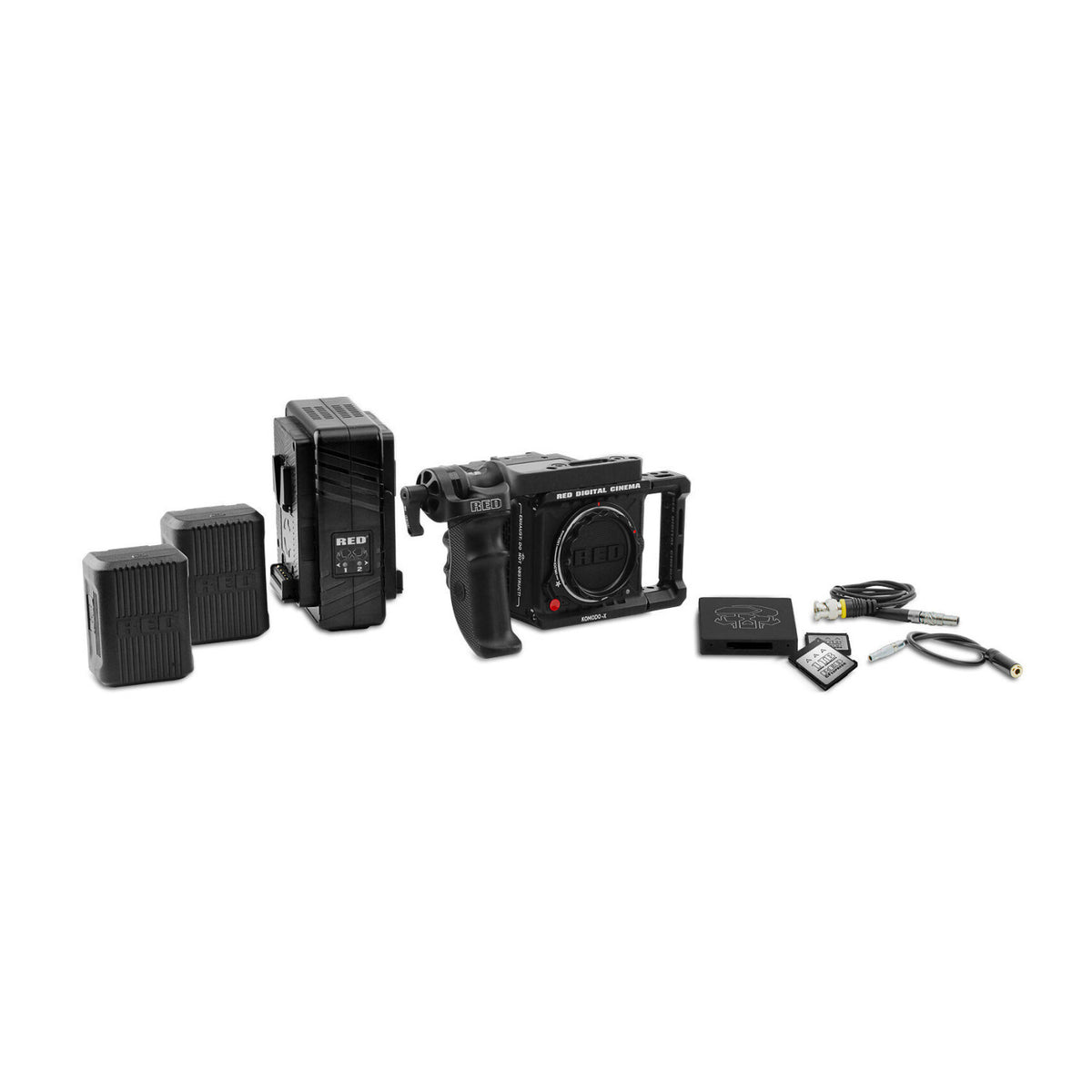

RED DIGITAL CINEMA KOMODO-X 6K Camera Bundle (V-Mount)
- 19.9 MP Super 35 global shutter CMOS sensor
- Records 6K 17:9 at up to 80 fps and 4K 17:9 at up to 120 fps
- Integrated locking RF mount with electronic communication
- 2.9-inch 1440 x 1440 touchscreen LCD for preview and control
- CFexpress Type B media supports high data rate recording
- Wi-Fi and Ethernet over USB Type-C support camera control and media offload
- 1080p IP live streaming supports connected production workflows
- Integrated V Lock battery interface and 11 to 17 V DC input
Built for compact cinema rigs and connected production, the RED DIGITAL CINEMA KOMODO-X 6K combines a 19.9 MP Super 35 global shutter sensor with an integrated locking RF mount. The camera records 6K 17:9 at up to 80 fps and 4K 17:9 at up to 120 fps, giving crews high frame rate options while preserving the motion characteristics of a global shutter design.
6K Global Shutter Capture
The redesigned KOMODO-X sensor delivers 6144 x 3240 effective pixels and supports REDCODE RAW recording to CFexpress Type B media. A maximum data rate of 560 MB/s supports demanding capture, while phase-detect and contrast autofocus enable adaptable lens workflows. The aluminum alloy body measures 5.1 inches x 4 inches x 3.8 inches and weighs 2.62 pounds without the body cap and media.
RF Mount and Connected Production
The reinforced locking RF mount supports electronic communication and works with RED RF to PL adapters for compatible PL lenses. Integrated Wi-Fi, Ethernet over USB Type C, PTP synchronization, 1080p IP live streaming, and RED Connect support make the camera well suited to remote control, multi-camera production, virtual production, and live broadcast workflows. A 2.9-inch 1440 x 1440 touchscreen provides local preview and control.
Production Focused Bundle
This 8-item bundle extends the camera with recording media, data offload, portable power, handheld control, audio connectivity, and timecode connectivity. The result is a focused package for crews building a compact KOMODO-X system for narrative, commercial, documentary, studio, or live production.
General
RED DIGITAL CINEMA KOMODO-X 6K Digital Cinema Camera:
| Color | Black |
| Sensor Type | KOMODO-X 19.9 MP Super 35 mm Global Shutter CMOS |
| Effective Pixels | 6144 x 3240 |
| Sensor Size | 27.03 mm x 14.26 mm, diagonal 30.56 mm |
| Dynamic Range | 16.5+ stops |
| Mount Type | Integrated locking RF mount with electronic communication |
| Lens Adapter Support | /i PL lenses with RED RF to PL adapters, Canon EF adapter with communication, and other adapters based on the RF mount |
| Maximum Data Rate | Up to 560 MB/s using RED branded or qualified CFexpress media |
| REDCODE RAW Maximum Frame Rates | 80 fps at 6K 17:9, 6144 x 3240; 96 fps at 5K 17:9, 5120 x 2700; 120 fps at 4K 17:9, 4096 x 2160; 240 fps at 2K 17:9, 2048 x 1080 |
| Playback Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps at all resolutions |
| Best Available REDCODE Settings | HQ, MQ, LQ, and ELQ at 6K 17:9 up to 80 fps; 4K 17:9 up to 120 fps; 2K 17:9 up to 240 fps |
| REDCODE RAW Acquisition Formats | 6K 17:9, 2:1, 2.4:1, 16:9, 1:1, anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x; 5K 17:9 and 16:9; 4K 17:9 and 16:9; 2K 17:9 |
| Apple ProRes Recording | 4K 4096 x 2160 ProRes 4444 XQ up to 60 fps, ProRes 4444 up to 80 fps, ProRes 422 HQ, ProRes 422, and ProRes 422 LT up to 120 fps |
| Construction | Aluminum alloy |
| Dimensions | 5.1 inch x 4 inch x 3.8 inch, 129.37 mm x 101.26 mm x 95.26 mm, largest fixed dimensions |
| Weight | 2.62 pounds without body cap and CFexpress card |
| Media Type | CFexpress Type B |
| Battery Type | Integrated V Lock battery interface optimized for Micro V Lock batteries |
| DC Power | 11 to 17 V through a 6-pin DC input |
| Operating Temperature | 0 degrees C to 40 degrees C, 32 degrees F to 104 degrees F |
| Storage Temperature | minus 20 degrees C to 50 degrees C, minus 4 degrees F to 122 degrees F |
| Relative Humidity | 0% to 85%, noncondensing |
| Color Management | Image Processing Pipeline 2, 33 x 33 x 33 3D LUT support, CDL import and adjustment |
| Audio | Integrated dual-channel digital mono microphones, 24-bit 48 kHz; dual channel mic, line, and 48 V input through the 5 pin 00B audio port; 3.5 mm stereo headphone port |
| Autofocus | Phase detect and contrast |
| Monitoring | Proprietary top accessory port; integrated 2.9 inch 1440 x 1440 touchscreen LCD; 12G SDI, 6G SDI, 3G SDI, and 1.5G SDI modes |
| 12G SDI Output | Up to 4096 x 2160 4:2:2 at 60p |
| 6G SDI Output | Up to 4096 x 2160 4:2:2 at 30p |
| 3G SDI Output | Up to 2048 x 1080 4:2:2 at 60p |
| 1.5G SDI Output | Up to 2048 x 1080 4:2:2 at 30p and 24p |
| SDI Metadata and Audio | SMPTE timecode, HANC metadata, 24 bit 48 kHz audio |
| Additional I/O | Tri level genlock input through 9 pin EXT, LTC timecode input through 9 pin EXT, RS232 control using RCP2 through 9 pin EXT |
| IP Connectivity | Wi-Fi 2.4 GHz and 5 GHz for camera control, video preview, and media offload; Ethernet over USB Type C for control, preview, and media offload; MJPEG 1080p live stream over Wi-Fi and USB Type C; PTP frame level synchronization; R3D live broadcasting with RED Connect license and 5 Gbps Ethernet adapter |
| Software | RED Control and RED Control Pro apps for camera control and live preview; multi camera operation is supported over IP |
RED DIGITAL CINEMA 1TB PRO CFexpress 2.0 Type B Memory Card:
| Capacity | 1TB |
| Card Type | CFexpress 2.0 Type B |
| Bus | PCIe 3.0 x2 |
| Maximum Read and Write Speed | Up to 1785 MB/s |
| Compatibility | RED V-RAPTOR 8K VV, RED KOMODO-X, RED CFexpress Card Reader |
| Processor | Y2 processor for raw video and photo content |
| Power Management | Adaptive Power Management |
| Protection Features | Host power loss protection, temperature sensor, TRIM, ECC, EMS protection, built in cache, and SMART |
| Mean Time Between Failures | Up to 2.4 million hours |
| Build Protection | Shock, dust, water, temperature, and x ray protection |
RED DIGITAL CINEMA CFexpress Card Reader:
| Media Read | CFexpress Type B |
| Host Interface | USB Type C, USB 3.2 |
| Supported Host Bus | Up to 20 Gb/s USB 3.2 Gen 2x2 |
| Power | USB bus power |
| Data Protection | Write protect switch |
| Weight | Approximately 4.2 ounces, 120 g |
| Dimensions | 3.74 inch x 2.56 inch x 0.47 inch, 95 mm x 65 mm x 12 mm |
RED DIGITAL CINEMA REDVOLT NANO-V 49 Wh Battery:
| Type | Rechargeable lithium ion battery |
| Capacity | 3300 mAh, 49 Wh |
| Battery Output | 12 to 16.8 V DC |
| Maximum Load | 6 amps at 14 V DC |
| Operating Temperature | 10 degrees C to 45 degrees C, 50 degrees F to 113 degrees F |
| Charging Temperature | 0 degrees C to 40 degrees C, 32 degrees F to 104 degrees F |
| Storage Temperature | 20 degrees C to 50 degrees C, 68 degrees F to 122 degrees F |
| Charger | RED Compact Dual V Lock Charger |
| Weight | Approximately 0.63 pound, 288 g |
| Dimensions | 3.46 inch x 2.60 inch x 1.73 inch, 88 mm x 66 mm x 44 mm |
| Compatibility | KOMODO-X and most cameras or modules that accept V Lock batteries |
RED DIGITAL CINEMA Wing Grip:
| Compatibility | RED KOMODO and KOMODO-X cameras |
| Material | Aluminum |
| Design | Low profile ergonomic U shaped grip |
| Accessory Mounts | Multiple 1/4-20 and anti twist 3/8-16 threads |
RED DIGITAL CINEMA KOMODO Outrigger Handle:
| Rotation | 360 degrees swivel adjustment |
| Control | Integrated record and stop button |
| Accessory Mounts | Two 1/4-20 threads |
| Camera Attachment | Top handle port or two captive 1/4-20 screws |
| Use | Handheld grip with one hand free for lens adjustment or support |
RED DIGITAL CINEMA DSMC3 RED 5-Pin to 3.5 mm Female Audio Adapter:
| Length | 11.3 inch |
| Camera Connector | 5 pin LEMO |
| Device Connector | Female 3.5 mm TRS |
| Compatibility | KOMODO-X, V-RAPTOR, V-RAPTOR XL, and 3.5 mm TRS audio devices |
RED DIGITAL CINEMA EXT-to-Timecode Cable:
| Length | 3 feet including connectors |
| Camera Connector | 9 pin EXT |
| Function | Connects an external timecode source to the camera timecode input |
| Compatibility | KOMODO-X EXT port timecode input |
