- V-RAPTOR [X] 8K VV Body
- RED Logo Sticker
- V-RAPTOR [X] Information Card (incl. registration and support info)
Trusted & Verified

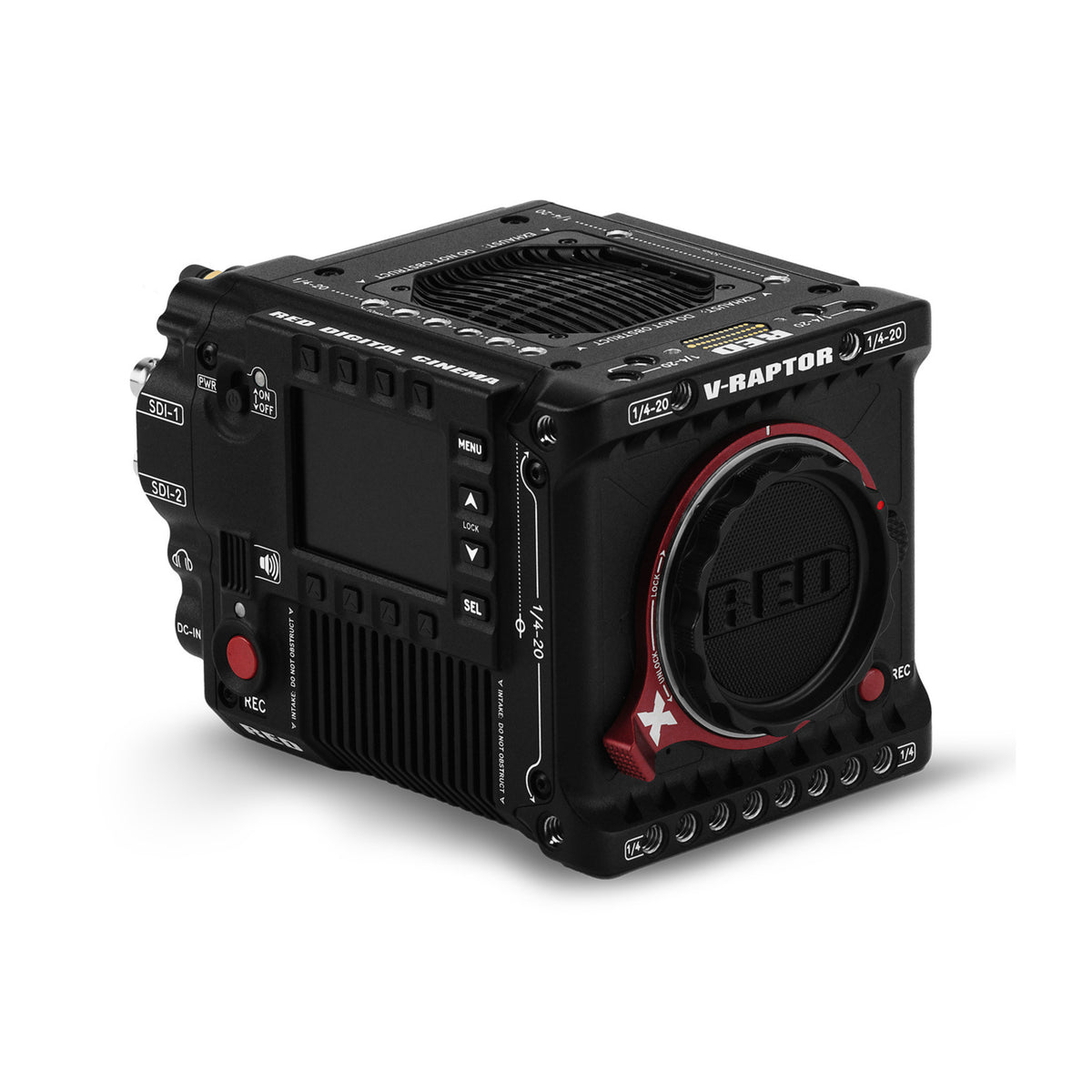

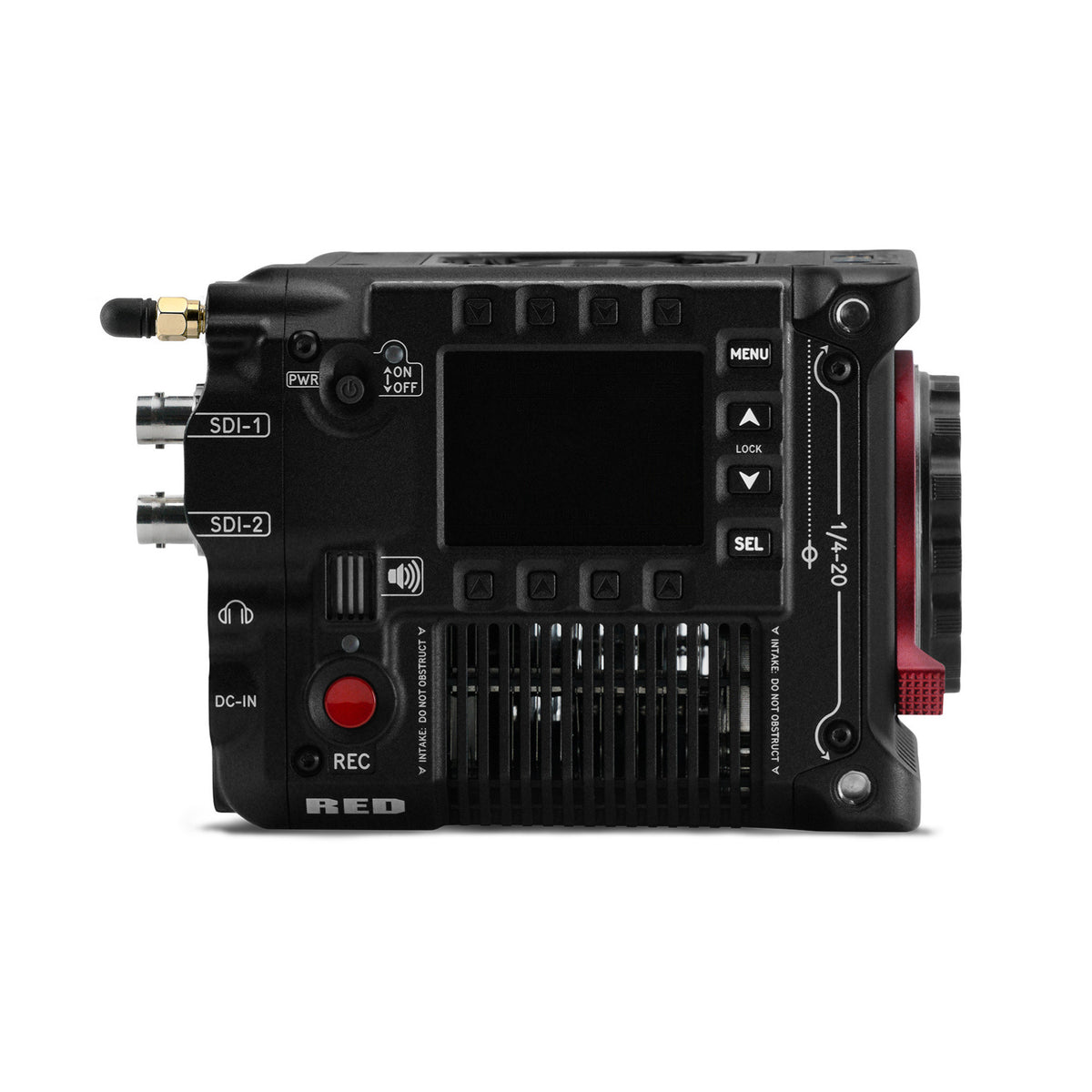

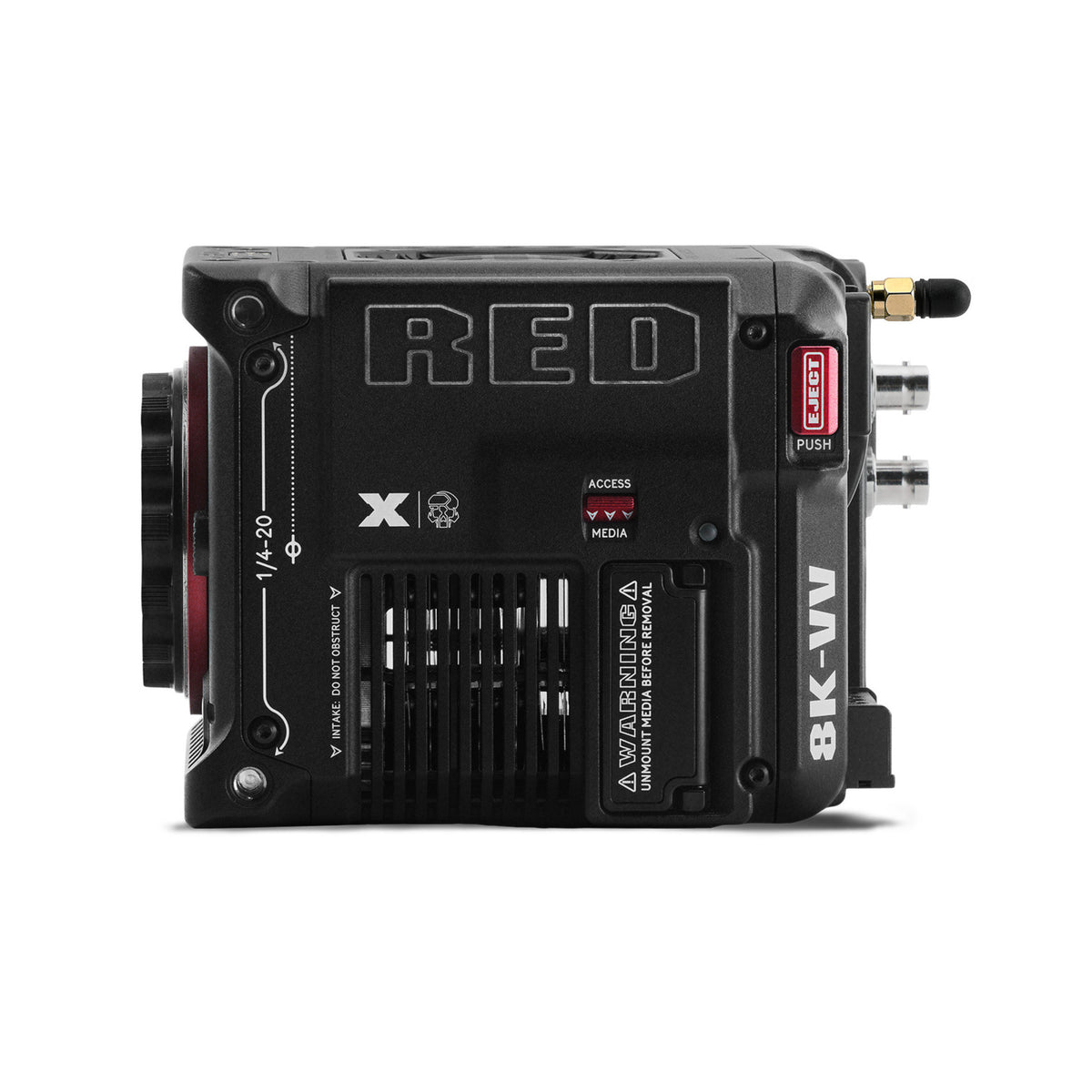

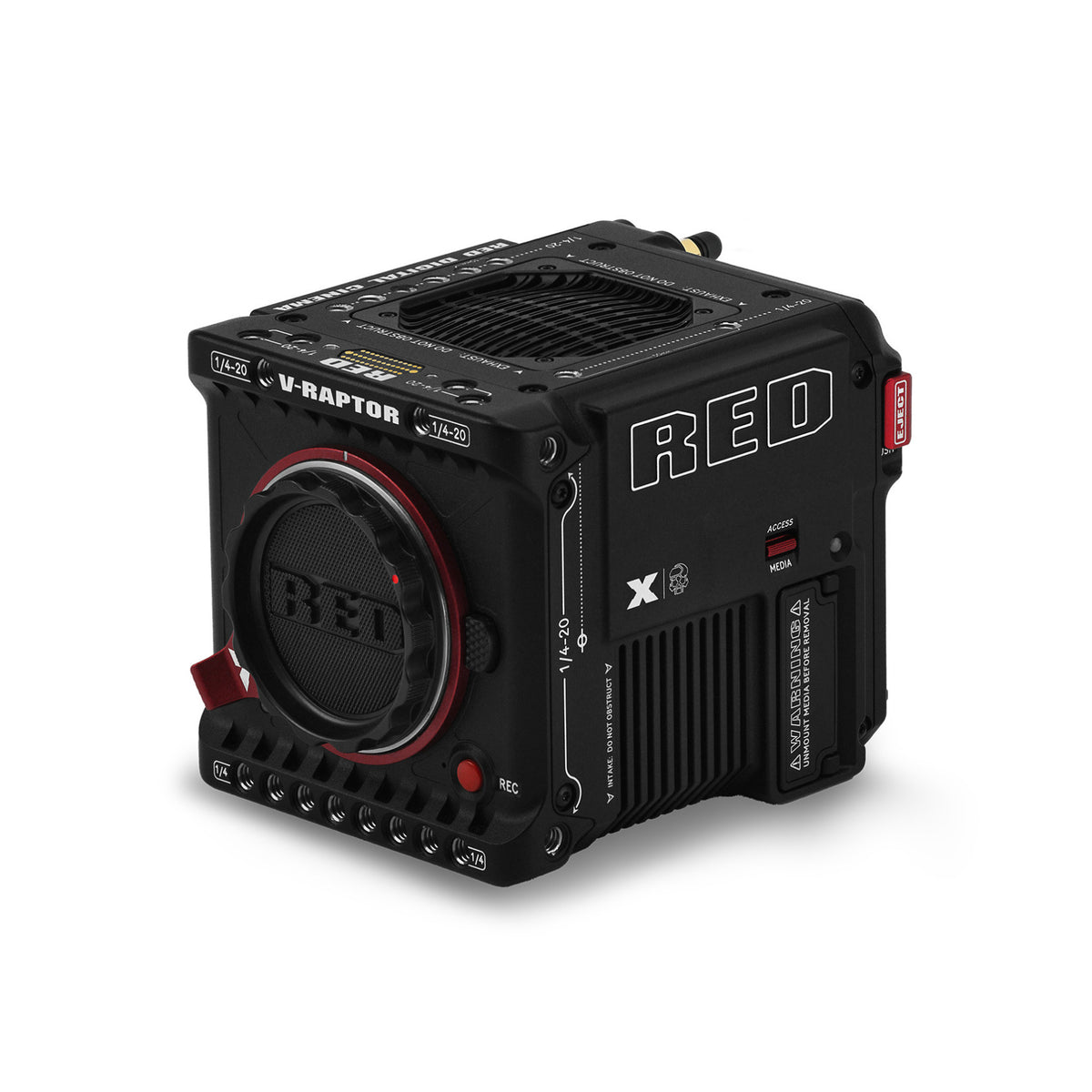

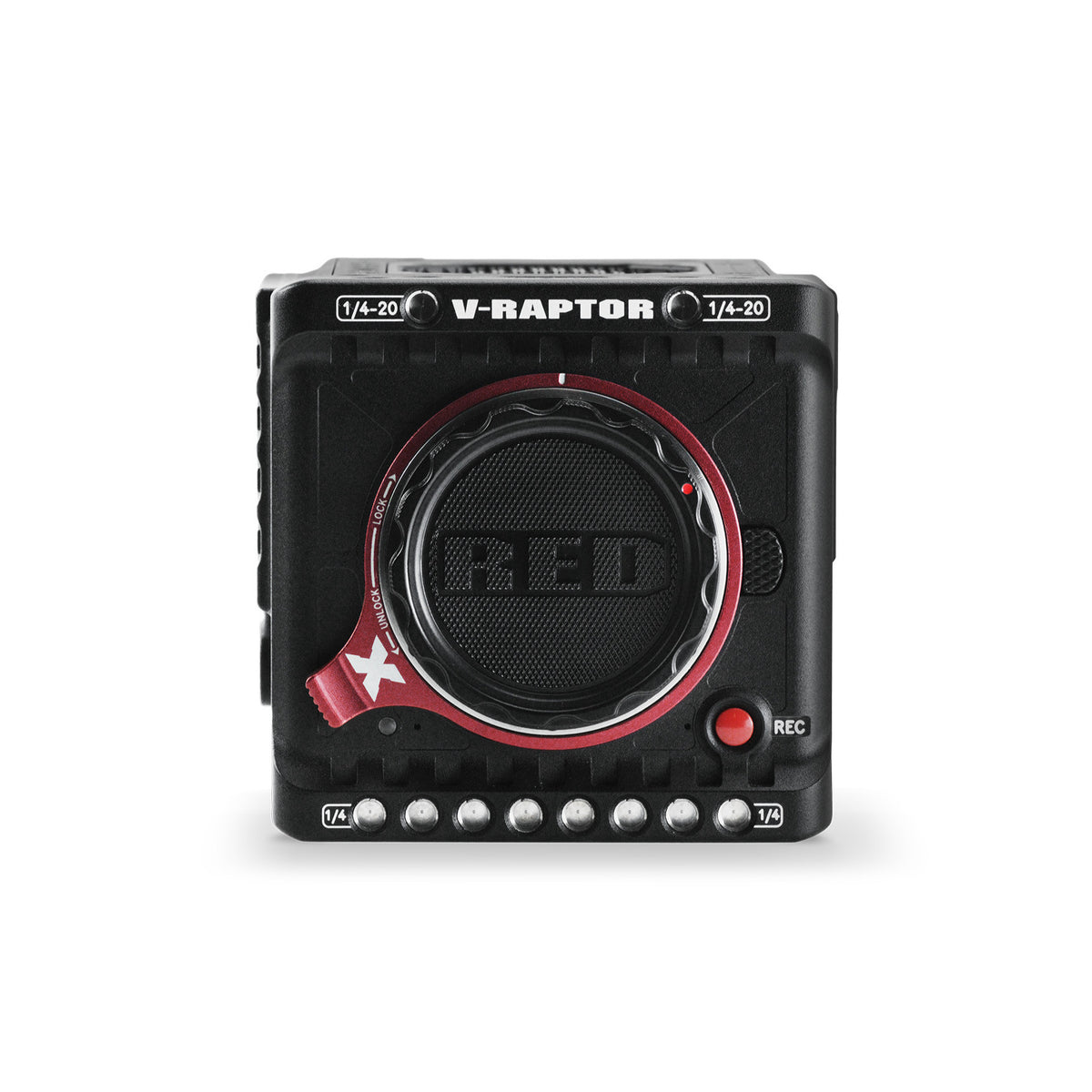

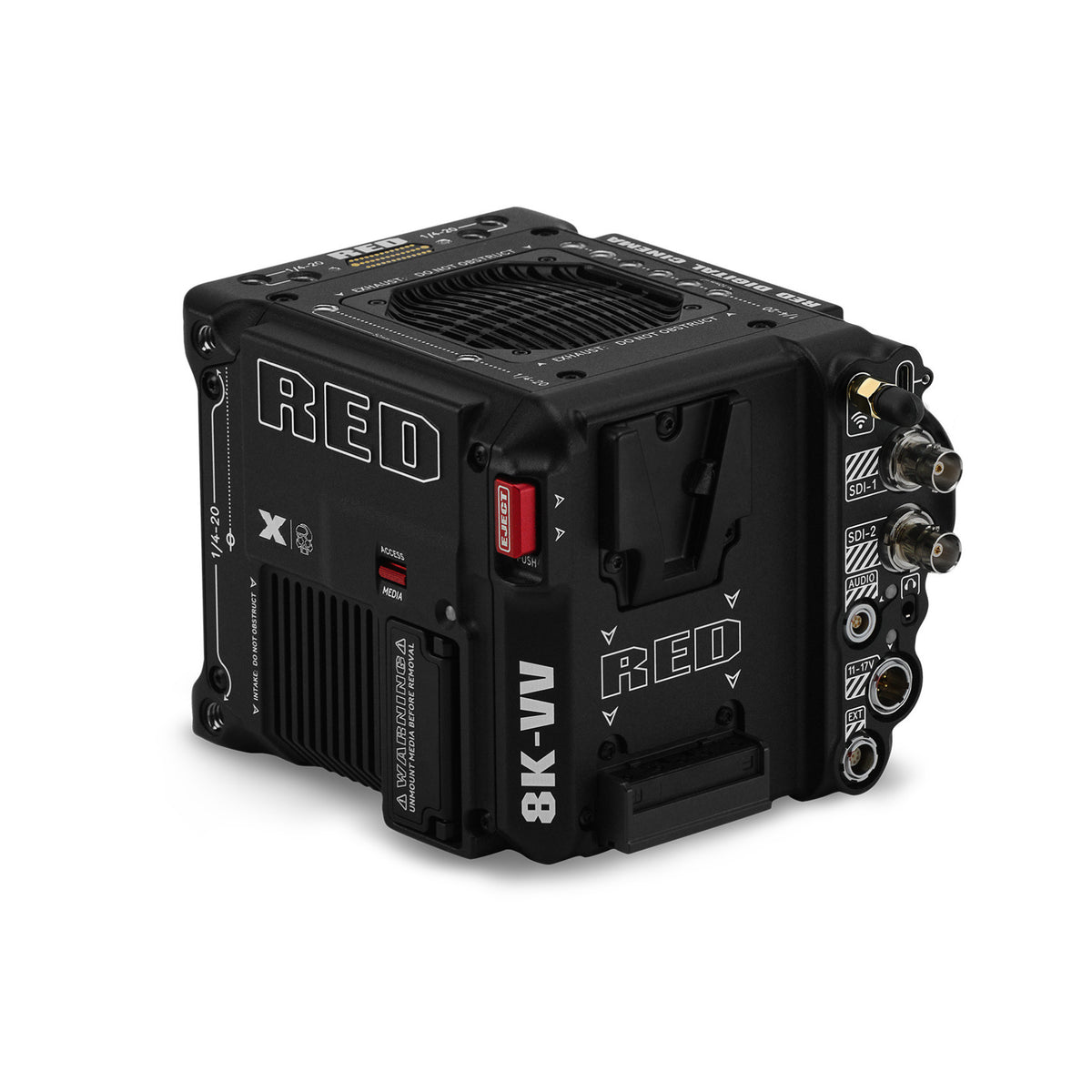

RED Digital Cinema V-RAPTOR X 8K VV 35.4MP Camera (RF Mount)
- 35.4 MP 8K VV global shutter CMOS sensor
- Captures 8192 x 4320 images with 17+ stops of dynamic range
- Records REDCODE RAW up to 120 fps at 8K 17:9 and up to 600 fps at 2K 2.4:1
- Large 40.96 mm x 21.60 mm sensor supports flexible large format and anamorphic acquisition
- Integrated locking RF mount supports electronic communication and adaptable lens workflows
- CFexpress Type B media supports data rates up to 800 MB/s with qualified cards
- Dual 12G-SDI outputs support independent monitoring workflows up to 4096 x 2160 60p
- RED Global Vision adds Extended Highlights and Phantom Track recording capabilities
- Dual band Wi-Fi, USB-C, and Ethernet
- Aluminum alloy body weighs 4.03 lbs or 1.83 kg without the body cap and CFexpress card
The RED Digital Cinema V-RAPTOR X 8K VV combines large format 8K acquisition, global shutter capture, high frame rate recording, and REDCODE RAW in a compact DSMC3 cinema camera body. Its 35.4 MP CMOS sensor captures 8192 x 4320 pixels across a 40.96 mm x 21.60 mm imaging area and delivers 17 plus stops of dynamic range. By exposing the complete frame simultaneously, the global shutter helps maintain image geometry during fast subject movement and camera motion while preserving the resolution needed for reframing, stabilization, visual effects, and high resolution finishing.
8K REDCODE RAW and High Frame Rate Capture
V-RAPTOR X records REDCODE RAW at up to 120 fps in 8K 17:9 and up to 150 fps in 8K 2.4:1. Lower resolution formats extend capture to 240 fps at 4K 17:9, 320 fps at 3K 17:9, and 600 fps at 2K 2.4:1. REDCODE HQ, MQ, LQ, and ELQ settings provide flexibility for balancing resolution, frame rate, and media capacity, while qualified CFexpress Type B media supports data rates up to 800 MB/s. Dedicated Apple ProRes recording is also available at resolutions up to 4096 x 2160.
Global Vision and IPP2 Color Workflow
RED Global Vision adds Extended Highlights for scenes that require additional highlight information and Phantom Track for specialized virtual production workflows using frame remapping. RED IPP2 supports 33 x 33 x 33 3D LUTs and CDL import and adjustment, creating a controlled color path from on set monitoring through grading and finishing. REDCODE RAW acquisition also supports multiple VV, Super 35, Super 16, and anamorphic formats.
Locking RF Mount and Professional Monitoring
The integrated locking Canon RF mount supports electronic communication with compatible RF lenses and adapters. Phase detect autofocus with face detection provides additional focus support with compatible lenses. Dual 12G SDI outputs provide independent monitoring paths with 10 bit 4:2:2 output up to 4096 x 2160 at 60p, while the proprietary top accessory port supports compatible RED monitoring and control devices.
Connected DSMC3 Production Platform
Tri level genlock, LTC timecode, RS 232 control, USB C, dual band Wi-Fi, and compatible Ethernet connectivity support synchronized, remotely operated, and networked productions. RED Control enables camera operation and live preview, while supported workflows include Camera to Cloud integration with Frame.io or Amazon S3, high speed remote media offload, and RED Connect for live 8K R3D video over IP or live 4K through SMPTE ST 2110.
Compact Body and Power
The aluminum alloy body measures 5.9 inches long by 4.5 inches wide by 4.3 inches high and weighs approximately 4.03 lb without the body cap and CFexpress card. An integrated V Lock battery interface is optimized for Micro V Lock batteries, while the 6 pin DC input accepts 11 to 17 V DC. This standalone RF Mount configuration provides the core V-RAPTOR X imaging platform for productions that want to build monitoring, lens, power, and rigging systems around their own requirements.
Imaging:
| Sensor Type | V-RAPTOR [X] 8K VV 35.4 MP Global Shutter CMOS |
| Effective Pixels | 8192 x 4320 |
| Sensor Size | 40.96 mm x 21.60 mm, diagonal 46.31 mm |
| Dynamic Range | 17+ stops |
| Mount Type | Integrated locking RF mount with electronic communication |
| Lens Support | Supports /i PL lenses with RED RF to PL Adapters, Canon EF Adapter with communication, and other adapters based on the RF mount |
| Autofocus | Phase Detect with Face Detection |
Recording:
| Maximum Data Rate | Up to 800 MB/s using RED branded or other qualified CFexpress media cards |
| 8K Maximum Frame Rates | 120 fps at 17:9, 150 fps at 2.4:1 |
| 7K Maximum Frame Rates | 140 fps at 17:9, 175 fps at 2.4:1 |
| 6K Maximum Frame Rates | 160 fps at 17:9, 200 fps at 2.4:1 |
| 5K Maximum Frame Rates | 192 fps at 17:9, 240 fps at 5K 2.4:1 |
| 4K Maximum Frame Rates | 240 fps at 17:9, 300 fps at 2.4:1 |
| 3K Maximum Frame Rates | 320 fps at 17:9, 400 fps at 2.4:1 |
| 2K Maximum Frame Rates | 480 fps at 17:9, 600 fps at 2.4:1 |
| REDCODE Settings at 8K 17 | 9: HQ, MQ, LQ, and ELQ up to 60 fps; LQ and ELQ up to 120 fps |
| REDCODE Settings at 6K 17 | 9: HQ, MQ, LQ, and ELQ up to 96 fps; MQ, LQ, and ELQ up to 160 fps |
| REDCODE Settings at 4K 17 | 9: HQ, MQ, LQ, and ELQ up to 240 fps |
| REDCODE Settings at 2K 17 | 9: HQ, MQ, LQ, and ELQ up to 480 fps |
| 8K Acquisition Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1, and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x |
| 7K Acquisition Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1, and Anamorphic 2x, 1.8x, 1.6x |
| 6K Acquisition Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1, and Anamorphic 1.5x, 1.3x, 1.25x |
| 5K Acquisition Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1 |
| 4K Acquisition Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1 |
| 3K Acquisition Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1 |
| 2K Acquisition Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1 |
| Apple ProRes Recording | ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT up to 4K 4096 x 2160 120P |
| Proxy Recording | Up to ProRes 422 HQ at 2K 2048 x 1080 up to 60P |
| Media Type | CFexpress Type B |
Construction and Dimensions:
| Construction | Aluminum Alloy |
| Dimensions | 149.63 mm x 115.5 mm x 108 mm, or 5.9 inch x 4.5 inch x 4.3 inch, Length x Width x Height |
| Weight | 4.03 pounds or 1.83 kg without body cap and CFexpress card |
Power:
| Battery Type | Integrated V-Lock battery interface optimized for Micro V-Lock Batteries |
| DC Power Input | 11 to 17 V via 6 Pin DC IN |
Environmental:
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | –20°C to 50°C (–4°F to 122°F) |
| Storage Relative Humidity | 0% to 85% noncondensing |
RED Global Vision:
| Extended Highlights | Captures additional detail and color in extreme dynamic range scenarios |
| Phantom Track | Records multiple LED instances as dedicated clips |
Color Management:
| Image Processing | Image Processing Pipeline 2, IPP2 |
| 3D LUT Support | 33 x 33 x 33 |
| CDL Support | Import and adjustment supported |
Audio:
| Integrated Microphones | Dual channel digital mono microphones, uncompressed, 24 bit 48 kHz |
| Audio Input | Dual channel mic, line, and +48V input via 5 Pin 00B Audio Port, uncompressed, 24 bit 48 kHz |
| Headphone Output | 3.5 mm stereo headphone port |
IP Connectivity:
| RED Connect Module Compatibility | Supports live 8K R3D video over IP or live 4K over SMPTE ST 2110 |
| Wireless Connectivity | Dual band Wi-Fi at 2.4 GHz or 5 GHz |
| Wireless Functions | Camera control, live preview, and direct Camera to Cloud workflow via Frame.io or Amazon S3 |
| Wired Connectivity | USB-C or Gigabit Ethernet using a compatible USB-C to Ethernet adapter |
| Wired Functions | Remote camera control, live preview, Camera to Cloud workflow, and high speed remote media offload |
Monitoring:
| Top Accessory Port | Proprietary port for monitoring and control |
| Monitor Outputs | Integrated dual 12G-SDI with 6G-SDI, 3G-SDI, and 1.5G-SDI modes |
| 12G-SDI Output | Up to 4096 x 2160 4:2:2 at 60p |
| 6G-SDI Output | Up to 4096 x 2160 4:2:2 at 30p, 25p, and 24p |
| 3G-SDI Output | Up to 2048 x 1080 4:2:2 at 60p |
| 1.5G-SDI Output | Up to 2048 x 1080 4:2:2 at 30p, 25p, and 24p |
| Output Metadata and Audio | SMPTE Timecode, HANC Metadata, and 24 bit 48 kHz audio |
| Monitor Option | DSMC3 RED Touch 7.0 inch LCD |
| Monitor Option | RED Compact EVF with DSMC3 Adapter A |
| Wireless Preview | 1080p live preview via 2.4 GHz or 5 GHz Wi-Fi |
| Integrated Display | 2.4 inch LCD for camera control without preview video |
Additional Input and Output:
| Genlock | Tri Level Genlock Input via 9 Pin EXT |
| Timecode | LTC Timecode Input via 9 Pin EXT |
| Control | RS232 CTRL using RCP2 via 9 Pin EXT |
Camera Control:
| RED Control | Full camera controls and live preview from iOS or Android devices |
| RED Control Pro | Supports one or multiple cameras over an IP connection with synchronized settings and centralized control |
| Media Management | Supports local media management and direct upload to Frame.io |
| Look Management | Supports advanced CDL and LUT controls |
| RED Control Availability | Apple App Store and Google Play Store |
| RED Control Pro Availability | Apple App Store with additional purchase required |
| Connection Options | Wireless or wired operation via USB-C |
