- V-RAPTOR XL [X] 8K VV (Gold Mount) Body
- V-RAPTOR XL PL Mount
- RED PL Mount Shim Pack
- RED AC Power Adaptor 270W
- 3-Pin XLR-to-4-Pin 2B Power Cable (10')
- RED Logo Sticker
- V-RAPTOR XL [X] Information Card (incl. registration and support info)
- NOTE: Power cord not included – must purchase separately.
Trusted & Verified

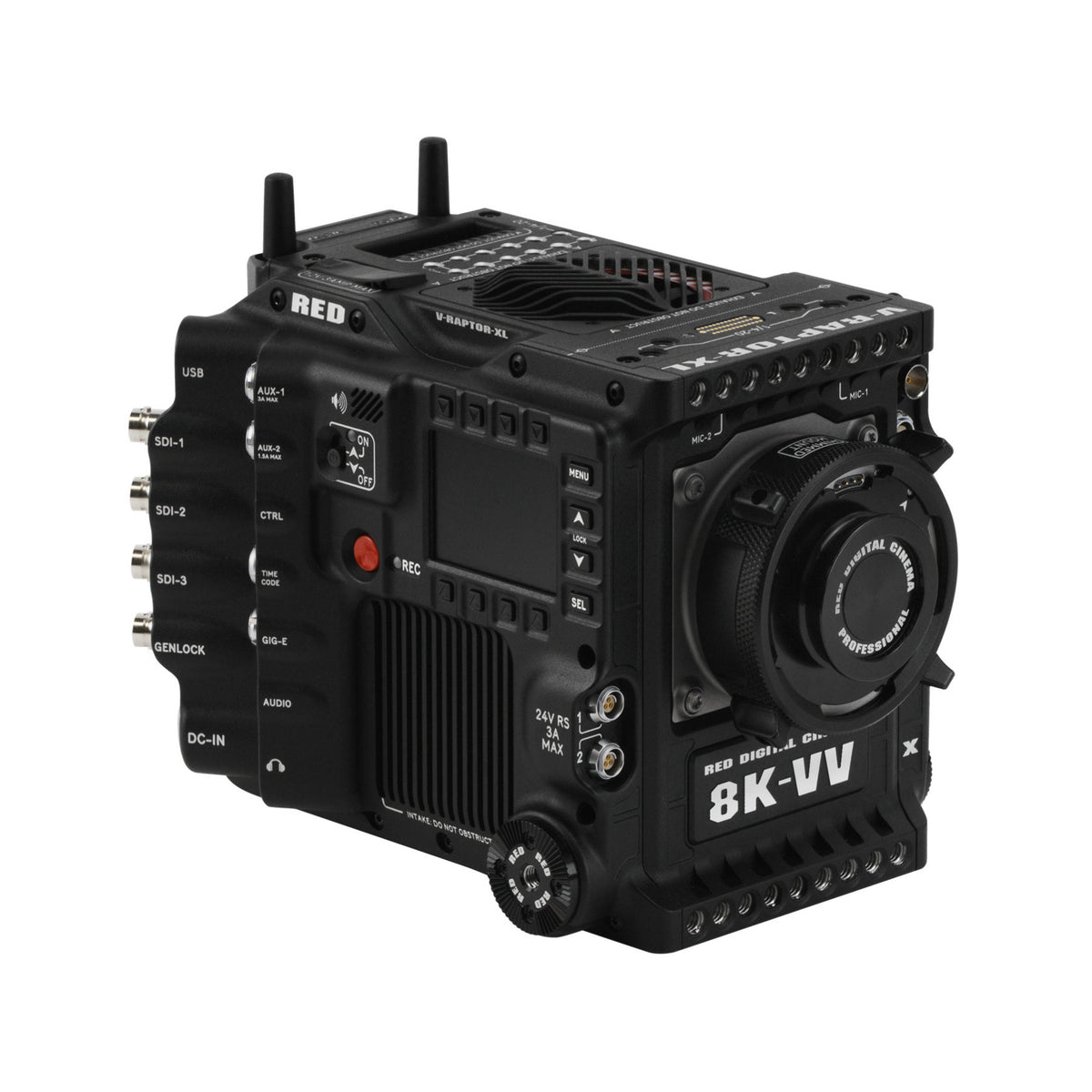

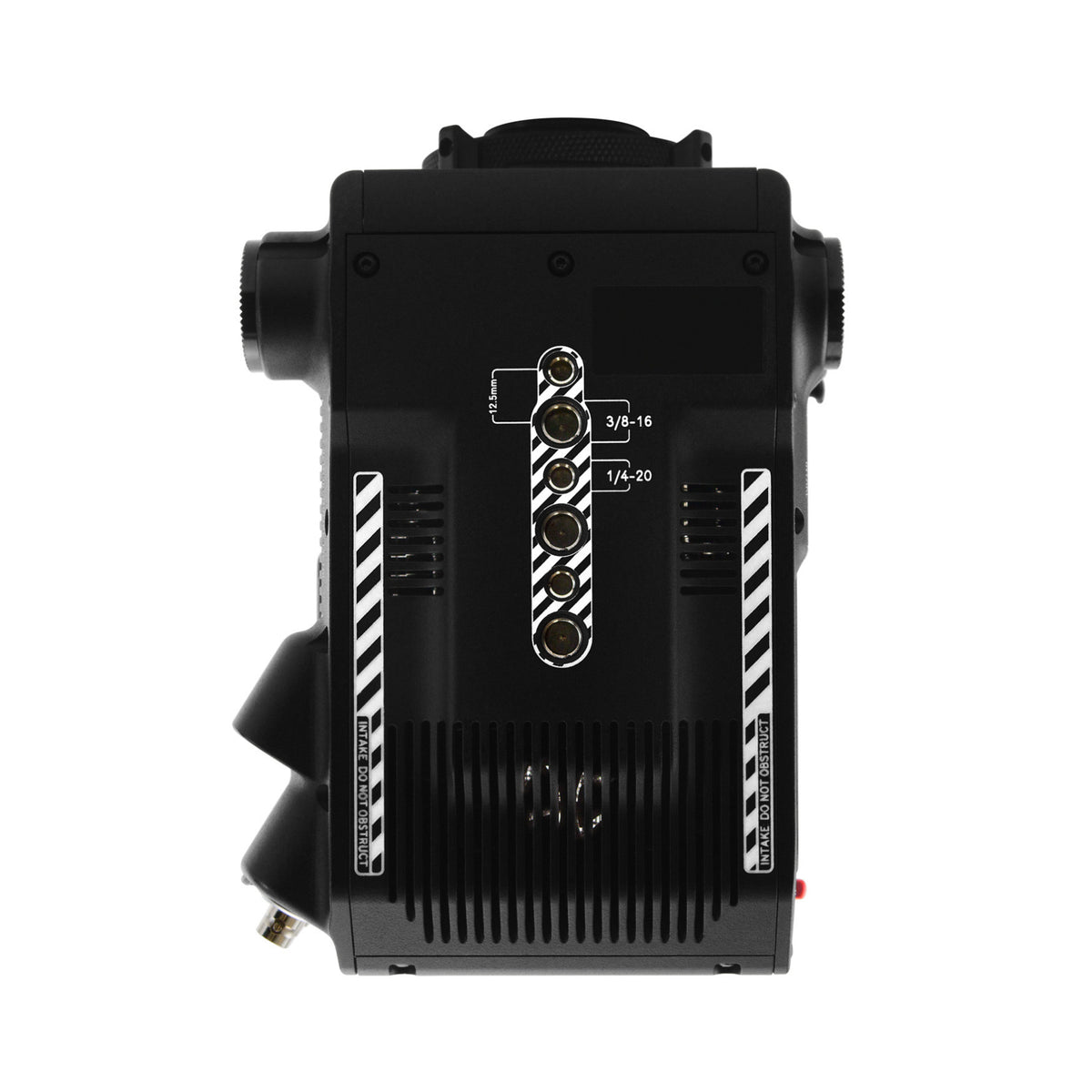

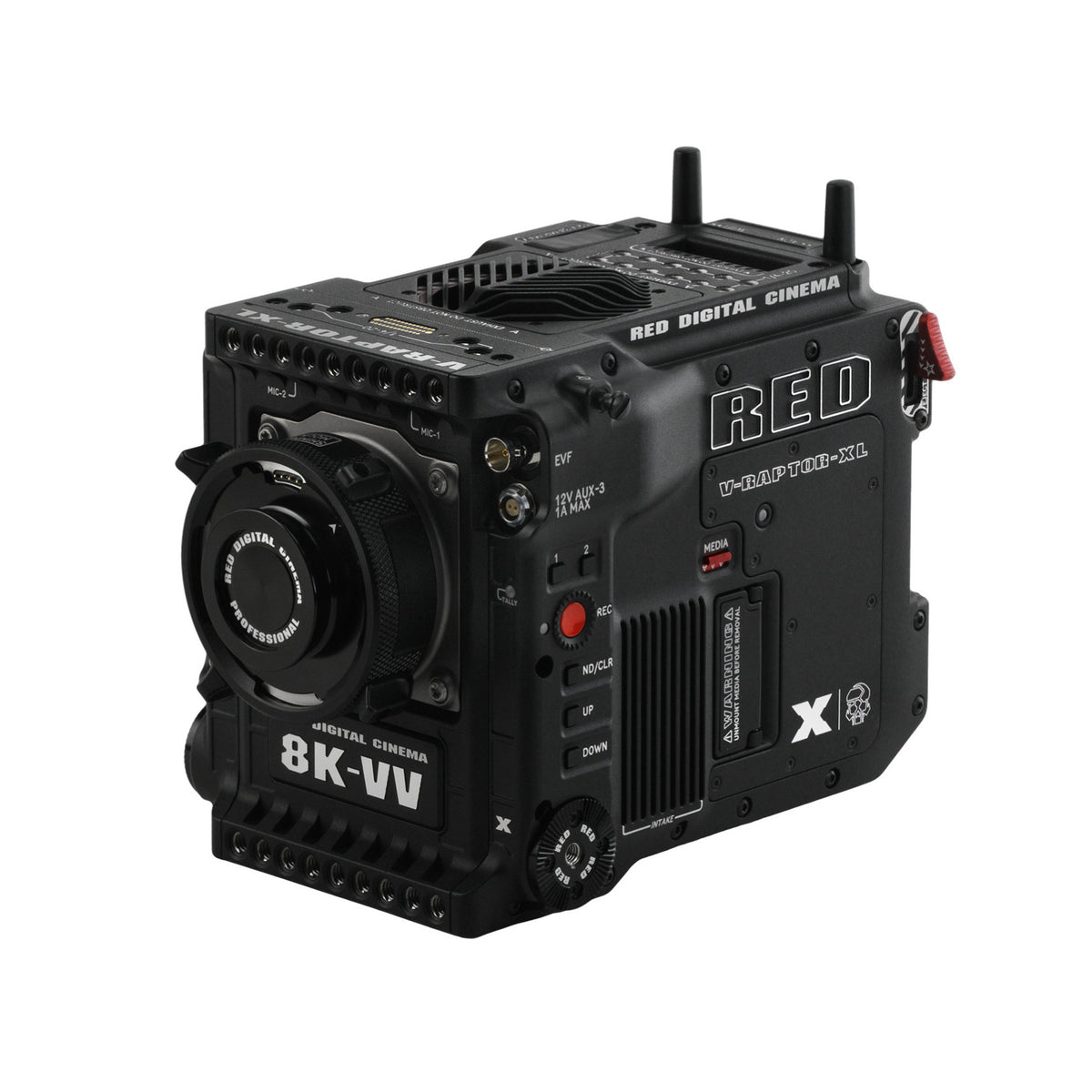

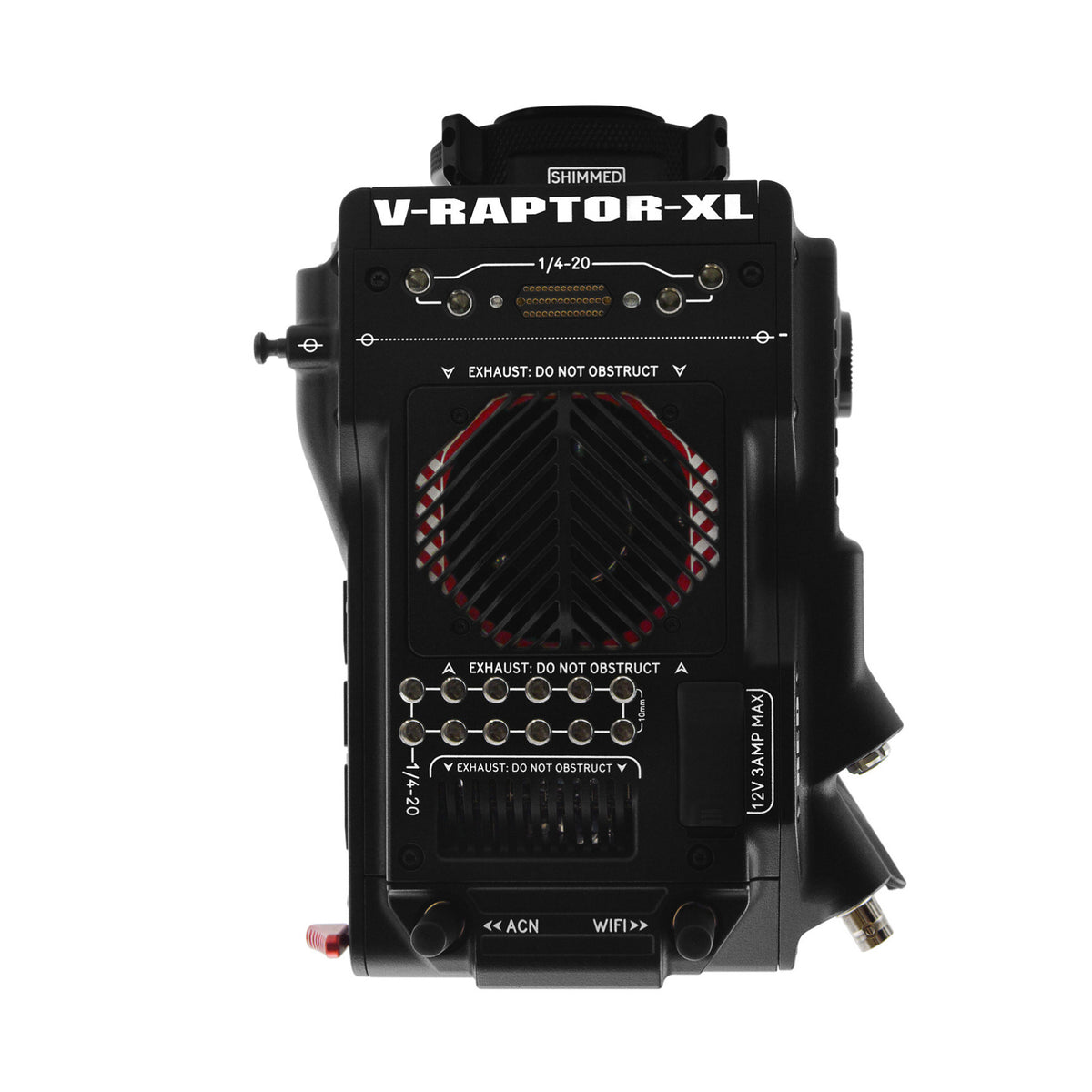

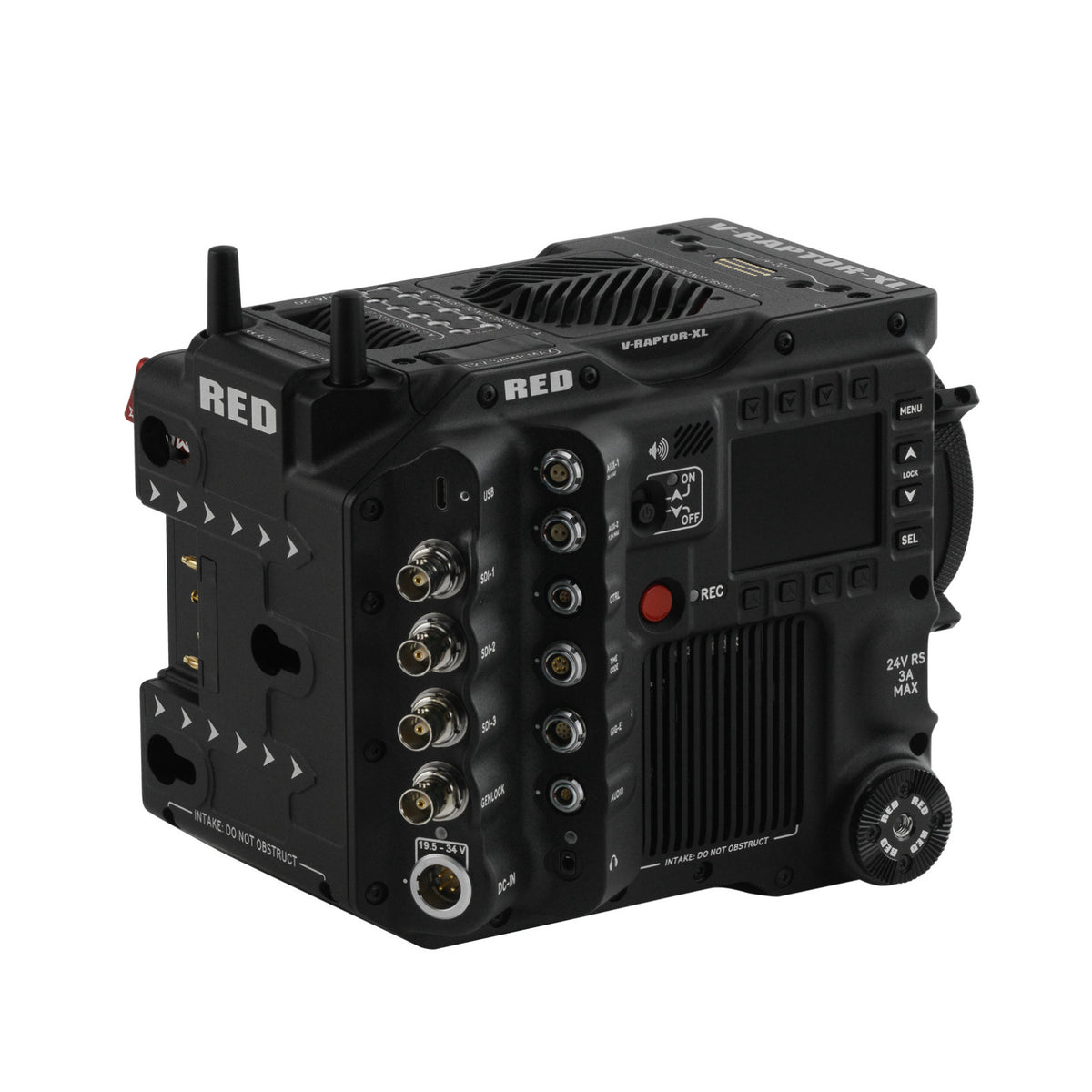

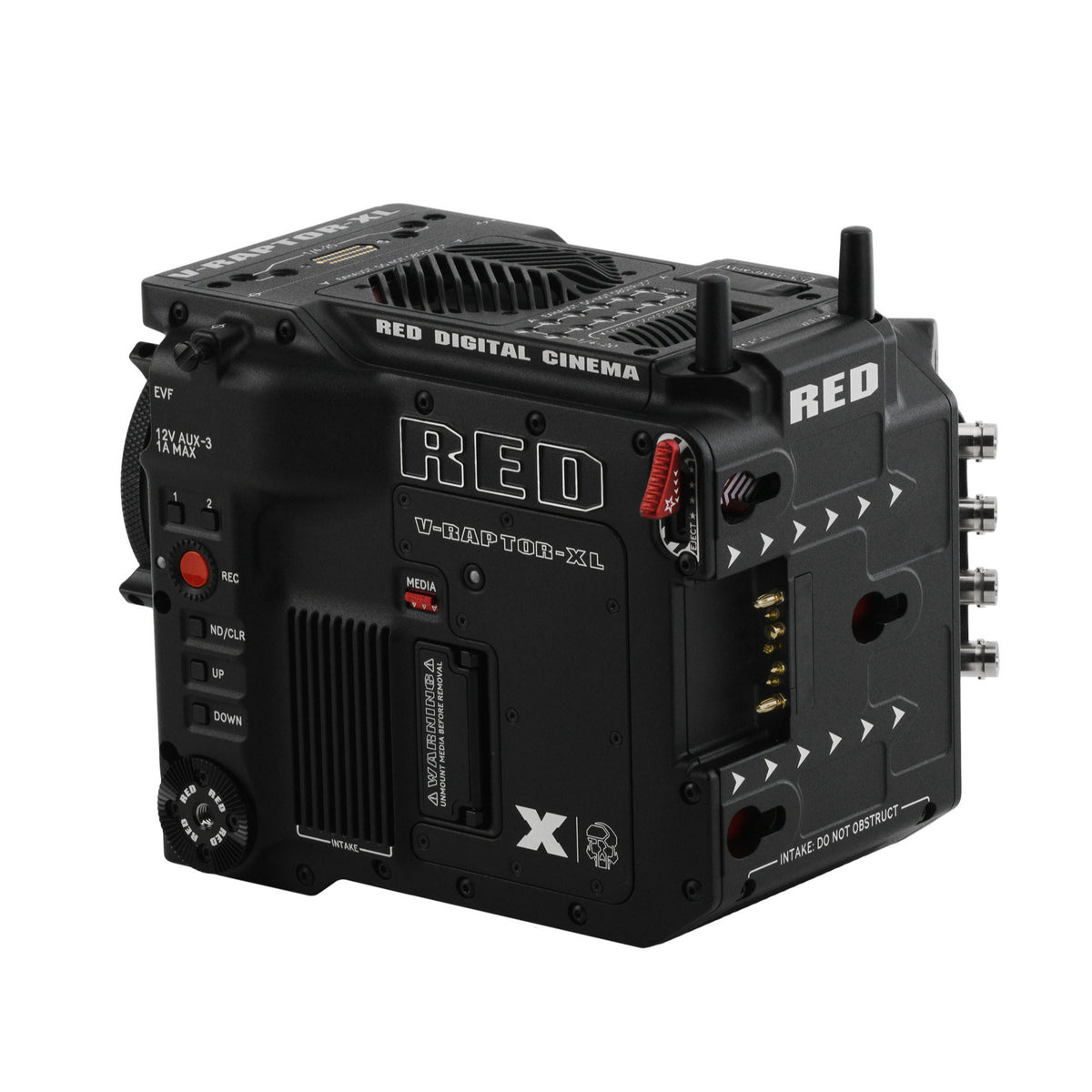

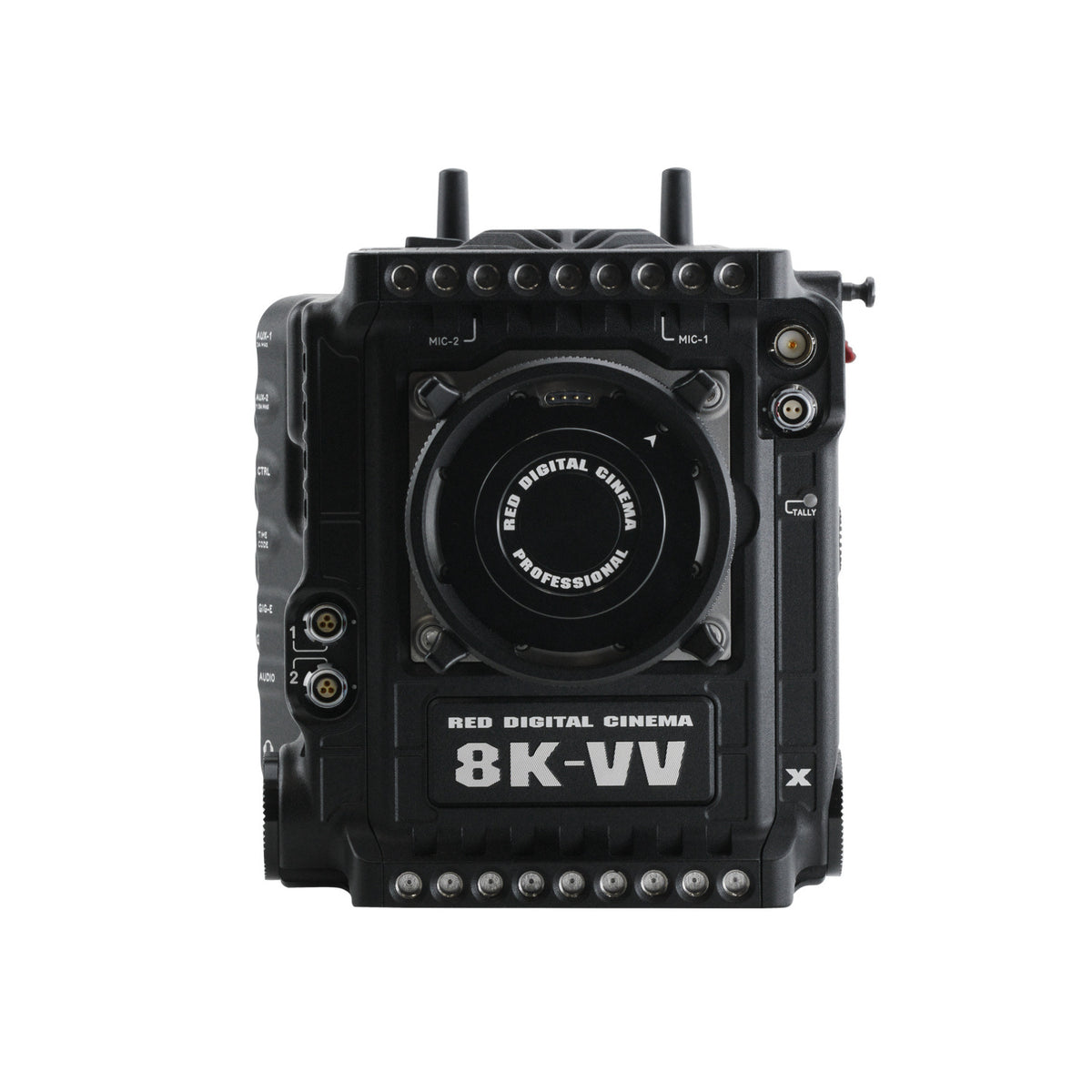

RED Digital Cinema V-RAPTOR XL X 8K VV 35.4MP Camera (Gold Mount)
- 35.4MP 8K VV global shutter CMOS sensor captures up to 8192 x 4320 resolution
- 17+ stops of dynamic range supports detailed highlight and shadow capture
- Records REDCODE RAW up to 120 fps at 8K 17:9 and up to 600 fps at 2K 2.4:1
- Built in electronic ND provides 2 to 7 stops with precise selectable increments
- CFexpress Type B media supports data rates up to 800 MB/s with qualified cards
- Dual voltage battery support accommodates 14 V and high voltage 26 V on set power
- Integrated 12 V and 24 V outputs provide centralized power for production accessories
- Wi-Fi, Ethernet, USB-C, timecode, genlock, and multiple SDI outputs support connected workflows
Amazing Image, Enhanced On-Set Experience
V-RAPTOR XL [X] 8K VV combines the strengths of RED’s two families of cameras into one powerful all-purpose workhorse. The frame rates, lowlight performance, and resolution of the V-RAPTOR line combined with the global shutter advancements of KOMODO, the V-RAPTOR [X] 8K VV sensor is the culmination of the latest advancements in digital cinema image making. Using RED’s newest 8K VV sensor, V-RAPTOR XL [X] leverages the benefits and flexibility of large format, global shutter, high framerate, 8K acquisition, all inside of a large-scale-production ready XL camera body.
Tools Of The Trade
V-RAPTOR XL [X] is designed to support high-end motion picture and television productions as well as any filmmaker who would benefit an all-in-one solution.
- Dual voltage battery support offers compatibility with a wide range of common batteries found on set today, both 14 V batteries and high voltage 26 V V-Lock or Gold Mount options.
- Built-in electronic ND allows cinematographers to precisely select their density in 1/4, 1/3, and full stop increments, providing never before seen exposure and depth of field control inside a cinema camera of this level.
- 12 V and 24 V auxiliary power outputs allows camera assistants to power all the peripherals needed to do their job from one centralized place.
- Front facing 3G-SDI and 2-Pin 12 V power, as well as compatibility with the DSMC3 RED Touch 7.0 inch LCD, supports any camera operators viewing preference.
- Wireless timecode, genlock, and camera control, as well as four SDI outputs support the DIT, giving them access to everything they need at their cart.
- Improved in-camera audio performance for run and gun single system audio setups.
Additionally, the V-RAPTOR XL [X] and the DSMC platform features advanced connectivity solutions which enable applications such as remote control and monitoring, in-camera Frame.io integration, AWS direct upload, RED Connect for live 8K R3D video over IP or live 4K over SMPTE ST 2110, and more.
Global Vision
V-RAPTOR XL [X] 8K VV is pushed to new limits with the introduction of RED Global Vision, a new suite of tools that use the global shutter sensor to provide even more flexibility and ease of use throughout the production process. Global Vision’s Extended Highlights allows the camera to see even further into highlight detail, providing more detail for HDR finishes, or softer and more subtle highlight roll-off for SDR. RED Global Vision also includes Phantom Track to streamline any Virtual Production environment employing GhostFrame or Frame Remapping, capturing distinct R3D clips per each sub-frame slice, as well as allowing for monitoring of either slice live on-set over each SDI.
Imaging:
| Sensor Type | V-RAPTOR [X] 8K VV 35.4MP Global Shutter CMOS |
| Effective Pixels | 8192 x 4320 |
| Sensor Size | 40.96 mm x 21.60 mm |
| Sensor Diagonal | 46.31 millimeters |
| Dynamic Range | 17+ stops |
| Autofocus | Phase Detect with Face Detection |
Built In ND:
| Filter System | Motorized clear filter and precision controlled electronic ND filter |
| Electronic ND Minimum Density | 2 stops |
| Electronic ND Maximum Density | 7 stops |
| Electronic ND Selectable Increments | 1/3 stop, 1/4 stop, and 1 stop |
Lens Mount:
| Mount Type | Interchangeable Lens Mount |
| Included Mount | V-RAPTOR XL PL Mount, shimmable |
| Optional Mount | V-RAPTOR XL Locking Canon EF Mount |
| DSMC Lens Mount Compatibility | Physically compatible without electronic communication or control |
Recording Media and Data:
| Media Type | CFexpress Type B |
| Maximum Data Rate | Up to 800 MB/s using RED branded or other qualified CFexpress media cards |
REDCODE RAW Maximum Frame Rates:
| 8K 17 | 9: Up to 120 fps |
| 8K 2.4 | 1: Up to 150 fps |
| 7K 17 | 9: Up to 140 fps |
| 7K 2.4 | 1: Up to 175 fps |
| 6K 17 | 9: Up to 160 fps |
| 6K 2.4 | 1: Up to 200 fps |
| 5K 17 | 9: Up to 192 fps |
| 5K 2.4 | 1: Up to 240 fps |
| 4K 17 | 9: Up to 240 fps |
| 4K 2.4 | 1: Up to 300 fps |
| 3K 17 | 9: Up to 320 fps |
| 3K 2.4 | 1: Up to 400 fps |
| 2K 17 | 9: Up to 480 fps |
| 2K 2.4 | 1: Up to 600 fps |
Playback Frame Rates:
| Project Time Base | 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps at all resolutions |
REDCODE Settings:
| 8K 17 | 9 Up to 60 fps: REDCODE HQ, MQ, LQ, and ELQ |
| 8K 17 | 9 Up to 120 fps: REDCODE LQ and ELQ |
| 6K 17 | 9 Up to 96 fps: REDCODE HQ, MQ, LQ, and ELQ |
| 6K 17 | 9 Up to 160 fps: REDCODE MQ, LQ, and ELQ |
| 4K 17 | 9 Up to 240 fps: REDCODE HQ, MQ, LQ, and ELQ |
| 2K 17 | 9 Up to 480 fps: REDCODE HQ, MQ, LQ, and ELQ |
REDCODE RAW Acquisition Formats:
| 8K | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, and 1.25x |
| 7K | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 2x, 1.8x, and 1.6x |
| 6K | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 1.5x, 1.3x, and 1.25x |
| 5K | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
| 4K | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
| 3K | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
| 2K | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
Apple ProRes:
| Dedicated Recording | ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT |
| Maximum Dedicated Recording Resolution | Up to 4K 4096 x 2160 at 120P |
| Proxy Recording | Up to ProRes 422 HQ at 2K 2048 x 1080 up to 60P |
Construction and Dimensions:
| Construction | Aluminum Alloy |
| Dimensions (LxWxH) | 200.81 mm x 151.38 mm x 165.9 mm |
| Dimensions in Inches | 7.9 inches x 6 inches x 6.5 inches |
| Weight | 8.08 lbs / 3.67 kg, Gold Mount with PL Mount |
Power:
| Battery Type | Integrated Dual Voltage 14/26 V Gold Mount Battery Interface |
| DC Power Input | 19.5 to 34 V via 4-Pin 2B DC-IN |
| Regulated 12 V Outputs | 2 x P-TAP connectors, 3 AMP combined |
| Rear 12 V Output | 1 x 2-Pin 0B, 3 AMP |
| Rear 12 V Output | 1 x 2-Pin 0B, 1.5 AMP |
| Front 12 V Output | 1 x 2-Pin 0B, 1 AMP |
| Regulated 24 V Outputs | 2 x Front 3-Pin Fischer connectors, 3 AMP combined |
| 24 V Output Requirement | High voltage power source required |
Operating Environment:
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | –20°C to 50°C (–4°F to 122°F) |
| Storage Relative Humidity | 0% to 85% noncondensing |
RED Global Vision:
| Extended Highlights | Captures additional detail and color in extreme dynamic range scenarios |
| Phantom Track | Records multiple LED instances as dedicated clips |
Color Management:
| Image Processing Pipeline | IPP2 |
| 3D LUT Support | 33 x 33 x 33 |
| CDL Support | Import and adjustment |
Audio:
| Integrated Microphones | Dual channel digital mono, uncompressed, 24-bit 48 kHz |
| Audio Input | Dual channel mic, line, and +48 V via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz |
| Headphone Output | 3.5 mm stereo port |
IP Connectivity:
| RED Connect Module Support | Live 8K R3D video over IP or live 4K over SMPTE ST 2110 |
| Wireless Connectivity | Dual band Wi-Fi at 2.4 GHz or 5 GHz |
| Wireless Functions | Camera control, live preview, Frame.io Camera to Cloud, and Amazon S3 direct upload workflows |
| Wired Connectivity | USB-C or 9-Pin Gigabit Ethernet |
| Wired Functions | Remote camera control, live preview, Camera to Cloud workflow, and high speed remote media offload |
Monitor Outputs:
| Accessory Port | Proprietary Top Accessory Port for monitoring and control |
| Primary SDI Outputs | 3 x 12G-SDI with 6G-SDI, 3G-SDI, and 1.5G-SDI modes |
| EVF Output | 1 x 3G-SDI with 3G-SDI and 1.5G-SDI modes |
| 12G-SDI Output | Up to 4096 x 2160 4:2:2 at 60p |
| 6G-SDI Output | Up to 4096 x 2160 4:2:2 at 30p, 25p, and 24p |
| 3G-SDI Output | Up to 2048 x 1080 4:2:2 at 60p |
| 1.5G-SDI Output | Up to 2048 x 1080 4:2:2 at 30p, 25p, and 24p |
| SDI Data Support | SMPTE Timecode, HANC Metadata, and 24-bit 48 kHz Audio |
Monitor Options:
| Compatible Monitor | DSMC3 RED Touch 7.0 inch LCD |
| Compatible EVF | RED Compact EVF with DSMC3 Adapter A |
| Live Preview | IP streamed 1080p wirelessly or through USB-C or Ethernet |
| Integrated Display | 2.4 inch LCD for camera control without preview video |
Additional Input and Output:
| Genlock | Tri Level Genlock via BNC |
| Timecode | Linear Timecode through 5-Pin 0B |
| Remote Access | PTP and remote camera access via 9-Pin 0B GIG-E |
| Camera Control | RCP2 via 4-Pin 00B CTR |
| Wireless Genlock and Timecode | Integrated Ambient Communication Network |
RED Control:
| RED Control | Full camera controls and live preview from compatible iOS or Android devices |
| RED Control Pro | Supports control of one or multiple cameras over an IP connection |
| Control Functions | Synchronize settings, manage media, upload media, and adjust CDL and LUT settings |
| Connection Methods | Wireless or wired through USB-C |
