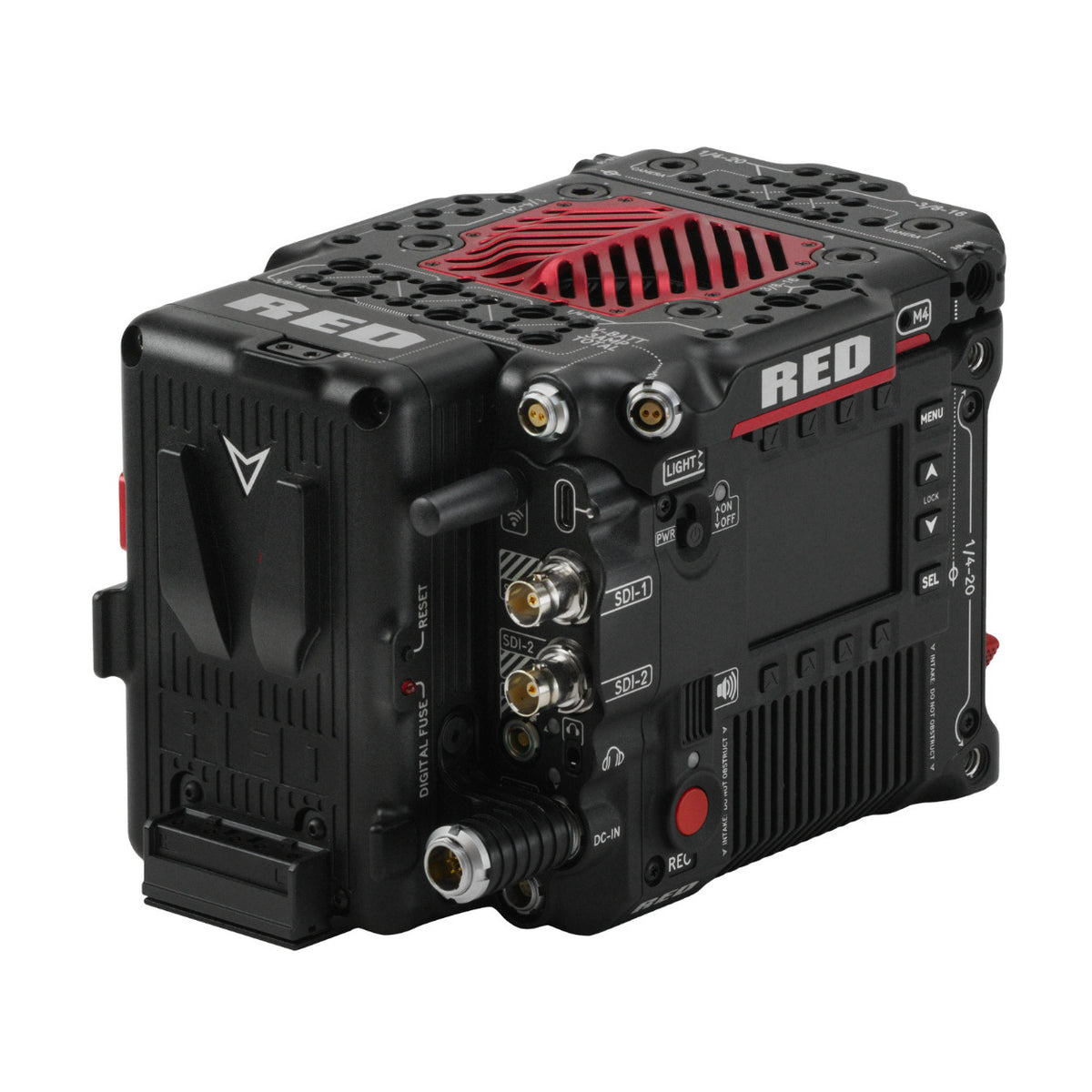

- V-RAPTOR [X] 8K VV RF Mount Camera System

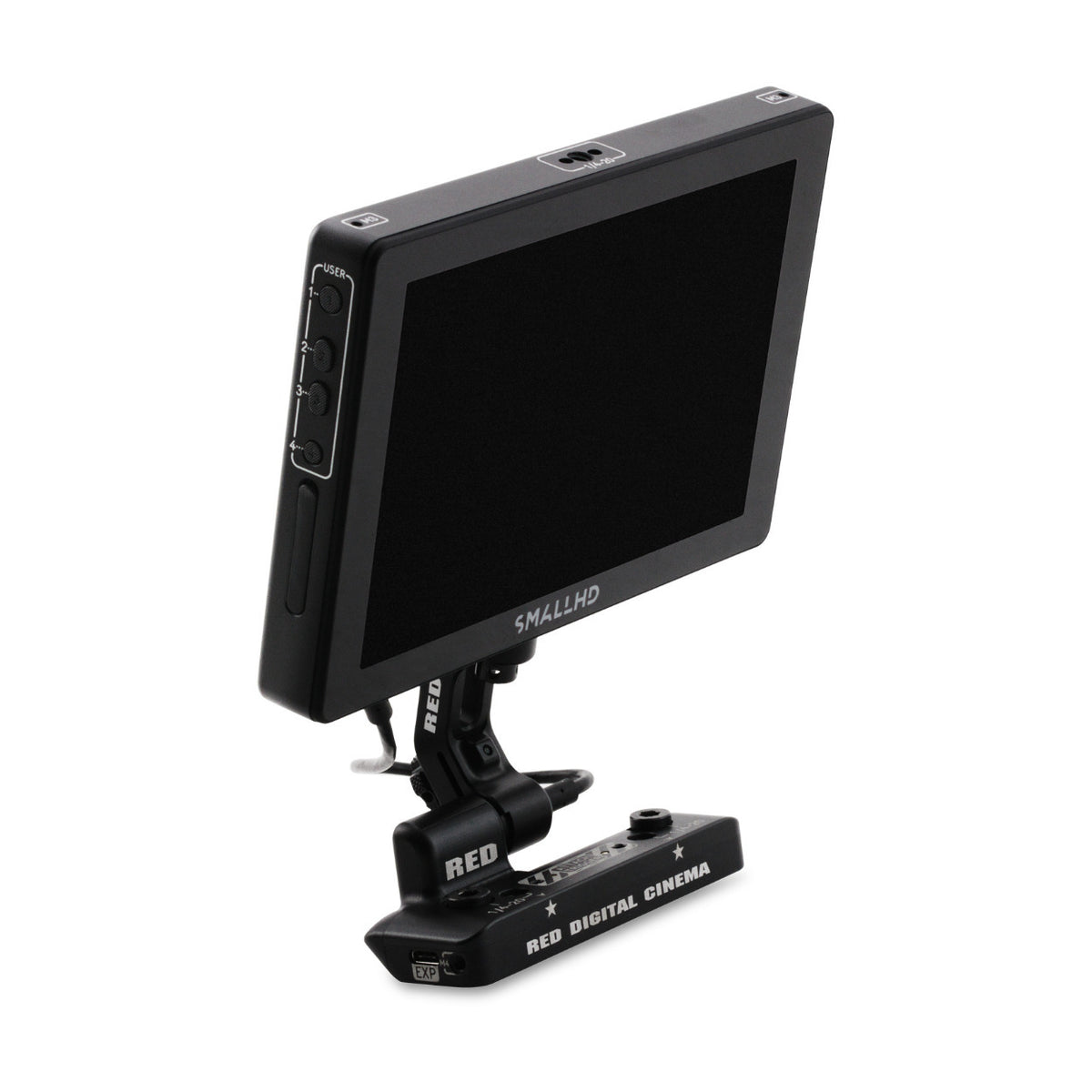

- DSMC3 RED Touch 7” LCD
- 2x RED PRO CFexpress v4 Type B 2TB
- RED PRO CFexpress v4 Type B Card Reader
- 4x REDVOLT MICRO-V (V-Lock Variant Only)
- Compact Dual V-Lock Charger

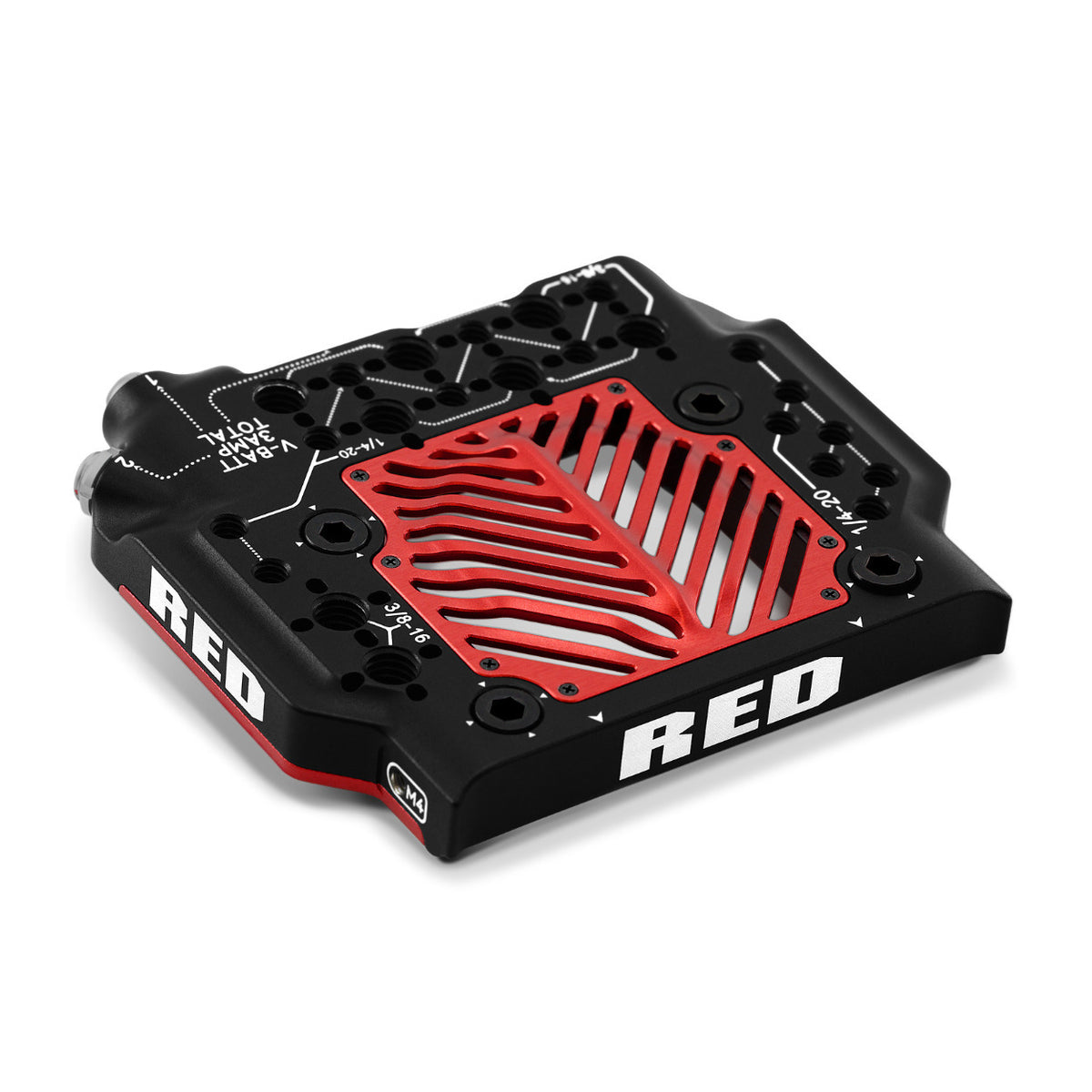

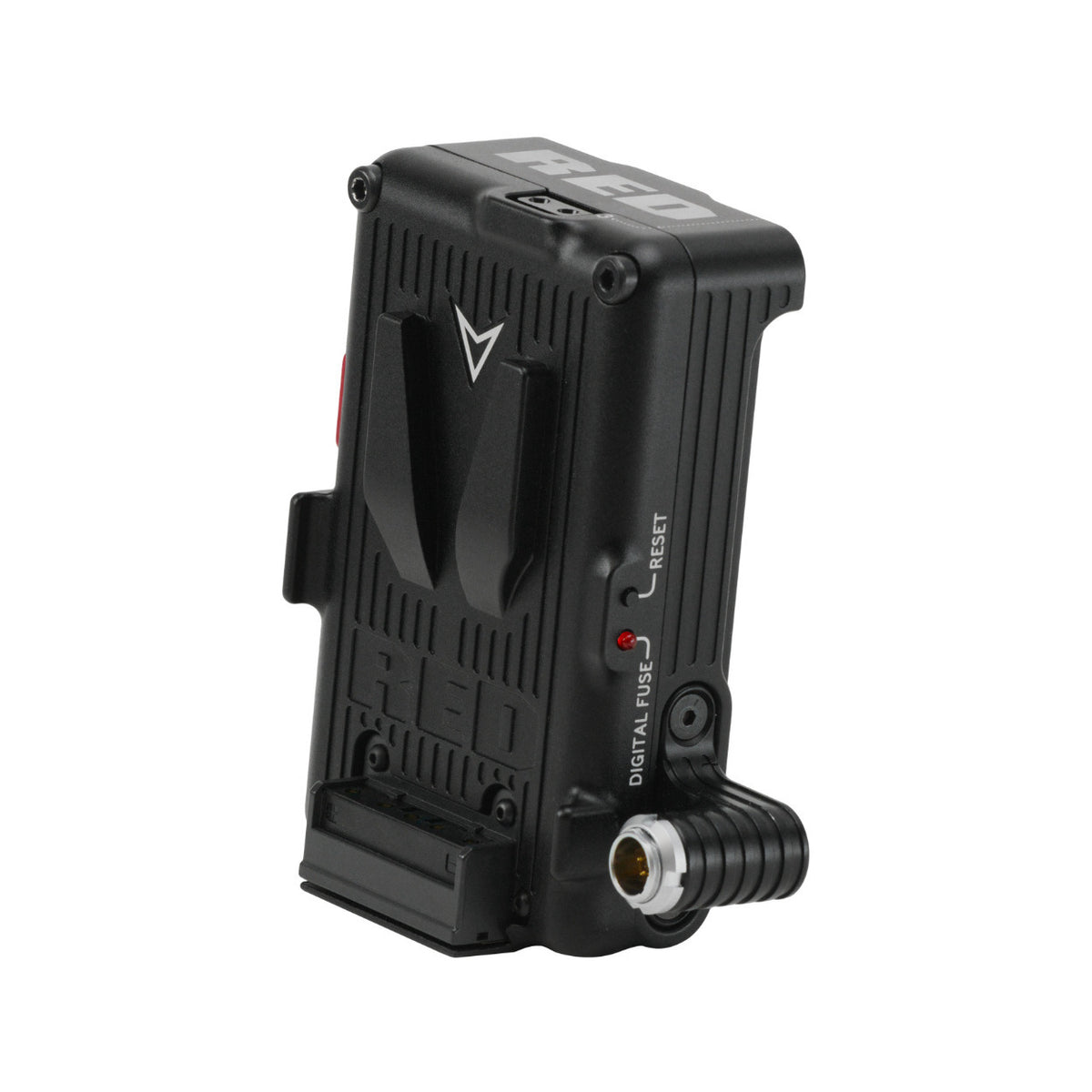

- V-RAPTOR Tactical Top Plate w/ Battery Adapter Plus (V-Lock)

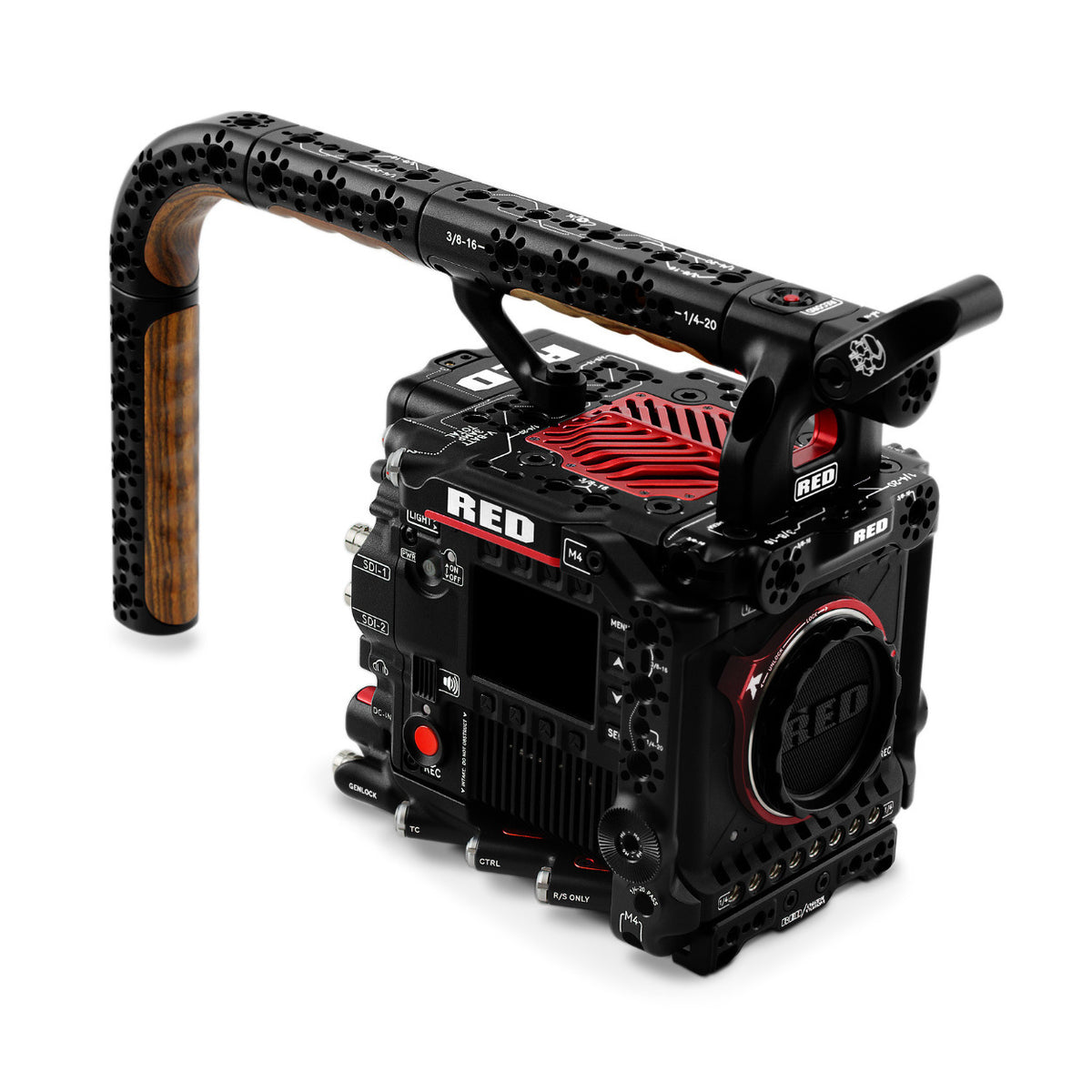

- V-RAPTOR Top Handle w/ Extensions

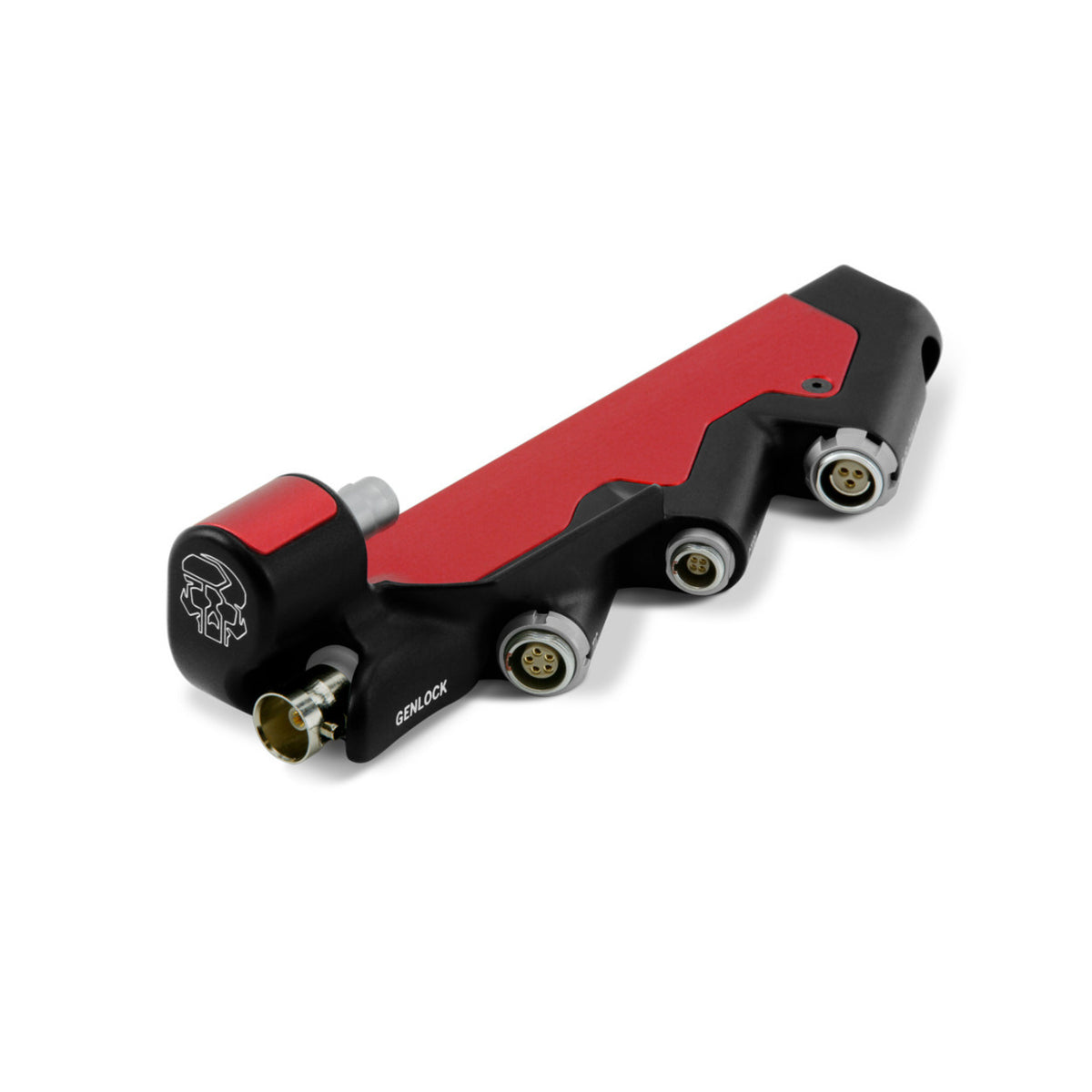

- V-RAPTOR Expander Blade

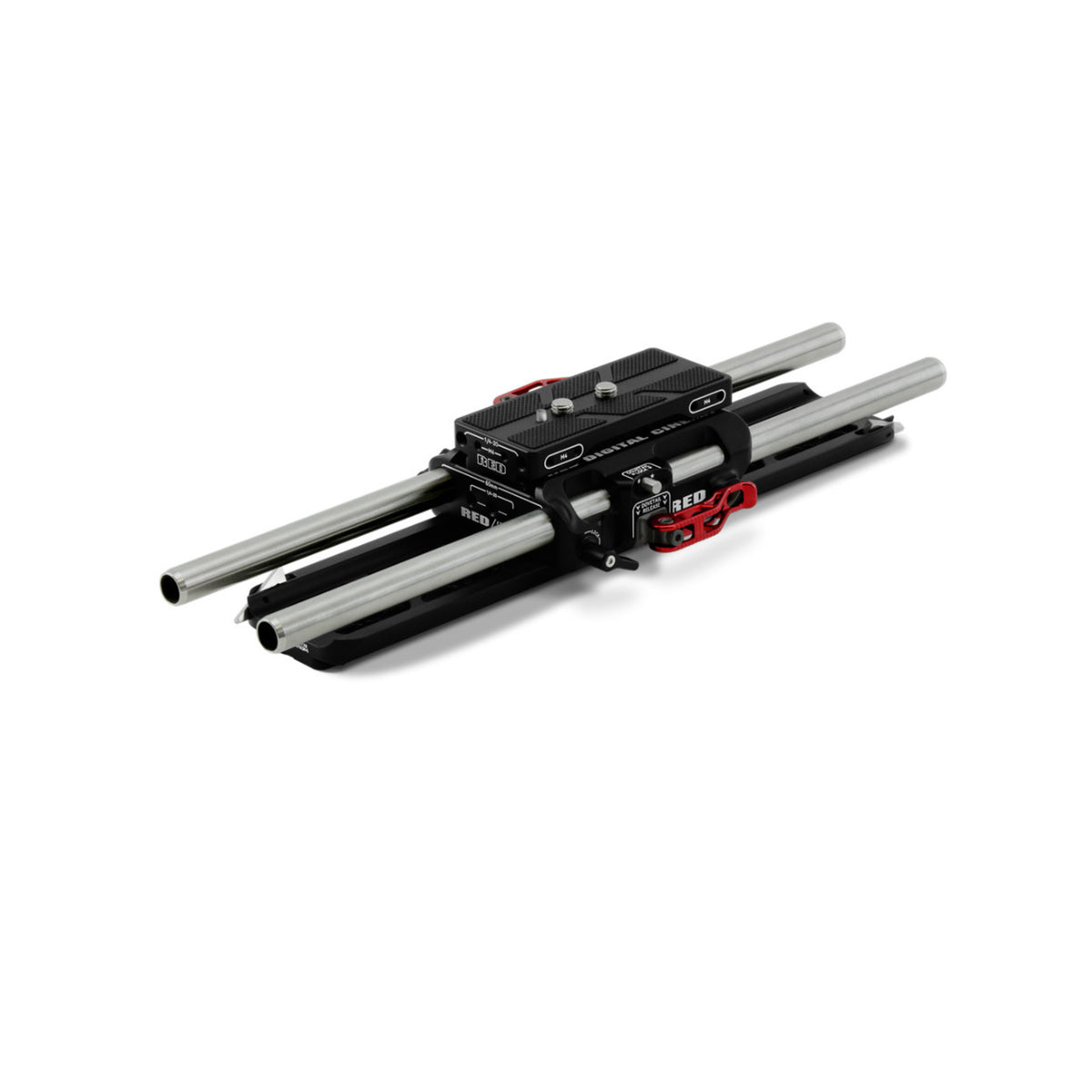

- V-RAPTOR Quick Release Platform Pack

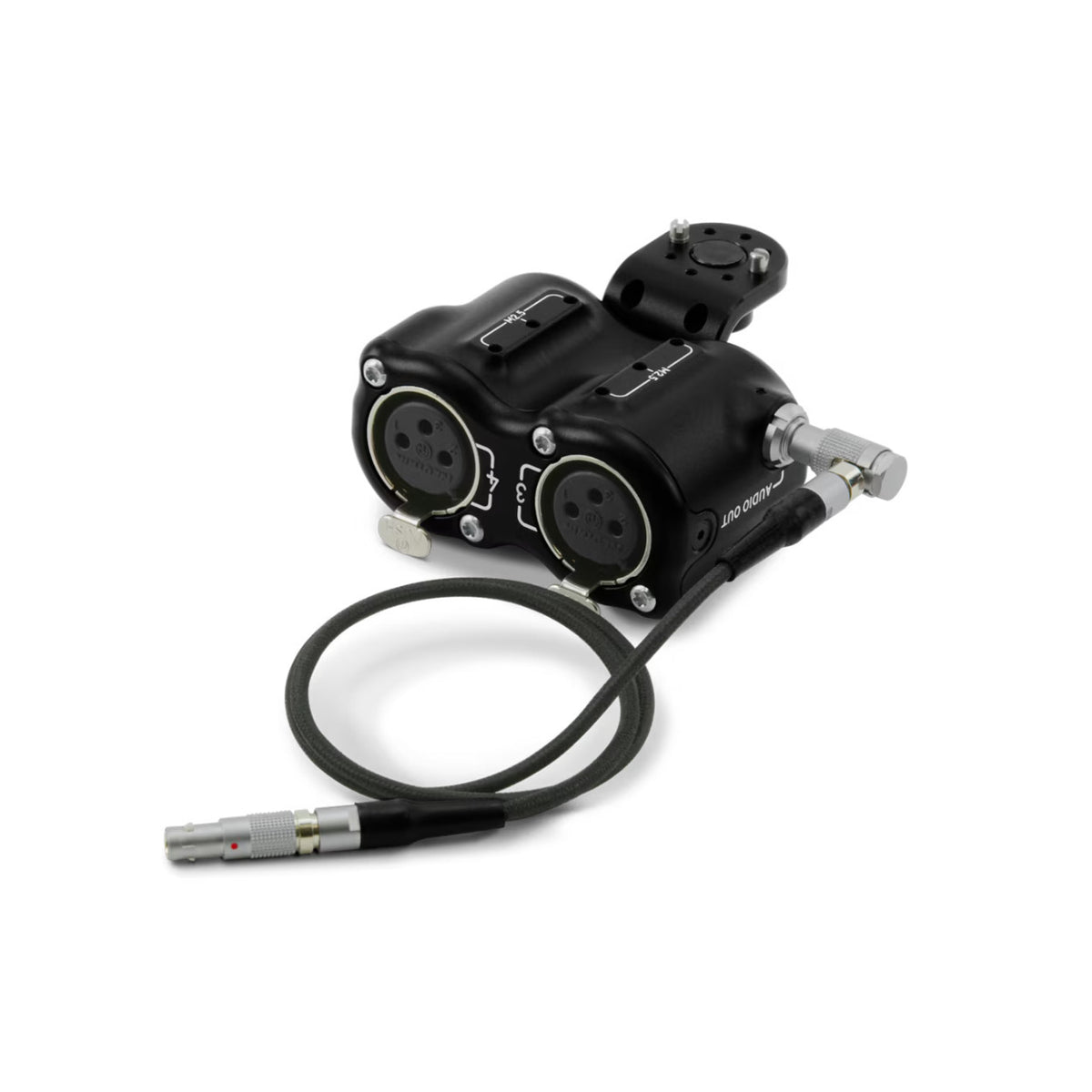

- DSMC3 RED 5-Pin to Dual XLR Adapter

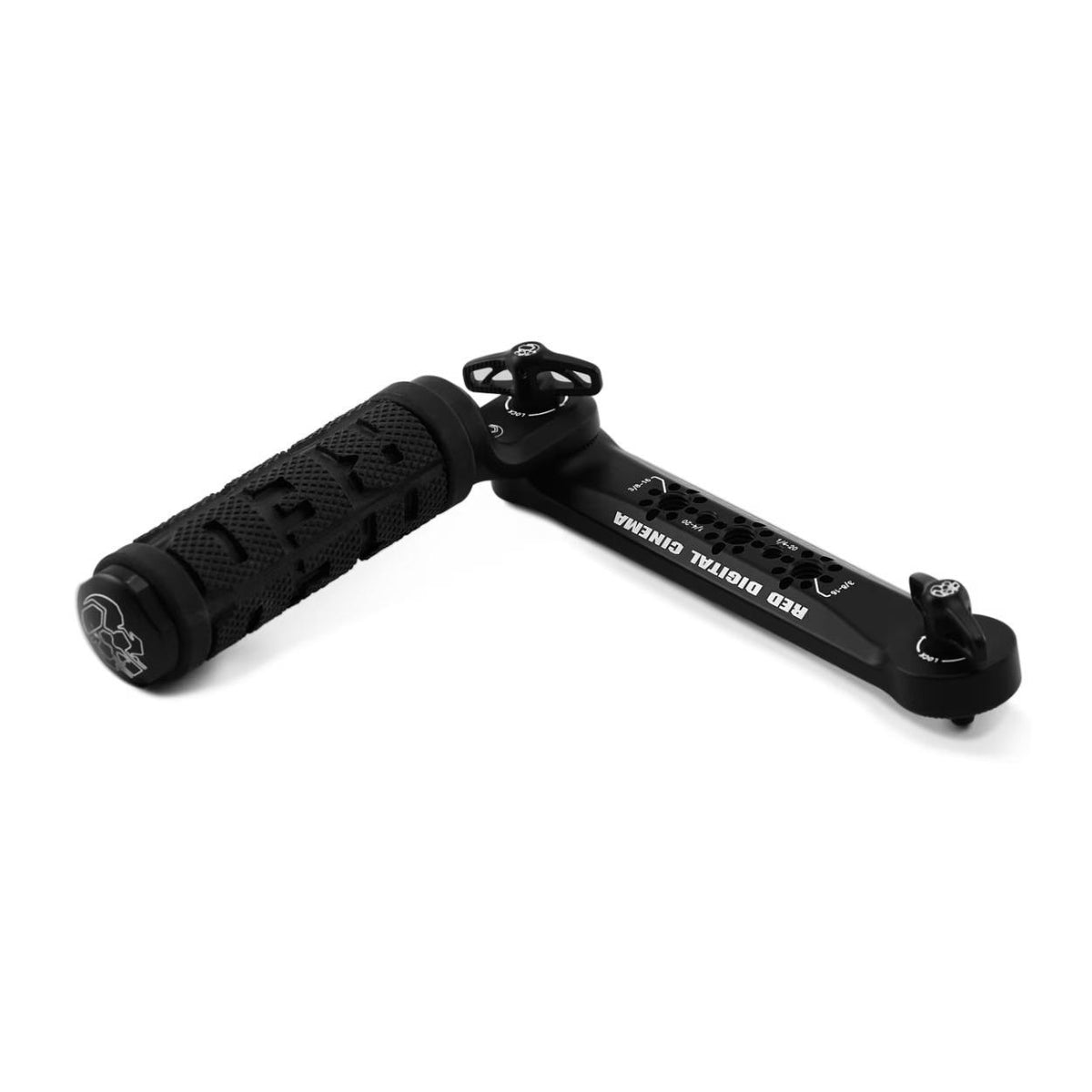

- RED Production Grips (set of 2)
- V-RAPTOR Side Ribs
- V-RAPTOR Production Plates
NOTE: Power cord not included – must purchase separately.
Trusted & Verified

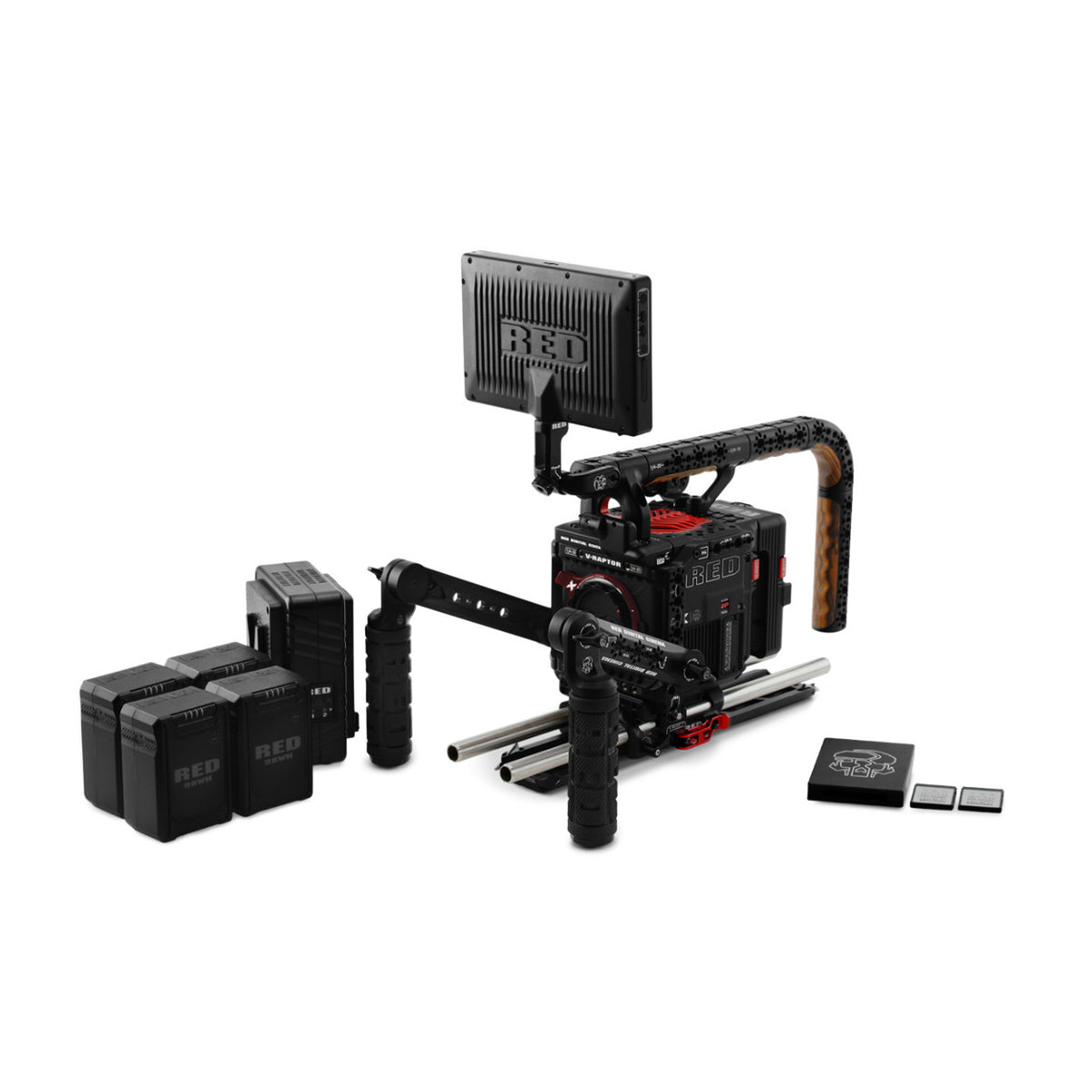

RED Digital Cinema V-RAPTOR X 8K VV 35.4MP Camera Production Pack (V-Lock)
- 8K VV global shutter CMOS sensor delivers 8192 x 4320 effective pixels.
- Captures REDCODE RAW up to 120 fps at 8K 17:9 and 600 fps at 2K 2.4:1.
- 17+ stops of dynamic range supports detailed highlight and shadow capture.
- Integrated locking RF mount supports electronic communication and adaptable lens options.
- CFexpress Type B media supports data rates up to 800 MB/s with qualified cards.
- Dual 12G SDI outputs support monitoring up to 4096 x 2160 at 60p.
- RED Global Vision adds Extended Highlights and Phantom Track production tools.
- Compact aluminum alloy body weighs 4.03 pounds without body cap and CFexpress card.
8K VV Meets Global Shutter
V-RAPTOR [X] 8K VV combines the strengths of RED’s two families of cameras into one powerful all-purpose workhorse. The frame rates, lowlight performance, and resolution of the V-RAPTOR line combined with the global shutter advancements of KOMODO, the V-RAPTOR [X] 8K VV sensor is the culmination of the latest advancements in digital cinema image making. Using RED’s newest 8K VV sensor, V-RAPTOR [X] leverages the benefits and flexibility of large format, global shutter, high framerate, 8K acquisition, all inside of a compact and feature rich body weighing just over 4 lbs.
The New Standard for 8K Cinema
V-RAPTOR [X] is the first large format global shutter camera available. It is built off the same keystone features found in the original V-RAPTOR, such as 2x 12G SDI’s capable of unique monitoring views, a locking Canon RF style lens mount for rigid and flexible lens selection, and CFexpress Type B media for up to 800MB/s formats such as 8K 120P. In addition, improved in-camera audio pre-amps as well as a redesigned sensor cavity designed to mitigate stray light and improve contrast performance only further builds upon the V-RAPTOR legacy.
Global Vision
V-RAPTOR [X] 8K VV is pushed to new limits with the introduction of RED Global Vision, a new suite of tools that use the global shutter sensor to provide even more flexibility and ease of use throughout the production process. Global Vision’s Extended Highlights allows the camera to see even further into highlight detail, providing more detail for HDR finishes, or softer and more subtle highlight roll-off for SDR. RED Global Vision also includes Phantom Track to streamline any Virtual Production environment employing GhostFrame or Frame Remapping, capturing distinct R3D clips per each sub-frame slice, as well as allowing for monitoring of either slice live on-set over each SDI.
Advanced Connectivity
Additionally, the V-RAPTOR [X] and the DSMC3 platform features advanced connectivity solutions which enable applications such as remote control and monitoring, in-camera Frame.io integration, AWS direct upload, RED Connect for live 8K R3D video over IP or live 4K over SMPTE ST 2110, and more.
Imaging:
| Sensor Type | V-RAPTOR [X] 8K VV 35.4 MP Global Shutter CMOS |
| Effective Pixels | 8192 x 4320 |
| Sensor Size | 40.96 mm x 21.60 mm |
| Sensor Diagonal | 46.31 mm |
| Dynamic Range | 17+ stops |
Lens Mount:
| Mount Type | Integrated locking RF mount with electronic communication |
| PL Lens Support | Supports /i PL lenses with RED RF to PL adapters |
| EF Lens Support | Supports Canon EF adapter with communication |
| Additional Lens Support | Compatible with other adapters based on the RF mount |
Recording:
| Maximum Data Rate | Up to 800 MB/s using RED branded or other qualified CFexpress media cards |
| 8K REDCODE RAW Maximum Frame Rate | 120 fps at 17:9, 150 fps at 2.4:1 |
| 7K REDCODE RAW Maximum Frame Rate | 140 fps at 17:9, 175 fps at 2.4:1 |
| 6K REDCODE RAW Maximum Frame Rate | 160 fps at 17:9, 200 fps at 2.4:1 |
| 5K REDCODE RAW Maximum Frame Rate | 192 fps at 17:9, 240 fps at 2.4:1 |
| 4K REDCODE RAW Maximum Frame Rate | 240 fps at 17:9, 300 fps at 2.4:1 |
| 3K REDCODE RAW Maximum Frame Rate | 320 fps at 17:9, 400 fps at 3K 2.4:1 |
| 2K REDCODE RAW Maximum Frame Rate | 480 fps at 17:9, 600 fps at 2K 2.4:1 |
| 8K 17 | 9 REDCODE Settings: HQ, MQ, LQ, and ELQ up to 60 fps |
| 8K 17 | 9 High Frame Rate REDCODE Settings: LQ and ELQ up to 120 fps |
| 6K 17 | 9 REDCODE Settings: HQ, MQ, LQ, and ELQ up to 96 fps |
| 6K 17 | 9 High Frame Rate REDCODE Settings: MQ, LQ, and ELQ up to 160 fps |
| 4K 17 | 9 REDCODE Settings: HQ, MQ, LQ, and ELQ up to 240 fps |
| 2K 17 | 9 REDCODE Settings: HQ, MQ, LQ, and ELQ up to 480 fps |
REDCODE RAW Acquisition Formats:
| 8K | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, and 1.25x |
| 7K | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 2x, 1.8x, and 1.6x |
| 6K | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 1.5x, 1.3x, and 1.25x |
| 5K | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
| 4K | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
| 3K | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
| 2K | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
Apple ProRes:
| Dedicated Recording | ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT |
| Maximum Dedicated Recording Resolution | Up to 4K 4096 x 2160 at 120p |
| Proxy Recording | Up to ProRes 422 HQ at 2K 2048 x 1080 up to 60p |
Construction and Physical:
| Construction | Aluminum alloy |
| Dimensions | 149.63 mm x 115.5 mm x 108 mm / 5.9 inch x 4.5 inch x 4.3 inch, L x W x H at largest fixed dimensions |
| Weight | 4.03 pounds / 1.83 kg without body cap and CFexpress card |
Media and Power:
| Media Type | CFexpress Type B |
| Battery Interface | Integrated V Lock battery interface optimized for Micro V Lock batteries |
| DC Power Input | 11 to 17 V via 6 pin DC input |
Environmental:
| Operating Temperature | 0 degrees Celsius to 40 degrees Celsius, 32 degrees Fahrenheit to 104 degrees Fahrenheit |
| Storage Temperature | Negative 20 degrees Celsius to 50 degrees Celsius, negative 4 degrees Fahrenheit to 122 degrees Fahrenheit |
| Storage Relative Humidity | 0 percent to 85 percent, noncondensing |
RED Global Vision:
| Extended Highlights | Captures additional detail and color in extreme dynamic range scenarios |
| Phantom Track | Captures multiple LED instances as dedicated clips |
Color Management:
| Image Processing | Image Processing Pipeline 2, IPP2 |
| 3D LUT Support | 33 x 33 x 33 |
| CDL Support | Import and adjustment supported |
Audio:
| Integrated Microphones | Dual channel digital mono microphones, uncompressed, 24 bit 48 kHz |
| Audio Input | Dual channel mic, line, and +48V input through 5 pin 00B audio port, uncompressed, 24 bit 48 kHz |
| Headphone Output | 3.5 mm stereo headphone port |
Autofocus:
| Autofocus System | Phase Detect with Face Detection |
IP Connectivity:
| RED Connect Module Compatibility | Supports live 8K R3D video over IP or live 4K over SMPTE ST 2110 |
| Wireless Connectivity | Dual band Wi-Fi at 2.4 GHz or 5 GHz |
| Wireless Functions | Camera control, live preview, and direct Camera to Cloud workflow through Frame.io or Amazon S3 |
| Wired Control | USB-C or Gigabit Ethernet with compatible USB-C to Ethernet adapter |
| Wired Functions | Remote camera control, live MJPEG preview, Camera to Cloud workflow, and remote media offload |
Monitor Outputs:
| Accessory Port | Proprietary Top Accessory Port for monitoring and control |
| SDI Outputs | Integrated dual 12G SDI with 6G SDI, 3G SDI, and 1.5G SDI modes |
| 12G SDI | Up to 4096 x 2160 4:2:2 at 60p |
| 6G SDI | Up to 4096 x 2160 4:2:2 at 30p, 25p, and 24p |
| 3G SDI | Up to 2048 x 1080 4:2:2 at 60p |
| 1.5G SDI | Up to 2048 x 1080 4:2:2 at 30p, 25p, and 24p |
| Output Data | SMPTE timecode, HANC metadata, and 24 bit 48 kHz audio |
Monitor Options:
| Monitor | DSMC3 RED Touch 7.0 inch LCD |
| Viewfinder | RED Compact EVF with DSMC3 Adapter A |
| Wireless Preview | 1080p live preview through 2.4 GHz or 5 GHz Wi-Fi |
| Integrated Display | 2.4 inch LCD for camera control without preview video |
Additional I/O:
| Genlock | Tri Level Genlock input through 9 pin EXT |
| Timecode | LTC timecode input through 9 pin EXT |
| Control | RS232 CTRL using RCP2 through 9 pin EXT |
RED Control:
| Device Support | Access camera controls and live preview from iOS or Android devices |
| RED Control Pro | Supports one or multiple cameras over an IP connection |
| Multi Camera Functions | Synchronize settings, manage media, upload to Frame.io, and control CDL and LUT settings |
| Connection Options | Wireless operation or wired operation through USB-C |
