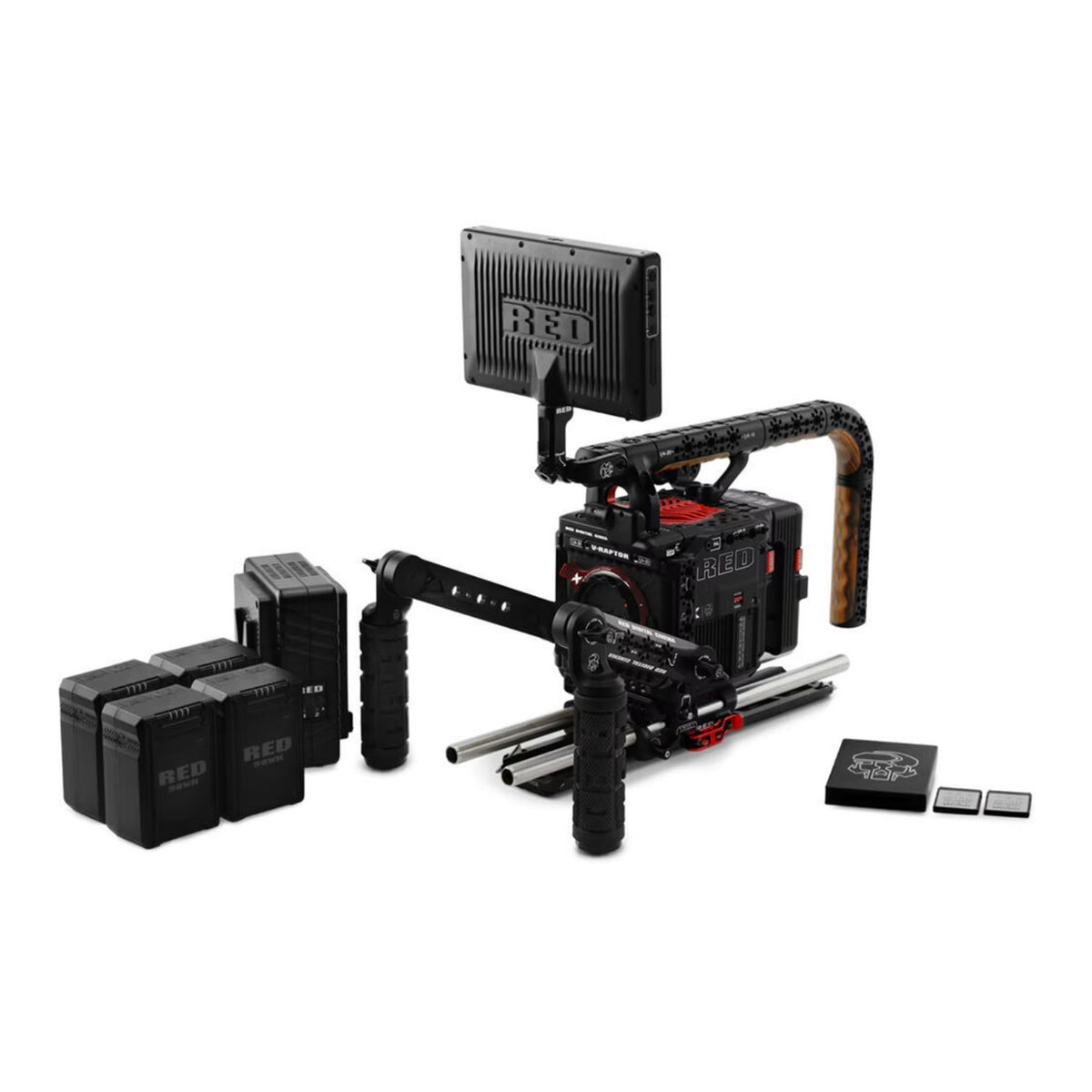

- V-RAPTOR [X] 8K VV RF Mount Camera System (POWER CORD NOT INCLUDED)

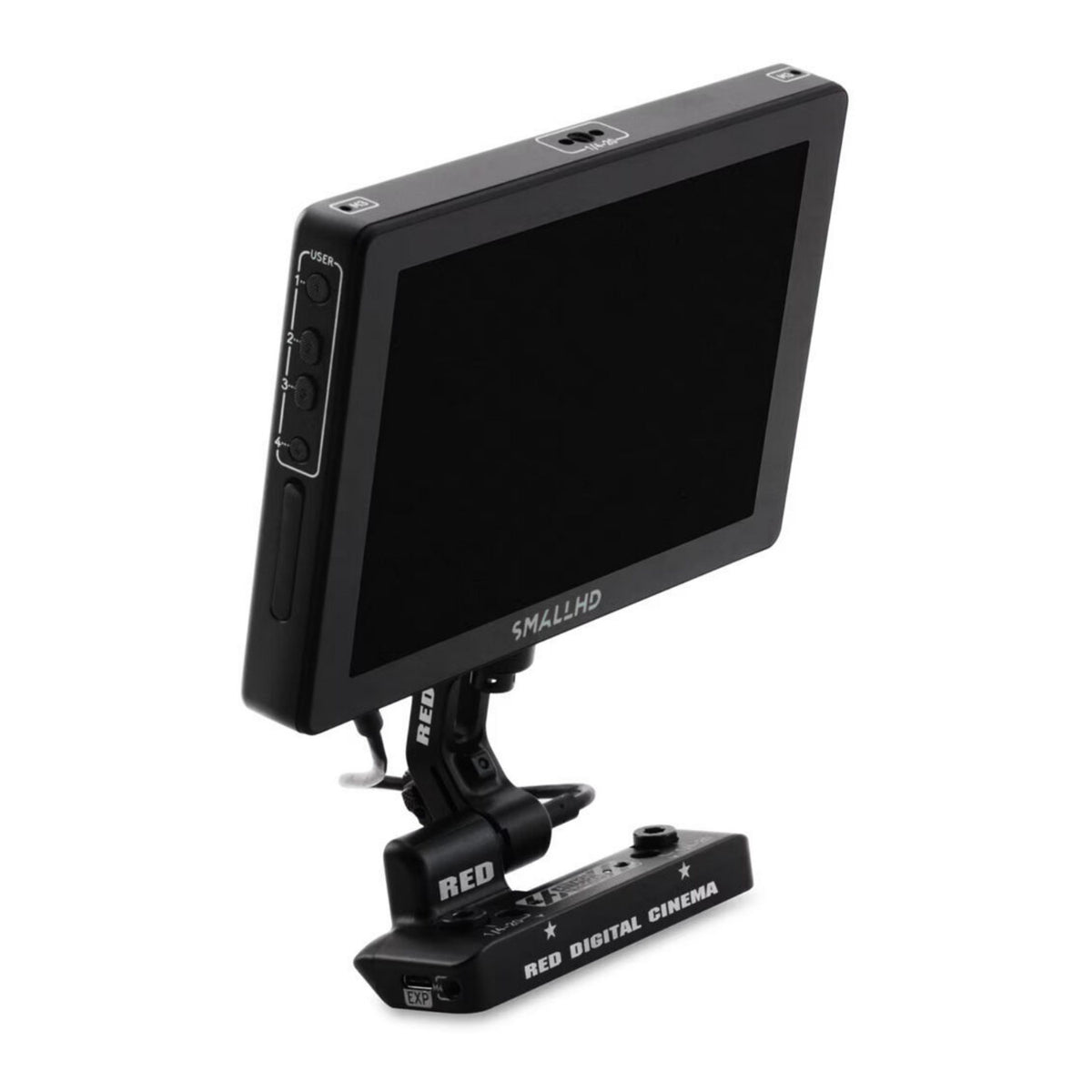

- DSMC3 RED Touch 7” LCD
- 2x RED PRO CFexpress v4 Type B 2TB
- RED PRO CFexpress v4 Type B Card Reader
- 4x REDVOLT MICRO-G (Gold Mount Variant Only)
- RED Compact Dual Gold Mount Charger (POWER CORD NOT INCLUDED)

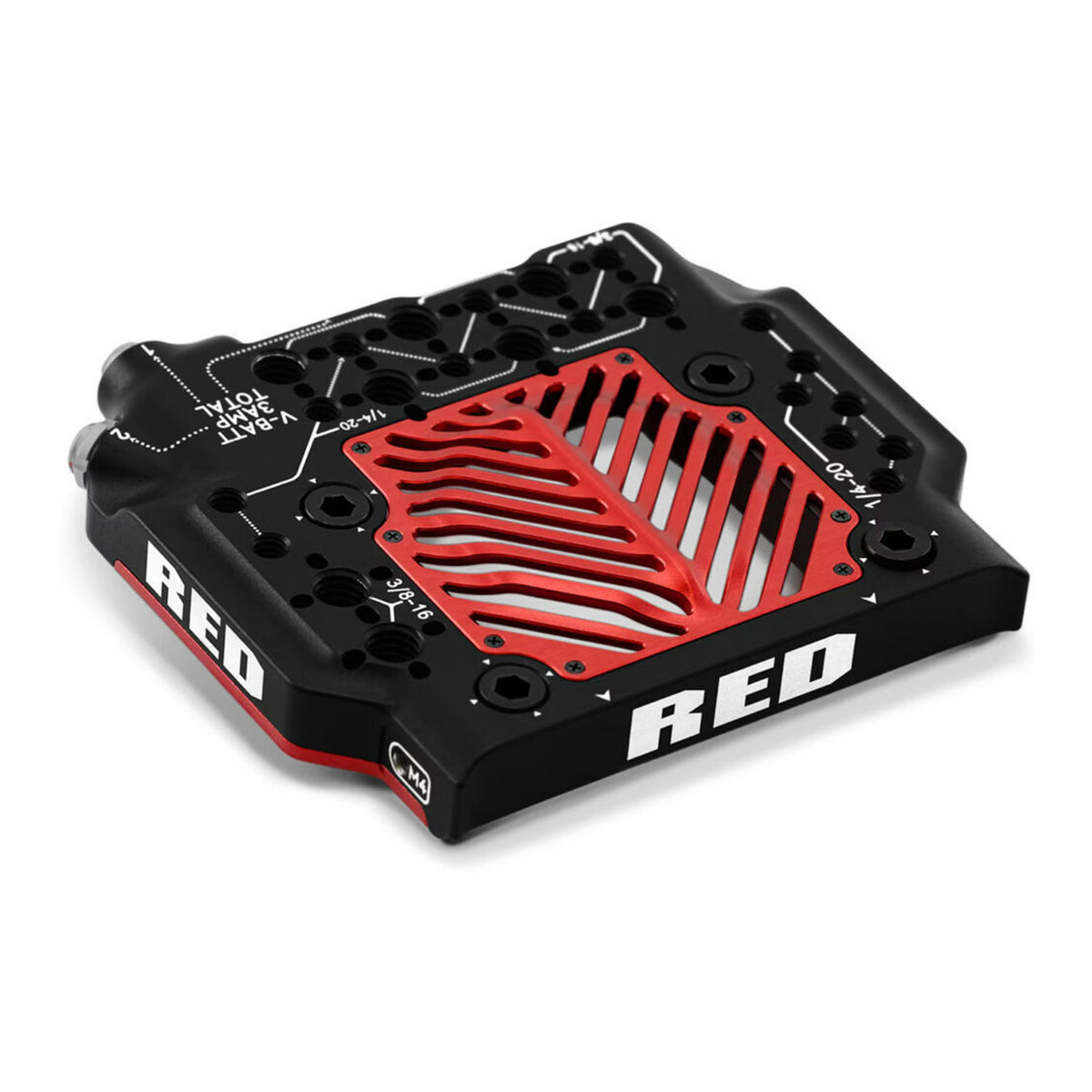

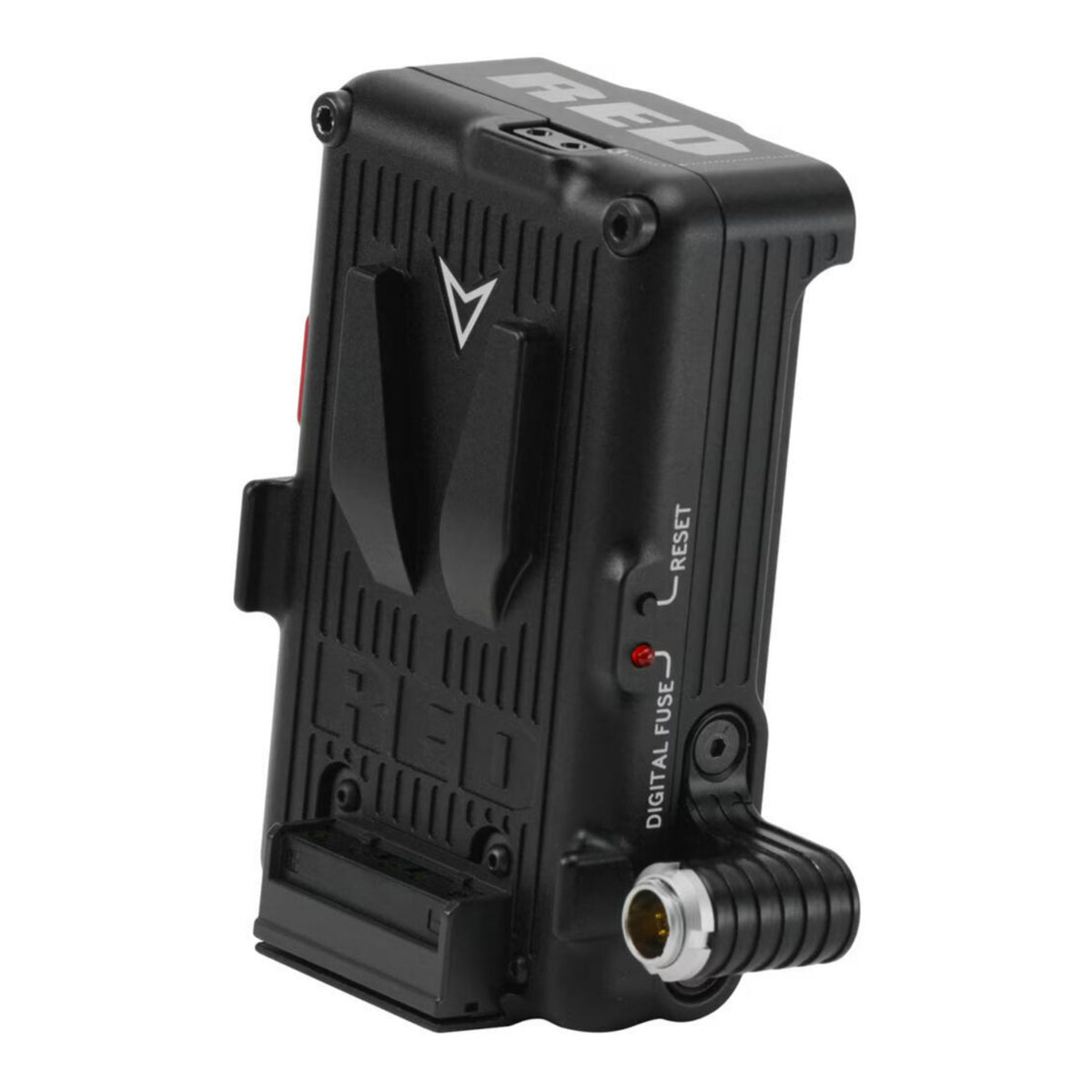

- V-RAPTOR Tactical Top Plate w/ Battery Adapter Plus (Gold Mount)

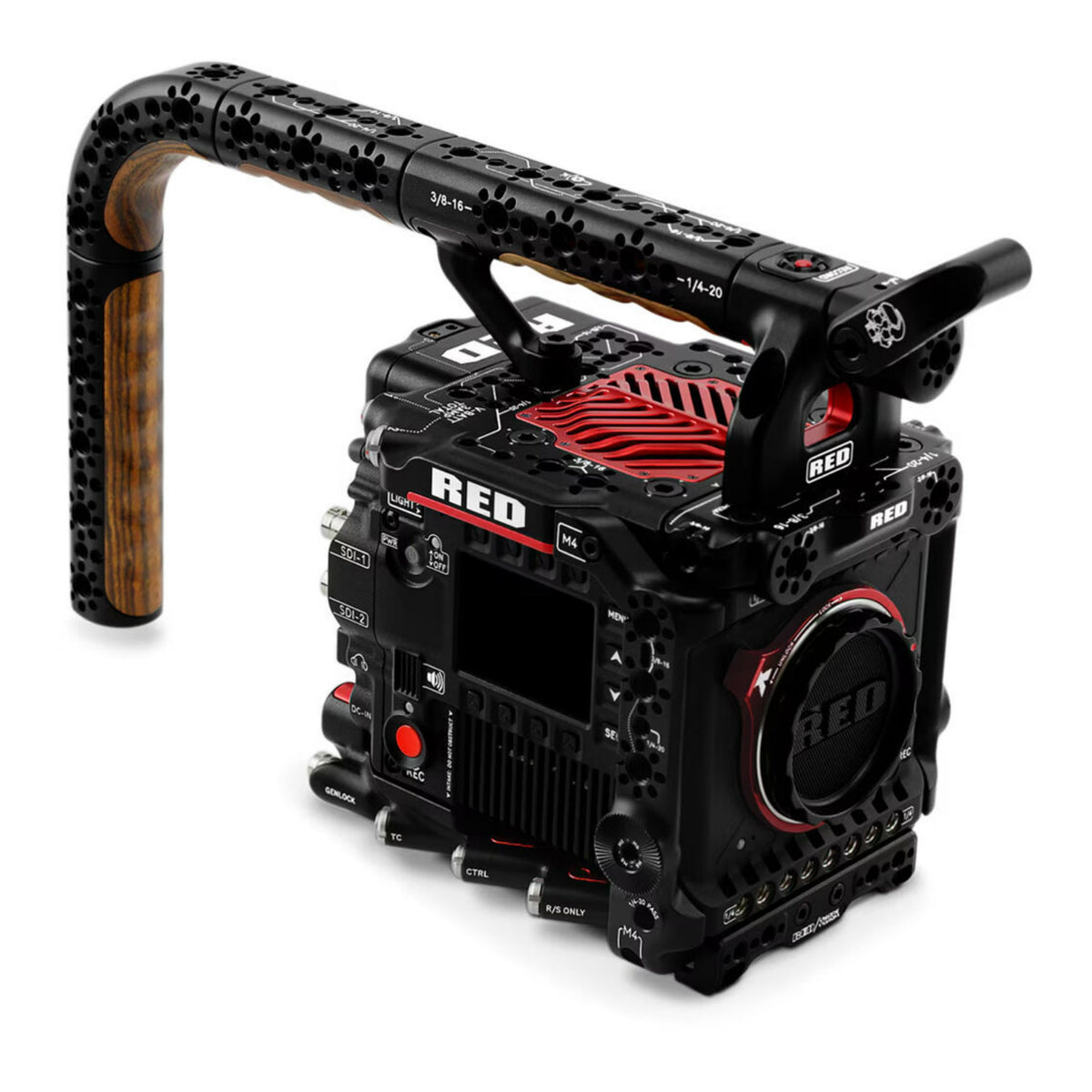

- V-RAPTOR Top Handle w/ Extensions
- V-RAPTOR Expander Blade

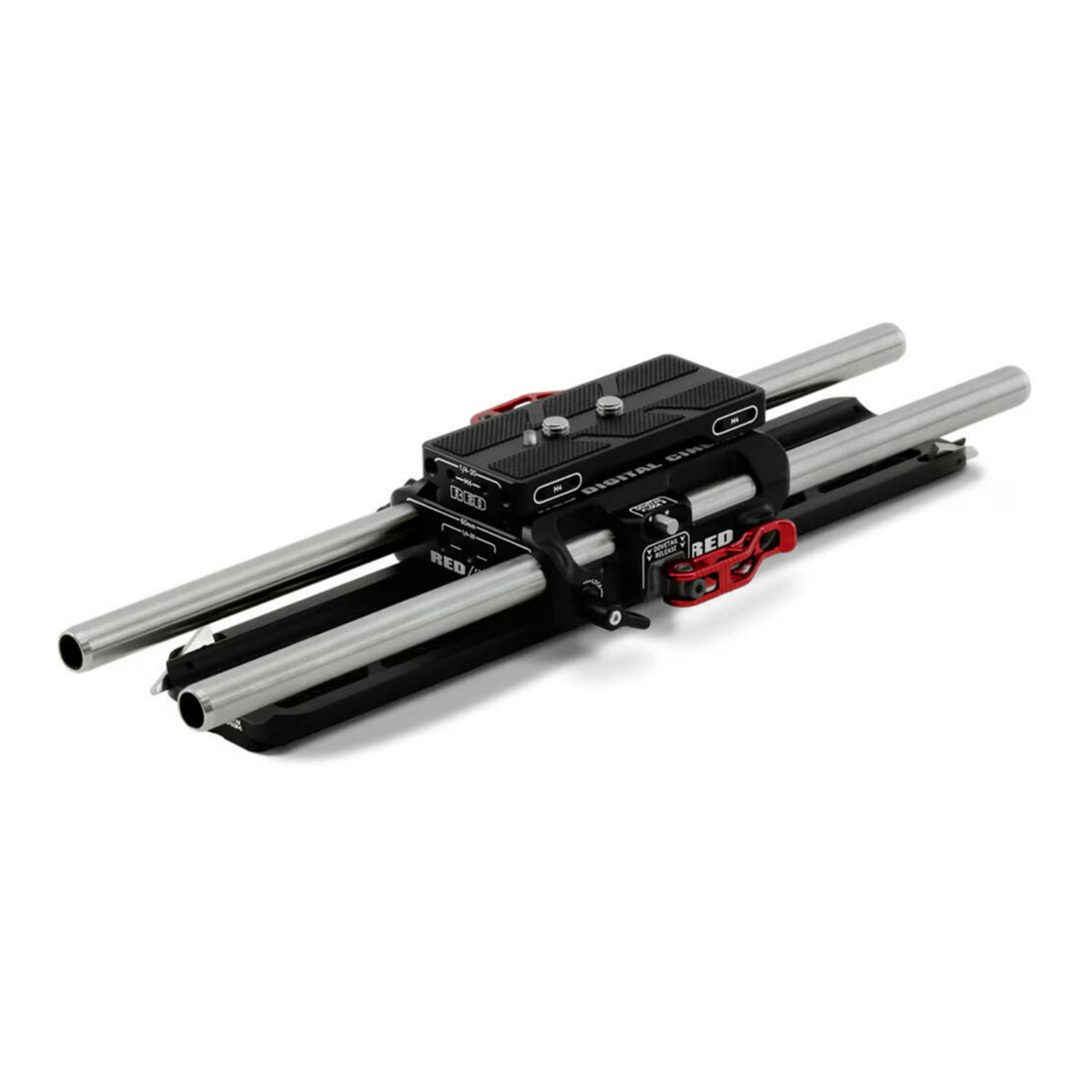

- V-RAPTOR Quick Release Platform Pack

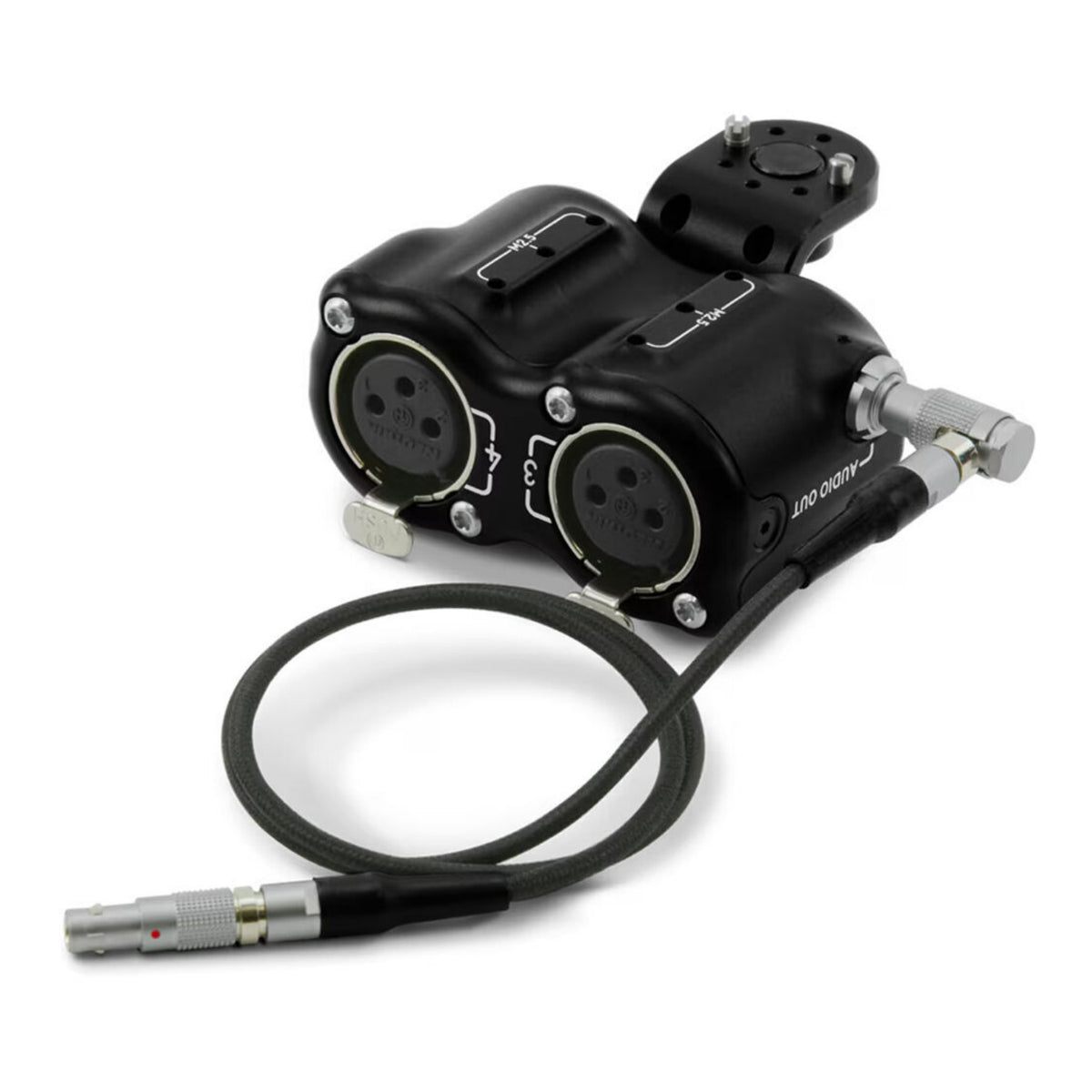

- DSMC3 RED 5-Pin to Dual XLR Adapter

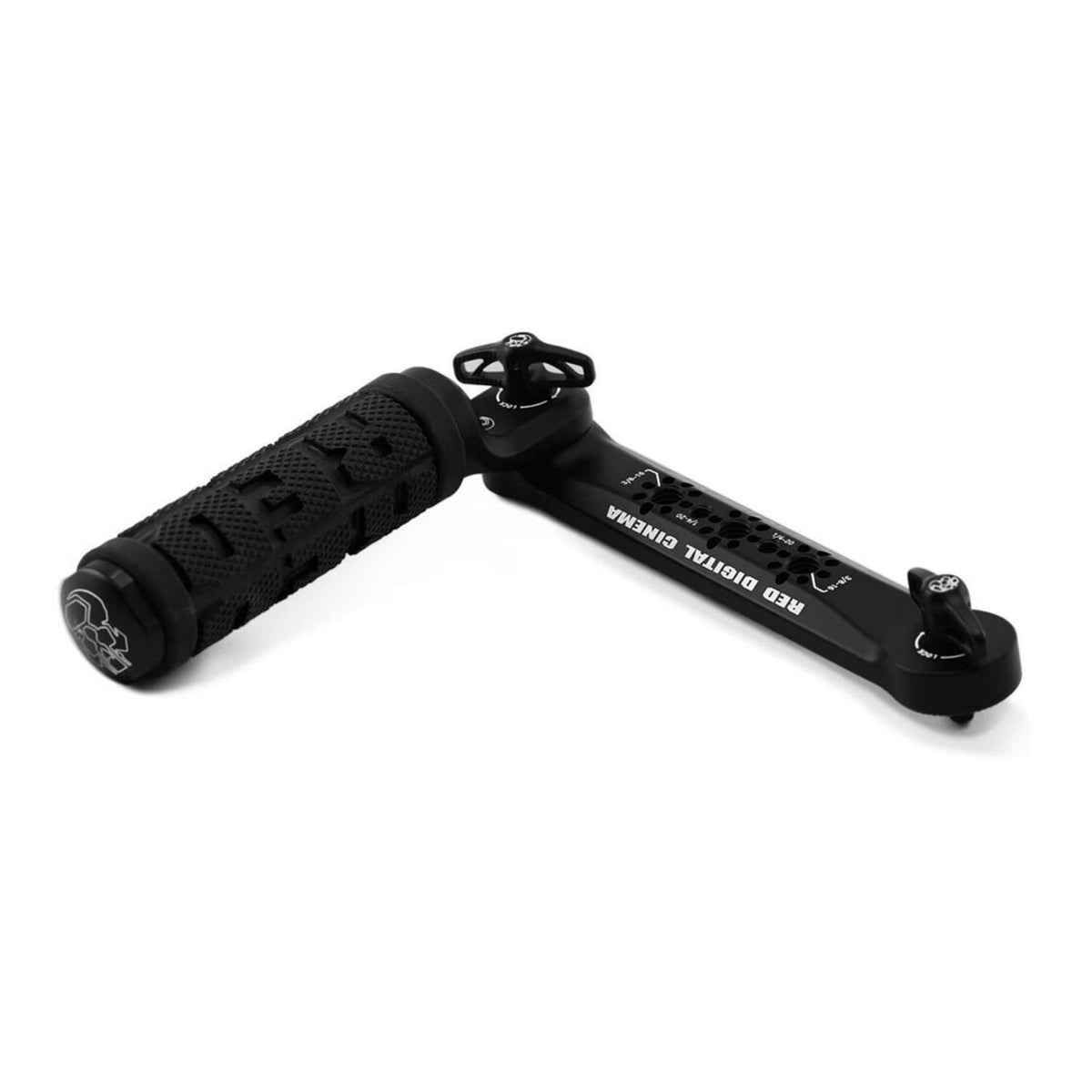

- RED Production Grips (set of 2)
- V-RAPTOR Side Ribs
- 2 Year Standard Warranty (camera only)
Trusted & Verified

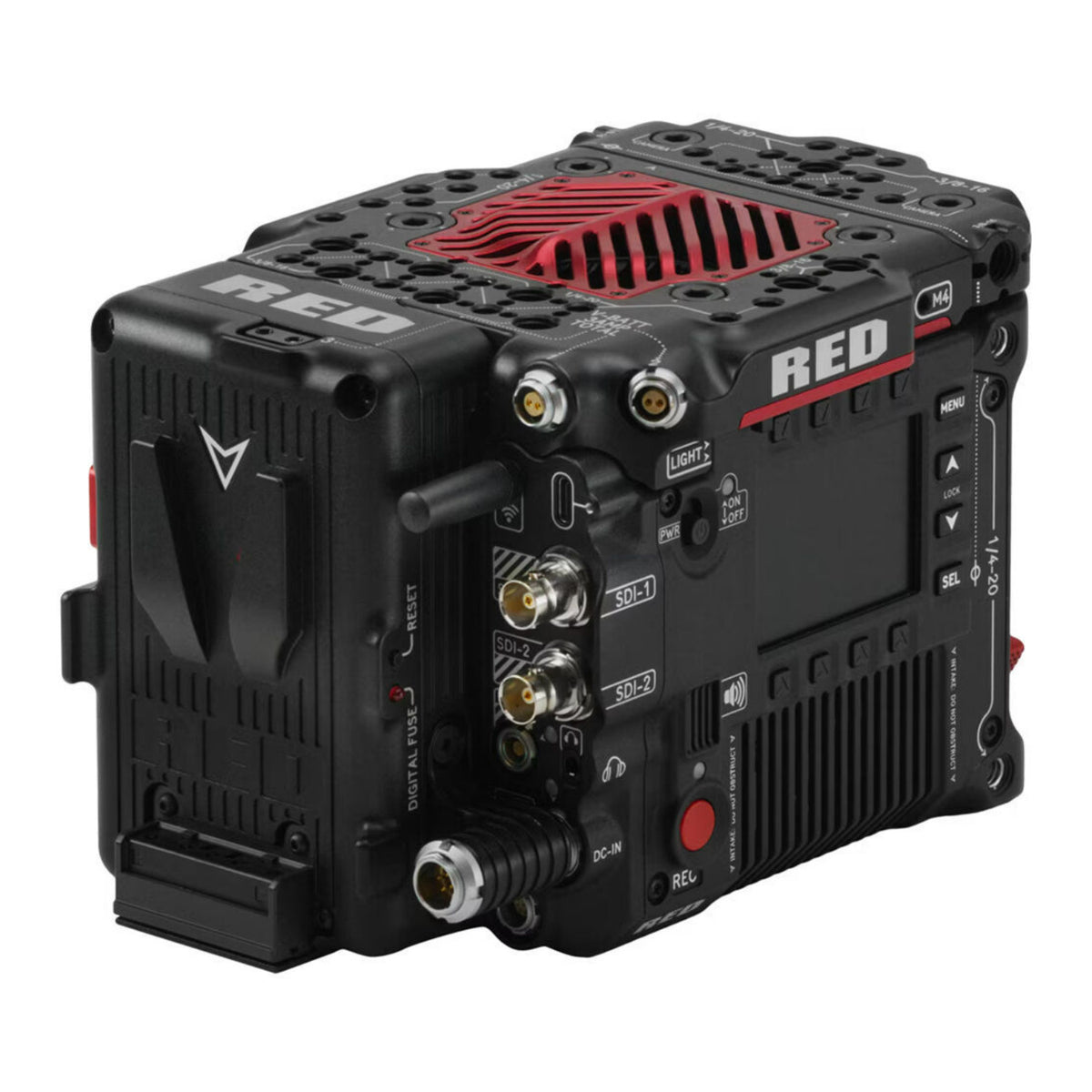

RED Digital Cinema V-RAPTOR X 8K VV Production Pack (Gold Mount)
- 35.4 MP 8K VV global shutter CMOS sensor captures 8192 x 4320 effective pixels
- 17+ stops of standard dynamic range support detailed highlight and shadow capture
- Records up to 120 fps at 8K 17:9 and 150 fps at 8K 2.4:1
- REDCODE RAW acquisition supports resolutions from 8K through 2K
- ProRes recording is available at resolutions up to 4K
- Qualified CFexpress Type B media supports data rates up to 800 MB per second
- Dual 12G SDI outputs support professional monitoring configurations
- Phase detect autofocus includes face detection
- Wi-Fi supports wireless camera control and live preview
The RED Digital Cinema V-RAPTOR X 8K VV combines large format 8K acquisition, global shutter capture, high frame rate recording, and REDCODE RAW in a compact DSMC3 cinema camera platform. Its 35.4 MP CMOS sensor captures 8192 x 4320 pixels across a 40.96 mm x 21.60 mm imaging area and delivers 17 plus stops of base dynamic range. The global shutter captures the full frame at once, helping maintain image geometry during fast subject movement and rapid camera motion while preserving the resolution needed for reframing, stabilization, visual effects, and high resolution finishing.
8K REDCODE RAW and High Frame Rate Capture
V-RAPTOR X records REDCODE RAW at up to 120 fps in 8K 17:9 and up to 150 fps in 8K 2.4:1. Lower resolution formats extend capture to 240 fps at 4K 17:9, 320 fps at 3K 17:9, and 600 fps at 2K 2.4:1. REDCODE HQ, MQ, LQ, and ELQ settings provide flexibility for balancing image quality, frame rate, and media capacity. Apple ProRes recording is also available in formats up to 4096 x 2160 for productions that require a separate editorial or finishing workflow.
Global Vision, IPP2, and Lens Support
RED Global Vision adds Extended Highlights for scenes that require additional highlight information and Phantom Track for specialized virtual production workflows. RED IPP2 supports 33 x 33 x 33 3D LUTs and CDL adjustments for a controlled path from on set monitoring through grading and finishing. The locking RF mount supports electronic lens communication and can work with additional lens systems through compatible RED adapters.
Professional Monitoring and Connectivity
Qualified CFexpress Type B media supports data rates up to 800 MB/s. Dual 12G SDI outputs provide 10 bit 4:2:2 monitoring at resolutions up to 4096 x 2160 at 60p. Tri level genlock, LTC timecode, USB C, dual band Wi-Fi, and compatible Ethernet workflows support synchronized, remotely operated, and connected productions. RED Control enables camera operation and live preview, while compatible network workflows support remote media management and Camera to Cloud integration.
Gold Mount Production Pack Configuration
The aluminum alloy camera body measures 5.9 x 4.5 x 4.3 inches and weighs approximately 4.03 lb without the body cap and CFexpress card. This Gold Mount Production Pack expands the compact V-RAPTOR X platform with production oriented power and rigging support, allowing full size Gold Mount batteries to be incorporated through the compatible battery adapter system. The configuration is designed for crew operated narrative, commercial, studio, and virtual production builds that need the imaging performance of V-RAPTOR X with a more complete production setup.
Imaging:
| Sensor Type | V-RAPTOR X 8K VV 35.4 Megapixel Global Shutter CMOS |
| Effective Pixels | 8192 x 4320 |
| Sensor Size | 40.96 mm x 21.60 mm |
| Sensor Diagonal | 46.31 mm |
| Dynamic Range | 17+ stops |
| Mount Type | Integrated locking RF mount with electronic communication |
Maximum Frame Rates:
| 8K 17 | 9: 120 fps |
| 8K 2.4 | 1: 150 fps |
| 7K 17 | 9: 140 fps |
| 7K 2.4 | 1: 175 fps |
| 6K 17 | 9: 160 fps |
| 6K 2.4 | 1: 200 fps |
| 5K 17 | 9: 192 fps |
| 5K 2.4 | 1: 240 fps |
| 4K 17 | 9: 240 fps |
| 4K 2.4 | 1: 300 fps |
| 3K 17 | 9: 320 fps |
| 3K 2.4 | 1: 400 fps |
| 2K 17 | 9: 480 fps |
| 2K 2.4 | 1: 600 fps |
Recording:
| Maximum Data Rate | Up to 800 MB per second using RED branded or other qualified CFexpress media cards |
| Media Type | CFexpress Type B |
| REDCODE RAW Acquisition | 8K, 7K, 6K, 5K, 4K, 3K, and 2K formats |
| ProRes Recording | ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K |
| Proxy Recording | Up to ProRes 422 HQ in 2K at up to 60p |
Construction and Dimensions:
| Construction | Aluminum Alloy |
| Length | 5.9 inches |
| Width | 4.5 inches |
| Height | 4.3 inches |
| Metric Dimensions | 149.63 mm x 115.5 mm x 108 mm |
| Weight | 4.03 lb without body cap and CFexpress card |
Power and Environment:
| DC Power | +11 to +17 volts DC using the integrated 6 Pin DC input port |
| Operating Temperature | 0 degrees C to 40 degrees C |
| Storage Temperature | Minus 20 degrees C to 50 degrees C |
| Relative Humidity | 0% to 85% noncondensing |
Camera Features:
| Global Vision | Extended Highlights and Phantom Track recording modes |
| Color Management | Image Processing Pipeline 2 |
| LUT Support | 33 x 33 x 33 3D LUTs |
| Autofocus | Phase detect with face detection |
| Wireless Connectivity | Dual band Wi-Fi at 2.4 GHz or 5 GHz |
| Monitor Outputs | Dual 12G SDI with 6G SDI, 3G SDI, and 1.5G SDI modes |
| Integrated Display | 2.4 inch LCD for camera control |
Audio:
| Integrated Audio | Dual channel digital mono microphones, uncompressed 24 bit 48 kHz |
| Audio Input | Dual channel mic, line, and +48 V input through 5 Pin 00B Audio Port |
| Headphone Output | 3.5 mm stereo headphone port |
