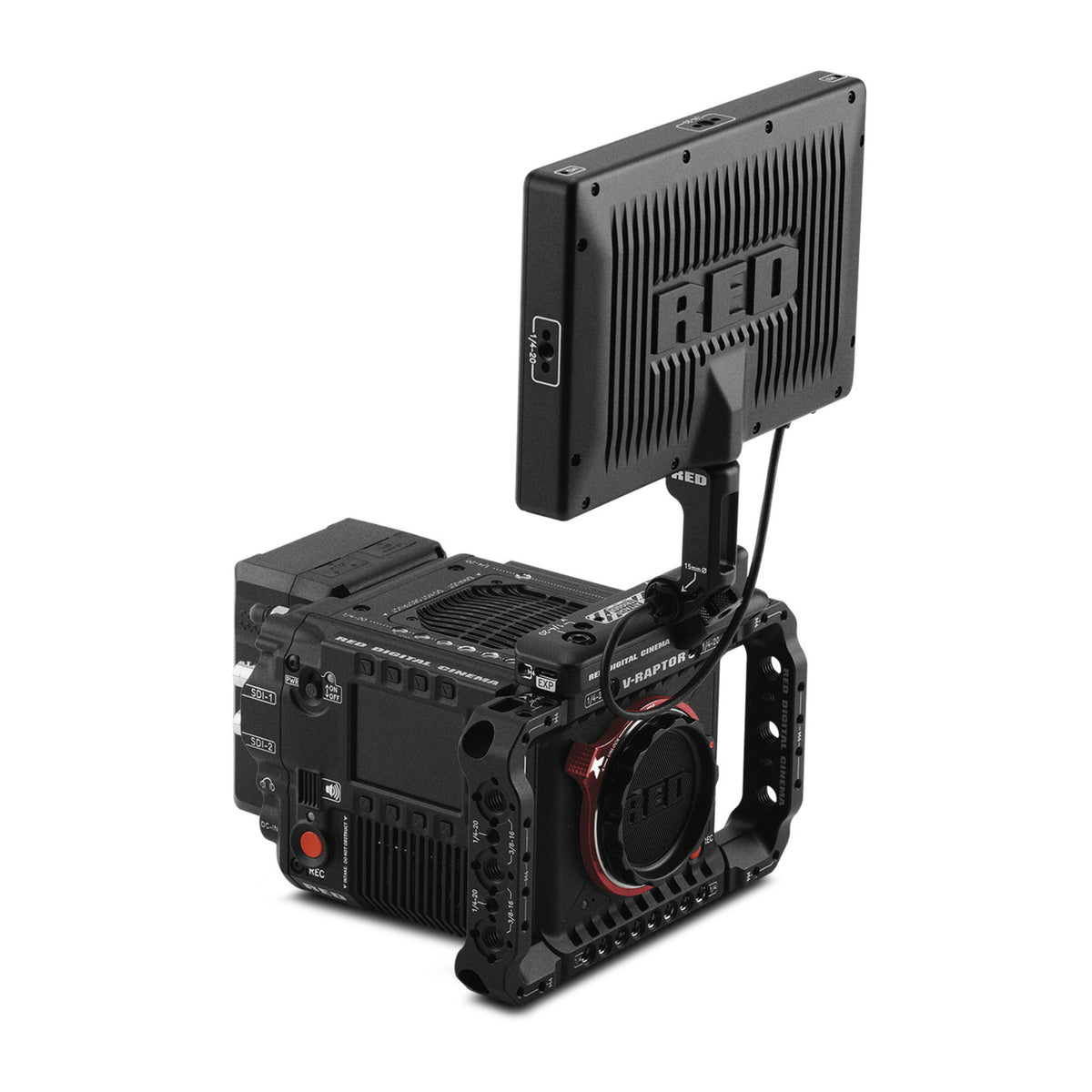

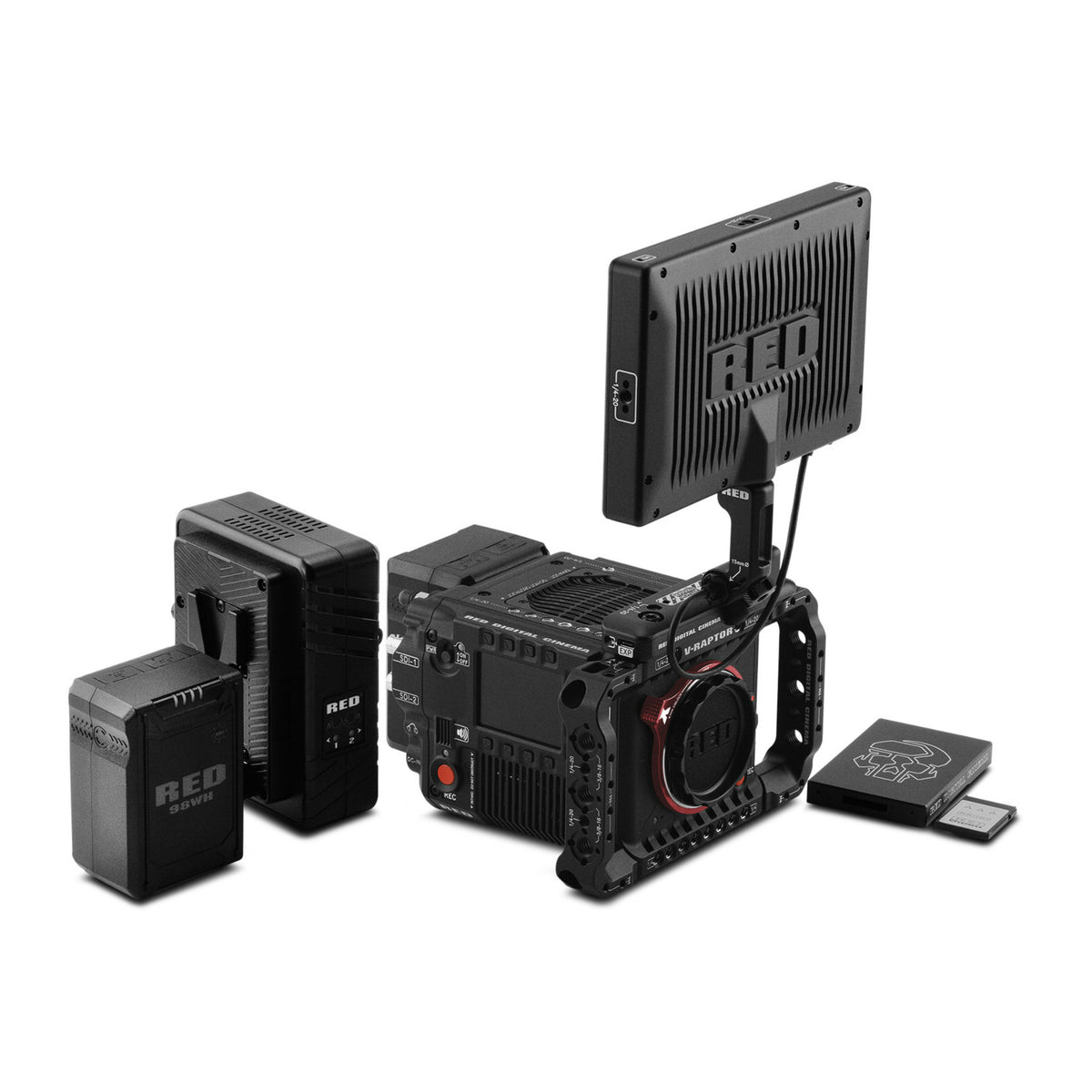

- V-RAPTOR [X] 8K VV RF Mount Camera System (Power cord not included)

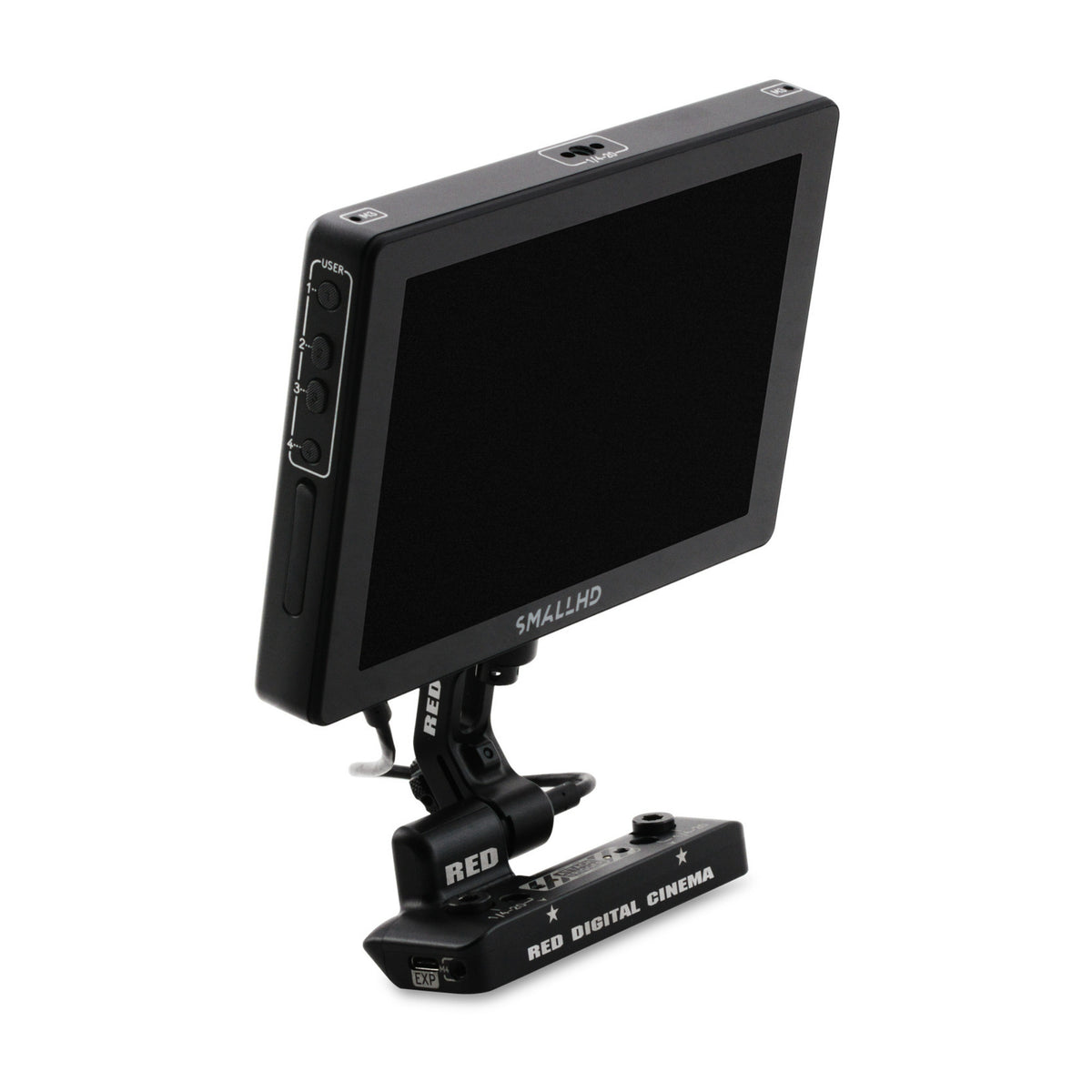

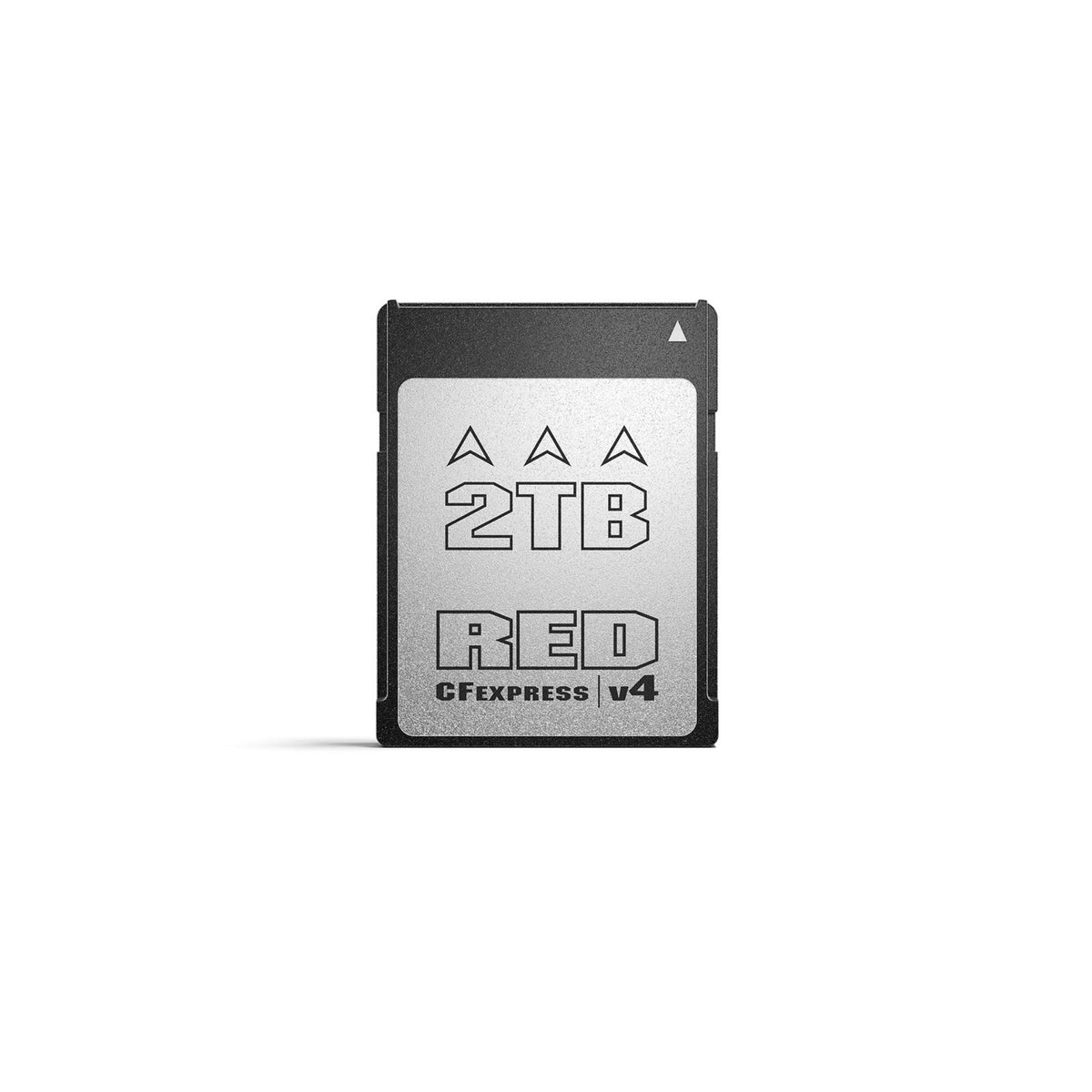

- DSMC3 RED Touch 7.0” LCD, 1x RED PRO CFexpress v4 Type B 2TB

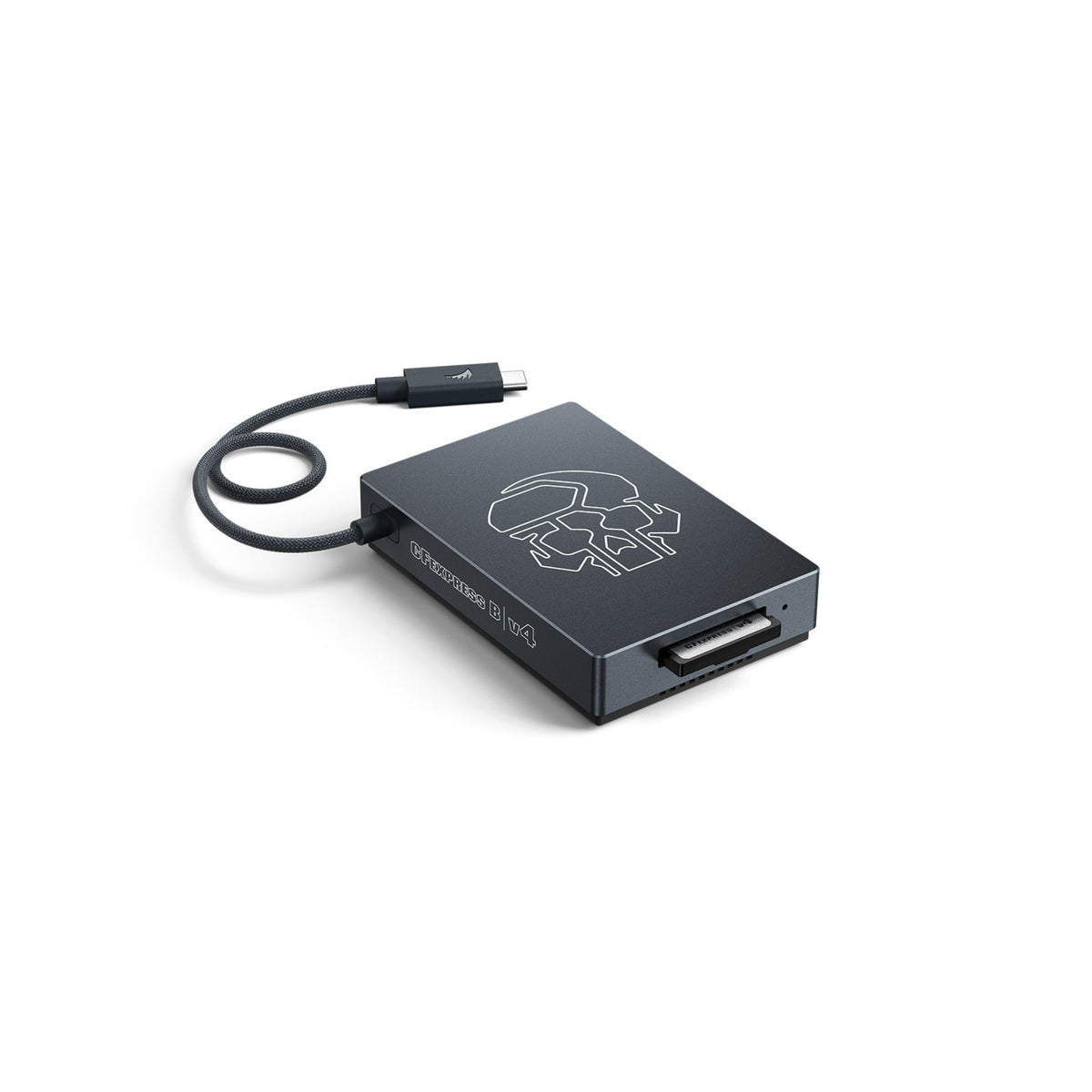

- RED PRO CFexpress v4 Type B Card Reader

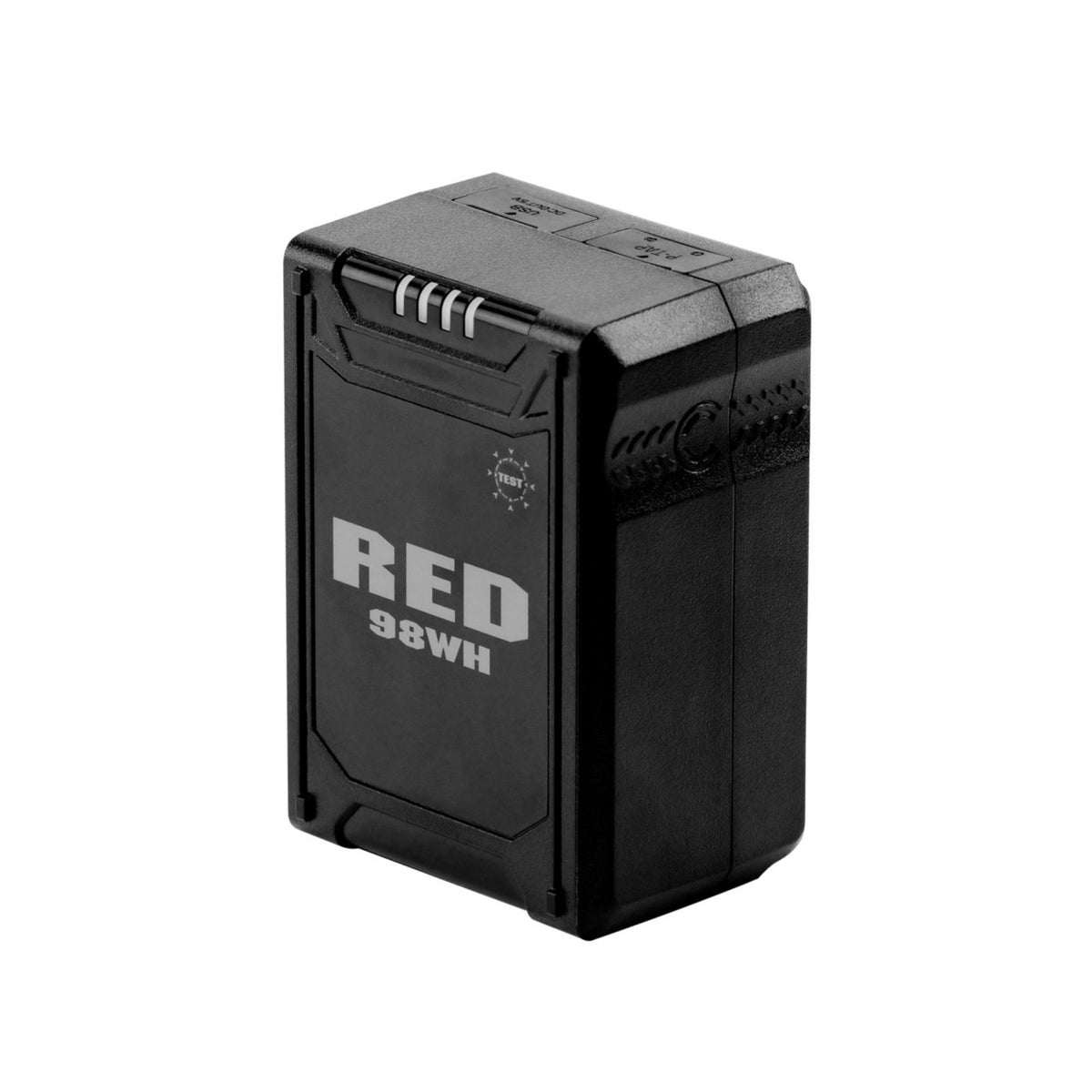

- 2x REDVOLT MICRO-V

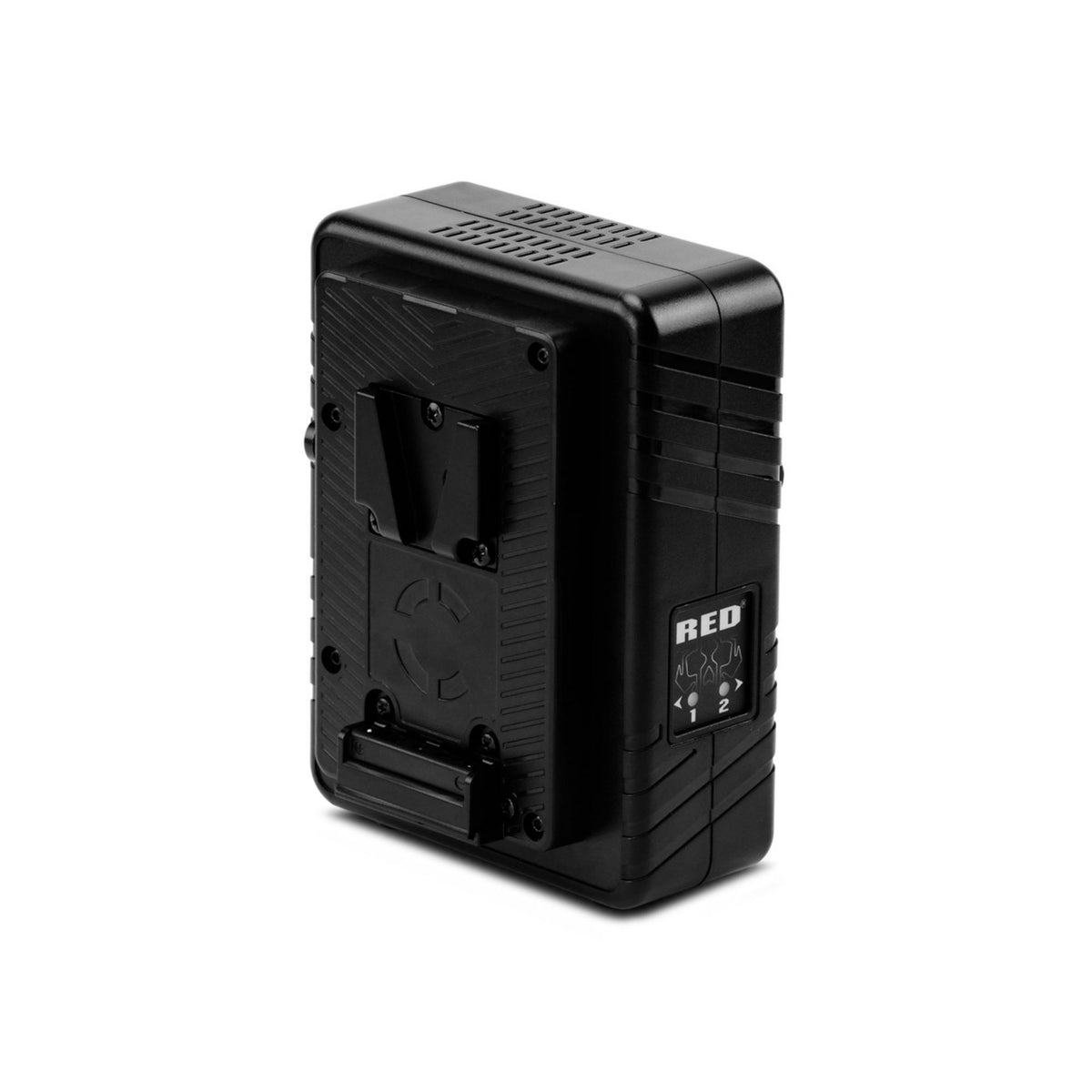

- Compact Dual V-Lock Charger (Power cord not included)

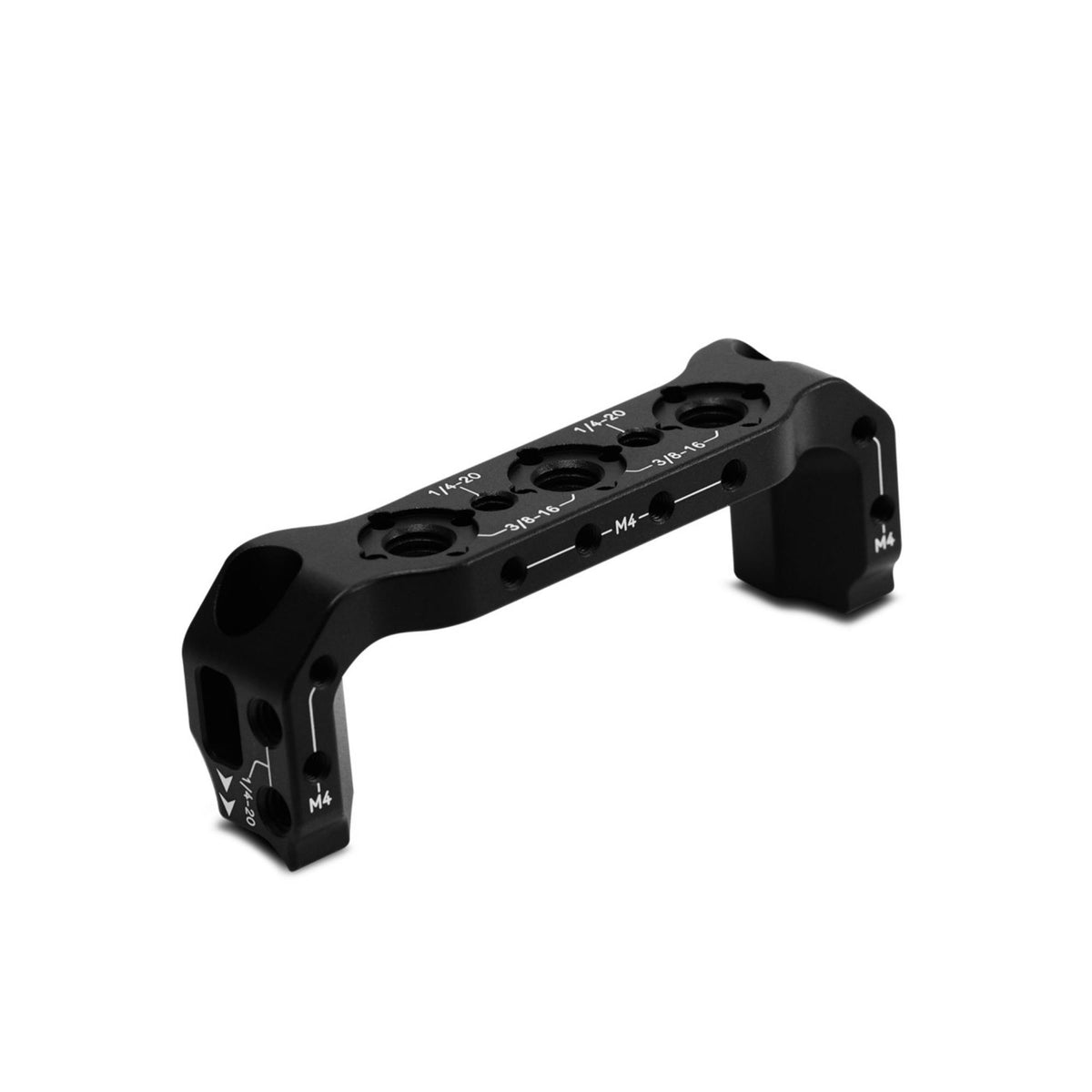

- 2x V-RAPTOR Wing Grip
- RED EXT-to-Timecode Cable 3', V-RAPTOR [X] Information Card
- 2 Year Standard Warranty
Trusted & Verified
RED Digital Cinema V-RAPTOR X 8K VV Starter Pack
- 35.4MP global shutter CMOS sensor captures 8192 x 4320 resolution
- Records up to 120 fps at 8K 17:9 and 150 fps at 8K 2.4:1
- 17+ stops of dynamic range supports demanding cinema workflows
- REDCODE RAW acquisition supports resolutions from 8K through 2K
- Integrated locking RF mount supports electronic communication
- CFexpress Type B media supports data rates up to 800 MB/s
- Dual 12G SDI outputs support professional monitoring workflows
- Phase detect autofocus includes face detection
- Compact aluminum alloy camera body weighs 4.03 lb
The RED Digital Cinema V-RAPTOR X 8K VV combines large format 8K acquisition, global shutter capture, high frame rate performance, and REDCODE RAW recording in a compact DSMC3 camera body. Its 35.4 MP global shutter CMOS sensor captures 8192 x 4320 pixels across a 40.96 mm x 21.60 mm imaging area and delivers 17 plus stops of base dynamic range. The global shutter architecture makes the camera particularly relevant for productions involving fast subjects, moving cameras, visual effects, and other shots where motion integrity is important, while the 8K VV image provides substantial resolution for detailed masters, reframing, stabilization, compositing, and multiple delivery formats.
8K REDCODE RAW and High Frame Rate Capture
V-RAPTOR X records REDCODE RAW at up to 120 fps in full 8K 17:9 and up to 150 fps in 8K 2.4:1. Reducing resolution expands the high speed range to 240 fps at 4K 17:9, 320 fps at 3K 17:9, and 600 fps at 2K 2.4:1, allowing cinematographers to move between full resolution acquisition and specialized slow motion within the same camera system. R3D files preserve 16 bit RAW sensor data while recording ISO, white balance, and other color decisions as metadata, giving post production teams greater control over image development. Dedicated Apple ProRes recording is also available in ProRes 4444 XQ, 4444, 422 HQ, 422, and 422 LT at resolutions up to 4096 x 2160.
Global Vision and IPP2 Color Workflow
RED Global Vision expands the capabilities of the global shutter sensor with Extended Highlights and Phantom Track. Extended Highlights is designed for scenes where additional information is needed in extremely bright image areas, providing another capture option beyond the camera's base 17 plus stop dynamic range. Phantom Track supports specialized virtual production workflows by recording separate R3D sequences from multiple LED volume instances. RED Image Processing Pipeline 2 provides REDWideGamutRGB and Log3G10 processing with support for 33 x 33 x 33 3D LUTs and CDL adjustment, creating a controlled color path from on set monitoring through grading and finishing.
Locking RF Mount, CFexpress Media, and Professional Monitoring
The integrated locking RF mount provides electronic communication with compatible lenses and supports additional lens systems through compatible adapters. Qualified CFexpress Type B media handles data rates up to 800 MB/s for demanding resolution and frame rate combinations. Dual 12G SDI outputs support independent professional monitoring paths with 10 bit 4:2:2 output up to 4096 x 2160 at 60p. The proprietary top accessory port supports compatible RED monitoring and control devices, while the integrated 2.4 inch LCD provides camera control without functioning as a video preview monitor.
Connected DSMC3 Production Platform
Tri level genlock, LTC timecode input, RS 232 control, dual band Wi-Fi, USB C, and compatible Ethernet workflows provide multiple options for synchronized and remotely operated productions. RED Control supports camera operation and live preview, while supported network workflows include direct Camera to Cloud integration with Frame.io or Amazon S3. Compatibility with the RED Connect Module also enables live 8K R3D video over IP or live 4K through SMPTE ST 2110. Phase detect autofocus with face detection provides additional focusing support when used with compatible lenses.
Compact V Lock Camera Body
The aluminum alloy body measures 5.9 inches long by 4.5 inches wide by 4.3 inches high and weighs approximately 4.03 lb without the body cap and CFexpress card. An integrated V Lock battery interface is optimized for Micro V Lock batteries, while the 6 pin DC input accepts 11 to 17 V DC.
Imaging:
| Sensor Type | V-RAPTOR X 8K VV 35.4 Megapixel Global Shutter CMOS |
| Effective Pixels | 8192 x 4320 |
| Sensor Size | 40.96 mm x 21.60 mm, diagonal 46.31 mm |
| Dynamic Range | 17+ stops |
Lens Mount:
| Mount Type | Integrated locking RF mount with electronic communication |
| PL Lens Support | Supports /i PL lenses with RED RF to PL adapters |
| Additional Adapter Support | Supports Canon EF Adapter with communication and other adapters based on the RF mount |
Recording:
| Maximum Data Rate | Up to 800 MB/s using RED branded or other qualified CFexpress media cards |
| Media Type | CFexpress Type B |
| 8K Maximum Frame Rate | 120 fps at 8K 17:9 |
| 8K 2.4 | 1 Maximum Frame Rate: 150 fps |
| 7K Maximum Frame Rate | 140 fps at 7K 17:9 |
| 7K 2.4 | 1 Maximum Frame Rate: 175 fps |
| 6K Maximum Frame Rate | 160 fps at 6K 17:9 |
| 6K 2.4 | 1 Maximum Frame Rate: 200 fps |
| 5K Maximum Frame Rate | 192 fps at 5K 17:9 |
| 5K 2.4 | 1 Maximum Frame Rate: 240 fps |
| 4K Maximum Frame Rate | 240 fps at 4K 17:9 |
| 4K 2.4 | 1 Maximum Frame Rate: 300 fps |
| 3K Maximum Frame Rate | 320 fps at 3K 17:9 |
| 3K 2.4 | 1 Maximum Frame Rate: 400 fps |
| 2K Maximum Frame Rate | 480 fps at 2K 17:9 |
| 2K 2.4 | 1 Maximum Frame Rate: 600 fps |
| Playback Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps |
REDCODE RAW:
| 8K Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x |
| 7K Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 2x, 1.8x, 1.6x |
| 6K Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 1.5x, 1.3x, 1.25x |
| 5K Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1 |
| 4K Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1 |
| 3K Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1 |
| 2K Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1 |
ProRes Recording:
| Formats | ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, ProRes 422 LT |
| Maximum Dedicated Recording Resolution | Up to 4K 4096 x 2160 at 120P |
| Proxy Recording | Up to ProRes 422 HQ in 2K 2048 x 1080 at up to 60P |
Construction and Dimensions:
| Construction | Aluminum Alloy |
| Dimensions | 5.9 inches x 4.5 inches x 4.3 inches |
| Metric Dimensions | 149.63 mm x 115.5 mm x 108 mm |
| Weight | 4.03 lb without body cap and CFexpress card |
Power:
| Battery Interface | Integrated V-Lock battery interface optimized for Micro V-Lock batteries |
| DC Power Input | 11 V to 17 V through 6 Pin DC IN |
Operating Environment:
| Operating Temperature | 0 degrees C to 40 degrees C, 32 degrees F to 104 degrees F |
| Storage Temperature | Minus 20 degrees C to 50 degrees C, minus 4 degrees F to 122 degrees F |
| Relative Humidity | 0% to 85% non condensing |
Color and Image Processing:
| Color Management | Image Processing Pipeline 2 |
| 3D LUT Support | 33 x 33 x 33 |
| CDL Support | Import and adjustment supported |
| RED Global Vision | Extended Highlights and Phantom Track recording modes |
Audio:
| Integrated Audio | Dual channel digital mono microphones, uncompressed 24 bit 48 kHz |
| External Audio Input | Dual channel mic, line, and 48 V input through 5 Pin 00B Audio Port |
| Headphone Output | 3.5 mm stereo headphone port |
Focus:
| Autofocus | Phase detect with face detection |
Connectivity and Monitoring:
| Wireless | Dual band Wi-Fi at 2.4 GHz or 5 GHz |
| Wired Control | USB-C or Ethernet with compatible adapter |
| Monitor Outputs | Dual 12G SDI with 6G SDI, 3G SDI, and 1.5G SDI modes |
| 12G SDI Output | Up to 4096 x 2160 4:2:2 at 60p |
| 6G SDI Output | Up to 4096 x 2160 4:2:2 at 30p, 25p, and 24p |
| 3G SDI Output | Up to 2048 x 1080 4:2:2 at 60p |
| 1.5G SDI Output | Up to 2048 x 1080 4:2:2 at 30p, 25p, and 24p |
| Genlock | Tri Level Genlock input through 9 Pin EXT |
| Timecode | LTC Timecode input through 9 Pin EXT |
| Control | RS232 CTRL using RCP2 through 9 Pin EXT |
